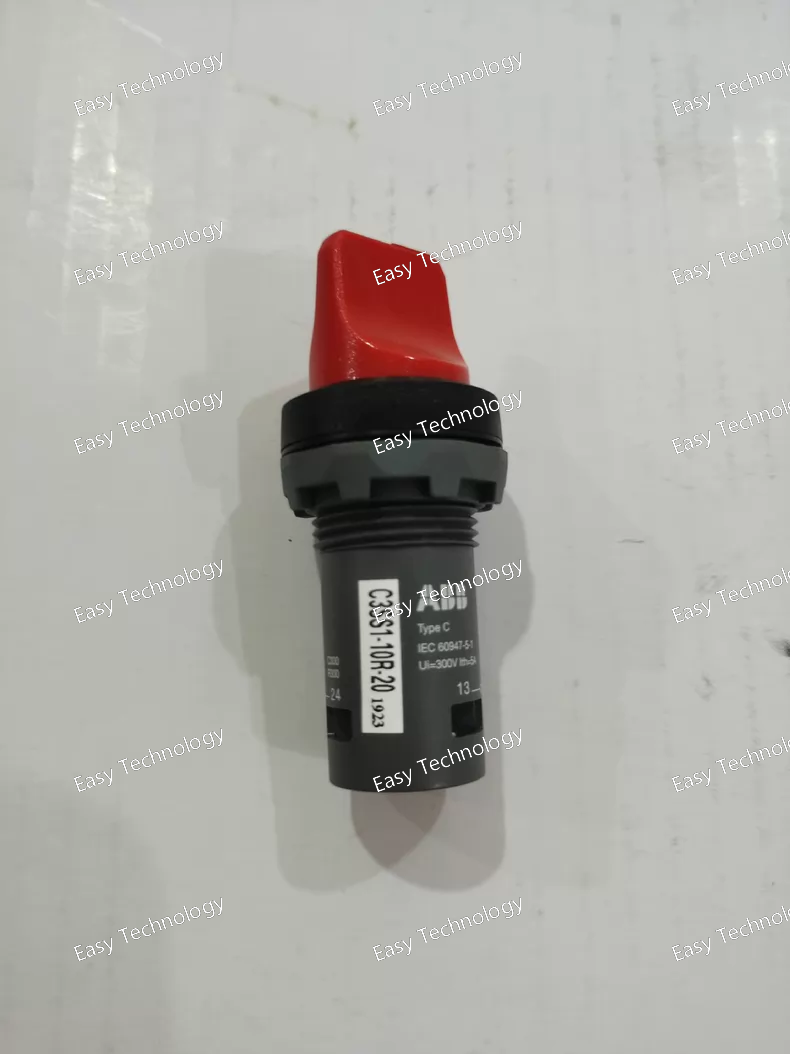

Technical Parameters General Product Type: Selector switch (compact range) Model: C3SS1‑10R‑20 Actuator: Short rotary handle (red) Illumination: Non‑illuminated Function: Maintained (latching) 3‑position selector Maintained Positions: A, B, C Contact Configuration: 2 × Normally Open (NO) contacts 0 × Normally Closed (NC) contacts Panel Cut‑out Diameter: 22 mm Mechanical Bezel / Housing Material: Black plastic Operator Type: Short handle Number of Positions: 3 Throw / Angle: Approx. 45° between positions Contact Actuation: Maintained through all three positions Mounting / Terminals: Screw terminal connections Compact Size (Approx.): ~30 mm height × ~30 mm width × ~72 mm depth Mechanical Life: ~500,000 operations (typical) Electrical Ratings Rated Operational Voltage: up to ~300 V AC/DC Rated Operational Current (AC‑15): ~1 A @ 220–240 V AC; ~1.5 A @ 24–127 V AC Rated Operational Current (DC‑13): ~0.2 A @ 125 V DC; ~0.3 A @ 24 V DC Contact Material: Industrial silver alloy or equivalent Environmental & Protection Operating Temperature Range: ~‑25 °C to +70 °C Storage Temperature Range: ~‑40 °C to +85 °C Front Protection Rating: IP66 / IP67 / IP69K (when correctly mounted in panel) Terminal Protection: IP20 Pollution Degree: Suitable for typical industrial environments Standards & Compliance Designed to conform to international low‑voltage control equipment standards (e.g., IEC/EN 60947 series). Applications Mode selection (e.g., local/auto/remote) Forward/neutral/reverse or multi‑state control logic Manual inputs and overrides in automation systems Control panel operator stations Machinery and process control interfaces

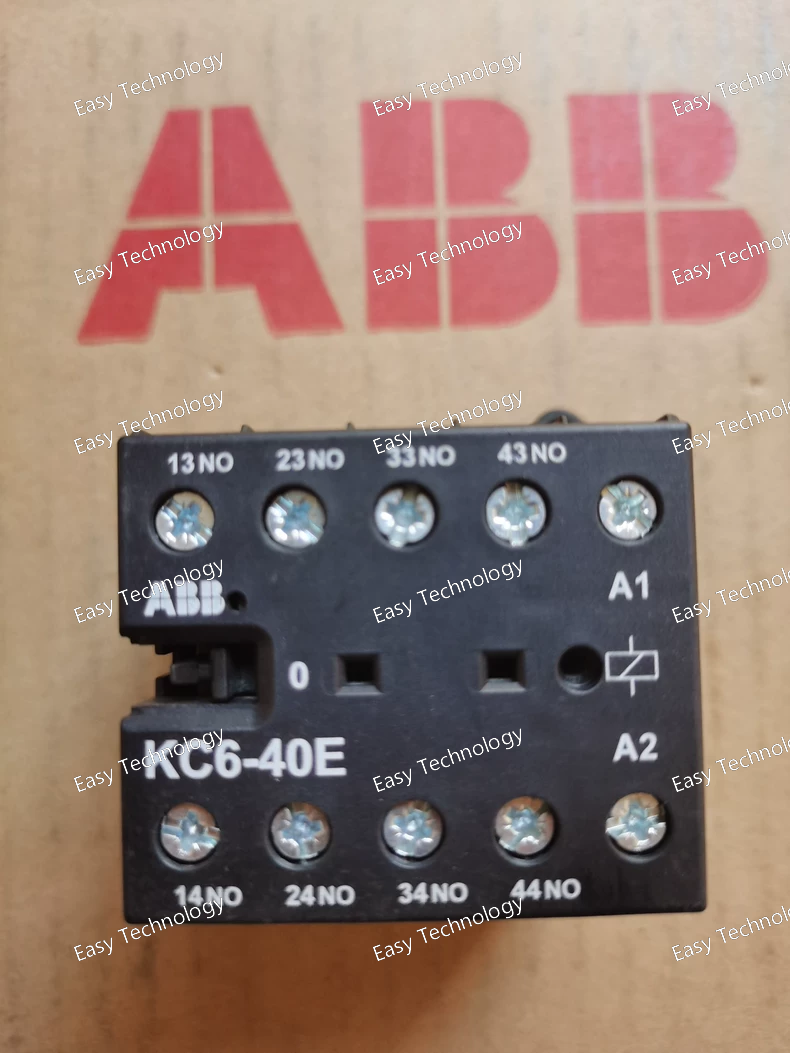

Technical Parameters General Product Type: Miniature contactor relay (mini contactor) Series: KC6 Model / Order Code: KC6‑40E (e.g., KC6‑40E‑05) Control Voltage: 220 – 240 V DC coil Number of Poles: 4 Contact Configuration: 4 × Normally Open (NO) Mounting: DIN‑rail or panel mount with screw terminals Coil Consumption: Low coil power (approx. ~3.5 W at pull‑in and holding) Coil Type: DC‑operated, hum‑free coil for silent operation Switch Position Indication: Incorporated for visible state of contacts Housing: Compact block design for tight spaces Electrical Ratings Rated Control Supply Voltage (Uc): 220 – 240 V DC Rated Insulation Voltage (Ui): Approx. 690 V (IEC) Rated Impulse Withstand Voltage (Uimp): ~6 kV Rated Operational Current (AC‑15): Up to ~4 A at 220 – 240 V AC (control/auxiliary loads) Rated Operational Current (DC‑13): ~0.4 A at 220 – 240 V DC (control loads) Main/Control Circuit Capability: Suitable for small control and signal switching loads Mechanical Terminal Type: Screw connection, secure wiring Mechanical Endurance: High mechanical life suitable for frequent switching Electrical Switching Frequency: Designed for moderate control switching cycles Contact Material: Standard silver alloy or equivalent industrial contact material Physical Approx. Dimensions: Width: ~52.5 mm Depth: ~46.5 mm Height: ~57.5 mm Weight: ~0.175 kg Enclosure Protection: IP20 at terminals (front protection as panel design allows) Environmental Operating Temperature Range: Typical industrial ambient range (e.g., −25 °C to +55 °C) Storage Temperature Range: Extended (e.g., −40 °C to +80 °C) Pollution Degree: Suitable for industrial control environments Applications Signal and control circuit switching Industrial automation control panels Motor control auxiliary switching Residential/commercial electrical systems Space‑limited relay/contactor functions

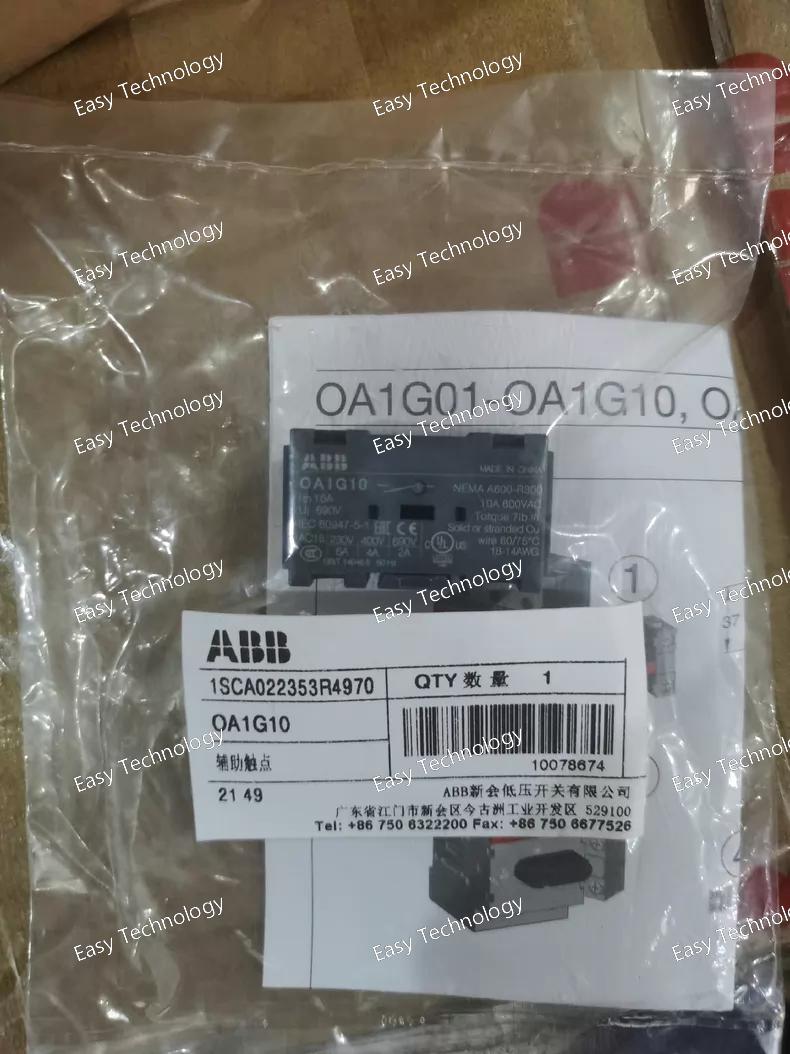

Technical Parameters General Product Type: Auxiliary Contact Block Model: OA1G10 Configuration: 1 × Normally Open (NO) contact Accessory Type: Auxiliary contact for control and indication circuits Mounting: Snap‑on or side mounting accessory Electrical Ratings Rated Operational Voltage (Ur): Up to 690 V Insulation Voltage (Ui): 690 V Thermal Current (Ith): 16 A free‑air (ambient) Rated Contact Current: Typical control‑circuit rating compatible with industrial switchgear (up to ~16 A) Contact Type: Single‑pole auxiliary contact (switching contact only) Mechanical & Physical Contact Blocks: 1 normally open contact Terminal Type: Screw termination or compatible connector interface Construction: Compact, block‑style accessory Weight: Approx. 0.015 kg External Dimensions: Approx. 11 mm (width) × 37 mm (height) × 21 mm (depth) Environmental Ambient Operating Temperature: Typical industrial range (approx. −25 °C to +70 °C) Pollution Degree: Industrial environments Protection Rating: Auxiliary terminals rated to IP20 (when installed in panel) Applications Status feedback for disconnect switches and contactors Control circuit signaling in automation panels Auxiliary switching for industrial machinery and electrical systems Integration with motor control centers and switchboards Key Features Single NO auxiliary contact for control signal extension Compact design for space‑saving panel layouts Wide voltage range up to 690 V for versatile use Easy mounting on compatible ABB switchgear and accessories Broad application scope in industrial control systems

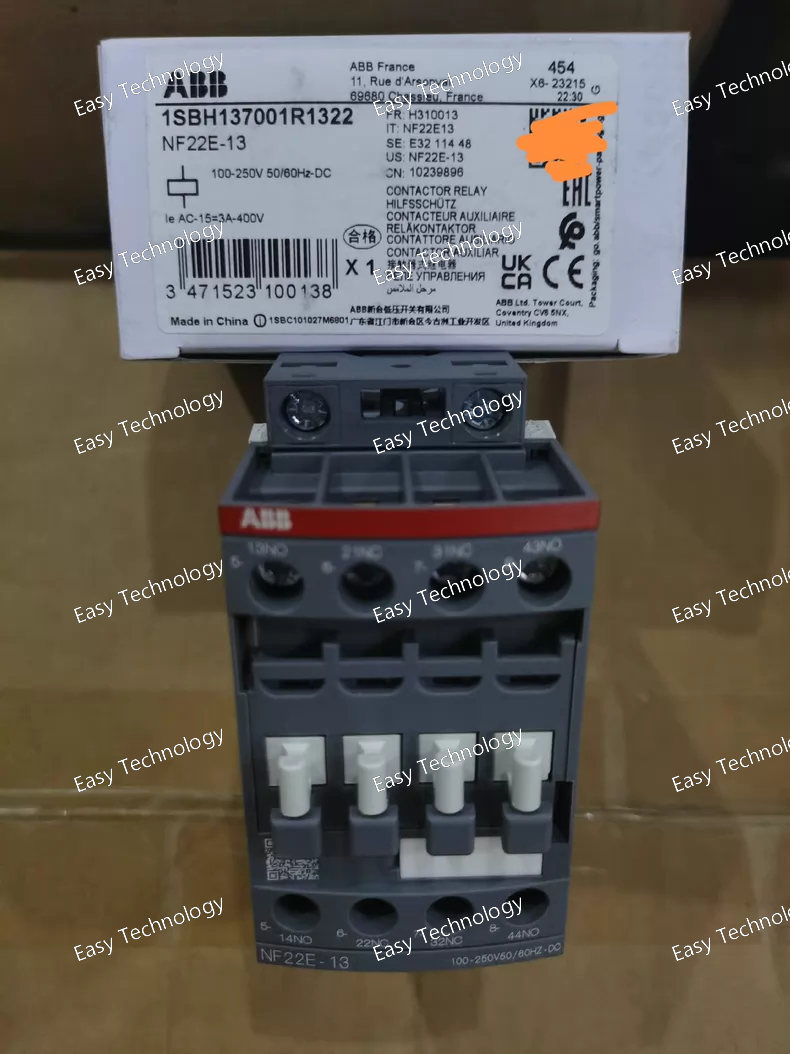

Technical Parameters General Product Type: Contactor relay / auxiliary contactor Model: NF22E‑13 Poles: 4 poles (4P) Contact Configuration: 2 × Normally Open (NO) + 2 × Normally Closed (NC) auxiliary contacts Mounting / Terminal Type: Screw terminal connections Design: Block type relay suitable for industrial panels Control / Coil Rated Control Supply Voltage: 100 … 250 V AC/DC Rated Frequency: 50 / 60 Hz (for AC coils) Coil Operation: AC/DC compatible within the specified range Electrical Ratings Rated Operational Voltage (Main/Auxiliary Circuits): Up to 690 V Rated Insulation Voltage (Ui): Up to 690 V (IEC) / 600 V (UL/CSA) Conventional Free‑air Thermal Current (Ith): 16 A Rated Operational Current AC‑15: 6 A @ 24 / 127 V AC 4 A @ 220 / 240 V AC 3 A @ 400 / 440 V AC 2 A @ 500 / 690 V AC Rated Operational Current DC‑13: 6 A @ 24 V DC 2.8 A @ 48 V DC 1 A @ 72 V DC 0.55 A @ 110 / 125 V DC 0.27 A @ 220 / 250 V DC 0.15 A @ 400 V DC 0.13 A @ 500 V DC 0.1 A @ 600 V DC Short‑time Withstand Current (Icw): ~140 A for 0.1 s ~100 A for 1 s Performance Maximum Electrical Switching Frequency: AC‑15: ~1200 cycles/hour DC‑13: ~900 cycles/hour Maximum Mechanical Switching Frequency: ~6000 cycles/hour Physical & Dimensions Width: ~45 mm Depth / Length: ~77 mm Height: ~86 mm Net Weight: ~0.27 kg Environmental & Protection Operating Ambient Temperature: −40 °C to +70 °C Storage Temperature: −60 °C to +80 °C Rated Impulse Withstand Voltage (Uimp): 6 kV Terminal Protection Rating: IP20 (terminals) Pollution Degree: Suitable for industrial environments Maximum Operating Altitude (without derating): ~3000 m Standards & Compliance Conforms to IEC/EN 60947‑5‑1 Complies with UL 508 and CSA C22.2 No.14 Applications Switching auxiliary and control circuits Interfacing between control logic (PLC, switches) and loads Automation control panels and machinery Interlocking and feedback signaling OEM and industrial control system integration

Technical Parameters General Product Type: Rotary selector switch (compact range) Model: C2SS5‑30B‑11 Actuator: Short handle, rotary Illumination: Non‑illuminated Color: Black actuator with chrome metal bezel Mounting: Panel mounting with 22 mm cut‑out Function: Maintained two‑position selector Contact Configuration: 1 × Normally Open (NO) contact 1 × Normally Closed (NC) contact Series: ABB compact C2SS selector switch range Electrical Ratings Rated Operational Voltage: 24 – 300 V AC/DC, max 300 V Rated Current (AC‑15): Suitable for signal/control loads Rated Current (DC‑13): Suitable for low‑power DC control loads Rated Insulation Voltage (Ui): 300 V Rated Impulse Withstand Voltage (Uimp): 6 kV Mechanical & Durability Mechanical Life: Approx. 500,000 operations Connection: Screw terminal connections Terminal Protection: IP20 at terminals Front Protection: High protection (e.g., IP66 / IP67 / IP69K) Pollution Degree: Industrial environments Ambient Operating Temperature: Approx. –25 °C to +70 °C Performance Switching Function: Maintained two‑position (e.g., A–C selector) Mechanical Endurance: High for frequent operator use Panel Sealing: Designed to maintain panel ingress protection when installed Applications Mode or function selection in control panels Manual input for automation control logic Forward/reverse or On/Off selection Operator station input in machinery and systems Signal selection and process control interfaces

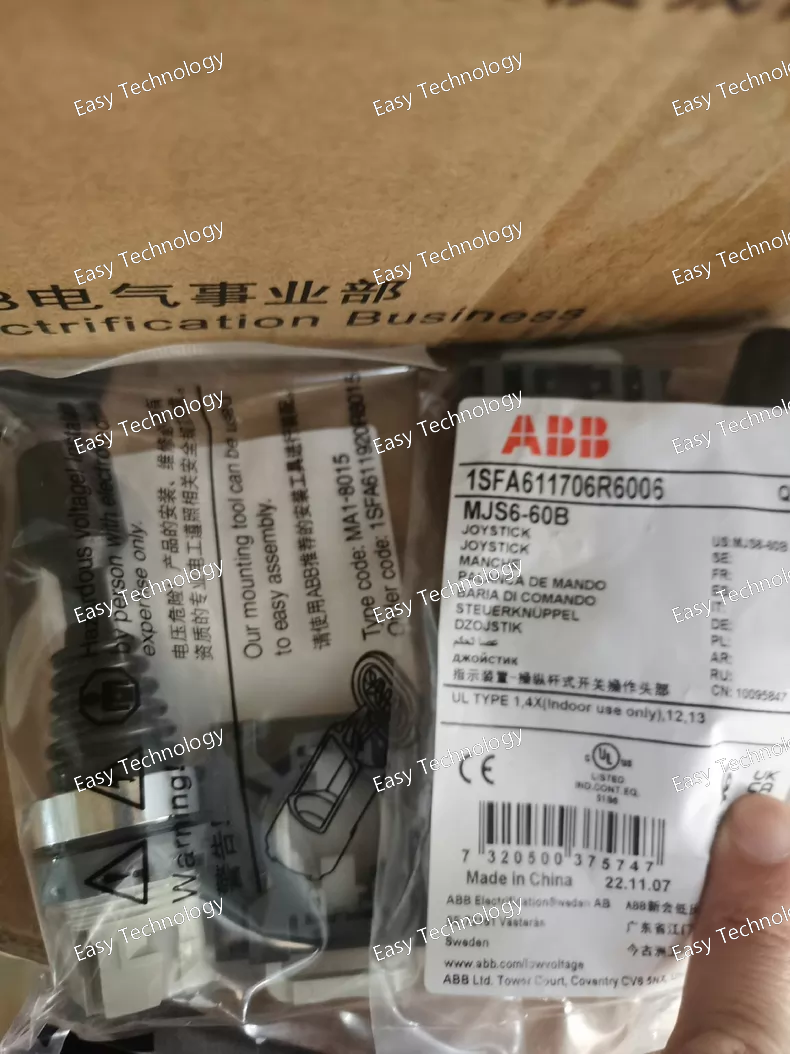

Technical Parameters General Product Type: Joystick operator (pilot device) Model: MJS6‑60B Actuator Type: Maintained joystick, multi‑direction control Illumination: Non‑illuminated Actuator Color: Black Mounting Cut‑out Diameter: Standard 22 mm panel hole Series: Modular pilot device Mechanical Operating Positions: Multi‑direction maintained (e.g., left, right, forward, reverse, center) Contact Blocks: Not included (sold separately; snap‑on modular contact blocks for NO/NC functions) Mounting Style: Panel mount with modular contact block installation Mechanical Life: High life for frequent manual actuation Housing Material: Durable industrial‑grade plastic / polycarbonate Electrical Contact Blocks: Optional accessory modules fit onto the base (contacts not included) Contact Ratings: Depend on fitted contact blocks (typically 6 A at 250 V AC for standard NO/NC modules) Connection Type: Screw‑type terminals on contact blocks Electrical Life: Contact block dependent Physical Dimensions (Approx): Width: ~48 mm Height: ~54 mm Depth: ~100 mm (including actuator and contact blocks) Weight: Lightweight operator (contact blocks add weight) Environmental Operating Temperature Range: Typical industrial range (e.g., −25 °C to +70 °C) Storage Temperature Range: Extended range for transport/storage Protection Rating: Front: IP66/IP67 with proper panel sealing Terminals: IP20 Pollution Degree: Suitable for industrial environments Applications Machine control panels and operator consoles Direction selection and manual control for conveyors, hoists, and motors Mode selection in automated systems Manual override in industrial automation Control interface in production equipment

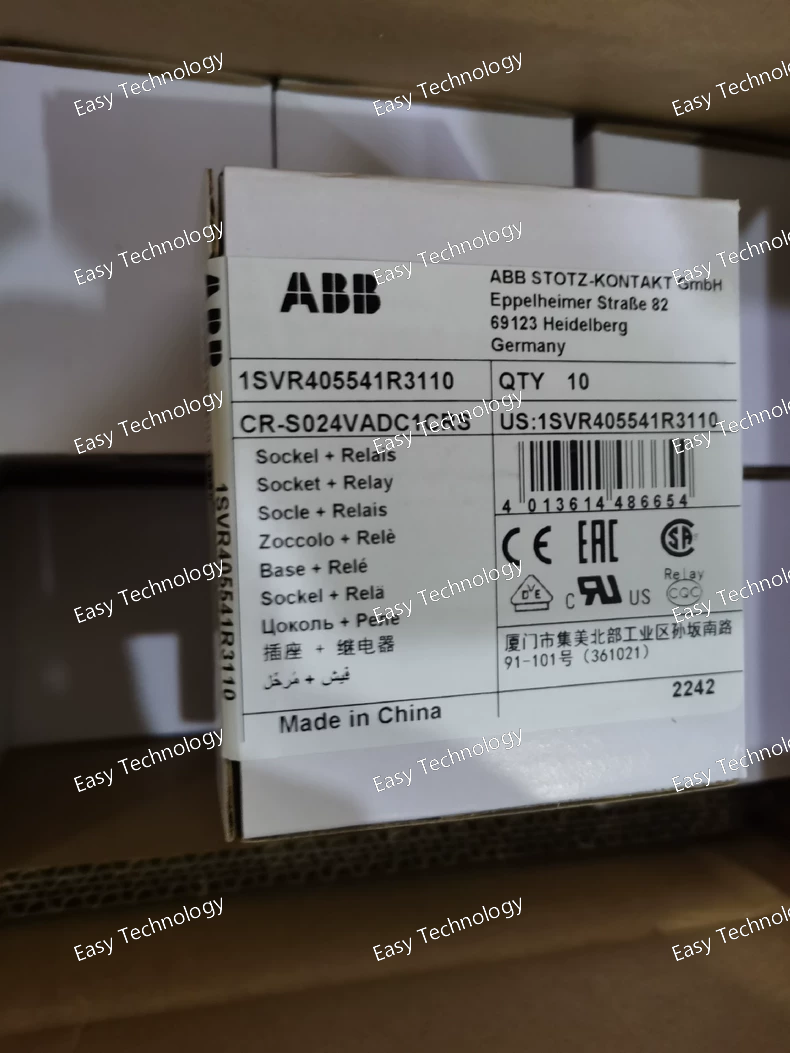

Technical Parameters General Product Type: Interface relay, complete unit Model: CR‑S024VADC1CRS Series: CR‑S slim interface relay family Mounting: DIN rail (TH35‑7.5) Terminal Type: Screw terminals Contact Configuration: 1 × Changeover (SPDT) contact Dimensions: Width: ~6.3 mm Height: ~76.4 mm Depth / Length: ~88.5 mm Weight: ~0.03 kg Electrical Rated Control Supply Voltage: 24 V AC/DC (± tolerance) Rated Operational Voltage (Output): up to 250 V AC Rated Operational Current: Up to 6 A (AC‑12 load at 230 V AC) Up to 6 A (DC‑12 load at 24 V DC) Up to 1 A (DC‑13 load at 24 V DC) Contact Type: SPDT (Single Pole Double Throw) Contact Material: Silver‑tin‑oxide (standard) Electrical Protection: IP20 at terminals Mechanical & Connection Terminal Connection Capacity: Flexible conductor: up to 2.5 mm² Rigid conductor: up to 2.5 mm² Tightening Torque: ~0.5 N·m Wire Stripping Length: ~7 mm Mounting Rail Standard: DIN rail IEC 60715 Environmental Operating Temperature Range: ~‑40 °C to +70 °C Storage Temperature Range: approx. 0 °C to +40 °C Pollution Degree: Industrial control environments Applications Isolation and amplification of control signals Interface between PLC/logic outputs and load circuits Switching of AC and DC loads in automation systems Signal multiplexing and control logic in panels Control and monitoring circuits in industrial equipment

Technical Parameters General Product Type: Emergency stop accessory / actuator shroud Model: CA1‑8053 Series: Pilot device accessories Color: Yellow (safety color) Material: Durable non‑metallic plastic Suitable For: Compact emergency stop pushbuttons up to ~40 mm diameter Mechanical & Physical Mounting Style: Panel mount over emergency stop pushbutton Protected Actuator Aperture: Designed to surround the emergency stop operator Dimensions (Typical): Width: ~60 mm Height: ~32 mm Depth: ~48 mm Weight: Lightweight accessory Anti‑Rotation Tabs: Included feature to keep the shroud correctly oriented on the panel Pad‑lock Slot: Integrated slot for pad‑locking the emergency stop actuator for lock‑out/tag‑out safety Compatibility Applicable To: Standard 22 mm compact emergency stop pushbutton enclosures Pushbutton Types: Works with CE3 / CE4 series and similar compact emergency stop devices Applications Industrial Control Panels: Safety enhancement for emergency stop functions Machinery Operator Stations: Protects against accidental actuation Automation Systems: Integrated into emergency stop circuits Safety Interlock Systems: Provides mechanical protection and compliance

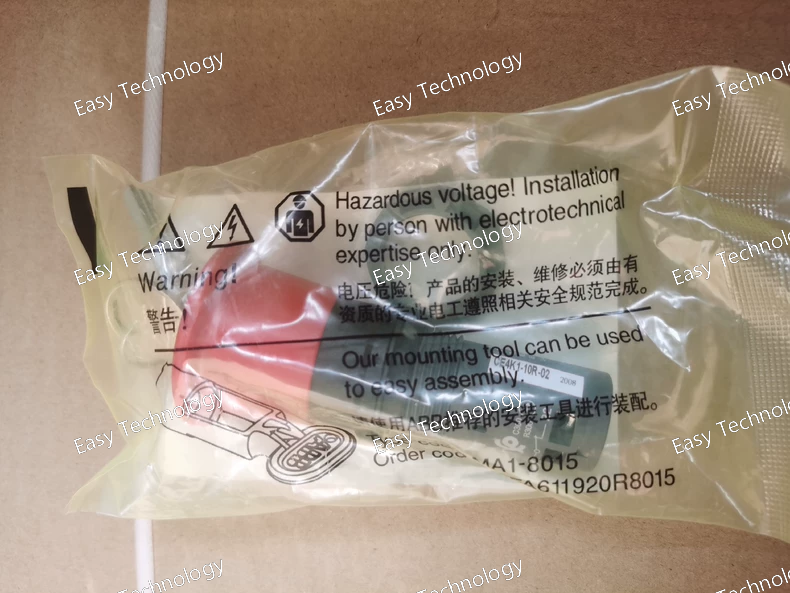

Technical Parameters General Product Type: Emergency Stop Pushbutton Model / Part Number: CE4K1‑10R‑02 Series: Compact pilot devices Actuator Style: Mushroom head, red Reset Method: Key release (positive key reset) Illumination: Non‑illuminated Number of Contacts: 2 × Normally Closed (NC) Number of NO Contacts: 0 Electrical Rated Operational Voltage: Approx. 24 – 300 V (AC/DC) Rated Current: Suitable for typical control circuits up to ~10 A at 250 V AC/DC (control/safety circuits) Rated Frequency: 50 / 60 Hz compatible Contact Configuration: 2 NC for safety circuit interruption Mechanical Panel Mount Size: 22 mm cut‑out Actuator Diameter: ~40 mm mushroom head Operator Function: Maintained (latches until key reset) Terminal Connection: Screw terminals Mechanical Durability: High mechanical life suitable for frequent safety use Protection & Environment Degree of Protection (Front): Suitable for high ingress resistance (IP66 / IP67 / IP69K level with proper sealing) Protection (Terminals): IP20 Ambient Operating Temperature: Approx. −25 °C to +70 °C Storage Temperature: ~−40 °C to +85 °C Pollution Degree: Industrial environments Physical Housing Material: Durable plastic/polycarbonate Color Scheme: Red actuator with black/grey body Mounting Type: Panel mount Applications Emergency stop function in industrial control panels Machinery safety shutdown circuits Operator stations requiring positive reset Automation equipment emergency control Safety interlock systems

Technical Parameters General Product Type: Auxiliary contact block Model: CAL5‑11 Mounting: Side mount accessory Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC) Terminal Type: Screw terminals Compatible With: A‑line series contactors and equivalent modular control relays Electrical Ratings Rated Operational Voltage (AC): up to 690 V AC Rated Operational Voltage (DC): up to 250 V DC Rated Operational Current (AC‑15): up to ~6 A at 24–127 V AC ~4 A at 220–240 V AC ~3 A at 380–440 V AC ~2 A at 500–690 V AC Rated Operational Current (DC‑13): ~6 A at 24 V DC ~2.8 A at 48 V DC ~1 A at 72 V DC ~0.55 A at 110–125 V DC ~0.3 A at 220–250 V DC Rated Insulation Voltage: ~690 V Short‑Time Withstand Current: ~140 A for 0.1 s Performance & Durability Mechanical Switching Frequency: up to ~3600 cycles/hour Electrical Switching Frequency: up to ~1200 cycles/hour Mechanical Durability: High cycle life suitable for frequent auxiliary switching Mechanical & Physical Dimensions (Approx.): Width: ~12 mm Height: ~74 mm Depth/Length: ~62 mm Weight: Lightweight compact block Degree of Protection: IP20 at auxiliary terminals Environmental Operating Temperature: Typical industrial ambient range Storage Temperature: Extended ambient range Pollution Degree: Suitable for industrial control environments Applications Auxiliary feedback and control contacts for contactors Status indication and interlock circuits Control logic extension in motor control panels and automation systems Industrial machinery and equipment control circuits

Technical Parameters General Product Type: Auxiliary contact block Model: HK1‑11 Contact Configuration: 1 × Normally Open (NO) + 1 × Normally Closed (NC) Mounting Type: Side or front mount accessory (designed to attach to compatible manual motor starters or contactors) Compatible With: Motor starters and control devices such as MS116, MS132, MS165 series and similar units Series/Application: Auxiliary switch accessory for control and signaling Electrical Ratings Rated Operational Voltage: Up to approximately 690 V AC / 600 V DC Rated Current: Typical auxiliary circuit rating such as 1 – 6 A depending on application and variant Rated Insulation Voltage: Suitable for industrial control circuit limits Rated Impulse Withstand Voltage: High enough for industrial accessory roles Switching Capacity: Suitable for control and feedback applications, not for main power breaking Mechanical Terminal Connection: Screw terminal type for auxiliary wiring Contact Actuation: Auxiliary contacts operate in conjunction with the main switching element of the host starter or contactor Compact Construction: Space‑efficient design to fit alongside primary device Installation: Snap‑on or side mount to manual motor starters or control devices without separate panel mount Environmental & Operating Operating Temperature Range: Typical industrial ambient range (e.g., approx. −25 °C to +60 °C) Storage Temperature: Extended range for transport and storage Protection Rating: Auxiliary contact body suited to typical indoor control panel environments Mechanical Durability: Designed for frequent auxiliary switching cycles Applications Auxiliary feedback and status indication in motor starter control circuits Enhancing control logic for contactors and manual starters Interlocking, alarm signaling, and automation system interfaces Auxiliary switching for control circuits in industrial machinery and panels

Technical Parameters General Product Type: Illuminated pilot light Model: CL2‑507G Indicator Color: Green Construction: Compact design with flat/round lens Mounting Type: Panel mount (standard 22 mm hole) Electrical Rated Operational Voltage: 48 – 60 V AC/DC Lamp Type: Integrated LED (no replaceable bulb) Current Consumption: Approx. 13 – 17 mA Rated Frequency: 50 / 60 Hz compatible Electrical Connection: Screw terminals Terminal Type: Screw clamp, suitable for solid and ferruled conductors Recommended Wire Stripping Length: ~8 mm Tightening Torque: ~0.9 N·m Mechanical & Physical Panel Cut‑out Diameter: 22 mm Net Dimensions: Approx. 30 × 30 × 52 mm (width × height × depth) Net Weight: Approx. 0.018 kg Lens Style: Round flat lens Environmental & Protection Ambient Operating Temperature: −25 °C to +70 °C Storage Temperature: −40 °C to +85 °C Front Protection Rating: IP66 / IP67 / IP69K (high dust and water resistance at the front) Protection at Terminals: IP20 Pollution Degree: Suitable for industrial environments
