ABB

Key Features: High Reliability: Built for industrial environments with robust performance under demanding conditions. Compatibility: Integrates seamlessly with ABB’s robotic controllers and peripheral systems. Precision Control: Supports accurate signal transmission or power management for automated processes. Modular Design: Facilitates easy installation, replacement, and maintenance. Typical Applications: Industrial robotics (e.g., assembly, welding, material handling). Automated manufacturing lines. Motion control and servo drive systems. Technical Specifications: Manufacturer: ABB Robotics. Part Number: 3HAB8001-13. Input/Output: Depends on configuration (refer to datasheet for details). Certifications: Complies with industrial safety and EMC standards.

602

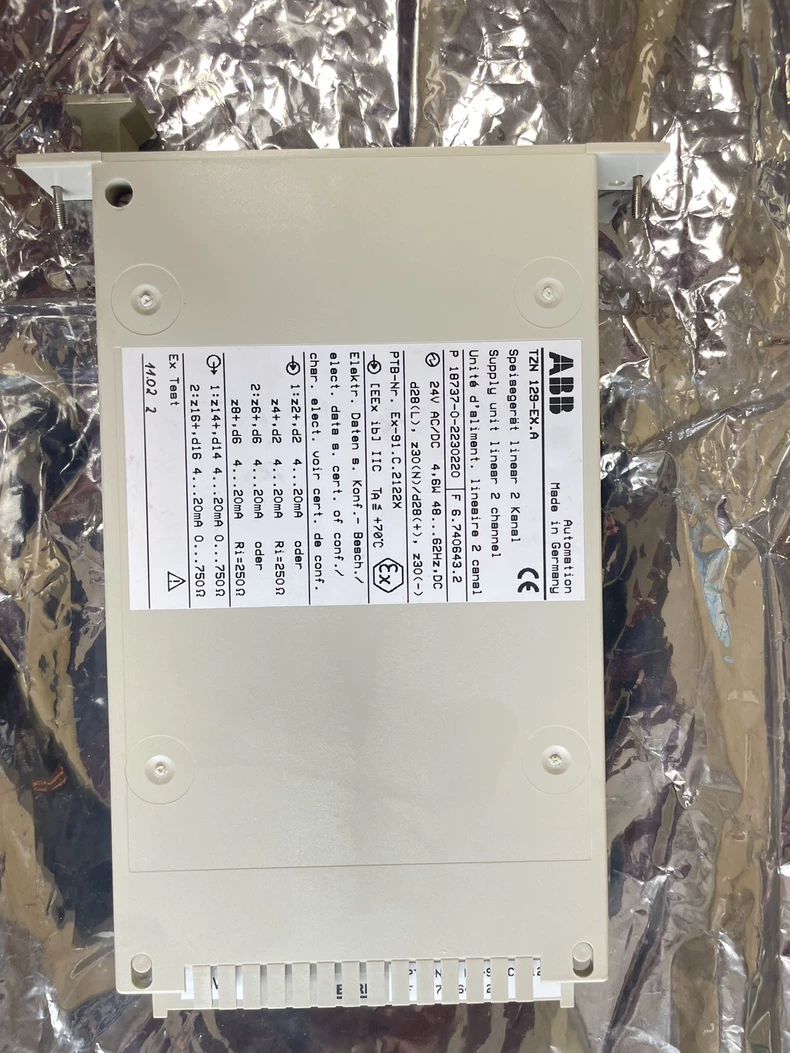

ABB

Key Features: Hazardous Area Protection: Certified for Zone 1/21 (gas/dust) and Zone 2/22, preventing ignition risks. Signal Isolation: Provides galvanic isolation for analog/digital signals (e.g., 4–20 mA, HART). Robust Design: High-quality materials for industrial durability (e.g., stainless steel or rugged polycarbonate housing). Certifications: Meets ATEX (Ex ia IIC T6), IEC 60079, and FM/CSA standards (region-dependent). Typical Applications: Oil & gas refineries Chemical/petrochemical plants Pharmaceutical and mining industries Technical Specifications: Input/Output: Configurable for analog/digital signals. Protection Rating: IP20/IP66 (enclosure-dependent). Operating Temperature: -40°C to +80°C. Mounting: DIN-rail or panel-mounted.

154

ABB

Key Features: High Reliability: Engineered for continuous operation in demanding industrial environments Precision Control: Delivers accurate power distribution for robotic movements Modular Design: Allows for easy installation and maintenance Robust Construction: Built to withstand vibration, dust, and temperature variations Typical Applications: Industrial robotic systems (welding, painting, assembly) Material handling automation Foundry and machining applications Automotive manufacturing lines Technical Specifications: Manufacturer: ABB Robotics Input Voltage: Typically 200-600V AC (verify specific model) Output Power: Designed for robot servo drive requirements Protection Class: IP54 or higher (depending on enclosure) Compatibility: Works with ABB IRB series robots and corresponding controllers

978

ABB

Key Features ✅ High Power Handling – Rated for 450A/1700V, making it suitable for heavy-duty applications. ✅ Low Switching Losses – Optimized for high-frequency operation with minimal energy loss. ✅ Robust Thermal Design – Features an advanced baseplate and low-inductance layout for efficient heat dissipation. ✅ Isolated Design – Provides electrical isolation for safe operation in high-voltage systems. ✅ Reliable Construction – Built with high-quality materials to withstand industrial conditions (vibration, humidity, temperature fluctuations). Typical Applications Industrial Motor Drives (e.g., CNC machines, elevators, pumps) Renewable Energy Systems (wind turbines, solar inverters) Traction & Rail Systems (locomotives, metro trains) Welding Equipment & High-Power Converters Uninterruptible Power Supplies (UPS) & HVDC Systems Technical Specifications Voltage Rating: 1700V Current Rating: 450A (continuous) Module Type: Dual/Three-phase IGBT with diode (configuration varies) Thermal Resistance (Rth(j-c)): Low thermal resistance for better cooling efficiency Mounting: Screw or press-fit terminals for secure connections Operating Temperature: -40°C to +150°C (junction temperature)

99

ABB

Key Features ✔ Advanced Control Capabilities – Optimized for high-power converters, rectifiers, and motor drives. ✔ Real-Time Processing – Fast signal processing for dynamic power regulation. ✔ Robust Industrial Design – Built for harsh environments (high temperature, vibration, EMI resistance). ✔ Modular & Scalable – Compatible with ABB’s automation systems for flexible integration. ✔ Redundant & Fault-Tolerant – Supports high-availability systems with fail-safe mechanisms. Typical Applications

819

ABB

Key Features & Benefits ✅ Ultra-Compact Design – Minimal footprint (400mm reach, 0.5kg payload) for space-constrained production lines. ✅ High Speed & Precision – 0.25s cycle time and ±0.01mm repeatability for rapid, accurate operations. ✅ Lightweight & Agile – Optimized for delicate tasks (electronics, small components). ✅ Integrated Vision Ready – Compatible with ABB PickMaster vision guidance systems. ✅ Plug-and-Play Integration – Works seamlessly with ABB OmniCore or IRC5 controllers. Typical Applications Electronics Assembly (PCBs, connectors) Pharmaceutical & Medical Device Handling Small-Part Packaging & Sorting Lab Automation & Testing Stations Consumer Goods (Watchmaking, Cosmetics) Technical Specifications Model: IRB 910SC (3HAC056112-001) Type: 4-axis SCARA robot Reach: 400mm Payload: 0.5kg Repeatability: ±0.01mm Mounting: Bench, wall, or ceiling Protection Rating: IP30 (standard) / IP40 (optional) Controller: OmniCore C30 (recommended)

868

ABB

Key Features High Torque Density: Delivers exceptional torque in a compact form factor Precision Performance: ±1 arc-minute positioning accuracy (model dependent) Robust Construction: IP65-rated protection against dust and water jets Smooth Operation: Low cogging design for vibration-free performance Thermal Efficiency: Optimized cooling design for continuous duty operation Technical Specifications Frame Size: 90mm (EN23W standard) Power Rating: 2kW (continuous) Speed Range: 0-3000 RPM Torque Output: 6.4 Nm (peak) Feedback System: High-resolution encoder (20-bit absolute) Voltage Rating: 200V AC (3-phase) Protection Class: IP65 Connector Type: Waterproof industrial connector Typical Applications CNC machine tools Robotics and automated assembly Packaging machinery Semiconductor manufacturing equipment Printing and converting systems

403

ABB

Key Features High Power Density: 1.5kW output in a compact 90mm frame size (EN23W standard) Precision Performance: ±1 arc-minute positioning accuracy Optimized Thermal Design: Advanced cooling for continuous duty operation Robust Construction: IP65 protection rating (dust-tight and protected against water jets) Smooth Operation: Low cogging design minimizes vibration Integrated Feedback: High-resolution encoder (20-bit absolute) for precise positioning Technical Specifications Rated Power: 1.5kW Rated Torque: 4.77Nm Peak Torque: 14.3Nm Speed Range: 0-3000 RPM Voltage Rating: 200V AC (3-phase) Frame Size: 90mm (EN23W) Protection Class: IP65 Insulation Class: F Bearing Type: Double shielded ball bearings Connector: Waterproof industrial connector Performance Characteristics Torque Constant: 1.2Nm/A Rotor Inertia: 1.8×10⁻³kg·m² Electrical Time Constant: 2.5ms Mechanical Time Constant: 5ms Typical Applications Industrial robotics CNC machinery Packaging equipment Semiconductor manufacturing Printing and converting systems Automated assembly lines Compatibility Designed for seamless integration with ABB's: ACSM1 servo drives MicroFlex e150/e180 drives Ability Motion Studio programming environment Can be adapted to work with third-party servo drives Certifications and Compliance CE marked UL recognized RoHS compliant REACH compliant Environmental Specifications Operating Temperature: 0°C to +40°C (ambient) Storage Temperature: -20°C to +65°C Altitude: Up to 1000m above sea level Humidity: 20-80% RH (non-condensing)

742

ABB

Key Features ✔ High Dynamic Performance – Optimized for rapid acceleration/deceleration with low rotor inertia. ✔ Precision Positioning – Integrated high-resolution encoder (20-bit absolute) for ±1 arc-minute accuracy. ✔ Robust Construction – IP65 protection (dust-proof & resistant to water jets) for harsh environments. ✔ Efficient Cooling – Advanced thermal design for continuous duty operation without overheating. ✔ Smooth Operation – Low cogging and vibration for high-precision applications. Technical Specifications Parameter Specification Rated Power 0.75 kW Rated Torque 2.39 Nm Peak Torque 7.16 Nm Speed Range 0–3000 RPM Voltage Rating 200V AC (3-phase) Frame Size 90mm (EN23W standard) Protection Class IP65 Feedback System 20-bit absolute encoder Bearing Type Double-shielded ball bearings Connector Type Industrial waterproof connector Typical Applications Industrial Robotics (articulated arms, SCARA, delta robots) CNC Machining (milling, grinding, laser cutting) Packaging Automation (pick-and-place, labeling, filling) Semiconductor Handling (wafer transfer, chip placement) Printing & Converting (web tension control, rotary die-cutting)Certifications & Compliance CE Marked (EU compliance) UL Recognized (North America) RoHS & REACH Compliant (environmental standards) Environmental & Mechanical Data Operating Temp. 0°C to +40°C (derating above 40°C) Storage Temp. -20°C to +65°C Humidity 20–80% RH (non-condensing) Weight ~5.2 kg

319

ABB

Key Features ✔ High Torque & Power Density – Optimized for compact installations without sacrificing performance. ✔ Precision Feedback – Integrated high-resolution encoder (17-bit or 20-bit optional) for closed-loop control. ✔ Robust Construction – IP65 protection (dust-tight & resistant to water jets) for harsh industrial environments. ✔ Low Cogging & Vibration – Ensures smooth motion in high-precision applications. ✔ Wide Speed Range – Suitable for both low-speed high-torque and high-speed operations. Technical Specifications Parameter Specification Rated Power 0.6 kW (continuous) Rated Torque 2.0 Nm Peak Torque 6.0 Nm Speed Range 0–3000 RPM (higher optional) Voltage Rating 230V AC (3-phase) Frame Size 60mm (compact flange design) Protection Class IP65 Feedback System Incremental/absolute encoder Bearing Type Preloaded ball bearings Connector Type Waterproof MS/M12 connector Typical Applications Industrial Robots (articulated arms, delta robots) CNC Machinery (milling, grinding, laser cutting) Packaging Systems (pick-and-place, labeling, filling) Semiconductor Equipment (wafer handling, wire bonding) Medical Automation (lab instruments, surgical robots)Certifications & Compliance CE Certified (EMC & Low Voltage Directive) RoHS & REACH Compliant UL Recognition (pending model-specific approval) Environmental & Mechanical Data Operating Temp. -10°C to +40°C (optional high-temp version available) Storage Temp. -20°C to +70°C Humidity 10–90% RH (non-condensing) Weight ~3.8 kg

295

ABB

Key Specifications Rated Power: 0.3kW Rated Torque: 1.0Nm Peak Torque: 3.0Nm Speed Range: 0-3000rpm Voltage Rating: 230V AC (3-phase) Frame Size: 60mm flange type Protection Class: IP65 (dustproof and water jet resistant) Performance Features High torque density design for space-constrained applications Low cogging torque for smooth operation at low speeds High-resolution encoder feedback (17-bit standard) Excellent dynamic response with low rotor inertia Optimized thermal characteristics for continuous duty operation Mechanical Design Double ball bearing construction Standard 14mm shaft diameter with keyway Flange mounting (B5 type) Lightweight aluminum housing Vibration-resistant construction Electrical Characteristics Class F insulation Sinusoidal back EMF waveform Low electrical noise generation High efficiency (>90% typical) Environmental Specifications Operating temperature: 0°C to +40°C Storage temperature: -20°C to +70°C Humidity: 20% to 80% RH (non-condensing) Altitude: Up to 1000m above sea level Typical Applications Small industrial robots Precision assembly equipment Semiconductor handling Medical device manufacturing Packaging machinery Laboratory automation

415

ABB

Key Features ✔ Modular Design – Hot-swappable for easy maintenance and system scalability ✔ High-Speed Communication – Supports PROFIBUS, EtherCAT, or Modbus RTU/TCP (model-dependent) ✔ Wide Voltage Range – 24V DC operation with overvoltage/undervoltage protection ✔ Robust Construction – IP20/IP65 housing options for panel or field mounting ✔ Diagnostic LEDs – Real-time status monitoring (power, communication, I/O activity) Technical Specifications Parameter Specification I/O Channels 8 digital inputs / 8 digital outputs (configurable) Input Voltage 24V DC (sink/source compatible) Output Type Relay / Transistor (model-specific) Communication PROFIBUS DP / EtherCAT / Modbus Operating Temp. -25°C to +60°C Protection Rating IP20 (standard) / IP65 (optional) Mounting DIN rail (TS-35/7.5) Typical Applications Factory Automation (conveyor control, assembly lines) Process Control (chemical, water treatment) Packaging Machinery (filling, labeling systems) Energy Management (HVAC, power distribution)

614
