EATON

Possible Parameters: Type: Proximity Sensor / Solid-State Relay / Control Unit (Exact function varies—check manufacturer label) Input/Output Ratings: Voltage: 12–24V DC or 100–240V AC (common ranges) Current: ≤2A (for relays) or N/A (for sensors) Operation Mode: PNP/NPN (for sensors) NO/NC (Normally Open/Normally Closed for relays) Protection & Compliance: IP67 (dust/waterproof if ruggedized) CE, RoHS (typical certifications) Connection: Screw terminals or M8/M12 connector (sensors) DIN rail mount (for modules)

192

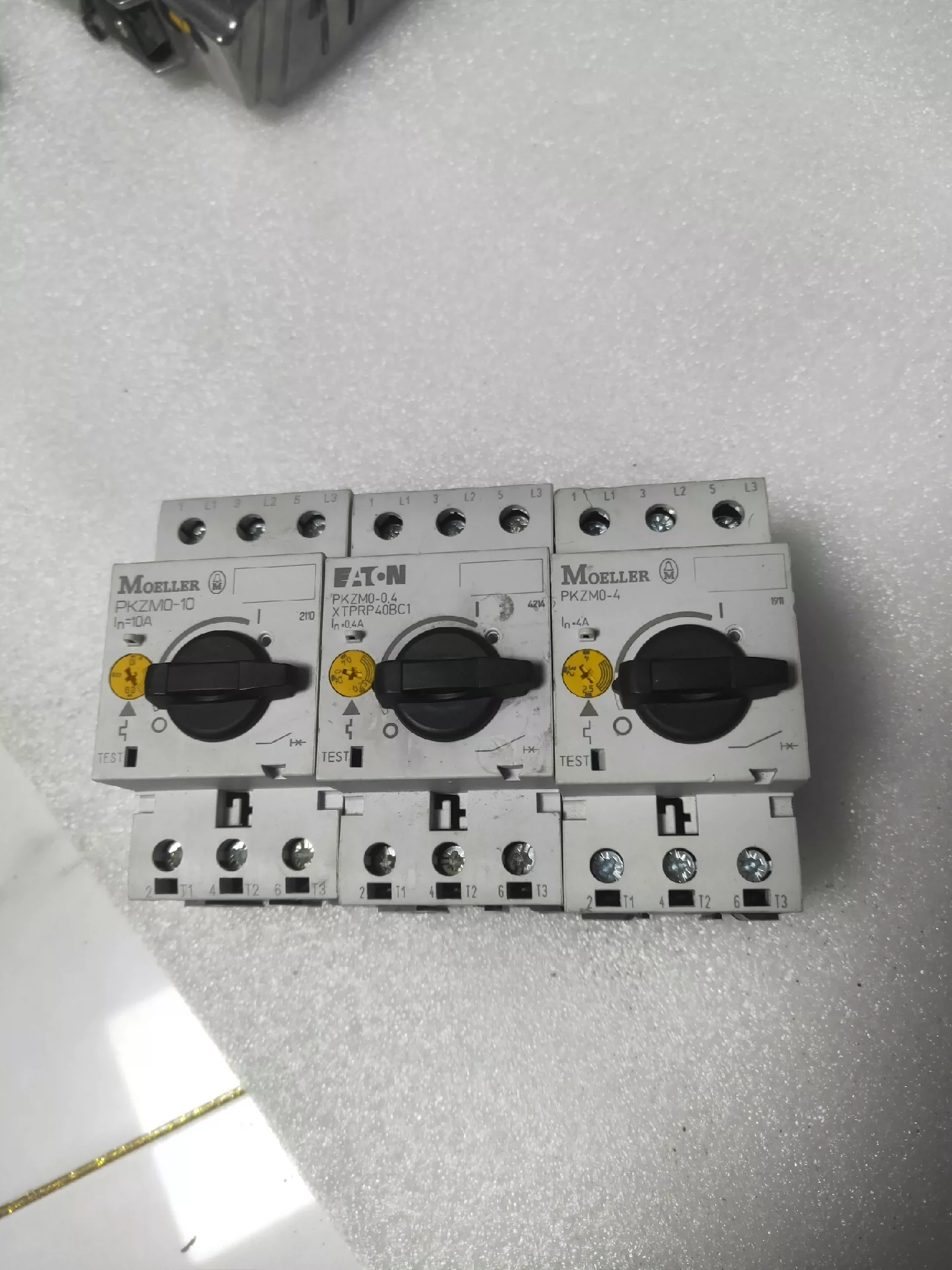

EATON

PKZM0-10 – Motor protection circuit breaker (or compact circuit protector) with: Rated current: 10A Type: PKZ series (likely thermal-magnetic trip, for overload/short-circuit protection) Typical use: Safeguarding motors, pumps, or small industrial equipment.

631

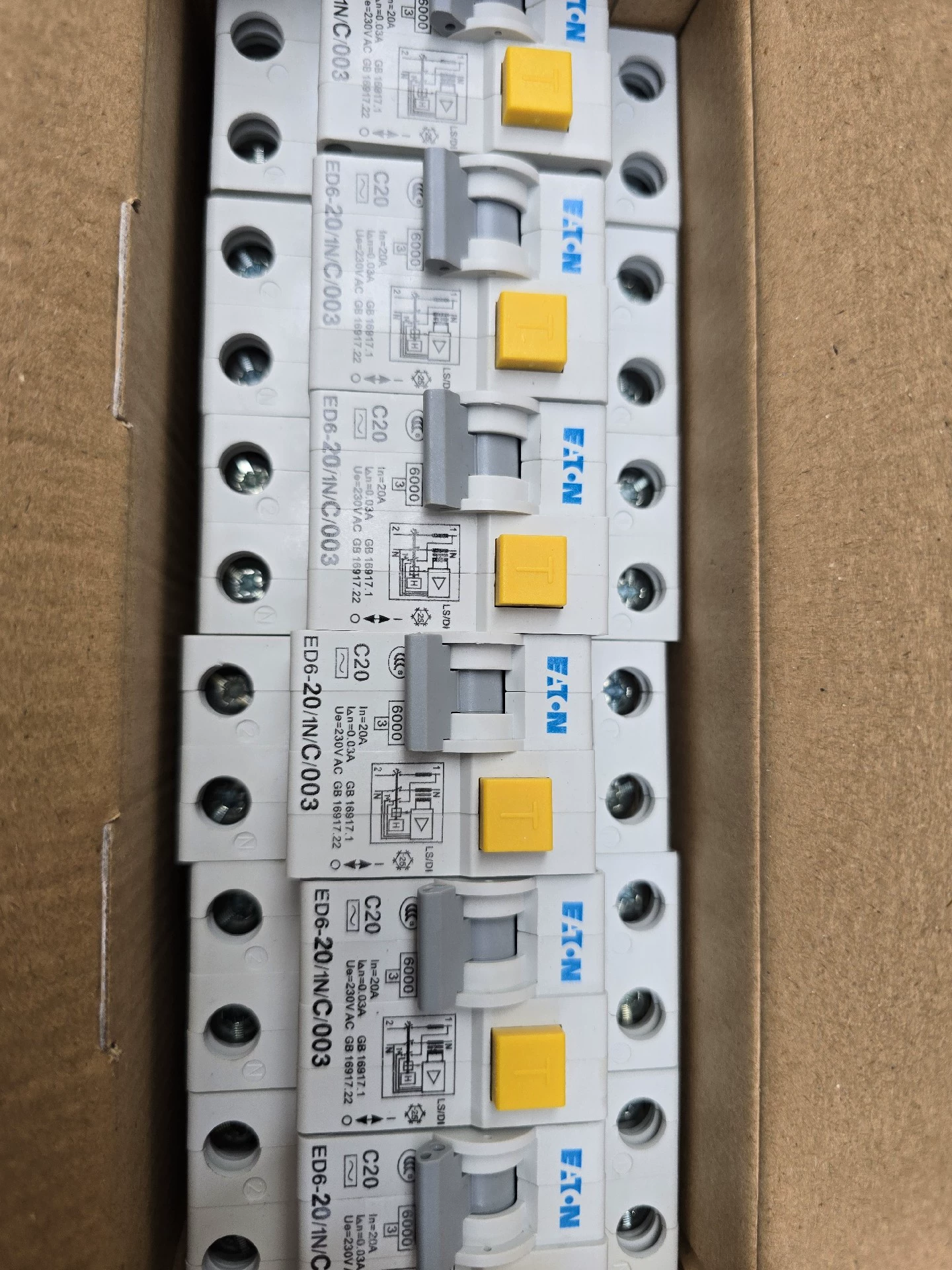

EATON

ED6-20/1N/C/003 – Industrial electrical component (e.g., relay or circuit breaker) with: 1N = 1 pole, Neutral/NO (Normally Open) C = Changeover (SPDT) or Common contact 003 = Variant/rating code Typical use: Control circuits, automation, or power distribution. For exact specs, check the manufacturer's datasheet.

425

EATON

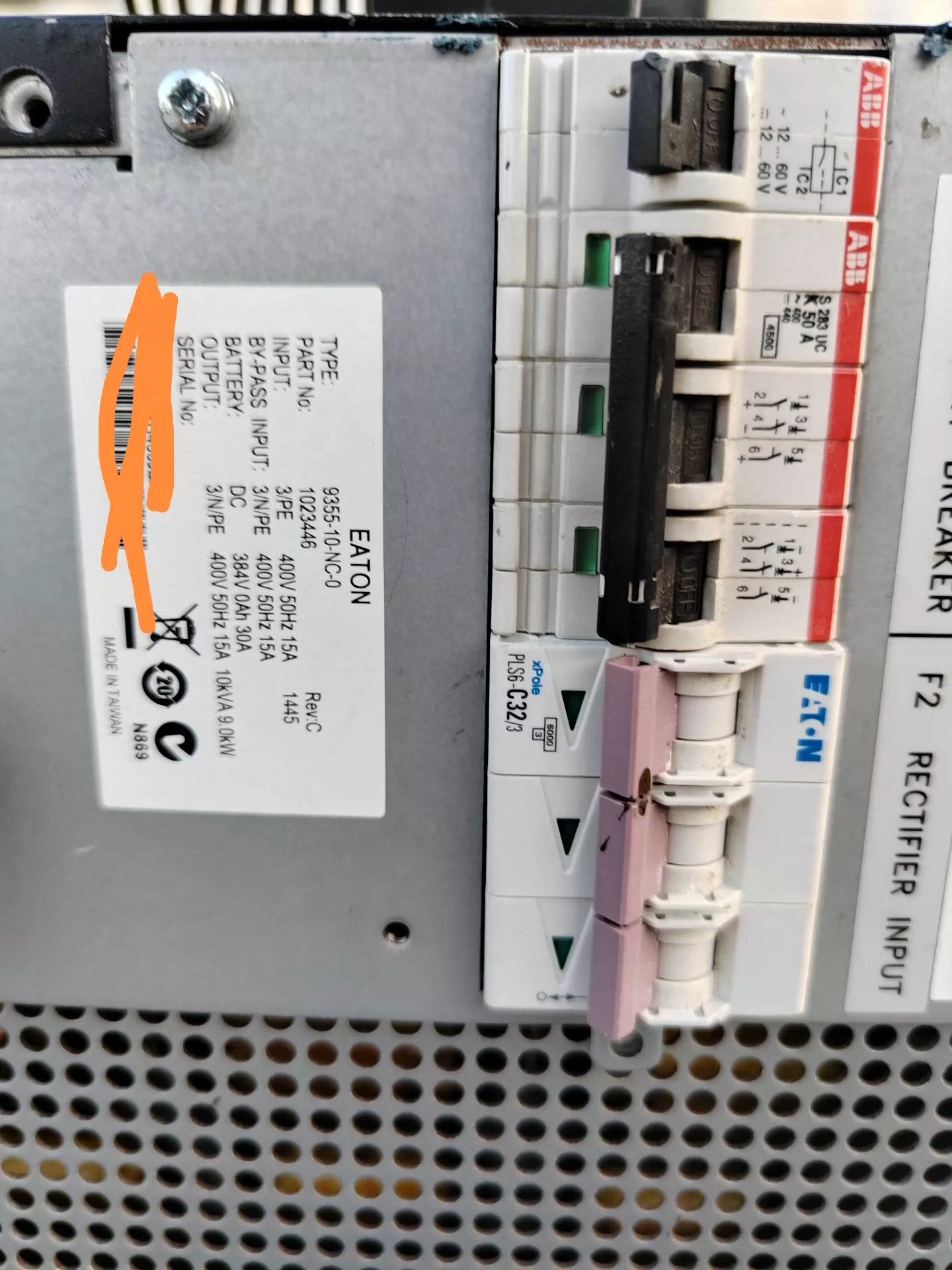

Key Parameters (English): Type: Normally Closed (NC) Model/Series: 9355-10 Configuration: Default (0) Possible Use: Safety switches, control circuits, or automation systems.

245

EATON

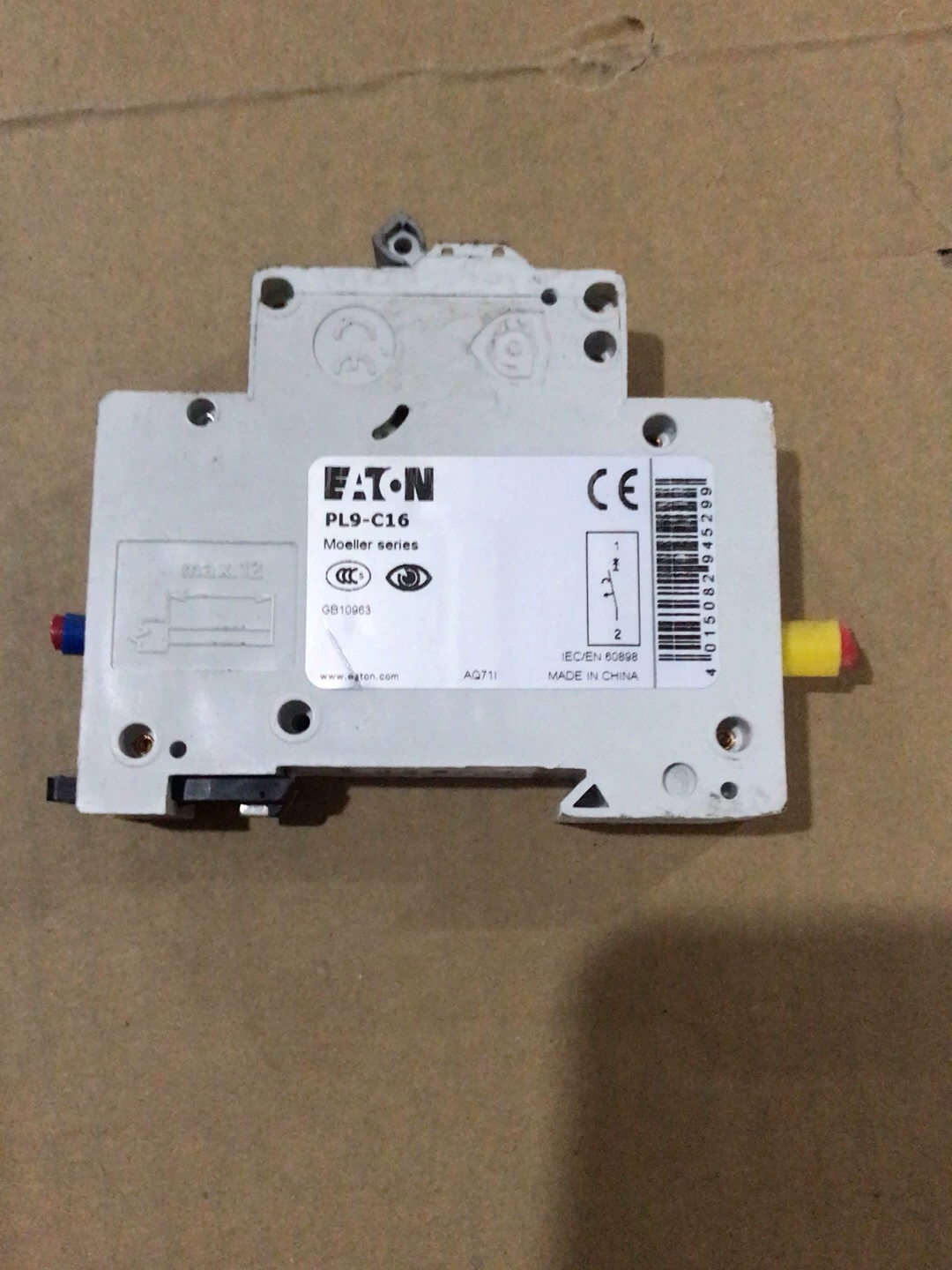

Key Product Lines: Power Supplies: DIN-rail & panel-mount (e.g., PL9 series: 24V DC, 5A-20A) Ultra-high efficiency (up to 96%) Circuit Protection: Breakers (PKZ, PXM), surge protectors Motor Control: Contactors, soft starters, variable frequency drives Automation: PLCs, I/O modules, HMIs Differentiators: ✔ Reliability: MTBF >300k hours (mil-spec tested) ✔ Smart Features: IoT-enabled monitoring ✔ Global Certs: UL, CE, ATEX, DNV-GL Markets Served: Manufacturing | Energy | Data Centers | Transportation

339

EATON

Key Features: ✔ Input: 100-240V AC (85-305V AC wide range) ✔ Output: 24V DC, 16A (20A peak for 5s) ✔ Efficiency: 94% (230V AC) ✔ Protections: Overcurrent/overvoltage/short-circuit/thermal ✔ Cooling: Smart temperature-controlled fan ✔ Parallel Operation: Supports up to 3 units ✔ Certifications: UL 508, CE, cULus, RoHS Applications: PLC & control systems Industrial machinery Robotics & automation Process control Mounting: DIN rail (35mm) or panel mount Warranty: 5 years

344

EATON

Key Features Input Voltage: 100-240V AC (50/60Hz) or 110-370V DC (wide-range) Output: 24V DC (±1% regulation), 10A (240W continuous) Efficiency: ≥93% (typical) Protections: Overload / Short-circuit (auto-recovery) Overvoltage (≤35V DC clamp) Thermal shutdown Cooling: Natural convection (fanless design) MTBF: >300,000 hours @ 40°C Certifications & Compliance Safety: UL 508, EN 62368-1 EMC: EN 61000-6-2/4 Industrial Standards: CE, RoHS Applications ✔ Control cabinets ✔ Machine automation ✔ Robotics ✔ Process instrumentation

684

EATON

Key Features Processor: 32-bit ARM Cortex-M7 (or equivalent industrial-grade MCU) Memory: 64MB Flash / 16MB RAM (expandable via microSD) I/O Configuration: Digital Inputs: 8x 24V DC (sink/source) Digital Outputs: 8x relay (5A @ 250V AC) Analog Inputs: 4x 0-10V/4-20mA (16-bit ADC) Communication Interfaces: Ethernet: 10/100 Mbps (Modbus TCP, PROFINET optional) Serial: RS-485 (Modbus RTU) CANopen: For industrial fieldbus integration Real-Time Clock (RTC): Battery-backed for event logging Operating Voltage: 24V DC (±10%) Environmental & Certifications Operating Temp: -20°C to +60°C Protection: IP40 (front panel) / IP20 (terminals) Certifications: CE, UL 61010-1, RoHS Applications ✔ Machine control ✔ Process automation ✔ Remote monitoring (SCADA) ✔ Energy management

238

EATON

Key Specifications Inputs: 6x digital/analog (24V DC or 0-10V/4-20mA configurable) Outputs: 6x relay/transistor (2A @ 230V AC / 24V DC) Configurable Channels: 3x universal (I/O selectable) Isolation: 1500V AC (channel-to-logic) Protocol Support: Modbus RTU (via "C" suffix interface) Typical Applications PLC I/O expansion Machine control systems Sensor/actuator interfacing Environmental Ratings Operating Temp: -25°C to +55°C Protection: IP20 (IP65 with enclosure) Ordering Notes "C" suffix indicates communication option (e.g., RS-485).

28

EATON

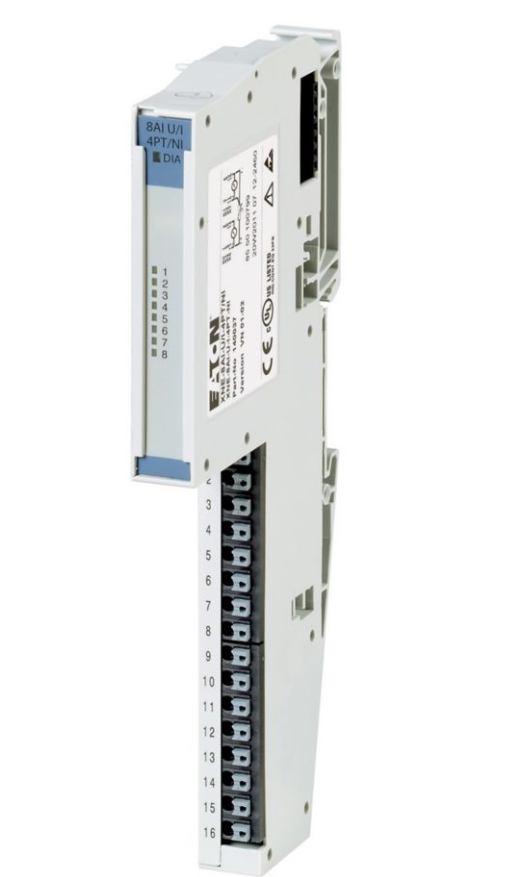

Eaton XNE Analog input card XI/ON ECO, 24 V DC, 8AI(voltage, current)/4(PT, ni, R)

435

EATON

Key Features 8 isolated digital inputs (sink/source configurable) Input voltage: 24V DC (12-30V range) Logic thresholds: "1" signal: ≥15V DC "0" signal: ≤5V DC Input type: Dry contact (mechanical relay) or wet contact (PLC/PNP) Isolation: 500V (channel-to-channel & field-to-logic) Filtering: Programmable debounce (1ms to 100ms) Status indicators: Per-channel LEDs (input state) Mounting: DIN rail (35mm) Applications ✔ PLC & DCS systems ✔ Machine automation ✔ Process control monitoring ✔ Safety interlocks Certifications & Compliance CE, RoHS, UL (if applicable) EMC: EN 61000-6-2/4 (industrial immunity/emission) Protection class: IP20 (enclosure-dependent) Ordering Info Model: XNE-8DI-24VDC-P Connector type: Removable screw terminal Operating temp: -25°C to +60°C

648

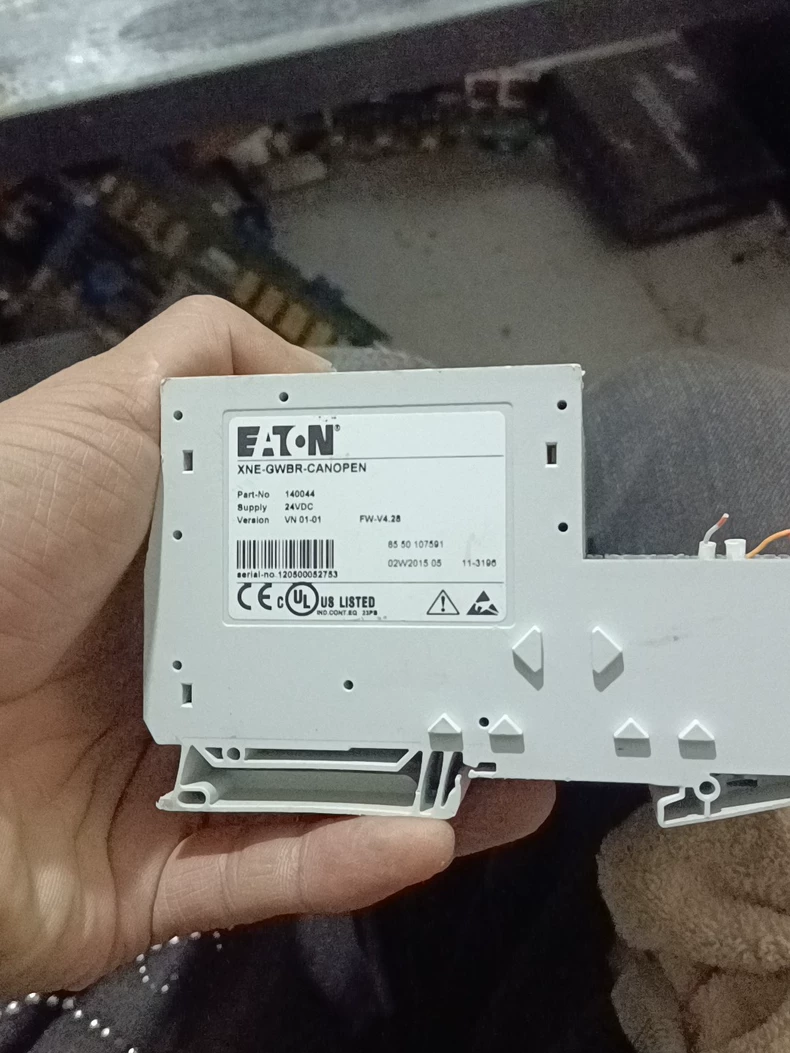

EATON

Description: The XNE-GEBR-CANOPEN is a rugged industrial communication gateway module designed for seamless CANopen protocol integration in automation systems. This DIN-rail mounted interface device enables reliable data exchange between CANopen networks and industrial control equipment. Key Features: Protocol Support: CANopen DS301/DS302 compliant Interface: Isolated CAN bus (ISO 11898-2) Baud Rate: Configurable 10kbps-1Mbps Connection: Screw terminal or D-sub connector Isolation Voltage: 500V DC (min) LED Indicators: Power, status, network activity Mounting: Standard 35mm DIN rail Operating Voltage: 24V DC (±15%) Typical Applications: Industrial machinery control systems PLC network expansion Motion control networks Building automation Automotive test systems Certifications: CE, RoHS compliant Industrial EMC standards: EN 61000-6-2/4

468
