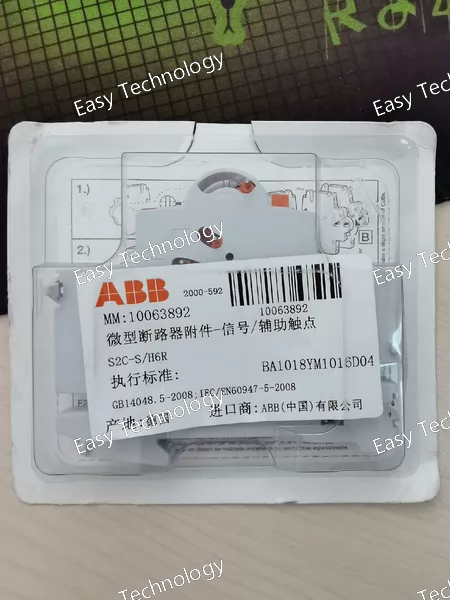

Technical Parameters General Product Type: Auxiliary / signal contact accessory Model: S2C‑S/H6R Compatibility: Designed for use with ABB System Pro M Compact devices including miniature circuit breakers (e.g., S200, S200M, S200P, S200S), SN201 series, RCCBs (F200), and RCBOs (DS201, DS202C) Mounting Position: Right side of main protective device Selector Function: Option to indicate either device contact position or fault condition Contact Configuration Contact Type: Auxiliary contact for status signaling Contact Changeover Selector: Changeover indication mode (breaker position vs. fault signal) Typical Output: Signal suitable for control circuits (wired back to PLC, indicator lamp, alarm panel, etc.) Electrical Ratings Rated Current: Suitable for auxiliary loads (control/indication) — typically up to 6 A Rated Voltage: Compatible with control voltage ranges up to approx. 250 V AC / 110 V DC (control/auxiliary signaling circuits) Coil / Switching Duty: Designed for AC‑12 / DC‑12 utilization categories (control and signaling use) Mechanical & Installation Mounting: Snap‑on / side‑mounted onto breaker body Terminal Connections: Screw terminals for secure interconnection of control/indicator wiring Number of Contacts: One auxiliary contact with selector function for status feedback Physical Width: ~8.8 mm Height: ~85 mm Depth: ~69 mm Weight: Lightweight compact accessory Construction: Durable industrial plastic and metal components for panel use Environmental Operating Temperature Range: Suitable for standard industrial ambient conditions Pollution Degree: Typical for control panels and distribution boards Applications Remote signal of breaker ON/OFF/trip status Feedback to PLC or automation systems Activation of alarm circuits on fault condition Control panel status indication lamps and annunciators Enhanced safety/monitoring of protective devices

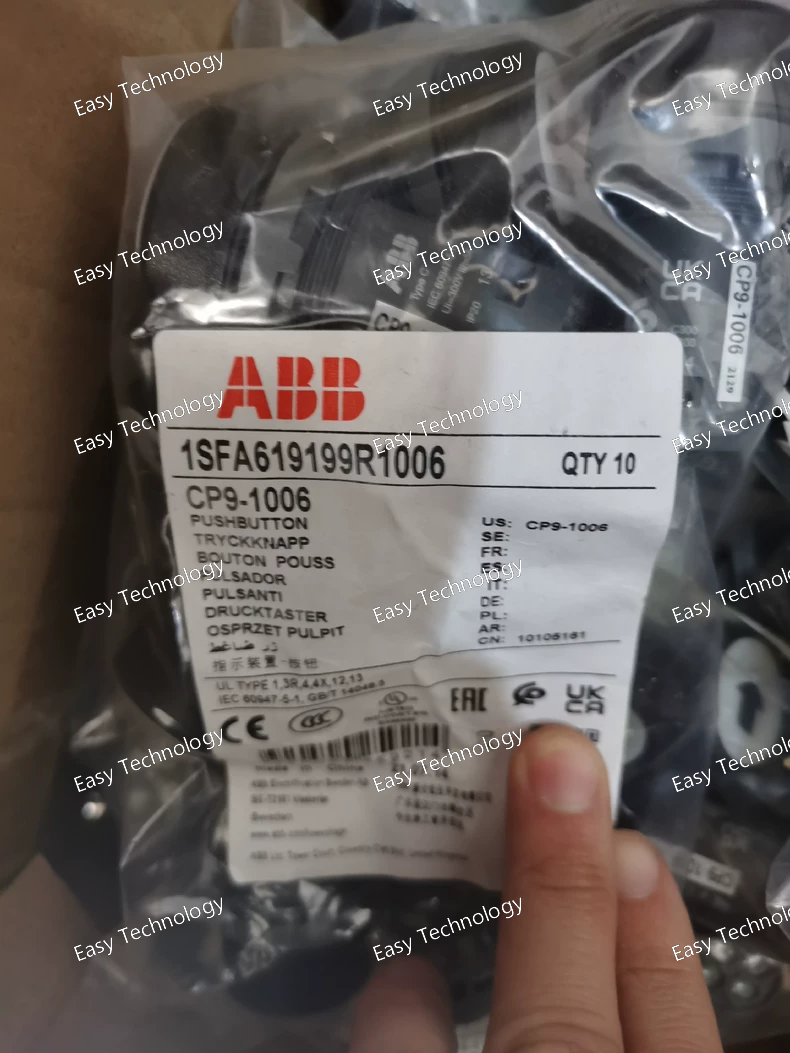

Technical Parameters General Product Type: Industrial pushbutton switch Model: CP9‑1006 Series: CP9 compact pilot devices Actuator Style: Round raised (mushroom) pushbutton Actuator Color: Green Operation Type: Momentary (spring‑return) Illumination: Non‑illuminated Panel Cut‑out Diameter: 22 mm standard Contact Configuration Normally Open (NO): 1 Normally Closed (NC): 1 Contact Form: 1 NO + 1 NC Contact Function: Changeover actuation during push Electrical Ratings Rated Insulation Voltage: Up to ~300 V Rated Operational Voltage: Up to ~300 V AC/DC Rated Operational Current (AC‑15): up to ~1–2 A at 220–240 V AC Rated Operational Current (DC‑13): up to ~0.2–0.3 A at 24–125 V DC Electrical Life: Designed for frequent switching in control circuits Mechanical & Durability Mechanical Life: Up to ~500,000 operations Terminal Type: Screw clamp terminals Connection Capacity: Suitable for solid or stranded conductors Housing Material: Durable industrial‑grade plastic Environmental & Protection Protection Rating (Front): High level of dust/water resistance when installed (e.g., IP66/IP67/IP69K) Protection Rating (Terminals): IP20 Operating Temperature: Approx. –25 °C to +70 °C Storage Temperature: Approx. –40 °C to +85 °C Pollution Degree: Suitable for industrial environments Physical/Dimensions Approximate Dimensions: Width/Height: ~30 × 30 mm (body) Depth (behind panel): ~55 mm Weight: Lightweight, typical pilot device mass Applications Start/Stop and control input in machinery panels Manual control in automation systems Operator station signaling and command buttons Control logic loops in industrial panels Interface for PLC and control circuits

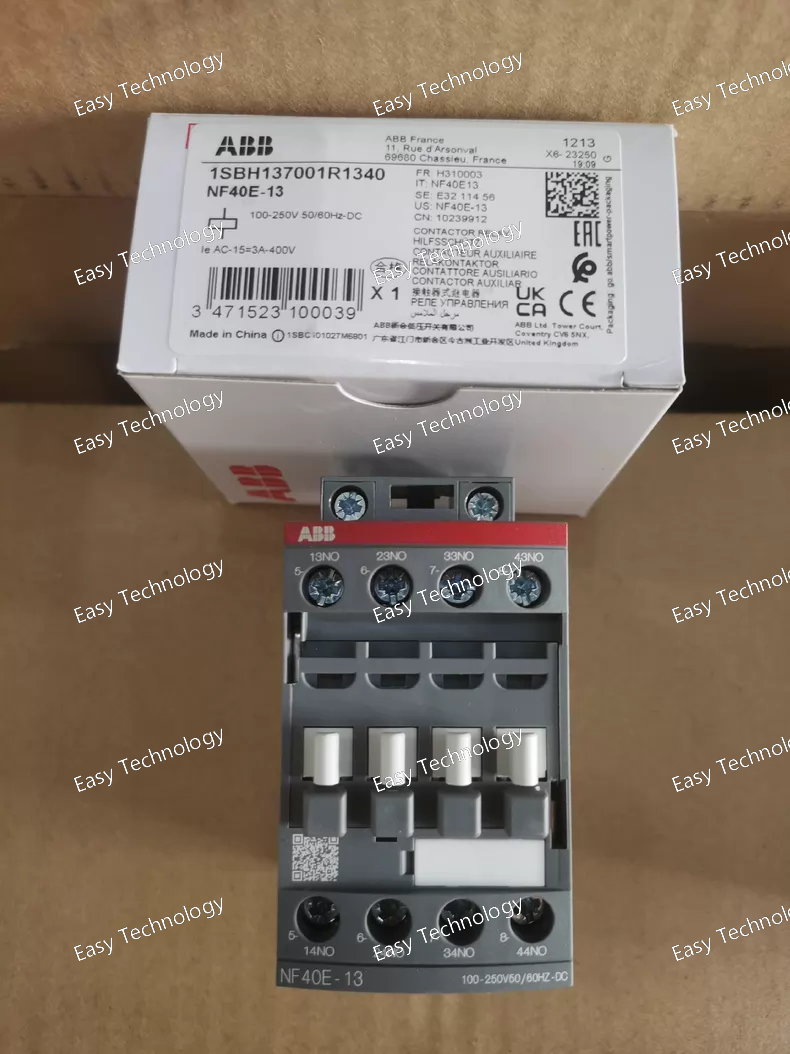

Technical Parameters General Product Type: Contactor relay / auxiliary contactor Model: NF40E‑13 Series: NF relay series Number of Poles / Contacts: 4 × Normally Open (NO) Mounting: DIN‑rail or screw mounting in control panels Terminal Type: Screw terminals Housing Design: Block‑type compact relay Weight: ~0.27 kg Operating Ambient Temperature: Approximately −40 °C to +70 °C Control / Coil Rated Control Supply Voltage (Uc): 100 – 250 V AC/DC (single wide range coil) Rated Frequency: 50 / 60 Hz for AC coil operation Control Circuit Compatibility: AC or DC operation without separate coil changes Electrical Ratings Rated Insulation Voltage (Ui): ~690 V Rated Operational Voltage: Auxiliary circuit circuits up to 690 V Conventional Free‑air Thermal Current (Ith): 16 A (free‑air at 40 °C) Rated Operational Current (AC‑15): ~6 A @ 24 / 127 V AC ~4 A @ 220 / 240 V AC ~3 A @ 400 / 440 V AC ~2 A @ 500 / 690 V AC Rated Operational Current (DC‑13): ~6 A @ 24 V DC ~2.8 A @ 48 V DC ~1 A @ 72 V DC ~0.55 A @ 125 V DC ~0.27 A @ 250 V DC ~0.15 A @ 400 V DC ~0.13 A @ 500 V DC ~0.10 A @ 600 V DC Performance & Switching Rated Impulse Withstand Voltage (Uimp): ~6 kV Rated Short‑time Withstand Current (Icw): ~140 A for 0.1 s ~100 A for 1 s Maximum Electrical Switching Frequency: ~1200 cycles/hour (AC‑15) ~900 cycles/hour (DC‑13) Maximum Mechanical Switching Frequency: ~6000 cycles/hour Mechanical & Connection Connecting Capacity: Flexible conductor with ferrule: ~0.75 … 2.5 mm² Rigid conductor: ~1 … 2.5 mm² Wire Stripping Length: ~10 mm Tightening Torque: Standard industrial terminal torque (approx. 1.2 N·m) Environmental & Protection Protection Rating: Terminals: IP20 Panel installation provides typical front panel protection Pollution Degree: Suitable for industrial environments Maximum Operating Altitude: Up to ~3000 m without derating Applications Switching of auxiliary and control circuits in automation panels Interface between control logic (PLC, control switches) and load circuits Signal switching in industrial machinery and power systems Pilot duty and control relay roles in electrical panels

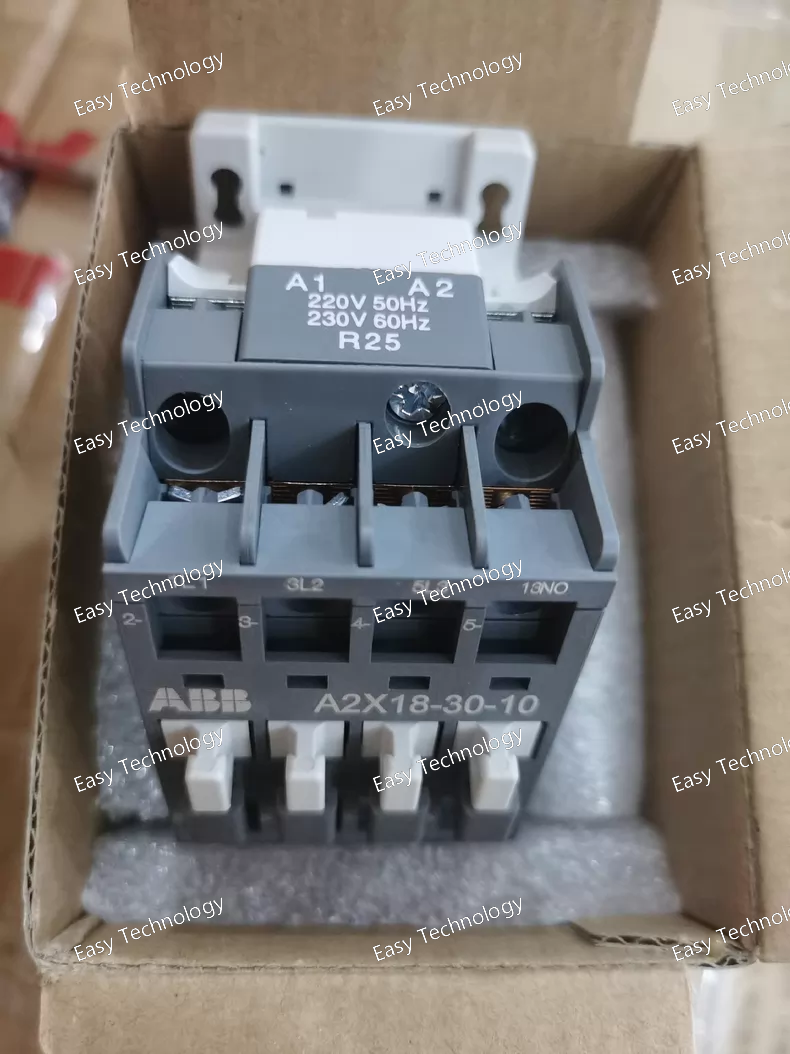

Technical Parameters General Product Type: AC contactor Model: A2X18‑30‑10 Series: A2X18 Poles: 3 main poles Auxiliary Contacts: 1 NO (built-in) Control Type: Electromagnetic AC coil Mounting: DIN rail or panel (block type) Modular Design: Supports add-on auxiliary blocks and accessories Electrical Ratings Rated Operational Current (AC‑3): ~25 A at 400 V AC Rated Operational Current (AC‑1): ~25 A Rated Insulation Voltage (Ui): ~690 V AC Rated Impulse Withstand Voltage (Uimp): ~6 kV Control Circuit Voltage (Coil): Depends on variant (24 V, 48 V, 110 V, 220–230 V, 380–400 V AC) Coil / Control Coil Frequency: 50 / 60 Hz Coil Variants: 24 V, 48 V, 110 V, 220–230 V, 380–400 V AC Performance Motor Rated Operational Power (AC‑3): ~7.5 kW at 400 V AC Switching Capacity: Suitable for industrial power switching operations Electrical Endurance / Life: High Mechanical Endurance: High Control & Terminals Terminal Type: Screw terminals Contact Material: Industrial alloy Expansion: Front or side-mount auxiliary contact blocks can be fitted Physical & Environmental Compact Block Design: Space-efficient for panels Operating Temperature: Standard industrial range Pollution Degree: Suitable for industrial environments Applications Motor control starters Industrial automation systems Pump, fan, and compressor control General AC load switching in control panels Integration with overload relays and starter assemblies

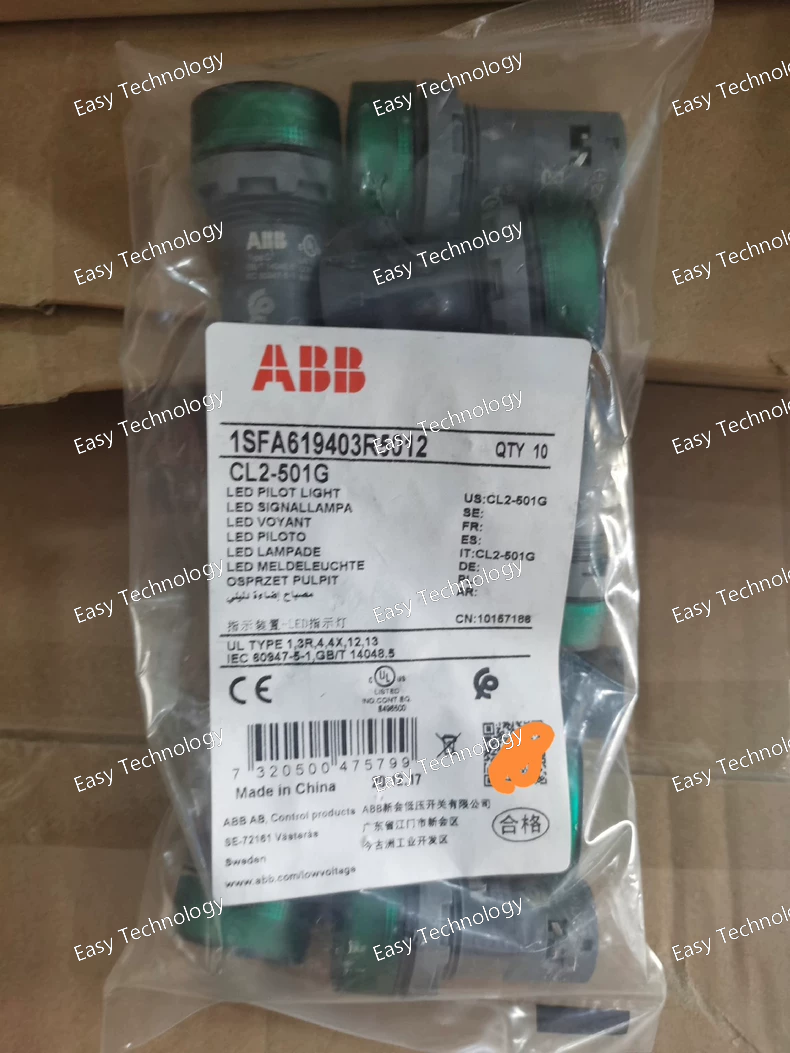

Technical Parameters General Product Type: Illuminated pilot light Model: CL2‑501G Series: Compact pilot devices Lens Color: Green Indicator Type: LED (integrated) Mounting: Panel mount (standard 22 mm cut‑out) Shape: Circular flat lens design Electrical Ratings Rated Supply Voltage: 12 V DC Rated Current / Consumption: ~16 mA at 12 V DC Light Source: Integrated LED (no replaceable bulb) Rated Insulation Voltage: Suitable for low‑voltage control circuits Mechanical & Connection Terminal Connection: Screw terminals Base Type: BA9s style or similar suitable mounting interface Service Life: ≥ 50,000 hours typical LED life Lens Material: Durable polycarbonate or equivalent plastic Environmental & Protection Front Protection Rating: IP66 / IP67 / IP69K (high resistance to water and dust ingress at front) Terminal Protection: IP20 NEMA / Enclosure Ratings: NEMA 1 / 3R / 4 / 4X / 12 / 13 Operating Ambient Temperature: ~ –25 °C to +70 °C Storage Temperature: ~ –40 °C to +85 °C Pollution Degree: Suitable for typical industrial environments Physical Panel Cut‑out Diameter: 22 mm Dimensions (Approx.): ~30 × 30 × 52 mm Net Weight: ~0.018 kg Applications Visual indication of equipment status, faults, or power presence Control panels and operator stations Industrial automation systems Machine interfaces in manufacturing environments OEM equipment signaling

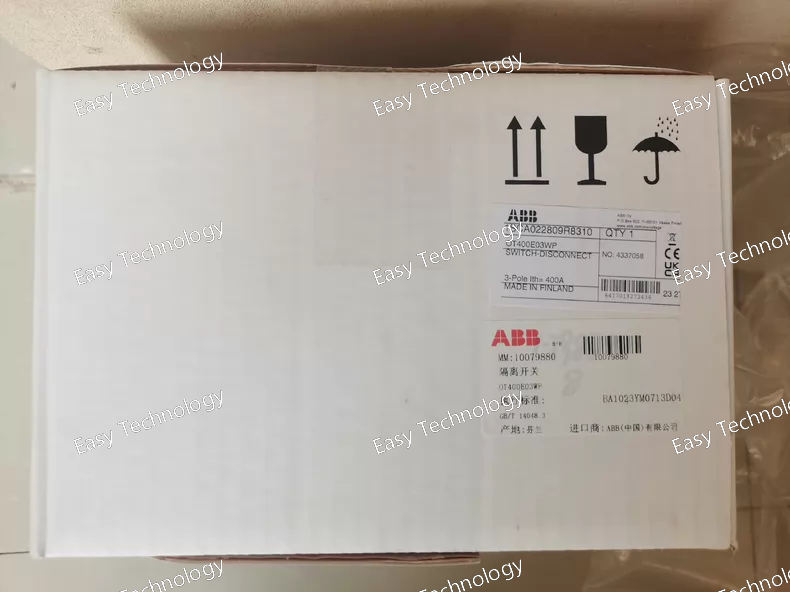

Technical Parameters General Product Type: Manual load switch / Switch‑Disconnector Model / Variant: OT400E03WP Poles: 3 (three‑pole) Mounting: Base mounting, front operated Actuator: Black operating handle with shaft included Padlock Capability: Can be locked in OFF position Device Construction: Enclosed fixed installation type Electrical Ratings Rated Continuous Current (Iu): 400 A Rated Operational Voltage (Ue): up to 1000 V AC Rated Operational Current (AC‑21A/AC‑22A/AC‑23A): 400 A across typical low‑voltage AC systems Rated Operational Power (AC‑23A): ~132 kW at 220–240 V ~230 kW at 400–415 V ~280 kW at 500 V ~400 kW at 690 V Rated Insulation Voltage (Ui): 1000 V Rated Impulse Withstand Voltage (Uimp): 12 kV Rated Short‑Time Withstand Current (Icw): ~15 kA for 1 s Short‑Circuit Making Capacity (Icm): ~65 kA (at 690 V) Conditional Short‑Circuit Current (Icn): up to ~100 kA with proper fusing Mechanical & Connections Number of Switches: 1 Terminal Type: Lug/bolt connections Wide Phase Spacing: Yes (larger phase separation for safer high‑current routing) Operating Mode: Front operated Distance Between Phases: Standard widened spacing Mechanical Durability: Designed for long service life with frequent operation Physical & Environmental Protection Rating: Front IP00 (terminals not finger‑safe without enclosure) Pollution Degree: Industrial (Pollution degree 3) Handle Color: Black Operating Temperature: Standard industrial ambient range Installation Location: Suitable for distribution boards and equipment panels Standards Compliance Designed to meet IEC 60947‑3 (Low‑voltage switch‑disconnector standards) Applications Main power isolation in electrical panels Maintenance and service disconnect in power distribution Load switching for motors, feeders, and general circuits Use in industrial, commercial, and utility power systems

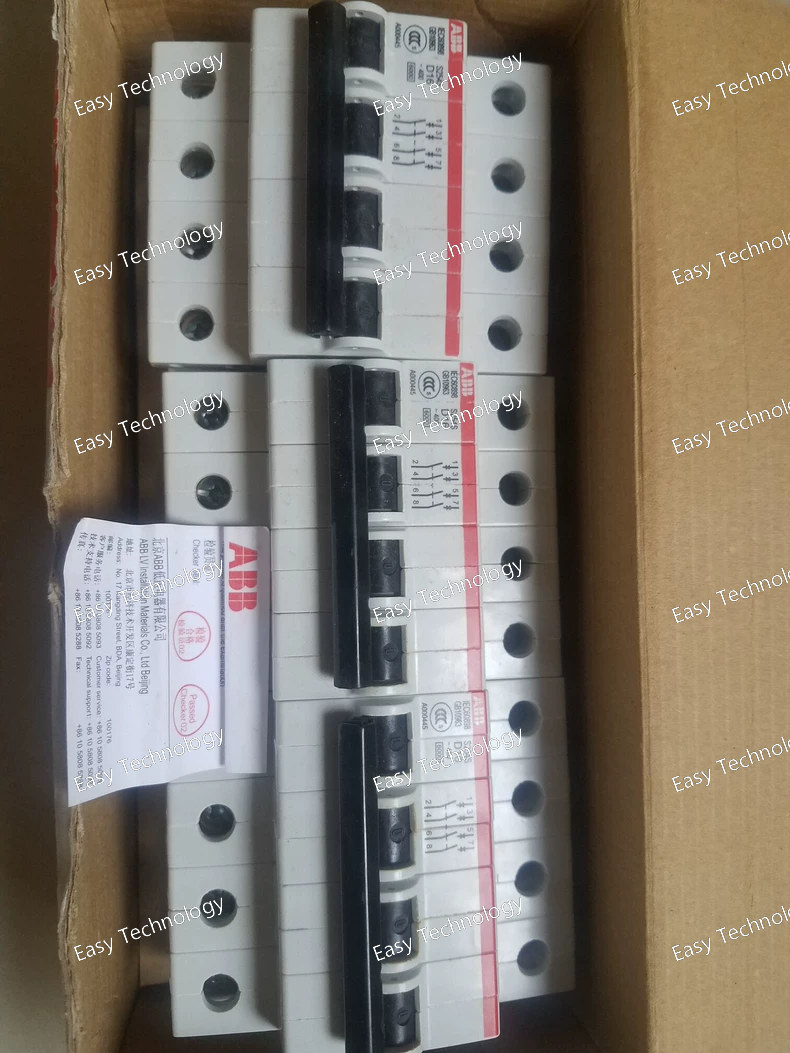

Technical Parameters General Product Type: Miniature Circuit Breaker (MCB) Model: S254S‑D16 Series: System pro M compact S200 series Number of Poles: 4 (four‑pole) Trip Curve: Type D (thermal‑magnetic) Mounting: DIN‑rail (TH35) Actuator: Toggle with ON/OFF indication Electrical Ratings Rated Current (In): 16 A Rated Operational Voltage: up to ~440 V AC for low‑voltage distribution Rated Insulation Voltage (Ui): ~440 V Rated Impulse Withstand Voltage (Uimp): ~4 kV Rated Short‑Circuit Breaking Capacity (Icu): ~20 kA at 230 V AC ~10 kA at 400 V AC Rated Service Short‑Circuit Breaking Capacity (Ics): Portion of Icu typical for S200 series Energy Limiting Class: Class 3 Mechanical & Connection Terminal Type: Screw terminals (finger‑safe) Connectable Conductor Size: Flexible with ferrule: ~0.75 … 25 mm² Rigid conductor: ~0.75 … 35 mm² Tightening Torque: Approx. 2.8 N·m Mechanical Endurance: ~20,000 operations Electrical Endurance: ~20,000 switching cycles Environmental Operating Ambient Temperature: Approx. −25 °C to +55 °C Storage Temperature: Typical industrial storage ambient Pollution Degree: Suitable for industrial environments Protection Rating: Terminals: IP20 Installed with panel cover: higher front protection possible Physical & Dimensions Modular Width: 4 modules (4P) Approx. Dimensions: Standard S200 series footprint Weight: Typical for 4‑pole S200 series breaker Features & Applications Thermal‑magnetic protection against overload and short circuit High inrush tolerance (Type D characteristic) for inductive and motor loads Widely used in distribution boards, switchboards, and pump circuits Suitable for commercial and light industrial electrical systems

Technical Parameters General Product Type: HRC (High Rupturing Capacity) fuse link Model / Type: OFAFC3GG630 Utilization Category: gG (general purpose, full range protection) Rated Current: 630 A Fuse Size / NH Size: NH3 / Size III Fuse System: DIN‑type industrial fuse link Electrical Ratings Rated Operational Voltage (AC): up to 500 V AC Rated Operational Voltage (DC): Application‑dependent (typically similar DC limits with correct holders) Breaking Capacity: High breaking capacity suitable for industrial systems (typically 80 kA or higher at 500 V AC; depends on exact specification) Rated Insulation Voltage (Ui): Suitably high for low‑voltage distribution applications Performance Overcurrent Protection: Provides full range protection for overload and short‑circuit faults in power distribution Current‑Limiting: Offers current‑limiting behavior to reduce let‑through energy and mechanical stress on system equipment Thermal Characteristics: Stable rating at ambient operating temperatures typical of industrial electrical rooms Mechanical & Physical Construction: Compact NH3 HRC fuse link with robust metal and insulating materials Mounting: Installed in compatible NH3 fuse bases or switch‑fuse disconnectors Indication: Some holders provide blown‑fuse indication when used with this link Environmental Operating Temperature: Standard industrial ambient range Pollution Degree: Designed for typical industrial environments and power distribution boards Applications Overcurrent protection in industrial power distribution systems Protection of feeders and sub‑circuits Protection of transformers and motor circuits Use in NH3 switch‑fuse disconnectors and bases Main and branch circuit protection in electrical panels

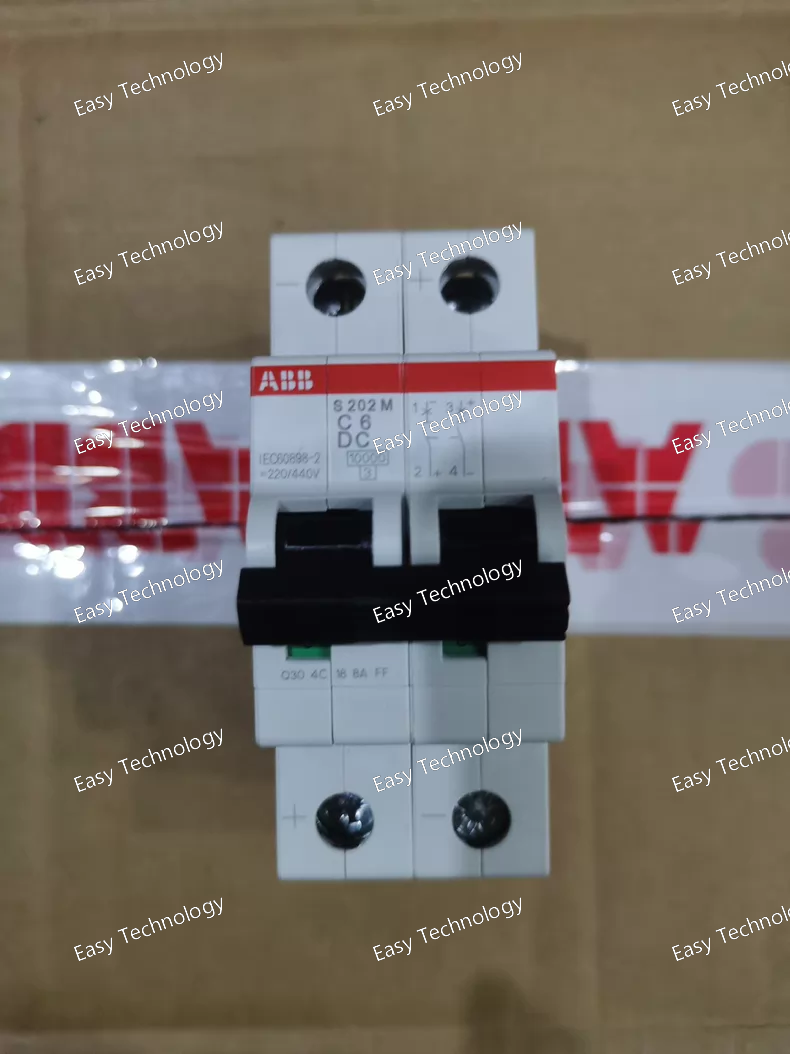

Technical Parameters General Product Type: Miniature Circuit Breaker (MCB) Model: S202M‑C6DC Series: System pro M compact S200MDC Number of Poles: 2 (two‑pole configuration) Trip Curve / Characteristic: Type C (thermal‑magnetic) Mounting: DIN‑rail (IEC 60715 TH35) Actuator: Toggle ON/OFF indicator Electrical Ratings Rated Current (In): 6 A Rated Operational Voltage (DC): 440 V DC (nominal DC applications) Rated Insulation Voltage (Ui): 440 V Rated Impulse Withstand Voltage (Uimp): 4 kV Rated Short‑Circuit Breaking Capacity (Icu): 10 kA at rated DC voltage Input Voltage Type: DC (direct current) Trip Mechanism: Thermal element for overload and magnetic element for short‑circuit protection Connection & Wiring Terminal Type: Screw‑type connections Connectable Conductor Size: Typical industrial range (e.g., up to ~25 mm² flexible with ferrules; up to ~35 mm² rigid) Tightening Torque: Standard torque recommended for MCB terminals Mechanical & Durability Mechanical Endurance: High lifecycle suitable for frequent switching Electrical Endurance: Designed for repeated DC fault interruption Contact Position Indication: Visible ON/OFF status Physical & Dimensions Modular Width: 2 units (2P width) Approx. Depth / Length: Standard S200MDC footprint Approx. Height: Typical panel‑mount MCB height Net Weight: Lightweight for modular DIN‑rail systems Environmental Operating Temperature Range: Typical industrial ambient conditions Protection Rating: Terminals: IP20 Panel Mounted Front: Typical panel can provide higher IP rating Pollution Degree: Suitable for industrial environments Standards & Compliance Designed to meet IEC/EN 60898‑2 and IEC/EN 60947‑2 circuit breaker standards for miniature breakers and DC applications. Applications DC power distribution protection Battery‑based systems and UPS/DC buses Industrial control and automation DC circuits Renewable energy (e.g., PV/solar DC circuits, DP systems) Protection for DC motor circuits and control loads

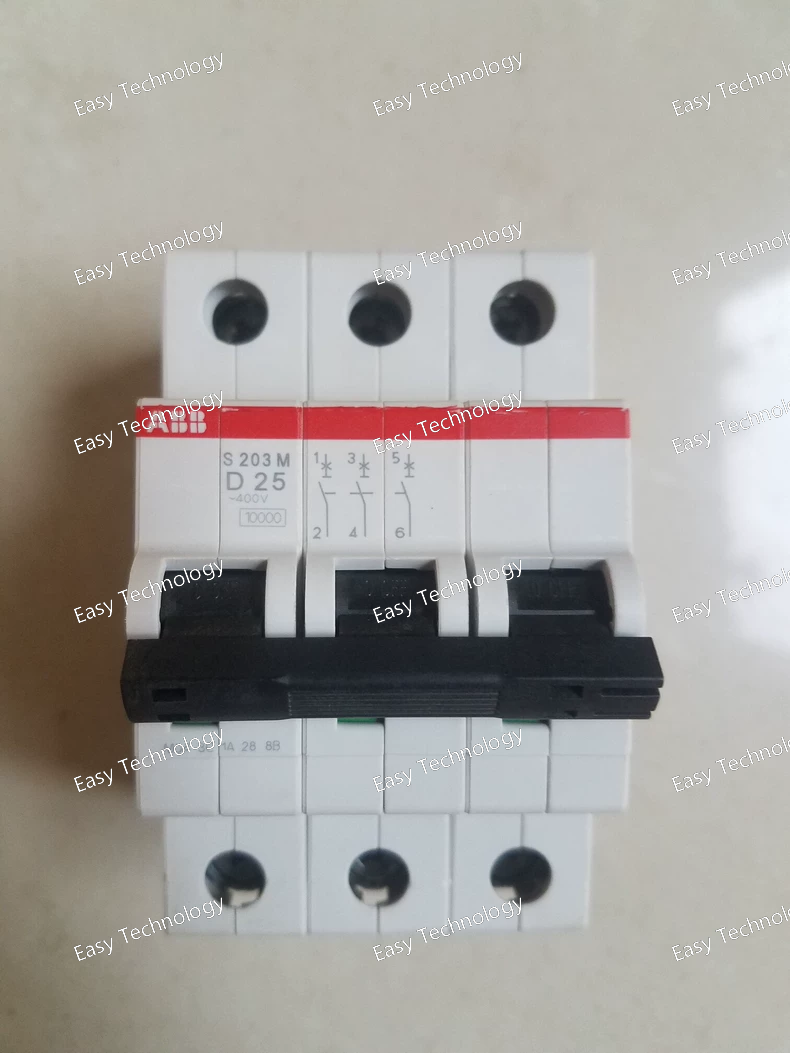

Technical Parameters General Product Type: Miniature Circuit Breaker (MCB) Model: S203M‑D25 Series: System pro M compact S200M Number of Poles: 3 (three‑pole) Trip Curve / Characteristic: Type D (thermal‑magnetic) Mounting: DIN rail (TH35) Actuator: Toggle switch with ON/OFF indication Terminal Type: Screw terminals Applicable Standards: IEC/EN 60898‑1, IEC/EN 60947‑2 Pollution Degree: 3 Overvoltage Category: III Current Limiting Class: 3 Installation Size: Standard modular width for S200M series Electrical Ratings Rated Current (In): 25 A Rated Operational Voltage: AC: up to 400 V AC (IEC 60947‑2): up to 440 V Rated Insulation Voltage (Ui): 440 V Rated Impulse Withstand Voltage (Uimp): 4 kV Rated Short‑Circuit Breaking Capacity: 10 kA (IEC / EN 60898 at 230 V AC) 15 kA (IEC 60947‑2 at 400 V AC) Rated Ultimate Short‑Circuit Breaking Capacity (Icu): Up to 25 kA at 230 V AC Rated Service Short‑Circuit Breaking Capacity (Ics): Typical portion of Icu Frequency Rating: 50/60 Hz Connection & Wiring Connectable Conductor Cross‑Section: Solid: 0.75 – 35 mm² Flexible with Ferrule: 0.75 – 25 mm² Busbar Connection: up to 10 mm × 10 mm Tightening Torque: approx. 2.8 N·m Mechanical & Endurance Mechanical Endurance: ~20,000 cycles Electrical Endurance: ~20,000 switching cycles Power Loss: ~9.3 W total (approx. 3.1 W per pole) Environmental Operating Ambient Temperature: approx. –25 °C to +55 °C Storage Temperature: approx. –40 °C to +70 °C Degree of Protection: Terminals: IP20 With enclosure cover (panel mounted): typical IP40 Physical Dimensions Width: ~52.5 mm Height: ~88 mm Depth / Recess Depth: ~69 mm Weight: approx. ~0.375 kg Features & Applications Thermal‑magnetic protection for circuits with moderate to high inrush currents Suitable for distribution boards, switchboards, and motor circuits Protection against overload and short‑circuit faults in residential, commercial, and industrial environments Can be fitted with auxiliary contacts or accessories to extend functionality

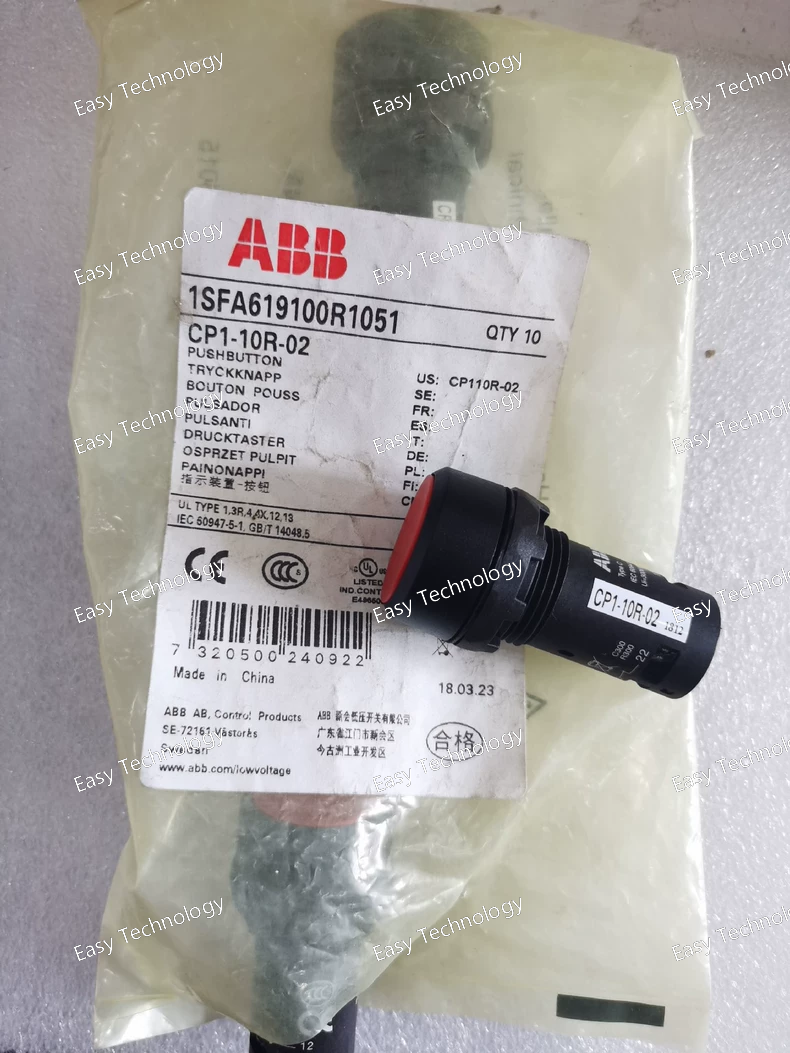

Technical Parameters General Product Type: Compact pushbutton switch Model: CP1‑10R‑02 Actuator Style: Flush pushbutton Actuator Color: Red Design: Non‑illuminated, momentary (spring return) Contact Configuration: 0 Normally Open (NO), 2 Normally Closed (NC) contacts Series: CP1 compact pilot devices Mounting: Panel mount (standard 22 mm hole) Electrical Ratings Rated Insulation Voltage (Ui): Up to ~300 V Rated Impulse Withstand Voltage (Uimp): ~6 kV Rated Operational Voltage: Up to ~300 V AC/DC Rated Operational Current (AC‑15): Up to ~1 A (e.g., 240 V AC) Rated Operational Current (DC‑13): Up to ~0.3 A at 24 V DC; ~0.2 A at 125 V DC Power Loss: Maximum ~5 W Mechanical & Physical Actuation: Momentary pushbutton (returns when released) Mechanical Durability: Approx. 0.5 million operations Terminal Type: Screw clamp terminals Connection Capacity: Flexible or solid conductors ~0.5–1.5 mm² Tightening Torque: Approx. 0.8–1.0 N·m Wire Stripping Length: Approx. 6 mm Weight: ~0.022 kg Dimensions: Width: ~30 mm Height: ~30 mm Depth: ~55 mm Environmental & Protection Front Protection Rating: IP66 / IP67 / IP69K (dust/water protection when installed) Terminal Protection: IP20 Operating Ambient Temperature: ~‑25 °C to +70 °C Storage Temperature: ~‑40 °C to +85 °C Pollution Degree: Suitable for industrial environments Enclosure/NEMA Types: Type 1 / Type 12 / Type 13 / Type 3R / Type 4 / Type 4X (depending on installation and sealing) Applications Start/stop and control signaling Machine panel operator interfaces Manual trigger in automation systems Industrial control and safety circuits

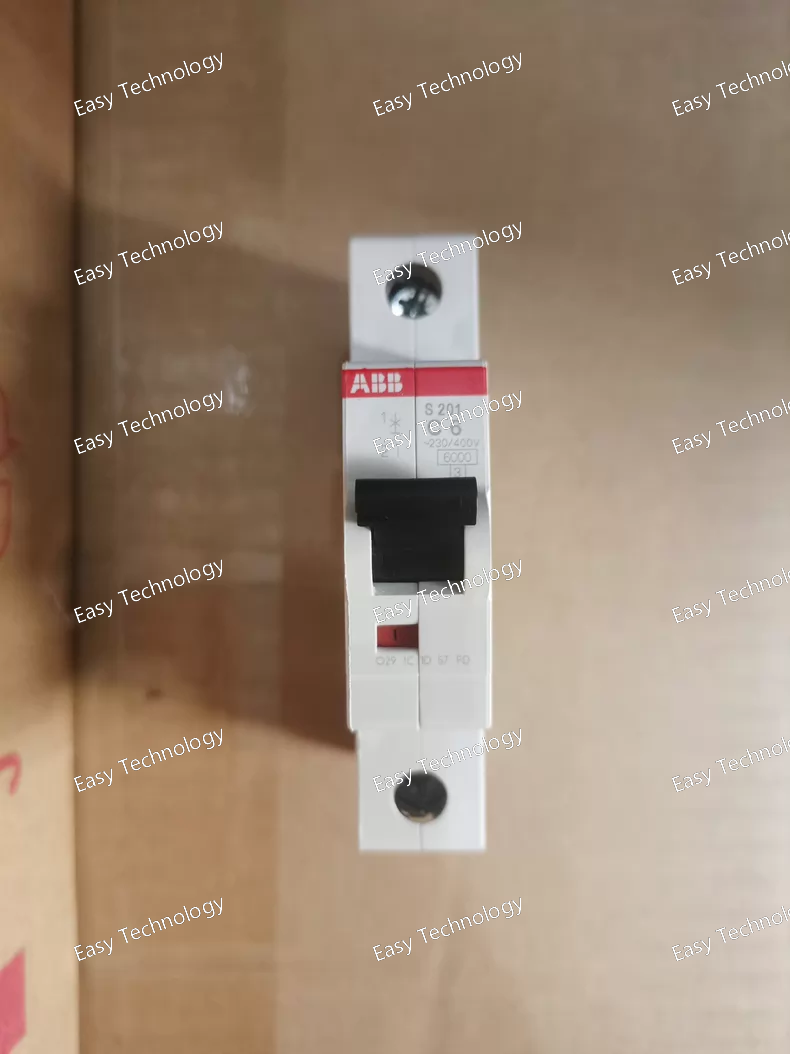

Technical Parameters General Product Type: Miniature Circuit Breaker (MCB) Model: S201‑C6 Series: System Pro M Compact S200 Number of Poles: 1 (Single‑pole) Trip Curve: C‑curve (thermal‑magnetic) Mounting: DIN rail (TH35 standard) Electrical Ratings Rated Current (In): 6 A Rated Operational Voltage (AC): up to ~230/400 V AC (IEC), suitable for up to ~277/480Y VAC in some regions Rated Insulation Voltage (Ui): ~400–440 V Rated Frequency: 50/60 Hz Breaking Capacity: ~6 kA (short‑circuit breaking capacity) Rated Service Short‑Circuit Capacity (Ics): ~7.5 kA Rated Ultimate Short‑Circuit Breaking Capacity (Icu): ~10 kA Rated Impulse Withstand Voltage (Uimp): ~4 kV Energy Limiting Class: Class 3 Trip Mechanism: Thermal for overload + magnetic for short circuit Contact Position Indication: ON/OFF indication Mechanical & Physical Actuator: Toggle switch, black with red/green indication Terminal Type: Screw terminals (failsafe bi‑directional cylinder lift) Connecting Capacity: Busbar: ~10 mm² Flexible conductor with ferrule: ~0.75 – 25 mm² Rigid conductor: ~0.75 – 35 mm² Stranded conductor: ~0.75 – 35 mm² Power Loss: ~2 W at rated conditions Mechanical Endurance: ~20,000 operations Electrical Endurance: ~20,000 operations Environmental Ambient Operating Temperature: ~‑25 °C to +55 °C Storage Temperature: ~‑40 °C to +70 °C Pollution Degree: Suitable for typical industrial/household environments Overvoltage Category: III Degree of Protection: IP20 (breaker body/terminals); panel installation may provide higher front protection Physical Dimensions Width: ~17.5 mm (1 modular unit) Depth / Length: ~69 mm Height: ~88 mm Weight: ~0.125 kg Standards Compliance Designed to meet modern circuit‑breaker safety and performance standards used worldwide, making it suitable for residential, commercial, and light industrial installations. Applications Overload and short‑circuit protection for branch circuits Distribution boards and consumer units Lighting circuits and receptacles Protection of wiring and downstream devices in buildings, factories, and equipment panels General electrical distribution protection up to rated capacity
