Technical Parameters General Product Type: Pilot device enclosure (empty modular housing) Model: MEP2‑0 Series: Modular plastic pilot device accessories Color: Dark grey body with light grey face Installed Positions: 2 positions (2‑hole layout) Material: High‑quality plastic / polycarbonate housing Compatibility: Designed for 22 mm modular pilot operators (pushbuttons, switches, indicators) Mechanical Configuration: 2‑seat enclosure for modular pilot devices Mounting: Panel mount / rear mount enclosure Connection: Suitable for rear wiring and modular contact blocks Dimensions (approx): Width: 0.141 m Height: 0.061 m Depth / Length: 0.075 m Net Weight: ~0.20 kg Protection & Environmental Protection Rating: High protection enclosure suitable for industrial use Ingress Protection (Front): IP66 / IP67 / IP69K (depending on installation conditions and sealing) NEMA Types: 1 / 3R / 4 / 4X / 12 / 13 Operating Ambient Temperature: Typical industrial range Storage Temperature: Extended storage range Applications Modular control panel assemblies Pilot device mounting for pushbuttons, selector switches, and indicator lights Operator stations and machine control interfaces Industrial automation panels and distribution boards Wired control and signaling circuits requiring environmental protection

Technical Parameters General Product Type: AC magnetic contactor Model: AS09‑30‑10‑25 Poles: 3 main poles (three‑phase) Auxiliary Contact: 1 built‑in auxiliary contact (typically 1 Normally Open) Series: AS09 compact contactor range Design: Block type, spring‑terminal connection Electrical Ratings Rated Operational Current: ~9 A (typical for this contactor size) Rated Operational Voltage (Main Circuit): up to ~690 V AC Control (Coil) Voltage: 220 V AC @ 50/60 Hz (standard variant) Rated Operational Power (Motor): Suitable for motors up to a few kW depending on voltage level (e.g., ~2.2 kW @ 230 V AC, ~4 kW @ 400 V AC) Rated Operational Current (AC‑15 control circuits): Several amps depending on voltage Rated Insulation Voltage: ~690 V Rated Impulse Withstand Voltage: ~6 kV Rated Short‑Time Withstand Current: Typical performance for compact contactor class Control / Coil Coil Type: AC operated electromagnetic Coil Frequency: Compatible with 50 Hz and 60 Hz mains operation Coil Voltage Example: 220 V AC (other coils available on request) Performance & Cycling Mechanical Endurance: High life suitable for frequent switching Electrical Endurance: Designed for industrial load switching Switching Frequencies: Suitable for typical AC‑1, AC‑3 duty cycles Mechanical & Dimensions Connection Terminals: Spring or screw type terminals depending on specification Compact Construction: Narrow width and block design for tight panel space Approx. Dimensions: Height: ~68 mm Width: ~45 mm Depth: ~72.5 mm Weight: ~0.22 kg Environmental Conditions Operating Temperature: –40 °C to +70 °C range suitable for industrial environments Storage Temperature: Extended storage range Altitude: Usable without derating up to typical industrial altitudes Vibration & Shock Resistance: Built for industrial vibration environments Applications Motor starting and stopping Control of three‑phase loads Automation equipment and machinery control Panel boards and electrical control systems Power circuit switching and signaling

Technical Parameters General Product Type: Compact pushbutton switch Model: CP9‑1005 Actuator Style: Flush pushbutton, white with left‑arrow marking Operation: Momentary (spring‑return) Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC) Series: CP9 compact range Mounting: Panel mounting (standard 22 mm cut‑out) Electrical Ratings Rated Insulation Voltage: up to 300 V Rated Operational Voltage: maximum 300 V Rated Frequency: 50 / 60 Hz Electrical Life & Current: AC‑15: up to ~1–2 A (at ~220–240 V AC) DC‑13: up to ~0.2–0.3 A (at low DC voltages) Power Loss: low, suitable for signaling use Mechanical & Durability Mechanical Life: up to ~500,000 operations Bezel / Housing Material: Plastic (black bezel) Actuator Material: Durable plastic Terminal Type: Screw clamp terminals Connection: Suitable for solid and ferruled flexible conductors Environmental & Protection Operating Temperature Range: typical industrial range Storage Temperature Range: wide ambient range Protection Rating: Front Face: Protected against dust and water ingress with high IP level when properly installed Terminals: Standard protection rating Pollution Degree: Suitable for industrial environments Applications Start/stop control in machinery panels Mode or direction selection input Signaling and control circuits in industrial automation Operator interfaces for equipment control

Technical Parameters General Product Type: AC operated magnetic contactor Model: AX65-30-11 Poles: 3-pole main contacts Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Series: ABB AX contactor range Construction: Block type, compact design Electrical Ratings Rated Operational Voltage (Main and Auxiliary Circuits): up to 690 V AC (AC-1/AC-3 applications) Rated Operational Current (AC-3): 65 A at typical industrial voltages Rated Operational Current (AC-1): up to approx. 95 – 115 A depending on voltage and ambient temperature Rated Operational Power (AC-3, typical): up to approx. 37 kW (415 V) Rated Impulse Withstand Voltage (Uimp): 6 kV Rated Insulation Voltage (Ui): 690 V Conventional Free-air Thermal Current (Ith): ~125 A Control / Coil Coil Voltage Options: 24 V AC/DC 110 V AC/DC 220–230 V AC/DC 400–415 V AC/DC Coil Frequency: 50 / 60 Hz compatible Operate / Release Times: Millisecond range typical for electromagnetic contact engagement and release Performance & Duty Switching Frequencies: Suitable for standard AC-1 and AC-3 switching cycles Mechanical Endurance: High mechanical life for frequent switching Electrical Endurance: Designed for industrial load switching Mechanical & Installation Mounting: DIN rail or panel mounting with screw terminals Terminal Type: Screw connection for main and control circuits Dimensions & Weight (approx.): Width: ~82 mm Depth / Length: ~110 mm Height: ~108 mm Weight: ~1.05 kg Environmental Specifications Ambient Operating Temperature: Typical industrial range (e.g., −40 °C to +70 °C) Storage Temperature: Extended range for transport / storage conditions Pollution Degree: Suitable for industrial environments Altitude: Application up to typical industrial altitudes without derating Applications Motor control circuits and motor starters Industrial control panels and automation systems Power switching of AC loads Contactors integrated with overload relays in control starters

Technical Parameters General Product Type: Illuminated Pilot Light Model: CL2-501R 12VDC Series: Compact CL2 Lens Color: Red Shape: Circular flat lens Mounting: Panel mount (standard 22 mm cut-out) Electrical Rated Voltage: 12 V DC Lamp Type: Integrated LED Current Consumption: Approx. 16 – 30 mA at 12 V DC LED Life Expectancy: ~50,000 hours Base Type: BA9s style connection Terminal Type: Screw terminals Mechanical & Physical Diameter: 22 mm nominal panel size Depth: Shallow mounting depth for compact installation Housing Material: Plastic / Polycarbonate Lens Material: Polycarbonate / glass-like Environmental & Protection Operating Temperature: ~-25 °C to +70 °C Storage Temperature: ~-40 °C to +85 °C Protection Rating: Front: IP66 / IP67 / IP69K Terminals: IP20 Enclosure / NEMA Types: Compatible with NEMA 1 / 3R / 4 / 4X / 12 / 13 levels depending on panel sealing and installation conditions Applications Visual indication in control panels and machine interfaces Status signaling (power on, alarm, fault, etc.) Industrial automation and process control systems OEM equipment and electrical cabinets

Technical Parameters General Product Type: 3-phase busbar accessory Model: PS1-3-0-65 Suitable For: Manual motor protectors (e.g., MS116 / MS132 series) Number of Mountable Devices: 3 Number of Poles / Connections: 9 Auxiliary Contacts: 0 (no lateral auxiliary contacts) Electrical Ratings Rated Operational Voltage (AC): up to 690 V AC Rated Operational Voltage (DC): up to 250 V DC Rated Operational Current: 65 A Rated Impulse Withstand Voltage: 6 kV Rated Short-Time Withstand Current: 100 kA Connection Type: Fork style connection Mechanical Phase Count: 3 Module / Width: ~131.5 mm length × ~32.3 mm height × ~13 mm depth Degree of Protection: IP20 Pollution Degree: 3 Pole Spacing / Pitch: Standard busbar dimensions for MS116/MS132 range Weight: Approx. 0.055 kg Standards & Compliance Designed for use in assemblies meeting IEC/EN 60947 series requirements for low-voltage switchgear and controlgear. Environmental Operating Temperature: Typical industrial range (e.g., −25 °C to +70 °C) Storage Temperature: Standard ambient storage range Typical Applications Parallel feeding of manual motor protectors in control panels Motor control centers for organized three-phase distribution Industrial power distribution boards Wiring distribution in motor protection and control circuits

Technical Parameters General Product Type: Joystick operator (pilot device) Model: MJS1-60B Actuator Type: Maintained joystick, 2 positions Illumination: Non-illuminated Actuator Color: Black Bezel / Housing: Chrome metal Contact Blocks: Not included (modular system) Installation Type: Panel mounting with snap-on contact block support Operator Function: Maintained (latching) 2-position control Mechanical & Durability Mechanical Life: Approx. 500,000 operations Panel Cut-out Diameter: Standard 22 mm Dimensions: Approx. 43 mm (H) × 48 mm (W) × 97 mm (D) Weight: Approx. 0.06 kg Environmental & Protection Operating Temperature Range: −25 °C to +70 °C Storage Temperature Range: −40 °C to +85 °C Front Protection Rating: IP66 / IP67 / IP69K (with appropriate sealing accessories) Standards Compliance: Conforms to industrial control and signaling product standards Electrical Electrical Contacts: Not included — contact modules must be ordered separately and installed as needed Connection Type: Modular snap-on contact blocks (screw or spring clamp blocks available separately) Typical Applications Machine control panels (direction or function selection) Mode selection for automated systems Manual directional control for conveyors, hoists, and motors Operator interface for industrial equipment Override or local control stations in automation environments

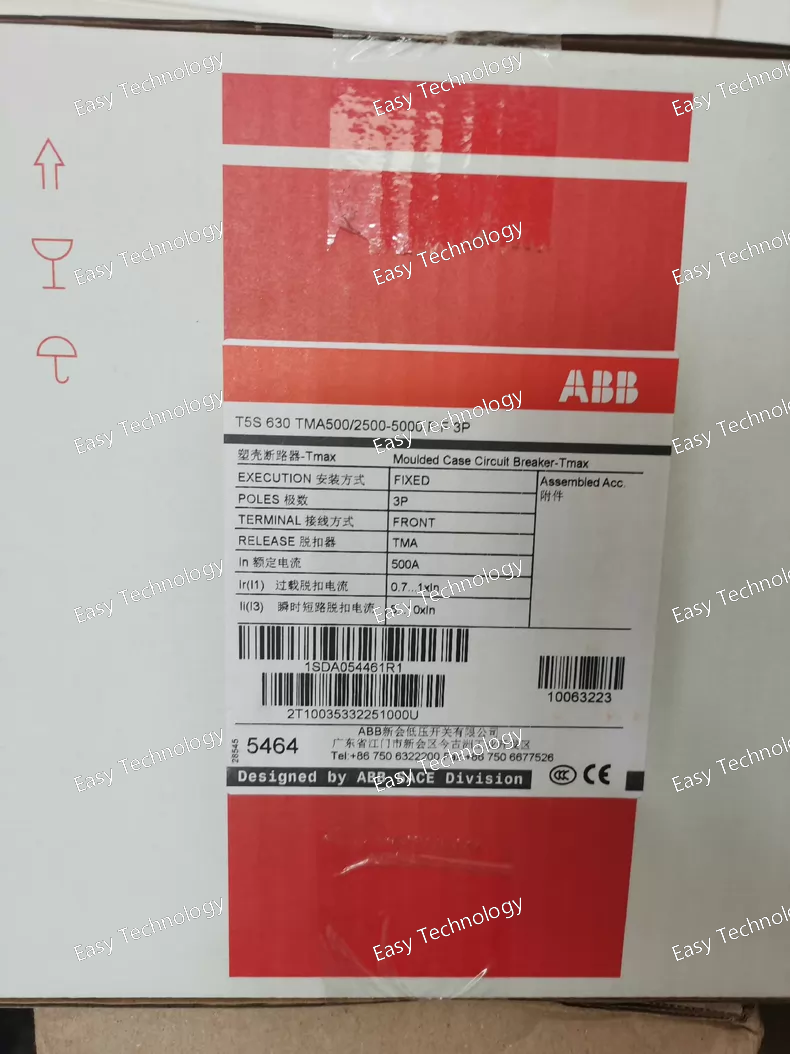

Technical Parameters General Product Type: Moulded Case Circuit Breaker (MCCB) Series: ABB Tmax T5 Model: T5S630 TMA500/2500-5000 FF 3P Poles: 3 (three-pole fixed device) Mounting Type: Fixed front-terminal (FF) connection Rated Values Rated Current (Iₙ): 500 A (continuous) Rated Uninterrupted Current (Iu): ~630 A Operational Voltage: up to 690 V AC (AC systems) / up to 750 V DC Rated Insulation Voltage (Ui): 1000 V Rated Impulse Withstand Voltage (Uimp): 8 kV Trip & Protection Trip Unit Type: Thermal-Magnetic (TMA) Adjustable Instantaneous Short-Circuit Setting: 2500 A … 5000 A Overload Protection: Thermal element Short-Circuit Protection: Magnetic instantaneous element Breaking Performance Rated Service Short-Circuit Breaking Capacity (Ics): e.g., up to 50–85 kA at 230–400 V AC depending on exact variant Rated Ultimate Short-Circuit Breaking Capacity (Icu): similar high kA ratings up to several ten kA range (application dependent) Mechanical & Durability Electrical Durability: ~5000 operations Mechanical Durability: ~20000 operations Ambient Conditions: Standard industrial electrical environment (e.g., –25 °C to +70 °C) Physical & Installation Terminal Type: Front connect (FF) Device Width / Dimensions: Typical for 630 frame series Connection: Fixed panel mounting Standards & Compliance Designed per IEC 60947-2 low-voltage circuit breaker standards ✔ Typical Applications Power distribution protection in industrial & commercial systems Feeder & branch circuit protection Motor and load protection Transformer feeder protection Panel board and switchboard installation

Technical Parameters General Product Type: Selector switch Model: C2SS1-30R-11 Actuator Type: Rotary selector, short handle Operating Function: Maintained (latching) Number of Positions: 2 Illumination: Non-illuminated Handle Color: Red Bezel Material: Metal Panel Cut-out: 22 mm Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Electrical Ratings Rated Operational Voltage: Up to 300 V Rated Frequency: 50 / 60 Hz Rated Operational Current: AC-15: up to 1 A at 220–240 V AC DC-13: up to 0.3 A at 24–125 V DC Contact Material: Silver alloy Connection Type: Screw terminals Mechanical & Environmental Mechanical Life: Up to 500,000 operations Degree of Protection (Terminals): IP20 Ambient Operating Temperature: −25 °C to +70 °C Storage Temperature: −30 °C to +85 °C Pollution Degree: 3 Applications Control panels and operator stations Machine mode selection Motor forward / reverse selection Manual control and signaling in industrial automation systems

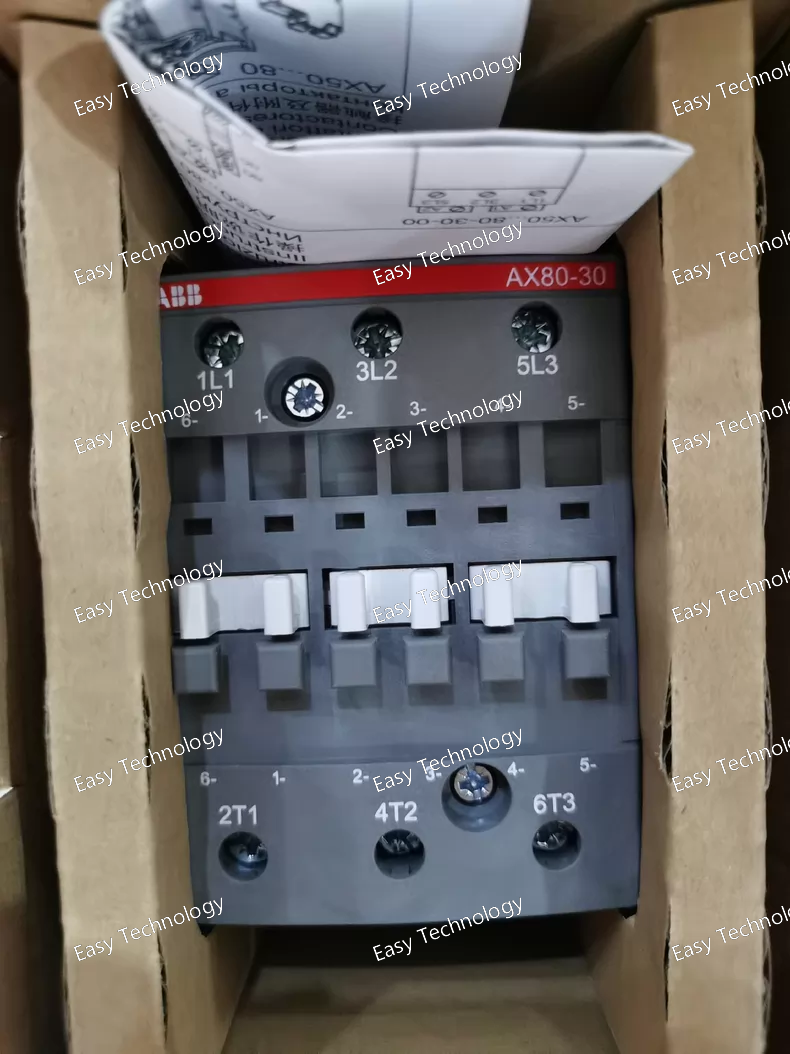

Technical Parameters General Product Type: AC power contactor Model: AX80-30-11 Number of Poles: 3 Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC), built-in Operating Principle: Electromagnetic, AC coil Electrical Ratings Rated Operational Voltage (Main Circuit): up to 690 V AC Rated Operational Current (AC-3): 80 A Rated Operational Current (AC-1): up to 125 A Rated Operational Power (AC-3, 400 V): up to 37 kW Frequency: 50 / 60 Hz Coil Control Voltage: Depends on coil version (e.g. 110 V AC, 220–240 V AC) Coil Type: AC operated Mechanical & Installation Mounting: DIN rail or panel mounting Construction: Block type Accessory Compatibility: Side-mounted auxiliary contact blocks, mechanical interlocks, surge suppressors Applications Motor starting and stopping Power circuit switching Industrial automation and control panels Pump, fan, compressor, and conveyor control systems

Key English Specifications Parameter Value / Description Contactor Type 3‑pole, non‑reversing magnet contactor Main Contacts 3 × Normally Open (NO) Auxiliary Contact 1 built‑in auxiliary contact Control Coil Voltage 24–60 VAC (50/60 Hz) or 20–60 VDC — wide control range Rated Operational Voltage (Ue) Up to 690 V AC (IEC standard) Rated Current (AC‑1) ~30 A Rated Motor Load (AC‑3) ~18 A (≈7.5 kW / 400 V) Maximum Load/Power Up to ~7.5 kW (AC‑3) Termination Screw terminals Mounting DIN rail or panel mount Design/Features AF technology with wide control voltage range, reduced power consumption, built‑in surge protection, compact block design Application Motor control, automation systems, switching circuits in industrial panels Standards IEC 60947 compliant Weight ~0.31 kg Typical Operating Frequency 50/60 Hz Operating Temperature Range Typical industrial duty range

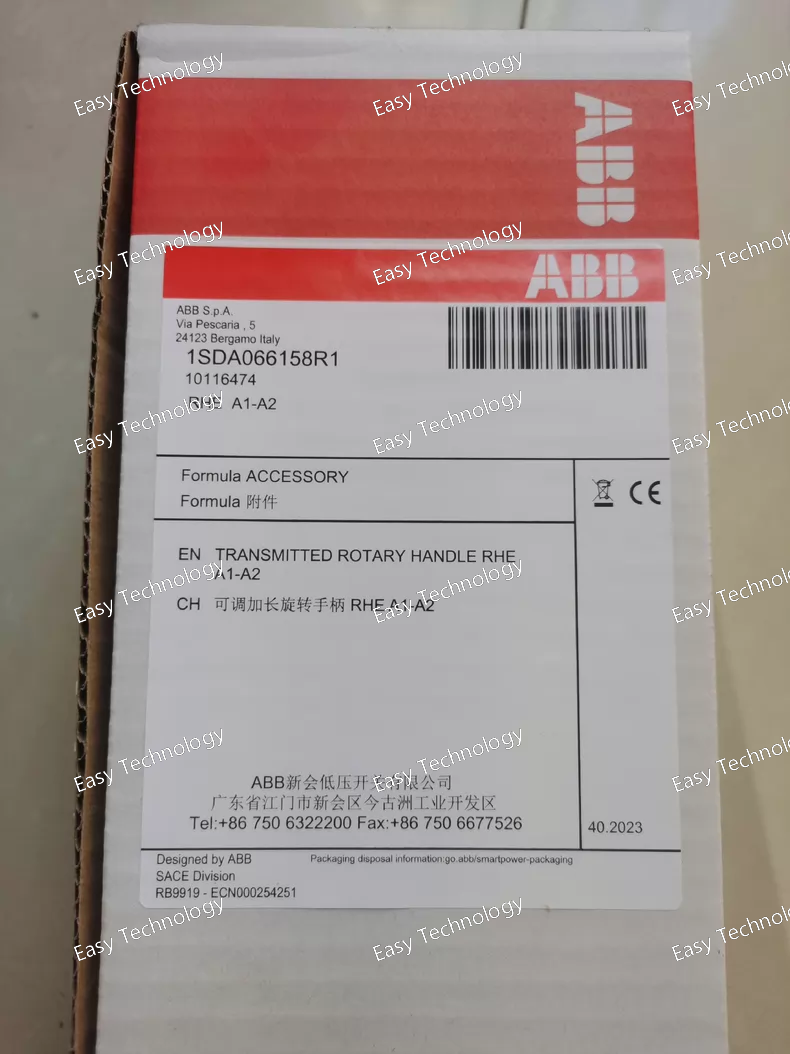

Key Parameters Parameter Value / Description Product Type Rotary handle operating mechanism Model / Code RHE A1‑A2 Standard Returned ABB Catalog No. 1SDA066158R1 ABB Order Code KA2RHE Intended For MCCB FORMULA Series Frame Compatibility A1 and A2 frame sizes Operating Style Rotary handle — standard returned Mounting Feature Adjustable depth for various door thicknesses Additional Features Padlock provision, door interlock Standards / Approvals IEC compliant, UL recognized (region dependent) Weight ~0.45 kg Typical Use External operating handle for circuit breaker panel doors Environmental / Compliance REACH / RoHS compliant Function Standard returned — handle returns to neutral position after operation A1‑A2 Compatible with A1 and A2 frame MCCBs
