Technical Parameters Electrical Ratings Product Type: Fuse Switch Disconnector with EFM Series: EasyLine XLP Number of Poles: 3 (three‑pole) Rated Current (Iu): 160 A – continuous current rating for the main circuit Rated Operational Voltage (Ue): up to 1000 V AC Rated Frequency: 50 / 60 Hz Rated Insulation Voltage (Ui): Designed for IEC rated systems Rated Impulse Withstand Voltage (Uimp): 8 kV Rated Operational Current (AC‑21B / AC‑22B / AC‑23B): AC‑21B (690 V): ~125 A AC‑22B (500 V): ~160 A AC‑23B (400 V): ~125 A Conditional Short‑Circuit Current (Iq / Icn): 50 kA RMS Fuse Compatibility: NH000, NH00 fuse bases Functional Features Electronic Fuse Monitoring (EFM): Integrated EFM improves safety by indicating fuse status and enabling fault detection Bridge Clamps: Includes 6 bridge clamps for easy and secure cable termination Switch Function: Manual load isolation in combination with fuse protection Safety Features: Designed for safe front operation and clear isolation indication Mechanical & Installation Mounting: Baseplate mount with front‑accessible control element Terminal Type: Cable clamp terminals for main circuit connections Handle Position: Front‑located operating element Suitable Mounting Systems: Can be installed on busbar structures or distribution frames Degree of Protection: IP30 at front Main Circuit Connection: Screw/clamp type cables Environmental & Physical Operating Range: Industrial ambient conditions Approx. Weight: ~0.63–0.68 kg Dimensions: Typical panel/fuse switch disconnector footprint with compact design Pole Configuration: 3‑pole for three‑phase systems

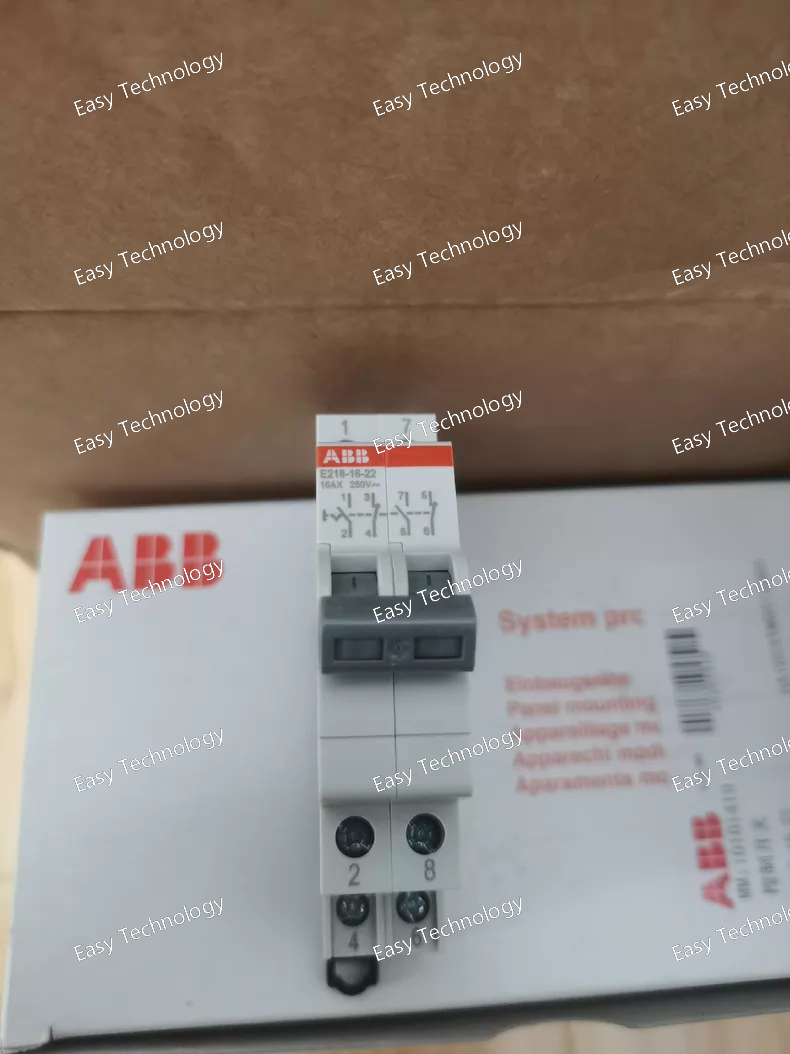

Technical Parameters General Product Type: Industrial control switch Series: ABB E218 Mounting: DIN‑rail mounting (standard 35 mm rail) Module Width: Approx. 1 modular unit (~18 mm) Degree of Protection: IP20 (installed in enclosure) Color: Gray operator and housing Contact Configuration Number of Poles / Contacts: 4 2 Normally Open (NO) 2 Normally Closed (NC) Contact Type: Snap‑action changeover contacts suitable for control circuits Electrical Ratings Rated Current: 16 A per contact set (AC) Rated Operational Voltage: 250 V AC Frequency: 50 / 60 Hz Short‑Circuit Breaking Capacity (Icw): 3 kA Contact Material: Suitable for standard control loads Mechanical & Installation Terminal Type: Screw terminals for secure conductor connection Connecting Capacity: Solid: ~1…6 mm² Flexible: ~0.75–2.5 mm² Tightening Torque: ~1.2–1.5 N·m Dimensions (approx.): Width: 18 mm Depth: 68 mm Height: 85 mm Weight: ~0.08–0.09 kg

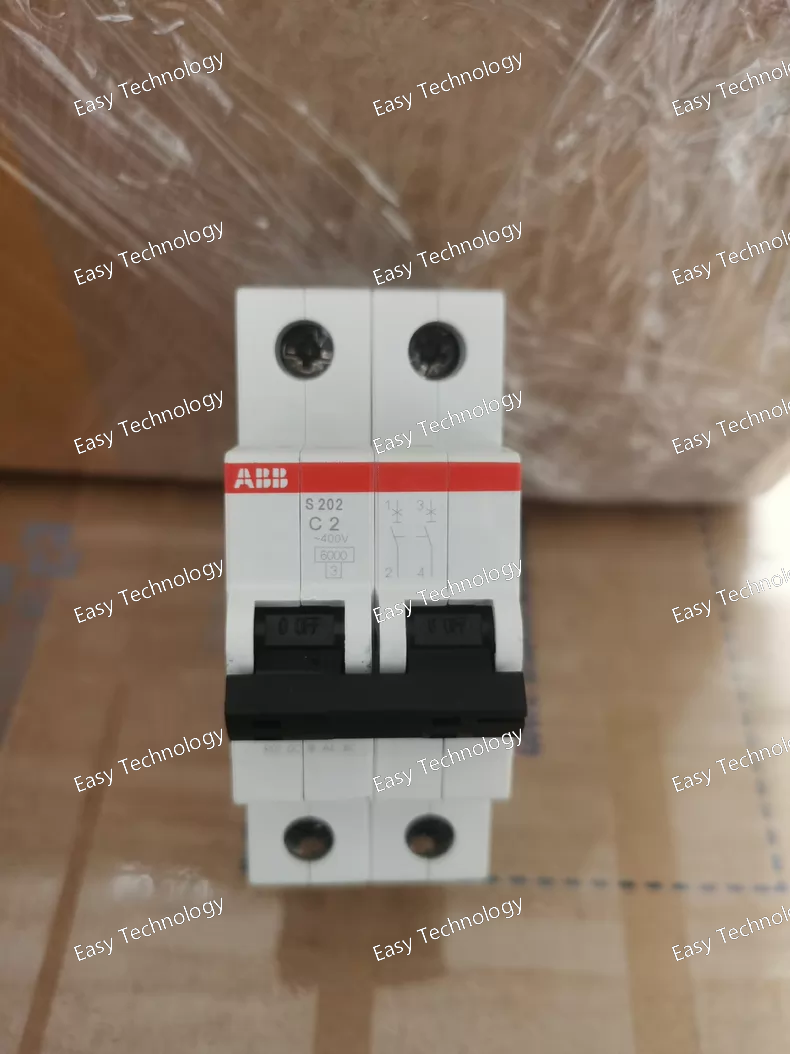

Technical Parameters Electrical Ratings Rated Current (In): 2 A Number of Poles: 2P (two poles) Tripping Characteristic: C‑curve (suitable for moderate inrush loads) Rated Operational Voltage (Ue): Up to 400 V AC (IEC 60898‑1) Up to 440 V AC (IEC 60947‑2) Rated Insulation Voltage (Ui): 440 V Rated Frequency: 50 / 60 Hz Rated Short‑Circuit Breaking Capacity (Icn): 10 kA at 230/400 V AC Rated Ultimate Short‑Circuit Breaking Capacity (Icu): up to 15 kA Current Limiting Class: 3 Overvoltage Category: III Rated Impulse Withstand Voltage (Uimp): 4 kV Operational Voltage Range: 12 V AC/DC to 440 V AC DC Interrupting Capability: Up to approx. 125 V DC Mechanical & Mounting Mounting: Standard DIN‑rail (35 mm) Terminal Type: Screw terminals Tightening Torque: Approx. 2 N·m Mechanical Endurance: ~20,000 operations Electrical Endurance: ~20,000 AC cycles Housing Material: High‑quality insulating material (light grey) Contact Position Indication: Red (ON) / Green (OFF) indicators Environmental Ambient Operating Temperature: approx. ‑25 °C to +55 °C Pollution Degree: 3 Protection Rating: IP20 (when mounted in panel/enclosure) Mounting Position: Any

Technical Parameters Electrical Ratings Device Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO) Number of Poles: 1 P + N (phase + neutral) Rated Current (In): 20 A Tripping Characteristic: C‑curve (medium inrush tolerance) Rated Residual Current (IΔn): 30 mA (earth leakage protection) Type of Residual Current: Type A (detects AC and pulsating DC leakage) Rated Operational Voltage: ~230/240 V AC, 50 / 60 Hz Rated Insulation Voltage (Ui): ~500 V AC Rated Impulse Withstand Voltage (Uimp): ~4 kV Rated Short‑Circuit Breaking Capacity: 6 kA typical ultimate breaking capacity Service breaking capacity at rated conditions Energy Limiting Class: Class 3 Current Limitation: Yes (internal limitation per IEC standards) Protection Functions Overload Protection: Thermal‑magnetic trip Short‑Circuit Protection: Magnetic trip Residual Current Protection: Trips at ≥ 30 mA leakage Protection Against Direct and Indirect Contact: Provided by combined RCBO action Mechanical & Mounting Mounting: Standard DIN‑rail (35 mm) Terminal Type: Cage or screw terminals for line, load, and neutral Neutral Facility: Firm neutral connection with switched/unswitched variants depending on version Contact Position Indication: ON/OFF indication on the toggle Number of Modular Widths: 2 modules wide (compact footprint) Environmental & Durability Pollution Degree: Typical industrial/class 3 Mechanical Endurance: ~20,000 operations Electrical Endurance: ~10,000 operating cycles Operating Temperature: ~‑25 °C to +55 °C Storage Temperature: wider industrial range

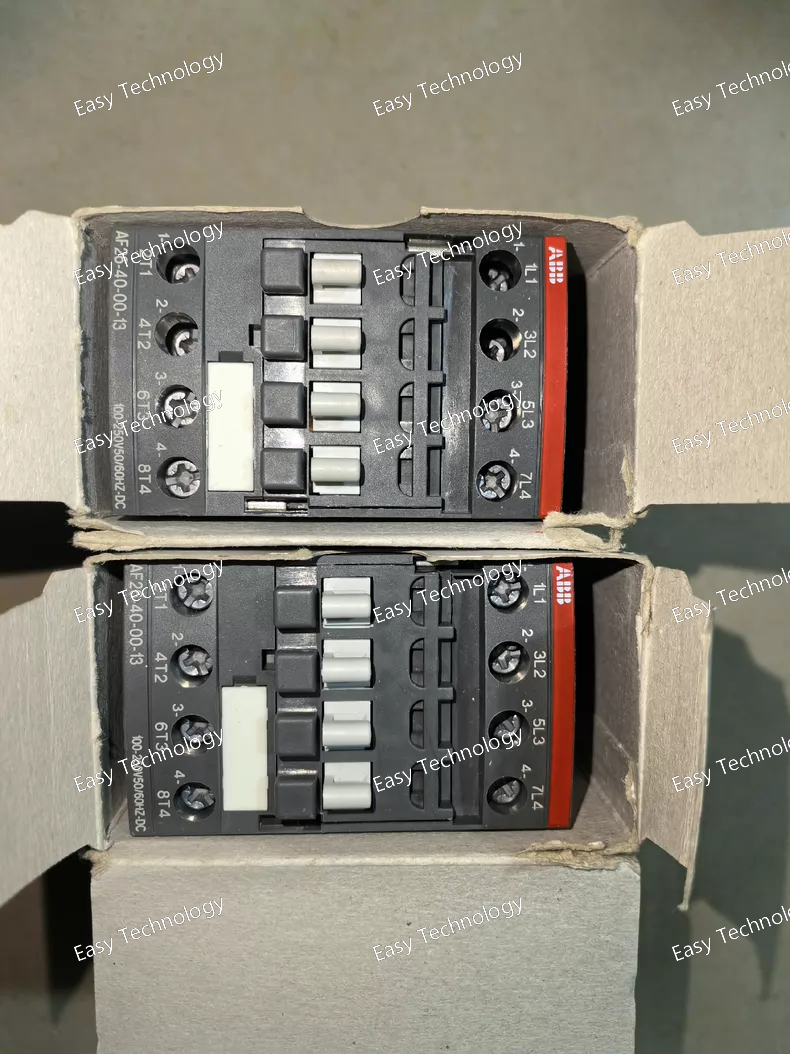

Technical Parameters General & Electrical Ratings Product Type: Electromechanical contactor (4‑pole) Main Contact Configuration: 4 Normally Open (4 NO) Control Coil Voltage: 100–250 V AC/DC (wide range control) Rated Operational Current AC‑1 (Ie): ~45 A @ 690 V AC (40 °C) ~40 A @ 690 V AC (60 °C) ~32 A @ 690 V AC (70 °C) Rated Operational Current AC‑3 (Ie): (motor control) ~23.2 A @ 220/230/240 V AC ~22 A @ 380/400 V AC ~21.2 A @ 415 V AC ~20 A @ 440 V AC ~17.6 A @ 500 V AC ~10.5 A @ 690 V AC Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Rated Frequency: 50 / 60 Hz Application Loads: Motors, non‑inductive and slightly inductive loads Performance & Endurance Conventional Free‑Air Thermal Current (Ith): ~55 A @ 40 °C Maximum Electrical Switching Frequency: ~600 cycles/hour (AC‑1) Maximum Mechanical Switching Frequency: ~3600 cycles/hour Operate/Release Times: Typical operate/release milliseconds (fast switching) Mechanical & Connection Number of Poles: 4 Terminal Type: Screw terminals for main and control connections Mounting: Panel or DIN‑rail with appropriate accessories Degree of Protection: IP20 (terminals and housing) Dimensions (approx.): 45 mm width × 101 mm depth × 86 mm height Approx. Weight: ~0.36 kg Operating Ambient Temperature: approx. –40 °C to +70 °C Permissible Altitude: up to 3000 m without derating Typical Ratings & Capabilities Rated Motor Loads (approx): 5.5 kW @ 220–240 V AC 11 kW @ 380–440 V AC 11 kW @ 500 V AC 9 kW @ 690 V AC Horsepower Ratings: 7½ hp @ 220–240 V AC (3‑phase) 15 hp @ 440–480 V AC (3‑phase) 20 hp @ 550–600 V AC (3‑phase) 2 hp @ 120 V AC (1‑phase) 3 hp @ 240 V AC (1‑phase)

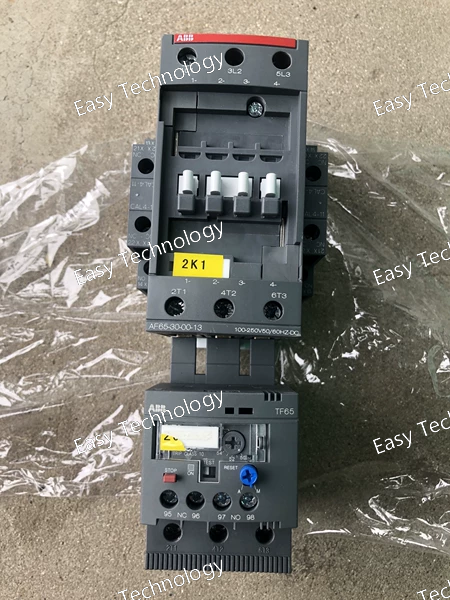

Technical Parameters Electrical Ratings Contact Configuration: 3 poles, 3 normally open (3NO) Control Coil Voltage (Uc): 100–250 V AC/DC, 50/60 Hz Rated Operational Current (AC‑1): up to 105 A @ 690 V Rated Operational Current (AC‑3 Motor): ~65 A @ 220–415 V AC Rated Operational Power (AC‑3): 18.5 kW @ 230 V AC 30–37 kW @ 380–690 V AC Insulation Voltage (Ui): 600/690 V AC Rated Impulse Withstand Voltage (Uimp): 6 kV Frequency: 50/60 Hz Horsepower Ratings: Single-phase: 5 hp @ 120 V, 15 hp @ 240 V Three-phase: 25 hp @ 240 V, 50 hp @ 480 V, 60 hp @ 600 V Mechanical & Installation Mounting: DIN‑rail or panel mount Terminal Type: Screw terminals Operating Temperature Range: −60 °C to +80 °C Enclosure Protection: IP10 / IP20 depending on installation Operating Cycles: ~10,000,000 cycles Dimensions: 125.5 mm (H) × 55 mm (W) × 111 mm (D) Environmental & Operational Altitude: Up to ~3000 m without derating Surge Protection: Built‑in coil surge suppression for reliable operation

Technical Parameters Electrical Ratings Rated Control Coil Voltage (Uc): 220 – 230 V AC (50 Hz) / 230 – 240 V AC (60 Hz) Number of Poles (Main Contacts): 3 NO (normally open) Auxiliary Contacts: 1 NO (normally open) Rated Insulation Voltage (Ui): 690 V AC (IEC 60947‑4‑1) Rated Operational Voltage (Main Circuit): up to 690 V AC Rated Operational Current (IE): AC‑1: ~22 A @ 220/240 V AC (55 °C) and ~22 A @ 690 V AC (40 °C) AC‑3: ~9 A @ 220‑240 V AC; ~9 A @ 380‑440 V AC; ~7 A @ 690 V AC Rated Operational Power (AC‑3): ~2.2 kW @ 220‑240 V AC ~4 kW @ 380‑440 V AC ~5.5 kW @ 500‑690 V AC Performance & Switching Rated Operational Current (AC‑15): up to ~6 A (control duty) Rated Operational Current (DC‑13): ~0.55 A to ~6 A depending on DC voltage Maximum Breaking Capacity: ~250 A @ 440 V AC / ~90 A @ 690 V AC Conventional Free‑Air Thermal Current (Ith): ~24 A Operate Times: Coil energization to NO contact closing: ~10 ms to 26 ms Coil de‑energization to NO contact opening: ~4 ms to 11 ms Switching Frequency: AC‑1: ~600 cycles/hour AC‑3/AC‑15: ~1200 cycles/hour DC‑13: ~900 cycles/hour Mechanical: ~3600 cycles/hour Mechanical & Connection Terminal Type: Screw terminals for main, control, and auxiliary circuits Tightening Torque: ~1 N·m on all terminals Degree of Protection: IP20 (main, auxiliary, and coil terminals) Mounting: Panel or DIN‑rail compatible with appropriate accessories Dimensions: Approx. 44 mm (W) × ~77 mm (D) × ~74 mm (H) Weight: ~0.27 kg Ambient Operating Temperature: With thermal overload relay: −25 °C to +55 °C Without thermal overload relay: −40 °C to +70 °C Storage Temperature: −60 °C to +80 °C Maximum Altitude (without derating): ~3000 m

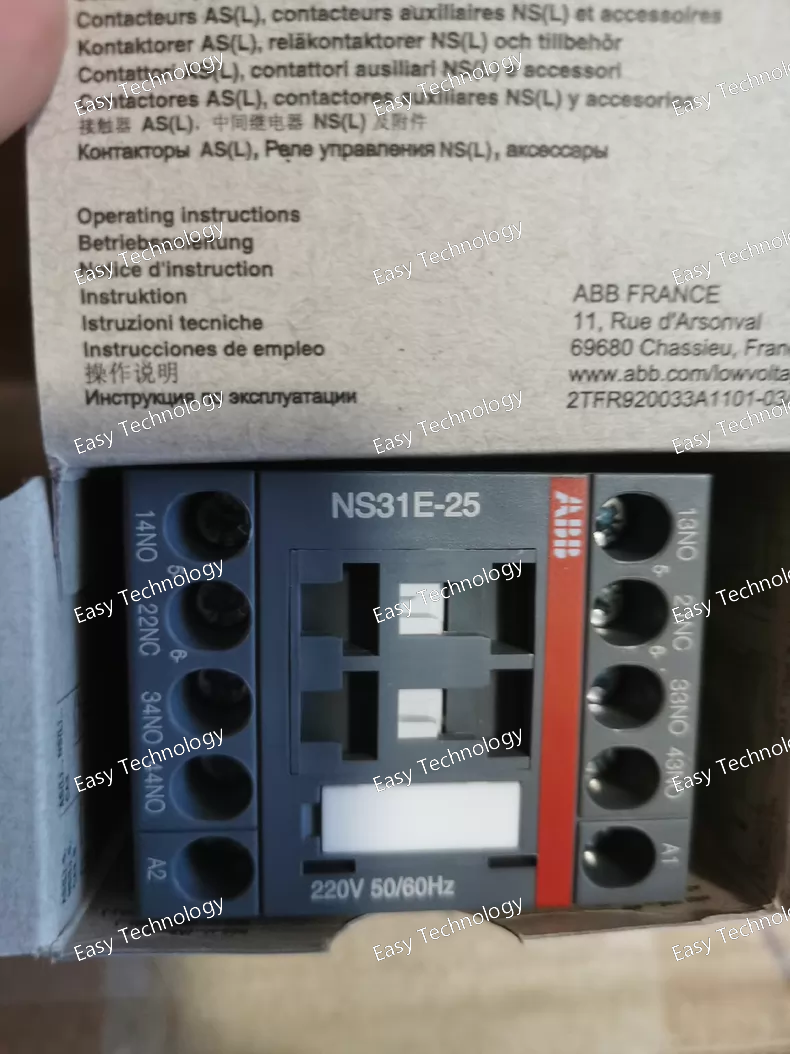

Technical Parameters Control & Coil Control (Coil) Voltage Range: 100 … 250 V AC or DC (wide range) Rated Frequency: 50 / 60 Hz Coil Type: AC/DC coil with wide voltage acceptance Contacts & Switching Contact Configuration: 3 NO + 1 NC (four auxiliary contacts total) Number of Poles: 4 Rated Insulation Voltage (Ui): up to 690 V AC Rated Operational Voltage: up to 690 V AC (auxiliary/main circuit) Conventional Free‑Air Thermal Current (Ith): 16 A Rated Operational Current (AC‑15): ~6 A @ 24 … 127 V AC ~4 A @ 220 … 240 V AC ~3 A @ 400 … 440 V AC ~2 A @ 500 … 690 V AC Rated Operational Current (DC‑13): ~6 A @ 24 V DC ~2.8 A @ 48 V DC ~1 A @ 72 V DC ~0.55 A @ 110 / 125 V DC ~0.27 A @ 220 / 250 V DC Lower DC currents at higher voltages to ~600 V DC Rated Short‑Time Withstand Current (Icw): ~140 A for 0.1 s ~100 A for 1 s Performance & Endurance Maximum Electrical Switching Frequency: AC‑15: ~1200 cycles per hour DC‑13: ~900 cycles per hour Maximum Mechanical Switching Frequency: ~6000 cycles per hour Mechanical & Installation Terminal Type: Screw terminals Mounting: DIN‑rail TH35 or panel mount with screws Dimensions: approx. 45 mm width × 77 mm depth × 86 mm height Net Weight: ~0.27 kg Degree of Protection: IP20 (housing and terminals) Operating Ambient Temperature: approx. –40 °C to +70 °C Altitude: Suitable for installations up to ~3000 m

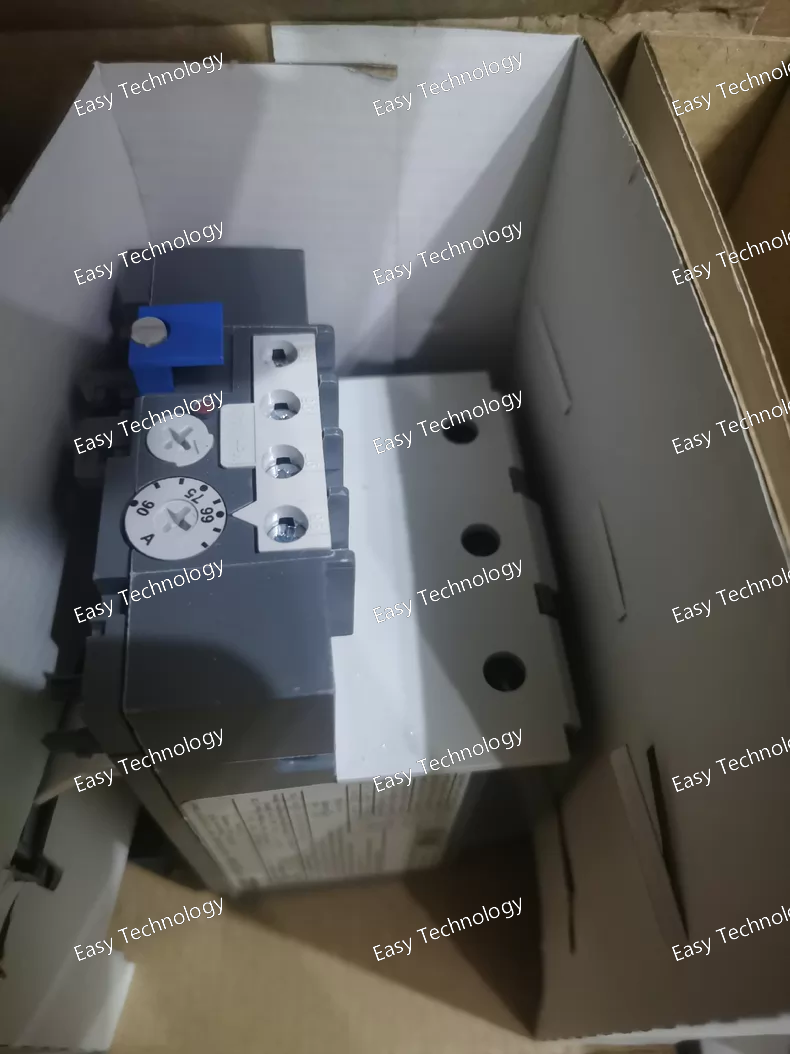

Technical Parameters Electrical Ratings Current Setting Range: ~65–90 A (adjustable) Number of Poles: 3 (protects three phases) Trip Class: 10A (industrial motor protection characteristic) Rated Operational Voltage (Main Circuit): up to 690 V AC Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Rated Frequency: 50 / 60 Hz (AC) and also operable for DC auxiliary circuits Protection & Functional Features Motor Protection: Thermal overload protection with phase loss sensitivity Reset Options: Manual or automatic reset selectable Trip‑Free Mechanism: Yes Stop & Test Functions: Integrated on front Ambient Temperature Compensation: Yes (for reliable trip response over –25 °C to +55 °C) Trip Indication: Visible on front Auxiliary Contacts Auxiliary Contact Configuration: 1 NC (normally closed) — trip contact 1 NO (normally open) — signal contact Auxiliary Contact Ratings (AC‑15): ~3 A @ 120 V AC ~1.5 A @ 240 V AC ~1.9 A @ 400 V AC ~1 A @ 440–500 V AC Auxiliary Contact Ratings (DC‑13): ~1.25 A @ 24 V DC ~0.25 A @ 125 V DC ~0.12 A @ 250 V DC Installation & Connection Mounting: Direct mount on compatible contactors (e.g., A/AF line) or separate base mounting with accessory kit Terminal Type: Screw terminals for main and auxiliary circuits Connecting Capacity: Main Circuit: Flexible/rigid conductors up to ~35 mm² Auxiliary Circuit: Flexible with ferrules ~0.75–2.5 mm², rigid up to ~4 mm² Tightening Torque: Main circuit ~7.2 … 9.6 N·m Auxiliary circuit ~1.0 … 1.3 N·m Environmental & Mechanical Degree of Protection: Housing: IP20 Main Circuit Terminals: IP10 Pollution Degree: 3 Operating Ambient Temperature: approx. –25 °C to +55 °C with compensation Storage Temperature Range: approx. –40 °C to +70 °C Mounting Position: Standard vertical orientation recommended Approx. Dimensions: ~80 mm (W) × 120 mm (H) × 120 mm (D) Net Weight: ~0.75 kg

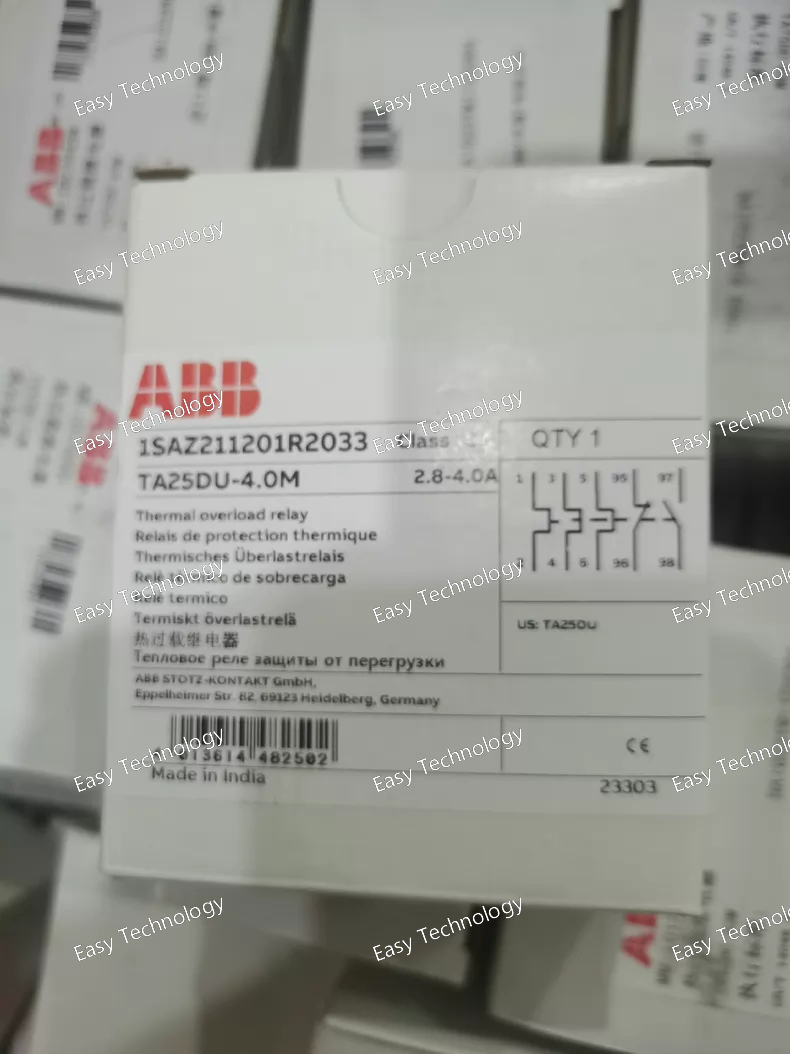

Technical Parameters Basic Electrical Ratings Type: Thermal overload relay Adjustable Current Setting Range: 2.8 … 4.0 A Rated Operational Current (Ie): 4 A Number of Poles / Protected Poles: 3 Trip Class: Class 10A Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): ~6 kV Rated Frequency: 50 / 60 Hz Contacts Auxiliary Contacts: 1 NC (normally closed) — trip contact 1 NO (normally open) — signal contact Contact Ratings: AC‑15 / control duties: up to ~3 A (NC) and ~1.5–1.2 A (NO) depending on voltage level Typical auxiliary rating examples: ~3 A @ 120 V AC (NC) ~1.2 A @ 240 V AC (NO) Protection & Functional Features Motor Protection: Overload protection with phase failure sensitivity Temperature Compensation: Included for stable trip performance across ambient ranges Trip‑Free Mechanism: Yes (prevents welded closed in overload) Reset Options: Manual or automatic reset selectable Stop & Test Functions: Integrated Mechanical & Installation Mounting: Direct mount on compatible ABB contactors (TA/TF series) Terminal Type: Screw terminals Connecting Capacity: Flexible conductors: 0.75 … 4 mm² Rigid conductors: 0.75 … 4 mm² Flexible with ferrules: 1 or 2 conductors per terminal Degree of Protection: IP20 on housing; IP10 at main circuit terminals Pollution Degree: 3 Physical & Environmental Approx. Dimensions: ~44 mm (W) × ~80 mm (H) × ~94 mm (D) Approx. Weight: ~0.15 kg Ambient Operating Temperature: –25 °C to +55 °C Storage Temperature Range: –40 °C to +70 °C

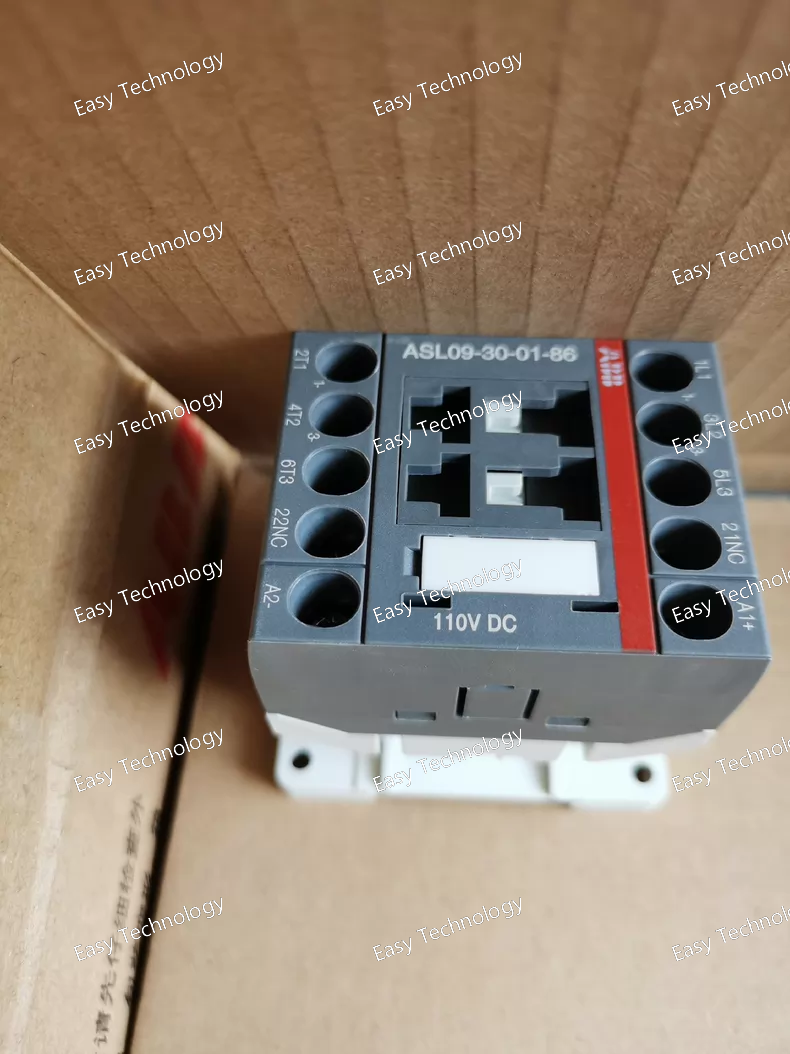

Technical Parameters General & Electrical Ratings Product Type: Electromechanical Contactor (DC operated) Series: ASL09 Number of Poles: 3 main poles Auxiliary Contacts: 1 normally closed (1 NC) built‑in auxiliary contact Rated Control Circuit Voltage (Uc): DC 110 V Rated Operational Voltage (Main Circuit): up to 690 V AC / up to 690 V AC environment rating Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Control & Coil Coil Type: DC coil designed for low consumption Coil Operating Voltage: 110 V DC Control Frequency: n/a (DC coil) Operational Performance Conventional Free‑Air Thermal Current (Ith): ~22 A Rated Operational Current (AC‑1): ~22 A at 690 V AC (temperature‑dependent) Rated Operational Current (AC‑3): ~9 A at 220–415 V AC ~8 A at 440–500 V AC ~5–7 A at 690 V AC Rated Operational Power (AC‑3): ~2.2 kW @ 220–240 V AC ~4–5.5 kW @ 400–690 V AC Rated Operational Current (AC‑15 Control): ~4 A @ 220–240 V AC ~2–3 A @ 380–690 V AC Rated Operational Current (DC‑13): ~0.55–1.1 A @ 110–125 V DC ~0.27 A @ 220–250 V DC ~2.8 A @ 400 V DC ~1–2.8 A @ 250–500 V DC Switching & Endurance Mechanical Switching Frequency: Up to ~3600 cycles/hour Electrical Switching Frequency: AC‑1: ~600 cycles/hour AC‑15 / AC‑3: ~1200 cycles/hour DC‑13: ~900 cycles/hour Operate/Release Times: ~7–21 ms to open/close contacts on coil energization/de‑energization Mechanical & Connection Terminal Type: Screw terminals Wire Stripping Length: ~9 mm Connecting Capacity: Designed for standard control and power wiring sizes Environmental & Physical Ambient Operating Temperature: −40 °C to +70 °C (varies with relay or overload fitted) Storage Temperature: −60 °C to +80 °C Degree of Protection: IP20 at terminals Maximum Permissible Altitude: ~3000 m Approx. Dimensions: ~45 mm (W) × ~68 mm (H) × ~72.5 mm (D) Net Weight: ~0.28 kg

Technical Parameters Control & Contact Configuration Product Type: Contactor Relay (Auxiliary Contact Switching Unit) Number of Poles (Contacts): 4 3 Normally Open (3 NO) 1 Normally Closed (1 NC) Rated Control (Coil) Voltage: 220 V AC, 50/60 Hz Coil Type: AC magnetic coil actuation Electrical Ratings Rated Operational Voltage (Main & Auxiliary): up to 690 V AC Conventional Free‑Air Thermal Current (Ith): ~10 A (typical auxiliary circuit rating) Rated Operational Current (AC‑15): ~4 A @ 220 / 240 V AC ~3 A @ 400 / 440 V AC ~2 A @ 500 / 690 V AC Rated Operational Current (DC‑13): ~6 A @ 24 V DC ~0.55 A @ 110 V DC ~0.27 A @ 220 / 250 V DC Rated Insulation Voltage (Ui): ~690 V AC Rated Impulse Withstand Voltage (Uimp): ~6 kV Short‑Time Withstand Current (Icw): ~140 A for 0.1 s ~100 A for 1 s Switching Frequency: AC‑15: ~1200 operations/hour DC‑13: ~900 operations/hour Mechanical & Installation Terminal Type: Screw or spring terminals depending on configuration Connection Capacity: standard industrial wire sizes compatible with auxiliary control circuits Mounting: DIN‑rail or panel mount Mechanical Endurance: Designed for high cycle life in control applications Environmental & Physical Operating Ambient Temperature: approx. −40 °C to +70 °C Degree of Protection: typically IP20 (installed inside panel) Dimensions: Compact relay form factor Approximate Weight: ~0.20–0.25 kg
