Parameter Specification Device Type Residual Current Circuit Breaker (RCCB) / RCD Product Series DDA200 Series Number of Poles 2 Poles (2P) - Protects both Live and Neutral Rated Current (Iₙ) 25 A Rated Residual Operating Current (IΔn) 30 mA (0.03 A) RCCB Type Type AC - For sinusoidal alternating residual currents only. Rated Voltage (Uₙ) 230 V AC Rated Frequency 50/60 Hz Rated Conditional Short-Circuit Current (Icn) 25 kA (Complies with IEC/EN 61008) Tripping Time ≤ 0.3 seconds (for IΔn = 30 mA, at 0°C to +40°C) Trip Characteristic Instantaneous Mounting 35 mm symmetrical DIN rail (EN 60715) Width 36 mm (2 modules) Electrical Durability ≥ 4,000 operating cycles Mechanical Durability ≥ 10,000 operating cycles Terminal Torque 2.0 Nm Suitable Cross-Section (Rigid/Flexible) Up to 25 mm² Ambient Temperature (Operation) -25°C to +55°C Standards Compliance IEC/EN 61008-1, IEC/EN 61008-2-1 Protection Class IP20 (for enclosure)

Technical Data: Parameter Specification Product Line / Series System E (S200 S-series) Poles 1P (Single Pole) Rated Current (Iₙ) 25 A Rated Voltage (Uₙ) 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 6 kA (at 230/400V AC) Tripping Characteristic C Curve (Instantaneous trip between 5x and 10x Iₙ). Suitable for applications with moderate inrush currents, such as lighting, sockets, and small motors. Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width (1 Pole) 18 mm (1 module) Terminal Torque 2.0 - 2.5 Nm (for rated cross-section conductors) Connection Capacity Rigid Cable: 1x 25 mm² / 2x 16 mm² Flexible Cable: 1x 16 mm² (with ferrule) / 1x 25 mm² (with ferrule) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Ambient Temperature -25°C to +55°C (Operation) Storage Temperature -40°C to +70°C

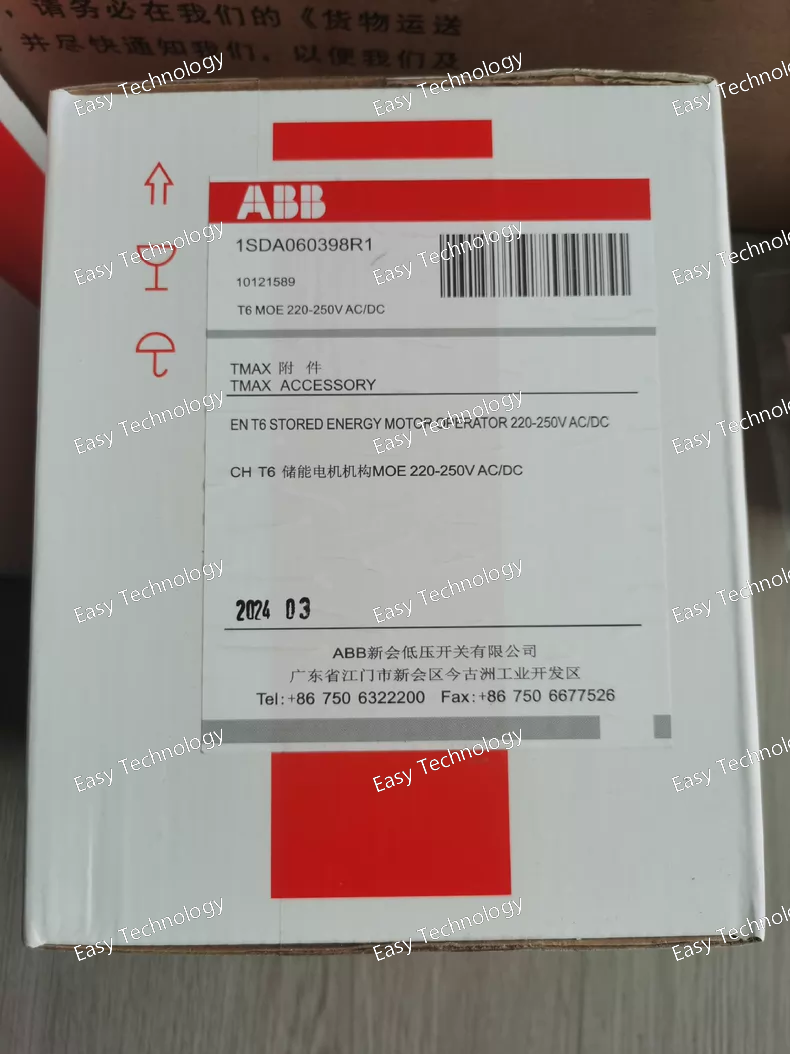

Technical Parameters Electrical Ratings Rated Control Supply Voltage (Ur): 220–250 V AC / 220–250 V DC (AC and DC compatible) Current Type: Both AC and DC control input accepted Suitable Product Family: Accessories for Tmax T6 series molded‑case circuit breakers Standards: Designed and tested to relevant IEC standards for motor operators Mechanical / Functional Type of Mechanism: Stored‑energy motor operator — charges an internal spring or energy store and then actuates the breaker Operation: Enables remote electrical opening and closing of Tmax T6 breakers Configuration Type: Loose or configurable accessory (can be integrated into breaker assembly) Compatibility Compatible With: ABB Tmax T6 frame MCCBs Product Main Type: Accessory (motor operator) Often used for automated switching, interlocking systems, and remote control applications Physical / Mechanical Approx. Weight: ~3.3–3.4 kg Product Dimensions: Typical accessory module size (compact motor‑drive unit) Mounting: Designed to mount on or integrate with compatible Tmax‑series breakers Environmental Designed For: Industrial distribution board and switchgear environments Operating Conditions: Suitable for typical electrical panel ambient conditions and industrial usage

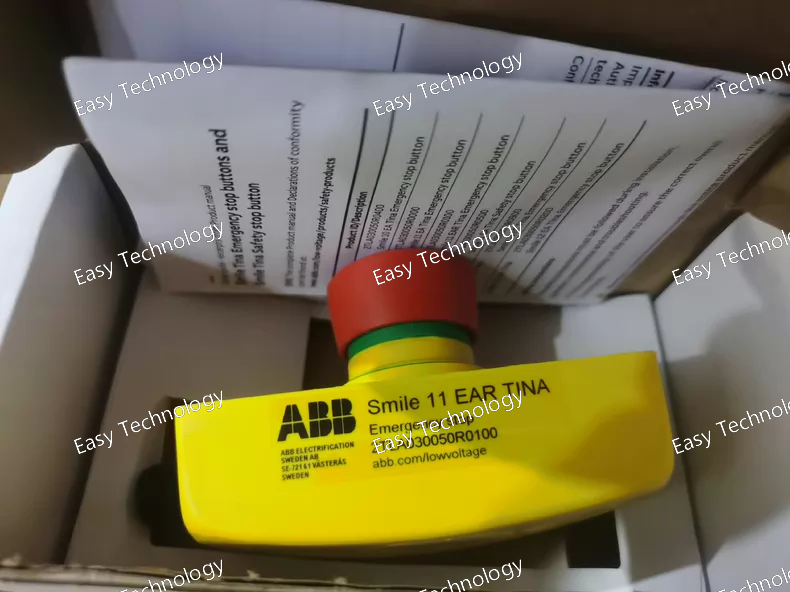

Technical Parameters General Product Category: Emergency Stop / Safety Push Button Series: SMILE 11 EAR TINA Actuator Type: Mushroom push button, twist release Housing Color: Red with yellow background (standard emergency stop color) Mounting Type: Panel mount Connector: 1 × M12‑5 male connector for quick installation Status Indication: Integrated LED for emergency status feedback Electrical Supply / Control Voltage: 24 V DC Current Consumption: Approx. 0.047–0.057 A @ 24 V DC Outputs / Interface: DYNlink connection through M12‑5 male connector Contact Configuration: Designed for safety circuit integration (typically safety contacts in system controller — detailed contact info depends on system wiring) Protection & Standards Degree of Protection: IP65 (dust tight and protected against water jets) Safety Performance Level: Designed for use in safety circuits with high Performance Level (PL e capability) Operating Temperature Range: approx. industrial ambient (typical panel environment) Mechanical & Dimensions Twist Release: Yes (reset requires twist after actuation) Panel Cut‑out: Standard industrial emergency stop panel cut‑out (~30–32 mm) Approx. Width: ~40 mm Approx. Height: ~84–97 mm Approx. Depth: ~52–57 mm Net Weight: ~0.076 kg Features & Functions Safety Use: Designed for emergency stop function in machine safety systems Visual Feedback: Illuminated LED indicates contact status or emergency condition Connector Ease: M12‑5 male connector simplifies networked safety wiring Reversed Button Attachment: Button fitted in reversed orientation helpful for panel layout

Technical Parameters Electrical Ratings Rated Operational Current (Ie): 0.8 … 1.0 A adjustable Number of Poles: 3 Rated Operational Voltage: up to 690 V AC Rated Insulation Voltage (Ui): 690 V Frequency: 50 / 60 Hz Trip Class: Class 10 (thermal overload protection category) Service Short‑Circuit Breaking Capacity: approx. 50 kA @ 400 V AC Protection & Functional Features Motor Protection: Thermal overload protection with adjustable setting Magnetic instantaneous trip for short‑circuit response Phase loss protection Trip‑Free Mechanism: Yes (contacts do not weld under fault) Temperature Compensation: Yes (improves accuracy over ambient range) Switch Function: Manual ON/OFF with clear position indication Padlockable OFF Position: Yes, for maintenance safety Mechanical & Installation Actuation: Rotary handle Terminal Type: Screw terminals Mounting: Panel or DIN‑rail compatible based on accessory/adapter Degree of Protection: IP20 Pollution Degree: 3 Connecting Capacity (main circuit): Typical flexible/rigid conductors appropriate to ~1 A class (e.g., up to ~4–6 mm² depending on terminal) Tightening Torque: Typical motor starter torque range (e.g., ~2–4 N·m) Physical / Environmental Approx. Width: ~45 mm Approx. Height: ~97–100 mm Approx. Depth: ~80–90 mm Net Weight: ~0.20–0.30 kg Operating Ambient Temperature: approx. –25 °C to +60 °C Storage Temperature: broader industrial range

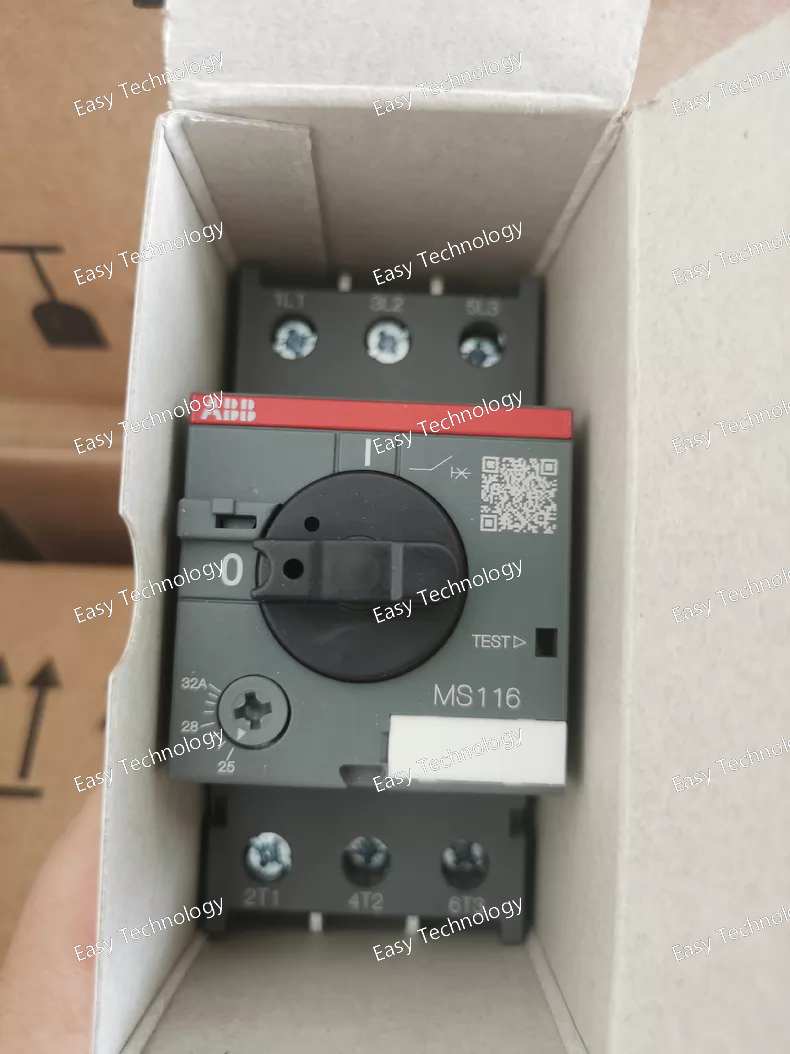

Technical Parameters Electrical Ratings Rated Operational Current (Ie): 25 … 32 A adjustable Number of Poles: 3 Rated Operational Voltage: Up to 690 V AC Rated Insulation Voltage (Ui): 690 V Frequency: 50 / 60 Hz Trip Class: Class 10 (thermal overload protection category) Service Short‑Circuit Breaking Capacity: ~50 kA @ 400 V AC Protection & Functional Features Motor Protection: Thermal overload protection with adjustable setting Magnetic instantaneous trip for short‑circuit response Phase loss protection Trip‑Free Mechanism: Yes (prevents contacts from welding closed under fault) Temperature Compensation: Ensures accurate trip behavior over ambient temperature variations Switch Function: ON/OFF with clear indicator Padlockable OFF Position: Yes, for maintenance safety Mechanical & Installation Control / Actuation: Rotary handle for manual operation Terminal Type: Screw terminals Mounting: Panel or DIN‑rail compatible Degree of Protection: IP20 Pollution Degree: 3 Connecting Capacity (typical): Main circuit: Flexible/rigid up to ~35 mm² depending on terminal Auxiliary circuits: Smaller cross‑sections as appropriate Tightening Torque: Typical motor starter recommended torque (e.g., ~3–6 N·m) Physical / Environmental Approx. Width: ~45 mm Approx. Height: ~97–100 mm Approx. Depth: ~85–90 mm Net Weight: ~0.30–0.35 kg Operating Ambient Temperature: approx. –25 °C to +60 °C Storage Temperature: broader industrial range

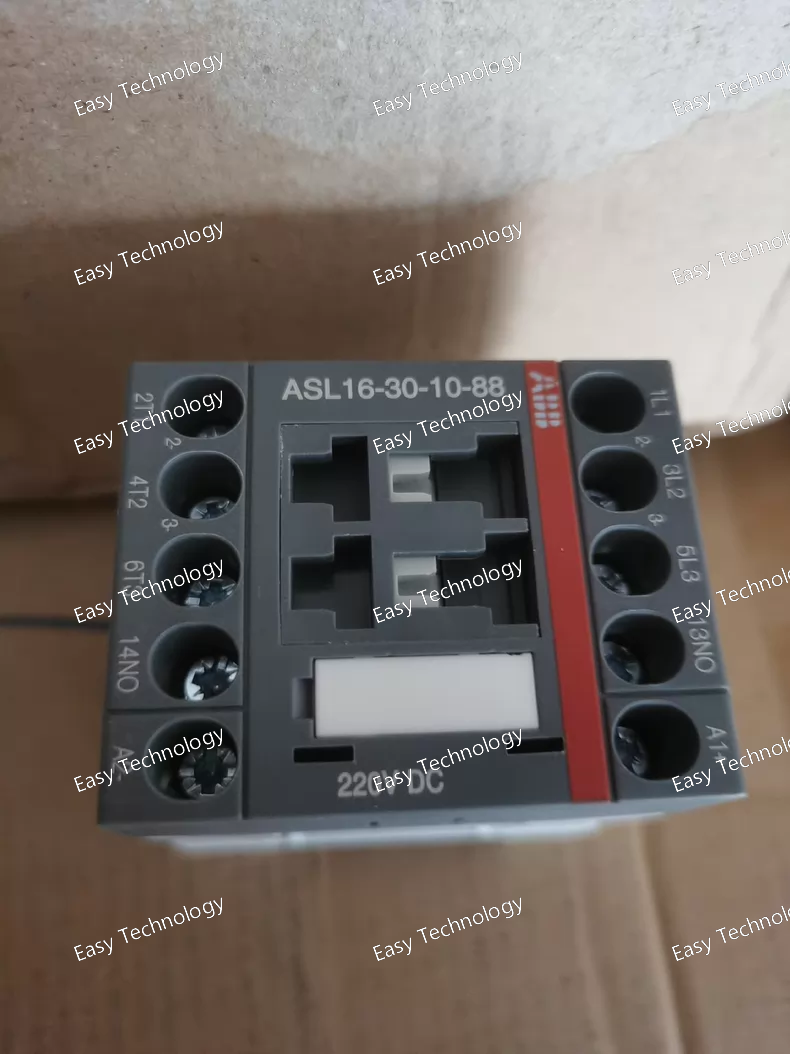

Technical Parameters General & Contact Configuration Product Type: Electromechanical contactor Series: ASL16 Number of Main Poles: 3 (three‑phase) Main Contact Configuration: 3 Normally Open (3 NO) Built‑In Auxiliary Contact: 1 Normally Open (1 NO) Control Circuit Type: DC coil (polarity sensitive) Electrical Ratings Rated Operational Voltage (Main Circuit): up to 690 V AC Rated Operational Voltage (Control Coil): DC (e.g., 220 V DC) Rated Operational Current (AC‑1): 30 A @ 690 V AC at 40 °C ambient 26 A @ 690 V AC at 70 °C ambient Rated Operational Current (AC‑3 – Motor Control): 18 A @ 220–415 V AC 15 A @ 500 V AC 10.5 A @ 690 V AC Coil & Control Coil Type: DC magnet coil Control Voltage: Specified DC voltage variant (220 V DC typical for “88” suffix) Coil Polarity: Polarity must be respected for DC operation Insulation & Withstand Rated Insulation Voltage (Ui): 690 V AC Rated Impulse Withstand Voltage (Uimp): 6 kV Conventional Free‑Air Thermal Current (Ith): 35 A @ 40 °C Mechanical & Mounting Terminal Type: Screw terminals Mounting: DIN‑rail or panel mount compatible Mechanical Durability: High cycle life typical for ASL contactors Dimensions: 45 mm (W) × 77 mm (D) × 86 mm (H) Net Weight: ~0.30 kg Environmental Operating Ambient Temperature: −25 °C to +60 °C (with thermal overload) Without overload: −40 °C to +70 °C Pollution Degree: 3 Protection: IP20 (installed inside panel)

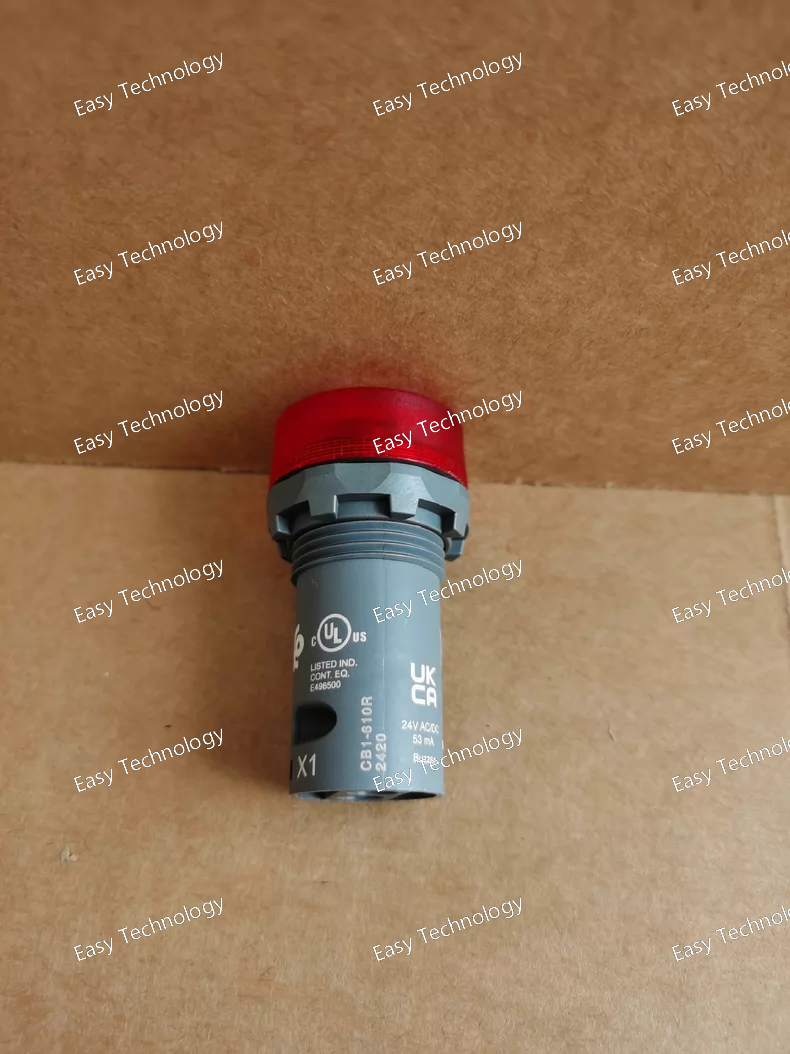

Technical Parameters Electrical Type: Illuminated buzzer / acoustic indicator Rated Voltage: 24 V AC/DC Voltage Type: AC and DC compatible Rated Current: approx. 53 mA @ 24 V Sound Output: Pulsating tone Sound Level: approx. 80 dB Light Output: Red illuminated LED with pulsating indication Mechanical & Mounting Mounting Hole Diameter: ~22 mm panel cut‑out (standard pilot device size) Mounting Style: Panel mount (screw clamp connection) Terminal Type: Screw clamp terminals Housing Color: Black body with red illuminated lens Approx. Dimensions: ~30 mm (W) × ~30 mm (H) × ~55 mm (D) Net Weight: ~0.021 kg Environmental & Protection Operating Ambient Temperature: –25 °C to +70 °C Storage Temperature: –40 °C to +85 °C Protection Rating (Front): IP66 / IP67 / IP69K (dust tight and high‑pressure washdown rated on the front) Terminals Protection: IP20 Pollution Degree: 3 NEMA Ratings: Type 1, 3R, 4, 4X, 12, 13 environments

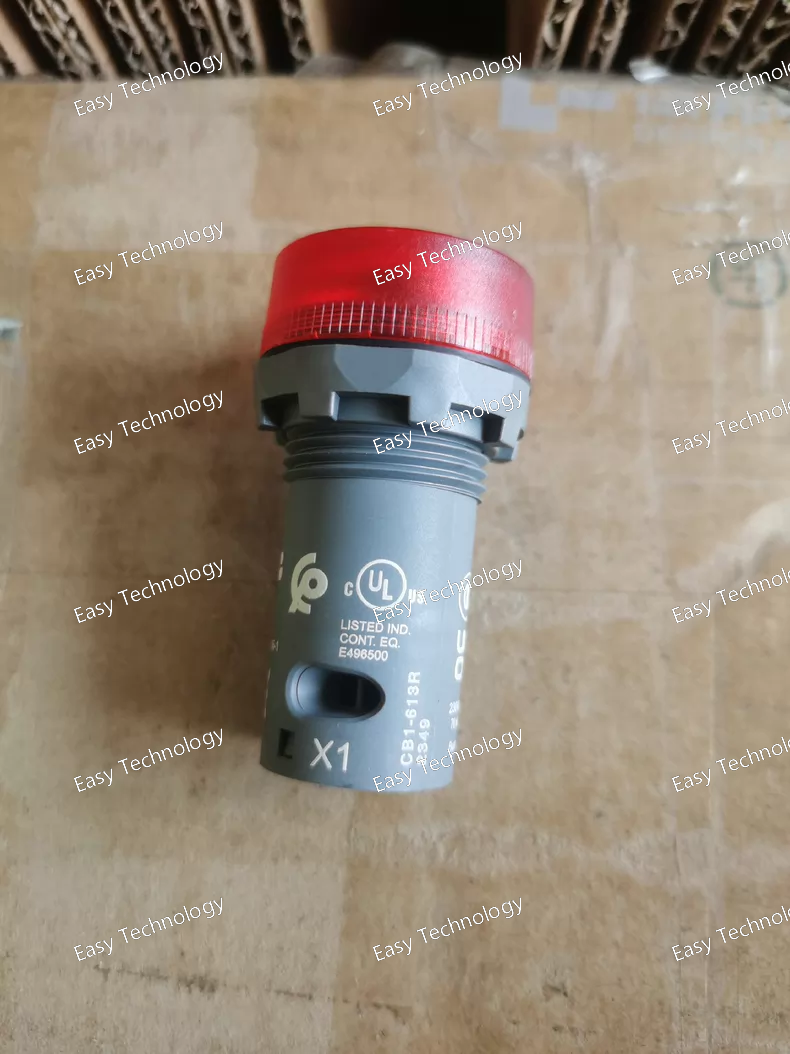

Technical Parameters Electrical Device Type: Illuminated buzzer / sound‑and‑light indicator Rated Voltage: ~230 V AC (AC mains) compatible (also usable with 230 V DC in some implementations) Rated Current: ~70 mA Frequency: 50 / 60 Hz Signal Type: Pulsating audible tone combined with a pulsating red light Acoustic & Visual Output Sound Level: approx. 80 dB (audible alert level suitable for panel alarms) Light Indicator: Red LED or lamp illumination Mechanical & Installation Mounting Style: Panel mount (standard 22 mm cut‑out diameter) Body Material: Durable plastic housing Terminal Type: Screw terminals Approximate Dimensions: ~30 mm (W) × ~30 mm (H) × ~55 mm (D) Weight: ~0.021 kg Color: Red visual indicator Environmental Operating Ambient Temperature: approx. −25 °C to +70 °C Protection Rating: Front: High ingress protection (dust/water resistance depending on installation) Terminals: IP20

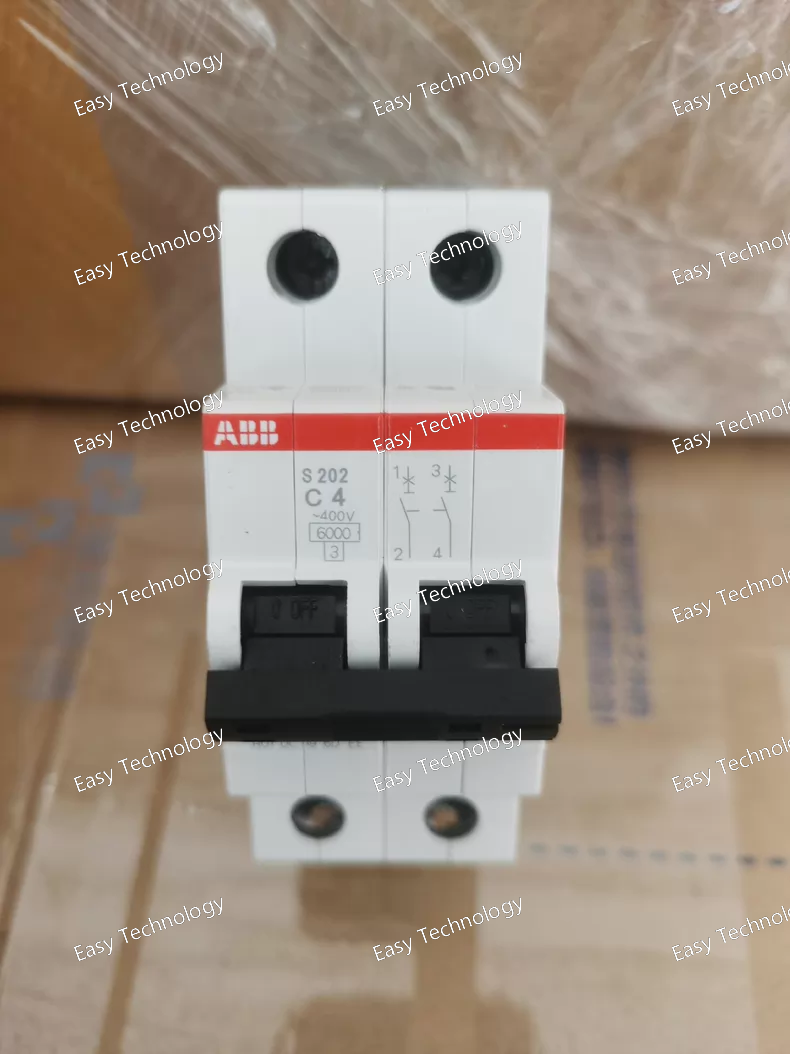

Technical Parameters Electrical Ratings Rated Current (In): 4 A Number of Poles: 2P (two poles) Tripping Curve: C‑curve (moderate inrush tolerance) Rated Operational Voltage (Ue): Up to 400 V AC (IEC 60898‑1) Up to 440 V AC (IEC 60947‑2) Rated Insulation Voltage (Ui): 440 V Rated Frequency: 50 / 60 Hz Rated Short-Circuit Breaking Capacity (Icn): 10 kA at 230/400 V AC Rated Ultimate Breaking Capacity (Icu): up to 15 kA Current Limiting Class: 3 Overvoltage Category: III Rated Impulse Withstand Voltage (Uimp): 4 kV DC Interrupting Capability: up to ~125 V DC Mechanical & Installation Mounting: Standard DIN‑rail (35 mm) Terminal Type: Screw terminals Tightening Torque: Approx. 2 N·m Mechanical Endurance: ~20,000 operations Electrical Endurance: ~20,000 AC cycles Contact Position Indication: ON (red) / OFF (green) Housing Material: High-quality insulating material (light grey) Environmental Ambient Operating Temperature: −25 °C to +55 °C Pollution Degree: 3 Protection Rating: IP20 (installed in enclosure) Mounting Position: Any

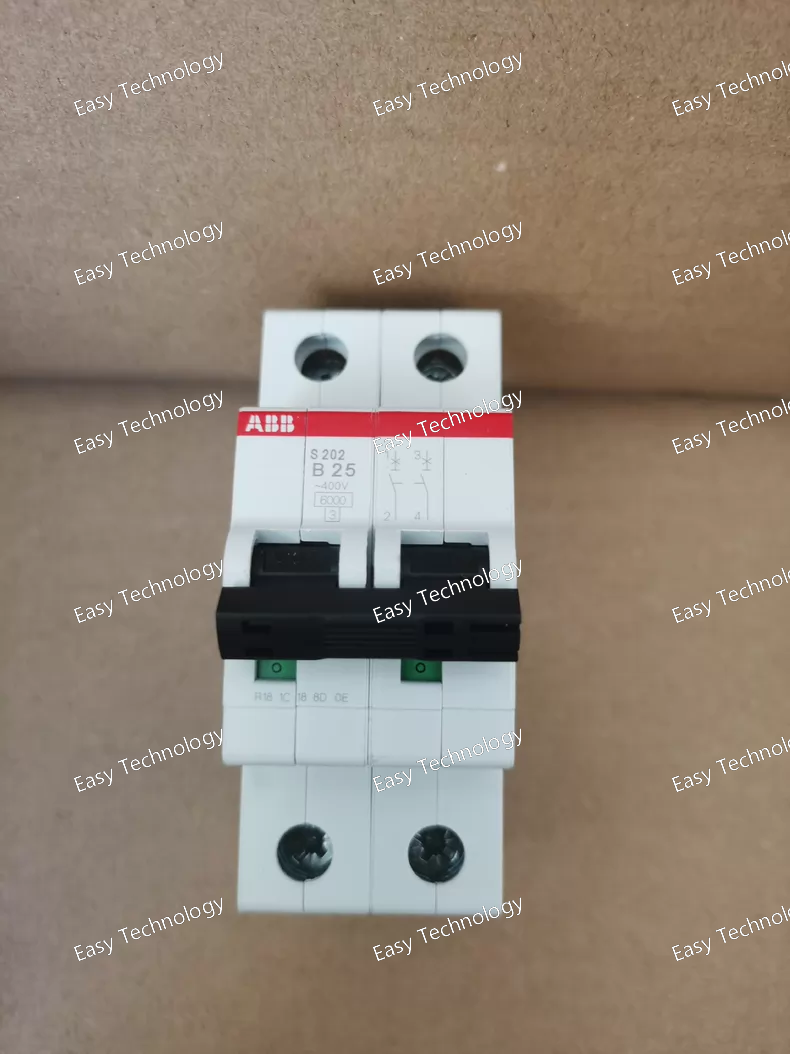

Technical Parameters Electrical Ratings Rated Current (In): 25 A Number of Poles: 2P (two poles) Tripping Curve: B‑curve (for low inrush loads) Rated Operational Voltage (Ue): Up to 400 V AC (IEC 60898‑1) Up to 440 V AC (IEC 60947‑2) Rated Insulation Voltage (Ui): 440 V Rated Frequency: 50 / 60 Hz Rated Short‑Circuit Breaking Capacity (Icn): 10 kA at 230/400 V AC Rated Ultimate Breaking Capacity (Icu): up to 15 kA Current Limiting Class: 3 Overvoltage Category: III Rated Impulse Withstand Voltage (Uimp): 4 kV Operational Voltage Range: AC/DC 12 V to AC 440 V (typical) DC Interrupting Capability: Up to 125 V DC (depending on certification) Mechanical & Installation Mounting: Standard DIN‑rail (35 mm) Terminal Type: Screw terminals Tightening Torque: Approx. 2 N·m Mechanical Endurance: ~20,000 operations Electrical Endurance: ~20,000 AC cycles Contact Position Indication: ON (red) / OFF (green) Housing Material: High‑quality insulation (light grey) Environmental Ambient Operating Temperature: approx. −25 °C to +55 °C Pollution Degree: 3 Protection Rating: IP20 (installed within enclosure) Mounting Position: Any

Technical Parameters Electrical Ratings Number of Main Poles: 3 (three‑phase switching) Auxiliary Contacts: 1 NO + 1 NC for control and feedback Control Coil Voltage Range: 100–250 V AC/DC (wide‑range coil) Rated Operational Voltage (Main Circuit): up to 690 V AC Rated Operational Frequency: 50 / 60 Hz Conventional Free‑Air Thermal Current (Ith): up to 200 A at 40 °C (AC‑1 rating) Rated Operational Current (AC‑1): ~200 A @ 690 V AC (40 °C) ~160 A @ 690 V AC (70 °C) Rated Operational Current (AC‑3 – motor control): ~140 A @ 415 V AC ~130 A @ 500 V AC ~80 A @ 690 V AC Rated Motor Power (AC‑3): ~37 kW @ 220–240 V AC ~75 kW @ 380–415 V AC ~90 kW @ 440–500 V AC ~75 kW @ 690 V AC Rated Impulse Withstand Voltage (Uimp): 8 kV Rated Insulation Voltage (Ui): 600/690 V AC Coil & Control Coil Type: Electronically controlled coil with built‑in surge suppression Wide Control Voltage Handling: Single coil covers wide control voltage range without needing coil changes Voltage Dip Tolerance: Designed to withstand short voltage drops and sags Mechanical & Endurance Mechanical Durability: ~5,000,000 cycles Maximum Switching Frequency: AC‑1: ~300 cycles/hour AC‑3: ~300 cycles/hour Mounting: DIN‑rail or panel mount compatible with accessories Terminal Type: Screw terminals for main and auxiliary connections Dimensions (approx.): 150 mm (H) × 90 mm (W) × 126 mm (D) Operating Altitude: Up to ~3000 m without derating Environmental Operating Temperature: approx. ‑25 °C to +50 °C
