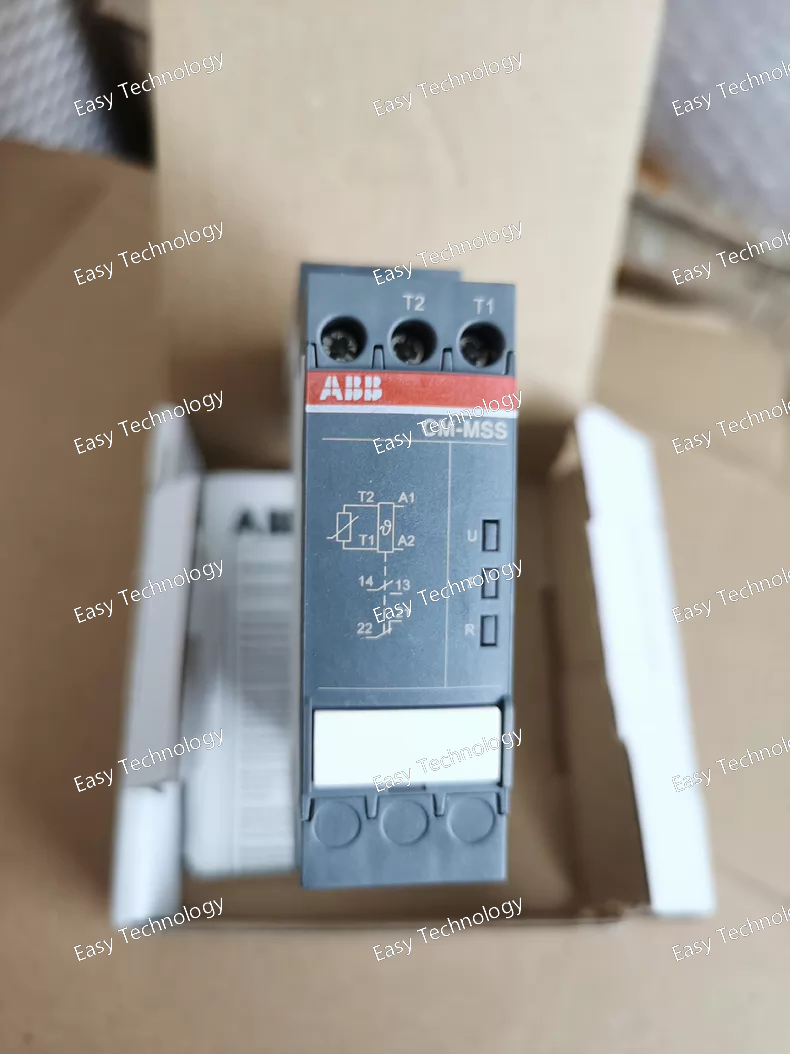

Technical Data Parameter Specification / Typical Value Product Series / System CM-MSS Modular Surge Protection System Device Type Type 2 / Class II Surge Protection Device (SPD) Application Class Class II (Per IEC 61643-11 / EN 61643-11) Rated Voltage (Un) 230 V AC (50/60 Hz) Max. Continuous Operating Voltage (Uc) 275 V AC (This is the maximum RMS voltage it can withstand continuously. Must be verified with the official datasheet). Voltage Protection Level (Up) Typically ≤ 1.5 kV (at In). This is the residual voltage measured across its terminals during a surge, defining its protective capability. Confirm exact value from datasheet.) Nominal Discharge Current (In) 20 kA (8/20 µs wave, per pole). The standard test current it can withstand for 15 surges. Max. Discharge Current (Imax) 40 kA (8/20 µs wave, per pole, single shot). The maximum peak current it can withstand once. System Compatibility TN-S, TN-C-S, TT Response Time < 25 ns Status Indication Visual indicator (e.g., color flag) Auxiliary Contacts Yes, 1 Changeover (SPDT) remote signaling contact (Standard with "S" variant). Thermal Protection Integrated thermal disconnector. Mounting 35 mm symmetrical DIN rail (EN 60715) Module Width 18 mm (1 module, for 1P+N or 1P version) Standards Compliance IEC 61643-11, EN 61643-11 Short-Circuit Withstand Follows the declared Icp value when protected by the recommended upstream fuse/gBreaker (e.g., 63A gL/gG or 50A B-curve MCB).

Parameter Specification Product Series / Range XT Series Molded-Case Circuit Breakers Frame Size XT2 Rated Frame Current (Iu) 160 A Rated Ultimate Breaking Capacity (Icu @ 400V AC) N-type: Typically 50 kA (Please confirm with official XT2N data sheet). L/H versions have different ratings. Number of Poles 3 Poles (3P) Trip Unit Type Electronic Trip Unit - TMA (or TMA-LSI). Provides Long-time (L), Short-time (S), Instantaneous (I) protection functions. May include Ground Fault (G). Rated Current Setting (Ir) Set to 100 A (Continuously adjustable within a range, e.g., 0.4 - 1 x In, where In might be the sensor rating. *The notation "100/1000" likely indicates Ir=100A on a scale up to 1000A*). Rated Operational Voltage (Ue) 400 V AC (3-phase) Rated Insulation Voltage (Ui) 800 V AC Connection Type Fixed Version, Front Terminal (FF) Terminal Type Screw-type terminals for front cable connection. Adjustable Protection Settings (Typical for TMA) • Long-Time (L): Ir = 100 A (Set), tr (Time delay) adjustable. • Short-Time (S): Isd (Pickup, multiple of Ir) adjustable, tsd (Time delay) adjustable. • Instantaneous (I): Ii (Pickup, multiple of Ir) adjustable. Standard Compliance IEC/EN 60947-1, IEC/EN 60947-2 Mounting Fixed mounting on panel or inside switchboard cubicle. Control / Operation Manual operating handle. Can be equipped with motor operator (M2C), shunt trip (MX), under-voltage release (MN), and auxiliary contacts (OF, SD) as accessories. Ambient Temperature (Operation) -25°C to +70°C (Storage: -40°C to +85°C)

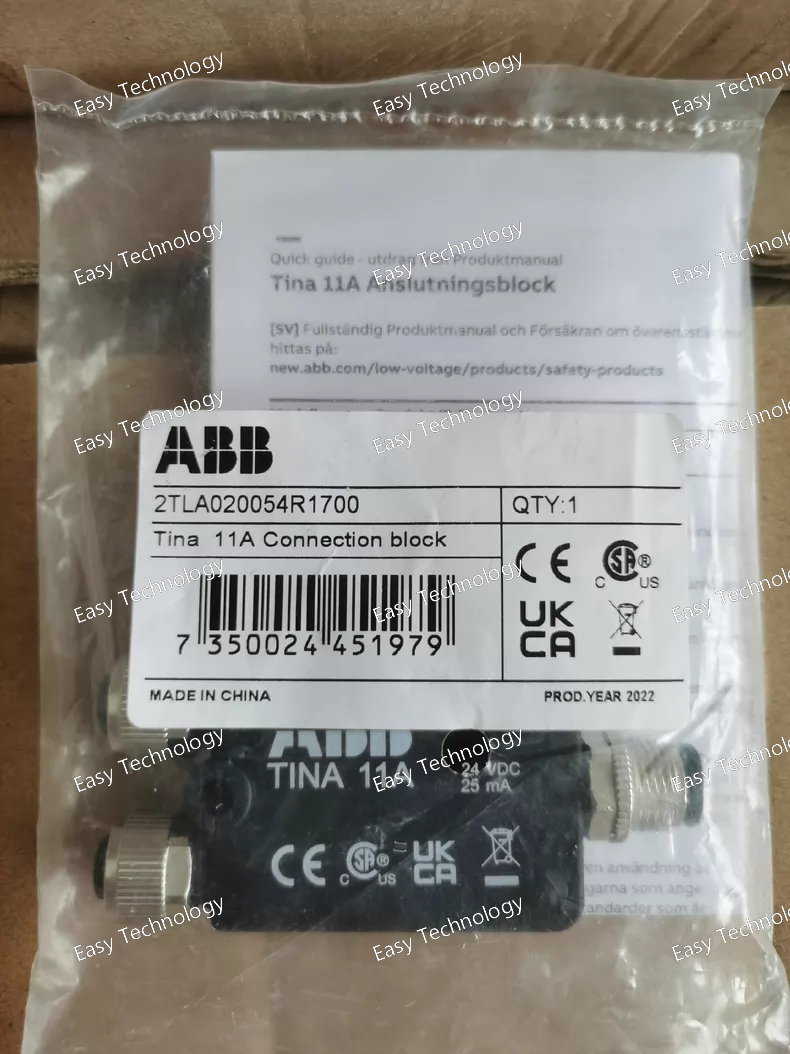

Parameter Specification Product Series TINA (Terra Indicating and Auxiliary) Relay Series Device Type Monostable, Electromechanical Latching Relay (with auxiliary contact) Order Code / Article Number 2TLA20054R1700 Coil Data (Control Circuit) - Coil Voltage (Standard) 24 V DC (Other voltages available, e.g., 12V DC, 24-230V AC/DC. Must be verified for this specific article number). - Coil Power Consumption Typically ~0.9 W (for DC coil) / ~1.3 VA (for AC coil) Contact Data (Main Circuit) - Number & Configuration of Main Contacts 2 Changeover (CO) / Form C contacts. (1 NO + 1 NC per contact pair). - Rated Operational Current (Ie) 10 A @ 250 V AC - Rated Operational Voltage (Ue) Up to 400 V AC / 250 V DC - Rated Thermal Current (Ith) 16 A - Switching Capacity (Resistive Load) AC-1: Up to 4000 VA DC-1: Up to 60 W Auxiliary Contact (Indicator) - Configuration 1 Normally Open (NO) / Form A contact. - Rated Operational Current (Ie) Typically 6 A @ 250 V AC. Mechanical & Electrical Life - Mechanical Endurance ≥ 10 x 10⁶ operations - Electrical Endurance (at rated load) ≥ 0.2 x 10⁶ operations Switching Time Typically ~10 ms Mounting 35 mm symmetrical DIN rail (EN 60715) via optional mounting base (e.g., ABB TINA Base). Can also be panel-mounted. Terminal Type Screw clamp terminals. Connection Capacity Up to 2.5 mm² (flexible with ferrule) / 4 mm² (rigid) Ambient Temperature (Operation) -40°C to +70°C Protection Degree IP40 (with base), IP20 (terminals) Standards Compliance IEC/EN 61810-1, IEC/EN 60947-5-1

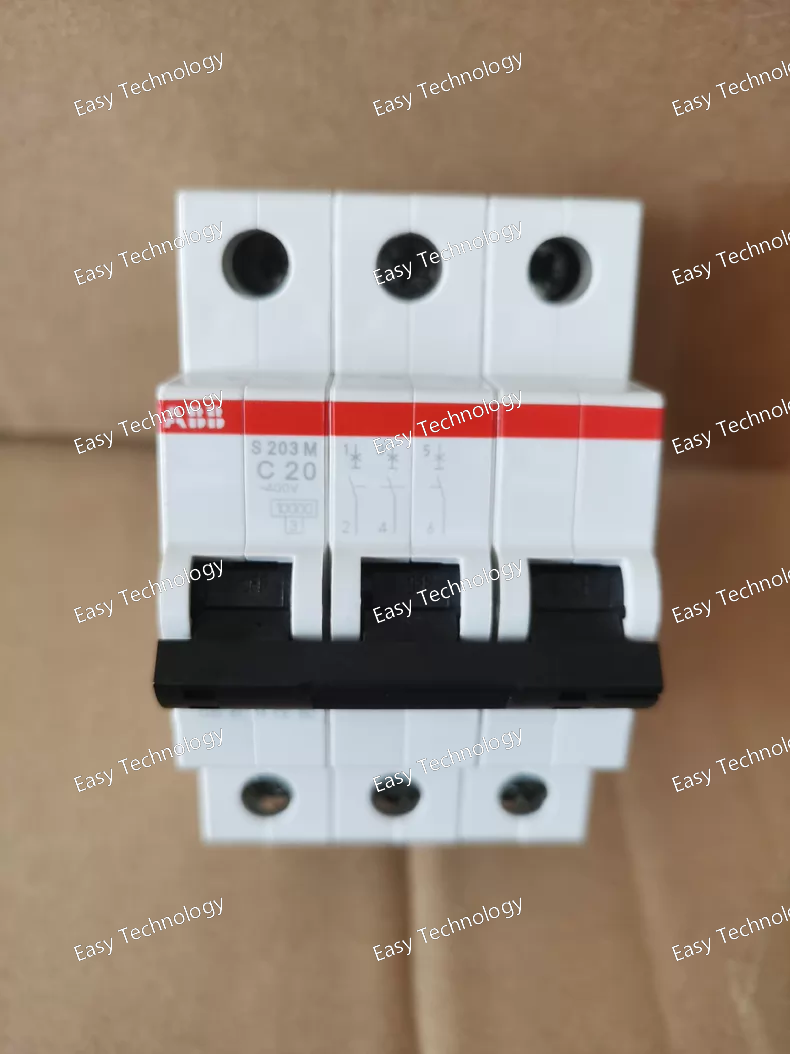

Parameter Specification Product Line / Series System Pro M compact S200 (S200M Series - Moulded Case) Device Type Miniature Circuit Breaker (MCB) Poles 3P (Three Poles) Rated Current (Iₙ) 20 A (per pole) Rated Voltage (Uₙ) 400 V AC (3-phase) Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (at 400V AC) - The key differentiator of the S200M series. Tripping Characteristic C Curve (Instantaneous magnetic trip operates between 5 to 10 times Iₙ, i.e., between 100A and 200A per pole). Ideal for circuits with moderate inrush currents, such as small three-phase motors, transformers, and general three-phase loads. Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width 54 mm (3 standard modules, each 18mm) Terminal Torque 2.0 - 2.5 Nm (for rated cross-section conductors) Connection Capacity Rigid Cable: 1x 25 mm² / 2x 16 mm² (per pole) Flexible Cable: 1x 16 mm² (with ferrule) / 1x 25 mm² (with ferrule) (per pole) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Ambient Temperature (Operation) -25°C to +55°C Storage Temperature -40°C to +70°C Protection Degree (Terminals) IP20

Parameter Specification Product Line / Series System M (M200 S-series) - MSxxx compact series Device Type Miniature Circuit Breaker (MCB) - 1P+N (Single Pole + Neutral) Protected Poles 1 (Phase/Live conductor only) Switched Poles 2 (Both Phase and Neutral are mechanically switched together) Rated Current (Iₙ) 10 A (Applies to the protected phase pole) Rated Voltage (Uₙ) 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (at 230/400V AC) Tripping Characteristic C Curve (Instantaneous trip between 5x and 10x Iₙ, i.e., 50A to 100A). Suitable for general-purpose circuits with moderate inrush currents. Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width 18 mm (1 standard module – this is its key advantage) Terminal Torque 1.5 Nm (for rated cross-section conductors) Connection Capacity Typically up to 16 mm² (Confirm with official datasheet for the 10A model) Standards Compliance IEC/EN 60898-1 Ambient Temperature (Operation) -25°C to +55°C

Parameter Specification Product Line / Series System E (S200 S-series) Device Type Miniature Circuit Breaker (MCB) Poles 4P (Four Poles – L1, L2, L3, N - all protected) Rated Current (Iₙ) 25 A (per pole) Rated Voltage (Uₙ) 400 V AC (3P+N) Rated Frequency 50/60 Hz Breaking Capacity (Icn) 6 kA (at 230/400V AC) Tripping Characteristic C Curve (Instantaneous trip between 5x and 10x Iₙ). Suitable for applications with moderate inrush currents typical in three-phase installations. Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width 72 mm (4 standard modules, each 18mm) Terminal Torque 2.0 - 2.5 Nm (for rated cross-section conductors) Connection Capacity Rigid Cable: 1x 25 mm² / 2x 16 mm² (per pole) Flexible Cable: 1x 16 mm² (with ferrule) / 1x 25 mm² (with ferrule) (per pole) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Ambient Temperature (Operation) -25°C to +55°C Storage Temperature -40°C to +70°C

Parameter Specification Device Type Rotary Isolator Switch / Disconnector (Load Break Switch) Product Series MJ / MJS Series Rated Operational Current (Ie) 60 A (at AC-22A / AC-23A duty) Number of Poles 4 Poles (3P + N) (Based on common "B" variant coding. Other variants exist, e.g., "A" for 3P, "C" for 2P). Must be confirmed on the device or datasheet. Rated Insulation Voltage (Ui) 690 V Rated Operational Voltage (Ue) 400 V AC / 500 V AC Utilization Category AC-22A (Switching of mixed resistive and inductive loads). AC-23A (Switching of motor loads or other highly inductive loads). Rated Making & Breaking Capacity Typically 10 x Ie (600 A) for AC-23A at 400V. Short-Time Withstand Current (Icw) Typically 10 kA for 1 second (ensures it can withstand fault currents without damage). Mechanical Durability ≥ 10,000 operations Electrical Durability ≥ 5,000 operations (at rated current) Control Method Manual rotary operation via handle. Handle is often detachable and can be padlocked in the OFF position (up to 3 padlocks). Mounting Mounts directly onto a panel or enclosure door via a mounting kit. The switch body is mounted behind the panel. Terminal Type Screw clamp terminals. Terminal Connection Capacity Typically up to 35 mm² (for 60A model). Protection Degree Switch body: IP00 (must be installed inside an enclosure). With handle mounted on door: Typically achieves IP54 or higher for the front. Ambient Temperature (Operation) -25°C to +60°C Standards Compliance IEC/EN 60947-1, IEC/EN 60947-3

Parameter Specification / Typical Value Device Type Protective / Measuring Current Transformer (CT) Primary Rated Current (Ipr) Variable. This is a core parameter determined by the application (e.g., 100A, 200A, 400A, 800A, etc.). The model "MT-105B" defines the mechanical and electrical design, while the primary current is specified upon ordering. Secondary Rated Current (Isr) Standardized: Typically 1 A or 5 A (This is another key ordering specification). Rated Burden 5 kΩ (at the specified secondary current and frequency). This is the impedance of the secondary circuit (including wires and relay/meter impedance) for which the accuracy class is guaranteed. Accuracy Class Typically 5P or 10P for protection, or 0.5, 0.5S, 1 for measurement. This is a critical ordering parameter. Example: "5P10" where '5' is the composite error in %, 'P' is for protection, and '10' is the accuracy limit factor (ALF). Accuracy Limit Factor (ALF) For protection classes (e.g., 10, 15, 20). Defines the multiple of rated current up to which the CT maintains its specified accuracy during faults. Rated Frequency 50 Hz or 60 Hz (as specified). Rated Insulation Level / Voltage Medium Voltage Level, e.g., 12 kV, 24 kV, or 36 kV. This is a primary safety specification and must match the system voltage. Short-Time Thermal Current (Ith) Specified in kA for a short duration (e.g., 1s or 3s). Indicates thermal withstand capability during a short-circuit. Dynamic Current (Idyn) Specified in kA peak. Indicates the mechanical withstand capability against electromagnetic forces during the first peak of a short-circuit current. Core Type / Quantity Often has multiple independent cores (e.g., 2 cores: one for protection class '5P', one for measurement class '0.5S'). Mounting Typically designed for flange mounting or busbar mounting inside metal-enclosed switchgear. Standards Compliance IEC 61869-1 & -2 (or the older IEC 60044-1), and other relevant national standards.

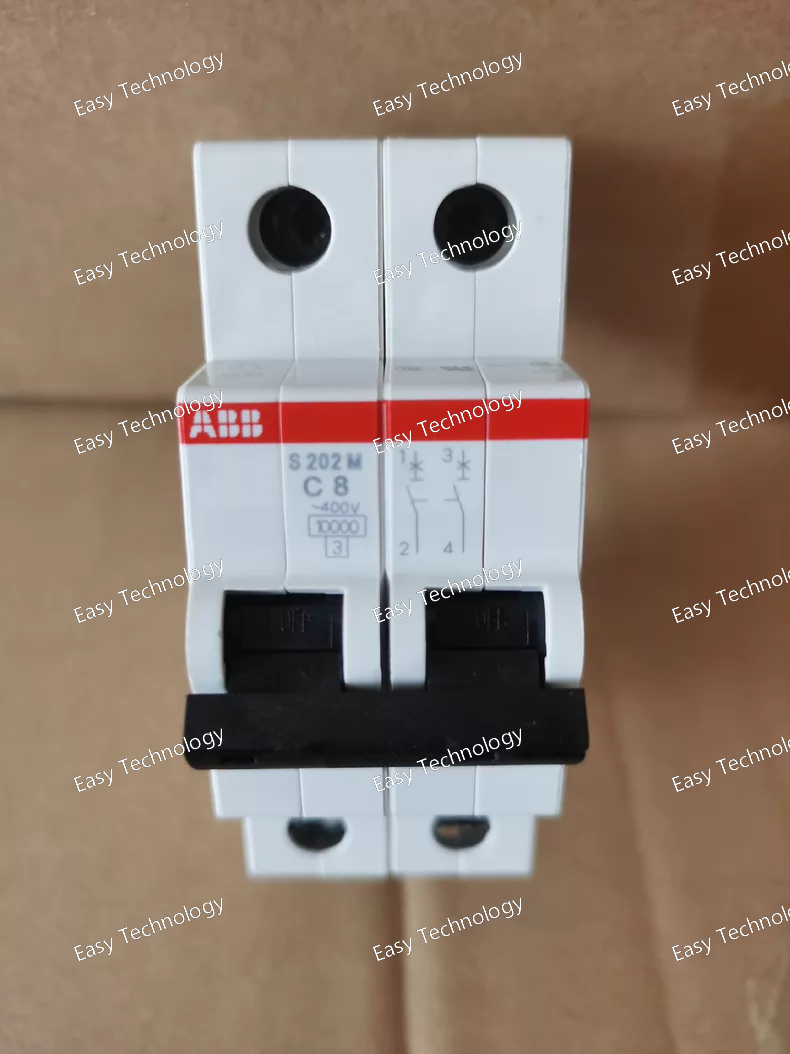

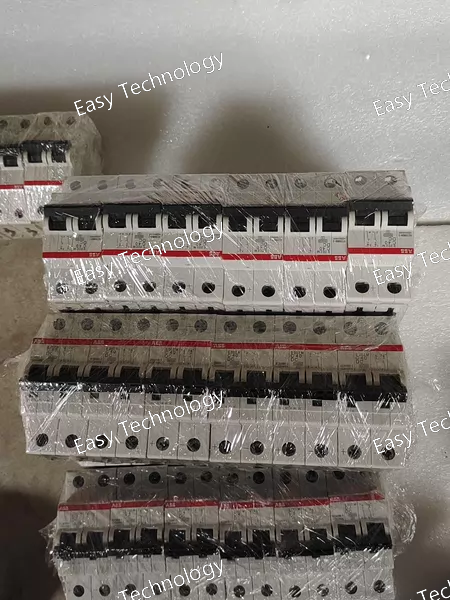

Parameter Specification Product Line / Series System Pro M compact S200 (S200M Series - Moulded Case) Device Type Miniature Circuit Breaker (MCB) Poles 2P (Two Poles) Rated Current (Iₙ) 8 A Rated Voltage (Uₙ) 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (at 230/400V AC) - This is the defining feature of the S200M series. Tripping Characteristic C Curve (Instantaneous magnetic trip operates between 5 to 10 times Iₙ, i.e., between 40A and 80A). Ideal for circuits with moderate inrush currents (e.g., lighting, transformers, small motors). Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width 36 mm (2 standard modules, each 18mm) Terminal Torque 1.5 - 2.0 Nm (for rated cross-section conductors) Connection Capacity Rigid Cable: Up to 25 mm² Flexible Cable: Up to 16 mm² (with ferrule recommended) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Ambient Temperature (Operation) -25°C to +55°C Protection Degree (Terminals) IP20 Reference Standard for Wiring IEC/EN 60999

Parameter Specification Product Line / Series System Pro M compact S200 (Legacy: S200 Series) Device Type Miniature Circuit Breaker (MCB) Poles 2P (Two Poles) Rated Current (Iₙ) 40 A Rated Voltage (Uₙ) 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 6 kA (at 230/400V AC) - This is a standard value for the base S200 series. Higher capacity versions (e.g., S202S-C40 with 10kA) are available. Tripping Characteristic C Curve (Instantaneous magnetic trip operates between 5 to 10 times Iₙ, i.e., between 200A and 400A). Suitable for circuits with moderate inrush currents like lighting, household sockets, and small motors. Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width 36 mm (2 standard modules, each 18mm) Terminal Torque 2.5 - 3.0 Nm (for rated cross-section conductors) Connection Capacity Rigid Cable: 1x 35 mm² / 2x 25 mm² Flexible Cable: 1x 25 mm² (with ferrule) / 1x 35 mm² (with ferrule) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Ambient Temperature (Operation) -25°C to +55°C Storage Temperature -40°C to +70°C Reference Standard for Wiring IEC/EN 60999

Parameter Specification Product Line / Series System M (M200 S-series) - MSxxx compact series Device Type Miniature Circuit Breaker (MCB) - 1P+N (Single Pole + Neutral) Protected Poles 1 (Phase/Live only) Switched Poles 2 (Phase and Neutral) Rated Current (Iₙ) 2.5 A Rated Voltage (Uₙ) 230/400 V AC (Phase to Neutral / Phase to Phase) Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (at 230/400V AC) Tripping Characteristic C Curve (Instantaneous trip between 5x and 10x Iₙ). Suitable for applications with moderate inrush currents. For a 2.5A device, this is often used for small transformer-fed circuits (e.g., doorbells, control power) or specific lighting loads. Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width 18 mm (This is a key advantage: it occupies the space of a single standard module, despite being a 1P+N device). Terminal Torque 1.5 Nm (for rated cross-section conductors) Connection Capacity Typically up to 16 mm² (Confirm with official datasheet) Standards Compliance IEC/EN 60898-1 Ambient Temperature (Operation) -25°C to +55°C

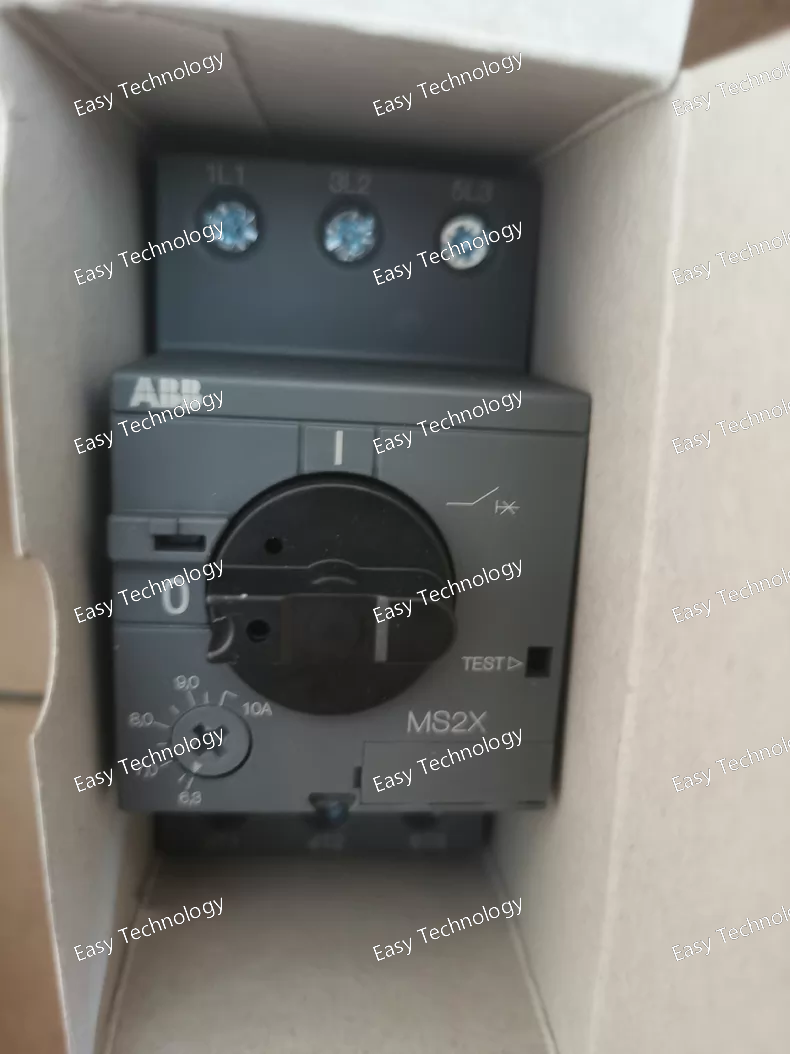

Parameter Specification Product Line / Series System M (M200 S-series) - MSxxx sub-series Device Type Miniature Circuit Breaker (MCB) Poles 1P (Single Pole) Rated Current (Iₙ) 10.0 A Rated Voltage (Uₙ) 230/400 V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (at 230/400V AC) Tripping Characteristic B Curve (Instantaneous trip between 3x and 5x Iₙ). Ideal for circuits with low inrush currents, such as lighting and socket outlets for resistive loads (e.g., heaters, lamps). Mechanical Endurance ≥ 20,000 operations Electrical Endurance ≥ 10,000 operations (at Iₙ) Mounting 35 mm symmetrical DIN rail (EN 60715) Width Approximately 17.5 mm (This is a key feature; it is narrower than a standard 18mm module, but exact specs may vary slightly. Confirm with ABB's official MSxxx series datasheet for precise dimensions). Terminal Torque 1.5 Nm (for rated cross-section conductors) Connection Capacity (Rigid/Flexible) Typically up to 16 mm² (Please verify with the specific MSxxx series datasheet for the 10A model) Standards Compliance IEC/EN 60898-1 Ambient Temperature (Operation) -25°C to +55°C
