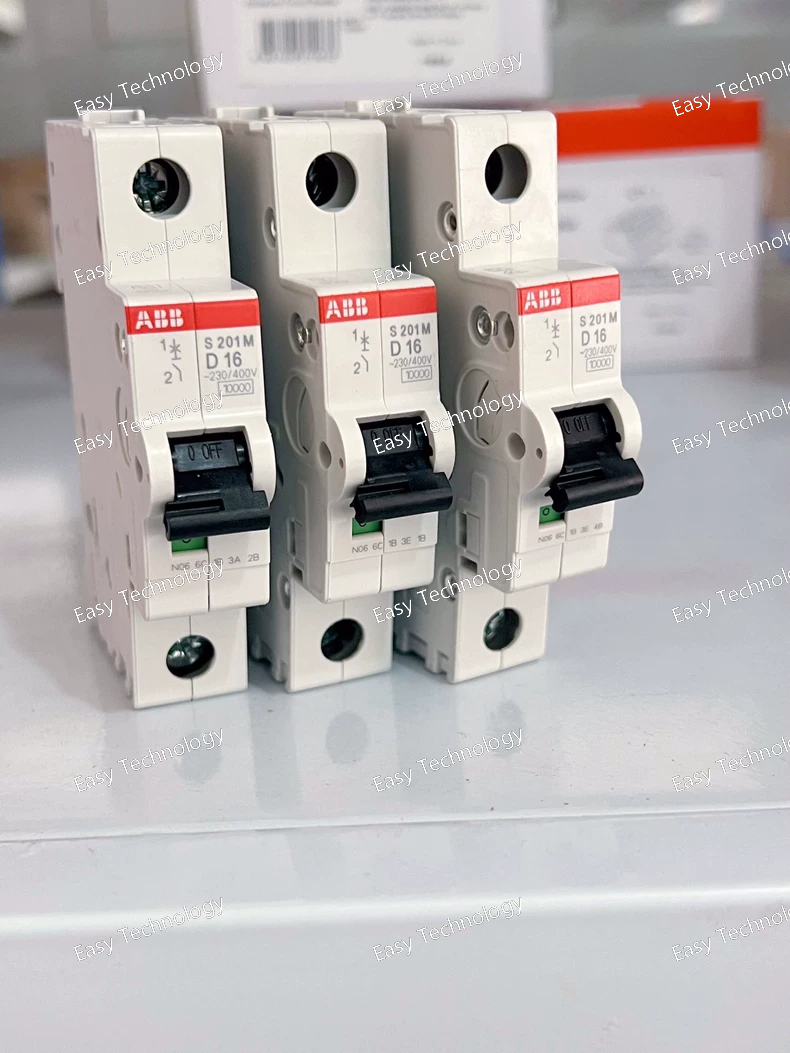

Technical Parameters Parameter Specification Product type Miniature circuit breaker (MCB) Product series ABB S200 M series Poles 1 pole Rated current (In) 16 A Rated operational voltage (Ue) 230/400 V AC Breaking capacity (Icu) 10 kA at 230/400 V AC Tripping curve D (high inrush, for inductive loads) Control type Thermal-magnetic Mounting DIN rail (35 mm) Mechanical durability Up to 20,000 operations Electrical durability Up to 4,000 operations at rated load Ambient operating temperature −25 °C to +60 °C Protection degree IP20 Standards IEC/EN 60898-1 compliant Typical applications Motor protection, lighting and power circuits, industrial and commercial electrical installations

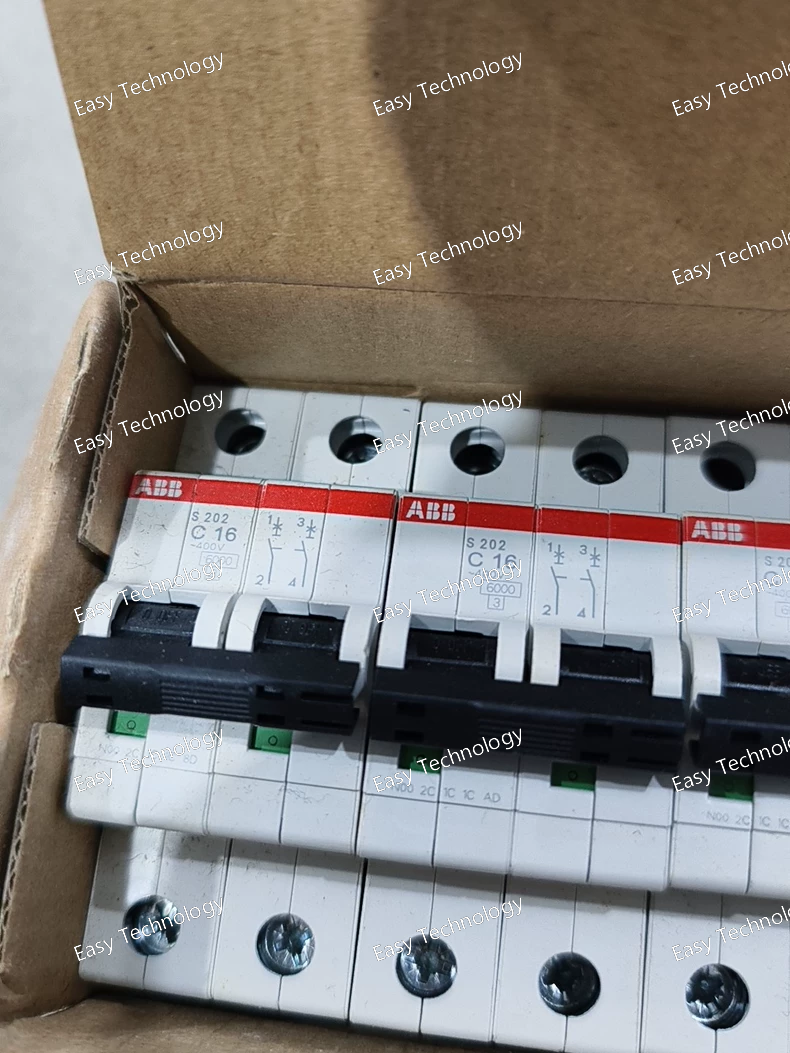

Technical Parameters Parameter Specification Product type Miniature circuit breaker (MCB) Product series ABB S2 series Poles 1 pole Rated current (In) 16 A Rated operational voltage (Ue) 230/400 V AC Breaking capacity (Icu) 6 kA at 230/400 V AC Tripping curve C (general-purpose protection) Control type Thermal-magnetic Mounting DIN rail (35 mm) Mechanical durability Up to 20,000 operations Electrical durability Up to 4,000 operations at rated load Ambient operating temperature −25 °C to +60 °C Protection degree IP20 Standards IEC/EN 60898-1 compliant Typical applications Residential, commercial, and light industrial circuits; lighting and small motor protection

Technical Parameters Parameter Specification Product type Miniature circuit breaker (MCB) Product series ABB S200 / S200 M series Poles 1 pole Rated current (In) 4 A Rated operational voltage (Ue) 230/400 V AC Breaking capacity (Icu) 6 kA at 230/400 V AC Tripping curve C (general-purpose protection for lighting and small loads) Control type Thermal-magnetic Mounting DIN rail (35 mm) Mechanical durability Up to 20,000 operations Electrical durability Up to 4,000 operations at rated load Ambient operating temperature −25 °C to +60 °C Protection degree IP20 Standards IEC/EN 60898-1 compliant Typical applications Residential and commercial circuits, lighting circuits, small motor protection

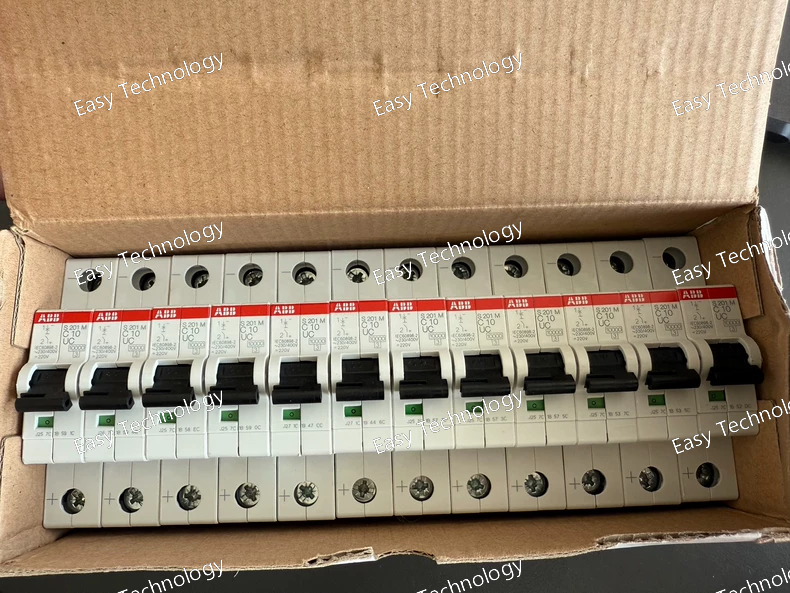

Technical Parameters Parameter Specification Product type Miniature circuit breaker (MCB) Product series ABB S200 M series Poles 1 pole Rated current (In) 10 A Rated operational voltage (Ue) 230/400 V AC Breaking capacity (Icu) 10 kA at 230/400 V AC Tripping curve C (typical for general-purpose circuits) Control type Thermal-magnetic Mounting DIN rail (35 mm) Mechanical durability Up to 20,000 operations Electrical durability Up to 4,000 operations at rated load Ambient operating temperature −25 °C to +60 °C Protection degree IP20 Standards IEC/EN 60898-1 compliant Typical applications Residential, commercial, and light industrial circuits; motor and lighting protection

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB AX series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 260 A Rated motor power (AC-3) Up to 160 kW at 400 V Coil voltage 100–250 V AC / DC Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −40 °C to +70 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / UL / CSA compliant Typical applications Motor starters, industrial control panels, power switching

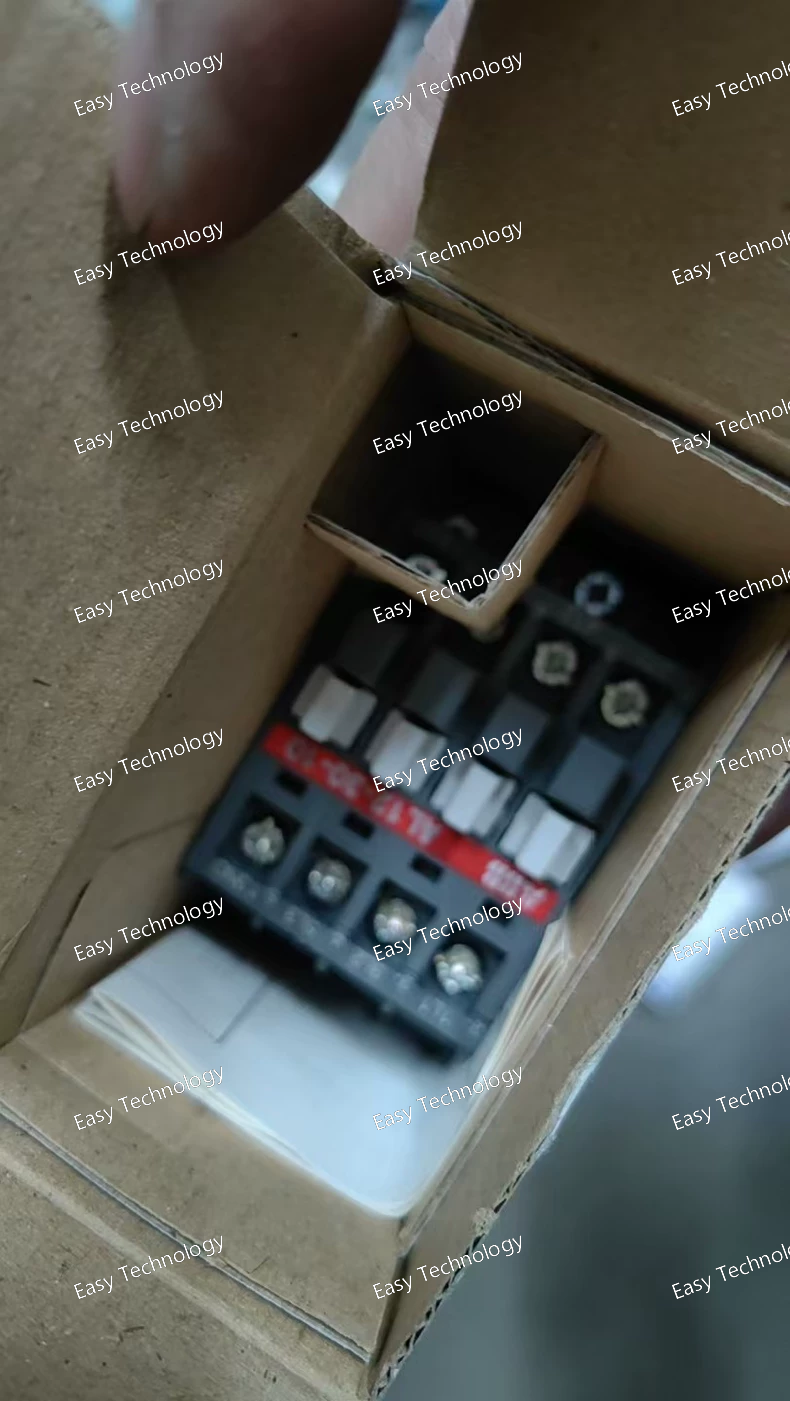

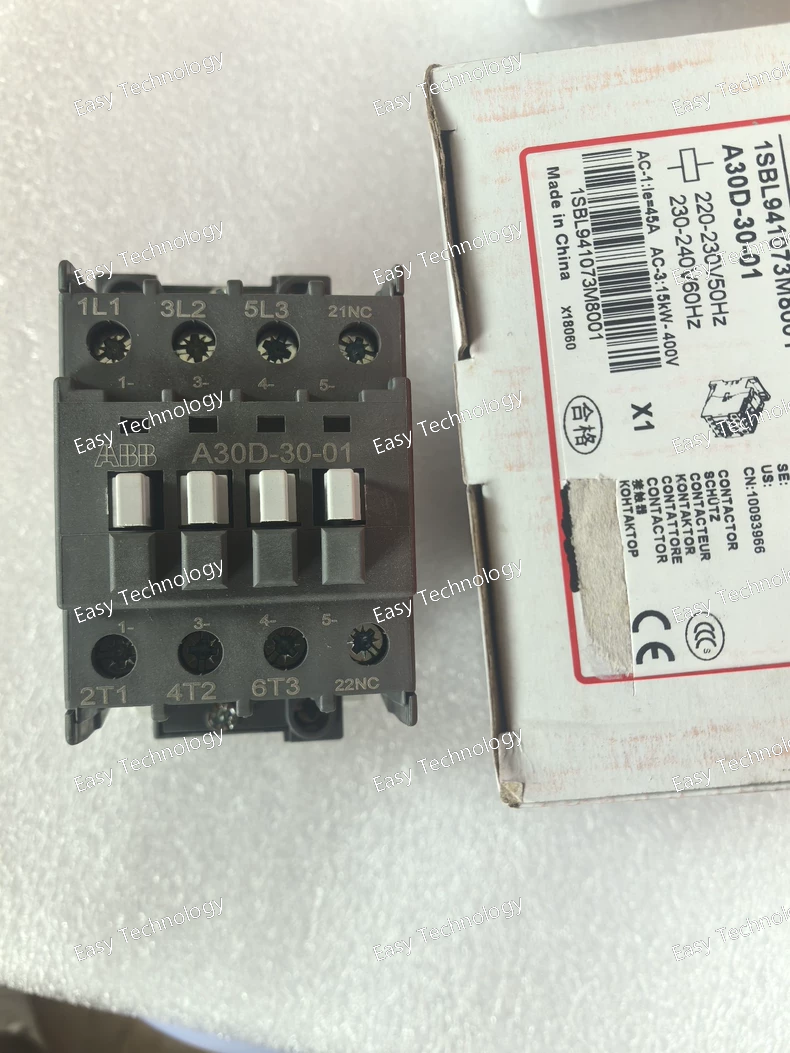

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB A series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 30 A Rated motor power (AC-3) Up to 7.5 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting Panel mounting / DIN rail with adapter Protection degree IP20 Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, motor control circuits

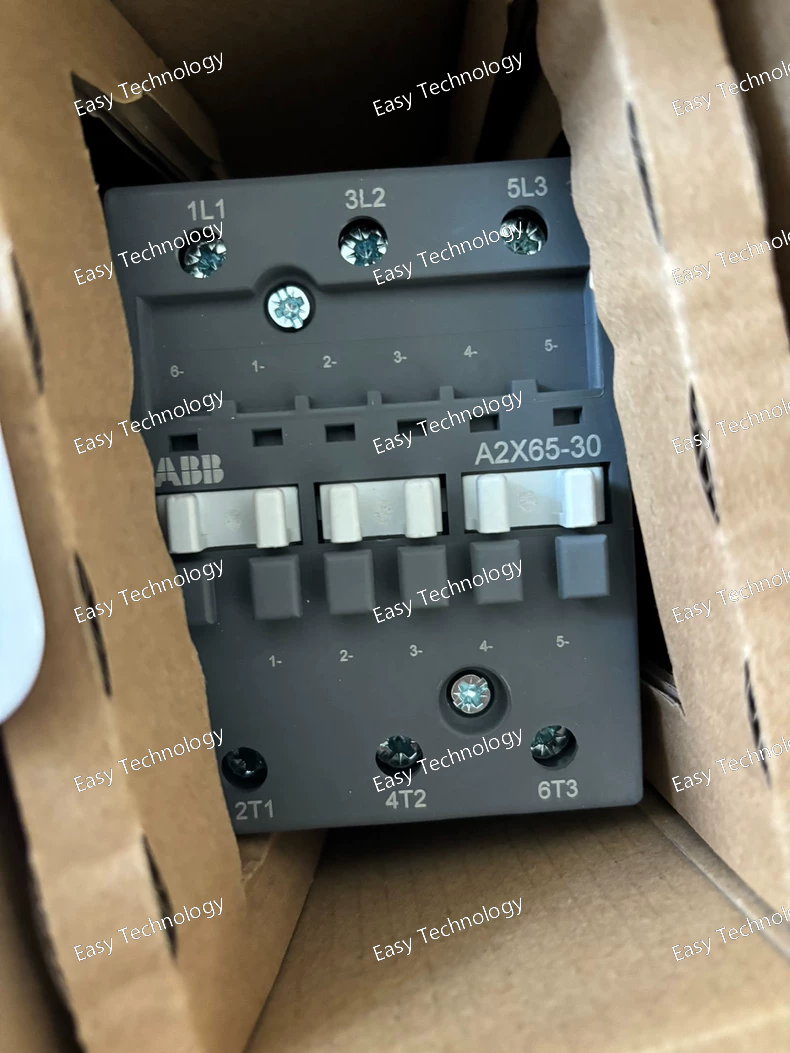

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB A2X series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 65 A Rated motor power (AC-3) Up to 30 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting Panel mounting / DIN rail with adapter Protection degree IP20 Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, motor control circuits

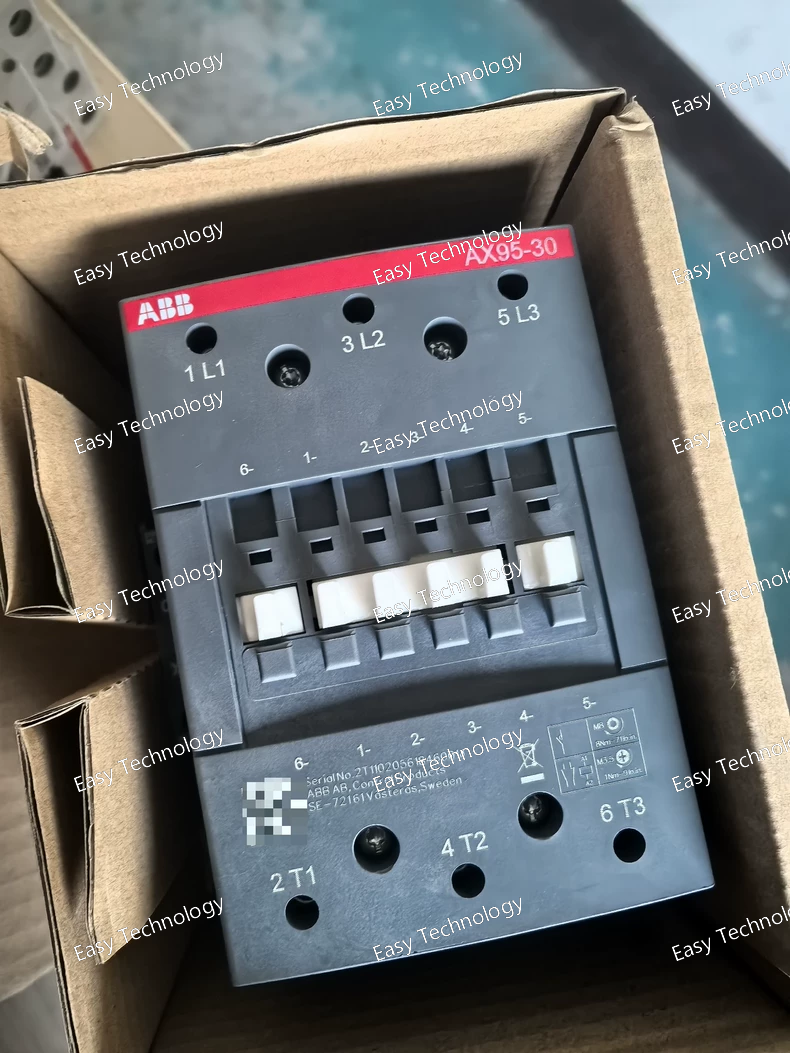

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB AX series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) Approx. 95 A Rated motor power (AC-3) Up to 45 kW at 400 V Coil voltage 100–250 V AC / DC Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −40 °C to +70 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / UL / CSA compliant Typical applications Motor starters, industrial control panels, power switching

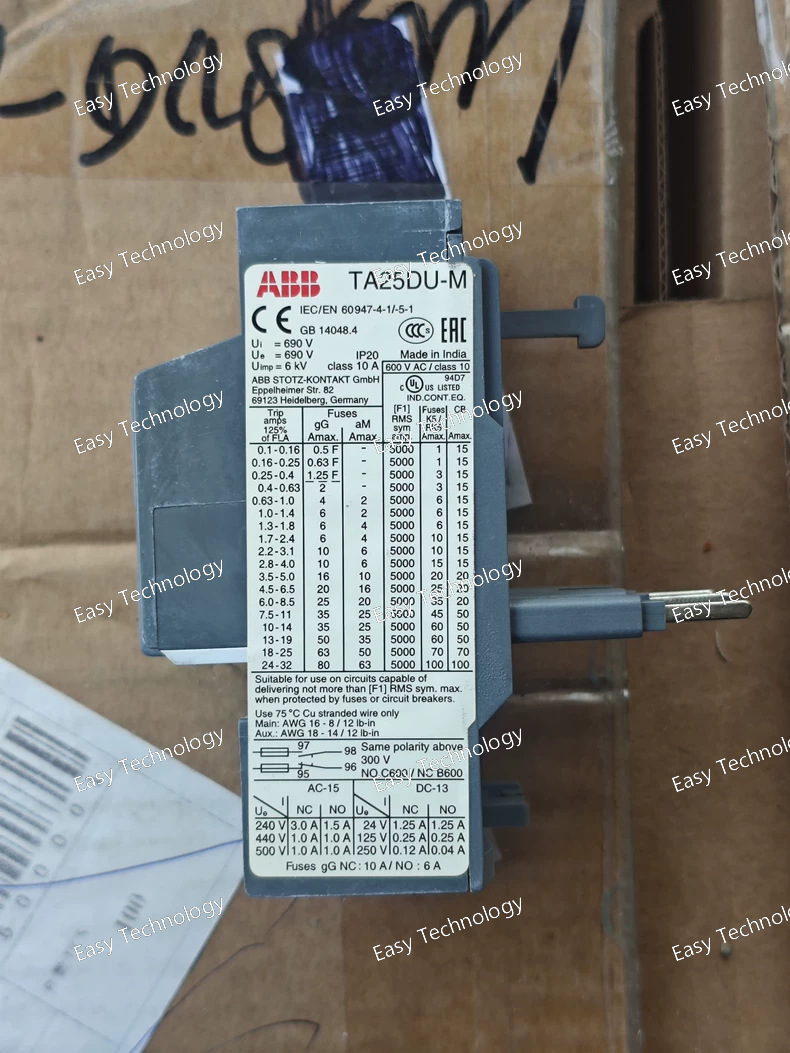

Technical Parameters Parameter Specification Product type Thermal overload relay Product series ABB TA series Compatible contactors ABB A / AF series contactors Current setting range 0.4–0.63 A Tripping class Class 10A Number of poles 3 Rated operational voltage (Ue) Up to 690 V AC Rated insulation voltage (Ui) 690 V AC Auxiliary contacts 1 NO + 1 NC (trip indication) Reset type Manual Phase failure sensitivity Yes Ambient temperature compensation Yes Mounting Direct mounting to contactor or panel mounting Protection degree IP20 Ambient operating temperature −25 °C to +55 °C Applicable standards IEC compliant Typical applications Small motor starters, control panels, industrial motor protection

Technical Parameters Parameter Specification Product type Mini contactor Product series ABB AF series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 400 V AC Rated operational current (Ie, AC-1) 9 A Rated motor power (AC-3) Up to 3 kW at 400 V Coil voltage 24 V / 48 V / 110 V / 230 V AC/DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting DIN rail or panel mounting Protection degree IP20 Standards IEC / EN compliant Typical applications Small motor starters, control panels, automation systems

Technical Parameters Parameter Specification Product type Auxiliary contact block Product series ABB U series Poles / Contacts 2 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie) 10 A (AC-15), 6 A (DC-13) Mounting Direct mounting on compatible ABB contactors Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Control circuit compatibility Designed for ABB A / AF series contactors Operating temperature −25 °C to +55 °C Protection degree IP20 Standards IEC / EN compliant Typical applications Motor starters, control panels, auxiliary signaling circuits

Technical Parameters Parameter Specification Product type Auxiliary contact block Product series ABB AL series Poles / Contacts 1 NO + 2 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie) 10 A (AC-15), 6 A (DC-13) Mounting Snap-on / direct mounting to compatible ABB contactor Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Control circuit compatibility Designed to match ABB A / AF series contactors Operating temperature −25 °C to +55 °C Protection degree IP20 Standards IEC / EN compliant Typical applications Motor starters, control panels, auxiliary signaling circuits
