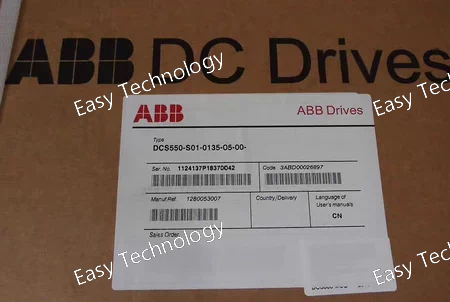

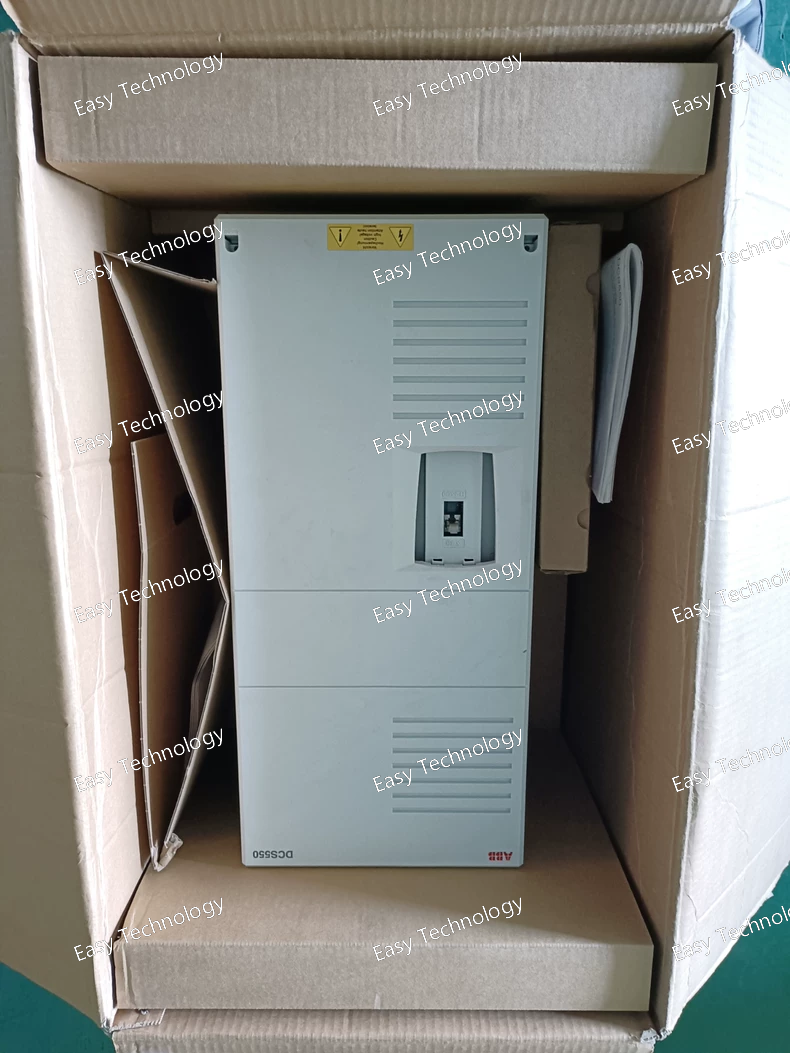

Key Specifications Specification Value / Description Model Number DCS550‑S01‑0135‑05‑00‑00 Drive Series ABB DCS550 Standard DC Drives Drive Type Non‑reversing DC Drive (2‑Quadrant) Rated DC Armature Current 135 A DC (continuous) Rated Field Current ~18 A DC (integrated field exciter) Input Voltage Range 3‑phase AC, 400–525 V (typical) DC Bus Voltage Range ~525 V DC Control Type Digital DC motor control with built‑in PID Control Quadrant Forward + braking (2‑quadrant) Enclosure / Mounting Panel or cabinet mount Series Features Integrated field exciter, adaptive programming, communication interfaces Typical Uses Industrial DC motor speed/torque control Ambient Operating Conditions Industrial environments (temperature range varies with installation)

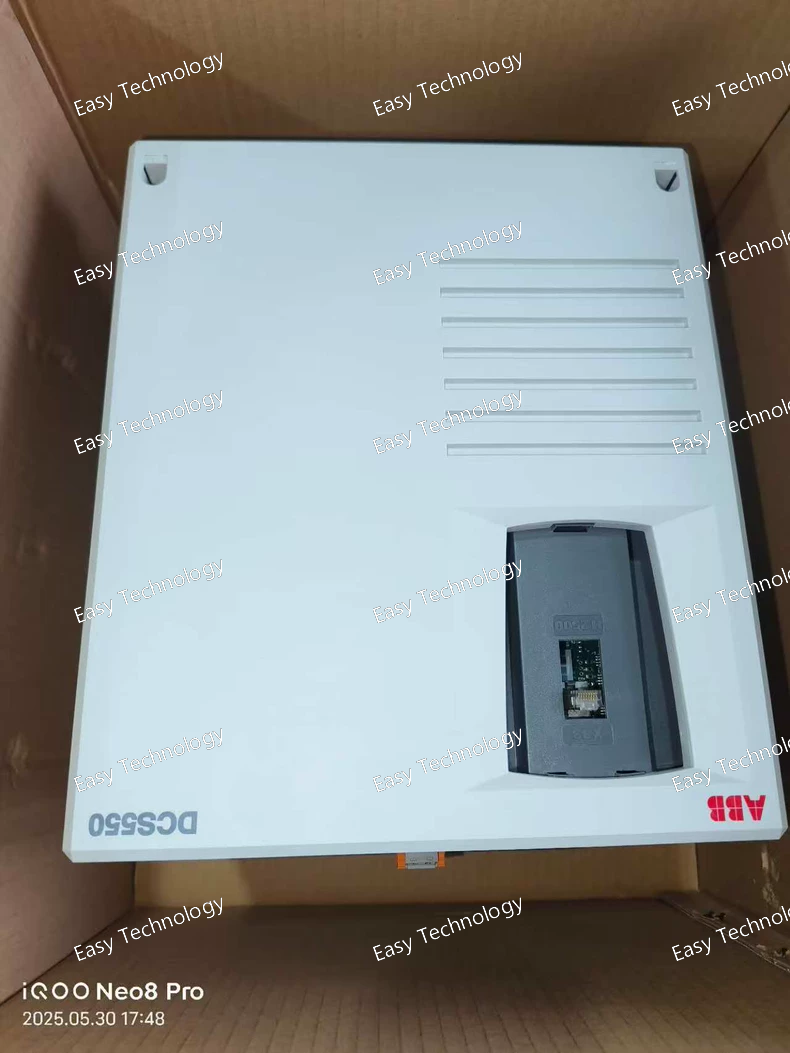

Key Specifications Specification Value / Description Model Number DCS550‑S01‑0180‑05‑00‑00 Drive Series ABB DCS550 Standard DC Drives Drive Type DC Drive / DC Rectifier Module Control Quadrant 2‑quadrant (forward + braking control) DC Bus Voltage Rating ~525 V DC Rated DC Armature Current 180 A DC Rectifier Configuration Single bridge / rectifier assembly Integrated Field Supply/Excitation Supports field excitation Installation Panel‑mounted module Application Class DC motor speed control for industrial machines Series Features Compact design, built‑in control software options Approx. Weight ~16 kg (typical for F2 frame size) Dimensions (approx.) ~370 × 264 × 270 mm

Key Specifications Specification Value / Description Model Name ABB DCS550‑S01‑0900‑05 Drive Category DC Motor Drive / DC Converter Drive Quadrant 2‑Quadrant (forward + braking) Input Voltage Range ~400–525 VAC three‑phase Rated DC Armature Current ~900 A DC Field Current ~35 A (integrated field exciter) Control Type Digital control with PID and adaptive programming Communication Interfaces Optional fieldbus support (e.g., EtherCAT, PROFINET) Commissioning Tools Startup assistants / built‑in diagnostic aids Typical Uses Extruders, printing machines, presses, plastics and rubber lines Design Features Compact size, rugged construction, easy integration User Interface Large control panel for settings and diagnostics

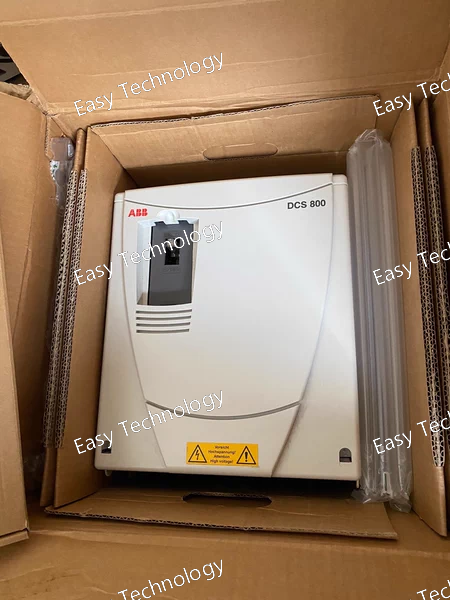

Key Specifications Specification Value Model Number DCS800‑S01‑0180‑05 Drive Type DC Drive / DC Converter Module Input Voltage Range 3‑phase AC 200–240 VAC or 400–480 VAC Output Type DC output (up to ~500 VDC) Rated Output Current ~175 A DC Control Type Non‑regenerative (2‑quadrant, non‑reversing) Phase (Input) 3‑phase Duty Rating ~50 HP (at 240 V AC input); ~100 HP (at 480 VAC) Enclosure / Mounting Open / Module style (IP00) Weight (approx.) 30–46 lbs (≈14–21 kg) Operating Frequency 50/60 Hz Control Features Digital I/O, relay outputs, encoder/digital feedback available Typical Applications Metals, pulp & paper, printing, mining, material handling, magnets, battery charging

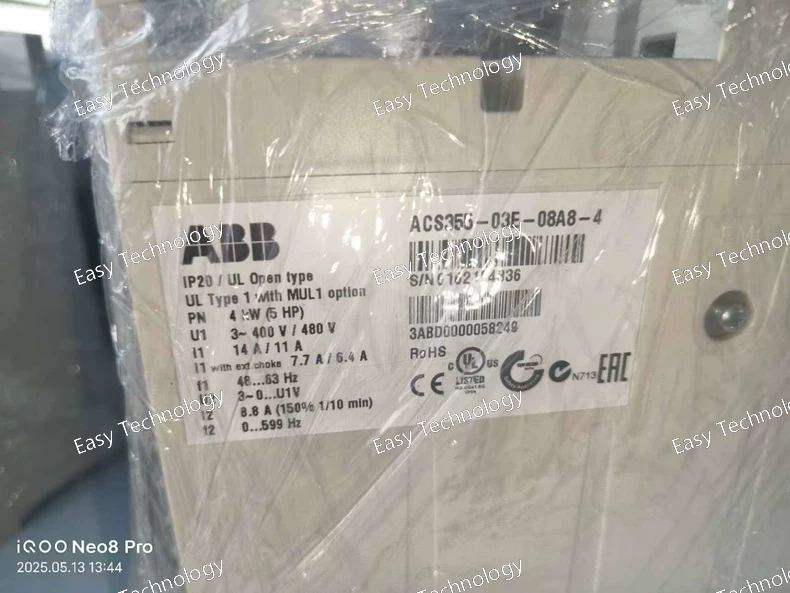

Key Specifications Specification Value Model: ACS355‑03E‑08A8‑4 Drive Type: Variable Frequency Drive (AC Inverter) Input Voltage: 380–480 V AC, 3‑phase Rated Output Power: 4.0 kW (~5 HP) Rated Output Current: 8.8 A Frequency Range: 50/60 Hz (48–63 Hz operating) Enclosure Rating: IP20 / Open type Mounting Type: Wall‑mounted module Compatible Motor Type: 3‑phase AC induction and PM motors EMC Filtering: Built‑in C3 (typical) Safety Feature: Safe Torque Off (STO) Typical Use Case: Industrial machinery motor control

Specifications Specification Value Input Voltage 380–480 VAC three‑phase Frequency 50/60 Hz Output Power / Motor Size ~25 HP (18.5 kW) Current Rating 38 A Phase 3‑Phase Drive Type Variable Frequency Drive (AC motor drive) Typical Use Case HVAC motor control, pumps, fans Manufacturer Warranty Often discontinued / no original warranty Weight (approx.) ~54 lbs (≈24.5 kg)

Key Specifications General Product Type: Three‑phase monitoring relay Series / Model: CM‑PFS.S – 1SVR703824R9300 Mounting: DIN‑rail (TH35) Terminal Type: Screw terminals Indicator: LEDs for operational states Voltage Monitoring Phase Monitoring Range: 3‑phase line‑to‑line 200–500 V AC Rated Control Supply Voltage: 200–500 V AC Frequency Rating: 50/60 Hz Response Delay: ~500 ms start‑up delay Outputs Contact Configuration: 2 changeover (DPDT / SPDT) relay outputs Contact Ratings: Suitable for control circuits (typical ratings ~4 A @ 230 V AC) Minimum Switching Capacity: Small control loads (e.g., 10 mA @ 24 V) Protection Functions Phase failure / missing phase detection Phase sequence (rotation) monitoring Phase unbalance detection Over‑ and under‑voltage monitoring Mechanical & Environmental Width: ~22.5 mm Height: ~85.6 mm Depth: ~103.7 mm Weight: ~0.13 kg Operating Temperature Range: ~‑25 °C to +60 °C Degree of Protection: IP50 housing, IP20 terminals Standards & Compliance IEC/EN monitoring relay standards UL and CSA recognized (output circuit ratings)

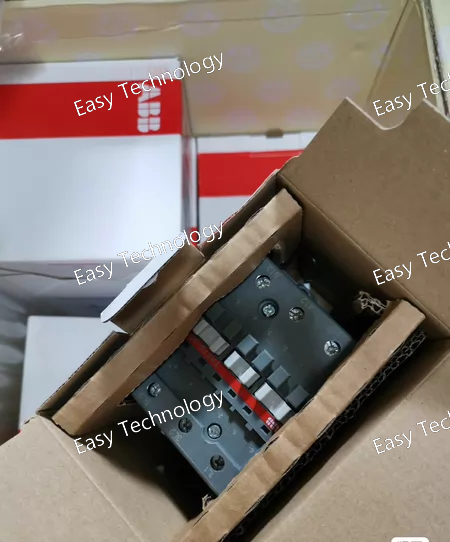

Key Specifications General Product Type: 3‑pole power contactor Model: ABB A145‑30‑11 Poles: 3 normally open main contacts Auxiliary Contacts: 1 NO + 1 NC Control / Coil Control (Coil) Voltage: 220–230 V AC @ 50 Hz / 230–240 V AC @ 60 Hz Coil Type: AC coil designed for standard AC control circuits Current & Operational Ratings Rated Operational Current (AC‑3): ~145 A (motor load) Rated Operational Current (AC‑1): up to 250 A (general use) Conventional Free‑Air Thermal Current (Ith): ~250 A Rated Operational Voltage (Main): up to 690 V AC Rated Insulation Voltage (Ui): ~1000 V AC Power & Load Capabilities Rated Power (AC‑3): • ~45 kW @ 220–240 V • ~75 kW @ 380–415 V • ~110 kW @ 660–690 V Motor Horsepower (approx): up to ~50 HP @ 230 V / ~100 HP @ 460 V General Purpose Rating: high current capacity for power switching Electrical & Mechanical Performance Rated Making/Breaking Capacity: ~10× Ie (AC‑3) Short‑Time Withstand Current (Icw): ~1200 A @ 40 °C (10 s) Rated Frequency: 50/60 Hz Terminal Connections: Rail or screw connection options Mechanical Durability: Designed for frequent switching cycles Environmental & Physical Mounting: Panel / control enclosure mount Operating Temperature Range: Typical industrial ambient range Weight: ~3.5 kg Construction: Rugged industrial grade

Key Specifications General Product Type: Magnetic contactor Series: ABB AL16 Model: AL16‑30‑10 DC24V Poles: 3 (three main poles, normally open) Auxiliary Contacts: Typically 1 normally open (1 NO) Coil / Control Coil Voltage: 24 V DC Coil Type: DC magnetic coil suitable for DC control circuits Electrical Ratings Conventional Free‑Air Thermal Current (Ith): 30 A Rated Operational Current AC‑1 (Ie): ~30 A at 690 V AC Rated Operational Current AC‑3 (Ie): ~~17 A (typical motor switching) Rated Motor Power (AC‑3): ~7.5 kW at 400 V AC ~4 kW at 230 V AC Typical Utilization Category: AC‑3 for motor loads and AC‑1 for general switching Rated Operational Voltage (Main Circuit): up to 690 V AC / 600 V AC Rated Insulation Voltage (Ui): ~1000 V Rated Impulse Withstand Voltage (Uimp): ~8 kV Performance & Capacity Rated Breaking/Make Capacity: Depends on standard utilization category ~8× Ie (AC‑3 make) ~10× Ie (AC‑3 break) Electrical Switching Frequency: AC‑1 up to ~600 cycles/hour AC‑3 up to ~~1200 cycles/hour Short‑Circuit Protective Device: gG fuse rating typically up to ~32 A Mechanical & Installation Mounting: Panel or DIN‑rail with accessory clips Terminal Connections: Screw/clamp for main and auxiliary contacts Compact design suitable for control panels Operating Temperature: Typical industrial ambient range Applications Motor control: Direct starting of three‑phase motors Power switching: Load control in distribution and equipment panels Automation systems: PLC/logic controlled switching with 24 V DC coil Auxiliary control: Integration with overload relays and control circuits

Key Specifications General Product Type: Residual current circuit breaker with overcurrent protection (RCBO) Model: GS201 AC‑C16/0.03 Configuration: 1 pole + Neutral (1P+N) Usage: Circuit protection with combined overcurrent and earth‑leakage protection Electrical Ratings Rated Operational Voltage: 230 V AC Rated Current (In): 16 A Tripping Characteristic Curve: C (moderate inrush tolerance) Rated Residual Current: 30 mA (earth leakage sensitivity) Type of Residual Current Detection: AC type (detects AC leakage) Rated Short‑Circuit Breaking/Capacity: 6 kA Protection Functions Overcurrent protection (thermal‑magnetic) Short‑circuit protection Earth‑leakage protection at 30 mA Instantaneous residual current trip Mechanical & Physical Number of Poles: 1P + N Compact modular design for DIN‑rail mounting Neutral terminal included Typical Applications General circuit protection in electrical distribution Protection of lighting, sockets, appliances and branch circuits Enhancing safety against electric shock and leakage faults

Key Specifications General Product Type: 3‑pole power contactor Series: ABB AX115 Model: AX115‑30‑11‑80 Poles: 3 (three main poles) Main Contacts: 3 normally open (NO) Auxiliary Contacts: 1 NO + 1 NC Control / Coil Rated Control (Coil) Voltage: 220–230 V AC at 50 Hz / 230–240 V AC at 60 Hz Control Type: AC coil Current & Operational Ratings Rated Operational Current AC‑3 (Ie): ~115 A at typical low‑voltage motor loads Rated Operational Current AC‑1 (Ie): ~160 A (general switching) Rated Insulation Voltage (Ui): 690 V Rated Operational Voltage (Main Circuit): up to 1000 V AC Power & Load Rated Operational Power AC‑3: – ~55 kW at ~400 V AC – Higher capability up to ~75 kW at higher voltages Short‑Time Withstand Current (Icw): hundreds to ~1,300 A depending on time duration Electrical & Mechanical Performance Conventional Free‑Air Thermal Current (Ith): ~160 A Rated Making/Breaking Capacities: scaled with AC‑3 utilization Maximum Electrical Switching Frequency: ~300 cycles/hour Maximum Mechanical Switching Frequency: ~3600 cycles/hour Mechanical Durability: millions of operations Physical Approximate Dimensions: – Width: ~102 mm – Depth (Length): ~123.5 mm – Height: ~148 mm Weight: ~1.9 kg Terminal Type: Bar / screw connections Environmental & Protection Ambient Operating Temperature: broad industrial range Degree of Protection: IP20 at auxiliary terminals and basic housing

Key Specifications General Product Type: 3‑pole AC power contactor Model: TAE75‑30‑00 (also in variants with suffixes and coil codes) Poles: 3 (three main poles, normally open) Coil Voltage Type: DC control coil Rated Coil Voltage Range: 77–143 V DC Current & Power Ratings Rated Operational Current (AC‑3): ~75 A for motor loads at 400 V AC Rated Operational Current (AC‑1): ~125 A at 400 V AC Rated Operational Power (AC‑3): approx. 37–40 kW at typical industrial voltages Conventional Free‑Air Thermal Current: approx. 125 A Electrical Characteristics Rated Operational Voltage (Main Circuit): up to 690 V AC / 1000 V AC Rated Insulation Voltage (Ui): ~1000 V (IEC) Rated Impulse Withstand Voltage (Uimp): ~8 kV Making/Bre­aking Capacity (AC‑3): ~8×Ie make, ~8×Ie break Short‑Circuit Protective Devices: suitable with gG fuses (example 160 A) Coil Power Consumption: Higher pull‑in power (~120–250 W) and lower holding power (~1.7–6.5 W) Mechanical & Durability Mechanical Durability: ~5,000,000 operations Maximum Mechanical Switching Frequency: up to ~3600 cycles/hour Connecting Capacity: main conductors up to ~16–25 mm² depending on cable type Terminal Type: ring lug/screw connections for main poles Control & Operation DC coil operation with wide DC voltage range reduces sensitivity to coil supply variation Fast contact operate/release times typical for contactors Environmental & Installation Mounting: panel/DIN rail compatible in enclosure Degree of Protection: IP10 (basic housing) Ambient Operating Temperature Range: wide industrial range Suitable for three‑phase loads, power switching, motor control, and auxiliary power circuits Applications Starting and stopping three‑phase motors Power circuit switching (AC loads) controlled by DC logic Lighting and capacitor switching Industrial automation and control panels
