Key Specifications Specification Value / Description Product Name ABB AF09‑40‑00‑13 Product Type IEC Contactor (non‑reversing) Series AF09 Number of Poles 4 Main Contact Configuration 4 Normally Open (4 NO) Rated Operational Current (AC‑1) 25 A Rated Insulation Voltage (Ui) 690 V AC (IEC) / 600 V UL Coil Voltage Range 100–250 V AC/DC Rated Operational Current (AC‑3) ~9 A at 400 V AC Rated Motor Power (AC‑3) Up to ~4 kW @ 400 V AC Control Frequency 50/60 Hz Mounting Type DIN‑rail / Screw terminals Terminal Type Screw Temperature Range (Operation) ~‑40 °C to +70 °C Coil Types Supported Both AC and DC coils Surge Suppression Integrated Degrees of Protection IP20 (typical) Standards Compliance IEC 60947‑1, IEC 60947‑4‑1, UL/CUL, CE, RoHS certified Weight (approx.) ~0.27 kg Dimensions (H × W × D) ~86 × 45 × 77 mm

Key Specifications Specification Details Model ABB CP1‑10B‑10 Type Compact momentary pushbutton switch Contact Configuration Single normally open (SPST‑NO) Actuator Style Flush non‑illuminated button, black Mounting Panel mount (cutout Ø 22.3 mm) Terminals Screw clamp connections Rated Operating Current (AC) 1.5 A max. Rated Operating Voltage (AC) Up to ~127 VAC (rated example) Rated Operating Current (DC) Up to ~0.3 A @ 24 VDC Mechanical Duty ~0.5 million operations Protection / Enclosure Rating Front: IP66/IP67/IP69K (sealed front), Terminal area: IP20 Operating Temperature –25 °C to +70 °C Storage Temperature –40 °C to +85 °C Housing Material Black plastic bezel and body Standards Designed per IEC/EN 60947‑5‑1, EN 60529 environmental ratings Panel Cutout Diameter ~22.3 mm wide Typical Use Industrial control panels, machinery operator interfaces

Specifications Specification Value / Description Model ABB 83330‑500 Product Type Switch actuator (door/light control) System Platform ABB‑Welcome / Busch‑Welcome door communication Bus Voltage (2‑wire bus) ~28 V DC ± 2 V Operating Temperature −5 °C to +45 °C Protection Rating IP20 Output (Door Opener) Max 3 A Output (Light Switch) Loads such as: Neon: 350 W, 230 V halogen: 300 W, Low‑voltage halogen w/ conventional transformer: 350 VA, Low‑voltage halogen w/ electronic transformer: 300 VA Wire Clamps (Single‑wire) 2 × 0.6 mm² – 2 × 1 mm² Wire Clamps (Fine‑wire) 2 × 0.6 mm² – 2 × 0.75 mm² Module Width (MW) ~4 MW (modular width unit in DIN system) Typical Use Control of door openers and entrance lighting in an ABB‑Welcome door entry system

Specifications Specification Value / Description Model TVOC‑2‑H1 HMI display ABB Order Code 1SFA664002R1005 Product Type Additional HMI display for arc guard system Used With TVOC‑2 Arc Guard System (main arc monitor) Mounting Mounted on main unit or switchgear door Connection Interface RJ45 cable (included, typically 3 m) Display / Interface Type HMI (visual status display for arc monitoring) Auxiliary Contacts None (no NO/NC contacts) Power Loss ~1 W Weight ~0.115 kg Dimensions (H × W × D) ~82 × 130 × 27 mm Terminal Type Screw terminals Operating Temperature Range −25 °C to +55 °C Certifications UL listed (e.g., UL_20110511‑E155370) RoHS Compliance Yes (RoHS directive compliant) Typical Use Case Arc fault status display extension for TVOC‑2 system Environmental Rating Front panel suitable for switchgear environment

Key Parameters Specification Value / Description Product Name OFD500EA Electronic Fuse Monitor ABB Order Code 1SCA121776R1001 Function Status monitoring of DC fuses (detects blown fuse) Rated Supply Voltage 110–500 V DC (for fuse status detection) Output(s) Auxiliary contact output indicating fuse open/closed Contact Configuration Typically 1 NO + 1 NC (change‑of‑state on fuse condition) Mounting Panel / switchgear accessory mounting Mounting Options DIN‑rail or accessory plate (depending on system) Net Weight ~0.155 kg Housing Dimensions ~95 mm × 55 mm × 115 mm (approx.) Application Low‑voltage switchgear, fuse switch accessories Environmental Class Industrial control environment

Specifications Parameter Category Specification Product Type Communication Interface Module (Fieldbus Master) Target PLC System ABB AC500 Programmable Logic Controller Compatible CPU Rack PM5xx series (e.g., PM571, PM581, etc.) Fieldbus Protocol PROFIBUS DP compliant with EN 50170 and IEC 61158 Protocol Version DP-V1 (supports standard cyclic data exchange and acyclic communication for parameterization, diagnostics, and alarms) Master Function Class Class 1 Master (Active Station) Data Transfer Rates Automatically detects and sets from 9.6 kbps up to 12 Mbps Physical Interface 9-pin D-Sub female connector (sub-miniature D), RS-485 standard Maximum Number of Slaves Configurable, typically up to 125 slaves per network segment. Diagnostic Indicators (LEDs) • RUN: Green, indicates module operational status. • COM: Green/yellow/red, indicates communication activity and status. • ERROR: Red, indicates a fault condition. Power Supply Powered directly from the PM5xx CPU rack via the backplane bus (5 VDC). Isolation Galvanic isolation between the PROFIBUS network and the PLC backplane. Configuration Configured using ABB Automation Builder engineering suite. Requires the matching GSD file (Hardware Support Package) for slave devices. Primary Application Integrating the AC500 PLC into factory automation and process control systems using the widespread PROFIBUS DP network for centralized control and data acquisition. Certifications CE, UL, cUL, ATEX (for specific versions/conditions). Please refer to the official manual for exact certification details.

Typical Specifications Specification Value / Description Model Name ABB EKIP COM GPRS‑M Catalog / Product ID 1SDA074165R1 Function Wireless GPRS communication module Communication Standard GSM/GPRS (quad‑band) Frequency Bands 850 / 900 / 1800 / 1900 MHz Communication Modes SMS, TCP/UDP over GPRS Auxiliary Supply Voltage 24 V DC (±20%) Power Consumption ~6 W max typical Protocol Support Modbus RTU over system bus (connection to ABB device) Network Support GPRS mobile data network connections Mounting DIN‑rail mount Weight ~1 kg Dimensions ~250 × 250 × 300 mm (packaged product) Operating Temperature Typically −25 °C to +70 °C Relative Humidity Typical industrial range Application Remote monitoring and data communication for protection/energy devices

Specifications Specification Details Model Number 1SDA058273R1 Product Type Key Lock Accessory Intended Use Lock circuit breaker in OPEN (OFF) position Key Number 20007 Position Open (OFF) Mounting Style Panel / breaker handle accessory Construction Mechanical lock body with key slot Weight (approx.) 0.3 kg Application Industrial electrical distribution panels; maintenance safety interlock Functional Summary Locks the breaker handle to prevent accidental closing Keyed access for authorized operation only Ensures safe isolation for maintenance or extended OFF periods Fits ABB Emax breaker family

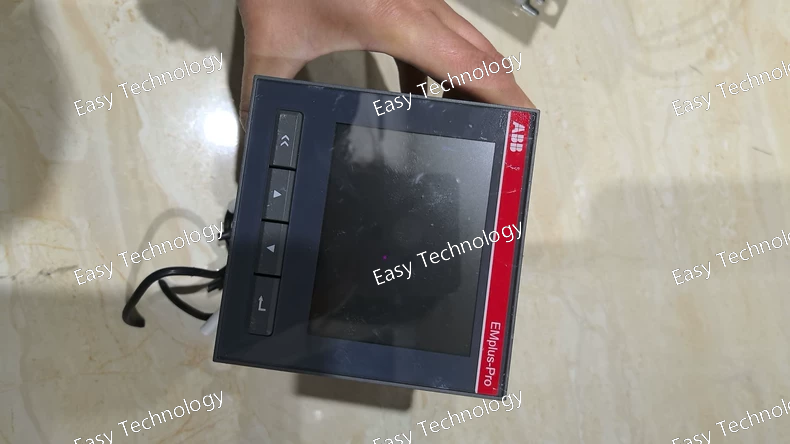

Typical Specifications Specification Typical Value / Feature Product Model ABB EMPLUS‑PRO Product Type Power / energy monitoring instrument Measurement Type Three‑phase (or single‑phase) AC network Measured Parameters Voltage (V), Current (A), Active Power (kW), Reactive Power (kvar), Apparent Power (kVA), Energy (kWh), Power Factor, Frequency (Hz) Display Digital / LCD with multi‑parameter view Input Voltage Range ~100–690 VAC (varies by model) Current Input Direct measurement or via external CTs (Current Transformers) Communication Protocols Optional Modbus RTU, Ethernet (depends on specific variant) Mounting DIN‑rail or panel mount Operating Temperature Typical industrial range (e.g., −10 °C to +55 °C) Accuracy Class Class 1 / Class B / varies by configuration Typical Uses Energy monitoring, load profiling, demand tracking, power quality analysis Standards Compliance IEC/EN standards for energy metering (model/pi specific)

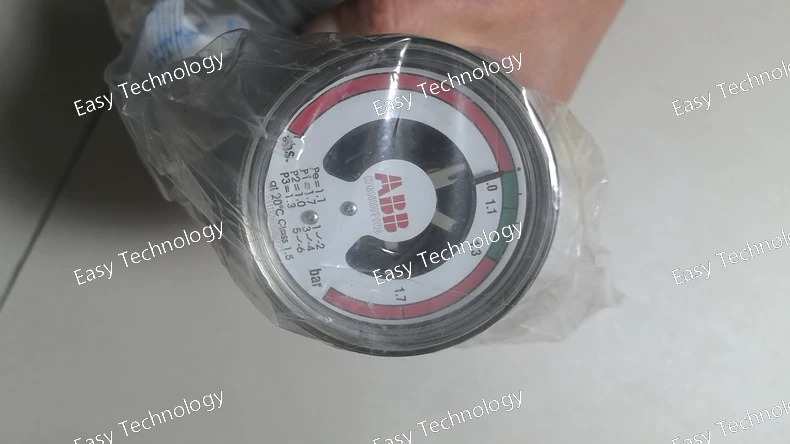

Key Specifications Specification Value / Description Model ABB RLY‑DMJ45R‑01 Product Type Gas Density Sensor / Density Relay Application Insulating gas (e.g., SF₆) density monitoring in high‑voltage equipment Output Type Relay contact outputs (switching contacts) Contact Functions Density‑high, density‑low thresholds switch contacts Standard Operating Range Normal gas pressure/density ranges typical for rated equipment (factory configured) Contact Return / Action Values Specific alarm and release values for density thresholds (factory set) Variants RLY‑DMJ45R‑01 through ‑04 for different contact compatibility and altitude adjustments Mounting / Package Relay housing suitable for control panels or relay racks Typical Use Cases SF₆ circuit breaker/gas‑insulated switchgear gas monitoring, alarm systems

Key Specifications Specification Value / Description Model Name ABB PM564‑T‑ETH Product Type PLC CPU Module (AC500‑eCo) Input Power Supply 24 V DC (typical for AC500‑eCo modules) Memory (Program) ~128 kB Digital Inputs 6 digital inputs (24 V DC) Digital Outputs 6 transistor outputs Analog Inputs 2 analog inputs Analog Outputs 1 analog output Communication Interfaces 1x Industrial Ethernet, 1x RS‑485 serial Expandable Slots 2 option slots for additional modules Programming Standard IEC 61131‑3 compatible (via ABB programming tools) Operating Temperature Industrial range (e.g., −25 °C to +60 °C typical) Protection Rating IP20 (standard control cabinet environment) Dimensions (approx.) ~74 × 82 × 135 mm (module size) Weight (approx.) ~0.3 kg (compact CPU module) Typical Use Cases Machine control, process automation, material handling systems Industry Industrial automation / PLC systems

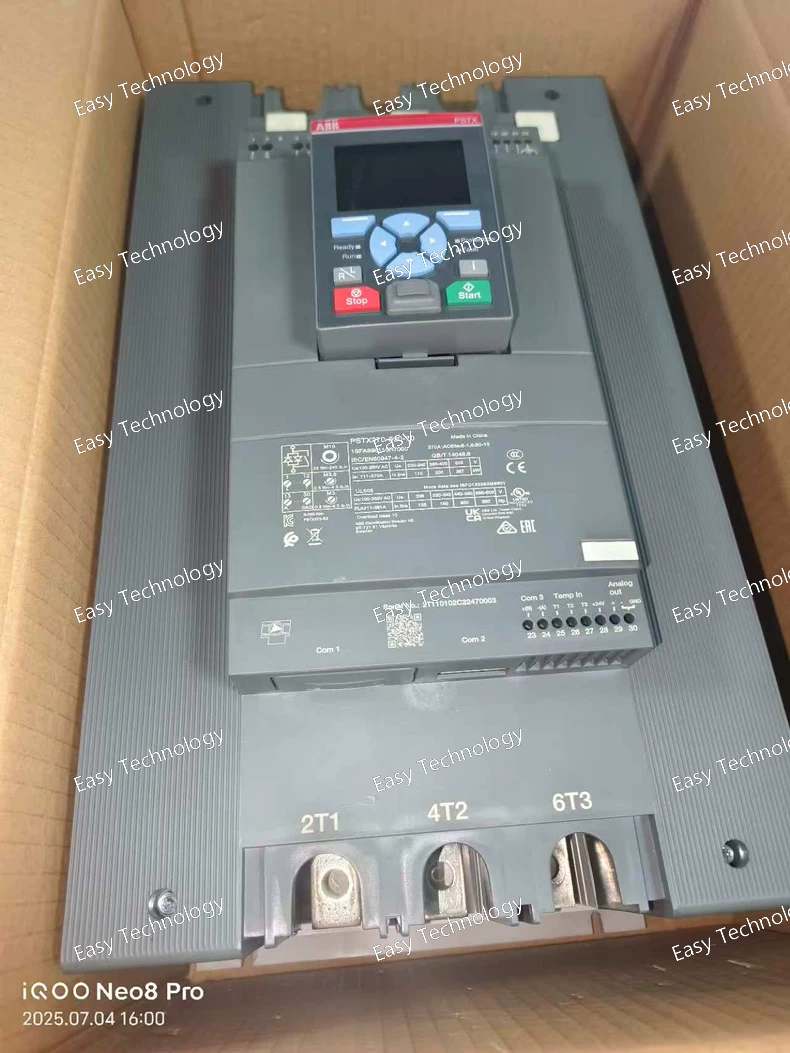

Key Specifications Specification Details Model ABB PSTX370‑600‑70 Type Soft Starter (Solid‑State Motor Starter) Operational Current Rating 370 A (max) Main Voltage Range 208–600 V AC (three‑phase) Control Supply Voltage 100–250 V AC, 50/60 Hz Compatible Motor Power (typical) Up to ~125 HP at ~230 VAC, ~300 HP at ~480 VAC, ~350 HP at ~575 VAC Control Mode Voltage/torque ramp start and stop Built‑in Bypass Yes (reduces heat loss and improves efficiency) Overload Relay Class Class 10 Communications Built‑in Modbus RTU; supports optional fieldbus modules Phase 3‑phase Protection Rating IP00 (main terminals) / IP20 (control area) Ambient Operating Temp. –25 °C to +60 °C Enclosure Options IP00 / IP20 / IP66 (depending on installation) Weight (approx.) ~18.5 kg Dimensions ~470 × 258 × 279 mm Special Functions Current limit, kickstart, jog, braking, emergency/fire pump mode, diagnostics, pump cleaning Approvals CE, UL/cUL (varies by market)
