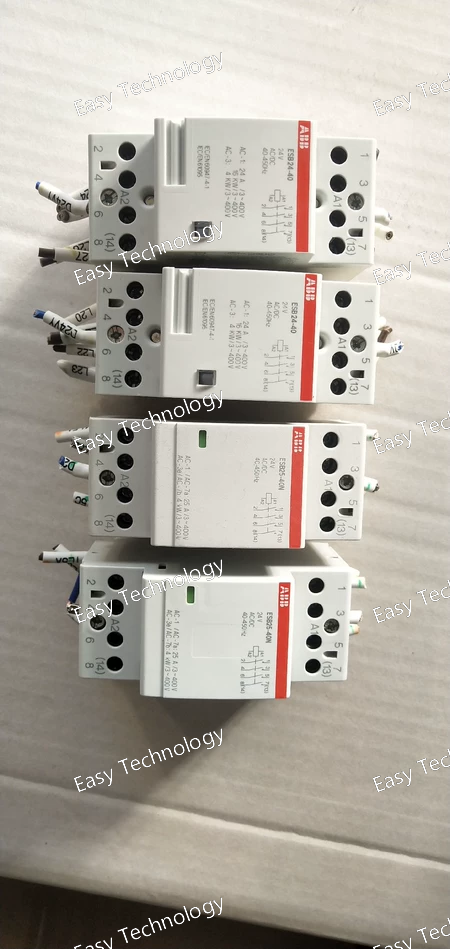

Technical Parameters Specification Details Product Type Installation Contactors Series ESB40-40N Number of Poles 4 (Four poles) Main Contact Configuration 4 Normally Open (4 NO) Rated Operational Current (AC-1) 40 A Rated Operational Voltage (Main Circuit) Up to 400 V AC / 220 V DC Control/Coil Voltage AC/DC voltage depending on variant (e.g., 230 V AC/DC for ESB40-40N-06) Mounting Type DIN-rail (TH35) Rated Insulation Voltage (Ui) 500 V Rated Impulse Withstand Voltage (Uimp) 6 kV Rated Operational Power AC-1 Single phase ~9.2 kW at 230 V / Three phase ~27.7 kW at 400 V Rated Operational Current AC-3 ~22 A (motor loads) Electrical Durability AC-1 ~150000 cycles; AC-3 ~100000 cycles Termination Type Screw terminals Wire Stripping Length ~7 mm (control) / ~13 mm (main) Tightening Torque ~0.9 N·m (control) / ~2.5 N·m (main) Degree of Protection IP20 Operating Ambient Temperature −25 °C to +55 °C Dimensions (approx.) ~54 mm (W) × 85 mm (H) × 65 mm (D) Mechanical Durability ~1 000 000 cycles Standards Compliance IEC/EN 60947 series Typical Applications Lighting, heating, motor switching, pumps, HVAC control, general load switching

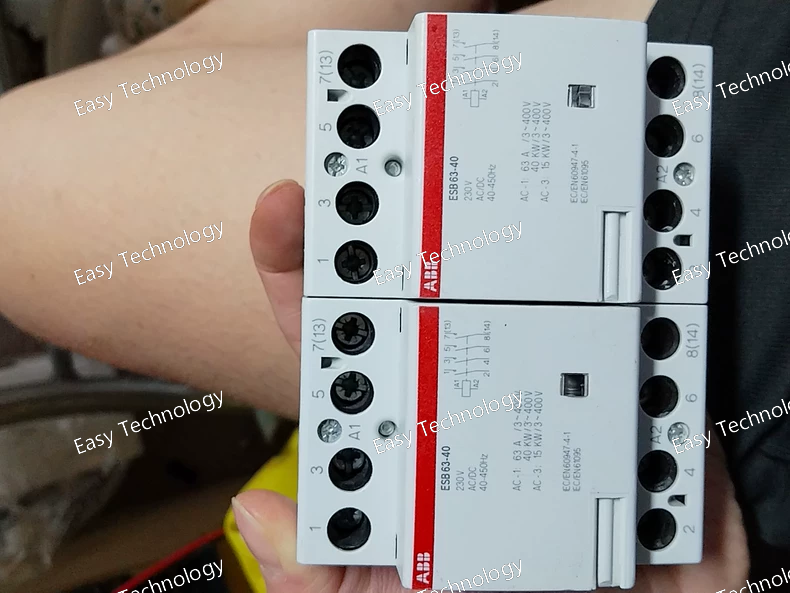

Technical Parameters Specification Description Product Type Installation Contactor Series ESB63 Model ESB63-40 Number of Poles 4 Contact Configuration 4 Normally Open (4NO) Rated Operational Current (Ie) 63 A (AC-1) Rated Operational Voltage Up to 400 V AC Control Circuit Voltage Depends on variant (e.g. 24 V DC, 230 V AC/DC) Coil Type AC/DC hum-free coil Utilization Category AC-1 Mounting Type DIN-rail mounting Degree of Protection IP20 (when installed in enclosure) Rated Insulation Voltage 500 V Operating Temperature −25 °C to +55 °C Dimensions (W × H × D) Approx. 54 × 85 × 65 mm Weight Approx. 0.4 kg Standards IEC / EN 60947

Key Features Self-supplied electronic overload relay (no external supply needed) Protection against motor overload and phase loss Wide current setting range: 115–380 A Selectable trip classes: 10E, 20E, 30E Automatic or manual reset Trip-free mechanism and status indication Temperature compensation for wide ambient range STOP and TEST functions Direct mounting onto block contactors Sealable operating elements for safety Technical Specifications Parameter Value / Detail Type Self-supplied electronic overload relay Current Setting Range 115 … 380 A Number of Poles 3 Auxiliary Contacts 1 NC, 1 NO Rated Voltage 600 V AC/DC (Aux), 1000 V AC (Main) Rated Insulation Voltage (Ui) 1000 V Impulse Withstand Voltage (Uimp) 6 kV (Aux), 8 kV (Main) Frequency 50/60 Hz & DC capable (aux) Trip Classes 10E / 20E / 30E Reset Options Manual / Automatic Ambient Temperature Range −25 to +70 °C Dimensions (W×H×D) 105 × 187.6 × 122.8 mm Weight ~1.338 kg Connection Type Screw Terminals Mounting Direct on compatible contactors Enclosure Rating IP10 / IP20 (depending on installation) Standards Compliance IEC/EN 60947 series; UL; RoHS

Parameters Parameter Value / Typical Specification Product Family ABB VD4 Medium‑Voltage Vacuum Circuit Breaker Model Designation VD4 12.12.32 (M variant) Rated System Voltage (Ur) ~12 kV (medium‑voltage class) Rated Normal Current (In) ~1250 A (typical for the 12.12.32 configuration) Rated Short‑Circuit Breaking Current 31.5 kA (symmetrical) Impulse Withstand Voltage (Up) ~75 kV (lightning impulse) Power Frequency Withstand (Ud) ~28 kV rms Frequency 50/60 Hz Poles 3 (three phases) Vacuum Interrupter Technology Integrated interrupters inside resin‑embedded poles Operating Mechanism Stored‑energy spring mechanism with manual or motorized charging Operating Sequence Typically 0‑0.3s‑CO‑15s‑CO (standard switchgear sequence) Mechanical Life Very high (tens of thousands of operations) Mounting Option Fixed or withdrawable for medium‑voltage switchgear Protection & Standards IEC 62271‑100 compliance for medium‑voltage breakers Typical Use Cases Switchgear feeder protection, transformer protection, motor feeder circuits Accessories Shunt releases, undervoltage releases, auxiliary contacts, interlocks Environmental Designed for industrial and utility electrical environments Weight ~90–120 kg (system variation)

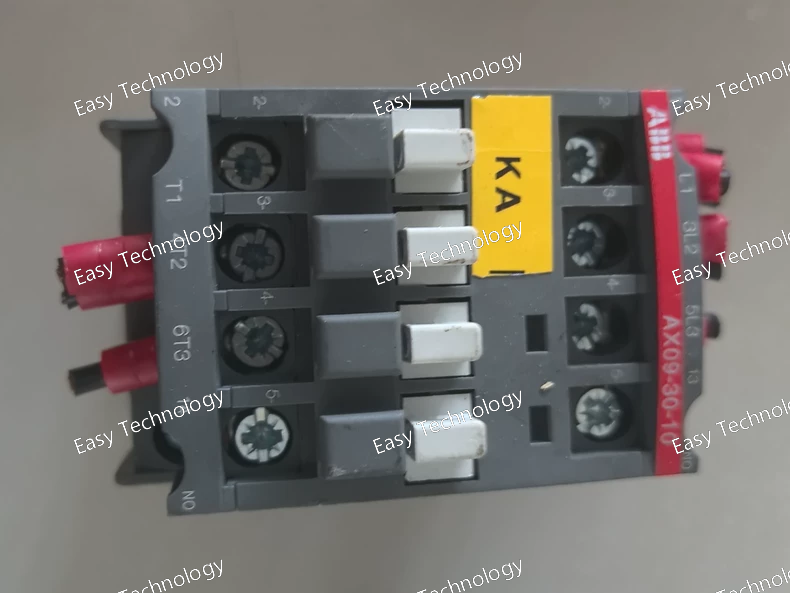

Key Specifications Specification Value / Description Model AX09‑30‑10 Product Type 3‑Pole AC Contactor Main Contacts 3 × Normally Open (NO) Auxiliary Contact(s) 1 × NO (built‑in) Rated Operational Voltage Up to 690 V AC Rated Operational Current (AC‑3) 9 A @ 415 V AC (typical) Motor Power Rating (AC‑3) ~4 kW @ 415 V AC (1.5–2.2 HP range depending on voltage) Control Circuit Voltage Options Typically 24 V AC / 110–120 V AC / 220–240 V AC (coil dependent) General Use Rating (UL/CSA) 21 A @ 600 V AC Insulation Voltage (Ui) 690 V AC Standards IEC 60947‑4‑1 (AC contactor), UL/CSA listed Terminal Type Screw clamp Degree of Protection IP20 (installed) Weight (approx.) ~0.33 kg Mounting Panel / DIN‑rail compatible Operating Temp. Range ~‑40 °C to +70 °C Typical Use Motor control, AC switching, automation panels

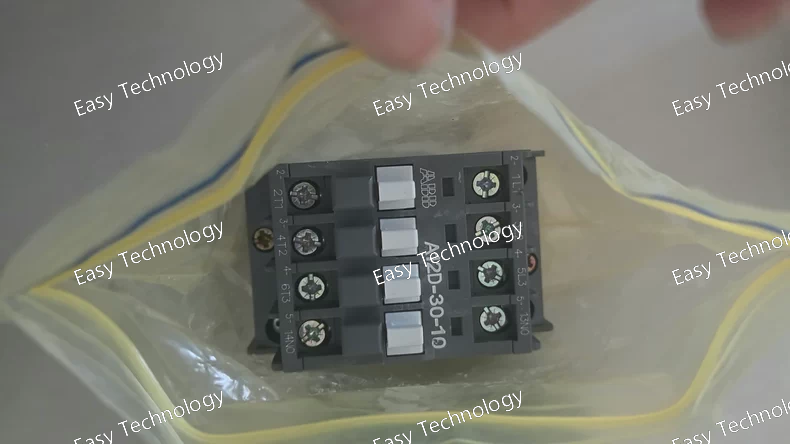

Key Specifications Specification Value / Description Model ABB A12‑30‑10 Product Type 3‑Pole AC Contactor Order Code Examples 1SBL161001R8010 (depends on coil voltage) Rated Insulation Voltage (Ui) Up to 1000 V AC Rated Operational Voltage Up to 690 V AC (IEC) / 600 V AC (UL) Rated Thermal Current (Ith) ~28 A Rated Operational Current (Ie) ~27 A at 690 V AC (AC‑1) Rated Load for Motors (AC‑3) ~12 A (e.g., ~5.5 kW @ 400 V) Poles 3 main poles Auxiliary Contacts (Standard) 1 NO (built‑in) Coil Voltage Configurable (examples include 24 V, 110 V, 220‑240 V AC) Coil Frequency 50/60 Hz Mounting DIN‑rail or panel mount Terminal Type Screw terminals Standards Compliance IEC 60947‑4‑1 and EN 60947‑4‑1 Ambient Operating Temp. ~‑40 °C to +55 °C (varies by installation) Mounting Size / Dimensions ~44 × 74 × 74 mm Weight (approx.) ~0.34 kg Typical Use Motor control, power switching, automation control

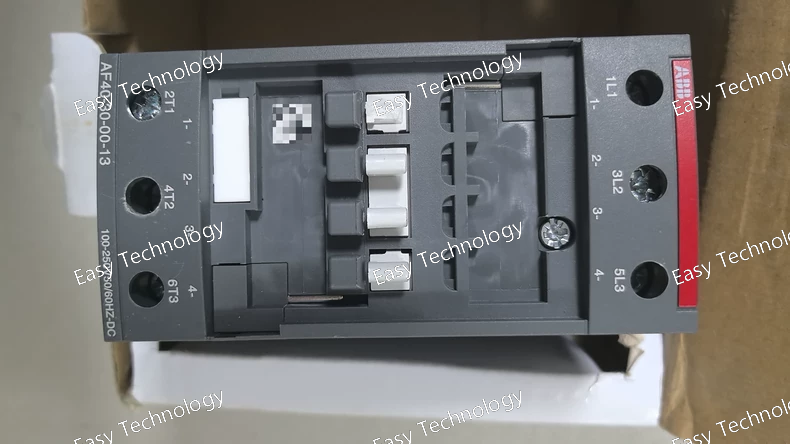

Key Specifications Specification Details Model ABB AF40‑30‑00‑13 Product Type AC/DC Operated IEC Contactor Series AF40 Order Code 1SBL347001R1300 Number of Poles 3 (three‑phase) Main Contacts 3 NO (Normally Open) Rated Control Voltage (Uc) 100–250 V AC/DC Rated Operational Voltage up to 690 V AC (IEC) / 600 V AC (UL) Rated Operational Current AC‑1 up to 70 A (general use) Rated Operational Current AC‑3 (Motor) typically 42 A at 400 V (≈18.5 kW) Motor Power Ratings ~18.5 kW @ 400 V AC, ~30 hp @ 480 V AC Frequency 50/60 Hz Coil Type Electronic AC/DC coil (wide range) Connection Type Screw terminals Mounting DIN‑rail or panel mount Surge Protection Built‑in Mechanical Durability ~10,000,000 operations Protection Rating IP10/IP20 (depending on installation) Operating Temperature approx. −60 °C to +80 °C Dimensions ~125.5 mm H × 55 mm W × 111 mm D Weight ~0.95 kg Standards IEC 60947‑1 and IEC 60947‑4‑1 compliant

Key Specifications Specification Value / Description Product Name ABB AF65‑30‑00‑11 Product Type 3‑Pole AC Contactor Series AF Contactors Main Contact Configuration 3 NO (Normally Open) Rated Insulation Voltage (Ui) 690 V AC (IEC) / 600 V AC (UL/CSA) Rated Operational Voltage Up to 690 V AC Rated Current (AC‑1) 105 A @ 690 V (40 °C) Rated Operational Current (AC‑3) 65 A @ 220‑240 V, 65 A @ 380‑440 V, 55 A @ 500 V, 39 A @ 690 V Rated Operational Power (AC‑3) 18.5 kW @ 220‑240 V, 30 kW @ 380‑400 V, 37 kW @ 415‑690 V Control Voltage Range (Uc) 24–60 V AC (50/60 Hz), 20–60 V DC Frequency 50/60 Hz Coil Type Electronically controlled Auxiliary Contacts None (0 NO/0 NC) Terminals Screw type Mounting Panel / DIN rail compatible frame Protection Rating IP10/IP20 (depending on installation) Mechanical Durability ~10,000,000 operations Operating Temperature –40 °C to +70 °C Wire Connection Sizes Main: up to 35 mm² flexible / 1–2.5 mm² control Altitude Up to 3000 m (no derating) Standards IEC/EN 60947‑1, IEC/EN 60947‑4‑1 Typical Use Motor control, power circuit switching

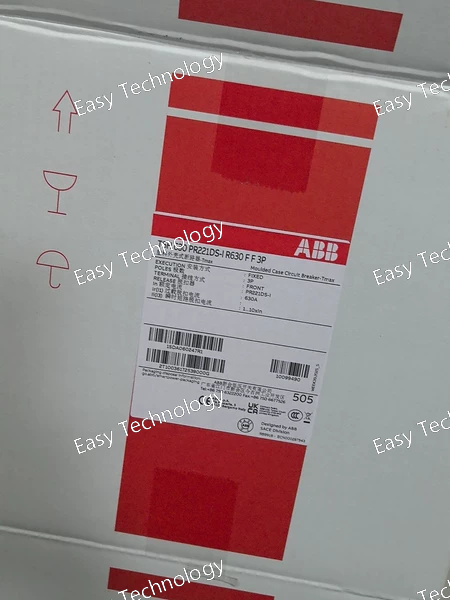

Key Specifications Specification Value / Description Product Name ABB T6H 630 PR221DS‑I 3P MCCB Manufacturer ABB Series / Family SACE Tmax T6 Order Code 1SDA060247R1 Rated Current (In) 630 A Poles 3 (three‑phase) Trip Unit Type Electronic trip unit PR221DS‑I Rated Operational Voltage Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 8 kV Rated Service Breaking Capacity (Ics) up to 70 kA @ 400 V AC (application dependent) Rated Ultimate Breaking Capacity (Icu) up to ~70 kA @ 400 V AC; lower at higher voltages Pole Connection Type Fixed with front terminals Connection Style Bolt connection Performance Level H (high breaking performance) Mechanical Durability ~20,000 cycles Electrical Durability ~7,000 cycles Power Loss per Pole ~20 W at rated conditions Protection Roles Overload, short‑circuit, instant fault protection Standards IEC / EN molded case circuit breaker standards Degree of Protection IP20 (typical enclosure)

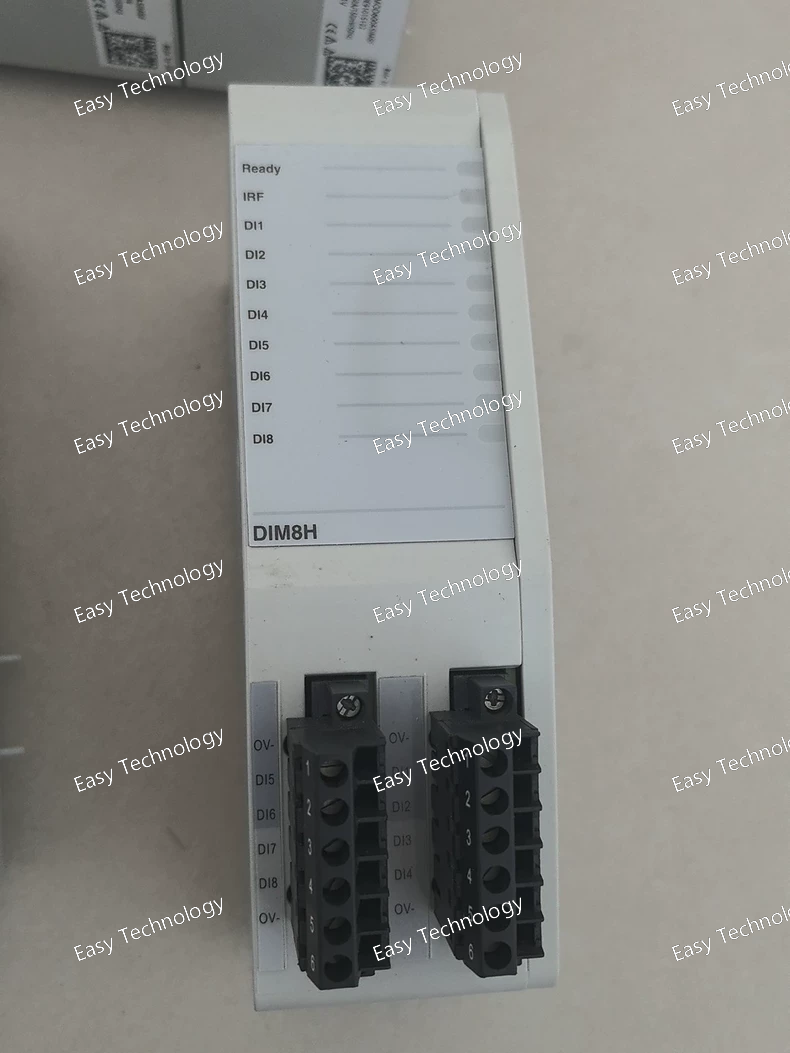

Key Specifications Specification Value / Description Model Name MOD600ADI8MH (ABB digital input module) Module Type Digital input interface Number of Inputs 8 digital inputs Input Type Discrete/binary input channels Application Remote I/O expansion for automation or protection systems System Platform RIO600 / ABB modular I/O systems Mounting Fits into rack or base unit slot (system dependent) Status LEDs Typically present for input status indication Typical Use Case Monitoring discrete field signals (switches, contacts, alarms) Operating Environment Industrial control panels / switchgear rooms Country of Origin China (varies by supply)

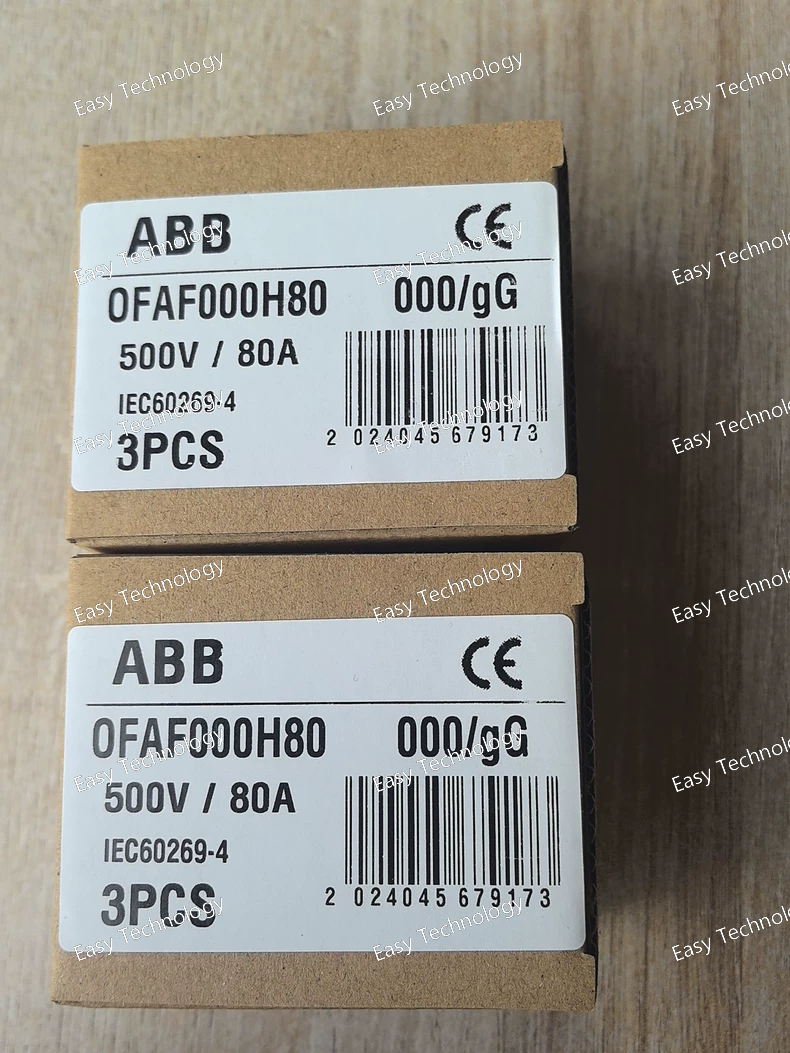

Key Specifications Specification Value / Description Part Number OFAF000H80 ABB Order Code 1SCA022627R1470 Fuse Size NH000 Fuse Type gG (general purpose; full range protection) Rated Current (Iₙ) 80 A Rated Voltage (AC) 500 V AC Rated Voltage (DC) 500 V DC Rated Breaking Capacity Up to 120 kA (depends on system configuration) Standards Compliance IEC 60269 series Power Loss at Rated Current ~6.5 W Body Width ~21 mm Body Height ~79 mm Body Length / Depth ~53 mm Fuse System DIN NH fuse system Usage Type AC/DC circuit protection Environmental Compliance RoHS / REACH compliant Mounting Used with NH000 fuse holders and switchgear frames

Specifications Parameter Category Specification Module Type S800 I/O Station Interface & Power Supply Module Product Family S800 Remote I/O Primary Function • Station Communication Interface: Connects the remote station to a fieldbus network via a separate communication module. • Internal Bus Power Supply: Provides a stabilized 5.1 VDC, 1.5A internal bus for all connected I/O modules. • Isolation: Provides electrical isolation between the fieldbus network and the internal I/O circuits. Compatible Communication Modules Interfaces with fieldbus communication modules (e.g., CI873 for PROFIBUS DP, CI854 for PROFINET, CI851 for Ethernet/IP) which plug directly onto it. I/O Module Capacity Can power and manage up to 12 S800 I/O modules in a single station (mounted to its right). Field-side Power Supply Requires an external 24 VDC power source (typically from terminal X5) to power the module's internal electronics and the I/O modules. Output Voltage (Internal Bus) 5.1 VDC Output Current (Internal Bus) 1.5 A (max) Power Dissipation Approx. 6.5 W (typical) Electrical Isolation 1500 V AC (between fieldbus side and internal I/O circuits). Diagnostic Indicators (LEDs) • PS (Power Supply): Indicates 24V external power status. • 5V: Indicates 5.1V internal bus status. • COM: Indicates communication status with the connected fieldbus module. Mounting Mounts on a standard DIN rail. Must be placed as the left-most module in an S800 station. Ambient Temperature 0°C to +55°C (operating) Primary Application Building distributed, remote I/O stations in industrial automation systems to reduce wiring costs and centralize control via fieldbus networks. Certifications CE, UL, cUL, ATEX (for specific conditions and when used with certified I/O modules).
