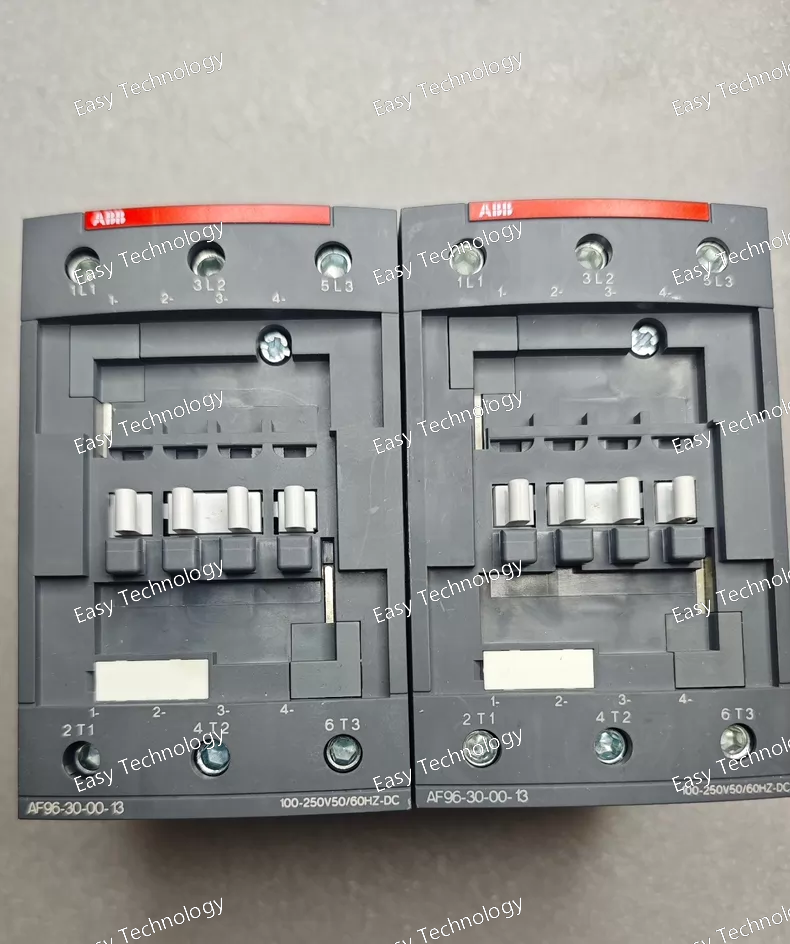

Technical Parameters Specification Details Product Type Industrial AC Contactor Series / Model AF96‑30‑00‑13 Number of Poles 3 (three main poles) Contact Configuration 3 Normally Open (3NO) main contacts Control/Coil Voltage 100–250 V AC/DC wide‑range electronic coil Rated Operational Current AC‑1 Up to 130 A at 690 V AC (general switching) Rated Operational Current AC‑3 (Motor) ~96 A at 220–400 V AC (motor load) Rated Operational Voltage (Main Circuit) Up to 690 V AC Rated Operational Power (AC‑3) ~25 kW @ 230 V AC, ~45 kW @ 380–400 V AC, ~55 kW @ 415–690 V AC Rated Insulation Voltage (Ui) 1000 V (IEC) Rated Impulse Withstand Voltage (Uimp) ~8 kV Frequency Rating 50/60 Hz Coil Operating Frequency 50/60 Hz / DC Mounting Type DIN‑rail or panel mounting with screw terminals Degree of Protection Typically IP10/IP20 (depending on installation) Operating Ambient Temp. −60 °C to +80 °C (storage) / −40 °C to +70 °C (operating) Mechanical Switching Frequency Up to ~3600 cycles/hr Electrical Switching Frequency (AC‑3) Up to ~1200 cycles/hr Dimensions (approx.) ~125.5 mm (H) × 70 mm (W) × 116 mm (D) Weight ~1.17 kg Typical Applications Motor control, industrial power switching, automation panels

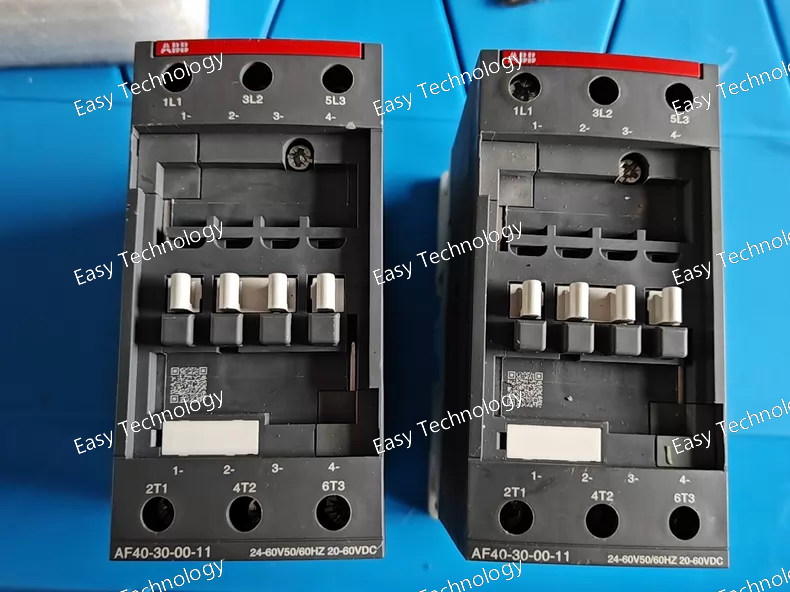

Technical Parameters Specification Details Product Type Industrial AC Contactor Model / Order Code AF40‑30‑00‑11 Series AF Series Number of Poles 3 (three main poles) Main Contact Configuration 3 Normally Open (3NO) Auxiliary Contacts None (standard) Rated Operational Current AC‑3 40 A (motor/inductive load) Rated Operational Current AC‑1 up to ~70 A (general resistive load) Rated Operational Power (AC‑3) 11 kW @ 220–240 V AC; 18.5 kW @ 380–400 V AC; 22 kW @ 415–690 V AC Rated Operational Voltage (Main Circuit) up to 690 V AC Control / Coil Voltage 24–60 V AC (50/60 Hz) or 20–60 V DC (wide control range) Rated Frequency 50/60 Hz Mounting Type DIN‑rail or panel with screw terminals Terminal Type Screw terminals Operating Temperature Range approx. −40 °C to +70 °C Dimensions (approx.) 125.5 mm H × 55 mm W × 111 mm D Degree of Protection IP10 (main terminals enclosed) Switching Frequency Mechanical up to ~3600 cycles/hour Application Motor control, resistive and lightly inductive load switching

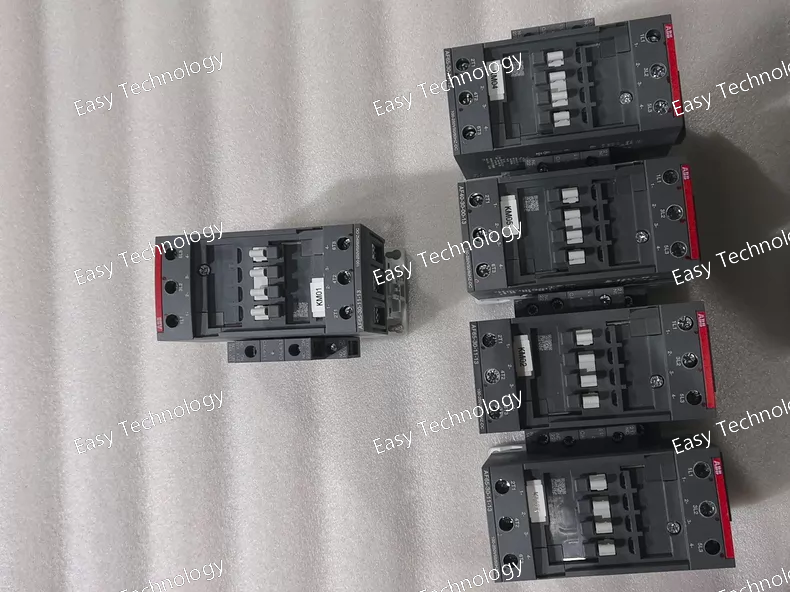

Technical Parameters Specification Details Product AC Contactor (3‑pole) Model / Order Code AF65‑30‑11‑13 Series AF Series Number of Poles 3 (three main contacts) Contact Configuration 3 Normally Open (NO) main contacts Auxiliary Contacts 1 Normally Open (1NO) + 1 Normally Closed (1NC) Rated Operational Voltage (Main Circuit) Up to 690 V AC Rated Operational Current (AC‑3) 65 A at 400 V AC (motor switching) Rated Operational Current (AC‑1) 105 A general switching Control/Coil Voltage Range 100–250 V AC/DC wide‑range electronic coil Frequency 50/60 Hz Rated Insulation Voltage (Ui) Typically 690 V IEC / 600 V UL Built‑in Features Surge suppression, wide voltage acceptance Mounting Type DIN‑rail / panel mounting Terminal Type Screw terminals Operating Temperature Wide industrial range Approx. Switching Power (AC‑3) ~30 kW at 400 V AC Switching Power (AC‑1) ~105 A resistive load Dimensions (typical) ~4.7 × 2.76 × 4.57 in (H × W × D) Enclosure Protection IP10/IP20 depending on orientation Typical Use Cases Motor control, power circuit switching, industrial control systems

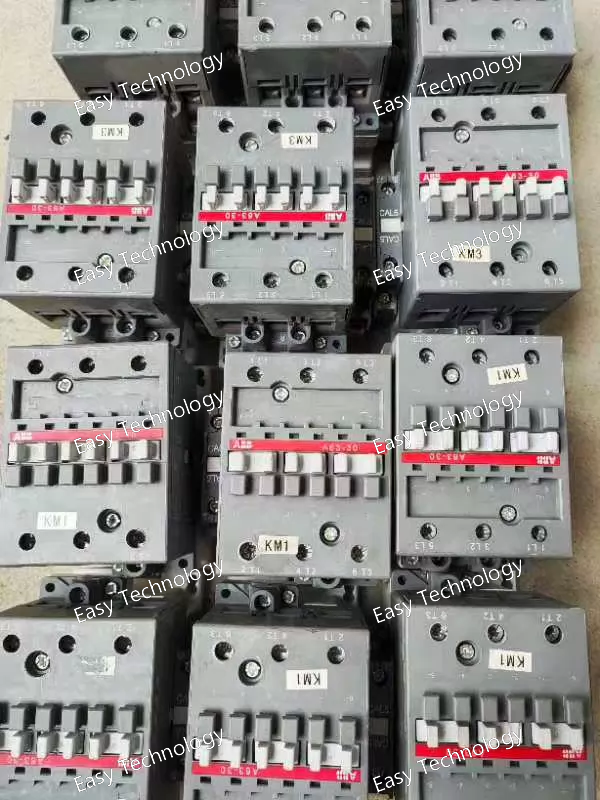

Technical Parameters Specification Details Product Type Industrial AC Contactor Series / Model A50‑30 Number of Main Contacts 3 Normally Open (NO) Auxiliary Contacts Optional 1NO + 1NC (on variants like A50‑30‑11) Rated Operational Voltage (Main Circuit) Up to 690 V AC / 1000 V AC depending on application Rated Operational Current AC‑1 ~100 A at 400 V AC Rated Operational Current AC‑3 ~50–55 A at 400 V AC Rated Operational Power (Motor) up to 30 kW (500–690 V AC) / 22 kW (380–400 V AC) Control / Coil Voltage AC coil (e.g., 24 V AC / 110 V AC / 230–240 V AC / 400–415 V AC) Rated Insulation Voltage (Ui) ~1000 V (IEC) / 600 V (UL/CSA) Utilization Category IEC/EN 60947‑4‑1 Main Circuit Terminals Screw terminals Rated Making/Breaking Capacity 10× Ie / 8× Ie (AC‑3) Switching Frequency AC‑1: 600 cycles/hr, AC‑3: 600 cycles/hr Mechanical Switching Frequency 3600 cycles/hr Operating Temperature Range Standard industrial range Standards Compliance IEC/EN 60947 series Typical Applications Motor control, power switching, HVAC, pumps, industrial equipment

Technical Parameters Specification Details Product Type AC Contactor (3‑pole) Series / Model UA63‑30 Number of Main Contacts 3 Normally Open (NO) Auxiliary Contacts None (standard) Rated Operational Voltage (Main Circuit) Up to 690 V AC for power circuit switching Control/Coil Voltage Multiple options, e.g.: 24 V AC, 110 V AC, 220–230 V AC, 500–600 V AC Rated Frequency 50/60 Hz Rated Operational Current AC‑3 ~65 A at 220/230/240 V AC (general motor/inductive load) Rated Operational Current AC‑1 ~115 A at 690 V AC (general resistive load) Rated Insulation Voltage (Ui) ~1000 V (IEC standards) Rated Impulse Withstand Voltage (Uimp) ~8 kV Operating Ambient Temperature Approx. −40 °C to +55 °C (varies by coil option) Mounting DIN‑rail or panel with screw terminals Connection Type Screw terminal for power circuit Utilization Category IEC/EN 60947‑1 / IEC/EN 60947‑4‑1 Application Categories AC‑1 general switching, AC‑3 motor switching Peak Breaking Capacity Up to ~1300 A at 440 V AC Mechanical Durability High cycle life per IEC contactor standards Typical Applications Motor control, capacitor banks, industrial power switching Standards Compliance IEC/EN 60947 series

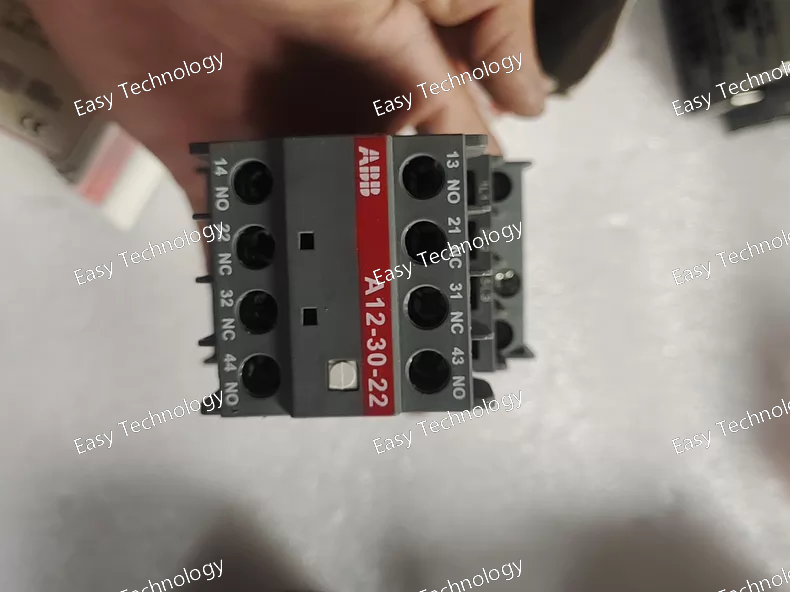

Technical Parameters Specification Details Product Type Industrial Contactor Series A-Line (A12) Model / Order Code A12-30-22 (1SBL161001R8022) Number of Poles 3 main poles Auxiliary Contacts 2 Normally Open (NO) + 2 Normally Closed (NC) Rated Operational Current ~11 A (general switching) Rated Operational Voltage (Main Circuit) Up to 600 V AC Control / Coil Voltage 120 V AC (standard for this variant) Rated Power (Motor Control) ~3 HP at 240 V AC; ~7.5 HP at 480 V AC; ~10 HP at 600 V AC Phase 3-phase Mounting Panel / DIN rail (application-dependent) Contact Type (Main) AC magnetic contactor Auxiliary Contact Configuration 2NO + 2NC Typical Applications Motor starters, power switching, industrial controls, HVAC systems Standards Compliance IEC/EN 60947-4-1 type performance Weight ~0.34–0.4 kg (depending on variant) Coil Control Frequency 50/60 Hz compatible

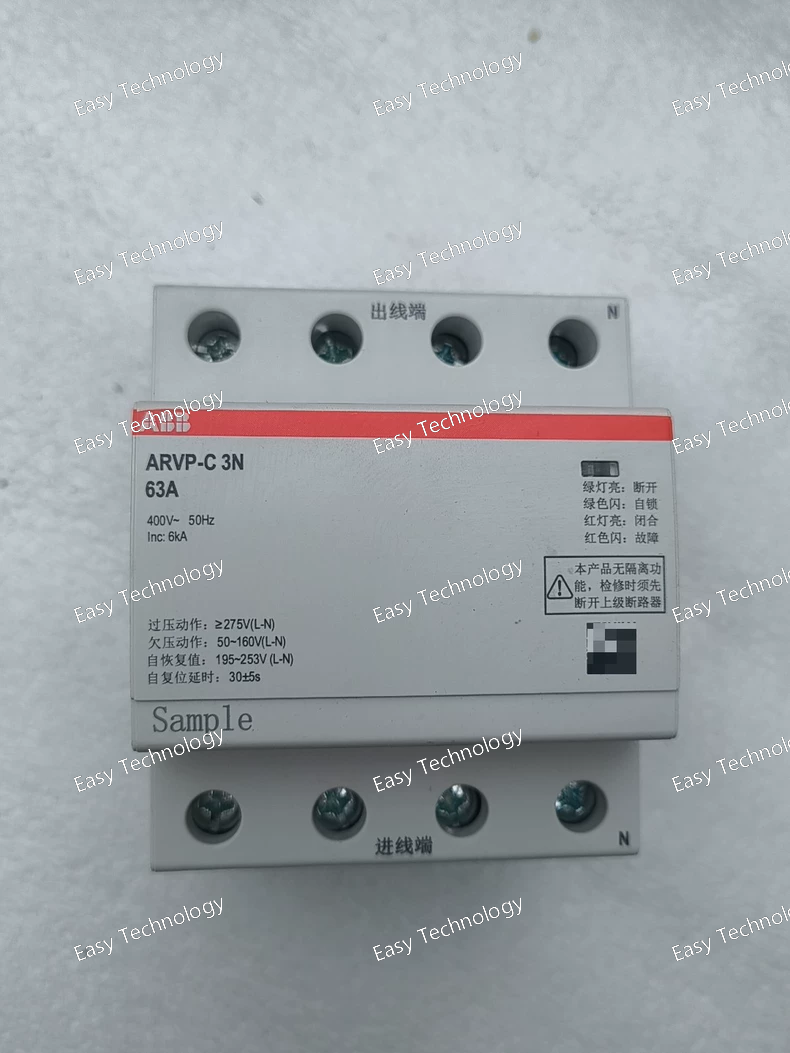

Technical Parameters Specification Value / Description Product Type Over-Voltage & Under-Voltage Protection Device with Auto-Reclosing Model Series ARVP-C 3N Rated Supply System Three-phase + Neutral (3P+N) Rated Supply Voltage ~400 V AC (standard for 3N variants) Nominal Frequency 50/60 Hz Rated Current Options 25 A, 32 A, 40 A, 50 A, 63 A (varies by specific model) Protection Functions Over-voltage shut-off, under-voltage shut-off Auto-Reclosing Yes – reconnects load when voltage returns to acceptable range Mounting Type DIN-rail (35 mm) Typical Operating Conditions Standard low-voltage industrial/commercial environments Typical Applications Motor protection, HVAC loads, distribution systems Contact/Output Internal relay or switching device to disconnect and reconnect load Standards Compliance Designed to IEC/EN low-voltage safety standards (typical for such protective devices)*

Technical Parameters Specification Details Product Type Installation Contactor Series ESB63-22N Mounting DIN-rail (TH35 modular rail) Number of Poles 4-pole contactor body Contact Configuration 2 Normally Open (NO) + 2 Normally Closed (NC) Rated Operational Current (AC-1) Up to 63 A Rated Operational Voltage (Main Circuit) Up to 400 V AC Control/Coil Voltage AC/DC coil, e.g., 230 V AC/DC (for ESB63-22N-06) Control Circuit Frequency Up to 400 Hz Coil Type AC/DC hum-free coil Rated Insulation Voltage (Ui) ~500 V Utilization Category AC-1 general switching Rated Power (approx.) ~14.5 kW (approx. at 230 VAC) Terminal Type Screw terminals Degree of Protection IP20 Operating Temperature Range −25 °C to +55 °C Dimensions (approx.) 54 mm (W) × 85 mm (H) × 65 mm (D) Weight ~0.40 kg Typical Applications Lighting, motors, HVAC, pumps, heaters, general load switching

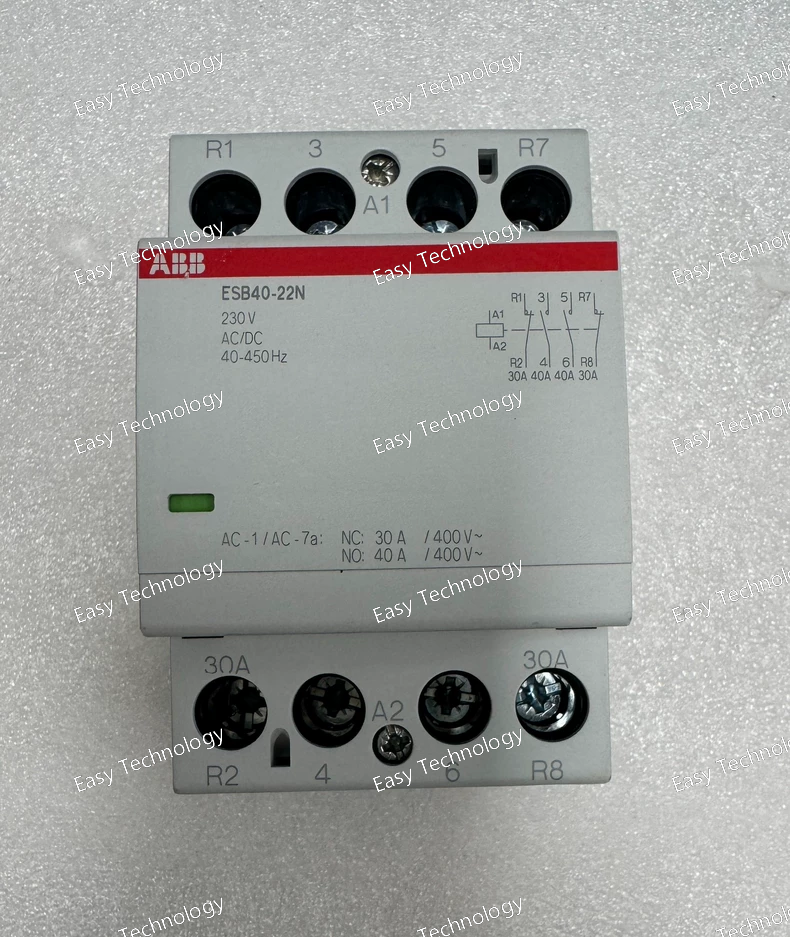

Technical Parameters Specification Details Product Type Installation Contactor Series ESB40-22N Mounting DIN-rail (modular TH35) Number of Poles 4 (4-pole contactor body) Contact Configuration 2 Normally Open (2NO) + 2 Normally Closed (2NC) Rated Operational Current (AC-1) Up to 40 A Rated Operational Voltage (Main Circuit) Up to 400 V AC / 220 V DC Control/Coil Voltage AC/DC control depending on variant (e.g., 24 V AC/DC for -01, 230 V AC/DC for -06) Control Coil Type AC/DC hum-free coil Rated Insulation Voltage (Ui) 500 V Utilization Category AC-1, general switching Rated Operational Current AC-3 (Motor) ~22 A at 230 V AC (NO contact) Rated Operational Power AC-3 ~3.7 kW at 230 V AC (NO contact) Rated Operational Power AC-1 ~9.2 kW at 230 V AC (NO contact) Terminal Type Screw terminals Wiring Capacity Typical flexible up to ~16 mm² (main circuit) Degree of Protection IP20 Operating Temperature Range −25 °C to +55 °C Mechanical Durability High cycle life suitable for frequent switching Dimensions (approx.) ~54 mm (W) × 85 mm (H) × 64–65 mm (D) Weight ~0.405 kg Typical Applications Lighting, heating, ventilation, pumps, motor control, general load switching

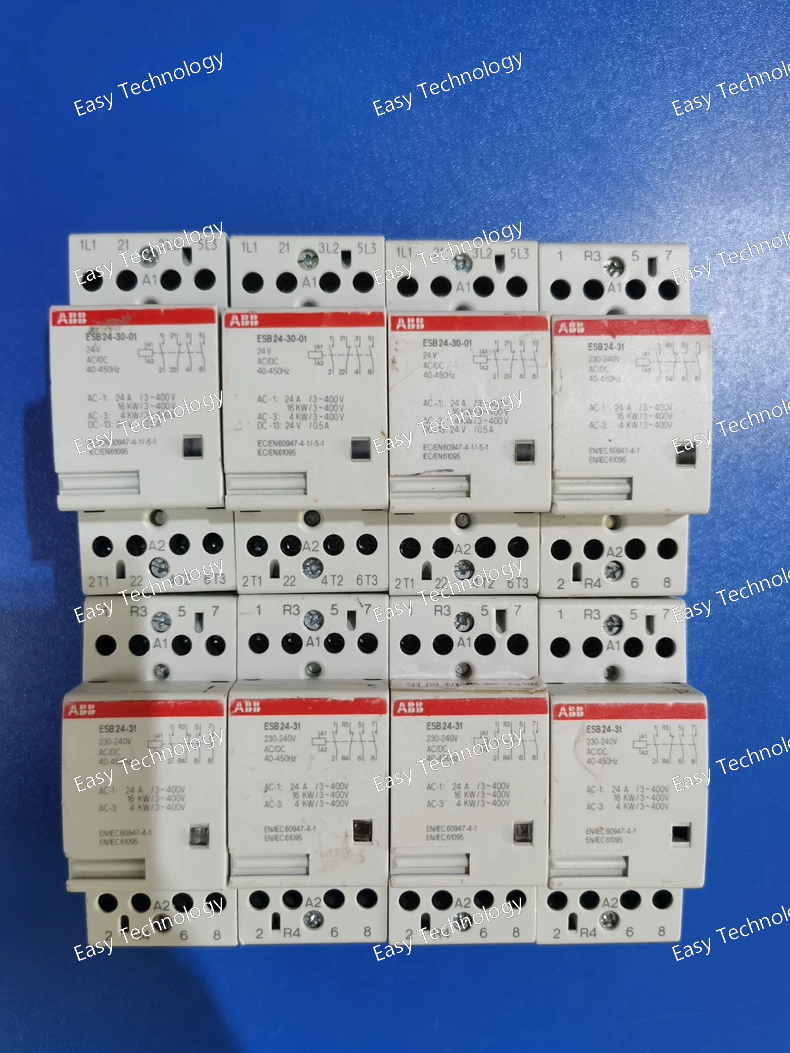

Technical Parameters Specification Description Product Type Installation Contactor Model / Order Code ESB24-30-01 Mounting Type DIN-rail (modular TH35) Number of Poles 4 (internal) with 3 Normally Open (NO) main contacts Rated Operational Current (AC-1) 24 A Rated Operational Voltage (Main Circuit) Up to 400 V AC Control / Coil Voltage Typically 24 VAC/DC (ESB24-30-01 variant) Control Coil Type AC/DC hum-free coil Rated Insulation Voltage (Ui) 500 V Rated Impulse Withstand Voltage (Uimp) 6 kV Utilization Category AC-1 general switching Ambient Operating Temperature –25 °C to +55 °C Degree of Protection IP20 (when mounted in enclosure) Dimensions (approx.) Width: ~36 mm; Height: ~85 mm; Depth: ~65 mm Weight ~0.235 kg Standards IEC/EN 60947 series Typical Applications Load switching for lights, heaters, small motors, pumps, HVAC control

Technical Parameters Specification Value Product Type Installation Contactor Series ESB24 Model ESB24-31 Number of Poles 4 Contact Configuration 3 Normally Open (NO), 1 Normally Closed (NC) Rated Operational Current (AC-1) 24 A at 400 V AC Rated Operational Power (AC-1) Up to ~5.5 kW (single-phase 230 V), ~16 kW (three-phase 400 V) Rated Operational Current (AC-3) ~9 A (motor loads at 230 V or 400 V) Control/Coil Voltage Typically 230…240 V AC/DC (varies with variant) Rated Insulation Voltage (Ui) 500 V Rated Impulse Withstand Voltage (Uimp) 6 kV Mounting DIN-rail (TH35) Degree of Protection IP20 Ambient Operating Temperature –25 °C to +55 °C Pollution Degree 3 Rated Frequency Range 40…450 Hz Mechanical Durability ~1,000,000 operations Electrical Durability AC-1: ~150,000 cycles; AC-3: ~500,000 cycles Dimensions (approx.) 36 × 85 × 65 mm (W × H × D) Weight ~0.24 kg Standards IEC/EN 60947 series Typical Applications Lighting, HVAC, pumps, heaters, motor control, general load switching

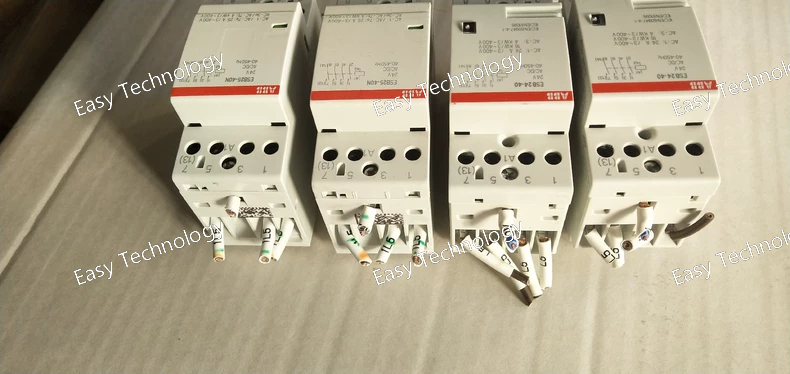

Technical Parameters Specification Details Product Type Installation Contactor Series ESB25-40N Number of Poles 4 Main Contact Configuration 4 Normally Open (4NO) Rated Operational Current (AC-1) 25 A Rated Operational Voltage (Main Circuit) Up to 400 V AC / 220 V DC Control/Coil Voltage Depends on model variant (e.g., 230–240 V AC/DC for ESB25-40N-06) Control Circuit Frequency Up to 400 Hz Coil Type AC/DC hum-free coil Mounting DIN-rail mounting (TH35 standard) Degree of Protection IP20 Rated Insulation Voltage (Ui) 500 V Operating Temperature Range −25 °C to +55 °C Dimensions ~36 mm (W) × 85 mm (H) × ~64.8 mm (D) Weight ~0.235–0.255 kg Terminal Type Screw terminals Standards Compliance IEC/EN 60947 series Typical Applications Lighting, heating, pumps, HVAC, general load switching
