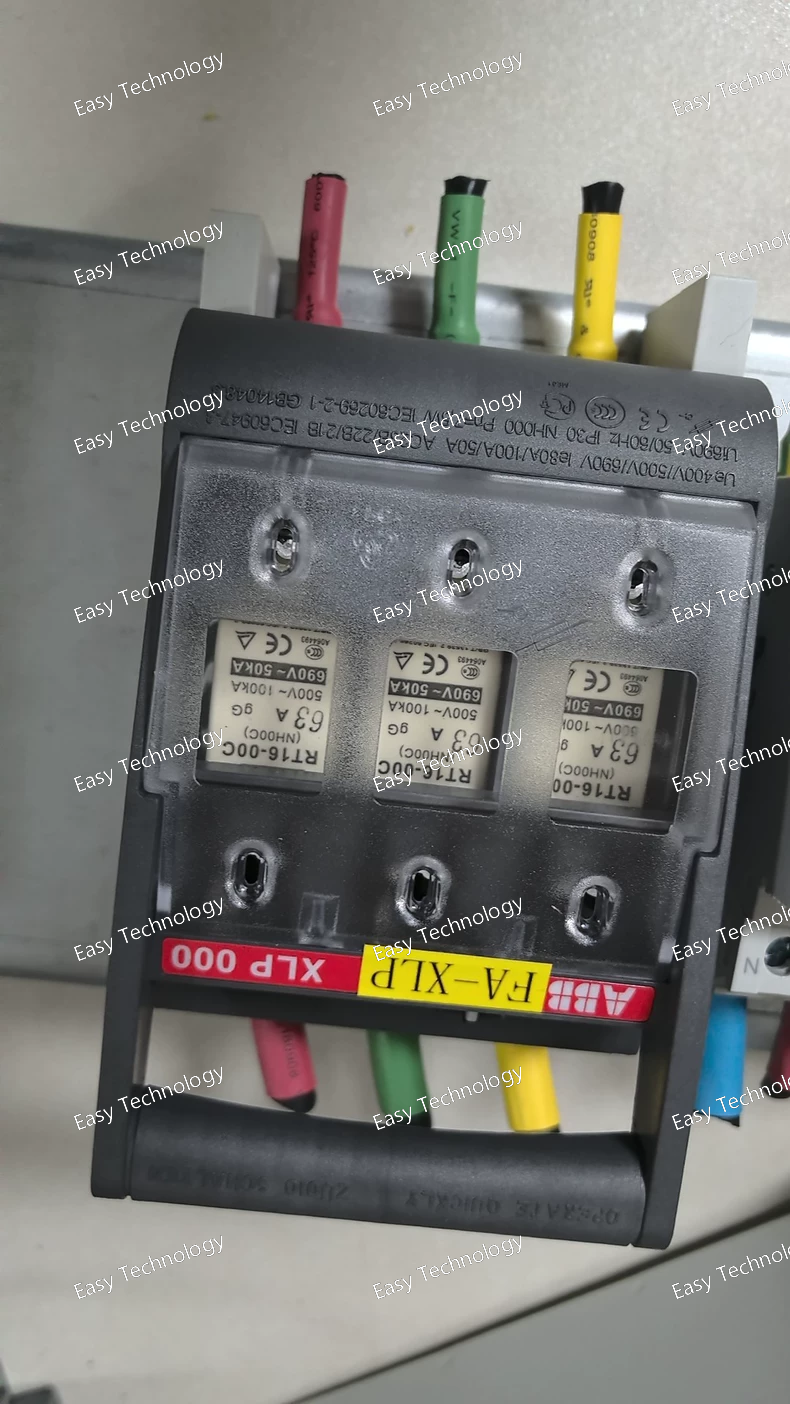

Technical Parameters Specification Details Product Type Fuse Switch Disconnector Model / Part Number XLP000 / XLP000‑6CC Brand ABB Series EasyLine XLP Number of Poles 3‑pole (3P) Rated Operational Current (Ie) Up to 100 A (AC‑22B at 500 V AC) / ~80 A (AC‑23B at 400 V AC) Rated Permanent Current (Iu) ~50 A Rated Operational Voltage (Ue) 400 V AC, 500 V AC, 690 V AC Rated Frequency 50/60 Hz Rated Conditional Short‑Circuit Current (Icn) 50 kA RMS (at 690 V) Rated Insulation Voltage (Ui) ~690 V Rated Impulse Withstand Voltage (Uimp) 6 kV Fuse Types Supported NH000, NH00 fuse links Connection Type Cable clamp connectors Mounting Baseplate or busbar mounting Actuator Position Front side handle Degree of Protection IP30 (front) Safety Version Can be used as main switch and safety switch Suitable For AC and DC disconnection in fused circuits Typical Applications Isolation & protection in distribution panels, switchboards, industrial control systems

Typical Technical Parameters Specification Details Product Type Electronic Trip Unit / Protection Relay Model / Part Family PR121/P Intended Use Protection unit for ABB SACE Emax low‑voltage air circuit breakers Applicable Poles 3‑pole (3P) and also compatible with 4‑pole breakers Protection Functions Overload (long‑time), short‑time, instantaneous short‑circuit, earth (ground) fault protection (depending on version) Technology Digital microprocessor‑based unit Self‑Supply No external power required for core protection functions; self‑supplied from sensed current Adjustable Settings Adjustable current thresholds and time delays for protective functions Neutral Protection Setting Configurable (OFF / 50% / 100% / 200% of phase current where applicable) Trip Cause Indication LED indicators and trip history User Interface DIP switches or configuration tools for setting protection parameters Optional Interfaces Connectivity with external modules (for remote signaling, communications, test interfaces) Rated Frequency 50/60 Hz Compliance Designed for IEC low‑voltage circuit breaker standards (trip functions compatible with IEC/EN 60947‑2)

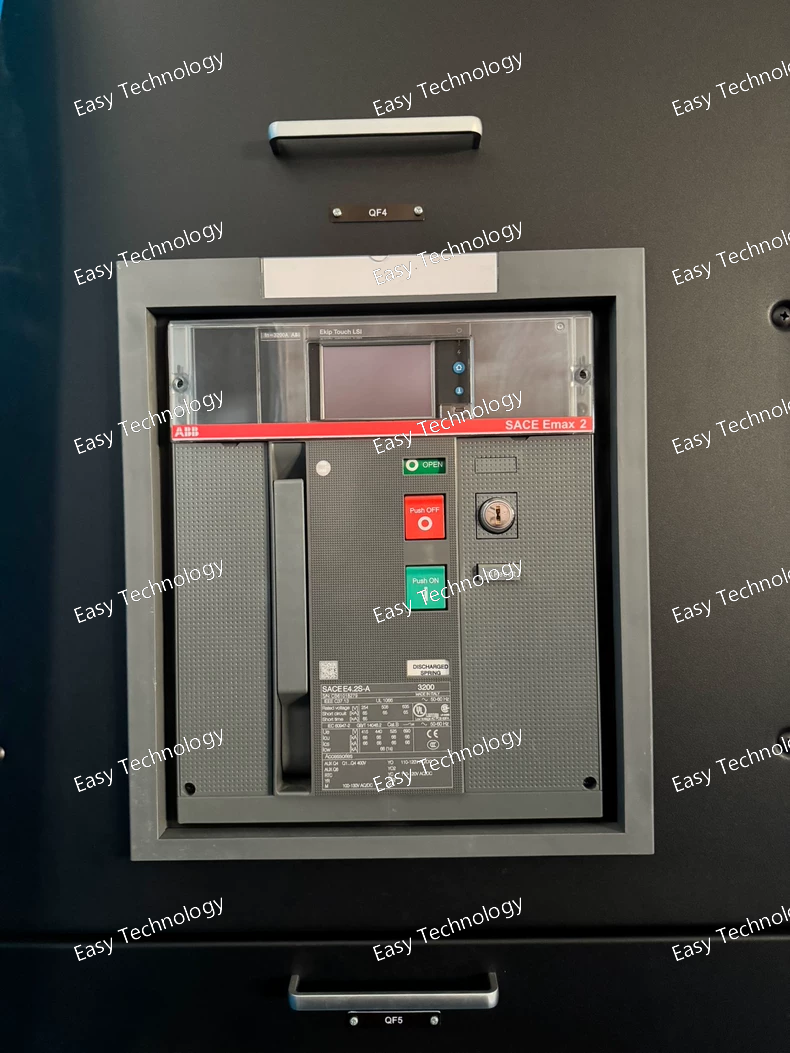

Technical Parameters Specification Details Product Type Low‑Voltage Air Circuit Breaker (ACB) Series / Model SACE Emax 2 E4.2S‑A 3200 Rated Current (In / Iu) 3200 A continuous rating Poles 3‑pole (three‑phase) or 4‑pole (with neutral option) Rated Operational Voltage (Ue) 690 V AC (standard low‑voltage distribution) Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Short‑Circuit Breaking Capacity (Icu) • 85 kA at 220–440 V AC • 66 kA at 500–690 V AC Rated Service Short‑Circuit Breaking Capacity (Ics) Same as Icu (100 % of rated) Short‑Time Withstand Current (Icw) ~66 kA for 1 s / 3 s Mechanical Durability ~20 000 operations Electrical Durability ≥ 7000 operations at rated load Release / Trip Unit Ekip electronic trip units (Ekip Dip, Ekip Touch), configurable Short‑Circuit Performance Level S level (industrial performance) Standards Compliance IEC/EN 60947‑2 series (International standards) Terminal Connection Type Rear bolt‑type terminals (horizontal/rear orientation) Tightening Torque (Main Terminals) ~70 N·m Suitable for IT Networks Yes (up to 690 V) Applications Main / feeder breaker, motor/transformer protection, general distribution circuits

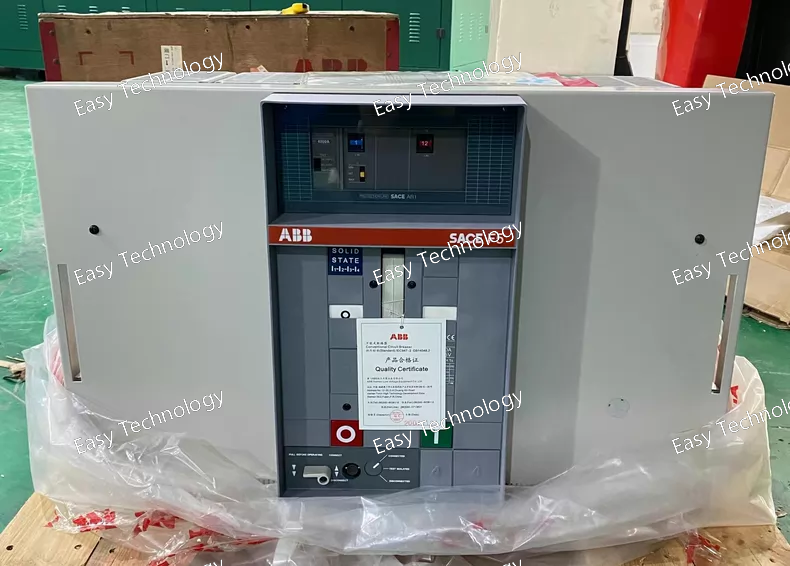

Technical Parameters Specification Details Product Type Low‑Voltage Air Circuit Breaker (ACB) Series / Model F4S 3200 A Rated Current (In) 3200 A Number of Poles 4‑pole (three‑phase + N) Rated Operational Voltage Up to 1000 V AC/DC (depending on version and trip unit) Protection Capabilities Overload, short‑circuit, and fault protection with adjustable trip units Trip Unit Options Electronic trip units (PR series such as PR122 / PR123) configurable for protection curves Rated Insulation Voltage (Ui) Typically 1000 V Rated Impulse Withstand Voltage (Uimp) High industrial impulse withstand (e.g., ~6–12 kV, product dependent) Control and Auxiliary Integration Support for auxiliary contacts, shunt releases, under‑voltage releases, and motor operators Mounting Type Fixed installation in switchgear or power distribution panel Terminal Type Bolted or clamp main terminals Standards Compliance IEC/EN 60947‑2 and related global electrical safety standards Typical Short‑Circuit Breaking Capacity High breaking capacity suitable for industrial systems (specific kA rating depends on region and trip unit) Mechanical Durability Designed for high cycle life in heavy‑duty use Applications Main and feeder protection in industrial, commercial, and infrastructure electrical distribution

Technical Parameters Specification Details Product Type Low‑Voltage Air Circuit Breaker (ACB) Series / Model F5 S4000A (Megamax F5 series) Rated Uninterrupted Current (In) 4000 A continuous Number of Poles 3‑pole (three‑phase) Rated Operational Voltage Up to 690 V AC (standard LV distribution) Utilization Category Protection and isolation in power distribution Trip Unit / Protection Adjustable electronic or thermal‑magnetic trip units (e.g., PR1, LSIG options) Short‑Circuit Breaking Capacity High breaking capacity suitable for industrial systems (application dependent) Mounting Type Fixed installation in switchgear or panel Connection Type Bolt‑on / clamp terminals (application dependent) Standards Compliance IEC/EN 60947‑2 series (typical for LV circuit breakers) Weight & Dimensions Large industrial frame (approx. several hundred kg and ~500–600 mm per side—model dependent) Typical Operating Frequency 50 Hz / 60 Hz compatible Typical Applications Main / feeder breaker in electrical distribution, industrial power panels, protection of transformers and large loads

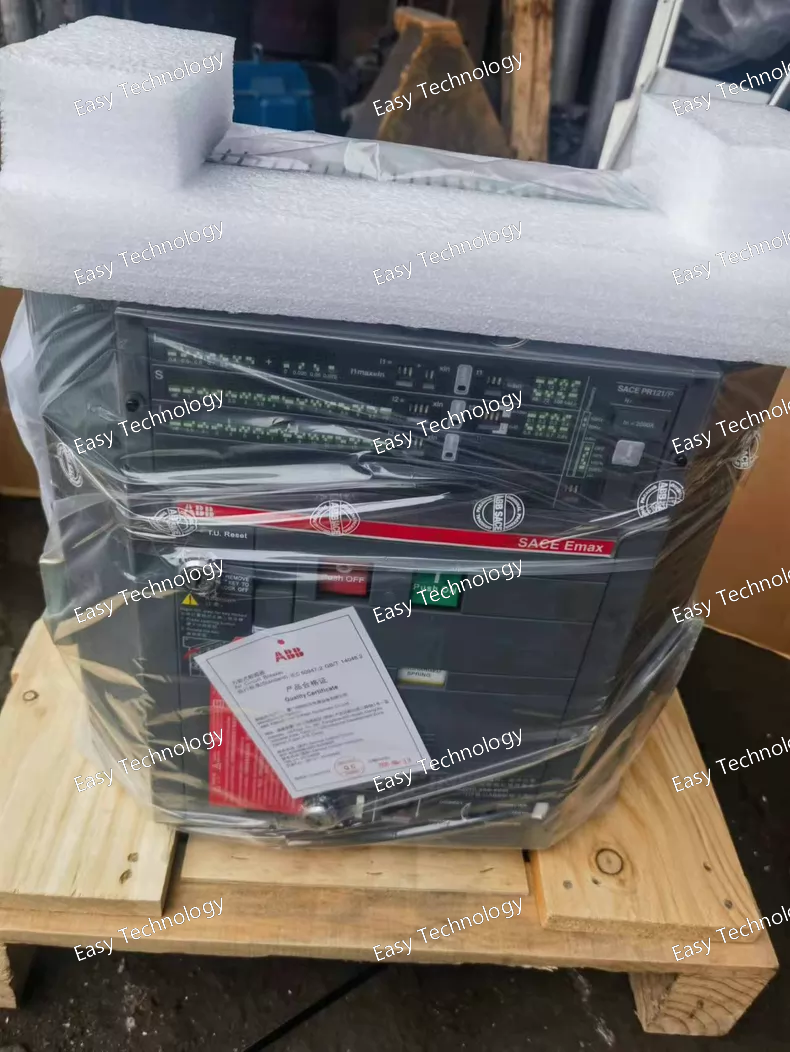

Technical Parameters Specification Details Product Air Circuit Breaker Series / Model ABB E3S2000 Rated Operational Current (Iu) 2000 A Poles 3‑pole (three‑phase) Rated Operational Voltage up to 690 V AC Short‑Circuit Breaking Capacity (Icu) up to ~75 kA @ 400 V AC Overcurrent Protection Unit Adjustable long‑time, short‑time, instantaneous, ground fault options depending on trip unit Trip Unit Type PR122 / P‑LSI or similar protection units available Auxiliary Contacts Multiple auxiliary contacts for breaker status and remote signaling Mounting Type Fixed installation — panel or switchgear mounting Connection Style Rear or front terminals depending on configuration Standards Compliance IEC/EN 60947‑2 and related low‑voltage protection standards Protection Functions Overload, short‑circuit, ground fault (depending on trip unit options)

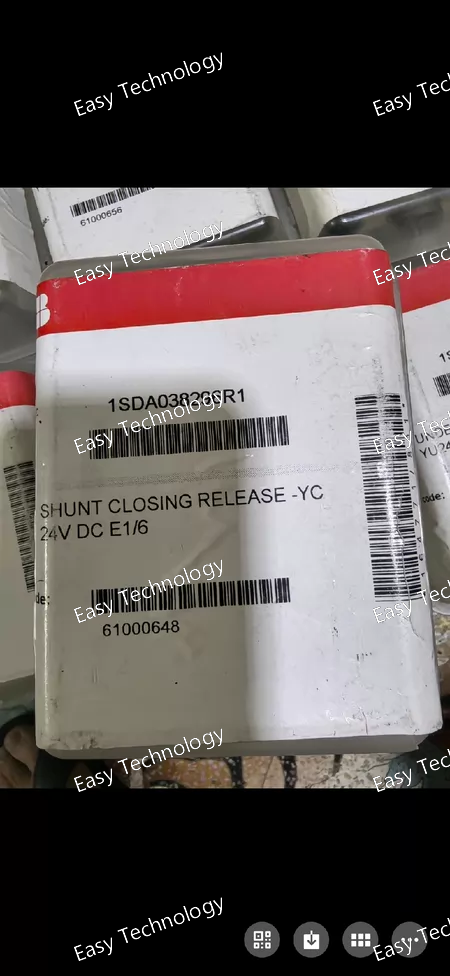

Technical Parameters Specification Details Product Shunt Closing Release for Circuit Breaker Model / Part Number YC‑1SDA038296R1 Manufacturer ABB Accessory Type Shunt Closing Release (Remote Closing Coil) Intended For Use With SACE Emax and Tmax T series circuit breakers (E1, E2, E3, E4, E6, T8 frames) Control/Coil Voltage (Rated) 24 V AC/DC Voltage Type for Actuating AC and DC Rated Control Supply Voltage (50/60 Hz) 24 V Rated Control Supply Voltage (DC) 24 V Function Provides remote electrical closing of the circuit breaker when energized Mounting / Installation Mounted as an accessory on compatible breaker frames Standards Compliance IEC standard accessory compliance Operating Conditions Industrial environments requiring remote breaker control Typical Applications Remote closing of MCCBs in automation, safety interlock systems, control panels Weight (approx.) ~1 kg Connection Type Screw terminals for control wiring

Technical Parameters Specification Details Product Type Shunt Trip / Shunt Opening Release Model / Part Number YO‑1SDA038286R1 Manufacturer ABB Intended Use With EMax / E‑series / Tmax series circuit breakers Function Electrical remote trip / shunt opening release Control Voltage 24 V DC Operating Current Designed for reliable activation at rated control voltage Rated Coil Voltage 24 V DC (nominal) Frequency DC (no frequency dependency) Actuation Mode Electrical remote release of circuit breaker contacts Mounting Accessory mounted onto compatible breaker frame Compatibility Suitable for various breaker frames including E1, E2, E3, E4, E6, T8 types Standards Compliance IEC and industry electrical accessory standards (typical for breaker accessories) Connection Type Screw / terminal block suitable for control wiring Weight Approx. ~0.7–1 kg depending on assembly type Typical Applications Remote breaker tripping, safety shutdown systems, automation control, interlocks

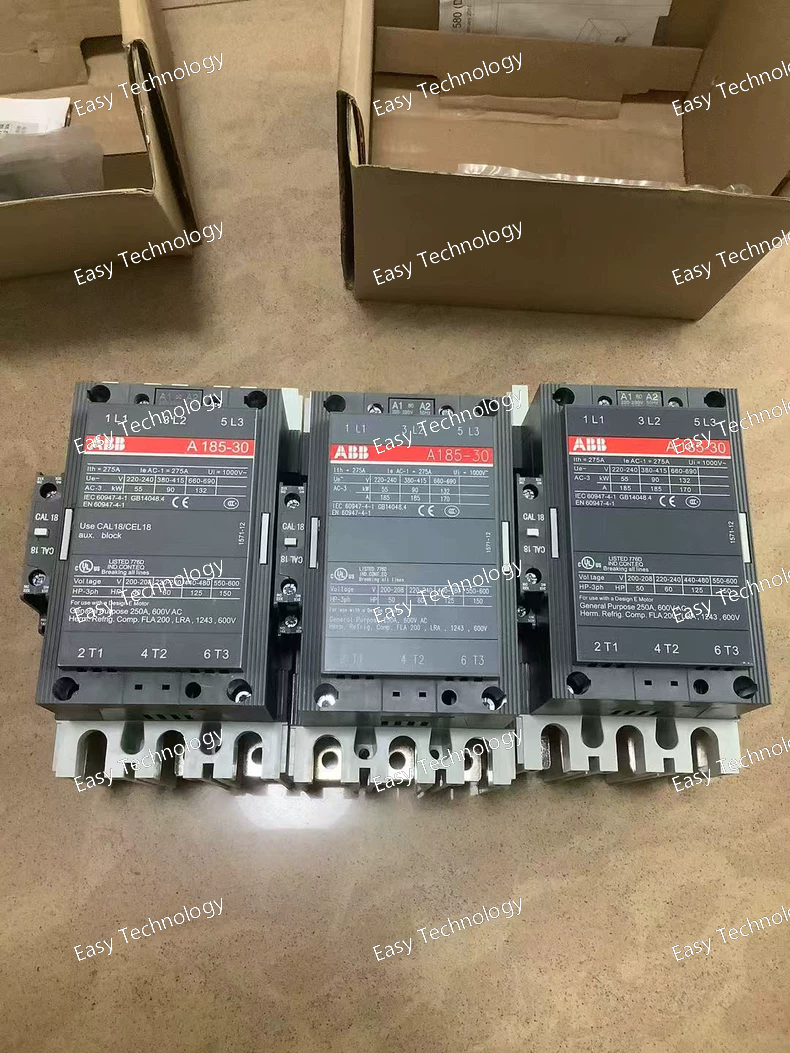

Technical Parameters Specification Details Product Type 3‑Phase AC Magnetic Contactor Series / Model A185‑30 (e.g., A185‑30‑11‑80) Number of Main Contacts 3 Normally Open (3NO) Auxiliary Contacts 1 Normally Open (1NO) + 1 Normally Closed (1NC) Contactor Type Non‑reversing across‑the‑line contactor Rated Operational Current (AC‑1) ~250–275 A (general switching) Rated Motor (AC‑3) Current ~156 A at 440–480 V AC Rated Operational Voltage (Main Circuit) Up to ~690 V AC Rated Operational Power ~55–132 kW depending on voltage Coil Voltage (Example) 230–240 V AC (for A185‑30‑11‑80 variant) Coil Frequency 50/60 Hz Control Type AC magnetic coil Rated Insulation Voltage (Ui) ~1000 V (IEC) / ~600 V (UL/CSA) Rated Impulse Withstand Voltage (Uimp) ~8 kV Maximum Switching Capacity ~1600–2000 A (short‑circuit break capacity) Connections Screw terminals Mounting Panel / DIN‑rail compatible / snap‑on styles Degree of Protection IP00 (main terminals), IP20 (coil terminals) Operating Temperature Range ~−40 °C to +70 °C Mechanical Durability ~5 million cycles Typical Applications Motor starters, industrial power circuits, HVAC, pumps

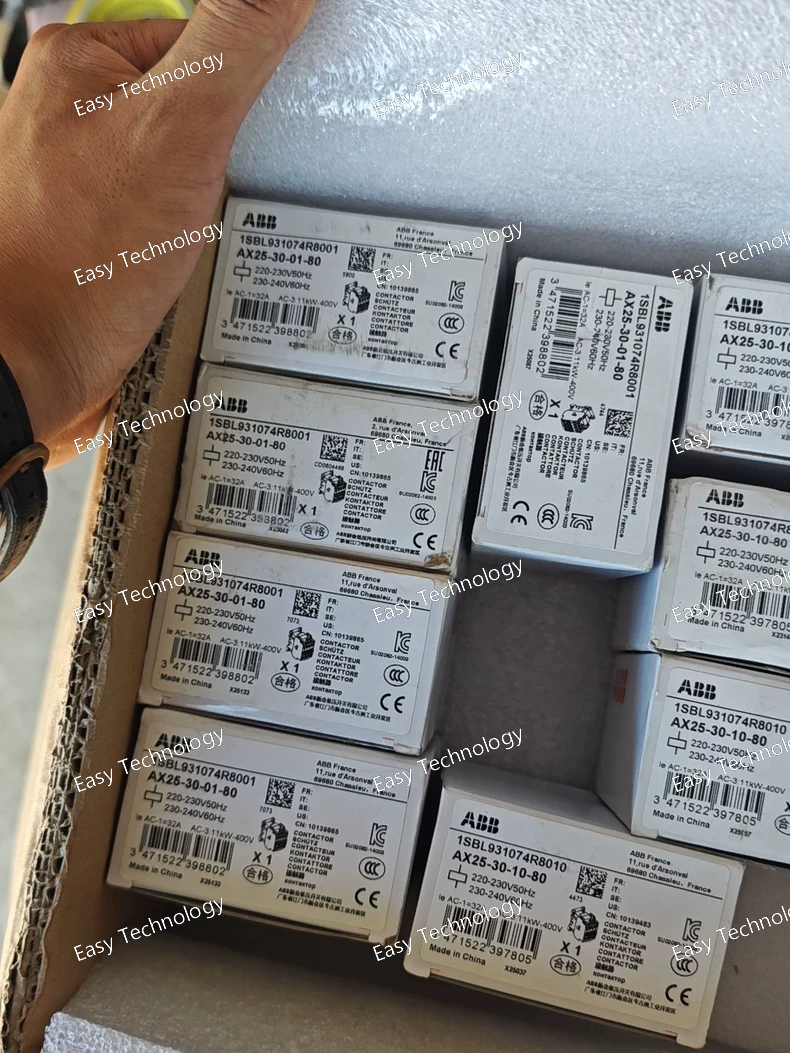

Technical Parameters Specification Details Product Type AC Magnetic Contactor Model / Order Code AX25‑30‑10‑80 Series AX Series Number of Poles 3 Main Contact Type Normally Open (NO) Auxiliary Contacts 1 Normally Open (1NO) Rated Operational Current (AC‑3) ~25 A at 220–240 V AC Rated Operational Power (AC‑3) up to ~11 kW @ 380–400 V AC; ~6.5 kW @ 220–240 V AC Rated Operational Current (AC‑1) ~32 A at 690 V AC Rated Operational Voltage (Main Circuit) up to 690 V AC Control/Coil Voltage 220–230 V AC (50 Hz) / 230–240 V AC (60 Hz) Rated Insulation Voltage (Ui) 690 V AC Rated Impulse Withstand Voltage (Uimp) 6 kV Rated Frequency 50/60 Hz Maximum Electrical Switching Frequency AC‑1: 600 cycles/hr; AC‑3: 1200 cycles/hr Maximum Mechanical Switching Frequency ~3600 cycles/hr Operating Ambient Temp. −40 °C to +70 °C (typical) Mounting Panel or DIN‑rail compatible with screw terminals Terminal Type Screw terminals Degree of Protection IP20 for terminals and housing UL/CSA General‑Use Rating ~30 A at 600 V AC

Technical Parameters Specification Details (Typical) Product Type Three‑pole AC Contactor Series / Model A2X38‑30‑10‑22 Number of Main Contacts 3 Normally Open (3NO) Auxiliary Contacts 1 Normally Closed or 1NO+1NC variation (‑10‑22 suffix typically denotes 1NO+1NC) Rated Operational Current (AC‑3) ~38–40 A at 400 V AC (motor control) inferred Rated Operational Current (AC‑1) ~45–50 A at 690 V AC (general load switching) inferred Rated Operational Voltage Up to 690 V AC Control/Coil Voltage Options Depends on variant (e.g., 24 V AC/DC, 48–130 V AC/DC, 100–250 V AC/DC, etc.) Frequency 50/60 Hz Mounting DIN‑rail or panel mount Terminal Type Screw terminals Degree of Protection IP20 (standard for contactors) Standards Compliance IEC/EN 60947 series Typical Applications Motor starters, power switching, industrial automation

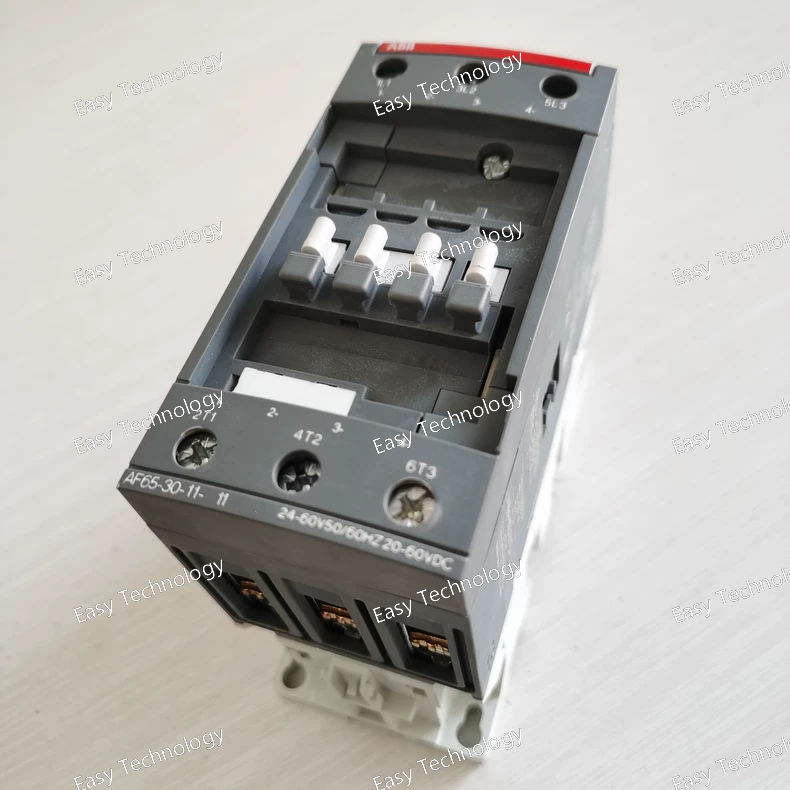

Technical Parameters Specification Details Product Type Industrial AC Contactor Model / Order Code AF65‑30‑11‑11 Series AF Series Number of Poles 3 main poles (3-phase) Main Contact Configuration 3 Normally Open (3NO) Auxiliary Contacts 1 Normally Open (1NO) + 1 Normally Closed (1NC) Control / Coil Voltage Range 24–60 V AC or 20–60 V DC (wide-range electronic coil) Rated Operational Current AC‑1 (Ie) ~105 A at 690 V AC Rated Operational Current AC‑3 (Ie) ~65 A at 220–480 V AC Rated Operational Voltage (Main Circuit) Up to 690 V AC Rated Insulation Voltage (Ui) 690 V (IEC); 600 V (UL/CSA) Rated Impulse Withstand Voltage (Uimp) ~6 kV Frequency 50/60 Hz Mechanical Operating Frequency Up to ~3600 cycles/hour Control Frequency Range 50/60 Hz AC / DC control Rated Thermal Current (Ith) ~105 A Typical Motor Ratings (AC‑3) ~25 HP @ 220–240 V; ~50 HP @ 440–480 V; ~60 HP @ 550–600 V Typical Power Ratings ~18.5 kW @ 230 V; ~30 kW @ 380–400 V; ~37 kW @ 415–690 V Standards Compliance IEC/EN 60947‑1; IEC/EN 60947‑4‑1; UL/CSA standards Dimensions (approx.) 67 mm W × 125.5 mm H × 111 mm D Weight ~1.01 kg Mounting DIN-rail or panel mounting with screw terminals Operating Temperature Range −40 °C to +70 °C Typical Applications Motor control, industrial automation, HVAC, pumps, compressors, general load control
