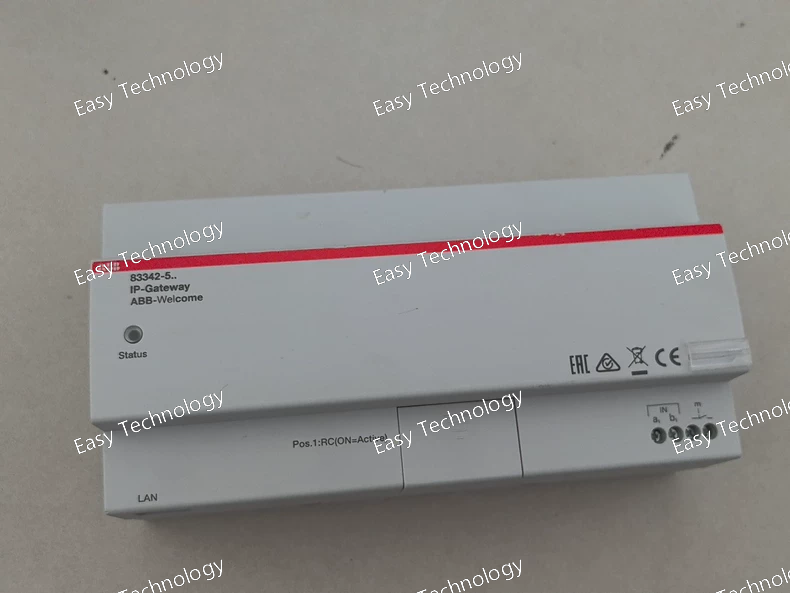

Technical Parameters Specification Details Product Type IP‑Gateway / Network Interface Module Model Family ABB‑Welcome 83342 (83342‑5) Primary Function Connects ABB‑Welcome system to IP networks for remote access and control Network Interface Ethernet (RJ45) Mounting DIN‑rail installation Bus Input Voltage 20–30 V DC (bus supply for Welcome system) Protection Class IP20 (indoor use) Operating Temperature −25 °C to +55 °C Module Width Approx. 10 TE Bus Connection 2 × 0.28–0.75 mm² wire connections Application Remote integration of door communication systems with smartphones, tablets, and networked control systems

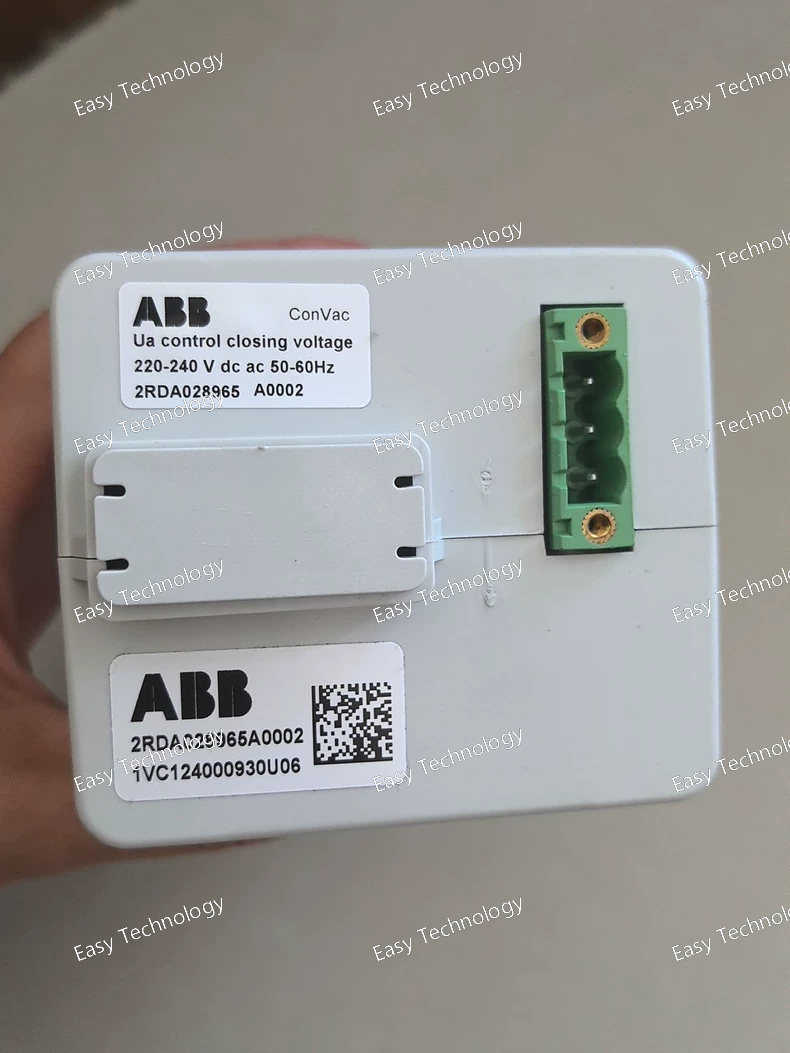

Typical Technical Parameters Specification Details (Typical for ConVac Family) Product Type Medium‑Voltage Vacuum Contactor Series / Platform ConVac, ABB Medium‑Voltage Contactors Rated Voltage (Insulation / Use) up to 12 kV AC (IEC) Rated Current Up to ~400 A continuing load Rated Short‑Circuit Capacity Up to 6 kA without fuses; up to 50 kA with appropriate medium‑voltage fuses Switching Technology Vacuum interrupter contacts Contact Configuration 3‑pole (three‑phase) Suitable Load Types Motors (AC‑3/AC‑4 class), transformers, capacitor banks Standards Compliance IEC 62271‑106 (medium‑voltage contactors) and variants; UL347, CSA C22.2 for North America (varies by version) Operating Temperature Range Typically −30 °C to +55 °C Mechanical Life High cycle life (design for heavy switching frequency) Installation Fixed or withdrawable mounting (depending on variant) Auxiliary Equipment Coil, closing/shunt releases, position switches, mechanical latching options Typical Applications Motor switching, transformer switching, capacitor bank control, industrial and utility switchgear

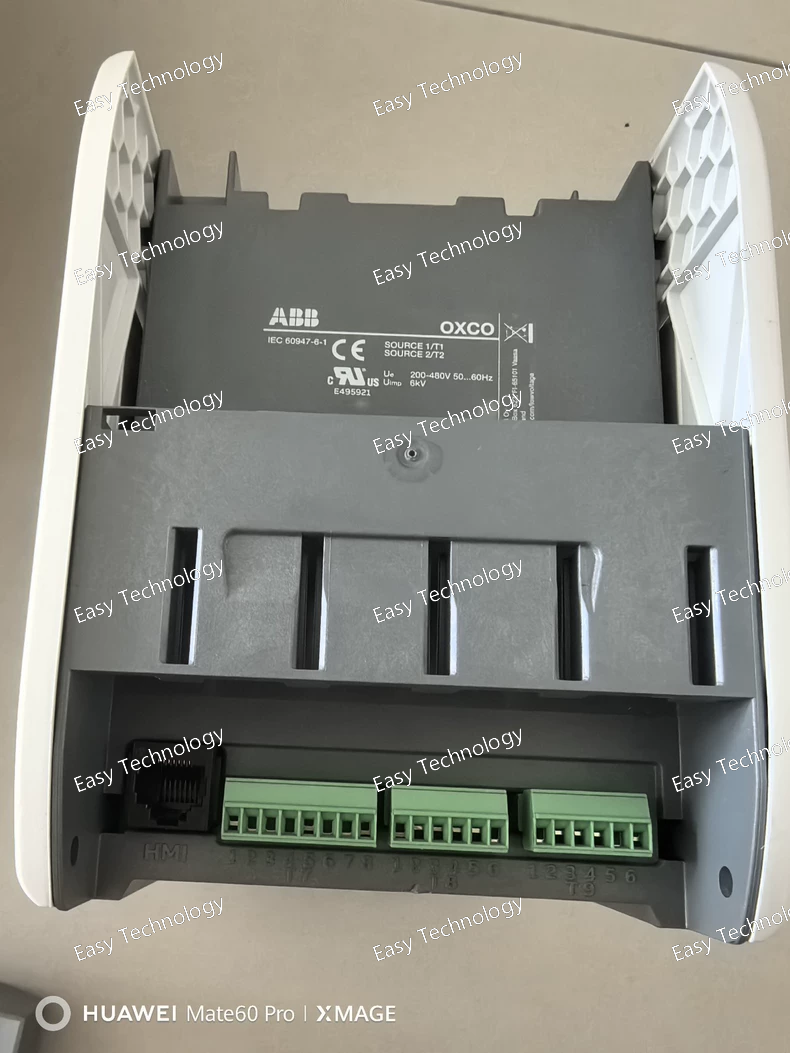

Technical Parameters Specification Typical Details Product Type Automatic Transfer Switch (ATS) Controller Family / Model OXCO (also marketed as TruControl) Primary Function Monitors two power sources and controls load transfer Transition Types Supported Open transition (break before make) Closed transition (make before break) Delayed transition (I‑O‑II) Control Interfaces (HMI) DIP switch interface (Level 2) LCD display interface (Level 3) Touch control interface (Level 4) Configuration Interface Built‑in HMI; user syntax via menu or dip settings Logic Control Enables automatic switching based on voltage/frequency thresholds Applicable Systems Low‑voltage automatic transfer switch installations Use Case Standby power systems, emergency backup, generator control Environmental Suitability Industrial and commercial electrical distribution Auxiliary Controls Start/stop generator interface (programmable logic) Protection / Safety Logic Source validity checks; in‑phase synchronization support Mounting / Integration Panel or enclosure integrated with ATS switchgear Standards Designed to comply with ATS‑related IEC/EN electrical control standards

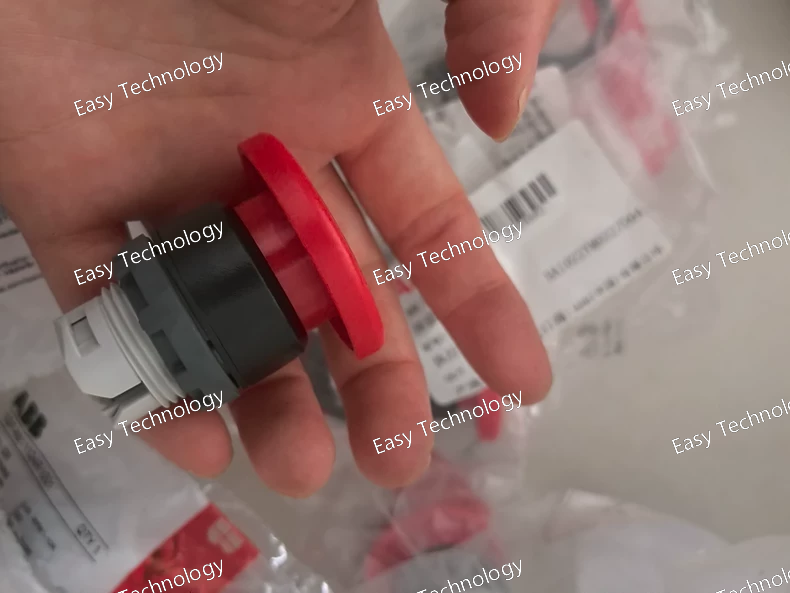

Technical Parameters Specification Details Product Type Modular Mushroom Pushbutton Model / Part Number MPM1‑10R (1SFA611124R1001) Brand ABB Actuator Style Mushroom head Operator Color Red Illumination Non‑illuminated Contact Mode Momentary (spring‑return) Mounting Hole Diameter 22 mm Head Diameter 40 mm Housing / Bezel Material Black plastic Contact Blocks Not included (must be added) Protection Rating (Front) IP66 (front) Protection Rating (Terminals) IP20 (rear) Environmental Rating NEMA 1/3R/4/4X/12/13 suitable Mechanical Durability ~2 million operations Operating Temperature ~‑25 °C to +70 °C Storage Temperature ~‑40 °C to +85 °C Installation Snap‑on / modular panel mounting Typical Use Control panels, machinery start/stop, operator interface

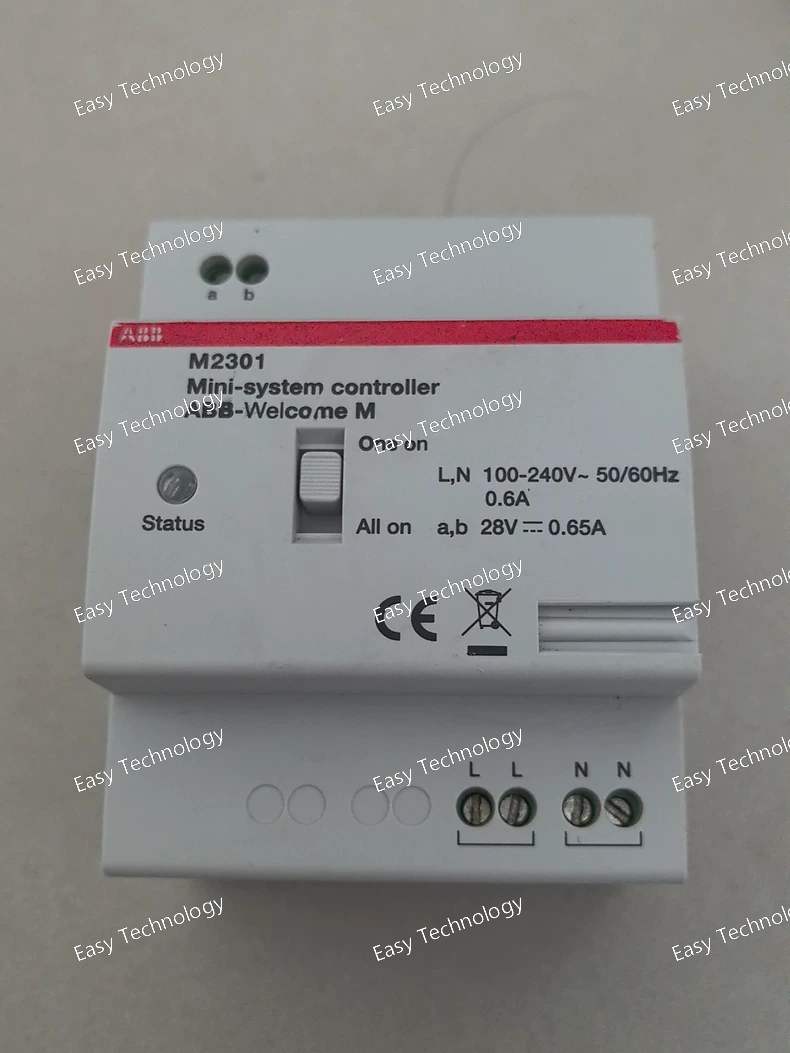

Technical Parameters Specification Details Product Type Mini System Controller / Power Supply Model M2301 / M2301‑101 Brand ABB Series ABB Welcome™ Primary Function Door entry system controller and BUS power supply Input Voltage (Main Supply) 100–240 V AC, 50/60 Hz Input Current ~1 A (mains) BUS Output Voltage 28 V DC ± 2 V BUS Output Current (Max) ~0.65 A Working Modes All On and One On indoor station modes Protection Features Overheat protection, overcurrent protection, lightning protection Mounting DIN‑rail (DIN EN 50022) Degree of Protection IP20 Operating Temperature Typical commercial range (about −25 °C to +55 °C) Clamping / Wiring Capacity Accepts various wire gauges (e.g., 2 × 22–16 AWG) LED Indicators Status indication (normal operation) Typical Applications Video/intercom door entry systems for small residential or apartment installations

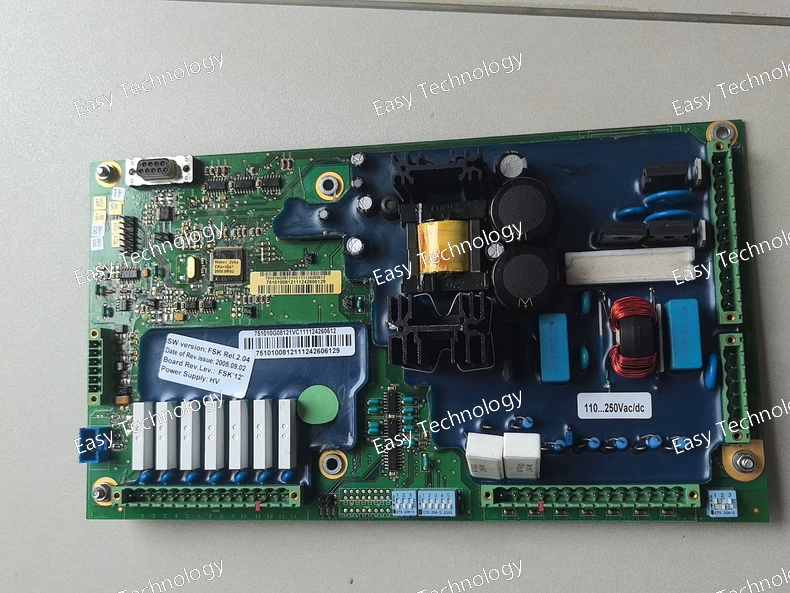

Technical Parameters Specification Details Product Type Control / Power Circuit Board Module Part Number ABB 751010G0812 Application Internal control board for industrial circuit breakers / switchgear Primary Function Control logic interface and power distribution for breaker control circuits Typical Use Replacement board in high‑capacity breaker assemblies Connectivity Multiple connectors for control and signaling lines to trip‑close mechanisms, auxiliary contacts, sensors Board Type Printed Circuit Board (PCB) with mounted control components Controller Type Breaker control and interface logic (not a standalone PLC) Installation Installed inside breaker or control enclosure door; interfaces with breaker mechanism and control wiring Condition New replacement board (original or equivalent) available from industrial parts outlets Typical Systems Large industrial breakers, switchgear control systems, automation safety circuits

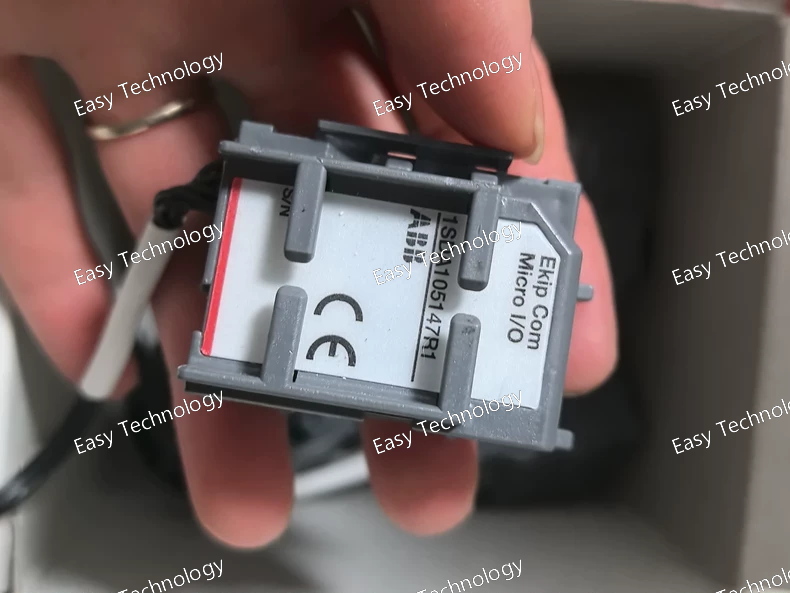

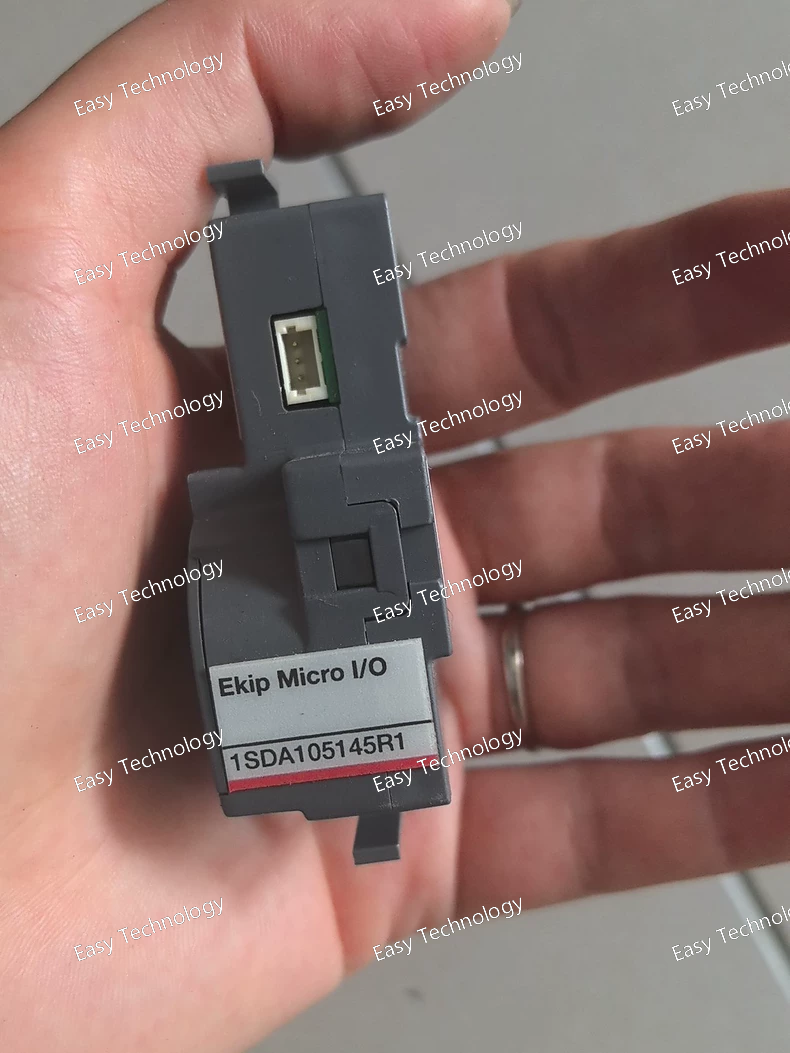

Technical Parameters Specification Details Product Type Signaling I/O accessory module Intended Use Status feedback for electronic trip units in low‑voltage breakers Compatible Breakers ABB Tmax XT series (XT2, XT4, XT5) and breakers with Ekip trip units Function Provides breaker status signals (open, closed, tripped) to the trip unit Input/Output Role Status signaling; supplies breaker condition data to protection/control logic Connection Interface Internal accessory terminals on breaker frame Mounting Installed inside breaker accessory space (internal accessory) Status Signals Provided Breaker open/closed status, tripped status Use Case Local signaling, integration with external control panels, interlocks, automation systems Typical Application Remote indication, control logic input, system supervision Design Accessory module configured by default with terminal connections

Technical Parameters Specification Details Product Type Communication module for circuit breakers Series / Platform ABB Ekip COM Compatibility Ekip electronic trip units (Emax, Emax 2, Tmax XT) Supported Protocols Modbus RS‑485, Modbus TCP, Ethernet/IP, PROFIBUS DP, PROFINET (variant dependent) Remote Control Breaker open/close commands Remote Status Breaker position, trip/fault indication, alarms Network Interfaces RS‑485 terminal block, Ethernet RJ45 Installation Plug-in or mountable accessory on breaker or terminal box Power Supply Supplied from breaker auxiliary circuits Indicators LEDs for communication and module status Configuration Via Ekip Connect software or network configuration tools Standards Compliance IEC/EN low-voltage breaker accessory and industrial communication standards Typical Applications Remote monitoring, breaker automation, integration with PLC/SCADA, distributed protection system

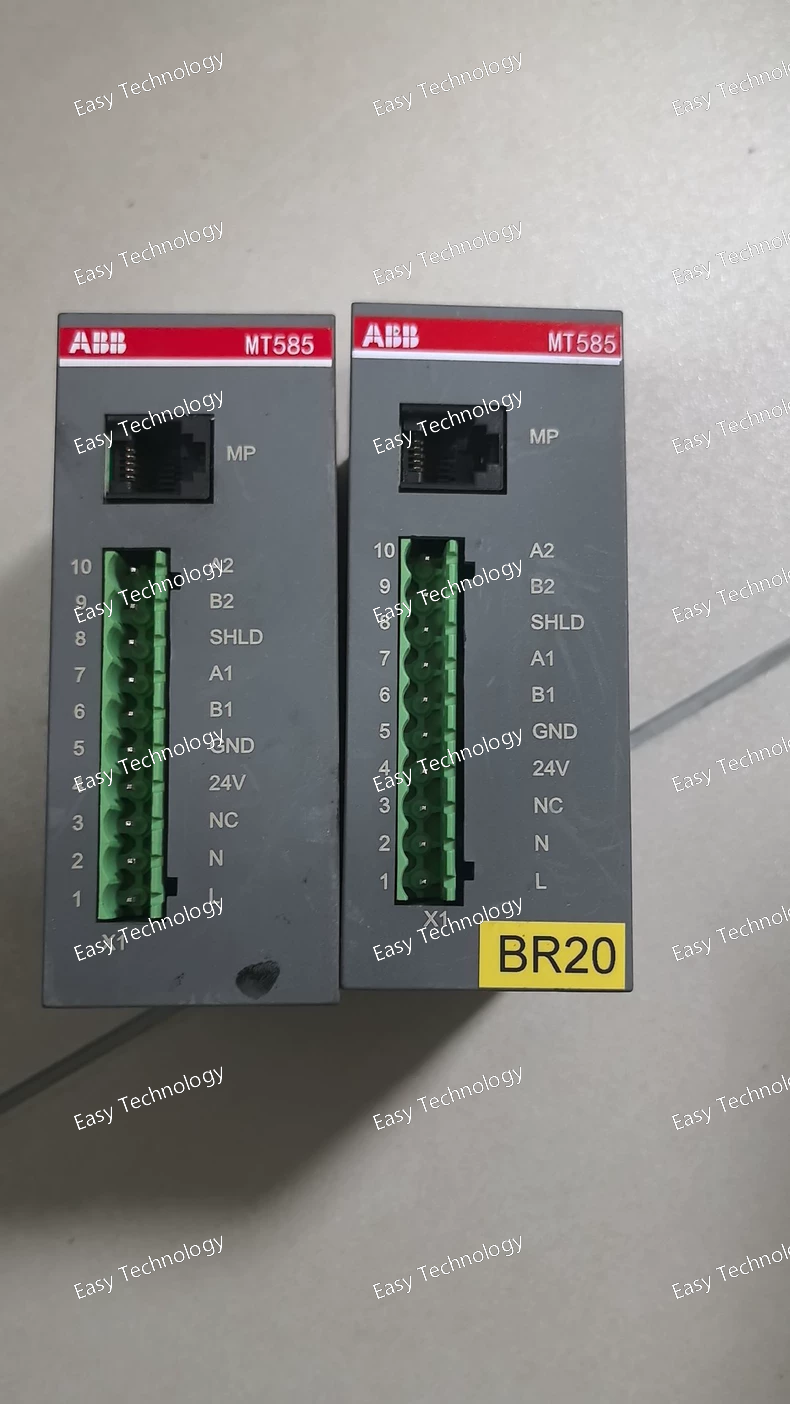

Technical Parameters Specification Typical Details Product Type Monitoring & Diagnostics Interface Module Model Name / Code MT585 Product Family ABB SMiS (Switchgear Monitoring & Insight System) Application Module for data acquisition and condition monitoring in medium‑voltage switchgear Typical Inputs Sensor/monitoring data from temperature, current, voltage sensors (via digital/analogue inputs) Typical Outputs Data communication to higher‑level protection or asset management systems Integration Integration with SCADA/remote asset manager, IoT platforms Mounting DIN‑rail or switchgear panel installation Communication Likely supports standard fieldbus / ethernet / MODBUS or similar (application‑dependent) Operating Environment Designed for industrial switchgear conditions Standards Designed to comply with switchgear monitoring and electrical distribution standards Typical Uses Condition monitoring, predictive maintenance, remote diagnostics, protection system data

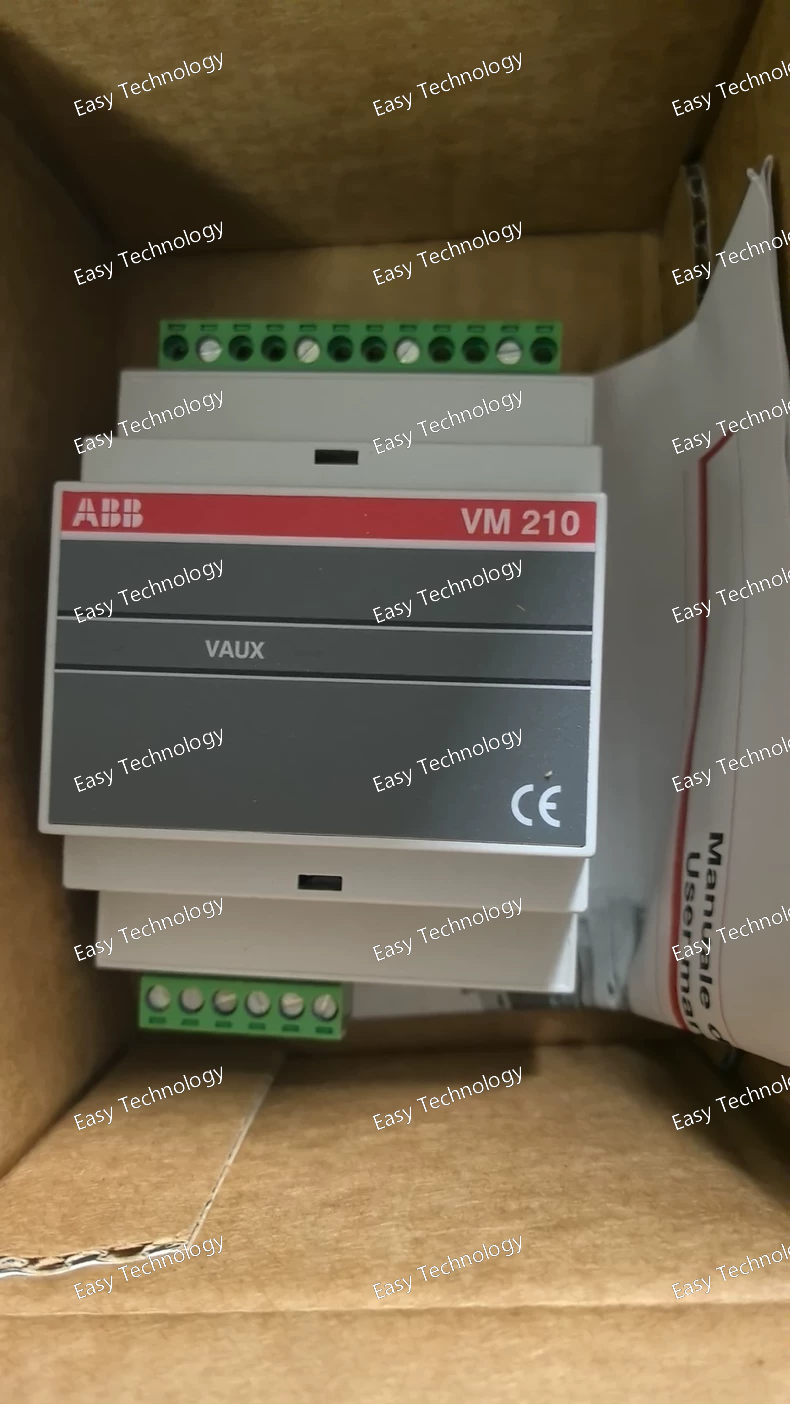

Technical Parameters Specification Details Product Type Voltage measuring / monitoring module Model / Part Number VM210 (also known as 1SDA059602R1) Applicable Trip Units PR223DS, PR223EF (electronic trip units) Intended Circuit Breakers ABB low‑voltage breakers with compatible trip units (T4, T5, T6 series) Function Network voltage measurement and signal conversion for protection trip units Power Supply (Auxiliary) 24 V DC ±20% Power Supply Ripple ±5% Operating Temperature Range ‑25 °C to +70 °C Relative Humidity 5% to 98% (non‑condensing) Maximum Trip Unit Connections Up to 5 trip units per module Maximum Cable Distance to Trip Unit 15 meters (shielded cable recommended above 1 m) Certifications / Standards Product environmental tests per IEC 60068, EMC per IEC 61000 Typical Electrical Signals Provided Voltage outputs proportional to line voltages for each phase (L1, L2, L3) Application Used as part of protection schemes to provide accurate voltage measurement data

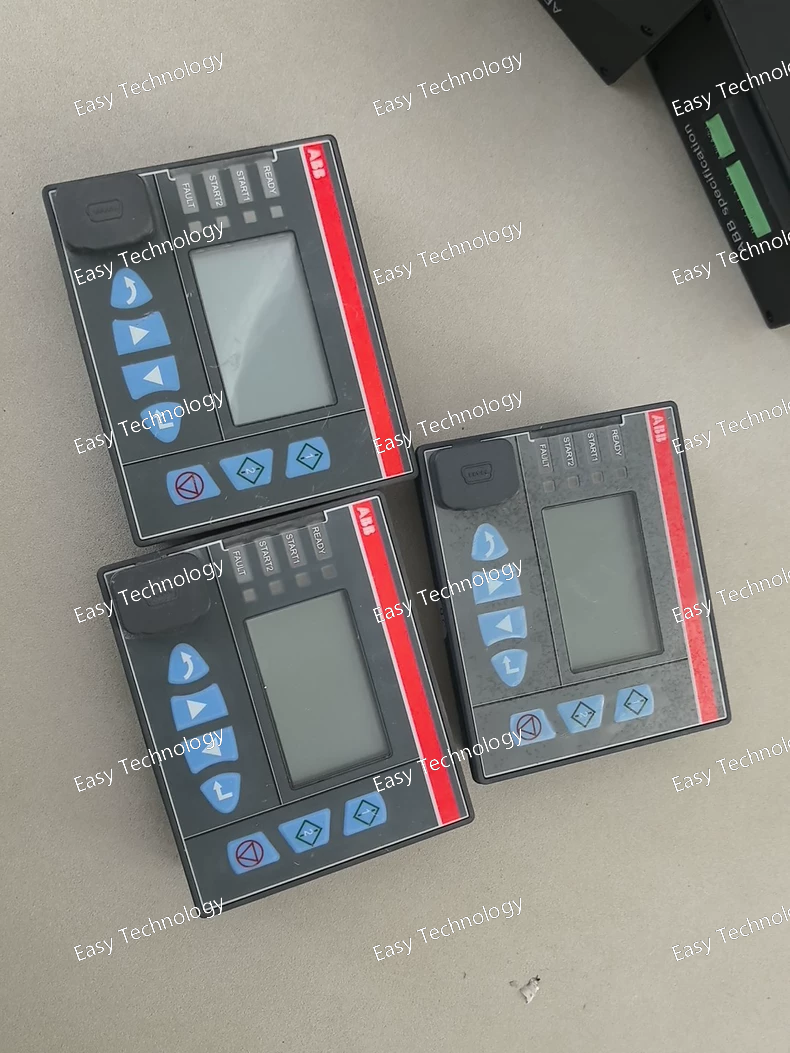

Typical Technical Parameters Specification Details Product Type Operator/Display Panel for Motor Control & Protection Units Model Name / Accessory MD21 Intended For Use With ABB M10x Motor Control & Protection Units (e.g., M101, M102) Display Type LCD with text and value readouts LED Indicators Configurable status indicators (Power, Ready, Running, Stop, Fault, etc.) Function Buttons Start, Stop, Navigation (Up/Down/Enter/Exit) Communication / Connection RJ11/RS‑485 interface to M10x controller Parameterization Port Mini USB for engineering access and parameter setup Supported Display Pages Up to 13 running values and settings pages (with M102) Measurement Data Motor current, % current, line voltage*, power and power factor*, thermal capacity, frequency* (features depend on connected control unit) Diagnostic Data Fault logs, trip history, maintenance information Physical Mounting Mounts on the front of M10x unit or panel door Typical Uses Local monitoring, control, status indication, parameter configuration Compatible Control Modules M101, M102 (Motor control and protection units) Typical Environments Industrial motor control panels and automation boards

Typical Technical Parameters Specification Details Product Type PLC CPU Module Series ABB AC500 Model PM585‑ETH Control Processor High‑performance ARM‑based CPU (varies by firmware) Power Supply 24 V DC typical Communication Ethernet interface (LAN) Ethernet Ports Multiple RJ45 Ethernet ports Expandable I/O Yes — supports S500 / S500‑eCo modules Communication Protocols Modbus TCP/UDP, Profibus, Ethernet variants (with modules) Memory Program and data memory (depends on exact firmware) Mounting DIN‑rail / control panel Operating Temperature Industrial operating range Standards Designed for industrial control use
