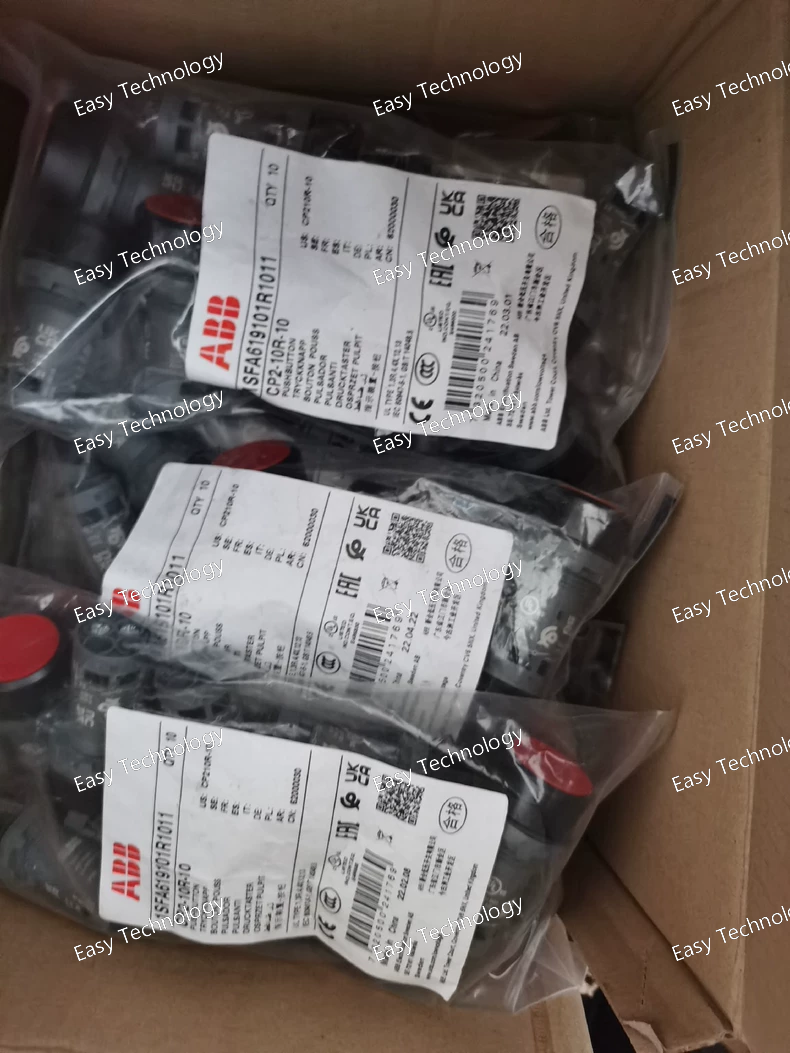

Technical Parameters Product Name: CP2‑10R‑10 pushbutton Manufacturer: ABB Pushbutton Type: Compact, maintained pushbutton Contact Action: Maintained (latching) Actuator Style: Flush, red actuator Illumination: Non‑illuminated Bezel / Housing Material: Black plastic Contact Configuration: • 1 normally open contact (1 NO) • 0 normally closed contacts (0 NC) Rated Insulation Voltage: Up to 300 V Rated Operational Voltage: Up to 300 V AC/DC Electrical Ratings: • AC rating suitable for control circuit loads (typical AC‑15 rating up to around 1 A at 240 V) • DC rating suitable for control loads (typical DC‑13 around 0.3 A at 24 V) Connection Type: Screw clamp terminals Degree of Protection: • Front face rated for high ingress protection in panel use • Terminals protected to industrial safety standard levels Mechanical Durability: Designed for many cycles of operation (hundreds of thousands) Mounting Cutout Diameter: Standard 22 mm panel hole Operating Ambient Temperature: Approximately −25 °C to +70 °C Storage Temperature: Approximately −40 °C to +85 °C Typical Applications: • Control panel operator interfaces • Start/stop and control sequencing buttons • Human‑machine interface in industrial automation • Machinery control circuits

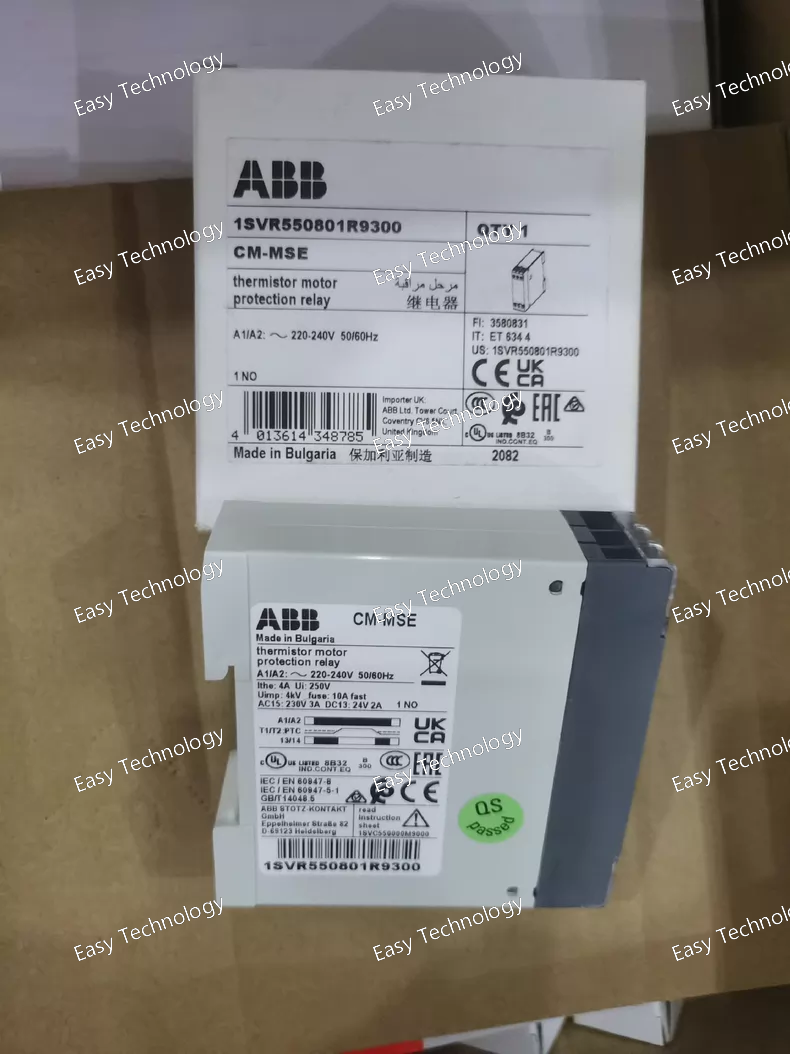

Technical Parameters Product Name: ABB CM‑MSE Thermistor Motor Protection Relay Product Type: Temperature monitoring / motor protection relay Sensor Type: PTC thermistor temperature input Output Contact: 1 normally open (1 N/O) contact Rated Switching Capacity: Up to 250 V AC at 4 A (typical) Control Supply Voltage Options: Common versions include 110–130 V AC, 220–240 V AC, and 24 V AC (model‑dependent) Output Contact Configuration: Single SPST (single pole, single throw) normally open Function: Monitors motor temperature via PTC sensors and triggers output on trip condition Automatic Reset: Yes (relay can reset automatically once normal conditions return) Mounting: DIN‑rail (35 mm) mounting for control cabinets Terminal Type: Screw terminals for power and sensor connections Dimensions (approximate): Width ~22.5 mm, Height ~78 mm, Depth ~78.5 mm Housing Protection: Standard industrial enclosure (IP20 at terminals) Operating Temperature Range: Approximately –20 °C to +60 °C Connection Wire Size: Supports typical industrial wire sizes (stranded with ferrules or solid) Weight: Around 100–120 g Standards & Compliance: Designed to meet relevant IEC/EN standards for monitoring relays and immunity/EMC requirements Typical Applications: • Overtemperature protection for motors with PTC sensors • Motor control panels and automation systems • Industrial machinery where thermal monitoring and motor protection are needed

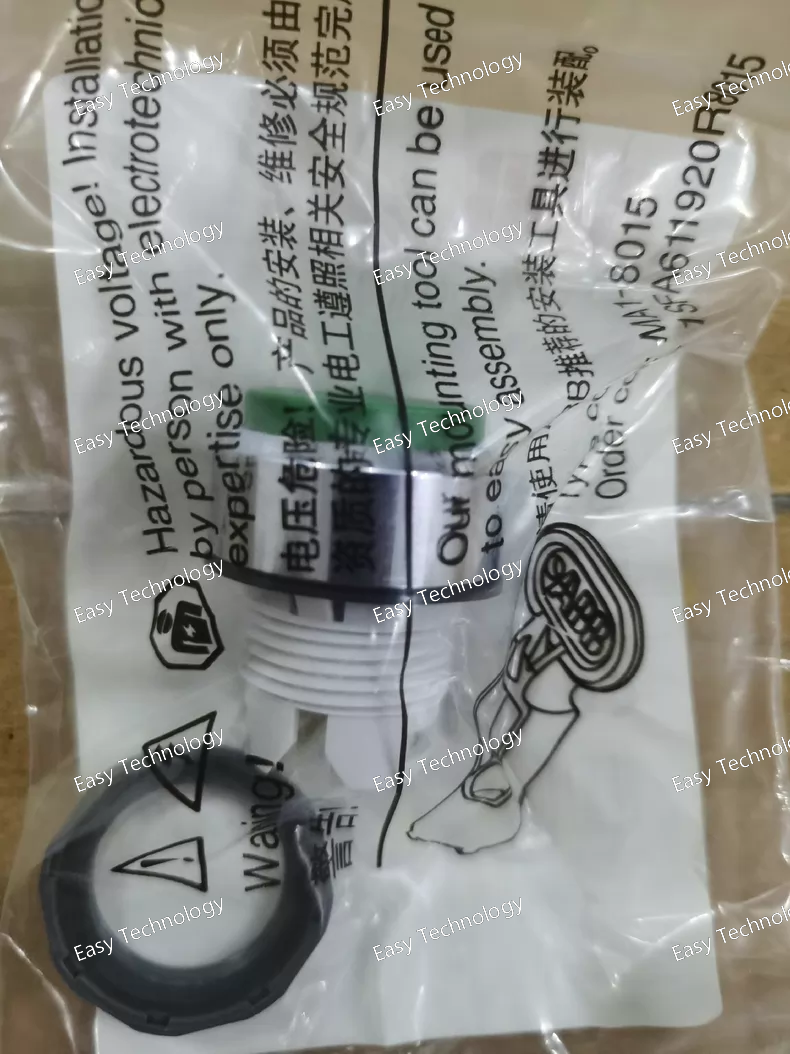

Technical Parameters Product Name: ABB MP3-30G Product Type: Momentary Pushbutton Switch Actuator Style: Extended head design, green color Illumination: Non-illuminated Modular System: Part of ABB’s modular pilot device range Bezel Material: Chrome metal bezel Mounting Hole Diameter: 22 mm panel cut-out Contact Block: Not included (requires separate contact block if needed) Mechanical Durability: Designed for millions of operations (approx. 2 million typical) Operating Temperature Range: –25 °C to +70 °C Protection Ratings: Front face rated to IP66; terminals rated to IP20 Construction: Durable plastic/metal hybrid suitable for industrial control panels Typical Use: Control panel pushbutton input for machinery control, start/stop functions, and status inputs

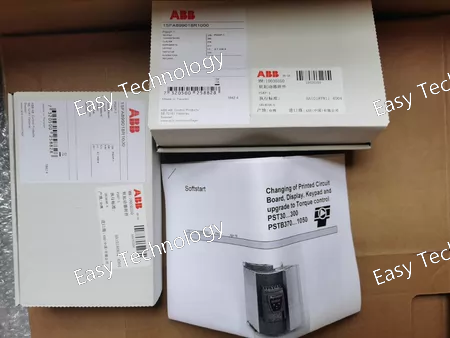

Technical Parameters Product Name: ABB PSKP-1 Product Type: Soft Starter Keypad / User Interface Module Function: Operator interface for soft starter control and configuration Compatible With: ABB soft starters (PSTX / PST / PSTB series–generally for models like PST30…300 and PSTB370…1050) Control Interface: Connects to compatible soft starter via keypad communication port Display/Controls: Integrated keypad buttons for parameter input and navigation Mounting: Flush or panel mounting on soft starter housing or control panel Use Case: Local control and parameter setting of soft starter functions including start/stop commands, parameter entry, display of status and fault codes Environmental Suitability: Suitable for industrial cabinet environments when mounted on the appropriate panel cut-out Weight: Very lightweight (approximately several grams) Typical Dimensions: Compact form factor appropriate for panel mounting Application: Industrial motor control applications where a soft starter is used and local operator interface is required

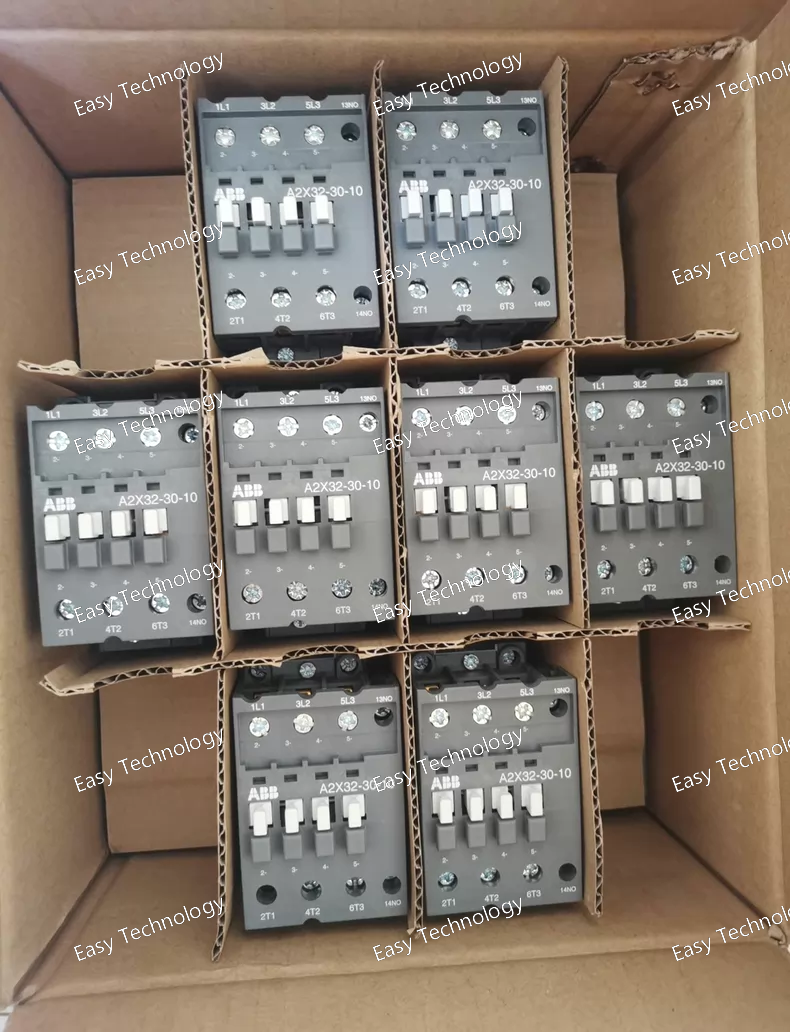

Technical Parameters Product Type: AC contactor Model / Series: A2X32-30-10 (also referenced as AX32-30-10) Number of Poles: 3 main poles Auxiliary Contacts: 1 auxiliary contact (normally open) Rated Operational Current: ~32 A under AC-3 duty (motor control) Rated Operational Voltage: Up to 690 V AC Control Coil Frequency: 50/60 Hz Design: Block type AC contactor with screw terminals Main Application: Control and switching of three-phase motors and general power circuits Mechanical Design: Modular contactor design suitable for control panels

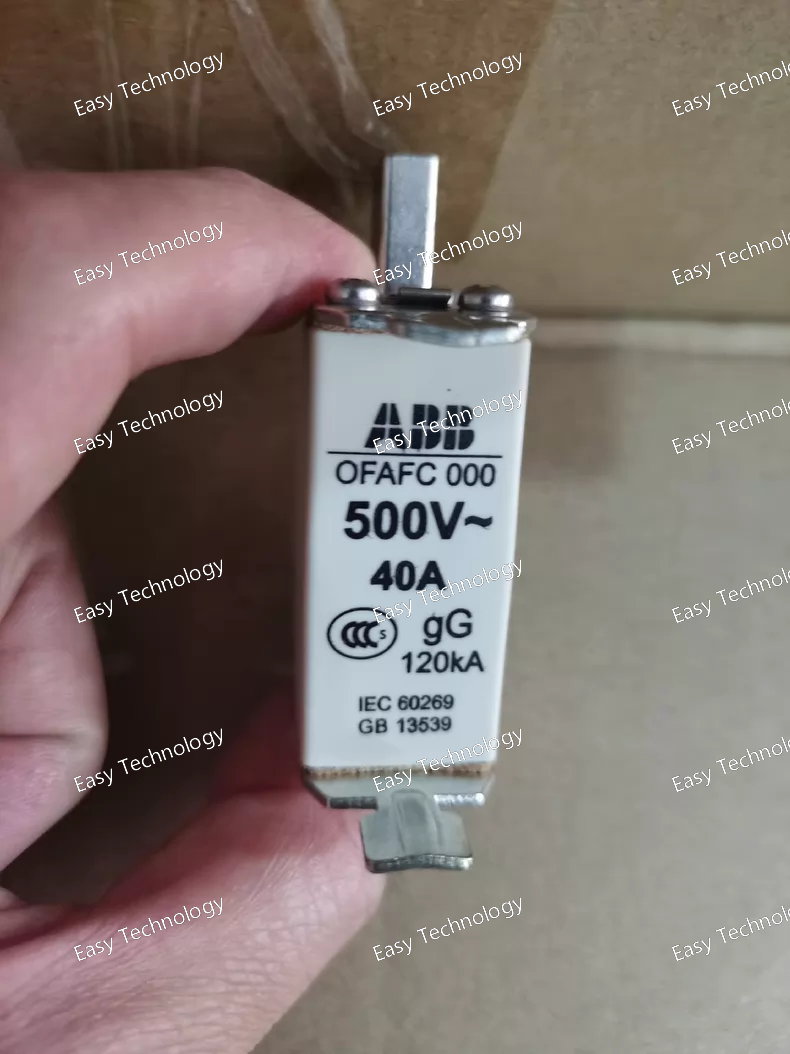

Technical Parameters Product Type: Low-voltage protective fuse (cylindrical fuse) Model / Type: OFAFC000GG40 Rated Current: 40 A Utilization Category: gG (general purpose, full range protection) Rated Voltage: 500 V AC (typical for this family of fuses) Breaking Capacity: High interrupting capacity suitable for industrial circuits Standards Compliance: IEC 60269 series for low-voltage fuses Construction: Cylindrical enclosed fuse element for clip or fuse holder mounting Application: Overcurrent and short-circuit protection in low-voltage electrical distribution and motor circuits

Technical Parameters Product Type: Safety adapter unit Model: TINA 3A Part Number: 2TLA020054R0200 Function: Interfaces two safety contacts to ABB DYNlink system Power Supply Voltage: 24 V DC Current Consumption: Approximately 47 mA Connection Type: 5-pin M12 male connector for DYNlink loop Housing Material: Industrial PVC body Mounting: On device enclosure, with cable entry Protection Class: IP67 Operating Temperature Range: -10 °C to +55 °C Typical Device Compatibility: Emergency stops and mechanical safety switches with two force-guided contacts Application Field: Industrial machinery safety, safety control cabinet installations, and automation safety loops

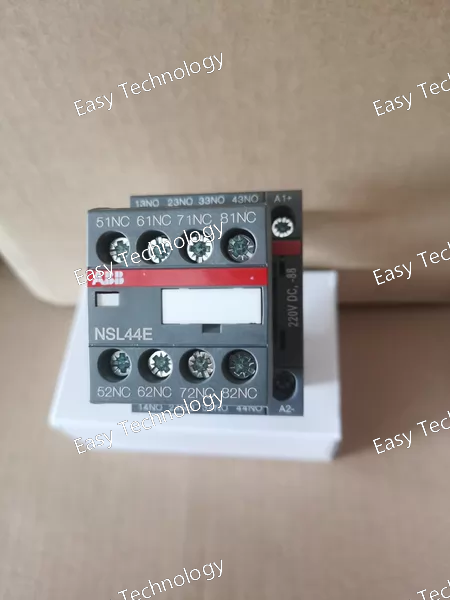

Technical Parameters Product Type: Contactor Relay Model: NSL44E-88 Order Code: 1SBH103001R8844 / similar NSL44E-88 series coding Number of Poles: 8 poles Typical Contact Arrangement: 4 normally open + 4 normally closed (auxiliary contacts) Control Coil Voltage: 220 V DC Coil Type: DC coil, polarity sensitive Application: Auxiliary and control circuit switching Mounting: Panel or DIN-rail mounting (with accessories) Typical Usage: PLC control interface, automation control circuits, auxiliary signal switching

Technical Parameters General Product Type: Selector switch Model: M2SS2‑11C Actuator Style: Short rotary handle Design: Non‑illuminated selector switch Maintained Positions: 2 (maintained latching) Mounting: Panel mount, 22 mm cut‑out Contact Configuration Auxiliary Contacts: 1 × Normally Open (NO) 1 × Normally Closed (NC) Contact Form: 1NO + 1NC Contact Operation: Changes state with selector position Electrical Ratings Rated Operational Voltage: Up to 300 V AC/DC Rated Insulation Voltage: 300 V Rated Impulse Withstand Voltage: 6 kV Rated Current (AC‑15): Approx. 1 A at 220–240 V AC Rated Current (DC‑13): Approx. 0.3 A at 24–125 V DC Utilization Category: Suitable for control and signal circuits Mechanical Mechanical Life: Approx. 500,000 cycles Actuator Torque / Operation: Designed for positive manual switching Terminal Type: Screw terminal connections Environmental Front Protection Rating: IP66/IP67/IP69K (front — when installed correctly) Terminal Protection Rating: IP20 Operating Ambient Temperature: –25 °C to +70 °C Storage Temperature: –40 °C to +85 °C Pollution Degree: Suitable for industrial environments Physical Dimensions Panel Cut‑out Diameter: 22 mm Approximate Body Size: Standard compact selector switch footprint Weight: Lightweight industrial device Applications Mode selection (e.g., Local/Remote, Auto/Manual) ON/OFF or dual‑state machine control interface Control panel operator stations Industrial automation selecting between control states Logic selection input for PLCs and controllers

Technical Parameters General Product Type: HRC (High‑Rupturing Capacity) fuse link Model / Part Number: OFAFC00GG125 Fuse System: DIN type fuse link Utilization Category: gG (general‑purpose full‑range protection) Rated Current: 125 A Size / Fuse Frame: 00 (NH00) fuse size Approvals / Standards: IEC 60269 fuse standard compliance Typical Application: Overload and short‑circuit protection in low‑voltage power systems Electrical Ratings Rated Current (In): 125 A Rated Voltage (Ur): up to 690 V AC (common rating for gG HRC fuses in this size) Utilization Category (gG): protects both cables and equipment against overload and short‑circuit faults Breaking / Interrupting Capacity: Very high fault clearing capability suitable for industrial distribution levels Rated Power Loss: Typical power loss at rated current is within acceptable limits for this fuse size Mechanical & Physical Fuse Size: NH00 (DIN 00) Body Type: DIN blade fuse link Mounting Method: Installed into a compatible DIN fuse holder or switch‑fuse base Mechanical Construction: Rugged metal and insulating body for reliable operation Weight & Dimensions (Typical): Compact NH00 form factor for space‑efficient installation RS Components Environmental Operating Environment: Suitable for control panels, distribution boards, and industrial switchgear Ambient Temperature: Industrial ambient conditions typical for low‑voltage distribution equipment Applications Main or branch‑circuit protection in industrial and commercial distribution panels Protection of feeders, cables, transformers, and motors Retrofit or replacement in ABB switch‑fuse disconnectors and DIN‑fuse systems Ensures safety and equipment protection in low‑voltage power networks

Technical Parameters General Product Type: Rotary selector switch Model: C2SS2‑10B‑20 Actuator: Short black rotary handle Illumination: Non‑illuminated Function: Maintained (latching) 2‑position switch Panel Mounting Size: 22 mm cut‑out Bezel / Housing Material: Metal bezel with durable plastic body Contact Configuration Auxiliary Contacts: 1 × Normally Open (NO) 1 × Normally Closed (NC) Contact Form: 1NO + 1NC Contact Operation: Changeover when actuator rotates between positions Electrical Ratings Rated Operational Voltage: Suitable for up to 300 V AC/DC Rated Current: AC‑15: Approx. 1 A at 220–240 V AC DC‑13: Approx. 0.3 A at 24–125 V DC Rated Insulation Voltage: Approx. 300 V Rated Impulse Withstand Voltage: Approx. 6 kV Mechanical Operating Life: Approx. 500,000 mechanical operations Terminal Type: Screw terminals Pollution Degree: Suitable for industrial control environments Mechanical Endurance: High for frequent switching Environmental & Protection Front Protection Rating: High dust/water resistance (e.g., IP66/IP67/IP69K) when installed correctly Terminal Protection Rating: IP20 Operating Ambient Temperature: –25 °C to +70 °C (typical industrial range) Storage Temperature: –40 °C to +85 °C Applications Mode selection (e.g., local/remote, auto/manual) On/Off or dual‑state control input Operator panel interfaces in automation systems Industrial machinery control stations Control logic and signaling circuits

Technical Parameters General Product Type: Auxiliary auxiliary contact block for MCCBs Model / Accessory: AUX‑C 3Q1SY‑Cabled 250 VAC/DC (T1‑T3) Suitable For: ABB SACE Tmax T series circuit breakers — frames T1, T2, T3 Mounting: Side/slot accessory that installs in the breaker’s accessory slot Connection: Pre‑wired cable for remote signaling Contact Configuration Changeover Contacts (SPDT): 3 changeover (3Q) for breaker position feedback (open/closed) Trip Indication Contact: 1 changeover contact (1SY) dedicated for signaling a trip (release) event Total Contacts: 4 changeover contacts Electrical Ratings Rated Operational Voltage: up to 250 V AC/DC Utilization Categories: Suitable for low‑power control and signaling circuits AC‑15 up to ~4 A @ 250 V AC AC‑12 up to ~6 A @ 250 V AC DC‑12 up to ~0.3 A @ 250 V DC DC‑14 up to ~0.03 A @ 250 V DC (Typical auxiliary contact ratings for 250 V AC/DC control signaling) ABB Electrification Mechanical Terminal Wiring: Pre‑wired with cable leads for easy panel connection Contact Type: Changeover (single‑pole double‑throw) contacts Mechanical Life: High cycle life suitable for frequent status switching Mounting Position: Installed in the accessory slot of compatible breakers Environmental Operating Temperature: Industrial ambient range suitable for electrical panels Protection Rating: IP20 at connections when installed (panel dependent) Pollution Degree: Industrial environment Applications Remote indication of breaker ON / OFF status Trip (fault) signaling to PLCs, SCADA, alarms, or control circuits Integration in motor control centers and distribution panels Status feedback for automation and safety interlocks
