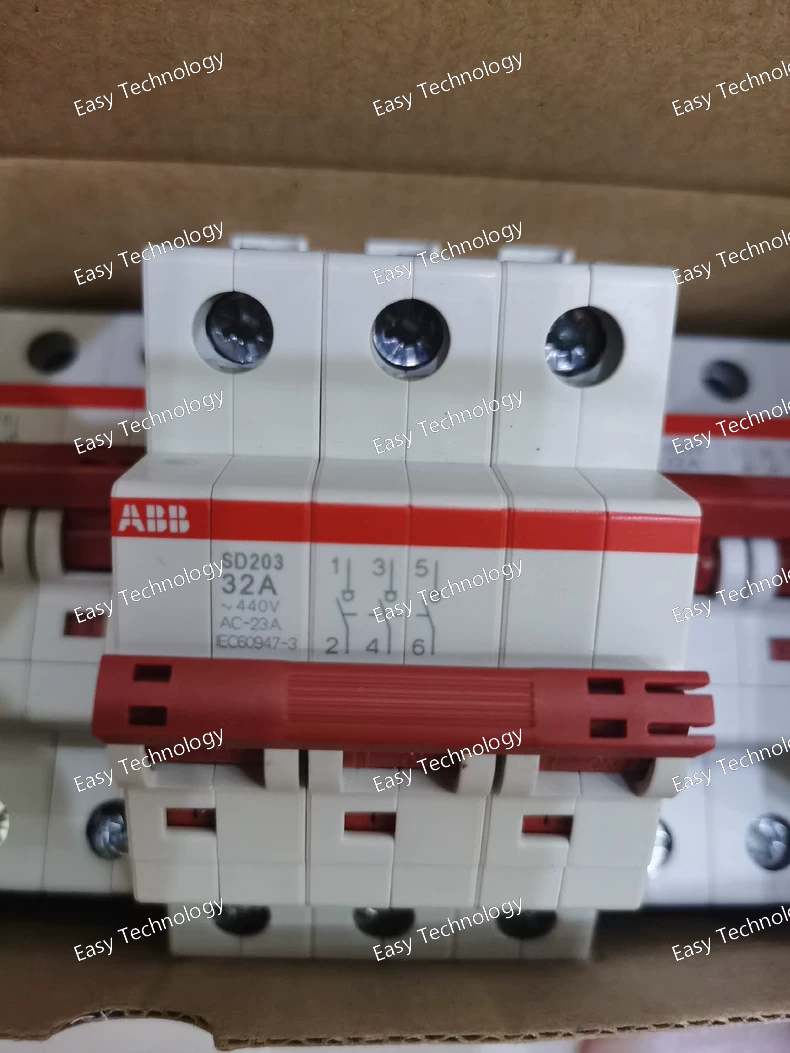

Key Features 3‑pole switch disconnector for three‑phase circuits. Rated current: 32 A — supports moderate current loads. Manual operation via a toggle or handle actuator. DIN‑rail mountable for easy integration into control panels. Screw terminal connections for secure wiring. Compact design suited for System Pro M Compact installations. Contact position indicator showing ON/OFF condition. Electrical Ratings Rated operational voltage: Up to 440 V AC in three‑phase systems. Rated current: 32 A continuous load capacity. Designed to interrupt load currents when opening under rated conditions. Operating frequency compatible with 50 / 60 Hz systems. Suitable transient withstand and insulation levels for typical low‑voltage power circuits. Mechanical & Endurance Poles: 3 poles with associated contacts. Electrical endurance: Built for substantial cycling in switching applications. Mechanical endurance: Designed for long service life with numerous make/break operations. Terminal type: Screw clamp style for solid and stranded wiring. Environmental & Protection Operating temperature range: Typical industrial ambient range. Storage temperature range: Broad range to withstand transport and storage conditions. Protection rating (front and body): Basic IP20 touch protection at terminals when installed inside an enclosure. Contact state indicator: Clear ON/OFF position marking for operator safety. Physical & Installation Mounting type: DIN‑rail mountable (TH35 rail) for quick panel installation. Compact footprint: Saves space in distribution boards and control cabinets. Handle/Actuator: Manual control for disconnecting and reconnecting the circuit. Dimensions: Designed to fit standard industrial panel layouts. Typical Applications Main disconnect switch in motor control centers and control panels. Isolation device for three‑phase power circuits during maintenance. Safety disconnect in industrial and commercial electrical distribution. Integration with other System Pro M components for compact panel design.

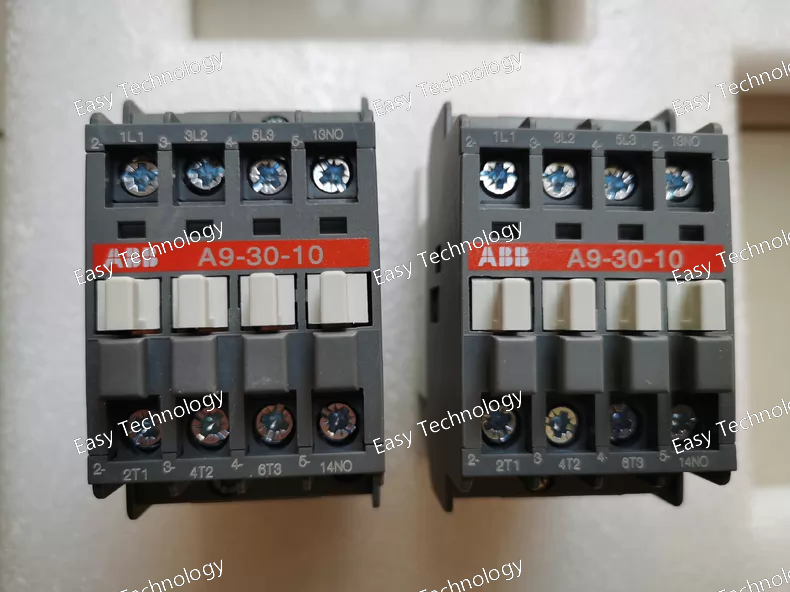

Key Features 3‑Pole design: Enables switching of three phase main circuits or three separate poles. Compact construction: Space‑efficient design for control panels and motor starters. Auxiliary Contacts: Includes options for auxiliary contact blocks to extend functionality. Screw Terminals: Secure wiring with standard screw‑type connections. Wide Application: Suitable for motor control, lighting, and general power switching. Electrical Ratings Rated Control Circuit Voltage: Typical versions available for 220–230 V 50 Hz / 230–240 V 60 Hz AC. Rated Operational Voltage (Main Circuit): Up to 690 V AC. Rated Operational Current (AC‑3): 9 A at typical motor load duty. Rated Operational Current (AC‑1): Up to ~25 A for general resistive loads. Rated Insulation Voltage (Ui): ~1000 V AC. Rated Impulse Withstand Voltage (Uimp): High transient withstand capability. Contact Configuration: 3 main NO (normally open) contacts; auxiliary contact availability depends on variant. Coil & Performance Coil Voltage: Versions available in various AC coil voltages (e.g., 220–240 V AC). Coil Power Consumption: Designed for efficient operation with typical AC coil holding and pull‑in values. Operate / Release Times: Fast operation suitable for control applications with minimal delay. Mechanical & Durability Mechanical Life: Designed for many cycles of switching in industrial use. Electrical Life: Rated for continuous duty under normal load conditions. Mounting: Panel or DIN‑rail mounting depending on socket or accessory. Operating Temperature: Suitable for standard industrial ambient temperatures. Protection Rating: Terminal and body protection based on enclosure and installation. Physical & Installation Poles: 3 main poles. Terminal Type: Screw clamp style terminals for robust wiring. Dimensions & Weight: Compact form factor suitable for panels; lightweight construction. Typical Applications Motor starters in industrial automation systems. Switching of 3‑phase loads such as pumps, fans, and compressors. Control circuits requiring frequent switching and reliable performance. Power distribution and equipment control in manufacturing and process industries.

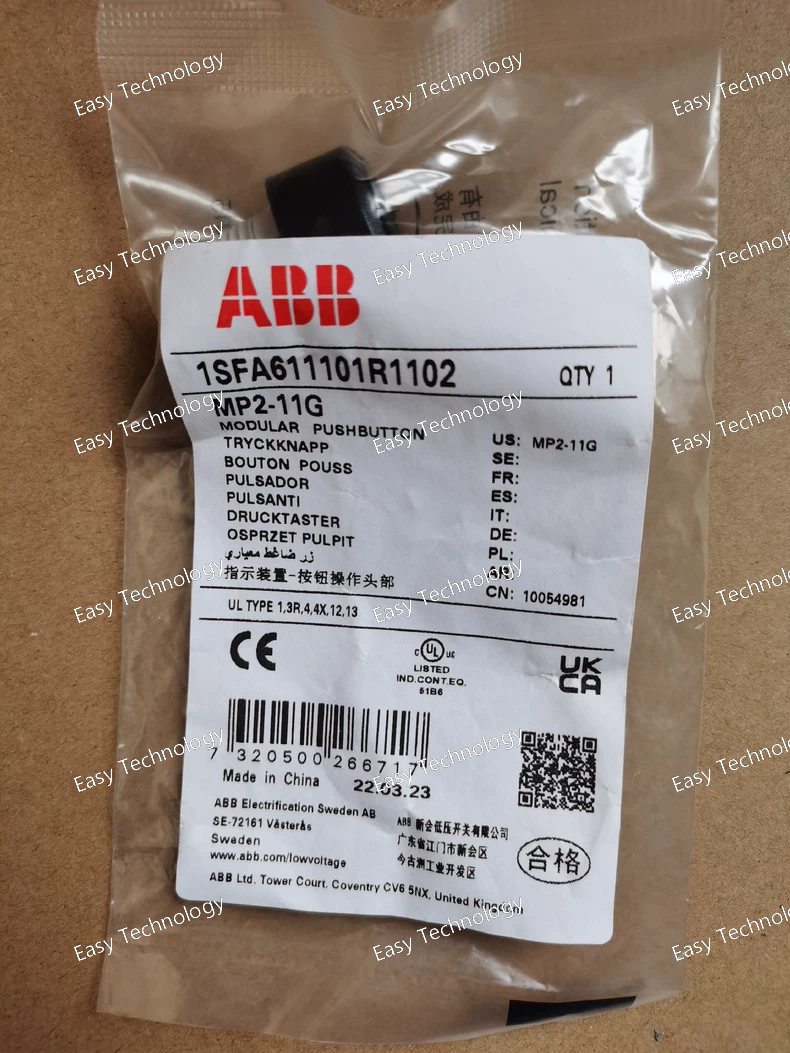

Technical Parameters Electrical Contact Blocks: Not included — must be added separately. Intended Control Voltage: Determined by the contact blocks and LED/lamp block selected. Insulation Rating: Designed to meet low‑voltage control circuit requirements. LED Voltage: Depends on the LED/lamp module used (sold separately). Mechanical / Environmental Function Mode: Maintained — pushbutton remains engaged until manually toggled. Mechanical Life: High cycle life suitable for frequent operation. Operating Temperature Range: Approximately –25 °C to +70 °C. Storage Temperature Range: Approximately –40 °C to +85 °C. Protection Rating (Front): High ingress protection (front panel) for dust and water resistance. Protection at Terminals: Basic terminal protection when properly mounted in enclosure. Physical Dimensions Width: ~29 mm Height: ~29 mm Depth: ~33 mm Weight: ~0.012 kg Panel Cut‑out: Standard 22 mm diameter hole. Typical Applications Human‑machine interfaces (HMIs) for industrial automation. Control panel operator stations requiring a maintained push input with visual indication. PLC or relay control circuits where illuminated status feedback is needed. Any application requiring reliable, modular pushbutton operation with flexible contact configurations.

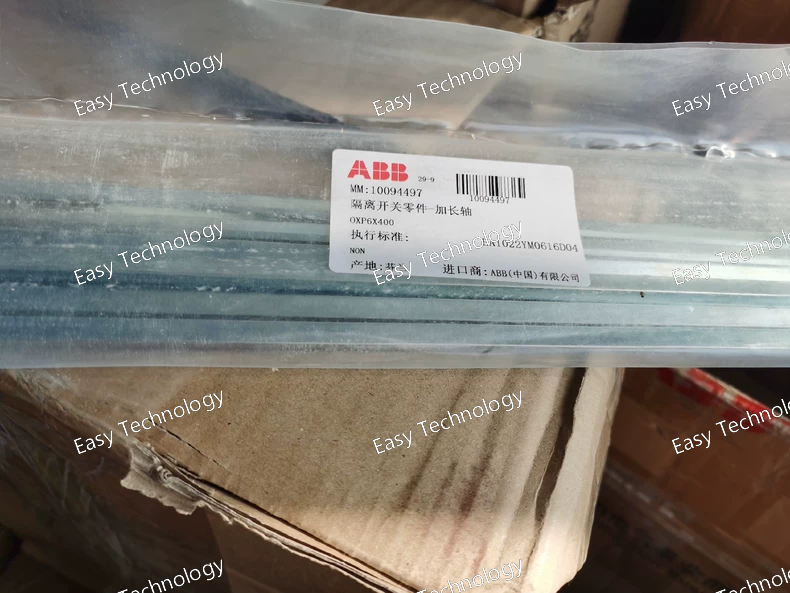

Technical Parameters Mechanical Shaft Cross‑Section: Square, 6 mm × 6 mm. Shaft Length: 400 mm total length. Weight: Approximately 0.10–0.11 kg. Material: Robust metal construction (steel) for reliable mechanical performance. Design & Fitment End Style: Square shaft intended for pistol‑handle coupling at one end and switch input at the other. Mounting: Fits into compatible disconnect switch and pistol handle assemblies designed for a 6 mm square shaft. Usage: Manual operation only – extends reach for switch levers or handles. Environmental & Operational Operating Conditions: Suitable for typical industrial control environments where manual disconnection or switching is needed. Protection: As a mechanical accessory, its protection is dictated by the switch housing/enclosure it is installed into. Typical Applications Extending the reach of disconnect switch actuation in control panels. Use with pistol‑style handles on load or safety disconnect switches. Applications requiring remote mechanical actuation of switches from outside an enclosure or panel.

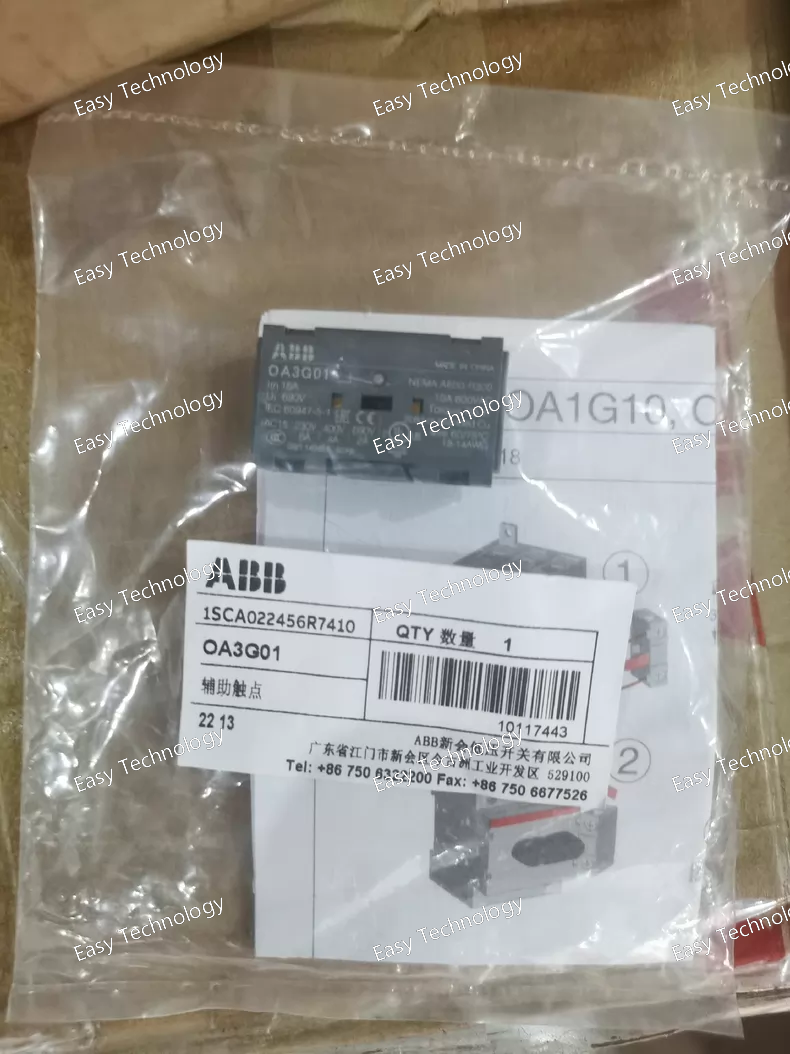

Technical Parameters Electrical Contact Configuration: 1 Normally Closed (NC) auxiliary contact — opens when actuated. Conventional Thermal Current (Ithe): Rated for up to 16 A under normal thermal conditions. Rated Operation Current (AC‑15, 230 V): Suitable for typical control duty currents. Rated Insulation Voltage: Suitable for low‑voltage control circuits (commonly up to ~690 V). Connection: Screw terminal connections for wiring. Mechanical & Installation Mounting Style: Side mounting on compatible disconnect or load switches. Housing: Compact block consistent with modular accessory design. Mechanical Durability: Designed for extended operational life in industrial environments. Physical Dimensions Approximate Size: ~40 mm (W) × ~30 mm (H) × ~11 mm (D). Weight: Lightweight, easy to mount on switchgear assemblies. Environmental Operating Temperature: Designed to function reliably within typical control panel temperature ranges. Storage Temperature: Wide range suitable for warehouse or installation environments. Protection: When installed correctly, terminals should be protected within the enclosure; block itself contributes to overall safety compliance. Typical Applications Adding auxiliary feedback or interlock functions to disconnect switches and load switches. Enabling control circuits to detect switch position changes (e.g., open/closed status). Integration into motor control centers, distribution panels, and industrial automation systems requiring auxiliary signalling. Expansion of control logic for safety interlocking and machine sequencing.

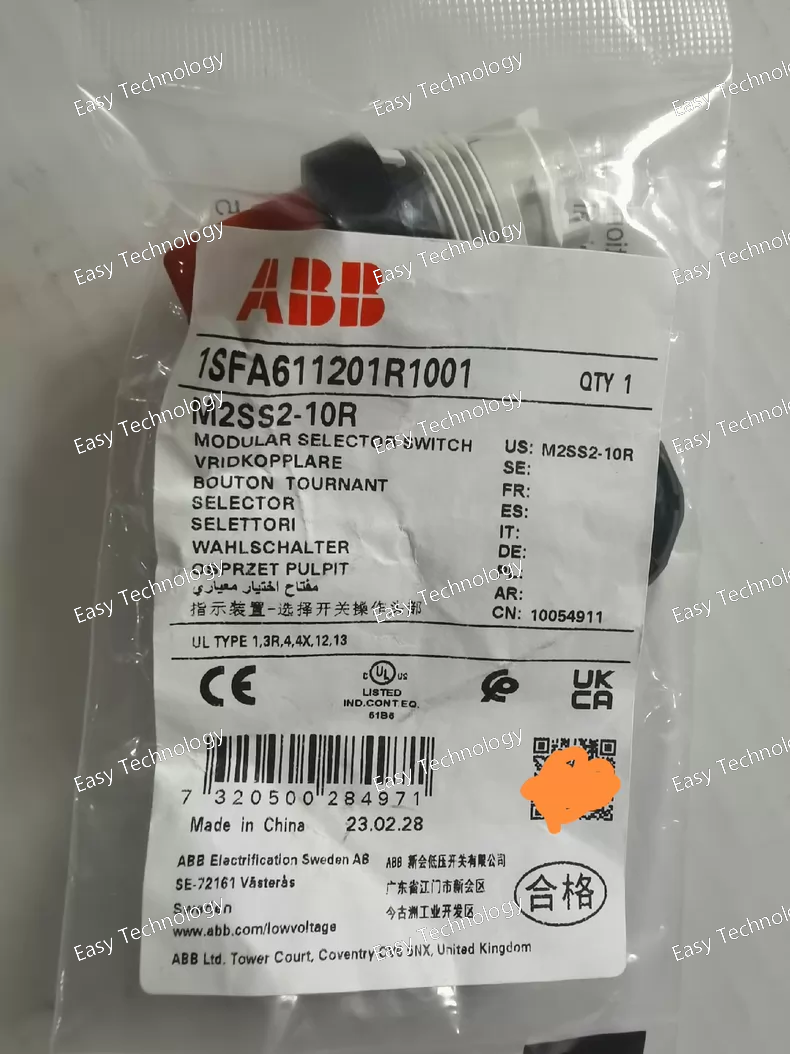

Technical Parameters Mechanical Number of Positions: 2 maintained fixed positions (typically A and C). Handle Type: Short red handle/knob for compact panel mounting. Operator Type: Maintained — stays in the selected position until manually switched again. Mounting: Standard 22 mm panel cut‑out for control devices. Housing Material: Durable black plastic. Contact Blocks: Not included — requires separate modular contact block(s) to provide electrical switching functionality. Mechanical Durability: High mechanical life for frequent use. Environmental & Protection Operating Temperature Range: Approx. –25 °C to +70 °C. Storage Temperature Range: Approx. –40 °C to +85 °C. Front Protection Rating: Designed for dust and splash resistance when installed (e.g., front panel up to high IP rating). Terminal Protection: Basic protection at terminals with appropriate enclosure installation. Physical Dimensions Width: ~48 mm (operator body). Height: ~30 mm. Depth: ~55 mm. Weight: Approx. 0.024 kg. Typical Applications Mode selection in control panels (e.g., On/Off, Auto/Manual). Operator interfaces for industrial automation equipment. Human‑machine interface (HMI) logic selection in PLC and relay systems. Situations requiring a simple maintained two‑position control with modular construction.

Technical Parameters Mechanical Number of Positions: 2 maintained fixed positions (typically A and C). Handle Type: Short red handle/knob for compact panel mounting. Operator Type: Maintained — stays in the selected position until manually switched again. Mounting: Standard 22 mm panel cut‑out for control devices. Housing Material: Durable black plastic. Contact Blocks: Not included — requires separate modular contact block(s) to provide electrical switching functionality. Mechanical Durability: High mechanical life for frequent use. Environmental & Protection Operating Temperature Range: Approx. –25 °C to +70 °C. Storage Temperature Range: Approx. –40 °C to +85 °C. Front Protection Rating: Designed for dust and splash resistance when installed (e.g., front panel up to high IP rating). Terminal Protection: Basic protection at terminals with appropriate enclosure installation. Physical Dimensions Width: ~48 mm (operator body). Height: ~30 mm. Depth: ~55 mm. Weight: Approx. 0.024 kg. Typical Applications Mode selection in control panels (e.g., On/Off, Auto/Manual). Operator interfaces for industrial automation equipment. Human‑machine interface (HMI) logic selection in PLC and relay systems. Situations requiring a simple maintained two‑position control with modular construction.

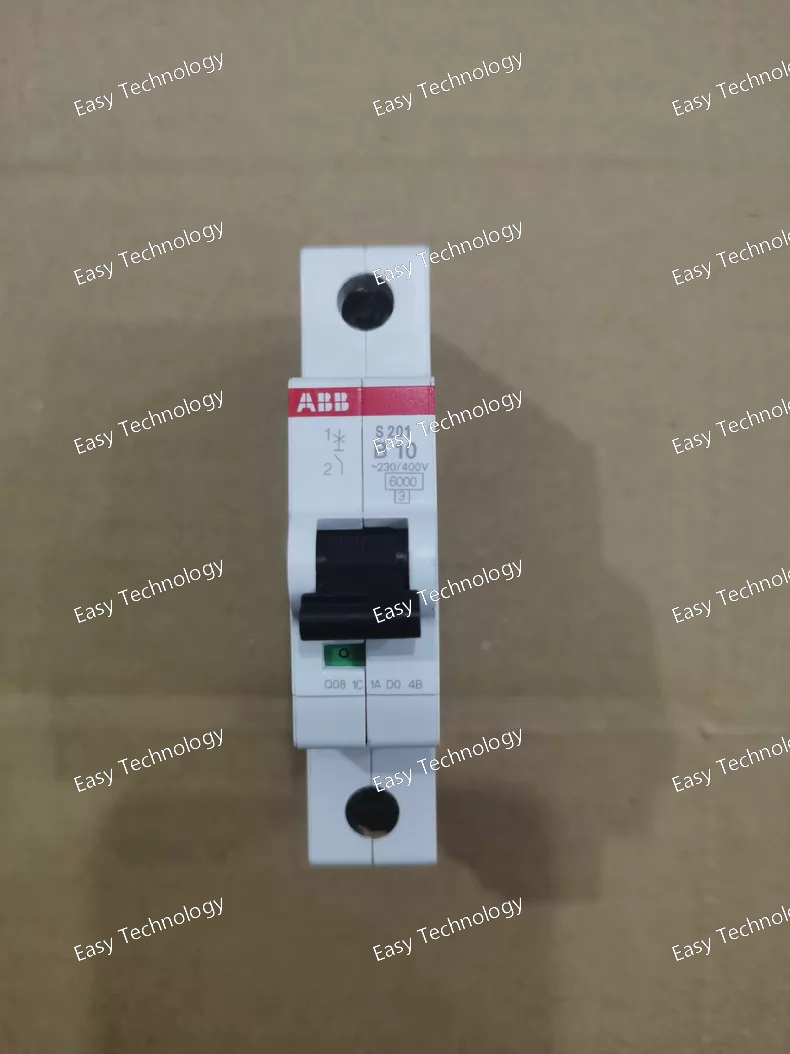

Key Features Type: Single‑pole miniature circuit breaker (MCB). Trip Curve: B‑characteristic — trips quickly on overcurrents, suitable for protection of lighting, power outlets, and general circuits. Installation: DIN‑rail mounted design for compact control panels and distribution boards. Compact Size: Slim 17.5 mm width (1 modular unit) for space‑efficient installation. Toggle Actuator: Manual ON/OFF switching with clear position indication (ON/OFF marking). Safety: Finger‑safe or touch‑protected terminals when installed in enclosure. Electrical Ratings Rated Current: 10 A — designed to protect a circuit with a nominal load current up to 10 amps. Rated Operational Voltage: Suitable for 230/400 VAC control and distribution systems at 50 / 60 Hz. Control Voltage Range: Compatible across low AC/DC voltages into typical mains use (e.g., ~12 V up to 253 VAC). Tripping Mechanism: Thermal‑magnetic — provides overload protection (thermal) and short‑circuit protection (magnetic). Interrupting Capacity: Designed to interrupt faults up to several kiloamperes, providing reliable breaking performance in typical building circuits. Rated Insulation Voltage: Suited for standard low‑voltage system insulation requirements. Rated Impulse Withstand Voltage: Withstands standard electrical impulse levels used in low‑voltage protective device testing. Mechanical & Environmental Number of Poles: 1. Operating Temperature Range: Designed to operate reliably in typical panel environments (approx. –25 °C to +55 °C). Storage Temperature: Broader storage range for warehouse handling. Durability: Designed for a high number of electrical and mechanical cycles, supporting long service life. Physical & Installation Width: ~17.5 mm (1 module wide). Height: ~88 mm. Depth: ~69 mm. Mounting: DIN‑rail mounting (TH35 rail), accepted in control and distribution panels. Terminals: Screw terminals for solid and stranded conductors; suitable for common wiring sizes used in branch circuits. Typical Applications Circuit protection in residential distribution boards. Protection of lighting and small power circuits. Supplementary protection in control panels and industrial installations. General overload and short‑circuit protection for building wiring systems.

Technical Parameters Electrical Rated control supply voltage: 220 V DC Contact configuration: 4 changeover contacts (4 C/O — SPDT) Rated switching voltage: Up to 250 V AC Rated current per contact: Up to 6 A Operational current examples: AC circuits up to 6 A at ~230 V AC Control circuit switching at lower voltages Insulation: Designed for typical industrial control circuit voltages Contact indicator: Integrated LED shows coil energization Mechanical & Environmental Mounting: Pluggable into CR‑M series socket with snap‑on DIN‑rail installation (via socket) Test / manual actuation: Built‑in test button for manual contact actuation and locking Operating temperature range: –40 °C to +70 °C (approx.) Storage temperature range: –40 °C to +85 °C (approx.) Protection: Basic enclosure protection around the relay body (typically IP40 when plugged in/on socket) Physical Dimensions Width: Approx. 21.2 mm Height: Approx. 35.6 mm Depth: Approx. 27.5 mm Weight: ~0.033 kg Typical Applications Interface relay between control logic (e.g., PLC outputs) and field devices Switching and isolation of multiple circuits from a common control signal Industrial automation, machine control panels, and relay logic systems Applications requiring visual indication of relay status and easy manual testing

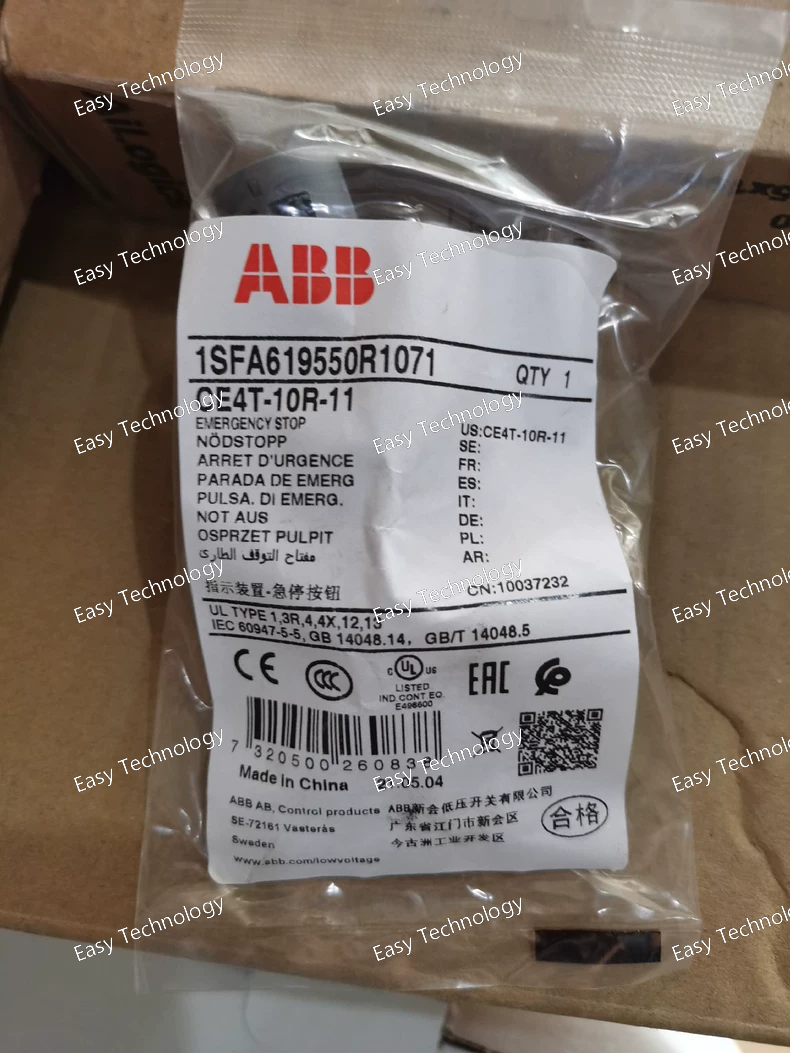

Key Features Emergency Stop Function: Designed to provide a reliable manual emergency stop input in control systems. Actuation: Large 40 mm red mushroom head for easy and quick activation. Release Mechanism: Twist‑to‑release — button stays engaged until released by twist. Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC) auxiliary contacts. Range: Part of ABB’s compact pilot device series — minimal installation footprint. Non‑Illuminated: No built‑in lighting — simple mechanical design. Terminals: Screw‑type terminals for secure wiring connection. Panel Mounting: Fits standard 22 mm panel cut‑out for control devices. Electrical Ratings Rated Operational Voltage: Suitable for a wide range of control voltages up to typical industrial values (e.g., 24 V to 300 V AC/DC). Current Rating: Designed to carry control circuit currents — up to around 10 A at 250 VAC/VDC in typical configurations. Contact Type: Combination of NO and NC contacts suitable for both signaling and circuit interruption in safety circuits. Mechanical & Environmental Operating Temperature: Approximately −25 °C to +70 °C. Storage Temperature: Approximately −40 °C to +85 °C. Mechanical Durability: Designed for high usability with a substantial number of mechanical cycles. Protection Ratings: Front Panel: High degree of protection against dust, water jets and high‑pressure wash (e.g., IP66 / IP67 / IP69K rated front). Terminals: Protection rating at terminals typically IP20.

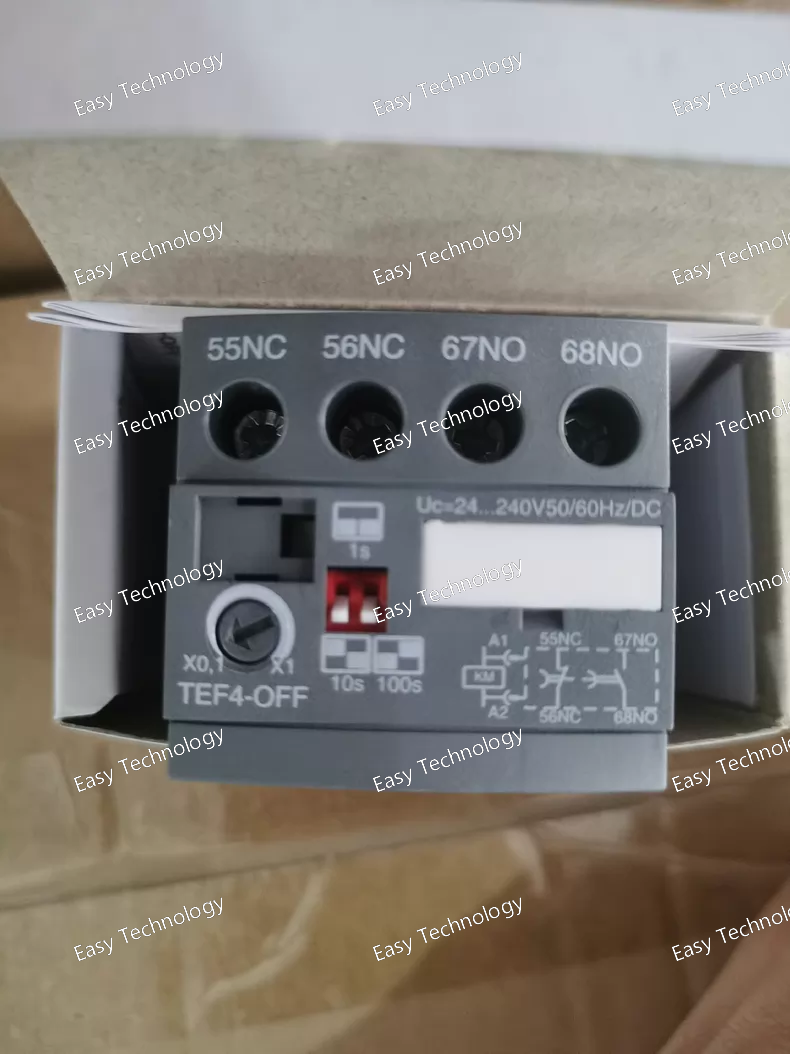

Technical Parameters Timing Operation Mode: OFF‑delay timing — delay occurs after control voltage is removed. Time Range: Adjustable delay typically from 0.1 seconds up to 100 seconds. Electrical Control Voltage: Operates on 24 to 240 V AC or DC control supply. Contact Configuration: Includes both a normally open (NO) and normally closed (NC) auxiliary contact. Rated Current (Approx): Suitable for control duty — typical ratings include multiple amperes at lower and higher voltages. Rated Operational Voltage: Designed for control circuit voltages up to the specified range. Connection Type: Screw terminal connections for secure wiring. Environmental & Mechanical Operating Temperature: Around –25 °C to +70 °C. Storage Temperature: Around –40 °C to +80 °C. Protection: Basic enclosure protection (typically IP20) at auxiliary terminals; front panel parts are protected when installed. Mounting: Direct front connection to compatible contactor or relay without additional wiring. Physical Dimensions Relatively compact form factor suitable for modern control cabinets, with typical dimensions around 43 mm (W) × 67.7 mm (D) × 41.6 mm (H). Typical Applications Delayed OFF functions in motor control and automation systems. Timing interlocks for safety or sequencing in industrial cabinets. Front‑mounted timing solutions for contactor control without standalone timers. Ideal wherever controlled shut‑off delays are needed after power removal.

Technical Parameters Electrical Ratings Rated operational voltage: Up to 300 V AC/DC. Contacts: 2 normally open + 1 normally closed (2NO + 1NC). Current ratings: Typical control circuit currents suitable (e.g., 1 A @ ~230 VAC, smaller DC currents). Rated insulation voltage: Typical low‑voltage switch class. Rated impulse withstand voltage: Designed to IEC/EN low‑voltage standards. Mechanical & Environmental Handle type: Short rotary handle. Number of positions: 3 maintained positions. Mechanical durability: Designed for many operational cycles. Operating temperature: Approx. –25 °C to +70 °C. Storage temperature: Approx. –40 °C to +85 °C. Degree of front protection: High dust and water resistance when properly installed (front up to IP66/IP67/IP69K). Terminal protection: Basic IP20 at terminals when installed. Physical & Installation Panel cut‑out: Standard 22 mm industrial mount. Mounting: Snap‑on panel installation for quick assembly. Bezel material: Chrome metal with black handle. Terminal type: Screw terminals. Typical Applications Mode selectors (e.g., Off/Auto/Manual) in industrial control cabinets. Operator interfaces for machines, conveyors, and equipment. Multi‑position control inputs for PLCs and relay systems. General purpose selector for control logic panels.
