Technical Parameters Physical Width: 4.6 mm Length: 190 mm Bundle Capacity: Suitable for bundling cables from approximately 3.0 mm up to ~46 mm in diameter. Minimum Tensile Strength: Suitable for general electrical harnessing and panel routing. Environmental Operating Temperature: Typically works in a wide ambient range suitable for industrial environments. Storage Temperature: Stable under standard storage conditions. Flammability: Meets standard nylon flammability characteristics. Mechanical Locking: Integrated self‑locking mechanism — no additional hardware required. Bending / Flexibility: Nylon construction offers a balance of flexibility and strength for panel routing and strain relief. Typical Applications Cable harnessing in control panels, distribution boards, and electrical enclosures. Routing and bundling of signal, power, and control cables in industrial installations. Securing cable bundles in machinery, automation equipment, and wiring troughs. General purpose wire management in commercial and residential projects.

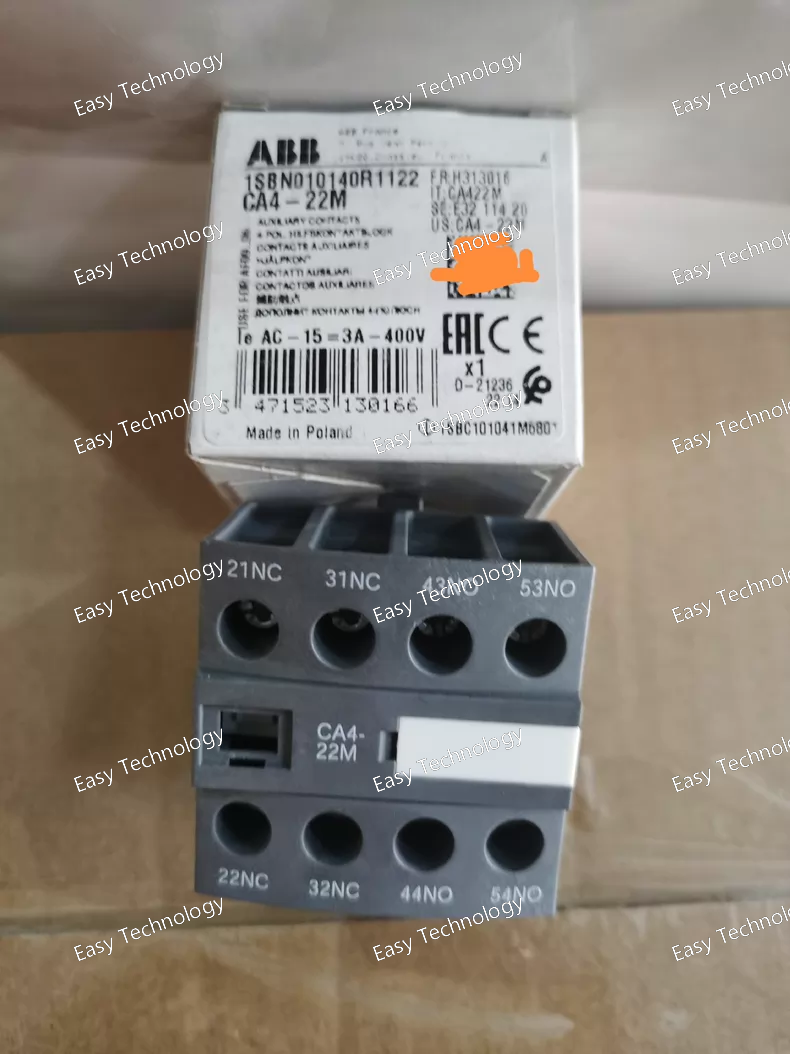

Key Features Provides four auxiliary contacts in a compact block — 2 normally open (2 NO) and 2 normally closed (2 NC) configurations. Front‑mount design allows simple installation on compatible contactors without additional hardware. Screw‑type terminals for secure and reliable field wiring. Suitable for use with a range of ABB contactors, enabling expanded control and monitoring functions. Compact and modular, ideal for dense control panel installations. Electrical Ratings Contact Configuration: 2 NO + 2 NC auxiliary contacts. Rated Operational Voltage (Auxiliary): Up to approximately 690 V AC in auxiliary circuits. Rated Operational Current: Up to 6 A at lower AC voltages (e.g., 24–127 V AC). Around 2 A at higher AC voltages (e.g., ~500–690 V AC). Suitable for AC and DC control circuits within common industrial ranges. Typical switching categories: Support for control duty (AC‑15 / DC‑13) loads with appropriate current ratings. Mechanical & Environmental Mounting Style: Front‑mounted onto compatible contactors (e.g., AF09…AF16 range). Terminals: Screw clamp terminals for secure conductor connection. Durability: Designed for frequent make/break operations in industrial control applications. Protection: Touch‑protected terminals (equivalent to IP20) when installed in an enclosure. Physical & Installation Number of Poles: 4 auxiliary poles with independent contacts. Compact Size: Space‑efficient footprint for dense panel layouts. Designed to integrate seamlessly with matched contactor series for combined main and auxiliary switching. Typical Applications Feedback circuits for motor starters and contactor status indication. PLC/relay input expansion where additional auxiliary contacts are needed. Interlocking and safety logic in control panels. Monitoring and control signaling alongside primary switching devices.

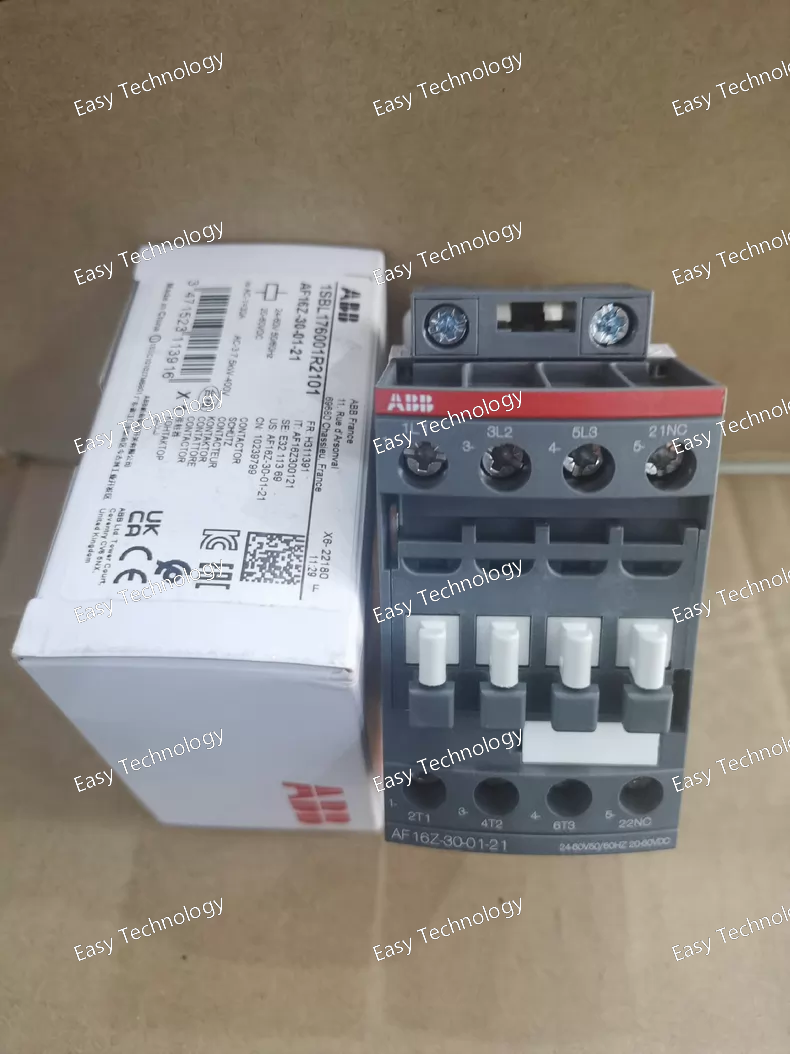

Key Features Contactor Type: Three‑pole contactor for switching and control of power circuits. Control Voltage Range: Operates on a wide coil voltage range suitable for both AC and DC control inputs. Low Coil Consumption: Designed for reduced power usage in the control circuit. Built‑in Surge Protection: Improves durability and helps protect the coil from electrical transients. Modular Design: Can be expanded with auxiliary and accessory blocks on the front or sides as needed. Compact Footprint: Space‑efficient design for control panels and motor starters. Electrical Ratings Main Contact Configuration: 3 normally open (3NO) main poles. Auxiliary Contact: 1 normally closed (1NC) auxiliary contact built in. Rated Operational Voltage (Main Circuit): Up to 690 V AC (IEC) or 600 V AC (UL). Rated Continuous Current: Up to 30 A in AC‑1 applications. AC‑3 Motor Load Capability: Suitable for typical motor control duties with lower current at higher voltages. Control Coil Voltage Range: Operates from approximately 24 V to 60 V AC (50/60 Hz) or 20 V to 60 V DC — accepts wide control voltage fluctuations without coil changes. Horsepower Ratings: Rated for typical motor loads across voltage ranges (e.g., multiple horsepower levels depending on supply voltage). Mechanical & Environmental Number of Poles: 3 main poles. Mechanical Endurance: Designed for a high number of operations suitable for frequent switching. Operating Temperature Range: Suitable for standard industrial ambient conditions (~‑40 °C to +70 °C or similar). Protection Rating: Basic enclosure protection (e.g., IP20) at terminals when installed in an enclosure. Physical & Installation Mounting: Designed for panel or DIN‑rail mounting using appropriate sockets or accessories. Terminal Type: Screw‑type terminals for secure wiring of main, auxiliary, and control circuits. Dimensions (Approximate): Compact profile with modest width, depth, and height for space‑efficient panel layout. Weight: Lightweight for easy handling and installation. Typical Applications Motor control: Switching three‑phase motors in industrial systems. Power circuits: Controlling contactor loads in machinery, pumps, compressors, HVAC, and general power switching. Automation systems: Interface between control logic (PLC outputs, switches) and heavy loads. Control panels: Main or auxiliary switching device in panels requiring reliable contact operations.

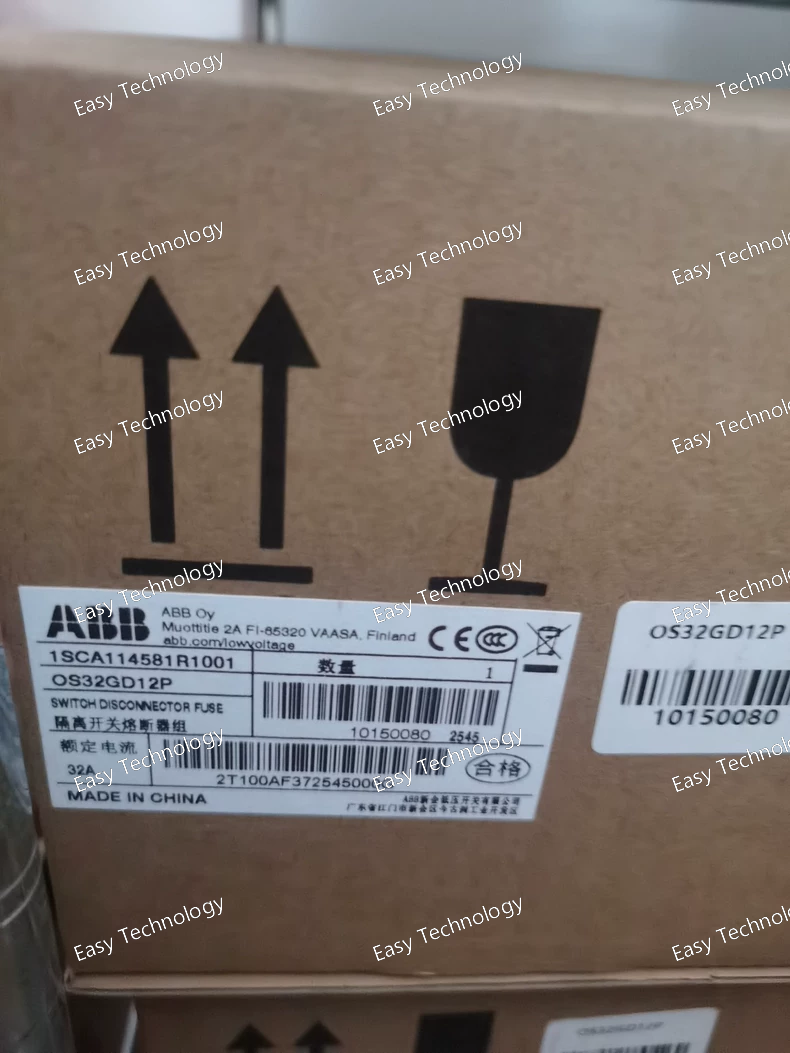

Key Features Switch‑Fuse Disconnect: Combines manual switching and fuse protection in one device for simplified panel design. 3‑Pole Unit: Designed to isolate three‑phase circuits or three separate conductors simultaneously. Front Operation: Handle and shaft allow operation from the front of the panel. Adjustable Shaft: Handle shaft length can accommodate different panel depths. Padlockable OFF Position: Handle can be locked in the OFF position for safety lockout/tagout procedures. Door Interlock Capability: Prevents opening the enclosure door when the switch is ON for added safety. DIN Mountable: Compact size suitable for panel mounting with standard hole patterns. Electrical Ratings Rated Operational Current: 32 A continuous current capacity for main circuits. Rated Operational Voltage: Up to 690 V AC in low‑voltage distribution systems. Rated Operational Current Categories: AC‑21A (general switching) AC‑22A (switching mixed resistive and inductive loads) AC‑23A (motor load switching) — all rated at 32 A for a range of voltages. Rated Operational Power (AC‑23): ~7.5 kW at 220–240 V ~15 kW at 400–415 V ~18.5 kW at 500 V ~22 kW at 690 V. Short‑Circuit & Withstand Rated Short‑Time Withstand Current: approx. 2.5 kA RMS for 1 second. Rated Conditional Short‑Circuit Current: up to ~80 kA (conditional). Rated Insulation Voltage: ~1000 V. Rated Impulse Withstand Voltage: ~12 kV. Mechanical & Installation Number of Poles: 3. Fuse Type: Designed to accept NH000‑series fuse inserts. Operating Mechanism: Manual front‑mounted rotary handle. Terminal Connections: Screw‑type terminals accommodating cable sizes from approximately 2.5 mm² up to 25 mm². Tightening Torque: Specified torque values suitable for secure conductor connections. Environmental & Protection Pollution Degree: 3 (industrial environment). Protection at Terminals: Basic touch protection when installed in an enclosure (IP20). Handle Ingress Protection: Handle may provide higher IP protection (e.g., IP65) on the front panel if correctly installed. Physical Dimensions & Weight Approximate Width: ~112 mm Approximate Height: ~125 mm Approximate Depth: ~121 mm Weight: ~1.18 kg This size makes it suitable for robust panel integration without excessive space demand. Typical Applications Manual isolation and overload protection in industrial electrical panels. Three‑phase power distribution break and fuse assembly. Safety disconnect for machinery and equipment where fuse protection and manual disconnect are needed. Integration into motor control centers (MCC), switchboards, and distribution boards.

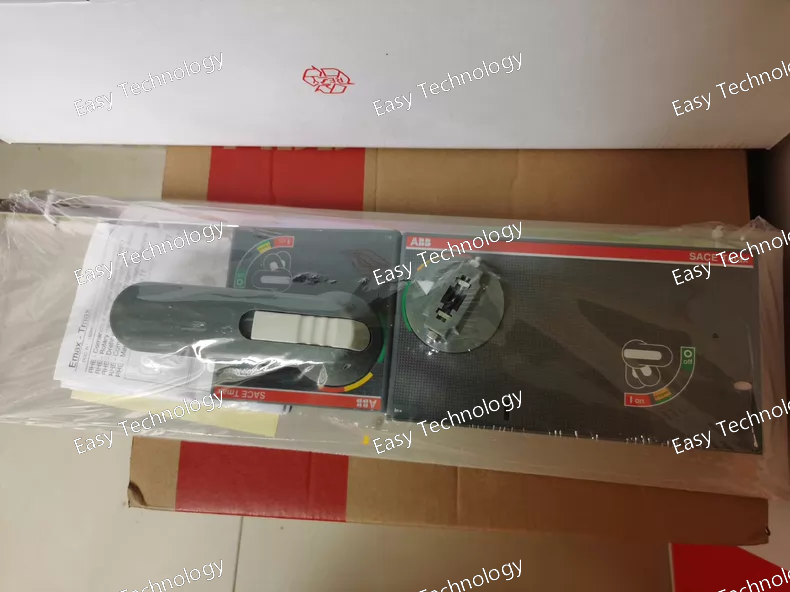

Key Features Rotary Handle Mechanism: Provides manual ON/OFF operation of the connected circuit breaker. Adjustable Depth: Long operator shaft (~500 mm) accommodates panels or enclosures of varying thickness. Padlock Capability: Supports padlocking in the OFF position for safety lockout/tagout procedures. Door Interlock: Prevents door opening when the breaker is in the ON position, enhancing safety. Designed For: Fixed‑withdrawable T7 series moulded case circuit breakers. Mechanical & Installation Operating Method: Rotary handle turns the breaker’s internal mechanism via a shaft connection. Mounting Type: Front‑mounted to panel or enclosure cut‑out with adjustable depth shaft to reach the breaker. Shaft Length: Approximately 500 mm adjustable. Handle Style: Ergonomic rotary knob designed for clear manual control. Compatibility: Intended for use with ABB T7 fixed‑withdrawable MCCBs. Environmental & Safety Padlock Device: Allows up to multiple padlocks to secure the switch in OFF condition. Door Interlock Feature: Enhances safety by mechanically preventing door opening when the breaker is ON. Robust Design: Suitable for industrial panel environments. Physical & Dimensions Adjustable Shaft Length: ~500 mm Weight: Moderate, suitable for panel mounting. Finish: Durable finish for industrial use. Typical Applications Manual operation of T7 series moulded case circuit breakers. Safety isolation points in control and distribution panels. Maintenance lockout/tagout procedures, using padlock facility. Industrial control panels requiring external breaker handle actuation.

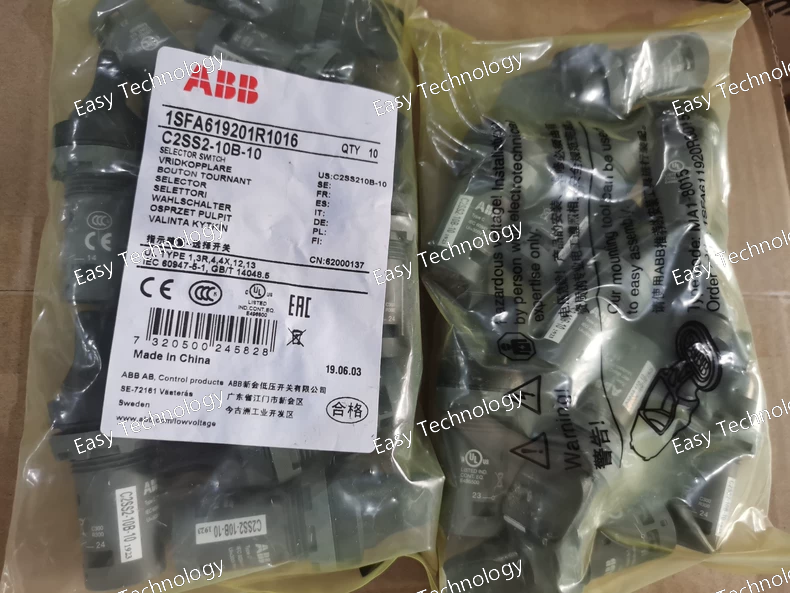

Key Features Selector Type: 2‑position maintained selector switch. Actuator: Short black handle/knob for manual operation. Illumination: Non‑illuminated design (no lamp or LED). Color & Housing: Black plastic bezel and body for durability and panel integration. Contact Configuration: 1 normally open (1 NO) contact. Positions: Maintained at both fixed positions (A and C). Panel Mounting: Designed for a 22 mm panel cut‑out in standard control panels. Electrical Ratings Rated Operational Voltage: Suitable for typical control voltages (AC/DC). Contact Ratings: Approximately 1.5 A at lower AC control voltages (e.g., 24 V to 127 V AC). Approximately 1 A at higher AC voltages (e.g., 220–240 V AC). Lower current capability for DC control circuits. Switching Function: Maintained switching of the controlled circuit — stays in the selected position until manually changed. Mechanical & Environmental Actuator Movement: Fixed positions with maintained action — no spring return. Mechanical Durability: Designed for a substantial number of actuation cycles. Operating Temperature Range: Suitable for typical industrial ambient environments. Storage Temperature Range: Broad range for transport and storage. Protection Rating: Front Protection: Designed for panel mounting with resistance to dust and water in control panels. Terminal Protection: Basic touch protection at terminals when enclosed. Physical & Installation Mounting Size: Standard 22 mm diameter panel cut‑out. Dimensions: Compact form factor ideal for control panel integration. Terminals: Screw‑type terminal connections for reliable wiring. Typical Applications Mode selection (e.g., On/Off, Auto/Manual) in control panels. Control logic inputs for PLCs, contactors, and relay systems. Operator interfaces where simple maintained position selection is required. Industrial automation and machine controls that need a compact, maintained selector switch.

Key Features Type: Illuminated modular lamp block with integrated LED. Color: Green illumination — ideal for status indication. Mounting Style: Front‑mount for pilot device panels. Compatibility: Designed to be used with modular pilot devices such as pushbuttons, selectors, indicators, and joystick series. Indicator: Bright LED for reliable visual feedback. Electrical Ratings Rated Operational Voltage: 24 V AC/DC control supply. Current Consumption: Approximately 9–10 mA at rated voltage (characteristic of the integrated LED). LED Type: Integrated LED — no separate lamp needed. Mechanical & Environmental Housing and Terminals: Screw clamp terminals for secure wiring connections. Operating Temperature Range: Designed for industrial ambient conditions. Storage Temperature Range: Suitable for typical control panel storage conditions. Protection: Touch‑protected terminals when installed in an enclosure. Physical Dimensions Width: ~44 mm Height (front): ~10 mm Depth: ~35 mm Weight: Lightweight module suitable for compact panel designs. Typical Applications Visual status indicator in industrial control panels. Signal indication for machine automation systems. Feedback light for pushbuttons, selector switches, and other pilot devices. Human‑machine interface (HMI) panels requiring clear visual signals.

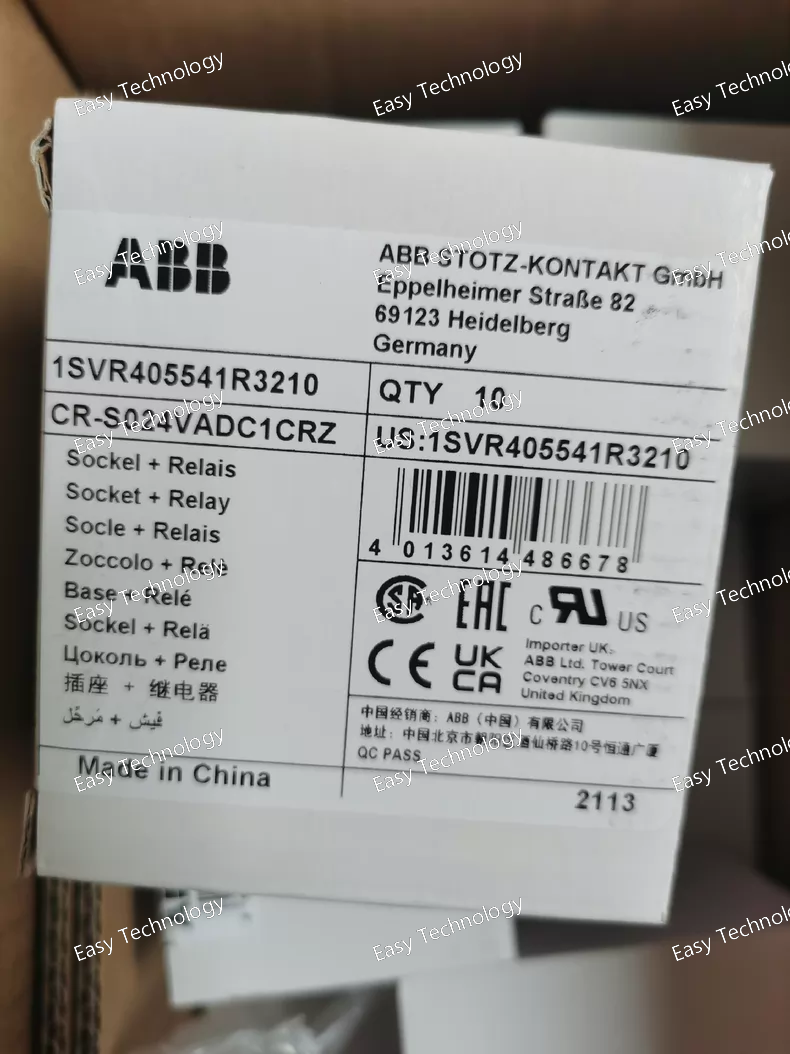

Key Features Single‑pole changeover output (SPDT) for versatile switching functions. Compatible with 24 V AC/DC control voltage for flexible control inputs. Compact design for DIN‑rail mounting in control panels. Spring terminals for secure and reliable electrical connections. Clear mechanical separation of control and load circuits for safety. Slim width saves space in automation cabinets. Electrical Ratings Rated Control Supply Voltage: 24 V AC or DC (control coil). Output Contact Configuration: 1 changeover (1 C/O / SPDT). Rated Output Voltage: Up to 250 V AC. Rated Current: 6 A at 250 V AC. Operational Current Categories: AC‑12: ~6 A at 230 V AC DC‑12: ~6 A at 24 V DC DC‑13: ~1 A at 24 V DC (for inductive loads). Electrical Isolation: Full isolation between control input and switched output. Mechanical & Installation Terminal Type: Spring‑loaded terminals for flexible and rigid conductors (up to ~2.5 mm² / 14 AWG). Mounting: DIN‑rail (TH35‑7.5) clip‑on installation for quick panel setup. Wire Stripping Length: ~7 mm. Tightening Torque: Approx. 0.5 N·m for terminal screws. Protection Rating at Terminals: IP20 touch protection when installed in enclosure. Environmental Operating Temperature Range: Approximately –40 °C to +70 °C ambient. Storage Temperature Range: Moderate storage range suitable for warehouse conditions. Designed for industrial environments where temperature and vibration vary within standard control panel ratings. Physical Dimensions Width: Approx. 6.2 mm — very slim module. Height: Approx. 76.6 mm. Depth (Length): Approx. 94.7 mm. Weight: Around 0.03 kg — lightweight and compact. Typical Applications Electrical isolation and amplification between control logic and field devices. Switching control signals to actuators, indicators, contactors, or other loads. Panel‑mounted automation systems where board space is limited. Control circuits requiring small footprint relays with reliable switching.

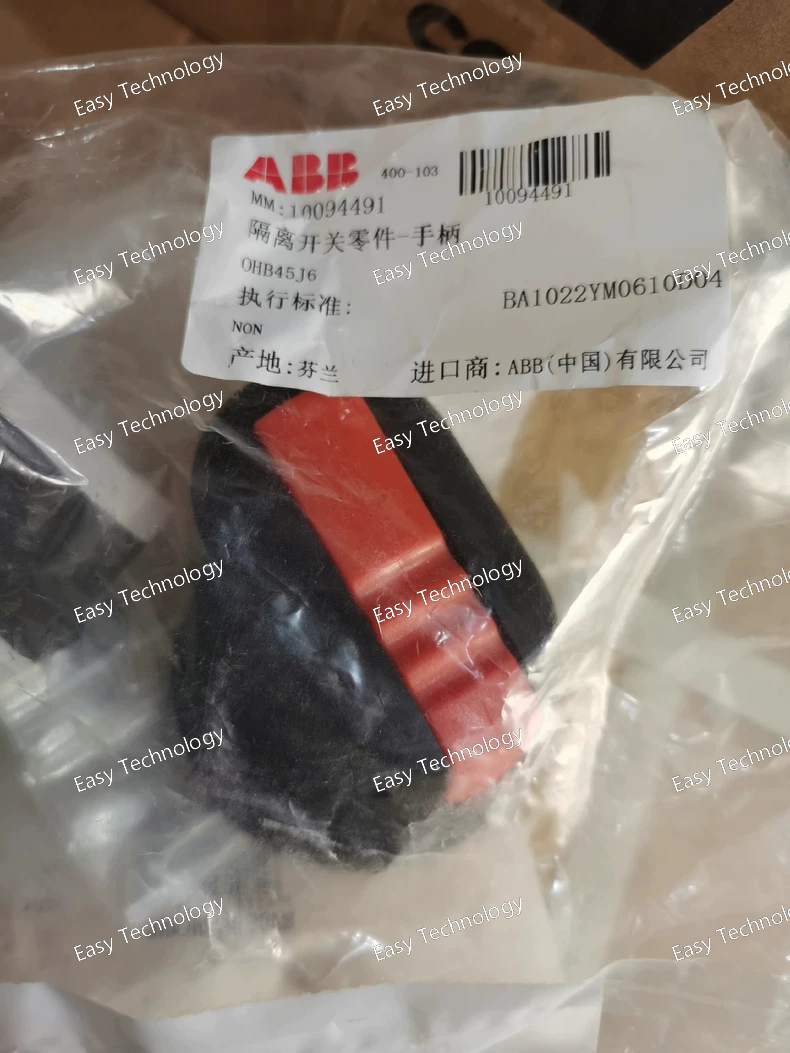

Technical Parameters Mechanical Shaft Fit: 6 mm square shaft interface. Handle Type: Pistol grip for easy manual operation. Length: 45 mm approximate handle length. Mounting Method: Back screw fixing — improves insulation and appearance. Environmental Protection Rating: Front and handle rated for IP65 (dust tight and protected against low‑pressure water jets). Enclosure Compatibility: Suitable for use in enclosures rated NEMA 1, 3R, and 12, offering protection against dust, rain, and splash conditions when properly installed. Safety & Locking Padlock Capability: Accepts up to three padlocks in the OFF position for safety lockout/tagout procedures. Door Interlock: Provides interlock with enclosure door when the switch is ON, enhancing safety in panel access control. Physical Color: Black. Finish: Durable industrial surface suitable for frequent use. Typical Applications Manual isolation of power circuits on disconnect switches and load‑break switches. Operator control for safety disconnects in industrial panels. Mechanically‑interlocked panel doors for maintenance safety. Retrofitting or upgrading handles on compatible ABB switchgear hardware.

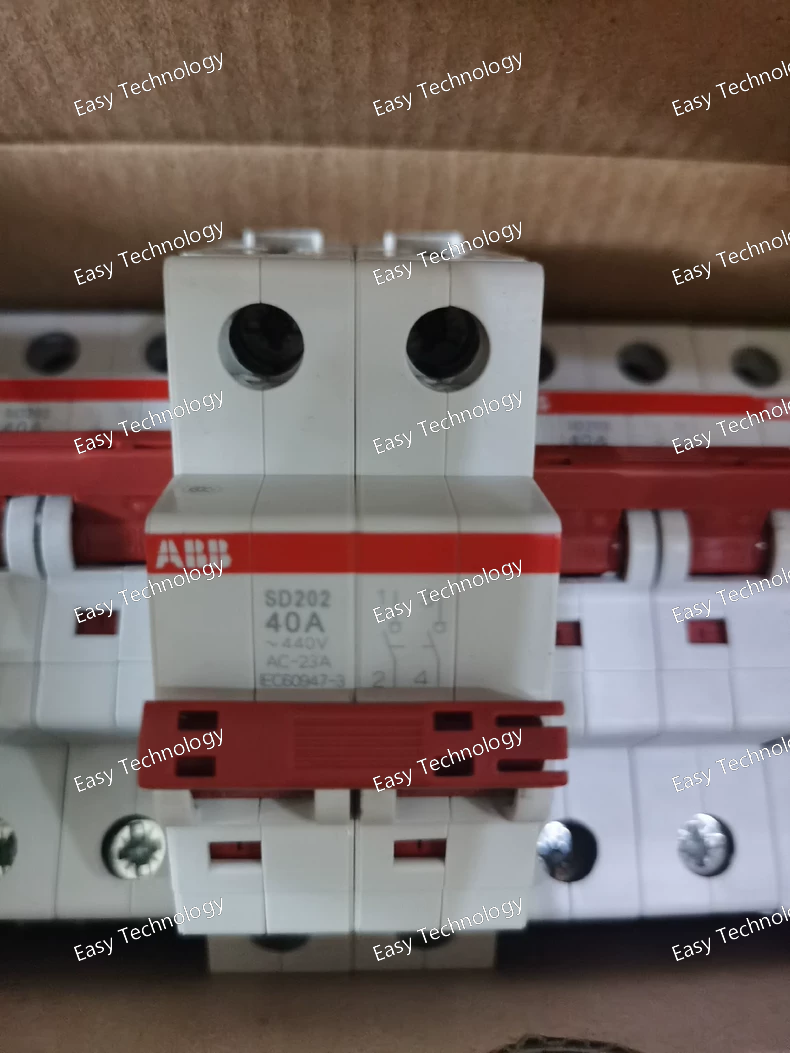

Key Features 2‑Pole Isolator: Disconnects both line and neutral (or two phases) in a circuit. Rated Current: 40 A, suitable for moderate load currents. Manual Operation: Simple toggle or handle for on/off isolation. Compact DIN‑rail Mounting: Designed for easy installation in standard control panels or distribution boards. Contact Position Indicator: Shows clearly whether the switch is ON or OFF. Modular Design: Compatible with System Pro M Compact series accessories and mounting systems. Electrical Ratings Rated Operational Current: 40 A continuous capacity. Rated Operational Voltage: Up to 440 V AC and 125 V DC typical for low‑voltage power distribution. Operational Frequency: Suitable for 50/60 Hz systems. Rated Impulse Withstand Voltage: Designed for several kilovolts protection against transient voltages. Provides safe isolation for load and control circuits within its voltage and current ratings. Mechanical & Durability Number of Poles: 2 (double‑pole) for full circuit isolation. Electrical Endurance: Built for repeated make/break operations. Mechanical Endurance: Designed for frequent use in control and distribution applications. Manual Actuation: Engaging handle toggles between ON and OFF. Environmental Operating Temperature Range: Suitable for typical industrial ambient temperatures. Storage Temperature Range: Broad range to withstand shipping and storage conditions. Protection Rating: IP20 when installed inside an enclosure, providing safe touch protection at terminals. Physical & Installation Mounting: DIN‑rail TH35 mountable for easy panel integration. Compact Size: Fits standard industrial panel layouts and uses minimal space. Screw Terminals: Secure, reliable connection for solid and stranded wiring. Color / Handle: Typically a colored handle (e.g., red/grey) for visual differentiation in panels. Typical Applications Main isolation switch in control panels and sub‑distribution boards. Safety disconnect for machinery and equipment during maintenance. Power circuit isolation in commercial and industrial electrical systems. Integration with modular distribution systems where compact, reliable switching is required.

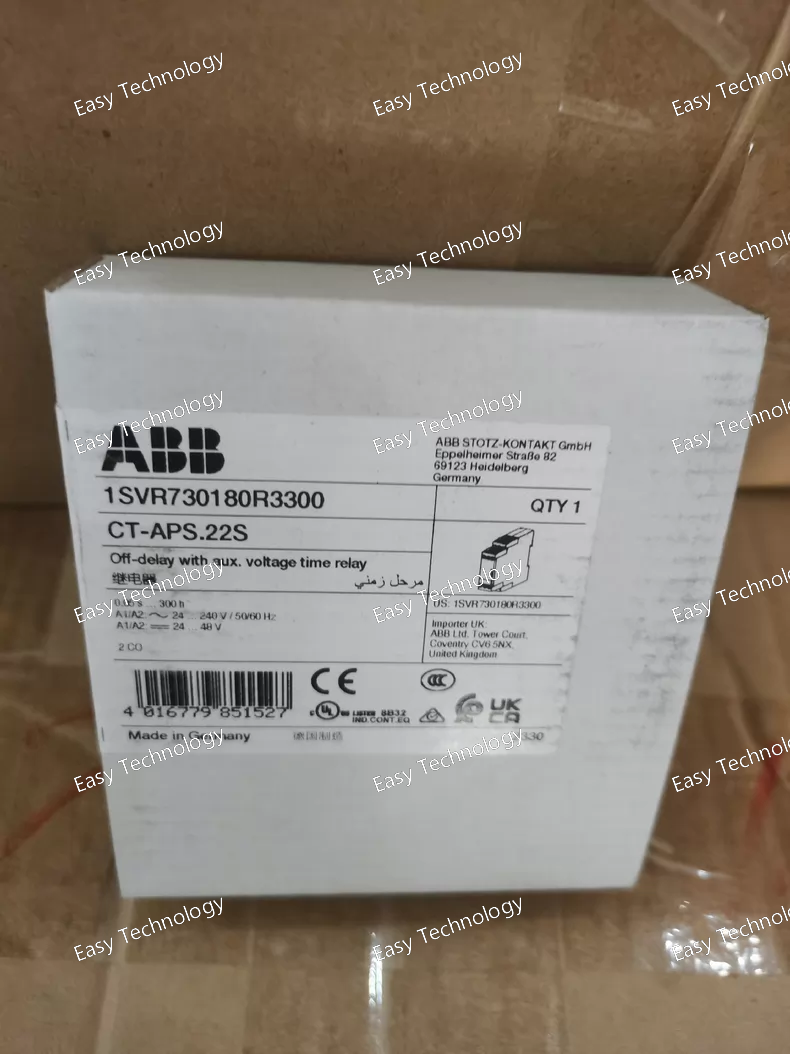

Key Features Timer Function: OFF‑delay (delay on break) — output remains energized for a set period after the control input is removed. Adjustable Time Ranges: Selectable timing from 0.05 seconds up to 300 hours, allowing flexible configuration for many applications. Output Contacts: Two changeover (SPDT) contacts — can switch two circuits or provide both NO and NC outputs. DIN‑Rail Mounting: Compact housing that clips onto standard TH35 DIN rails for easy panel installation. Status Indication: LED indicators show timing and output status. Screw Terminals: Secure screw‑type connections for reliable wiring. Electrical Ratings Control Supply Voltage: Wide range 24–48 V DC or 24–240 V AC, suitable for many control applications. Output Contacts Rating: Rated for up to 250 V AC switching. Typical current capacity around 3–4 A depending on AC/DC load. Contact Configuration: 2 SPDT (changeover) output contacts. Minimum Switching Capacity: Down to small signal levels (low‑voltage control). Mechanical & Environmental Mounting: Snap‑on DIN‑rail TH35 installation. Housing Width: Compact 22.5 mm, ideal for space‑efficient panels. Operating Temperature: Designed for typical industrial ambient temperatures. Storage Temperature: Broad range for shipping and storage conditions. Terminal Protection: Terminals protected within enclosure when mounted correctly. Physical Dimensions Width: Approx. 22.5 mm Height: Approx. 85–86 mm Depth: Approx. 103–104 mm Weight: Roughly 0.14 kg Typical Applications Control sequence timing in machines where delay after signal removal is needed. Safety or shutdown interlocks that require a controlled delay before de‑energizing circuits. Automation logic in panel boards, PLC interfaces, and relay logic systems.

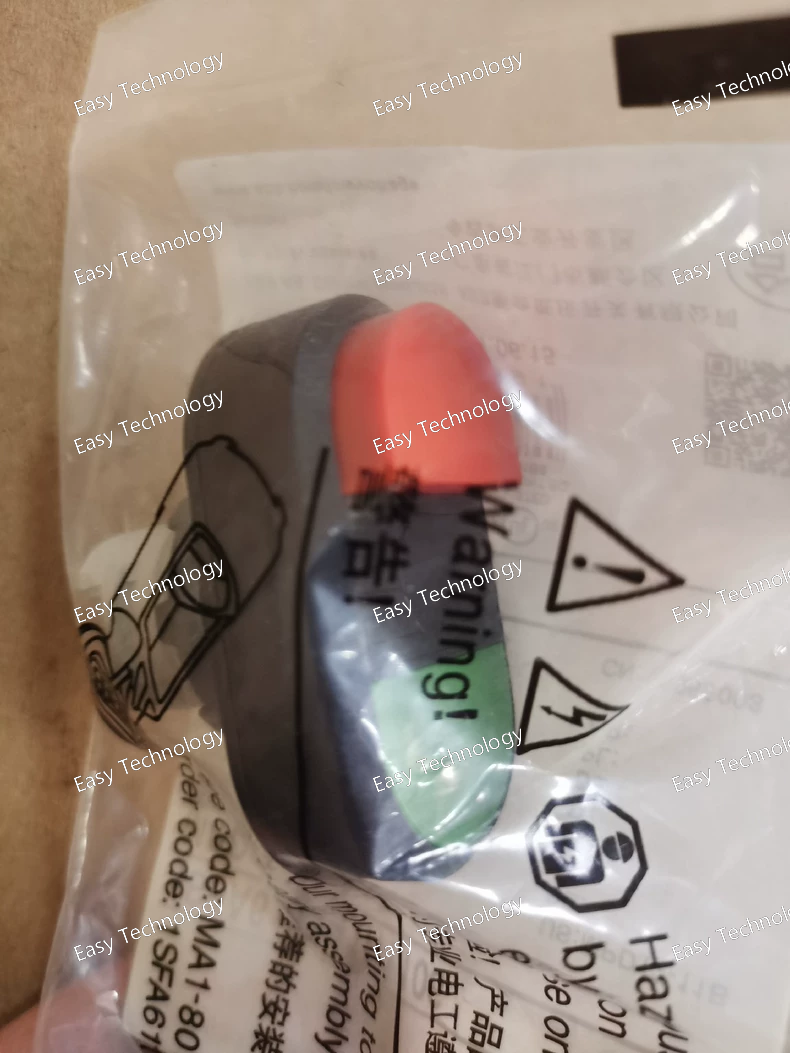

Technical Parameters Mechanical Operator Type: Momentary double pushbutton. Actuator Style: Flush with extended lower portion for ease of use. Contacts Required: Contact blocks not included — must be added separately. Mounting Size: Typically fits a 22 mm panel cut‑out. Mechanical Durability: High cycle life suitable for frequent use. Actuator Colors: Green for the upper button and red for the lower button. Environmental Operating Temperature Range: Approximately –25 °C to +70 °C. Storage Temperature Range: Approximately –40 °C to +85 °C. Front Protection: High level of dust and water resistance when correctly mounted. Terminal Protection: Basic protection at terminals when enclosed. Physical Width: Approx. 54 mm. Height: Approx. 30 mm. Depth: Approx. 43 mm. Weight: Approx. 0.025 kg. Typical Applications Control panel Human‑Machine Interface (HMI) panels. Start/Stop or dual‑function inputs in industrial automation systems. PLC or relay logic control circuits requiring two discrete momentary inputs. Modular pilot device installations where control logic flexibility is needed.
