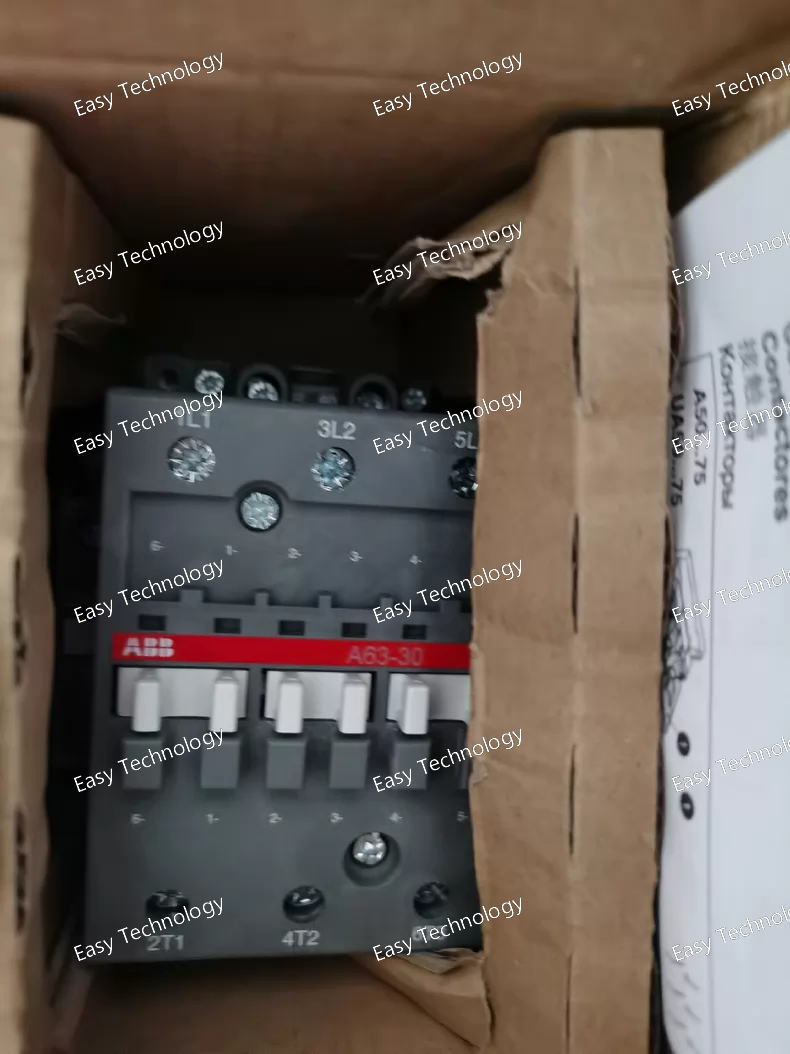

Technical Parameters Parameter Specification Series ABB A-Series (AF Series) Contactor Product Type 3-Pole Electromagnetic Contactor Typical Order Code A63-30-11 (AC220V is often specified separately or implied by -30-) Number of Main Poles 3-Pole (3P) Rated Operational Current (Ie) At AC-3 (Motor Switching): 63 A (at 400V AC) At AC-1 (Resistive): ~ 100 A Rated Thermal Current (Ith) 63 A Rated Operational Power (AC-3) 30 kW (40 HP) at 400V AC Control Coil Voltage 220V AC, 50/60 Hz Power Consumption Pick-up (Inrush): ~ 70 VA Holding (Sealed): ~ 8 VA Auxiliary Contacts (Standard) 1 NO + 1 NC (Changeover configuration). Rated: Typically 600V AC, 10A. Mechanical Life 10 - 30 million operations. Electrical Life At AC-3: 1 - 3 million operations. At AC-1: Up to 10 million operations. Mounting Snap-on mounting on 35mm DIN Rail or screw mounting. Connection Main Terminals: Screw/clamp terminals for 1-50 mm² cables. Coil/Auxiliary Terminals: Screw terminals. Standards Compliance IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14. Ambient Temperature -25°C to +60°C (Operation, with derating above 55°C) Protection Degree (IP Rating) IP00 (component), requires an enclosure for IP20 or higher.

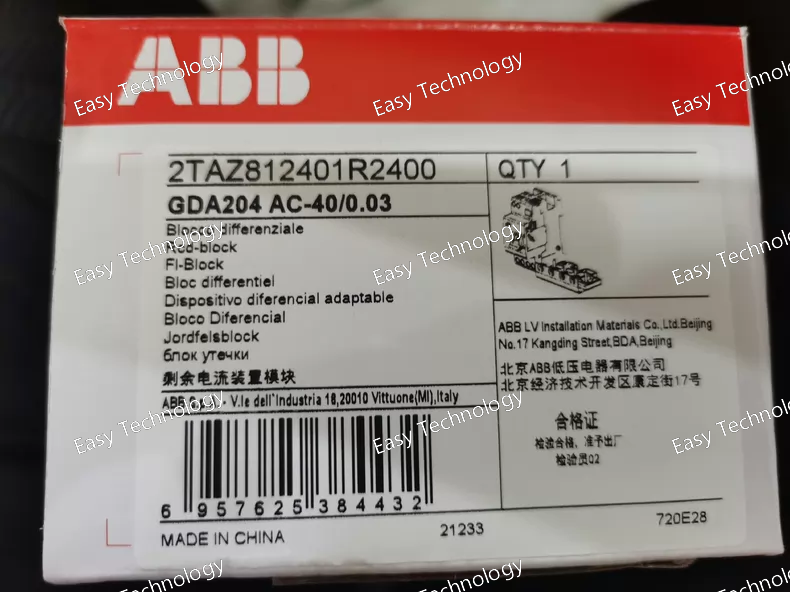

Technical Parameters Parameter Specification Series ABB GDA Series (Modular RCDs for DBs) Product Type 4-Pole (3P+N) Residual Current Device (RCD) Module, Type AC Full Order Code GDA204 AC-40/0.03 Number of Poles 4-Pole (3P + N) Rated Current (In) 40 A (This is the maximum continuous current it can carry. It does not provide overcurrent protection). Rated Residual Operating Current (IΔn) 30 mA (0.03 A) Residual Current Type Type AC (for sinusoidal alternating residual currents) Rated Operational Voltage (Ue) 400V AC (3P+N) Rated Insulation Voltage (Ui) 500V AC Rated Short-Circuit Withstand Capacity Typically 10 kA (IEC/EN 61008) – its ability to withstand a fault current without damage when protected by an upstream device. Trip Time at IΔn ≤ 0.3 seconds Trip Time at 5x IΔn (150 mA) ≤ 0.04 seconds Utilization Category AC (for AC circuits only) Mounting DIN Rail (35mm) mounting. Designed for integration into distribution boards with integrated neutral busbar. Connection Phase Terminals: Screw terminals for connecting the three phase conductors. Neutral Connection: Typically via an integrated neutral busbar clamp that grips the main neutral busbar running through the panel. Module Width 4 modules (72mm) or wider, depending on design. Test Button Yes (usually yellow), for periodic functional testing. Mechanical Indicating Handle Shows ON/OFF/I (tripped) status. Standards Compliance IEC/EN 61008-1 (Primary standard for RCCBs without integral overcurrent protection) Ambient Temperature -25°C to +60°C (Operation)

Technical Parameters Parameter Specification Series / Product Type ABB CP1 Series / Single-Output DIN-Rail Switching Power Supply Order Code CP1-30W-10 Input Voltage (AC) 85 - 264 V AC (Wide Range, 47-63 Hz) Input Current Approx. 0.7 A at 115V AC; 0.35 A at 230V AC Output Single Output Output Voltage 24 V DC Rated Output Power 30 W Rated Output Current 1.25 A (at 24V) Output Voltage Adjustment Typically ±10% (e.g., 21.6 - 26.4V) via potentiometer. Ripple & Noise Typically < 150 mVp-p Efficiency Typically > 85% Load Regulation Typically < ±1% Line Regulation Typically < ±1% Overload Protection Constant Current Limiting, Auto-Recovery. Short-Circuit Protection Yes, Hiccup mode, Auto-Recovery. Overvoltage Protection Yes (typically at 135-150% of Vo). Ambient Temperature -25°C to +70°C (Operation with derating above 60°C) Cooling Natural convection (fanless). Protection Class / IP Rating IP20 (for installation inside an enclosure). Mounting DIN Rail (35mm) mounting. Connection Screw Terminals for input (L, N, PE) and output (V+, V-, PE). Status Indicator Green LED for "Power On". Standards Compliance IEC/EN 61558-2-16, IEC/EN 60950-1, UL 508, CE marked. Mean Time Between Failures (MTBF) Typically > 300,000 hours (per MIL-HDBK-217F).

Technical Parameters Parameter Specification Series / Product Type ABB Emax 2 Series / Fixed-Mounting Air Circuit Breaker (ACB) Full Order Code A3N630 TMF500/5000 FF 3P Frame Size / Rated Current (In) E2 / 630 A (Rated continuous current) Number of Poles 3-Pole (3P) Trip Unit Electronic Trip Unit (ETU) - Micrologic F (TMF) Current Sensor (CT) Ratio 5000/500 A (Primary/Secondary) Protection Functions (FF) L-S-I-G • L - Long-time Overload Protection (adjustable Ir, tr) • S - Short-time Short-Circuit Protection (adjustable Isd, tsd) • I - Instantaneous Short-Circuit Protection (adjustable Ii) • G - Ground-Fault Protection (adjustable Ig, tg) Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Rated Ultimate Short-Circuit Breaking Capacity (Icu) Up to 85 kA at 415V AC (for E2 frame, exact value depends on certification). Rated Service Short-Circuit Breaking Capacity (Ics) Up to 100% of Icu (e.g., 85 kA). Mechanical Life 20,000 operations Electrical Life 5,000 operations at In Communication Capability The TMF unit typically has a built-in communication port (e.g., for connection to an Ekip Com module for communication protocols like Modbus). Mounting Fixed Mounting (for panel assembly). Connection Front and/or rear connection for busbars or cables. Standards Compliance IEC/EN 60947-1, IEC/EN 60947-2 Ambient Temperature -25°C to +70°C (Operation)

Technical Parameters Parameter Specification Series ABB CL / HomeLine / DS200 Series Product Type 2-Pole (1P+N) RCBO with Overcurrent & Residual Current Protection Order Code CL2-507R Number of Poles 2-Pole (1P+N) – Both phase and neutral are switched, but only the phase pole has overcurrent protection. Rated Current (In) 16 Amperes (The standard current rating associated with the "CL2-5" base model. Other ratings like 10A, 20A, etc., have different suffixes). Tripping Characteristic C-Curve Rated Residual Operating Current (IΔn) 30 mA (0.03 A) Residual Current Type Type AC (for sinusoidal alternating residual currents) Rated Short-Circuit Breaking Capacity (Icn) 10 kA (at 230/400V AC) Rated Operational Voltage (Ue) 230V AC (Single-Phase) Rated Insulation Voltage (Ui) 400V AC Trip Time at IΔn ≤ 0.3 seconds Trip Time at 5x IΔn (150 mA) ≤ 0.04 seconds Test Button Yes (typically yellow), for periodic testing of the RCD function. Mounting DIN Rail (35mm) mounting. Terminals Screw terminals suitable for solid and stranded conductors. Module Width 2 modules (36mm). Standards Compliance IEC/EN 61009-1 (Primary standard for RCBOs) Ambient Temperature -25°C to +60°C (Operation)

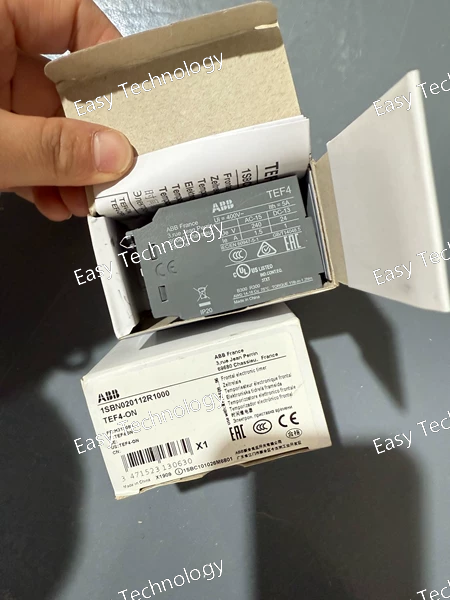

Technical Parameters Parameter Specification Series ABB TEF Series (Electronic RCCB) Product Type 4-Pole (3P+N) Electronic Residual Current Circuit Breaker Order Code (Base) TEF4-ON (Note: The complete order code includes the sensitivity rating, e.g., TEF4-ON/0.03 for 30mA). Number of Poles 4-Pole (3P + N) Rated Residual Operating Current (IΔn) Selectable: 0.03 A (30mA), 0.1 A (100mA), 0.3 A (300mA) (Specified in the full order code). Residual Current Type Likely Type AC (for sinusoidal AC residual currents) as standard. Other types (A, F) may be available in the series. Rated Current (In) Common frame sizes: 25A, 40A, 63A, 80A, 100A. (The "ON" may correlate with a specific current rating; the full code or label is needed). Rated Operational Voltage (Ue) 400V AC (3P+N) Rated Insulation Voltage (Ui) 500V AC Rated Short-Circuit Making & Breaking Capacity (Icm/Icn) Typically 6 kA or 10 kA (according to IEC/EN 61008/9). Trip Time at IΔn ≤ 0.3 seconds Trip Time at 5x IΔn ≤ 0.04 seconds Auxiliary Power Line-powered (electronic) – derives operating power from the monitored circuit. Test Button Yes, for periodic functional testing. Mounting DIN Rail (35mm) mounting. Terminals Screw terminals suitable for both solid and stranded conductors. Standards Compliance IEC/EN 61008-1 (Core standard for RCCBs) Ambient Temperature -25°C to +60°C (Operation)

Technical Parameters Parameter Specification Series ABB CAL Series (Thermal Overload Relay) Product Type Three-Phase Thermal Overload Relay with Phase Loss Sensitivity Order Code CAL5X-11 Rated Operational Current (Ithe) Adjustable Range: 0.10 - 18 A (The "5X" indicates this specific current range. Other CAL models cover different ranges). Trip Class Class 10 (Trips within 10 seconds at 720% of set current). Phase Loss Sensitivity Yes (Standard feature of the "-11" version). Ambient Temperature Compensation Yes, compensated for -20°C to +60°C. Auxiliary Contacts 1 NC (95-96) + 1 NO (97-98) Contact Rating: Typically 600V AC, 5A. Reset Mode Selectable (Auto/Manual) via a switch. Mounting DIN Rail (35mm) mounting. Can also be side-mounted to compatible contactors using an adapter (e.g., MA series adapter). Rated Insulation Voltage (Ui) 690V AC Rated Impulse Withstand Voltage (Uimp) 6 kV Control Supply Self-powered from the main motor current. No external supply required. Standards Compliance IEC/EN 60947-1, IEC/EN 60947-4-1 Electrical Durability ≥ 1000 operations at maximum setting current. Ambient Temperature (Operation) -25°C to +70°C (with compensation active within -20°C to +60°C) Test Button Yes, for simulating an overload condition and testing the trip mechanism.

Technical Parameters Parameter Specification Series / Product Type ABB PY1 Series Accessory / Remote Mounting Connection Base (Socket) Order Code CEPY1-0 Compatible Overload Relay Designed for ABB PY1 series thermal overload relays (e.g., PY1-16 to PY1-125, depending on variant). Rated Operational Current (Ith) Matches the compatible range of the PY1 relay it is designed for (e.g., up to 125A). Rated Insulation Voltage (Ui) 690V AC / 750V DC Rated Impulse Withstand Voltage (Uimp) 6 kV Main Circuit Terminals Screw terminals for connecting main power conductors (from contactor and to motor). Terminal size suitable for cables as per the relay's current rating. Auxiliary Contact Terminals Screw terminals (typically 95-96 for NC trip contact, 97-98 for NO signal contact). Used to connect to the contactor's control circuit. Mounting Snap-on mounting on 35mm DIN Rail. The PY1 relay then plugs or screws onto this base. Material Robust thermoplastic with metal current-carrying parts. Degree of Protection (IP Rating) IP20 (as a component, requires an enclosure for full protection). Ambient Temperature -25°C to +70°C (Operation) Standards Compliance As part of a motor starter assembly, it complies with relevant sections of IEC/EN 60947-1 and IEC/EN 60947-4-1.

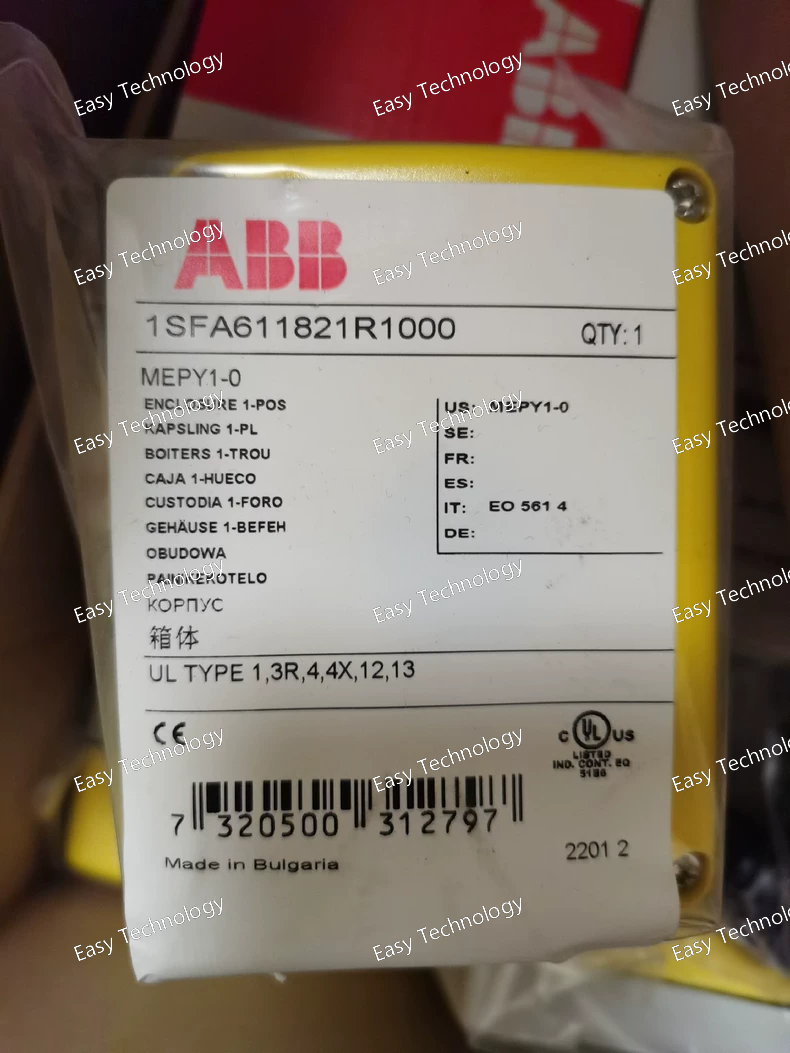

Technical Parameters Parameter Specification Series / Product Type ABB PY1 Series Accessory / Mounting Adapter Plate (Bracket) for Thermal Overload Relay Order Code MEPY1-0 Compatible Overload Relay Designed for ABB PY1 series thermal overload relays (e.g., PY1-...). Compatible Contactors Designed to mount the PY1 relay onto specific ABB contactor series and frame sizes. Commonly used with: - ABB A-series contactors (e.g., AF09Z to AF38Z) - ABB AX-series contactors (e.g., specific frame sizes) (Exact compatibility must be verified with the contactor and relay ratings.) Function Provides mechanical mounting and alignment. May also facilitate the automatic connection of the relay's trip contacts to the contactor's control circuit via integrated pins or a connector. Integrated Auxiliary Contacts No. The "-0" indicates this is the basic adapter plate. Other variants (e.g., MEPY1-1) may include additional built-in auxiliary contact blocks. Mounting Method The plate attaches to the side of the contactor using screws or clips. The PY1 relay then snaps or screws onto this adapter plate. Material Typically made of robust plastic or fiber-reinforced thermoplastic. Standards Compliance As a component of the motor starter assembly, it contributes to the overall compliance with IEC/EN 60947-4-1.

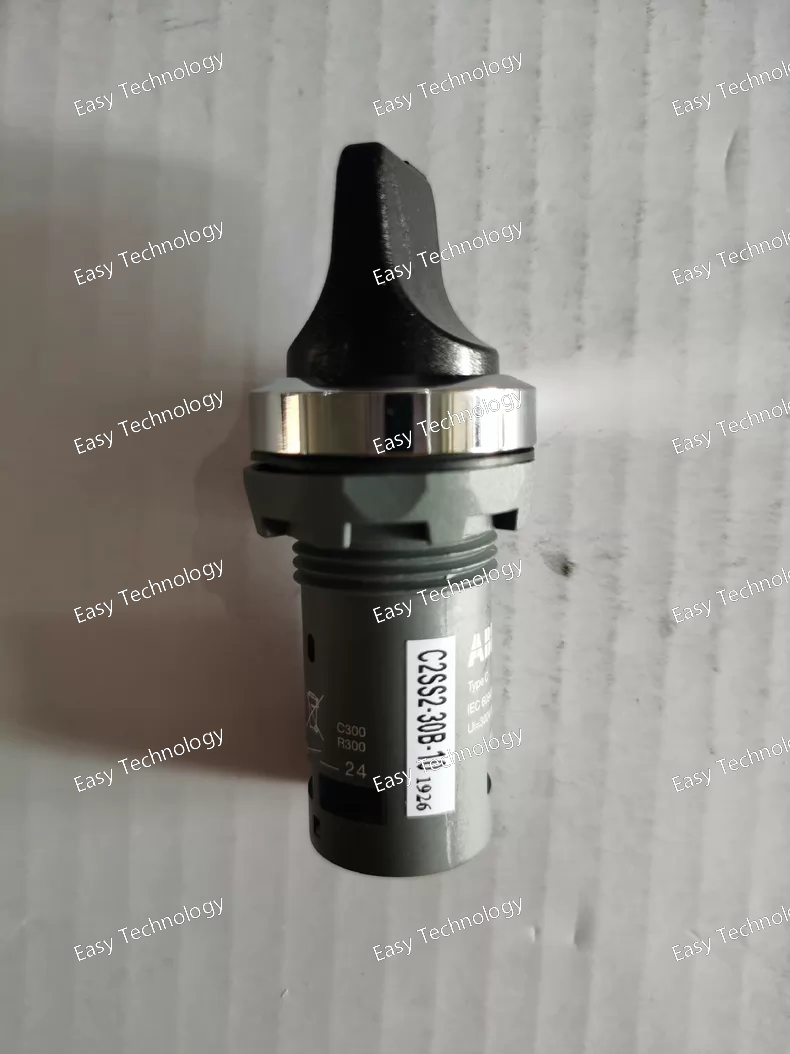

Technical Parameters Parameter Specification Series / Product Type ABB C2SS Series / Flush-Mounting Rotary Cam Switch (Section Switch) Order Code C2SS2-30B-10 Number of Poles 2-Pole (2P) Rated Operational Current (Ie) 30 A (Resistive load, AC-21A / AC-22A category) Contact Configuration (Code B) Specific arrangement must be confirmed from catalog. Common for 2P: Two contacts that are either both NO or one NO and one NC, switching simultaneously. Switching Positions Typically 2 positions (ON-OFF) (as indicated by the "-10" suffix code). Rated Operational Voltage (Ue) 690V AC (maximum) Rated Insulation Voltage (Ui) 690V AC Utilization Category AC-21A: Switching of resistive loads (including moderate overload). AC-22A: Switching of mixed resistive and inductive loads. AC-3: For motor switching, the current rating is significantly derated (e.g., 30A AC-21A might be 7.5 HP / 5.5 kW at 400V AC for AC-3). Motor Rating (AC-3) Approximately 7.5 kW / 10 HP at 400V AC, 3-phase (for a 2-pole switch used in a reversing or star-delta scheme, this is illustrative; exact value depends on configuration). Mechanical Life Typically 500,000 to 1,000,000 operations. Electrical Life At rated current (AC-21A): Typically 100,000 operations. Mounting Panel Flush Mounting via a mounting nut from the front. Requires a round panel cutout (specific diameter, e.g., 30mm). Shaft Square shaft for attaching handles. Degree of Protection (IP Rating) Front side (with handle): IP65 (Dust-tight, protected against water jets). Behind panel: IP00. Terminal Connection Screw terminals. Ambient Temperature -25°C to +70°C (Operation) Standards Compliance IEC/EN 60947-1, IEC/EN 60947-5-1

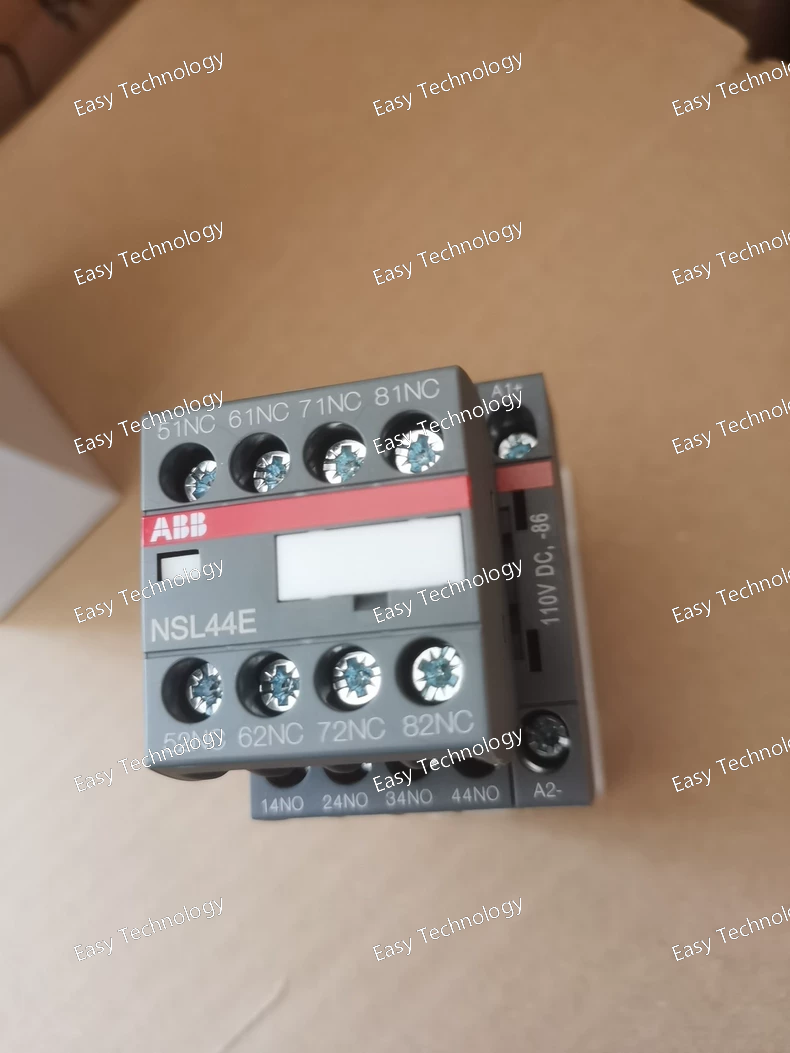

Technical Parameters Parameter Specification Series ABB NeoSignal Line (NSL) Product Type Single-Level, High-Intensity LED Signal Beacon (Narrow Beam) Order Code NSL44E-86 Color Specific color is defined separately. The "-86" refers to the lens type, not the color. The color is determined by the ordered lens/body (e.g., Red, Green, Yellow, Blue, White, Clear). Common order codes include NSL44E-86-R (Red), NSL44E-86-G (Green), etc. Light Source High-power, long-life LED Lens Type / Beam Angle Narrow Beam Lens, ~10° beam angle Luminous Intensity Very high (specific value in candela [cd] depends on color, e.g., Red: ~800 cd, Green: ~1200 cd - values are illustrative, check datasheet). Rated Voltage Universal 24-240V AC/DC (wide range, auto-sensing) Power Consumption Typically 2 - 4 Watts (LED) IP Rating (Protection Degree) IP65 (Dust-tight and protected against water jets from any direction) Housing Material Polycarbonate (PC) for high impact resistance. Mounting Threaded base (e.g., M32 x 1.5mm) for direct mounting. Compatible with NSL mounting adapters and stacking kits for multi-level towers. Connection Pre-wired cable (standard length e.g., 2 meters) or terminal compartment. Ambient Temperature -30°C to +55°C (Operation) Standards Compliance IEC/EN 60529 (IP), IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

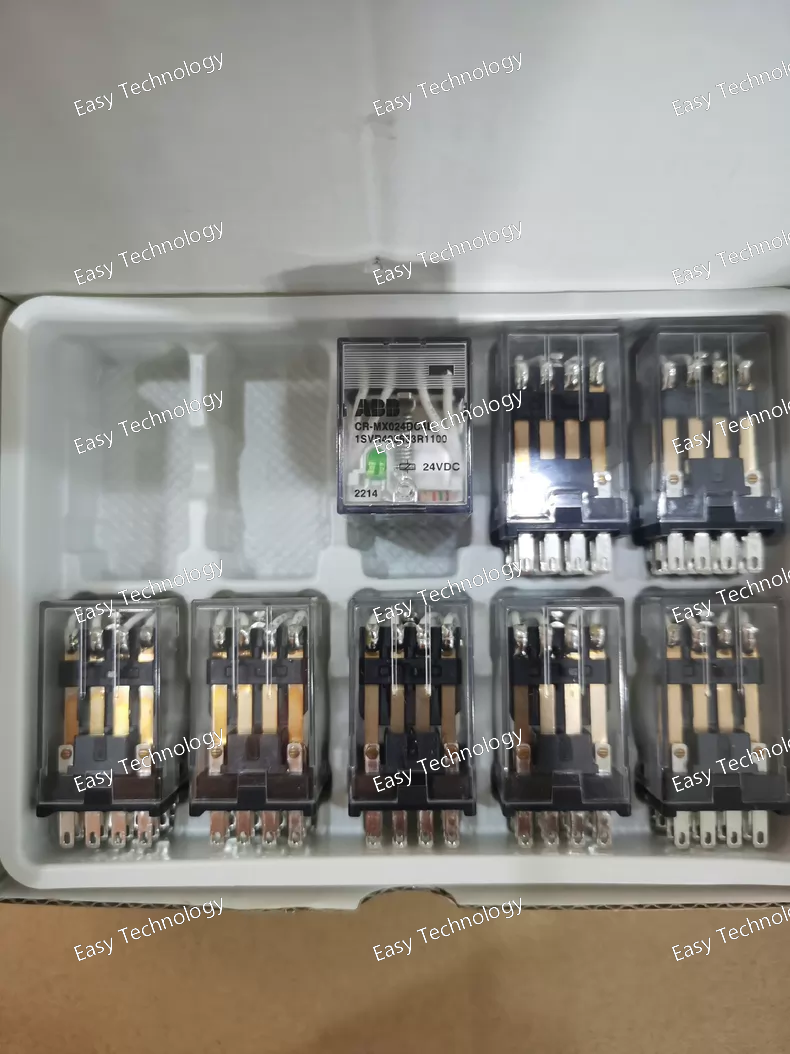

Technical Parameters Parameter Specification Series ABB CR-M Series (Accessory Contact Block) Product Type 4-Pole Auxiliary Contact Block (Snap-on) Order Code CR-MX024DC4L Contact Configuration 2 Normally Open (NO) + 2 Normally Closed (NC) (Total 4 changeover contacts in two independent blocks) Contact Material Fine silver alloy, suitable for low-level switching. Rated Operational Current (Ie) 4 A (at specified voltage, see below) Utilization Category AC-15: For AC electromagnetic loads (e.g., contactor coils). DC-13: For DC electromagnetic loads (optimized for this, as per “DC” code). Switching Capacity At 24V DC: 4 A (for DC-13, typical for PLC inputs/solenoids) At 230V AC: 4 A (for AC-15, typical for contactor coils) Rated Insulation Voltage (Ui) 690V AC / 750V DC Rated Impulse Withstand Voltage (Uimp) 6 kV Mechanical Life Typically 10 million operations or more. Electrical Life At rated load (AC-15 / DC-13): Typically 300,000 to 500,000 operations. At low consumption (e.g., 24V DC, 100mA for PLC): Can exceed 5 million operations (benefit of “L” design). Connection Screw terminals for reliable wiring. Terminal marking for each contact: A1/A2 (for NO) and B1/B2 (for NC) per block. Mounting Snap-on attachment to the rear of compatible CR-M series actuator heads. Multiple contact blocks can be stacked together. Safety Feature Contacts are positively guided (force-guided) as per EN 60947-5-1 Annex L? (For CR-MX series, this is common but must be confirmed for this specific “024” block. Safety applications require verified blocks). Standards Compliance IEC/EN 60947-1, IEC/EN 60947-5-1 Ambient Temperature -25°C to +70°C (Operation) Protection Degree (IP Rating) IP40 (as part of the assembled device in an enclosure)
