Parameters: Model Number: ABB SACE Emax E2 2000A PR121/P 3P Rated Voltage: 400 V AC (Three-phase) Rated Current: 2000 A (adjustable settings) Frequency: 50/60 Hz Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current for overload protection, helping prevent damage from prolonged overcurrents. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, to protect against short-circuit conditions without unnecessary tripping. Instantaneous Protection (I): Provides instantaneous disconnection for severe short-circuit conditions, ensuring fast response to dangerous faults. Ground Fault Protection (G): Ground fault protection (PR) detects leakage currents or faults in the system and isolates the faulty section to ensure safety. Thermal Overload Protection: Monitors the system’s temperature to protect motors and transformers from overheating. Breaking Capacity (Icu): 70 kA at 400 V, ensuring safe interruption of high fault currents. Mounting Type: DIN rail or panel mount for easy installation into motor control centers (MCCs), distribution boards, and electrical panels. Degree of Protection: IP20 (suitable for indoor use; external kits available for harsher conditions). Weight: Approx. 50–60 kg (depending on configuration). Dimensions (H x W x D): Approx. 650 x 500 x 250 mm (subject to configuration). Control Voltage: 24 V DC (external supply for control and communication features). Communication Protocol: Modbus RTU, Profibus, and Ethernet (optional) for remote monitoring, diagnostics, and integration into larger control systems. Auxiliary Contacts (Optional): Available for integration into control systems for signaling faults and system status updates.

Parameters: Model Number: ABB SACE Emax E2 2000A PR122/P-LSI 3P Rated Voltage: 400 V AC (Three-phase) Rated Current: 2000 A (adjustable) Frequency: 50/60 Hz Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current for overload protection, protecting against prolonged overcurrents that can damage equipment. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, for short-circuit protection. This helps protect the system from fault conditions while avoiding unnecessary trips. Instantaneous Protection (I): Provides instantaneous disconnection in case of severe short-circuit conditions, protecting sensitive equipment from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents and isolates the faulty section of the system, improving safety and reducing the risk of electrical hazards. Thermal Overload Protection: Protects against overheating by continuously monitoring the system's temperature and adjusting protection parameters accordingly. Breaking Capacity (Icu): 70 kA at 400 V, allowing for safe interruption of high fault currents, preventing damage to the system and connected equipment. Mounting Type: DIN rail or panel mount, making it easy to install in motor control centers (MCCs), distribution panels, and electrical control systems. Degree of Protection: IP20 (suitable for indoor applications; external protection kits can be added for harsher environments). Weight: Approx. 45–55 kg (depending on configuration). Dimensions (H x W x D): Approx. 650 x 500 x 250 mm (subject to configuration). Control Voltage: 24 V DC (external supply required for control and communication features). Communication Protocols: Modbus RTU, Profibus, and Ethernet for real-time remote monitoring, diagnostics, and control via PLC or SCADA systems. Auxiliary Contacts (Optional): Available for integrating into control systems for signaling faults and providing system status updates.

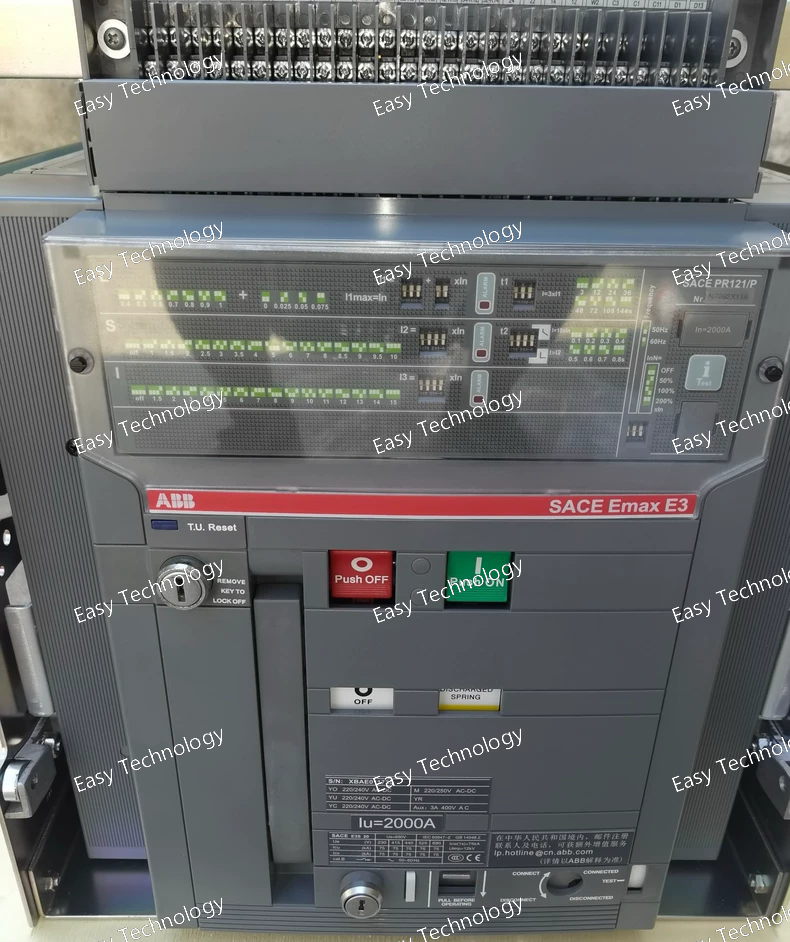

Parameters: Model Number: ABB E3S2000 R2000 PR121/P-LSI WHR 3P Rated Voltage: 400 V AC (Three-phase) Rated Current: 2000 A (adjustable) Frequency: 50/60 Hz Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current for overload protection, which helps prevent damage due to prolonged overcurrents. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, to provide short-circuit protection without unnecessarily tripping the system. Instantaneous Protection (I): Provides instantaneous disconnection in the event of a severe short-circuit, protecting sensitive equipment from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents or faults in the system and isolates the faulty section for safety. Thermal Overload Protection: Continuously monitors the system's temperature, protecting the motor from overheating during overload conditions. Wide Motor Protection (WHR): Provides enhanced protection for motors, helping to handle high inrush currents and load fluctuations that are typical in motor-driven systems. Breaking Capacity (Icu): 65 kA at 400 V, ensuring safe interruption of high fault currents without damage to the system. Mounting Type: DIN rail or panel mount, making it easy to install in motor control centers (MCCs), distribution boards, and electrical control systems. Degree of Protection: IP20 (suitable for indoor environments; external protection kits available for harsh conditions). Weight: Approx. 40–50 kg (depending on configuration). Dimensions (H x W x D): Approx. 600 x 400 x 250 mm (subject to configuration). Control Voltage: 24 V DC (external supply required for control and communication features). Communication Protocols: Modbus RTU, Profibus, and Ethernet for remote monitoring, diagnostics, and integration with PLC or SCADA systems. Auxiliary Contacts (Optional): Available for integration into control systems to signal faults and provide system status updates.

Parameters: Model Number: ABB E3N3200 R3200 PR121/P-LSI FHR 3P Rated Voltage: 400 V AC (Three-phase) Rated Current: 3200 A (adjustable) Frequency: 50/60 Hz Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current for overload protection, which prevents equipment from damage due to prolonged overcurrent conditions. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, for short-circuit protection, providing immediate protection in the event of faults while allowing for motor startup. Instantaneous Protection (I): Provides instantaneous disconnection in the case of severe short-circuit conditions, protecting sensitive equipment from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents or faults in the system and isolates the faulty section to prevent further damage or safety hazards. Thermal Overload Protection: Monitors the temperature of the system to prevent overheating, which could cause damage to motors or other components. Flexible High Resistance (FHR): Provides enhanced protection for motor-driven systems, allowing for adjustment to varying inrush currents and fluctuating load conditions that are common in motor-driven applications. Breaking Capacity (Icu): 70 kA at 400 V, ensuring safe interruption of high fault currents without causing damage to the system. Mounting Type: DIN rail or panel mount, making it easy to integrate into motor control centers (MCCs), distribution panels, and electrical control systems. Degree of Protection: IP20 (suitable for indoor environments; external kits available for harsher environments). Weight: Approx. 50–60 kg (depending on configuration). Dimensions (H x W x D): Approx. 650 x 500 x 250 mm (subject to configuration). Control Voltage: 24 V DC (external supply required for control and communication features). Communication Protocols: Modbus RTU, Profibus, and Ethernet for remote monitoring, diagnostics, and integration with PLC or SCADA systems. Auxiliary Contacts (Optional): Available for integration into control systems to signal faults and provide system status updates.

Parameters: Model Number: ABB E1B800 R800 PR121/P-LSI WHR 3P Rated Voltage: 400 V AC (Three-phase) Rated Current: 800 A (adjustable) Frequency: 50/60 Hz Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current for overload protection, preventing damage from sustained overcurrents. Short-Time Protection (S): Adjustable from 3 to 10 times rated current with a time delay to provide protection against short-circuit conditions. Instantaneous Protection (I): Offers instantaneous disconnection for severe short-circuit conditions, protecting the system from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents and isolates the faulty section, preventing hazards and ensuring safety. Thermal Overload Protection: Monitors the system’s temperature to protect equipment from overheating during prolonged overload conditions. Wide High Resistance (WHR): Designed for motor-driven systems, this feature helps protect against high inrush currents and fluctuating load conditions, which are typical in motors during startup or load changes. Breaking Capacity (Icu): 65 kA at 400 V, ensuring that high fault currents are safely interrupted without damaging the system. Mounting Type: DIN rail or panel mount for easy installation into motor control centers (MCCs), distribution panels, and electrical control systems. Degree of Protection: IP20 (suitable for indoor applications; external protection kits can be added for harsh environments). Weight: Approx. 30–40 kg (depending on configuration). Dimensions (H x W x D): Approx. 600 x 400 x 250 mm (subject to configuration). Control Voltage: 24 V DC (external supply required for control and communication features). Communication Protocols: Modbus RTU, Profibus, and Ethernet for remote monitoring, diagnostics, and integration with PLC or SCADA systems. Auxiliary Contacts (Optional): Available for integration into control systems for signaling faults and providing system status updates.

Parameters: Model Number: ABB 1SDA038290R1 Operating Voltage: 110/120V AC Relay Type: Electromechanical relay Relay Contact Configuration: Single-pole (SP) or Double-pole (DP) (specifics would depend on internal contacts; confirm with product datasheet for exact configuration). Rated Current: Up to 10 A (depending on application; typical for industrial control systems). Frequency: 50/60 Hz Coil Resistance: Typically in the range of 100 to 300 ohms, depending on the exact specifications of the relay coil. Switching Voltage: 110/120V AC Contact Rating: Typically 10A at 120V AC (resistive load), with different ratings available for inductive or capacitive loads. Mounting Type: DIN rail mountable or panel mountable, depending on installation preferences. Protection: Typically comes with internal overload protection, designed to safeguard the connected circuits from overcurrent conditions. Use Case: Suitable for control and automation applications, motor control, switching circuits, HVAC systems, and lighting circuits in industrial environments. Control Type: On/off control or timed relay control, depending on configuration.

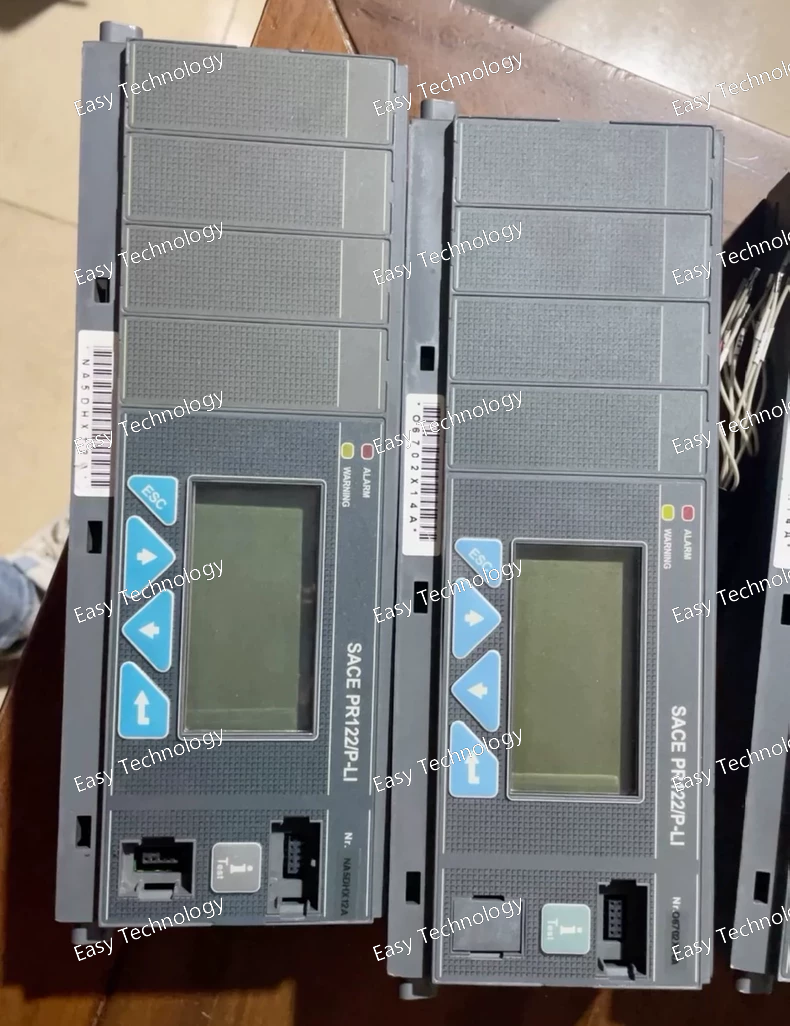

Parameters: Model Number: ABB SACE PR122/P-LI Rated Voltage: AC 690 V (for three-phase systems, common in industrial setups) Rated Current: 50 A to 2500 A (depending on model and configuration) Frequency: 50/60 Hz Protection Type: Long-Time Protection (L): Adjustable settings, typically ranging from 0.7 to 1.0 times rated current, providing overload protection to safeguard against sustained overcurrent conditions. Short-Time Protection (S): Adjustable from 3 to 10 times rated current with time delay, protecting against short-circuit faults while allowing for motor startup. Instantaneous Protection (I): Provides instantaneous disconnection in case of severe short-circuit conditions, ensuring the system is protected from high fault currents immediately. Ground Fault Protection (G): Ground fault protection detects any leakage current and isolates the faulty section, enhancing safety by preventing electrical shock and equipment damage. Thermal Overload Protection: Ensures protection against overheating due to prolonged overload conditions by monitoring the temperature of the system. Breaking Capacity (Icu): 50 kA at 400V, ensuring safe interruption of high fault currents without damaging the system. Mounting Type: DIN rail or panel mountable for integration into motor control centers (MCCs), distribution panels, and electrical control systems. Protection Class: IP20 (suitable for indoor environments; external protection kits available for more demanding environments). Weight: Approx. 10–15 kg, depending on the rated current and configuration. Dimensions (H x W x D): Approx. 300 x 200 x 150 mm (varies with configuration). Control Voltage: Typically 24 V DC or 48 V DC, but depends on model and configuration. Communication Protocols: Can be equipped with communication modules for integration with systems using Modbus RTU, Profibus, or Ethernet for remote monitoring, diagnostics, and control.

Parameters: Model Number: ABB E1N1250 R400/800/1250 3/4P Rated Voltage: AC 690 V (three-phase system) Rated Current: 400A, 800A, and 1250A (adjustable depending on configuration) Rated Frequency: 50/60 Hz Number of Poles: 3P (three-pole) or 4P (four-pole) Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current, offering overload protection and preventing damage due to prolonged overcurrent conditions. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with time delay, providing protection against short-circuit faults while allowing for motor startup. Instantaneous Protection (I): Offers instantaneous disconnection in case of severe short-circuit conditions, ensuring protection from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents and isolates the faulty section, providing safety from electrical hazards. Thermal Overload Protection: Monitors the temperature of the system and prevents overheating caused by sustained overload conditions. Breaking Capacity (Icu): 70 kA at 400V, ensuring safe interruption of high fault currents without damaging the system. Mounting Type: DIN rail mountable or panel mountable for easy integration into motor control centers (MCCs), distribution panels, and electrical control systems. Protection Class: IP20 (for indoor use; additional kits available for more demanding environments). Weight: Approx. 15–25 kg, depending on the rated current configuration. Dimensions (H x W x D): Approx. 350 x 250 x 180 mm (varies with rated current configuration). Control Voltage: 24 V DC (or 48 V DC depending on configuration) for remote control and communication features. Communication Protocols: Supports Modbus RTU, Profibus, and Ethernet for remote monitoring, diagnostics, and integration into PLC or SCADA systems. Auxiliary Contacts (Optional): Available for signaling faults and system status updates, useful for integration into control and automation systems.

Parameters: Model Number: ABB E1N1000 R400/800/1000 3/4P Rated Voltage: AC 690 V (three-phase system) Rated Current: 400A, 800A, 1000A (adjustable depending on configuration) Frequency: 50/60 Hz Number of Poles: 3P (three-pole) or 4P (four-pole) Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current, offering overload protection for sustained overcurrent conditions. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, providing protection against short-circuit faults while allowing for motor startup. Instantaneous Protection (I): Provides instantaneous disconnection in case of severe short-circuit conditions, ensuring the system is protected from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents and isolates the faulty section, improving safety by preventing electrical hazards. Thermal Overload Protection: Monitors the temperature of the system and prevents overheating due to prolonged overload conditions. Breaking Capacity (Icu): 50 kA at 400V, ensuring safe interruption of high fault currents without damaging the system. Mounting Type: DIN rail mountable or panel mountable, making it easy to install in motor control centers (MCCs), distribution boards, and electrical control systems. Protection Class: IP20 (for indoor use; external protection kits available for more demanding environments). Weight: Approx. 10–20 kg, depending on the rated current and configuration. Dimensions (H x W x D): Approx. 300 x 200 x 180 mm (varies with rated current configuration). Control Voltage: Typically 24 V DC or 48 V DC for remote control and communication features. Communication Protocols: Can be equipped with Modbus RTU, Profibus, and Ethernet communication modules for remote monitoring, diagnostics, and integration into PLC or SCADA systems. Auxiliary Contacts (Optional): Available for signaling faults, system status updates, and integration into control systems.

Parameters: Model Number: ABB E1N800 R400/630/800 3/4P Rated Voltage: AC 690 V (for three-phase systems) Rated Current: 400A, 630A, 800A (adjustable depending on the configuration) Rated Frequency: 50/60 Hz Number of Poles: 3P (three-pole) or 4P (four-pole) Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current, offering protection against overload by monitoring prolonged overcurrent conditions. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, providing protection from short-circuit faults while allowing motor startup. Instantaneous Protection (I): Provides instantaneous disconnection in case of severe short-circuit conditions, ensuring immediate protection from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents, providing early warning and isolating the faulty section to prevent electrical hazards. Thermal Overload Protection: Continuously monitors the system's temperature, offering protection against sustained overload conditions that could cause overheating. Breaking Capacity (Icu): 50 kA at 400V, ensuring that the breaker can safely interrupt high fault currents without damage to the system. Mounting Type: DIN rail mountable or panel mountable for easy integration into motor control centers (MCCs), distribution panels, and electrical control systems. Protection Class: IP20 (for indoor use; additional external kits are available for more demanding environments). Weight: Approx. 10–20 kg, depending on the rated current and configuration. Dimensions (H x W x D): Approx. 300 x 200 x 180 mm (varies depending on rated current configuration). Control Voltage: 24 V DC (or 48 V DC depending on configuration) for remote control and monitoring features. Communication Protocols: Supports Modbus RTU, Profibus, and Ethernet communication for remote diagnostics and integration with PLC or SCADA systems. Auxiliary Contacts (Optional): Available for fault signaling, system status updates, and integration with automation control systems.

Parameters: Model Number: ABB E3H2500 R2500 PR121/P-LI FHR 3P Rated Voltage: AC 690 V (for three-phase systems) Rated Current: 2500A (adjustable in different configurations) Frequency: 50/60 Hz Number of Poles: 3P (three-pole configuration) Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current, providing overload protection to prevent damage from prolonged overcurrent. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, protecting the system from short-circuit faults while allowing motor startup. Instantaneous Protection (I): Offers instantaneous disconnection during severe short-circuit conditions, ensuring protection from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents, isolating the faulty section to enhance system safety. Thermal Overload Protection: Protects the system from overheating by continuously monitoring the temperature and responding to prolonged overloads. Breaking Capacity (Icu): 50 kA at 400V, providing safe interruption of high fault currents without damaging the system. Mounting Type: DIN rail mountable or panel mountable, making it easy to integrate into motor control centers (MCCs), distribution panels, and electrical control systems. Protection Class: IP20 (indoor use; additional protection kits available for more demanding environments). Weight: Approx. 30–40 kg, depending on rated current configuration. Dimensions (H x W x D): Approx. 500 x 400 x 250 mm (varies with rated current). Control Voltage: Typically 24 V DC or 48 V DC for remote control and monitoring. Communication Protocols: Supports Modbus RTU, Profibus, Ethernet, and other protocols for remote monitoring, diagnostics, and integration into PLC or SCADA systems. Auxiliary Contacts (Optional): Available for fault signaling, system status updates, and integration with control and automation systems.

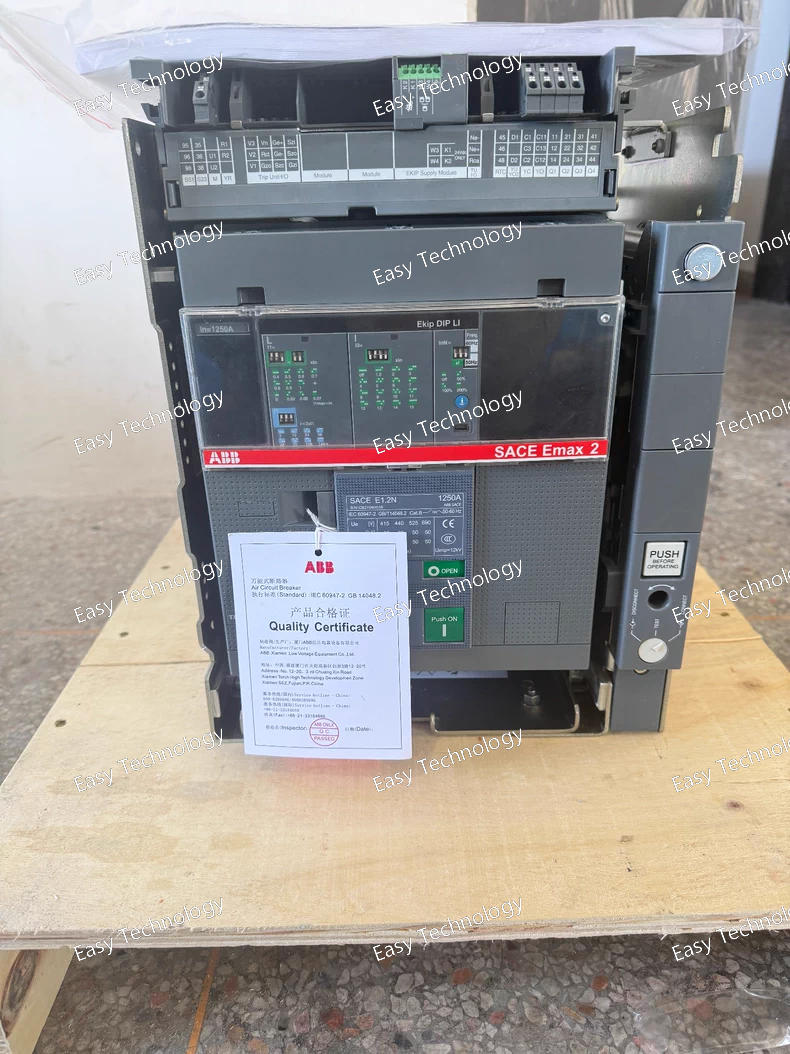

Parameters: Model Number: ABB SACE Emax2 E1.2N 1250A 3P Rated Voltage: AC 690 V (for three-phase systems) Rated Current: 1250A (adjustable in different configurations) Frequency: 50/60 Hz Number of Poles: 3P (three-pole configuration for three-phase systems) Protection Type: Long-Time Protection (L): Adjustable from 0.7 to 1.0 times rated current, providing overload protection to prevent damage from prolonged overcurrent. Short-Time Protection (S): Adjustable from 3 to 10 times rated current, with a time delay, protecting against short-circuit faults while allowing for motor startup. Instantaneous Protection (I): Provides instantaneous disconnection in case of severe short-circuit conditions, ensuring protection from high fault currents. Ground Fault Protection (G): Ground fault protection (LSI) detects leakage currents, preventing electrical hazards by isolating the faulty section. Thermal Overload Protection: Continuously monitors the system's temperature, offering protection against overheating due to prolonged overload conditions. Breaking Capacity (Icu): 50 kA at 400V, ensuring safe interruption of high fault currents without damaging the system. Mounting Type: DIN rail mountable or panel mountable, making it easy to integrate into motor control centers (MCCs), distribution panels, and electrical control systems. Protection Class: IP20 (for indoor use; additional external protection kits are available for more demanding environments). Weight: Approx. 10–20 kg, depending on rated current configuration. Dimensions (H x W x D): Approx. 300 x 200 x 180 mm (varies depending on rated current configuration). Control Voltage: Typically 24 V DC or 48 V DC for remote control and monitoring features. Communication Protocols: Supports Modbus RTU, Profibus, and Ethernet communication for remote diagnostics and integration with PLC or SCADA systems. Auxiliary Contacts (Optional): Available for fault signaling, system status updates, and integration with automation control systems.
