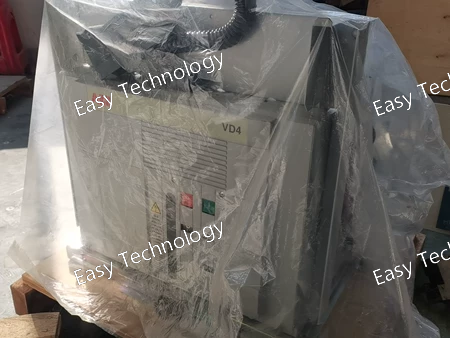

Parameters: Model Number: ABB VD4/Z-12.12.40 Rated Voltage: 12 kV (for medium voltage networks) Rated Current: 630 A (standard current rating for most applications) Rated Short-Circuit Breaking Capacity (Isc): 12.5 kA at 12 kV (designed to interrupt high fault currents) Rated Making Capacity (Icm): 50 kA at 12 kV (withstand the stresses of a fault current) Frequency: 50/60 Hz Number of Poles: 3P (three-pole design for three-phase systems) Arc Quenching Medium: Vacuum (vacuum interrupter for high reliability and low maintenance) Mounting Type: Fixed or withdrawable, suitable for integration in switchgear assemblies and panel mounting. Insulation Type: Air insulation for compact and efficient design. Protection Class: IP20 (standard for indoor applications; external kits are available for outdoor use). Mechanical Life: 30,000 operations (significantly longer life compared to traditional air circuit breakers). Weight: Approx. 120-200 kg, depending on configuration and accessories. Dimensions (H x W x D): Approx. 1000 x 600 x 500 mm (varies with installation configuration). Rated Voltage for Interruption: 12 kV Control Voltage: 24 V DC (for external control and monitoring systems). Auxiliary Contacts (Optional): Available for fault signaling, remote monitoring, and integration with automation systems.

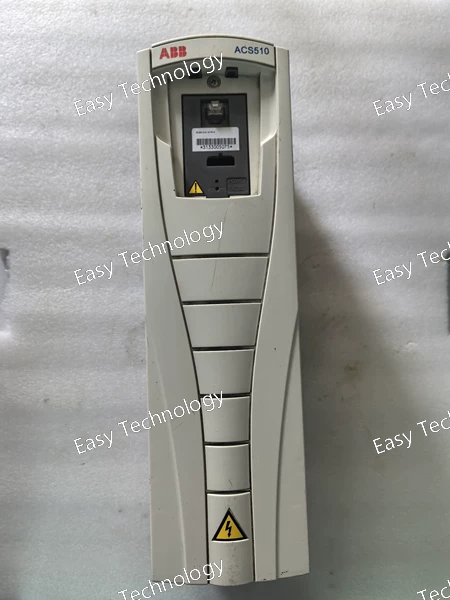

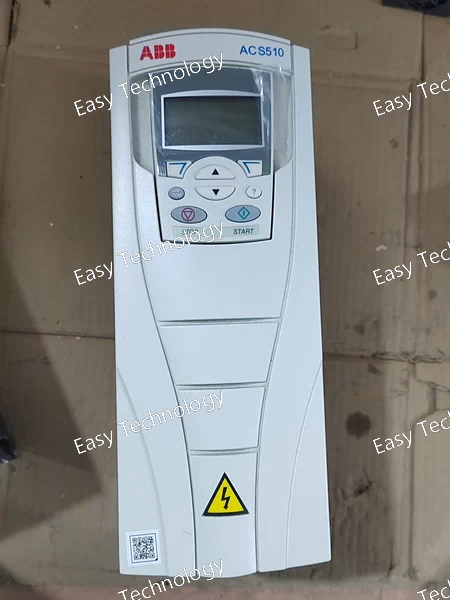

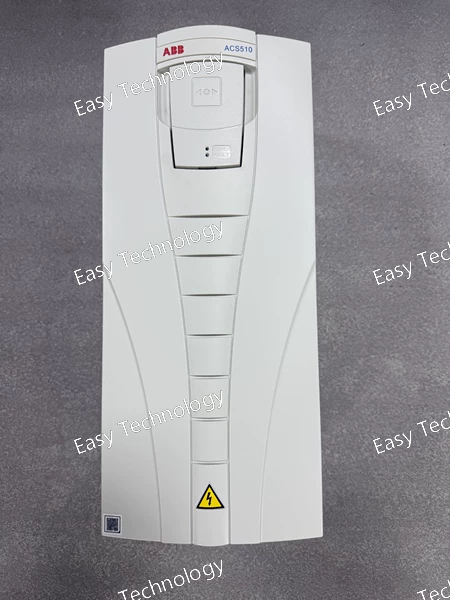

Parameters: Model Number: ABB ACS510-01-017A-4 Rated Output Power: 17 kW (approximately 25 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 32.4 A (at 380 V) Frequency Range: 0 to 500 Hz Control Type: V/f (Volts per Hertz) control, open-loop control, sensorless vector control (for optimized motor performance) Motor Control: Suitable for controlling squirrel-cage motors in both constant torque and variable torque applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (for indoor use, additional protection kits available for harsher environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, providing energy savings in a variety of industrial applications. Dimensions (H x W x D): Approx. 420 x 220 x 175 mm (varies by configuration) Weight: Approx. 6.5 kg Control Voltage: 24 V DC (for control circuitry) Mounting: Wall or panel mountable (with standard mounting holes for ease of installation) Communication Protocols: Available for integration with Modbus RTU, Profibus DP, and DeviceNet for remote control and monitoring via automation systems. Keypad: Equipped with an integrated keypad for local configuration, parameter adjustment, and diagnostics. A digital display shows operational data and fault information. Built-in Protection Features: Overload Protection: With built-in motor protection features such as overload protection and over-temperature protection. Short-circuit Protection: Designed to protect the drive against short circuits and faults. Over-voltage/Under-voltage Protection: Includes protection against supply voltage anomalies. Overload Capacity: Can handle up to 150% of rated current for 60 seconds (typical overload capacity for VFDs).

Parameters: Model Number: ABB ACS510-01-012A-4 Rated Output Power: 12 kW (approximately 16 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 22 A (at 380 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: Basic method for variable-speed motor control. Sensorless Vector Control (SVC): Provides precise control of motor speed and torque, even at low speeds, without the need for external sensors. Motor Control: Ideal for variable torque applications like fans, pumps, compressors, and conveyors. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (standard for indoor use; additional external protection kits available for harsh environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, which helps reduce operating costs. Dimensions (H x W x D): Approx. 380 x 220 x 160 mm (varies by configuration) Weight: Approx. 5–7 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU Profibus DP DeviceNet (optional, depending on configuration) Built-in Application Macros: Simplifies installation and commissioning by providing predefined settings for various common applications (e.g., pumps, fans). Keypad: Integrated keypad for local programming and diagnostics with a digital display to show status and fault information.

Parameters: Model Number: ABB ACS510-01-05A6-4 Rated Output Power: 5.5 kW (approximately 7.5 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 12.6 A (at 380 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: Standard method for motor speed control. Sensorless Vector Control (SVC): Offers improved performance by providing precise torque and speed control without the need for a motor encoder. Motor Control: Suitable for controlling squirrel-cage motors in pumps, fans, compressors, and other variable torque applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (suitable for indoor environments; additional external kits available for outdoor or harsher environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, providing energy savings in motor-driven applications. Dimensions (H x W x D): Approx. 260 x 160 x 170 mm (varies by configuration) Weight: Approx. 4.5 kg Control Voltage: 24 V DC (for control circuitry) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (standard communication for integration with PLCs and automation systems) Optional protocols for Profibus DP, DeviceNet, or Ethernet/IP (based on configuration) Keypad: Features an integrated keypad with a digital display for easy programming, status monitoring, and fault diagnostics. Built-in Application Macros: Pre-programmed settings for common applications such as fans, pumps, and conveyors for easy configuration and commissioning.

Parameters: Model Number: ABB ACS550-01-06A9-4 Rated Output Power: 3 kW (approximately 4 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 6.2 A (at 380 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: Basic method for motor speed control with smooth performance. Sensorless Vector Control (optional): Offers precise control of motor torque and speed without the need for additional sensors. Motor Control: Ideal for controlling squirrel-cage motors in both constant torque and variable torque applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (for indoor use; additional external kits are available for harsh environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, ensuring energy-efficient operation. Dimensions (H x W x D): Approx. 220 x 150 x 130 mm (varies by configuration) Weight: Approx. 2.5 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (standard communication for integration with PLCs and other control systems) Optional protocols for Profibus DP, DeviceNet, or Ethernet/IP (depending on configuration) Keypad: Features an integrated keypad with a digital display for easy parameter setting, monitoring, and diagnostics. Built-in Application Macros: Simplifies the setup process with pre-configured settings for common applications like pumps, fans, and conveyors.

Parameters: Model Number: ABB ACS550-01-05A4-4 Rated Output Power: 2.2 kW (approximately 3 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 4.5 A (at 380 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: Standard method for controlling motor speed based on voltage and frequency ratio. Sensorless Vector Control (optional): Provides enhanced torque control and precision at low speeds, making it ideal for applications that require high performance. Motor Control: Suitable for controlling squirrel-cage motors in both constant torque and variable torque applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (suitable for indoor use; additional protection kits available for outdoor or harsh environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, ensuring energy savings in motor-driven systems. Dimensions (H x W x D): Approx. 220 x 150 x 130 mm (varies by configuration) Weight: Approx. 2.0–2.5 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (for integration with PLCs and automation systems) Optional Profibus DP, DeviceNet, and Ethernet/IP for more advanced integration. Keypad: Integrated keypad with a digital display for easy parameter setting, monitoring, and diagnostics. Built-in Application Macros: Pre-programmed settings for pumps, fans, compressors, and conveyors, simplifying installation and commissioning.

Parameters: Model Number: ABB ACS550-01-04A1-4 Rated Output Power: 1.1 kW (approximately 1.5 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 2.6 A (at 380 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: A basic method of motor control, suitable for most industrial motor-driven applications. Sensorless Vector Control (optional): Provides more precise motor control at low speeds without the need for an external sensor. Motor Control: Suitable for both constant torque and variable torque applications, allowing for flexible motor control. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (for indoor use; additional external protection kits are available for more challenging environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, which ensures energy-efficient operation. Dimensions (H x W x D): Approx. 220 x 150 x 130 mm (varies by configuration) Weight: Approx. 2.0 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (for integration with PLCs and automation systems) Optional Profibus DP, DeviceNet, and Ethernet/IP (depending on configuration) Keypad: Integrated keypad with digital display for easy setup, monitoring, and diagnostics. Built-in Application Macros: Pre-programmed settings for pumps, fans, and conveyors, simplifying installation and setup.

Parameters: Model Number: ABB ACS880-01-293A-3 Rated Output Power: 75 kW (approximately 100 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 136 A (at 400 V) Frequency Range: 0 to 500 Hz Control Method: Vector Control: Offers direct torque control (DTC), ensuring superior performance in terms of motor torque, speed control, and efficiency. This control method is ideal for applications that require precise motor control even at low speeds. Sensorless Vector Control: This allows for efficient motor control without the need for an encoder, offering precise control in both constant and variable torque applications. Motor Control: Suitable for controlling squirrel-cage motors and permanent magnet motors in a variety of industrial applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP21 (for indoor use, with standard protection; external enclosures available for harsher environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 98%, offering excellent energy efficiency during motor control. Dimensions (H x W x D): Approx. 670 x 310 x 345 mm (varies by configuration) Weight: Approx. 28 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (for integration with PLCs and control systems) Optional Profibus DP, Ethernet/IP, DeviceNet, and Profinet for advanced industrial automation systems. Keypad: Integrated keypad with a digital display for easy programming, monitoring, and diagnostics. Built-in Application Macros: Pre-configured settings for common applications such as pumps, fans, conveyors, and extruders, simplifying installation and setup.

Parameters: Model Number: ABB ACS510-01-088A-4 Rated Output Power: 5.5 kW (approximately 7.5 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 12 A (at 400 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: Provides simple and reliable motor control for applications requiring constant torque. Sensorless Vector Control (optional): Allows for more precise motor control at lower speeds and higher torque without the need for an encoder. Motor Control: Ideal for controlling squirrel-cage motors in both constant torque and variable torque applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (for indoor use, with standard protection; additional enclosures available for more challenging environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, ensuring energy-efficient operation. Dimensions (H x W x D): Approx. 290 x 160 x 210 mm (varies by configuration) Weight: Approx. 5.5 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (for integration with PLCs and control systems) Optional Profibus DP, Ethernet/IP, DeviceNet, and Profinet for advanced industrial automation systems. Keypad: Integrated keypad with digital display for easy setup, monitoring, and diagnostics. Built-in Application Macros: Pre-configured settings for pumps, fans, compressors, and conveyors, simplifying installation and setup.

Parameters: Model Number: ABB ACS510-01-046A-4 Rated Output Power: 3 kW (approximately 4 HP) Input Voltage Range: 380–480 V, 3-phase power supply Rated Input Current: 7.0 A (at 400 V) Frequency Range: 0 to 500 Hz Control Method: V/f (Volts per Hertz) Control: Standard method for controlling motor speed in many applications. Sensorless Vector Control (optional): Provides precise motor control at low speeds and higher torque, without the need for external encoders. Motor Control: Suitable for squirrel-cage motors and works well in both constant torque and variable torque applications. Ambient Temperature Range: -10°C to +50°C (at full rated current) Protection Class: IP20 (for indoor use; external enclosures can be used for harsher environments) Cooling: Forced air cooling (fan inside the drive) Efficiency: Typically 97%, providing energy-efficient motor control. Dimensions (H x W x D): Approx. 220 x 150 x 130 mm (varies by configuration) Weight: Approx. 2.5–3.0 kg Control Voltage: 24 V DC (for control and auxiliary circuits) Mounting: Panel or wall mountable (with standard mounting holes for easy installation) Communication Protocols: Modbus RTU (for integration with PLCs and automation systems) Optional Profibus DP, Ethernet/IP, DeviceNet, and Profinet for more advanced communication needs. Keypad: Integrated keypad with digital display for easy setup, monitoring, and diagnostics. Built-in Application Macros: Pre-configured settings for pumps, fans, compressors, and conveyors, simplifying installation and commissioning.

Parameters: Model Number: ABB PR121/P-LSI Rated Current (In): Configurable, typically up to 1250 A depending on frame and application Number of Poles: 3P (three-phase) Breaking Capacity (Icu): Up to 65 kA at 415 V AC Rated Voltage: 415 V AC (standard low-voltage systems) Trip Unit Type: LSI (Long-time, Short-time, Instantaneous) Long-time (L): Protects against overloads Short-time (S): Protects against short-duration overcurrents Instantaneous (I): Protects against immediate high short-circuit currents Trip Unit Settings: Adjustable according to load and protection requirements Mounting: Fixed or draw-out type depending on configuration Operating Temperature Range: -25°C to +60°C Mechanical Life: Approx. 10,000 operations Electrical Life: Approx. 5,000 operations at rated current Standards Compliance: IEC 60947-2 / EN 60947-2 Auxiliary Contacts: Optional, for remote signaling and control Shunt Trip / Undervoltage Trip: Optional for remote control and automation Protection Features: Overload protection (thermal) Short-circuit protection (magnetic) Earth fault / ground fault protection Adjustable trip settings for coordinated protection

Parameters: Model Number: ABB E4H3200 Rated Current (In): 3200 A Number of Poles: 3P (three-phase) Rated Voltage: 690 V AC (typically used in industrial low-voltage systems) Breaking Capacity (Icu): Up to 65 kA at 415 V AC Protection Type: Electronic Trip Unit (ETU) Trip Unit Features: Thermal-magnetic protection (overload, short-circuit) Adjustable long-time (L) and short-time (S) settings for flexible protection Instantaneous (I) protection for high short-circuit currents Earth fault protection (optional) Trip Settings: Long-time protection (L): Adjustable between 1.0 and 10 times rated current Short-time protection (S): Adjustable between 3 to 12 times rated current Instantaneous protection (I): Adjustable for quick response to short-circuit conditions Mechanical Life: 20,000 operations (with proper maintenance) Electrical Life: 10,000 operations at rated current Temperature Range: -5°C to +50°C (operation range) Protection Class: IP20 (for indoor use; optional enclosures available for harsher environments) Mounting: Fixed, panel-mounted design Auxiliary Contacts: Available for remote signaling and control Shunt Trip / Undervoltage Trip: Optional for remote trip functionality Standards Compliance: IEC 60947-2 / EN 60947-2 UL 489 (for North American markets)
