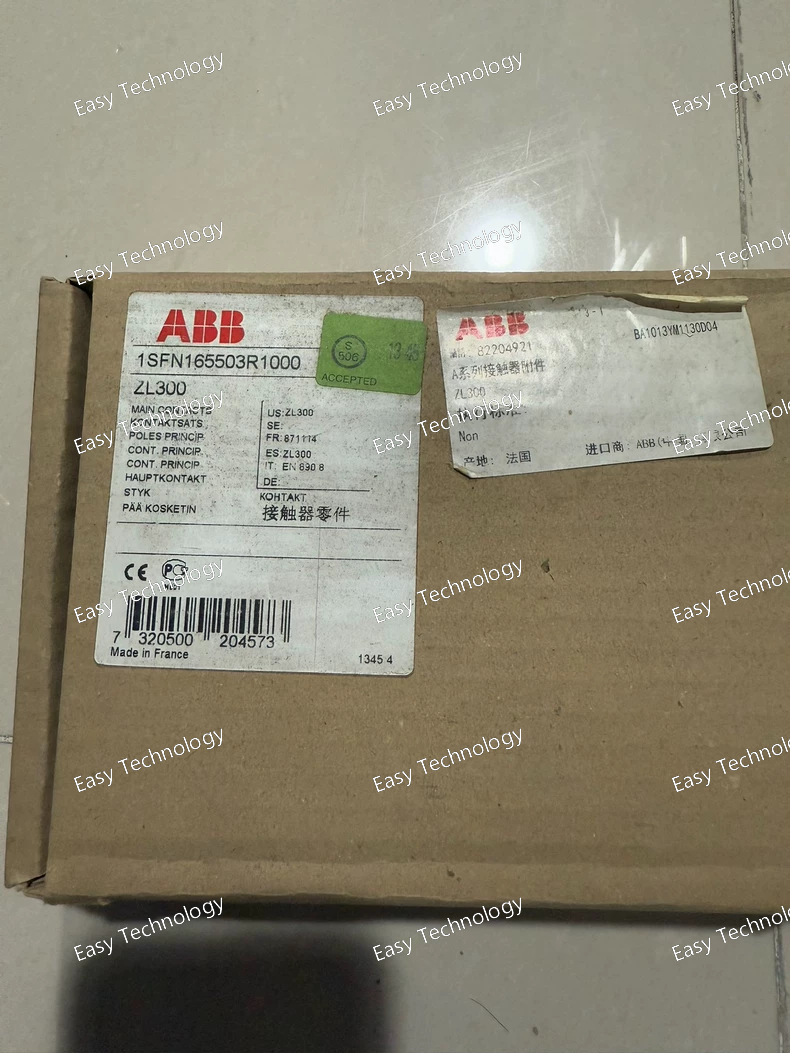

Technical Parameters Parameter Specification Product Type Main Contact Kit / Contact Set Model / Part Number 1SFN165503R1000 ABB Type Designation ZL300 Intended Use Replacement main contacts for appropriate contactor models Compatible Contactors ABB A300 / AF300 series contactors Number of Poles 3 poles (for three‑phase circuits) Included Components Fixed contacts, movable contacts, springs, hardware Terminal Connection Type Screw terminals Application Main power switching in contactors Circuit Type Primary contactor main circuit Construction Heavy‑duty contact components for electrical load switching Mounting / Installation Installed inside compatible contactor body Typical Operating Environment Industrial / commercial electrical control panels Net Dimensions (approx) 132 mm × 162 mm × 45 mm Net Weight (approx) ~0.67 kg Packaging Single kit per package RoHS Compliance Yes (complies with applicable environmental directives)

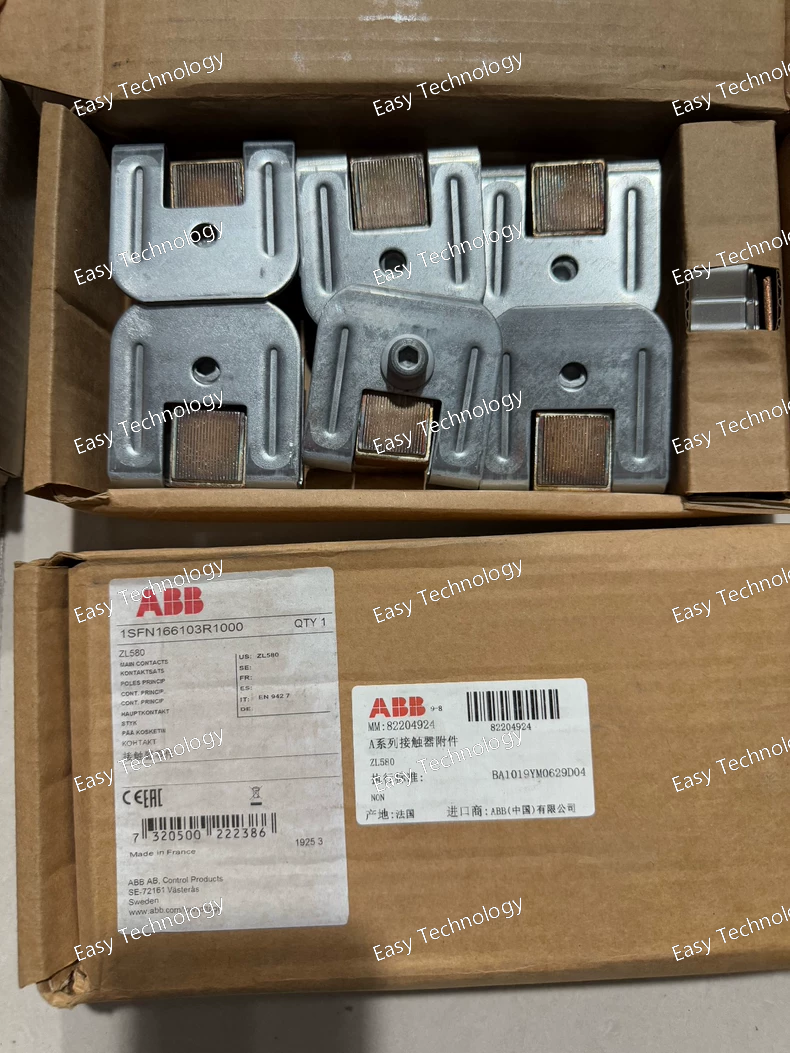

Technical Parameters Parameter Specification Product Type Main Contact Set / Contact Kit Model / Part Number 1SFN166103R1000 ABB Type Designation ZL580 Main Contact Set Intended Use Replacement main contacts for compatible AF contactors (e.g., AF580‑series) Number of Poles 3‑pole contact set Included Components Fixed contacts, moving contacts, springs, hardware Compatibility Designed for AF series contactors requiring ZL580 contact set Terminal Connection Type Screw terminal connection via contactor assembly Function Main power circuit switching contacts assembly Application Industrial motor starters, motor control centers, power switching panels Construction Heavy‑duty contact elements and mounting hardware Weight (Approx.) ~1.8–2.1 kg (depending on packaging) Packaging Individual kit box Use Category Spare part / maintenance part Standards Conforms with IEC/industrial contactor contact assembly design

Technical Parameters Parameter Specification Product Selector Handle Model / Part Number OHBS2AJ Brand ABB Handle Color Black Handle Type Selector snap-on handle Operability / Legend ON / OFF (I-O and ON-OFF indicators) Compatible Switches ABB OT16 to OT125F switch-disconnectors Shaft Compatibility 6 mm square shaft Door Cutout / Mounting Hole 22.5 mm diameter (typical) Padlockable Yes, up to three padlocks Protection Rating IP65; NEMA 1, 3R, 12 environments Defeatable Yes (allows override of door interlock) Material Industrial-grade plastic / durable handle construction Typical Dimensions Approx. 65 mm × 65 mm × 48 mm Application Manual disconnect switch operation; industrial control panels Usage Switchgear, power distribution boards, machinery disconnects

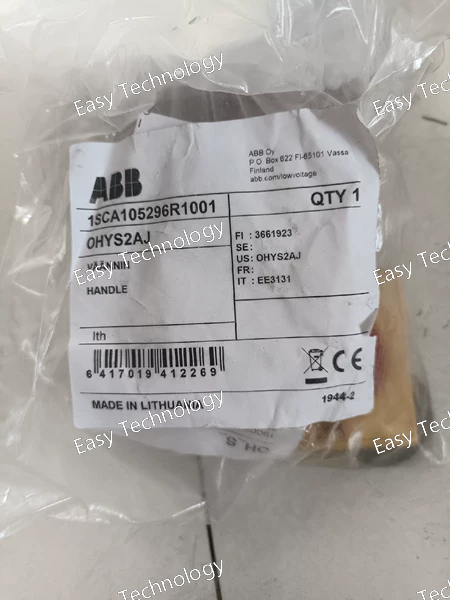

Technical Parameters Parameter Specification Product Type Selector Handle (Switch Disconnect Accessory) Model / Part Number OHYS2AJ Brand ABB Interface Type Manual selector handle for disconnect switches Color / Finish Red handle with Yellow bezel Operating Positions ON / OFF (I / O) Shaft Size Compatibility 6 mm square shaft Mounting Door-mounted handle interface Padlockable Yes (supports multiple padlocks) Defeatable Yes (depending on switch design) Protection Rating Suitable for NEMA 1, NEMA 3R, NEMA 12 environments Panel Cutout Diameter ~22.5 mm for mounting hole Dimensions (approx.) ~65 mm × 65 mm × 48 mm Material Durable industrial-grade plastic and metal Application Manual operation of disconnect switches and isolators Typical Use Industrial control panels, motor control centers, power distribution boards

Technical Parameters Category Parameter Specification General Model OXP6X290 Type Addressable Fire & Gas Extinguishing Control Panel Standards Complies with EN 12094-1, EN 54-2, EN 54-4, and other regional standards. Electrical Supply Voltage 230 VAC, 50/60 Hz (standard). Other voltages configurable. Battery Backup 24 VDC sealed lead-acid batteries (typically 2 x 12V in series). Capacity sized for 24-72 hours standby + alarm duration. Power Output Provides regulated power for detectors, modules, and auxiliary devices. Detection & Control Addressable Loops Typically 2 or more S-loop (ABB's high-speed protocol) lines. Supports up to 250 addressable devices per loop (detectors, modules, manual call points). Extinguishing Zones 2 fully independent zones with separate abort/release, pneumatic time delays, and agent quantity. Inputs/Outputs Extensive via add-on modules: • Inputs: Monitor discharge pressure switches, abort/manual release stations, valve supervision. • Outputs: Control gas cylinder valves, VESDA interfaces, door closers, fan shut-downs, NACs (sounders, beacons). Physical & Environment Enclosure Rating Typically IP30 for indoor use. Operating Temperature 0°C to +40°C (32°F to 104°F). Relative Humidity Up to 95% RH, non-condensing. Communication & Interfaces Display High-resolution color graphical LCD with multilingual support. Control Buttons Dedicated hardware keys for menu navigation, acknowledge, silence, reset. Event Log Non-volatile memory for minimum 3000 events. Communication Ports RS-485 for MODBUS, BACnet MS/TP. PROFIBUS DP (via optional module). Ethernet (via optional module for TCP/IP). Printer port. Relays Built-in System Relies Fire Alarm General, Fault, Disabled, Extinguishing Zone 1 & 2 Activated, etc. (Form-C contacts). Configuration Software Configured and commissioned using the ABB Fire Panel Suite (FPS) software on a Windows PC connected via USB or network.

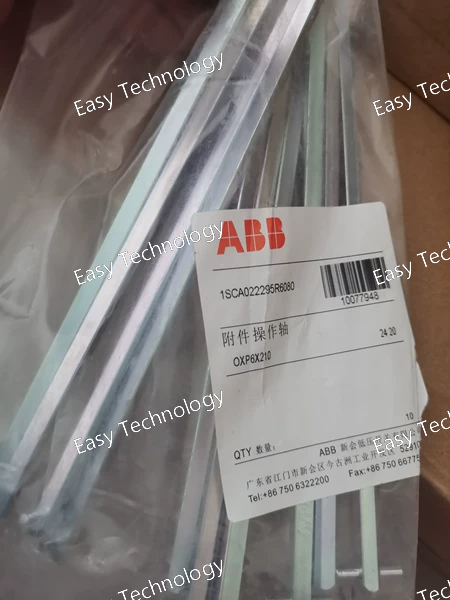

Technical Parameters Parameter Specification Product Type Operating Shaft / Mechanical Accessory Model OXP6X210 Applicable Devices Designed to work with compatible ABB disconnect switches and pistol handle actuators Shaft Cross-Section Square, 6 mm × 6 mm Shaft Length 210 mm (approx. 8.3 inches) Material Steel (durable mechanical construction) Mounting / Function Mechanical shaft for transmitting motion from handle to switch Usage Extended operating shaft for switch disconnectors Operating Environment Suitable for industrial electrical panel use Standards Industrial switch accessory standard dimensions Weight Lightweight mechanical accessory Finish Bare or protective surface (typical industrial finish)

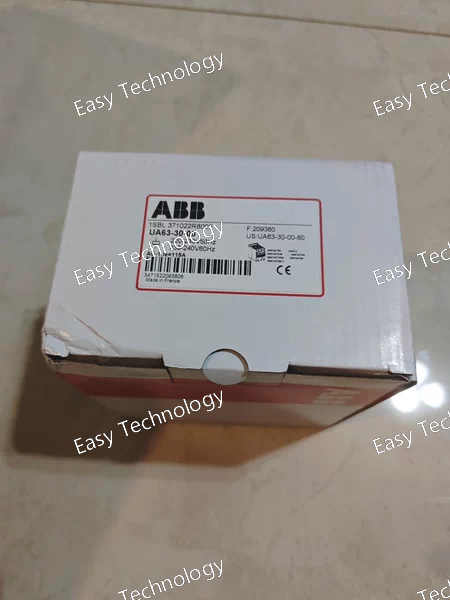

Technical Parameters Parameter Specification Product Type AC Contactor Model / Series UA63-30-00 Control Coil Voltage 220–230 V AC (50 Hz) / 230–240 V AC (60 Hz) Rated Operating Frequency (Coil) 50 Hz / 60 Hz Main Circuit Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 8 kV Number of Main Contacts 3 poles (3 NO — normally open) Auxiliary Contacts Optional / model dependent Rated Operational Current (AC-3 Ie) Approx. 63 A at 220–240 V AC Rated Operational Current (AC-1 Ie) Approx. 100–115 A at 690 V AC Rated Operational Power (AC-3 Pe) ~15–18 kW at 230 V AC Rated Operational Power (AC-6b Pe) ~25 kVAr at 230–240 V AC Mechanical Endurance High (designed for millions of operations) Electrical Endurance Suitable for frequent switching cycles Coil Power Consumption Holding and pull-in values suitable for rated coil voltage Operate Time Typical make and break times consistent with IEC contactor classes Terminal Type Screw / clamp type terminations Ambient Operating Temperature Designed for standard industrial ambient ranges (e.g., −40 °C to +70 °C) Standards Compliance Meets IEC contactor requirements for industrial AC switching

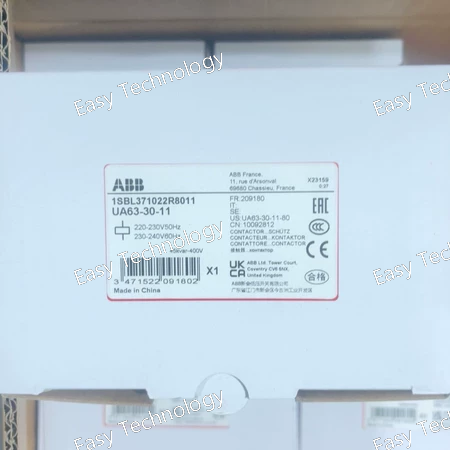

Technical Parameters Parameter Specification Product Type AC Contactor Model / Series UA63-30-11 Control Coil Voltage (Uc) 220–230 V AC at 50 Hz / 230–240 V AC at 60 Hz Rated Frequency (Coil) 50 / 60 Hz Main Circuit Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 8 kV Number of Main Contacts 3 poles (3 NO) Auxiliary Contacts Optional (model dependent) Rated Operational Current (AC-3 Ie) ~65 A at 220–240 V AC Rated Operational Current (AC-1 Ie) ~115 A at 690 V AC Rated Operational Power (AC-3 Pe) ~18.5 kW at 230 V AC Rated Operational Power (AC-6b Pe) ~25 kVAr at 230–240 V AC Mechanical Durability Approx. 10 million operations Electrical Switching Frequency Up to ~3600 cycles/hour Coil Consumption Holding ~18 VA; Pull-in ~180 VA Operate Time Approx. 8–27 ms (make) / 4–11 ms (break) Terminal Type Screw / clamp terminals Environmental / Operating Temp Typically −40 °C to +70 °C Standards Compliance IEC 60947-4-1 compliance

Technical Parameters Parameter Specification Product Type AC Contactor Model / Series UA110-30-11 Control Coil Voltage 220–230 V AC (50 Hz) / 230–240 V AC (60 Hz) Operating Frequency 50 / 60 Hz Main Circuit Rated Operational Voltage Up to 1000 V AC Rated Operational Current (AC-3) Approx. 110 A at 220–240 V AC Rated Operational Power (AC-6b) Approx. 40–45 kVAr at 230–240 V AC Rated Insulation Voltage 1000 V AC Rated Impulse Withstand Voltage 8 kV Short-time Withstand Current (Icw) Approx. 800 A for 10 s (cold state) Making Capacity Approx. 10 × Ie (AC-3) Breaking Capacity Approx. 8 × Ie (AC-3) Number of Poles 3 (plus auxiliary contacts when fitted) Terminal Type Screw or cable clamp connections Mechanical Endurance High cycles (designed for long life) Ambient Operating Temperature Typically −40 °C to +70 °C

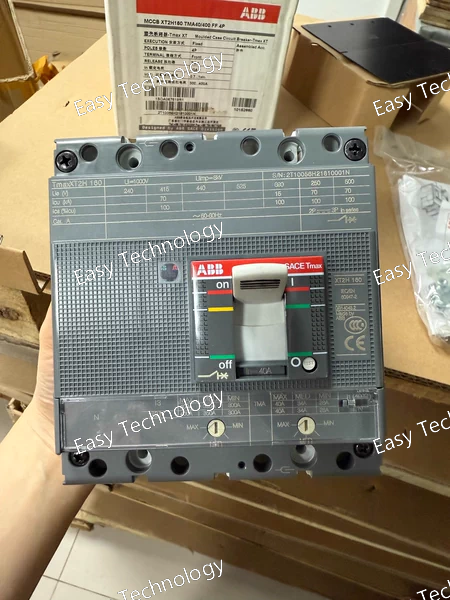

Technical Parameters Parameter Value Product Series ABB SACE Tmax XT Frame Size XT2 Frame Rating 160 A Rated Current (In) 40 A (adjustable) Trip Unit TMA – Thermal Magnetic Adjustable Thermal Overload Adjustment 28 – 40 A Magnetic Short-Circuit Adjustment 300 – 400 A Number of Poles 4P Breaking Capacity Class H (High breaking capacity) Rated Operational Voltage (Ue) Up to 690 V AC Rated Frequency 50 / 60 Hz Rated Insulation Voltage (Ui) 1000 V Rated Impulse Withstand Voltage (Uimp) 8 kV Rated Ultimate Short-Circuit Breaking Capacity (Icu) Up to 150 kA @ 400 V AC Rated Service Short-Circuit Breaking Capacity (Ics) 100% of Icu Mounting / Execution Fixed Terminal Type Front terminals (FF) Protection Functions Overload and short-circuit protection Standard Compliance IEC / EN 60947-2 Operating Mechanism Manual Typical Applications Power distribution, feeders, industrial panels

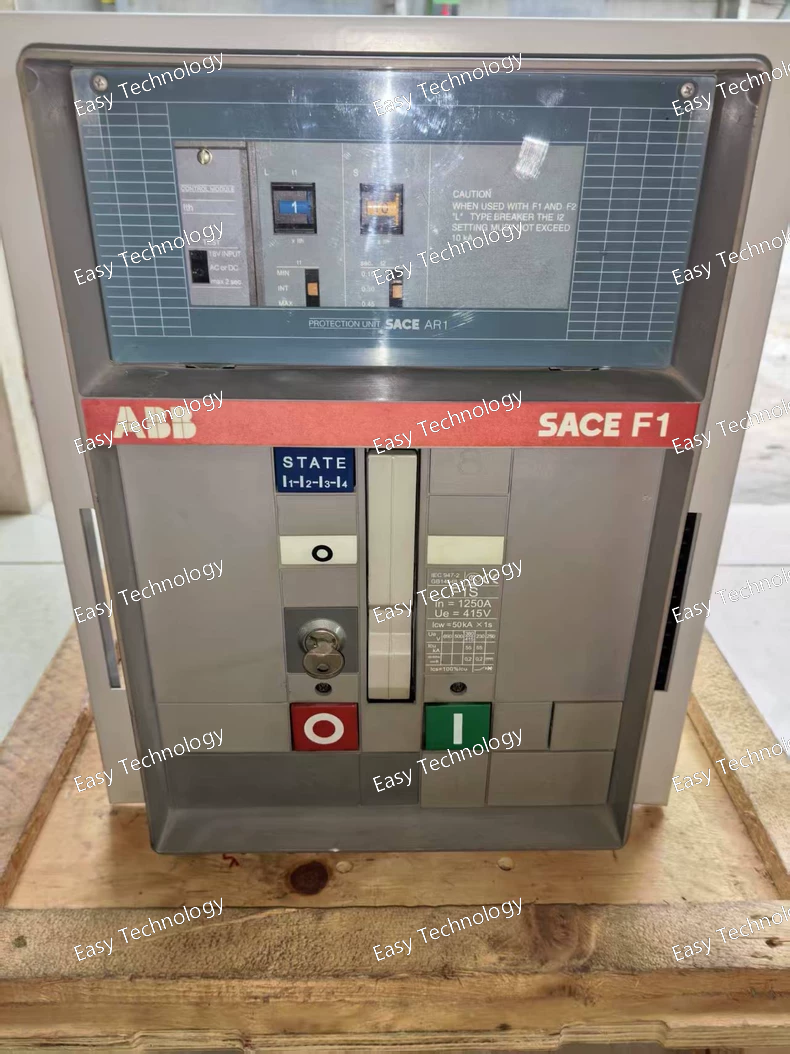

Parameters: Product Type: Molded Case Circuit Breaker (MCCB) Model: F1S1250 AR1 Rated Current (In): 1250A Rated Voltage: 690V (AC) Rated Frequency: 50/60 Hz Number of Poles: 3P (Three-Phase) Interrupting Capacity (Icu): 50kA (or higher depending on configuration) Protection Type: Thermal-Magnetic (Overload and Short-Circuit Protection) Thermal Protection: Adjustable thermal release for overload protection. Magnetic Protection: Adjustable magnetic release for short-circuit protection. Adjustable Settings (AR1): Adjustable protection settings for overload current and short-circuit trip values. Service Type: Indoor and outdoor installation (depending on the configuration and protective enclosure) Operating Temperature: -5°C to +40°C (standard range for ABB circuit breakers) Ingress Protection (IP Rating): IP20 (for indoor use), IP65 (if designed for outdoor use) Dimensions: [Insert dimensions, e.g., 160mm x 120mm x 250mm] (dependent on configuration) Weight: [Insert weight, e.g., 7-12 kg]

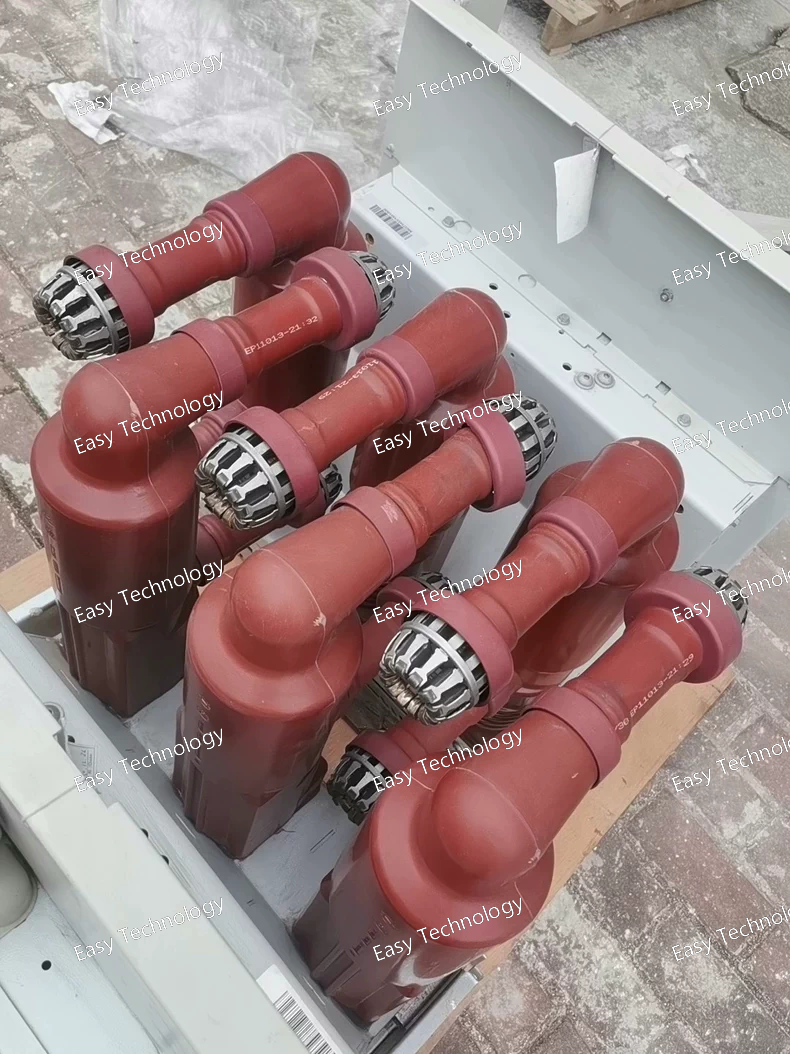

Parameters: Product Type: Vacuum Circuit Breaker (VCB) Model: VD4/Z 12.12.40 Rated Voltage: 12 kV (medium-voltage application) Rated Current: 630A (standard), or configurable to suit specific system needs Interrupting Capacity (Icu): 40 kA (at rated voltage) Rated Frequency: 50/60 Hz Number of Poles: 3P (Three-Phase) Service Type: Indoor installation (can be used in outdoor enclosures with appropriate protection) Operating Temperature: -25°C to +40°C (typical for ABB circuit breakers) Mechanical Endurance: 30,000 operations (or more depending on the specific configuration) Electrical Endurance: 10,000 operations (or more) Arc Quenching Medium: Vacuum Standards Compliance: IEC 60947-2, UL 489, CE, and other international standards Ingress Protection (IP Rating): IP20 (for indoor installations), IP65 (if designed for outdoor use) Dimensions: [Insert dimensions, e.g., 300mm x 250mm x 180mm] (specific dimensions depending on configuration) Weight: [Insert weight, e.g., 20-30 kg depending on configuration]
