Technical Parameters Parameter Specification Product Type Control Transformer / Soft‑Start Transformer Model / Part Number 1SFB476030D1003 Brand ABB Primary Function Convert higher voltage mains to a low‑current control circuit Typical Application Control circuits, soft starter panels, automation control modules Output Current (Approx.) ~100 mA (0.1 A) Primary Circuit Current (Example) Designed to support ~400 A main load feed conversion to 100 mA control supply Core Type Industrial laminated / control transformer core Mounting Type Panel / chassis mount (control panel assembly) Typical Weight ~0.16 kg Insulation & Safety Industrial transformer insulation; protection per internal panel standards Usage Environment Enclosed control panels in industrial electrical systems Electrical Compatibility Designed for use with soft‑starter and control devices that require ~100 mA control voltage

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS355‑03E‑08A8‑4 Drive Family ABB ACS355 Input Voltage Three‑phase 380–480 V AC Input Frequency 50 / 60 Hz Output Voltage Three‑phase 0–480 V AC Rated Output Power ~4.0 kW (approx. 5.5 HP) Rated Output Current ~8.8 A Control Methods V/f Control and Sensorless Vector Control Motor Types Supported AC Induction motors and Permanent Magnet motors Output Frequency Range 0–600 Hz (typical) Safety Function Integrated Safe Torque Off (STO) Protection Rating IP20 (open type for panel mounting) Operator Interface Built‑in keypad/display panel Mounting Type Wall or DIN‑rail within cabinet Adaptive Programming Application macros and built‑in assistants Communication Options Supports fieldbus/Modbus via optional modules Overload Capacity Typically 150 % for 60 s Typical Applications Industrial machinery, conveyors, pumps, mixers, material handling

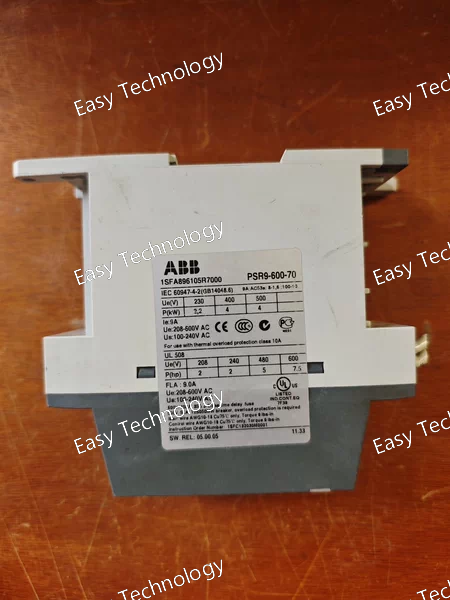

Technical Parameters Parameter Specification Product Type Soft Starter Model / Series PSR9‑600‑70 Brand ABB Rated Operational Current (Ie) 9 A Main Circuit Operational Voltage 208–600 V AC Control Supply Voltage 100–240 V AC (50/60 Hz) Frequency Range 50 / 60 Hz Control Type Voltage ramp soft start and stop Bypass Integrated bypass contact Start/Stop Ramp Adjustment Front‑panel potentiometers Start Ramp Time Adjustable (typically 1–10 s) Stop Ramp Time Adjustable Protection Rating IP20 (open type) Connection Terminals Screw terminals Status Indicators LED RUN / status lamps Typical Motor Power Ratings ~2.2 kW at 230 V, ~4 kW at 400–500 V Dimensions Approx. ~140 × 45 × 114 mm Weight Approx. ~0.4–0.5 kg Applications Pumps, fans, conveyors, compressors, HVAC systems

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑25A0‑4 Drive Family ABB ACS380 Series Input Voltage Three‑phase 380–480 V AC Input Frequency 50–60 Hz Output Voltage 380–480 V AC three‑phase Rated Output Current 25 A (IEC) Rated Power (IEC) 11 kW Rated Power (UL) 15 hp Control Methods V/f control and sensorless vector control Safety Function Integrated Safe Torque Off (STO) Motor Types Supported AC induction motors and permanent magnet motors Protection Rating IP20 (open type) Frame Size R3 compact module Frequency Range Up to ~599 Hz Mounting Panel or cabinet mounting Operator Interface Built‑in icon‑based LCD control panel Adaptive Programming Yes (embedded application macros) Connectivity Supports industrial communications (Modbus RTU; optional fieldbus) Cooling Method Internal fan cooling Typical Applications Conveyors, mixers, extruders, pumps, material handling equipment Dimensions (Approx.) Height ~223 mm × Width ~170 mm × Depth ~176 mm Weight (Approx.) ~3.0–3.3 kg

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑09A4‑4 Drive Family ABB ACS380 Series Input Voltage 3-phase 380–480 V AC Input Frequency 50–60 Hz Output Voltage 380–480 V AC three-phase Rated Output Current 9.4 A Rated Output Power 4 kW (light duty ~5 HP; heavy duty ~3 kW) Control Methods V/f control and sensorless vector control Motor Types Supported AC induction motors and permanent magnet motors Safety Function Integrated Safe Torque Off (STO) Operator Interface Integrated graphical icon-based control panel Protection Rating IP20 (open-type drive, panel mounted) Frame Size R1 compact module Max Output Frequency Up to ~599 Hz Mounting Type Wall/DIN-rail within cabinet Dimensions (Approx.) Height ~223 mm, Width ~70 mm, Depth ~176 mm Weight (Approx.) ~1.4–1.6 kg Adaptive Programming Yes — sequence programming and macros Communications Optional fieldbus/Modbus support Typical Applications Industrial automation, conveyors, pumps, mixers, material handling

Technical Parameters Parameter Specification Product Type Main Control Board / Control Unit Model / Part Number CCU‑24‑R Brand ABB Primary Function Central control and communication interface for automation systems Control / Logic Supply Voltage 24 V DC typical Current Consumption (Logic) ~0.5 A typical Communication Interfaces RS‑485, PROFIBUS, CANbus, Ethernet (multi‑protocol support) Processor / MCU Embedded microcontroller for control logic Memory On‑board program and working memory (varies by model) Operating Temperature Range Approx. −20 °C to +60 °C Ingress Protection Rating IP20 (board / panel mount) Mounting Type Internal panel or DIN‑rail mount** Dimensions (Approx.) Compact control board form factor Weight (Approx.) ~0.5–1 kg typical Standards / Safety Industrial control and communication standards Typical Applications Motor drives, PLC integration, industrial automation networks

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ABB ACS380‑040S‑07A8‑1 Drive Family ACS380 Series Input Voltage Single‑phase 200–240 V AC Input Frequency 50/60 Hz Output Voltage 240 V AC (typical three‑phase output) Rated Output Current ~7.8 A Rated Output Power ~1.5 kW (IEC) / ~2 HP (UL) Control Methods V/f control and sensorless vector control Motor Types Supported AC induction motors, permanent magnet motors Safety Function Integrated Safe Torque Off (STO) Operator Interface Integrated icon‑based LCD control panel Protection Class IP20 (open‑type, panel installation) Mounting DIN rail or panel mount Adaptive Programming Yes (built‑in application macros) Max Output Frequency Up to ~599 Hz Cooling Forced air / optimized airflow design Typical Applications Conveyors, pumps, mixers, material handling, packaging machines Standards Compliance Meets IEC/EN low‑voltage drive and safety standards Dimensions (approx.) Compact module size Weight (approx.) Lightweight industrial drive module

Technical Parameters Parameter Specification Product Type Control Unit / Main Control Board Model / Part Number CCU‑24‑S Applicable System ABB ACS580 Series Drives Primary Function Central control and communication interface for drive systems Control Voltage 24 V DC (typical logic/control supply) Processor / CPU Embedded control processor (for drive control logic) Memory On‑board program and working memory (varies by firmware) Communication Interfaces Standard industrial communication ports (such as Modbus/RS‑485, Ethernet, CANopen depending on configuration) I/O Channels Digital and/or analog I/O for signals and status handling Protection / Enclosure Rating Typically IP20 indoor panel / board mount rating Operating Temperature Range –20 °C to +60 °C (typical industrial range) Mounting Style Panel or DIN rail / internal drive chassis mount Dimensions (Approx.) ~150–280 mm height × ~50–140 mm width × ~30–80 mm depth depending on variant Weight (Approx.) ~0.5–0.6 kg Standards Compliance IEC/EN industrial control standards Application Examples Variable speed motor control, automation system integration, PLC communication, diagnostics

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑12A6‑4 Drive Family ABB ACS380 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 50–60 Hz Output Voltage 380–480 V AC Rated Output Current (Normal) 12.6 A Rated Output Current (Heavy Duty) ~11 A Output Power (IEC) ~5.5 kW Output Power (UL / HP) ~7.5 HP Control Methods V/f control and sensorless vector control Safety Function Integrated Safe Torque Off (STO) Protection Rating IP20 / Open type Operator Interface Integrated LCD or icon‑based display Mounting Wall or DIN‑Rail mounting Frame Size R2 compact module Max Output Frequency Up to ~599 Hz Motor Types Supported AC induction motors and permanent‑magnet motors Adaptive Programming Yes (sequence and application macros) Communications Optional Modbus / fieldbus support (factory variants) Application Examples Conveyors, pumps, mixers, material handling, machine tools Typical Dimensions (Approx.) ~223 × 95 × 176 mm Weight (Approx.) ~2.0 kg Standards Compliance IEC/EN standards for low‑voltage drives and safety

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ABB ACS380‑040S‑033A‑4 Drive Family ACS380 Series Input Voltage 3‑phase 380–480 V AC Rated Input Frequency 50–60 Hz Output Voltage 380–480 V AC Rated Output Current ~33 A Rated Output Power ~15 kW (IEC) / ~20 HP (UL) Motor Types Supported AC induction motors and permanent magnet motors Control Methods V/f control and sensorless vector control Safety Functions Integrated Safe Torque Off (STO) Protection Class IP20 (open type, panel‑mounted) Operator Interface Built‑in icon‑based control panel Mounting Panel or DIN rail mounting Frame Size R3 / R4 (industrial drive size) Typical Applications Industrial automation, machine control, conveyors, pumps Environmental Ratings Industrial ambient conditions Standards Compliance IEC/EN standards for drives and safety Dimensions (Approx.) Standard ACS380 compact module size Weight (Approx.) Several kilograms (varies by configuration)

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑02A6‑4 Drive Series ABB ACS380 Input Voltage 3‑phase 380–480 V AC Input Frequency 50–60 Hz Output Power approx. 0.75 kW / 1 HP Rated Output Current approx. 2.6 A Frame Size R1 Protection Class IP20 (open type) Control Methods Scalar V/f and vector control options Safety Function Safe Torque Off (STO) integrated Motor Types Supported AC induction motors, permanent magnet motors Operator Interface Built‑in icon‑based display Mounting Panel or cabinet mounting Dimensions (Approx.) Width ~70 mm × Height ~223 mm × Depth ~176 mm Weight (Approx.) ~1.4–1.6 kg Operating Range Typical industrial ambient conditions Applications Motor speed control for conveyors, pumps, mixers, etc. Standards Conforms to IEC/EN drive and safety standards

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑17A0‑4 Drive Series ACS380 Input Voltage 3‑phase, 380 V to 480 V AC Input Frequency Range 47–63 Hz (typical) Output Power Rating 7.5 kW (10 HP) Rated Output Current 17 A Control Method Scalar (V/f) and vector control (sensorless vector) Motor Types Supported AC induction motors, permanent magnet motors Overload Capacity Approx. 150% for 60 s Output Frequency Range 0–500 Hz (typical) Protection Class IP20 (open type) Safety Functions Integrated Safe Torque Off (STO) Built‑in EMC Filter Yes (depending on variant) Operator Interface Integrated LCD or icon‑based display Mounting Type Wall or DIN rail mounting Ambient Temperature –10 °C to +50 °C (typical without derating) Dimensions (Approx.) ~295 mm × 125 mm × 215 mm (H × W × D) Weight (Approx.) ~3.5–4.8 kg Standards Compliance IEC/EN standards for AC drives and safety Applications Industrial machines, conveyors, pumps, mixers, automation systems
