Technical Parameters Parameter Specification Drive Family ABB ACS310 Series Model ACS310‑03E‑01A3‑4 Product Type Variable Frequency Drive (VFD) Application Motor speed and torque control (pumps, fans, general) Input Voltage 3‑phase 380–480 V AC Input Frequency 50 / 60 Hz Rated Output Power 0.37 kW (~0.5 HP) Rated Output Current 1.3 A Output Frequency Range 0–500 Hz Control Methods Scalar (V/f) and application macros (PID etc.) Protective Monitoring Overcurrent, overload, undervoltage, stall protection Enclosure Rating IP20 (open‑type) EMC Filter Built‑in (industrial category) I/O Interfaces Digital inputs (5), Analog inputs (2), Analog output (1), Digital output (1), Relay output (1) Communication Embedded Modbus (RS‑485) Operator Interface Basic front panel / optional flash/assistant tools Ambient Temperature Range –10 °C to +50 °C Mounting Type Wall or DIN‑rail within cabinet Dimensions / Weight Compact, lightweight industrial drive Typical Uses Pumps, fans, HVAC, water systems, conveyors

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑04A0‑4 Drive Family ABB ACS380 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 50–60 Hz Output Voltage Three‑phase 380–480 V AC Rated Output Current 4 A (normal use) Rated Output Power 1.5 kW (IEC) / 2 HP (UL) Motor Control Methods Scalar (V/f) and sensorless vector control Maximum Output Frequency Up to 599 Hz Protection Rating IP20 (open type) Operator Interface Integrated graphical icon‑based control panel Adaptive Programming Yes — sequence programming and built‑in macros Safety Functions Safe Torque Off (STO) and protective monitoring Mounting Type DIN‑rail or panel mount Frame Size R1 compact module Cooling Method Forced air / optimized cooling design Typical Applications Conveyors, pumps, mixers, material handling, fans Dimensions (Approx.) Height ~8.66 in × Width ~2.76 in × Depth ~6.85 in Motor Types Supported AC induction and permanent magnet motors Communication Factory configured I/O, optional Modbus/fieldbus Features PID control, maintenance timers/counters, integrated brake control

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS180‑04N‑07A2‑4 Drive Family ABB ACS180 Input Voltage 3‑phase 380–480 V AC Input Frequency 47–63 Hz Output Voltage Three‑phase 380–480 V AC Rated Output Power (IEC) 3 kW Rated Output Current 7.2 A (normal use) Light‑Overload Current 6.8 A Heavy‑Duty Current 5.6 A Rated Power (Light‑Overload) 3 kW Rated Power (Heavy‑Duty) 2.2 kW Apparent Output Power ~5 kVA Horsepower Rating ~3 HP (UL rating) Protection Class IP20 (open‑type panel mount) Frame Size R1 Control Methods Sensorless vector and scalar control Communication MODBUS (RS‑485) interface support Analog Inputs 2 Analog Outputs 1 Digital Inputs / Outputs Standard digital I/O Mounting Type Module for panel or cabinet installation Ambient Operating Temp. Typical industrial range (up to ~40 °C) Weight (Approx.) ~1.24 kg Typical Dimensions (Approx.) ~220 mm × 70 mm × 143 mm Efficiency IE2 (applicable efficiency level) Standards Compliance IEC low‑voltage VFD drive requirements

Technical Parameters Parameter Specification Product Type Soft Starter Model / Series PSE25‑600‑70 Brand ABB Rated Operational Current (Ie) 25 A Main Circuit Rated Voltage Range 208–600 V AC, three‑phase Control Supply Voltage 100–250 V AC/DC, 50/60 Hz Rated Frequency 50 Hz / 60 Hz Rated Motor Power (approx.) ~5.5 kW @ 230 V; ~11 kW @ 400 V; ~15 kW @ 500 V Start/Stop Ramp Type Voltage or torque ramp Ramp Time Range Adjustable (e.g., 1–30 s) Starting Capacity Up to ~4 × Ie for 10 s Protection Functions Electronic overload, locked rotor, underload, EOL (end‑of‑line) protection Bypass Contactor Integrated Control Interface LEDs / display status indicators Communications Optional Modbus RTU Outputs / Relays RUN, TOR (torque), Fault / Event (NO relay outputs) Degree of Protection IP00 (open style for panel mounting) Terminal Type Screw terminals Operating Temperature Range ~‑25 °C to +60 °C Weight (approx.) ~2.4–3.2 kg Typical Applications Pumps, fans, compressors, conveyors, industrial motor control

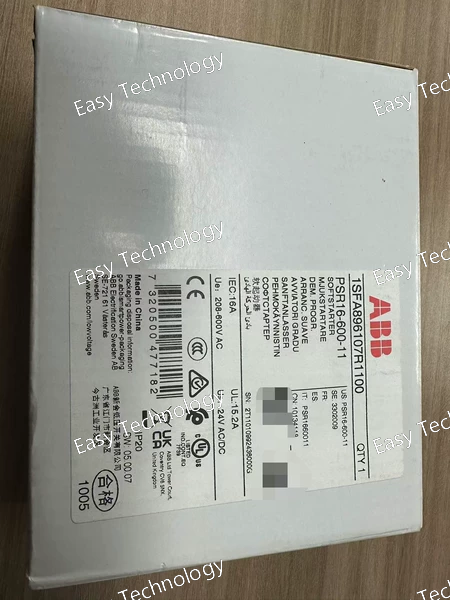

Technical Parameters Parameter Specification Product Type Soft Starter Model / Series PSR16‑600‑11 Brand ABB Rated Operational Current (Ie) 16 A Main Circuit Voltage Range 208 – 600 V AC Frequency Rating 50 / 60 Hz Control Supply Voltage 24 V AC/DC Control Type Soft start and soft stop via voltage ramp Start Ramp Time Range Adjustable (typically 1–20 s) Stop Ramp Time Range Adjustable (typically 0–20 s) Built‑In Bypass Yes, for energy‑efficient full‑speed operation Run Signal Output Relay output (NO — normally open) Connection Terminals Screw terminals Degree of Protection IP20 (open enclosure) Installation DIN‑rail or panel mounting (compact range) Motor Power Examples ~4 kW @ 230 V, ~7.5 kW @ 400–500 V Full Load Current Example ~15.2 A Overload Relay Class 10 Operating Temperature –25 °C to +60 °C Typical Dimensions Compact soft starter size

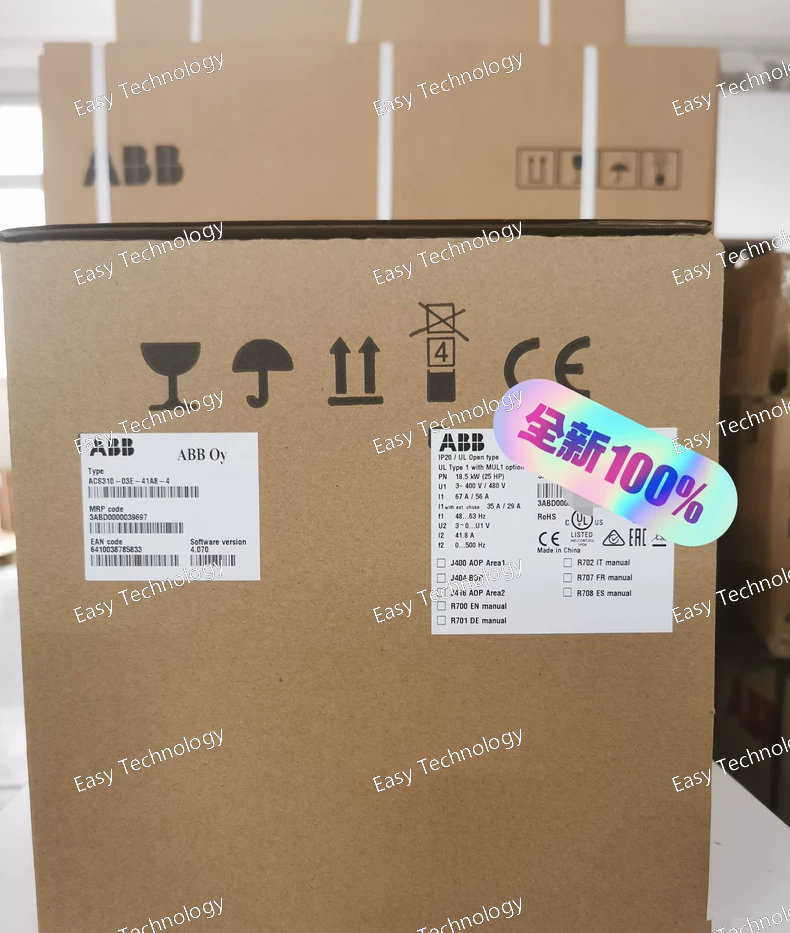

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS310‑03E‑41A8‑4 Drive Family ABB ACS310 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 50/60 Hz Output Voltage 380–480 V AC (three‑phase) Rated Output Power 18.5 kW (25 HP) Rated Output Current 41.8 A Control Method Scalar (V/f) control Output Frequency Range 0–500 Hz (typical) Safety / Protection Features Overcurrent, overvoltage, thermal, undervoltage protection EMC Filter Built‑in (Class C2) Protection Rating IP20 (open type) Mounting Type Wall or cabinet mounting Operator Interface Basic built‑in control panel / optional panel Digital Inputs Multiple (e.g., 5) Analog Inputs Multiple (e.g., 2) Analog Outputs 1 Relay Outputs 1 Communication Interfaces Modbus RTU (via RS‑485) Ambient Temperature Range –10 °C to +50 °C operating Typical Dimensions Approx. 261 mm × 146 mm × 169 mm Weight (Approx.) ~3.4–4.4 kg Standards IEC/EN for low‑voltage drives and safety

Technical Parameters Parameter Specification Product Type Soft Starter (Solid‑State Reduced Voltage Starter) Model / Series PSR37‑600‑70 (PSR Series) ABB Part Number 1SFA896110R7000 Rated Operational Current (Ie) 37 A Rated Operational Voltage (Main Circuit) 208 – 600 V AC Control Supply Voltage 100 – 240 V AC, 50/60 Hz Control Circuit Voltage 100 – 240 V AC Rated Frequency 50/60 Hz Soft Start/Stop Method Two‑phase voltage ramp control Adjustable Ramp Times Start and stop ramp times adjustable via potentiometers Built‑in Bypass Yes (bypass contactor for energy efficiency) Relay Outputs RUN and TOR (normally open) Motor Power Capability Approx. 7.5 kW @ 230 V, 18.5 kW @ 400 V, 22 kW @ 500 V Protection Rating IP10 (open type) Terminal Type Screw terminals Mounting DIN rail or panel mounting Operating Temp. Range ~‑25 °C to +60 °C Dimensions (Approx.) Height ~187 mm × Width ~54 mm × Depth ~153 mm Weight (Approx.) ~1.0 kg Typical Applications Pumps, fans, compressors, conveyors, general three‑phase motor control

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑07A2‑4 Drive Family ABB ACS380 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 50 / 60 Hz Output Voltage 380–480 V AC (three‑phase) Rated Output Current 7.2 A Rated Output Power ~3 kW / 3 HP Motor Control Methods Scalar (V/f) and Sensorless Vector Control Output Frequency Range Up to ~599 Hz Safety Function Integrated Safe Torque Off (STO) (standard on ACS380 drives) Protection Rating IP20 (open type) for panel or cabinet mounting Operator Interface Built‑in icon‑based LCD control panel Frame Size R1 (compact module) Adaptive Programming Yes — built‑in macros and sequence programming Communications RS‑485 (Modbus RTU) standard; optional fieldbus modules available I/O Interfaces Digital inputs, analog inputs/outputs, relay outputs (varies by variant) Dynamic Braking Support Yes (requires external resistor) Mounting Type Wall mount or DIN rail in cabinet Typical Applications Industrial automation, conveyors, pumps, mixers, material handling Typical Dimensions Compact ACS380 form factor Typical Weight Approx. 1.4 kg – 3.5 lbs

Technical Parameters Parameter Specification Drive Family ABB ACS310 Series Model ACS310‑03E‑02A1‑4 Application Three‑phase motor speed control Input Voltage 380–480 V AC, Three‑Phase Input Frequency 50–60 Hz Output Power (Rated) 0.55 kW (0.75 HP) Output Current (Normal Duty) 2.1 A Control Method Scalar V/f control Output Frequency Range 0–500 Hz Protection Rating IP20 (open type) Mounting Type Wall or panel mounting Ambient Operating Temperature Typically –10 °C to +50 °C Digital Inputs 5 Analog Inputs 2 Analog Output 1 Digital Output 1 Relay Output 1 Communication Interface RS485 (Modbus RTU) Built‑in Features PID control, energy optimization, FlashDrop tool support EMC Filter Integrated (C3 category for industrial environment) Overload Capacity Approx. 110% for 60 s Typical Weight ~1.1 kg Typical Dimensions (approx.) Height ~239 mm × Width ~70 mm × Depth ~161 mm

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS580‑01‑039A‑4 Drive Family ABB ACS580 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 50/60 Hz Output Voltage 380–480 V AC (three‑phase) Rated Output Power 18.5 kW (normal/light duty) Output Current (Normal Use) 38 A Output Current (Light‑Overload Use) ~36.1 A Output Current (Heavy‑Duty Use) ~31.6 A Control Methods Scalar V/f and sensorless vector control Output Frequency Range 0–500 Hz Safety Function Integrated Safe Torque Off (STO) Protection Rating IP21 (wall‑mounted, indoor) Operator Interface Integrated control panel (Assistant panel) Analog Inputs 2 Digital Inputs 6 Analog Outputs 2 Relay Outputs 3 contact sets Communications RS‑485 / Modbus RTU (built‑in), optional fieldbus variants Mounting Type Wall‑mounted / cubicle mount Cooling Method Internal fan Typical Enclosure NEMA Type 1 / IP21 Typical Applications Pumps, fans, conveyors, compressors, HVAC, general drives Standards IEC/EN VFD standards for low‑voltage drives

Technical Parameters Parameter Specification Product Type Control Circuit Transformer / Control Supply Accessory Model / Part Number 1SFB476030D1002 Brand ABB Intended Use Supplies low‑current control voltage for control circuits Typical Secondary Rating ~25 mA control output (indicative based on third‑party listings) Primary Current Handling ~175 A main circuit conversion to control level (indicative) Function Provides isolated low‑power control supply from higher voltage power circuit Application Motor control panels, soft starter/drive control logic, relay supply Mounting Panel / chassis mount in control panels Construction Compact transformer or control accessory module Typical Weight ~0.07 kg (70 g) Operating Frequency 50/60 Hz (industrial control transformer norms) Connection Type Terminal block interface

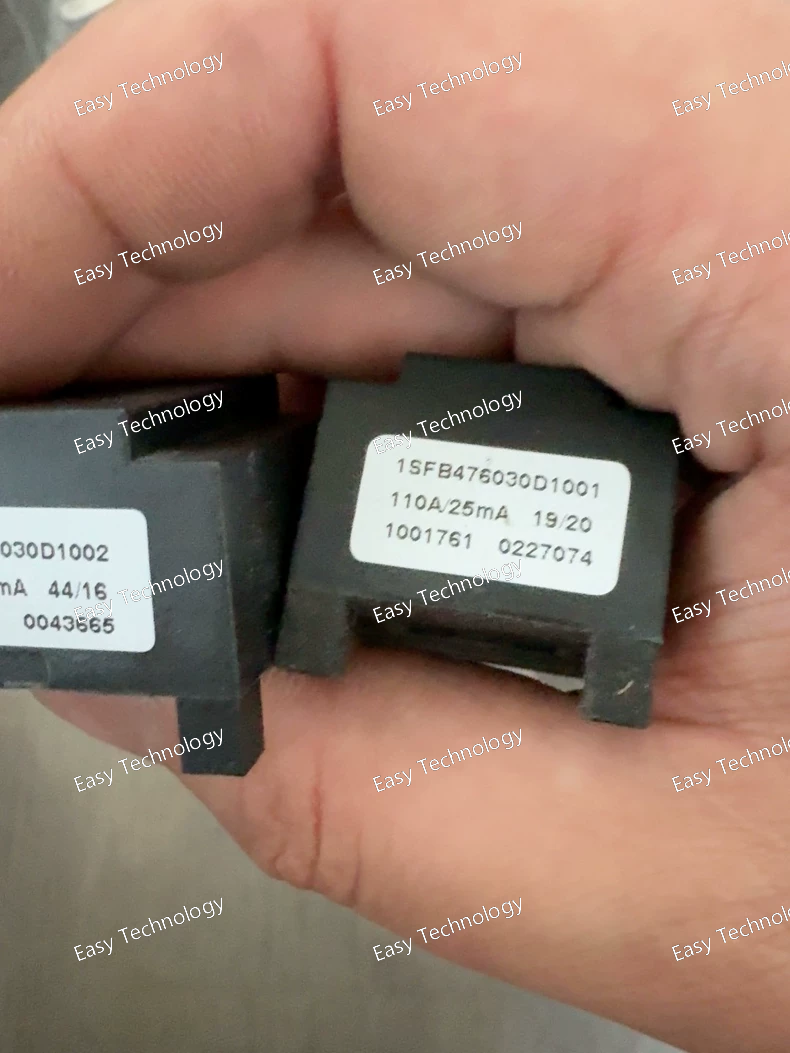

Technical Parameters Parameter Specification Product Type Control / Power Transformer Model / Part Number 1SFB476030D1001 Brand ABB Primary Purpose Supply low‑voltage control power from higher mains voltage Application Motor control cabinets, soft starters, PLC and relay control circuits Transformer Type Encapsulated core‑and‑coil / encapsulated control transformer Primary Voltage Range Designed for industrial mains (e.g., 208–600 V AC typical for control transformers) Secondary Voltage Control circuit voltage (e.g., low AC voltage such as 24 V or 120 V depending on variant) Frequency 50 Hz / 60 Hz Phase Single‑phase Protection / Enclosure Encapsulated / open terminal block for panel mount Insulation Class Industrial class for control transformer applications Mounting Style Panel or chassis mount inside electrical cabinets Typical Use Environment Industrial control, automation, motor panels Weight (Approx.) Light / compact Safety Features Electrical isolation between primary and secondary circuits Standards Compliance Industrial transformer safety and insulation standards
