Technical Parameters Parameter Specification Model ACS530‑01‑03A4‑4 Drive Series ACS530 General Purpose Drives Drive Type Low‑Voltage AC Variable Frequency Drive (VFD) Rated Output Power 1.1 kW (approx. 1.5 HP) Rated Current (IEC) 3.3 A Input Voltage 3‑phase 380–480 V AC Input Frequency 50/60 Hz Output Frequency Range 0 – ~500 Hz Control Methods Standard V/f and sensorless vector control Enclosure / Protection IP20 / Open‑type Frame Size R1 Mounting Panel or cabinet installation Safety and Protection Overload, overcurrent, overvoltage, undervoltage protections User Interface Integrated control panel (LCD/keypad) Typical Applications Pumps, fans, conveyors, general machinery

Technical Parameters Parameter Specification Model ACS380‑040S‑02A6‑4 Drive Series ACS380 Machinery Drive Drive Type Low‑Voltage AC Variable Frequency Drive (VFD) Input Voltage Three‑phase 380–480 V AC Rated Current ~2.6 A Rated Output Power 0.75 kW (≈1 HP) Control Methods Scalar (V/f), Sensorless vector control Output Frequency Range 0–599 Hz Enclosure Rating IP20 / Open Frame Size R1 Mounting DIN‑rail or wall mounting Integrated Display Icon‑based LCD control panel Dynamic Braking Supported with external resistor option Protection Functions Overcurrent, overvoltage, undervoltage, motor stall, etc. Application Examples Pumps, fans, conveyors, mixers, general machinery

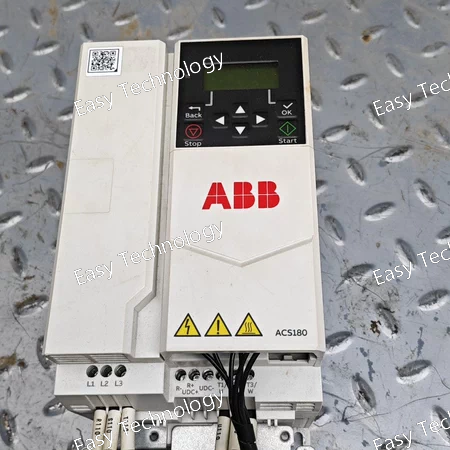

Technical Parameters Parameter Specification Model ACS180‑04N‑033A‑4 Drive Series ACS180 LV AC Machinery Drives Drive Type Low‑Voltage AC Variable Frequency Drive (VFD) Rated Output Power 15 kW (≈20 HP) IEC class Rated Current (IEC) ~32 A at 400 V AC Rated Current (UL) ~27 A at 460 V AC Input Voltage 3‑phase 380–480 V AC Input Frequency 47–63 Hz Control Methods Scalar (V/f); Sensorless vector control Enclosure / Protection IP20 (open/cabinet mount) Safety Function Integrated Safe Torque Off (STO) User Interface Configurable keypad/display (depends on option) Mounting Panel or cabinet installation Applications Pumps, fans, conveyors, mixers, general industrial motors

Technical Parameters Parameter Specification Model ACS380‑040S‑050A‑4 Drive Series ACS380 Machinery Drives Drive Type Low‑Voltage AC Variable Frequency Drive (VFD) Rated Output Power 22 kW (30 HP) Rated Current ~40–42 A Input Voltage 3‑phase 380–480 V AC Input Frequency 50/60 Hz Output Voltage 0–Input Voltage Control Methods Scalar (V/f), sensorless vector control Frequency Range 0–~500 Hz Enclosure / Protection IP20 / Open‑type Frame Size R4 Mounting Surface/Wall, Cabinet installation Overload Capability ~150 % for short duration Communication Modbus RTU (optional or built‑in) Safety Functions Standard drive protections (overvoltage, overcurrent, etc.) User Interface Integrated control panel (LCD or keypad) Operating Temperature Standard industrial range Typical Dimensions Approx. modular R4 size Weight ~4–5 kg Typical Applications Pumps, fans, conveyors, mixers, HVAC, packaging

Technical Parameters Parameter Specification Model ACS380‑040S‑01A8‑4 Drive Series ACS380 Rated Power ~0.55 kW (~0.75 HP) Rated Current ~1.8 A Input Voltage 3‑phase 380–480 V AC Output Voltage 3‑phase 380–480 V AC Control Methods Scalar V/f; Vector control Frequency Range 0–599 Hz Overload Capability ~150% for short intervals Motor Types Supported Induction, PMSM, SynRM Safety Features Integrated Safe Torque Off (STO) User Interface Integrated icon‑based LCD panel Mounting DIN Rail / Wall mount Enclosure Rating IP20 / Open Frame Size R0 Dimensions (approx.) ~223 × 70 × 174 mm (varies by config) Operating Temp. Typical industrial range (‑10°C to +50°C) Adaptive Programming Yes (sequence macro)

Technical Parameters Parameter Specification Model ACS530‑01‑07A3‑4 Drive Type Low‑Voltage AC Variable Frequency Drive (VFD) Rated Power ~3 kW Rated Current 7.2 A Supply Voltage 3‑phase 380–480 V AC Frequency Range 0–500 Hz Control Method Standard V/F or sensorless vector control (series capability) Overload Capacity Standard drive overload tolerance Protection Features Overload, short‑circuit, overvoltage, undervoltage, earth fault Communication Interfaces Built‑in Modbus RTU (RS‑485); optional fieldbus modules available User Interface Integrated control panel with display and navigation keys Application Industrial motor speed control for general machinery Mounting Wall or panel mount (standard)

Technical Parameters Parameter Specification Model ACS880‑01‑072A‑3 Drive Type Low-Voltage AC Variable Frequency Drive (VFD) Power Rating ~37 kW Rated Current 72 A Supply Voltage 3‑phase 380–415 V AC Control Method Direct Torque Control (DTC) Frequency Range 0–500 Hz Enclosure Rating IP21 (wall‑mount) Safety Functions STO built-in; optional additional safety features Communication Ethernet/IP, PROFINET, Modbus, PROFIBUS Applications Industrial motor control: pumps, fans, conveyors, compressors, mixers

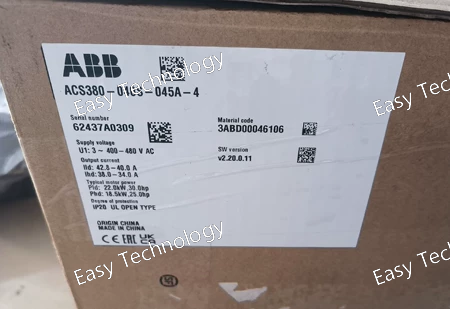

Technical Parameters Parameter Specification Drive Type Variable Frequency Drive (VFD) Model / Series ACS380‑040S‑045A‑4 Drive Family ABB ACS380 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 50 / 60 Hz Output Voltage Three‑phase 380–480 V AC Rated Output Current (Normal Use) 45 A Rated Output Current (Light Overload) ~42.8 A Rated Output Current (Heavy Duty) ~38 A Rated Output Power (IEC) 22.0 kW Rated Output Power (Light Overload) 22.0 kW Rated Output Power (Heavy Duty) ~18.5 kW Apparent Power Output ~31 kVA Control Method Sensorless vector (open loop) and V/f Frequency Range 0–500 Hz Protection Rating IP20 (open type) Enclosure / Mounting Open‑type, panel/machine mount Frame Size R4 (larger compact module) Operator Interface Built‑in keypad/display Safety Function Safe Torque Off (STO) Communications RS‑485 Modbus RTU; optional fieldbus modules available Inputs / Outputs Digital and analog I/O (varies by configuration) Cooling Internal fan Typical Applications Industrial automation, conveyors, pumps, fans, compressors Standards Compliance Designed to meet IEC/EN drive and safety standards Enclosure Protection Suitable for indoor panel mounting

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS880‑01‑03A3‑3 Drive Family ACS880 – Standard (Wall) Input Voltage 3‑phase 380–415 V AC Input Frequency 50–60 Hz Output Voltage 380–415 V AC (three‑phase) Rated Output Power (IEC) 1.1 kW Rated Output Current 3.3 A Rated Power (Heavy Duty) 0.75 kW Output Frequency Range 0–500 Hz Control Methods Direct torque control (DTC); V/f and sensorless vector options Protection Rating IP21 / NEMA Type 1 (wall mounting) Mounting Type Wall mount or optional cabinet mounting Frame Size R1 (compact module) Overload Capacity Typical industrial overload capability Operator Interface Assistant control panel with USB support Communication Options RS‑485 Modbus RTU; optional fieldbus modules (Profibus, Profinet, EtherNet/IP, CAN, etc.) I/O Interfaces Multiple digital and analog inputs and outputs (varies by configuration) Safety Features Integrated Safe Torque Off (STO) functionality Environmental Operating Range Typical industrial ambient conditions Approx. Dimensions ~409 mm × 155 mm × 226 mm (H×W×D) Approx. Weight ~6–7 kg Typical Applications Pumps, fans, conveyors, compressors, mixers, general industrial drives

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS180‑04N‑17A0‑4 Drive Family ABB ACS180 Series Input Voltage 3‑phase 380–480 V AC Input Frequency 47–63 Hz Rated Output Power (IEC) 7.5 kW Rated Output Current 17.0 A Rated Power (UL) 10 HP UL Rated Current (460 V) 14.0 A Control Method Scalar (V/f) and adaptive control options Output Frequency Range 0–600 Hz (typical series range) Protection Rating IP20 (open panel type) Mounting Type Panel or cabinet mount Enclosure Type Open frame/module Cooling Internal fan Communication Supports MODBUS/RS‑485 I/O Interfaces Standard digital/analog inputs/outputs Motor Types Supported Three‑phase induction motors Protection Functions Overcurrent, overload, undervoltage, etc. Typical Applications Pumps, fans, compressors, conveyors, general‑purpose motor control

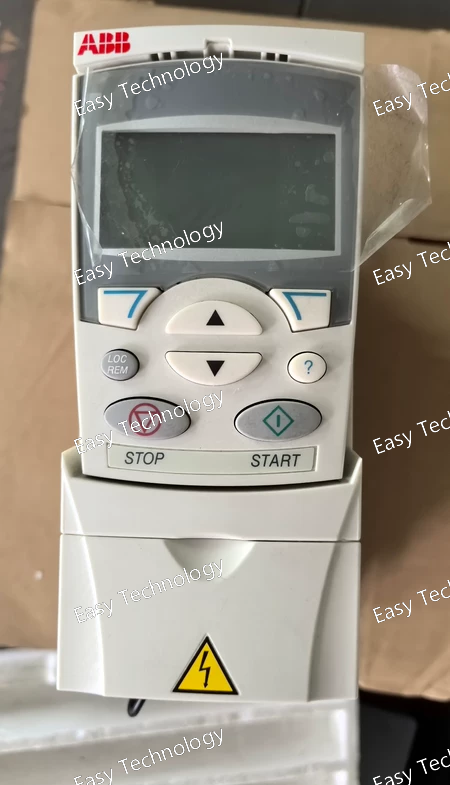

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS310‑03E‑03A6‑4 Drive Family ABB ACS310 Input Voltage 3‑phase 380–480 V AC Input Frequency 50/60 Hz Output Power 1.1 kW (~1.5 HP IEC) Rated Output Current 3.6 A Control Method Scalar (V/f) and pump/fan macros Output Frequency Range 0–500 Hz Protection Functions Overcurrent, overload, undervoltage, short‑circuit Integrated Motor Control PID control and pump/fan features Operator Interface Basic built‑in control panel I/O Interfaces Digital inputs: 5; Analog inputs: 2; Analog output: 1; Digital output: 1; Relay output: 1 Communications RS‑485 (Modbus) Protection Rating IP20 (open type) Mounting Type Cabinet or DIN‑rail mounting Ambient Temperature ‑10 °C to +50 °C operating Dimensions (Approx.) ~169 mm × 70 mm × 143 mm Weight (Approx.) ~1.1–1.3 kg Typical Applications Pumps, fans, HVAC, irrigation, material handling Standards Compliance Industrial drive standards for safety and EMC

Technical Parameters Parameter Specification Product Type Variable Frequency Drive (VFD) Model / Series ACS180‑04N‑12A6‑4 Drive Family ABB ACS180 Series Input Voltage Three‑phase 380–480 V AC Input Frequency 47–63 Hz Output Voltage 380–480 V AC (three‑phase) Rated Output Power (IEC) 5.5 kW Rated Output Current (Normal Use) 12.6 A Output Power (Light‑Overload Use) 5.5 kW Output Power (Heavy‑Duty Use) 4 kW Apparent Power 8.7 kVA Rated Current (Heavy Duty UL) 9.4 A (UL heavy‑duty) Rated Power (UL) 7.5 HP (light‑overload) Control Methods Scalar (V/f) control and advanced motor control Operator Interface Built‑in keypad/display panel Protection Rating IP20 (open‑type chassis) Frame Size R2 Mounting Type Panel / cabinet mount Communications Integrated RS‑485 (MODBUS) Analog Inputs 2 Analog Outputs 1 Digital I/O Digital inputs & outputs (typical ACS180 I/O mix) Operating Temperature Standard industrial ambient range Typical Applications Fan, pump, conveyor, machine automation Standards Compliance IEC low‑voltage drives and safety standards
