Technical Parameters Specification Typical Value / Description Product Type Motorized Automatic Transfer Switch / Change‑Over Switch Model OTM63F4C11D380C Number of Poles 4 poles (three phases plus neutral) Rated Operational Current 63 A Rated Operational Voltage Low‑voltage three‑phase AC distribution (nominal system up to ~380–415 V) Control / Motor Supply Voltage 380 V AC (indicated by the 380C suffix) Rated Insulation Voltage (Ui) Designed to operate within standard low‑voltage insulation levels (typical up to ~750–1000 V) Impulse Withstand Voltage (Uimp) Capable of withstanding several kilovolts of transient surge Transition Type Open‑transition change‑over (standard for this style) Operating Modes Automatic (motorized) and manual handle operation Mechanical Interlock Prevents simultaneous connection of both power sources Mounting Panel or enclosure mount for low‑voltage switchgear Typical Applications Automatic transfer between utility and backup sources; industrial and commercial power continuity

Specifications Parameter Category Specification Manufacturer / Series ABB / Softstarter TFC Series Model Code 2TFC800-104R1001 Rated Current 104 Amperes (This is the maximum rated operational current for the soft starter under specific conditions). Rated Voltage Typically 200-480V AC, 3-phase, 50/60 Hz (Confirm exact voltage range from local datasheet, as it can vary by market). Application For controlling Three-Phase AC Squirrel Cage Induction Motors. Power Rating Approximately 55 kW / 75 HP (at 400V AC). This is an approximate value; the exact power depends on the motor voltage and application. Control Method Voltage ramp control. It provides a smooth increase in voltage during start and a controlled decrease during stop (e.g., for pump control to avoid water hammer). Key Features • Reduced Starting Current: Limits inrush current, typically to 250-400% of motor full load current (FLC). • Torque Control: Provides high starting torque while minimizing mechanical shock. • Built-in Protection: Includes overload protection, phase imbalance detection, and thermal protection for the starter itself. • Compact Design: Integrated bypass contactor (or internal bypass) to reduce heat dissipation during continuous run. • User Interface: Typically includes a set of potentiometers or DIP switches for adjusting start/stop parameters and LEDs for status indication. Enclosure / Mounting Generally supplied as an open-type chassis for panel mounting (IP00). Requires installation in a suitable control cabinet for protection. Communication & Options Basic models often have analog/digital I/O for integration into control systems. Optional communication modules (e.g., Fieldbus) may be available. Standards & Compliance Conforms to international standards such as IEC/EN 60947-4-2, UL 508, and CE marked. Typical Applications Centrifugal Pumps Fans and Blowers Compressors Conveyor Belts Mixers and Agitators

Technical Parameters Specification Typical Value / Description Product Type Automatic Transfer Switch (ATS) / Motorized Change‑Over Switch Model OTM100F4C10D380C Number of Poles 4 poles (three phases + neutral) Rated Operational Current 100 A Rated Operational Voltage Low‑voltage AC three‑phase (typically up to ~690 V) Control / Motor Supply Voltage 380 V AC Rated Insulation Voltage (Ui) Up to ~800–1000 V AC Impulse Withstand Voltage (Uimp) Several kilovolts Transition Type Open transition change‑over Operating Modes Automatic (motorized) and Manual (handle) Mechanical Interlock Prevents simultaneous connection of both sources Mounting Panel or enclosure mount Typical Applications Automatic transfer between utility and backup power in industrial/commercial systems

Parameter Specification Standards Compliance IEC/EN 60947-1 & 60947-2, UL 489, CCC, CE. Rated Operational Current (Ie) 100 A (Set via installed rating plug). Frame Current (Inm) 315 A Poles 4 Poles (3P + N) Rated Insulation Voltage (Ui) 1000 V Rated Operational Voltage (Ue) Up to 690 V AC Ultimate Breaking Capacity (Icu) 50 kA @ 415V AC (Category E) Trip Unit Type Electronic (PR221DS/PR222DS type) Key Protection Functions • L - Overload Protection: Adjustable current setting (Ir: 0.4 to 1 x In) and time delay (tr). • S - Selective Short-Circuit Protection: Adjustable current threshold (Isd: 1.5 to 10 x Ir) and adjustable time delay (tsd) for coordination. • I - Instantaneous Protection: Adjustable magnetic threshold (Ii: 2 to 14 x In). Auxiliary Functions • Communication Ready: Built-in port for optional communication modules (e.g., ABB COM-xx modules for Modbus, Profibus DP). • Measurement: Capable of monitoring current, power, energy, etc., visible via communication. Mounting Fixed Mounting Version (can be used with fixed or plug-in base/adaptor). Typical Applications Main and sub-distribution switchboards Industrial plant power distribution Protection of feeders, motors, and capacitor banks Integration into Building Management Systems (BMS) and SCADA via communication.

Technical Parameters Specification Typical Value / Description Product Type Motorized Automatic Transfer Switch (ATS) / Change‑Over Switch Model OTM160E3C10D380C Number of Poles 3 poles (three‑phase) Rated Operational Current 160 A Rated Operational Voltage Low‑voltage AC three‑phase (typically up to ~690 V AC) Rated Insulation Voltage (Ui) ~1000 V AC Rated Impulse Withstand Voltage (Uimp) ~12 kV (built to withstand typical surge conditions) Control / Motor Supply Voltage 380 V AC Transition Type Open transition change‑over (break‑before‑make) Operating Modes Automatic (motorized) and Manual (handle override) Mechanical Interlock Prevents both power sources from being connected simultaneously Mounting Panel or enclosure mount Typical Use Automatic transfer between utility and backup generator in three‑phase systems

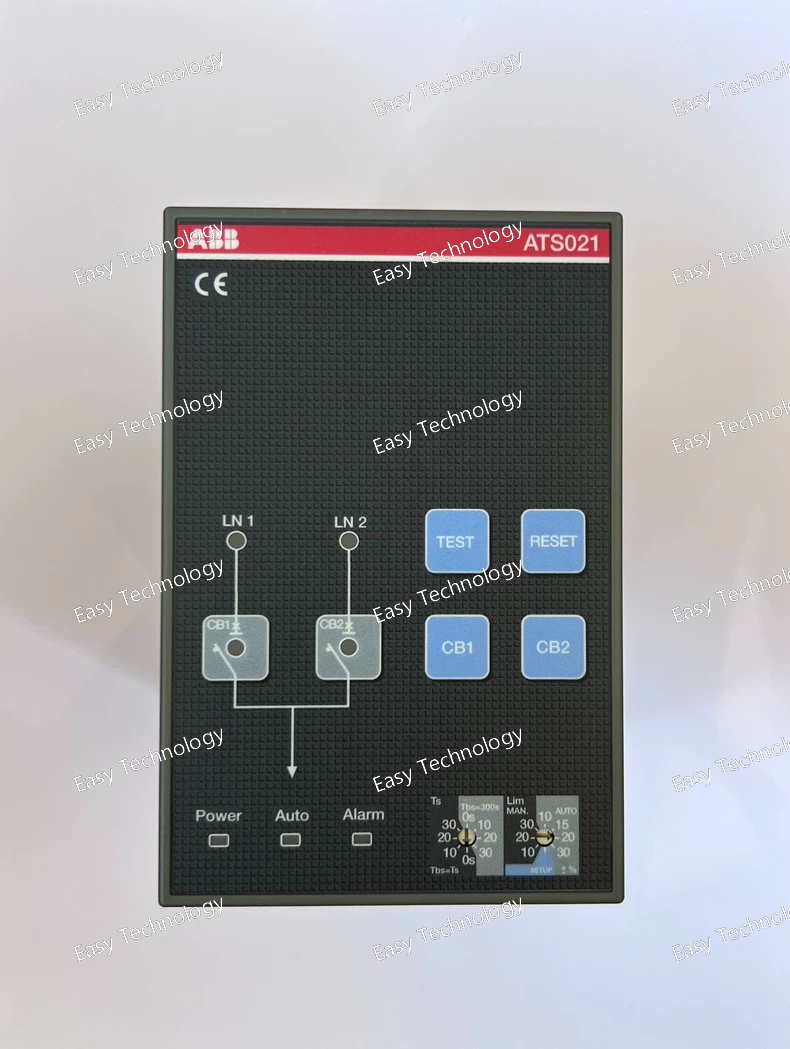

Technical Parameters Specification Typical Value / Description Product Name Automatic Transfer Switch Controller Model ATS021 Product Type Automatic Transfer Switch (ATS) / Transfer controller Function Monitors two power sources and controls switching between them Voltage Monitoring Monitors normal and emergency line voltages Switching Logic Automatic change‑over with configurable delays; manual control available Control Outputs Commands for opening/closing circuit breakers on both sources Operating Modes Automatic and Manual (selectable via front panel) User Interface Rotary switches, keypad/buttons with LED indicators Adjustable Parameters Delay times, voltage thresholds, test mode, manual override Mounting Panel or enclosure mount Dimensions (Approx.) Width ~160 mm × Height ~110 mm × Depth ~240 mm (compact) Weight ~1.2–1.3 kg Application Automatic transfer between mains and backup/generator power systems Protection & Monitoring Detects anomalies such as over/under voltage, missing line, imbalance

Technical Parameters Specification Typical Value / Description Product Type Compact Automatic Transfer Switch (ATS) / Motorized Change‑Over Switch Model / Variant OTM_C10D (fixed delay automatic change‑over variant) Function Automatic switching between two independent power sources Application Three‑phase low‑voltage systems (network/network or network/generator) Operating Modes Automatic motorized operation and Manual override Transition Type Open transition (standard change‑over) Voltage Monitoring Built‑in sensing for line availability Manual Operation Handle provided for local manual change‑over Control Interface Terminal connections for control and auxiliary signals Typical System Voltage Range Suitable for standard low‑voltage three‑phase (e.g., 380–415 V) Motor Supply Voltage Typically matched to system (e.g., 380 V AC) Compact Form Factor Designed for panel or enclosure mounting Auxiliary Outputs Switch position and alarm signals available Operation Delays Fixed (non‑adjustable) for transfer and return in the C10D variant Manual Override Option Provided via removable handle Safety Isolation Interlocking prevents both sources from paralleling Typical Uses Backup power switching in industrial, commercial, and infrastructure systems

Technical Parameters Specification Typical Value / Description Product Type Automatic Transfer Switch (ATS) / Motorized Change‑Over Switch Model OTM100F4C21D380C Series OTM_C21D (compact ATS with configurable logic) Number of Poles 4 poles (three phases + neutral) Rated Current 100 A Rated Operational Voltage (Ue) 380–415 V AC (three‑phase) Control / Motor Supply Voltage 380 V AC Rated Insulation Voltage (Ui) Typical low‑voltage system range (e.g., ~800–1000 V AC) Impulse Withstand Voltage (Uimp) Several kilovolts designed for low‑voltage switching environments Transition Type Open transition (break‑before‑make transfer) Operating Modes Automatic (motorized) and Manual (handle override) Mechanical Interlock Prevents simultaneous connection of both power sources Mounting Panel or enclosure installation Typical Applications Automatic switching between utility and backup power sources in industrial and commercial power systems

Technical Parameters Specification Typical Value / Description Product Type Motorized Automatic Transfer Switch (ATS) / Change‑Over Switch Model OTM125F4C21D380C Number of Poles 4 poles (three phases + neutral) Rated Operational Current 125 A Rated Operational Voltage 380 V AC three‑phase system Control / Motor Supply Voltage 380 V AC Controller Type C21D logic (automatic transfer logic integrated) Transition Type Open transition (break‑before‑make) Mechanical Interlock Yes — prevents simultaneous connection of both sources Mounting Panel or enclosure installation Typical Applications Utility ↔ backup generator load transfer in industrial and commercial systems Weight (approx.) ~3 kg (typical for compact 125 A units) Size Compact low‑voltage transfer switch format

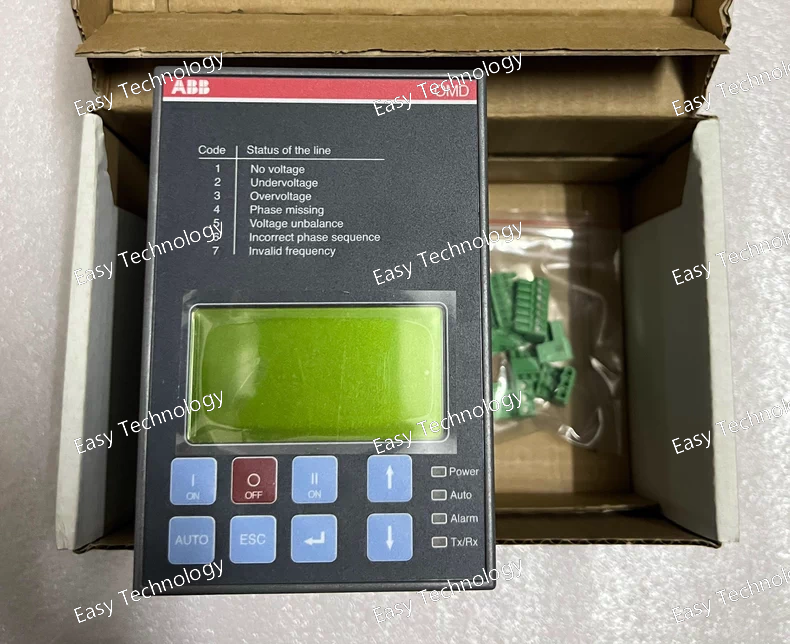

Technical Parameters (English) Specification Typical Value / Description Product Type Automatic Transfer Switch (ATS) Controller Model / Series OMD800E480C Intended Use Control logic for automatic switching between two power sources Compatible With Motorized change‑over switches (e.g., ABB OTM series) Voltage Monitoring Two sources monitored (LN1 & LN2) Phases Supported Single‑phase or three‑phase sensing per monitoring channel Control Outputs Commands to change‑over switch motor and breaker coils Operating Modes Automatic, Manual, Test User Interface LCD display with keypad and LEDs Communication Supports Modbus RTU for configuration and monitoring Adjustable Timing Transfer and return delays, dead bands, test timing Generator Control Start/Stop output for generator interface Auxiliary I/O Digital inputs and outputs for alarms and interlocks Mounting Panel or DIN‑rail mounting Dimensions Approx. 170 mm length (controller chassis) Typical Applications Automatic source transfer for mains ↔ generator in industrial/commercial systems

Technical Parameters Specification Typical Value / Description Product Type Motorized Automatic Transfer Switch (ATS) / Change‑Over Switch Model OTM100F4C20D380C Number of Poles 4 poles (three phases + neutral) Rated Operational Current 100 A Rated Operational Voltage Low‑voltage three‑phase AC distribution (commonly 380–415 V AC) Control / Motor Supply Voltage 380 V AC Rated Insulation Voltage (Ui) Suitable for low‑voltage systems (typically ~800–1000 V AC class) Impulse Withstand Voltage (Uimp) Kilovolt range for typical surge resilience Transition Type Open transition (break‑before‑make) Operating Modes Automatic (motorized) and manual handle operation Mechanical Interlock Yes — prevents simultaneous source connection Mounting Panel or enclosure mount Typical Application Automatic load transfer between utility and backup power in industrial and commercial systems

Technical Parameters (English) Specification Typical Value / Description Product Type Dual‑Power Automatic Transfer Switch / Controller Module Model DPT‑CB010 Function Automatic load transfer between two power sources with automatic back‑transfer Operating Mode Auto change‑over with self‑recovery (standard automatic return to primary source) Rated Current Range Designed to be used with switch bodies from 0.5 A up to ~250 A depending on variant Compatible Pole Configurations 2‑pole, 3‑pole, and 4‑pole versions available depending on switch used Short‑Circuit Breaking Capacity Several kA (e.g., up to ~36 kA or ~50 kA depending on installed switch) Voltage Monitoring Senses primary and secondary source voltages to determine transfer conditions Control Functions Automatic transfer, automatic return, alarms and status indication Manual Operation Provides manual change‑over capability in addition to automatic function Installation Mounted together with the matching DPT series transfer switch body Typical Application Industrial and commercial automatic power source change‑over systems Safety Features Mechanical and electrical interlocking (via the switch body) to prevent both sources connecting simultaneously
