Parameter Description Specification Product Series DILM Series Contactor Relay Generation Enhanced "A" Version Improved electrical endurance Rated Operational Current AC-1 (Resistive Load) 32 A at 690V Motor Rating AC-3 (Squirrel Cage Motor) 15 kW at 400V/50 Hz Resistive Load Rating AC-1 22 kW at 400V Number of Poles Main Circuits 4 NO (Normally Open) Rated Insulation Voltage 1000 V Rated Operational Voltage Up to 690 V AC Coil Control Voltage AC Operation 230V AC, 50/60 Hz* Electrical Endurance AC-3 > 2 million operations Mechanical Durability > 15 million operations Mounting Method 35 mm DIN rail Connection Type Spring-loaded cage clamp Terminal Capacity Main Circuits Up to 10 mm² Ambient Temperature Operation -25°C to +60°C Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, CCC

Parameter Description Specification Product Series DILM Series Contactor Relay Rated Operational Current AC-1 (Resistive Load) 25 A at 690V Motor Rating AC-3 (Squirrel Cage Motor) 11 kW at 400V/50 Hz Resistive Load Rating AC-1 18.5 kW at 400V Number of Poles Main Circuits 4 NO (Normally Open) Rated Insulation Voltage 1000 V Rated Operational Voltage Up to 690 V AC Coil Control Voltage AC Operation 230V AC, 50/60 Hz* Electrical Endurance AC-3 > 1 million operations Mechanical Durability > 10 million operations Mounting Method 35 mm DIN rail Connection Type Spring-loaded cage clamp Terminal Capacity Main Circuits Up to 10 mm² Ambient Temperature Operation -25°C to +60°C Weight Approximate 0.6 kg Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, CCC

Parameter Description Specification Product Series DILM Series Contactor Relay Rated Operational Current AC-1 (Resistive Load) 22 A at 690V Motor Rating AC-3 (Squirrel Cage Motor) 7.5 kW at 400V/50 Hz Resistive Load Rating AC-1 15 kW at 400V Number of Poles Main Circuits 4 NO (Normally Open) Rated Insulation Voltage 1000 V Rated Operational Voltage Up to 690 V AC Coil Control Voltage AC Operation 230V AC, 50/60 Hz* Electrical Endurance AC-3 > 1 million operations Mechanical Durability > 10 million operations Mounting Method 35 mm DIN rail Connection Type Spring-loaded cage clamp Terminal Capacity Main Circuits Up to 10 mm² Ambient Temperature Operation -25°C to +60°C Weight Approximate 0.55 kg Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, CCC

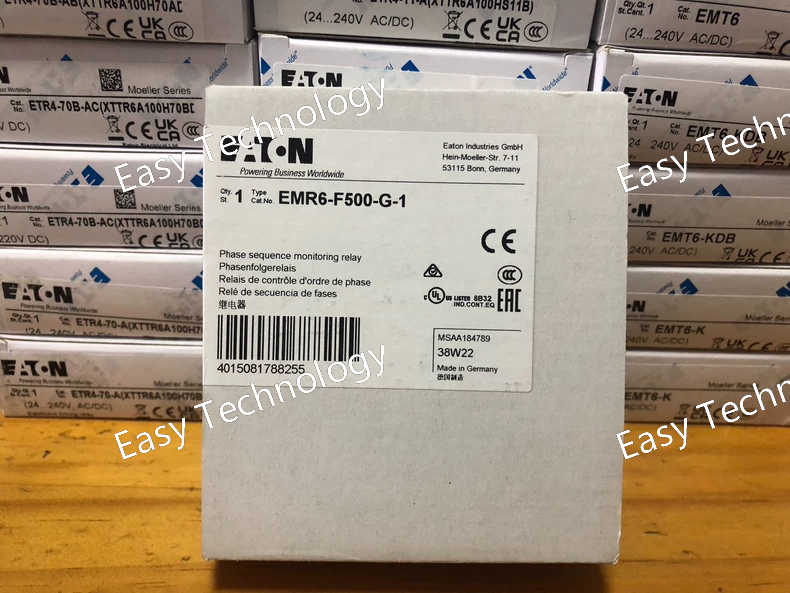

Parameter Description Specification Product Series EMR6 Series Electronic Motor Protection Relay Model Variant F500 Protection relay configuration Rated Current Setting Range 0.4-6.3A (adjustable)* Power Supply Operating Voltage 24-240V AC/DC (wide range) Motor Power Range Corresponding Rating Up to 3kW at 400V* Protection Functions Overload Protection Yes (inverse time characteristic) Phase Failure Yes Phase Imbalance Yes Locked Rotor Yes Undercurrent Yes Control Inputs Digital Inputs Multiple programmable inputs Output Relays Control Relays Programmable relay outputs Mounting Installation 35mm DIN rail Display Indication LED status indicators Ambient Temperature Operation -25°C to +60°C Standards & Approvals IEC/EN 60947-4-1, UL 508, CE

Parameter Description Specification Product Series NZM2 Series Circuit Breaker Accessory Type XRD24 Undervoltage Release Rated Current Main Breaker 30A Rated Voltage Operational 690V AC maximum Undervoltage Release Control Voltage 24V DC Tripping Delay Undervoltage Typically 0.5-2 seconds Release Power Consumption Operating Low power design Breaking Capacity Icu According to NZM2 ratings Poles Main Circuit 3 Poles (typical) Mounting Installation Fixed or plug-in version Connection Terminals Screw-type terminals Ambient Temperature Operation -25°C to +60°C Standards & Approvals IEC 60947-2, UL 489, CE

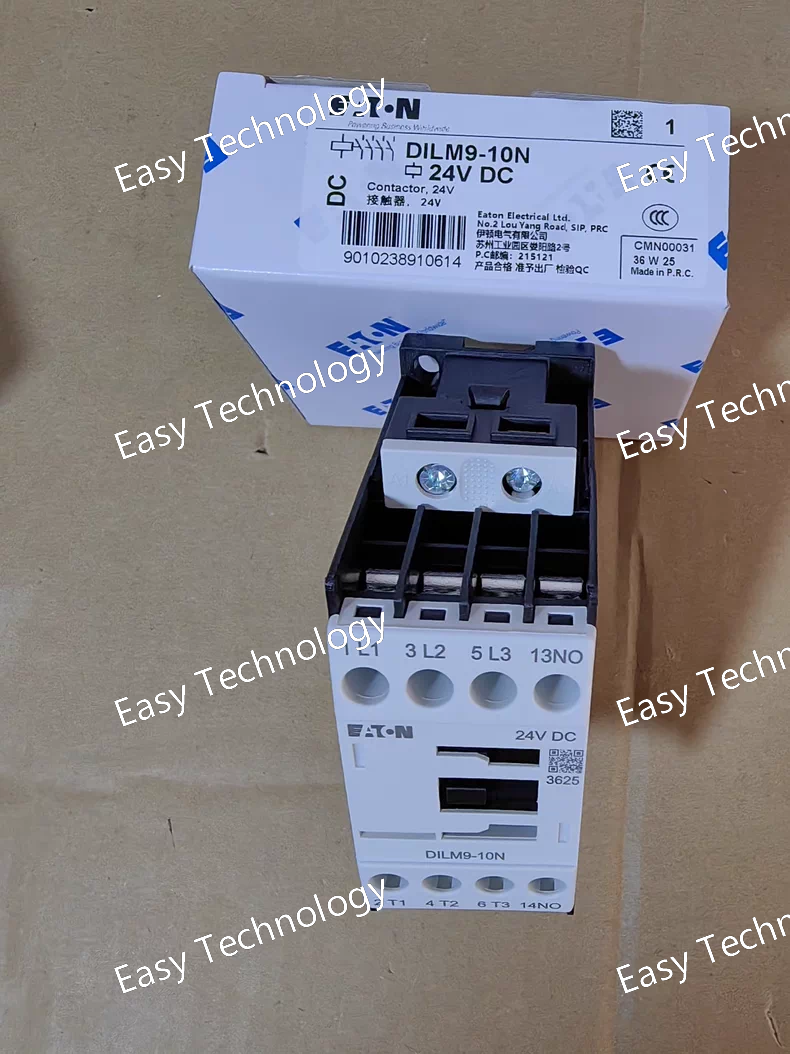

Parameter Description Specification Product Series DILM Series Contactor Relay Rated Operational Current AC-1 9A Rated Operational Voltage AC 250V / 400V Motor Rating AC-3 2.2kW at 230V 4kW at 400V Number of Poles Main Contacts 1 NO (Normally Open) Coil Control Voltage Standard 230V AC, 50/60 Hz* Electrical Endurance Mechanical > 10 million operations Mechanical Durability Electrical > 1 million operations (at rated current) Mounting Method 35mm DIN rail Connection Type Screw terminals Terminal Capacity Up to 2.5mm² Ambient Temperature Operation -25°C to +60°C Weight Approximate 0.15kg Standards & Approvals IEC/EN 60947-4-1, CE

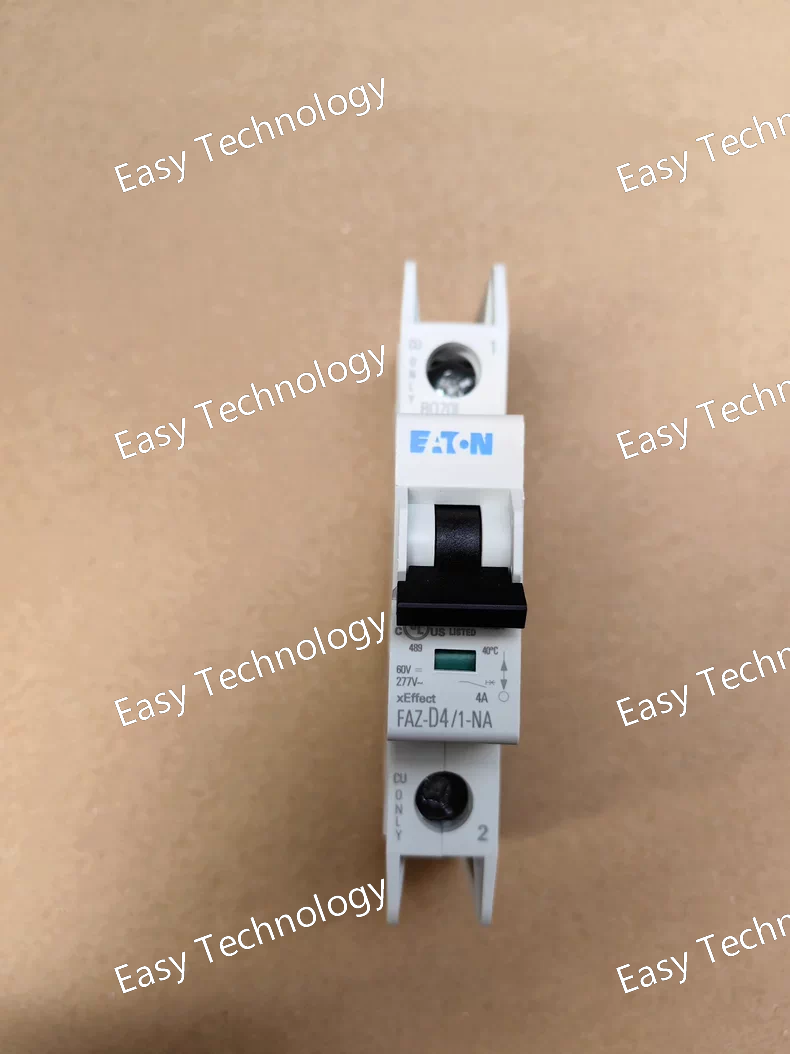

Parameter Description Specification Product Series FAZ Series Circuit Breaker Rated Current In 4A Number of Poles 1 Pole Rated Voltage AC 240V/480V AC Breaking Capacity Icn 10kA at 240V AC 5kA at 480V AC Tripping Characteristic D Curve (High inrush) Mounting 35mm DIN Rail Connection Terminals Screw terminals Terminal Capacity Up to 16mm² Operating Temperature -25°C to +60°C Standards & Approvals UL 1077, CSA C22.2, CE Mechanical Life >20,000 operations

Parameter Description Specification Product Series P3 Series Residual Current Circuit Breaker Rated Current In 63A Sensitivity IΔn 30mA (High sensitivity) Number of Poles 4 Poles (3P + N) Rated Voltage AC 400V Rated Frequency 50/60 Hz Breaking Capacity According to P3 series standards Tripping Characteristic Type AC (Alternating Current) Mechanical Life > 20,000 operations Electrical Life > 4,000 operations Mounting 35mm DIN Rail Connection Terminals Suitable for rigid and flexible conductors Operating Temperature -25°C to +60°C Standards & Approvals IEC 61008, CE

Parameter Description Specification Product Series Eaton Circuit Breaker T0 Series Rated Current In 20A Number of Poles 2 Poles Rated Voltage AC 240V/415V Breaking Capacity Icn 6kA at 230/400V AC Tripping Characteristic Type C (Medium inrush) Mounting 35mm DIN Rail Connection Terminals Screw terminals Terminal Capacity Up to 25mm² Operating Temperature -25°C to +60°C Mechanical Life > 20,000 operations Electrical Life > 10,000 operations Standards & Approvals IEC 60898, CE

Parameter Description Specification Product Series ESR5 Series Electronic Motor Protection Relay Model Variant NV3-30 Specific configuration Rated Current Setting Range 0.1-30A (adjustable) Power Supply Operating Voltage 24-240V AC/DC (wide range) Motor Power Range Corresponding Rating Up to 15kW at 400V Protection Functions Overload Protection Yes (inverse time characteristic) Phase Failure Yes Phase Imbalance Yes Locked Rotor Yes Undercurrent Yes Earth Fault Optional Control Inputs Digital Inputs 3 programmable inputs Output Relays Control Relays 2 programmable relay outputs Communication Interface Optional communication modules Mounting Installation 35mm DIN rail Display Indication LED status indicators Ambient Temperature Operation -25°C to +60°C Standards & Approvals IEC/EN 60947-4-1, UL 508, CE, cULus

Parameter Description Specification Product Series FAZ Series Circuit Breaker Rated Current In 15A Number of Poles 3 Poles Rated Voltage AC 480V AC (600V AC maximum) Breaking Capacity Icn 10kA at 240V AC 5kA at 480V AC Tripping Characteristic D Curve (High inrush, 10-20x In) Mounting 35mm DIN Rail Connection Terminals Screw terminals Terminal Capacity Up to 16mm² (AWG 6) Operating Temperature -25°C to +60°C Mechanical Life >20,000 operations Standards & Approvals UL 1077, CSA C22.2, CE Weight Approximate 0.4 kg

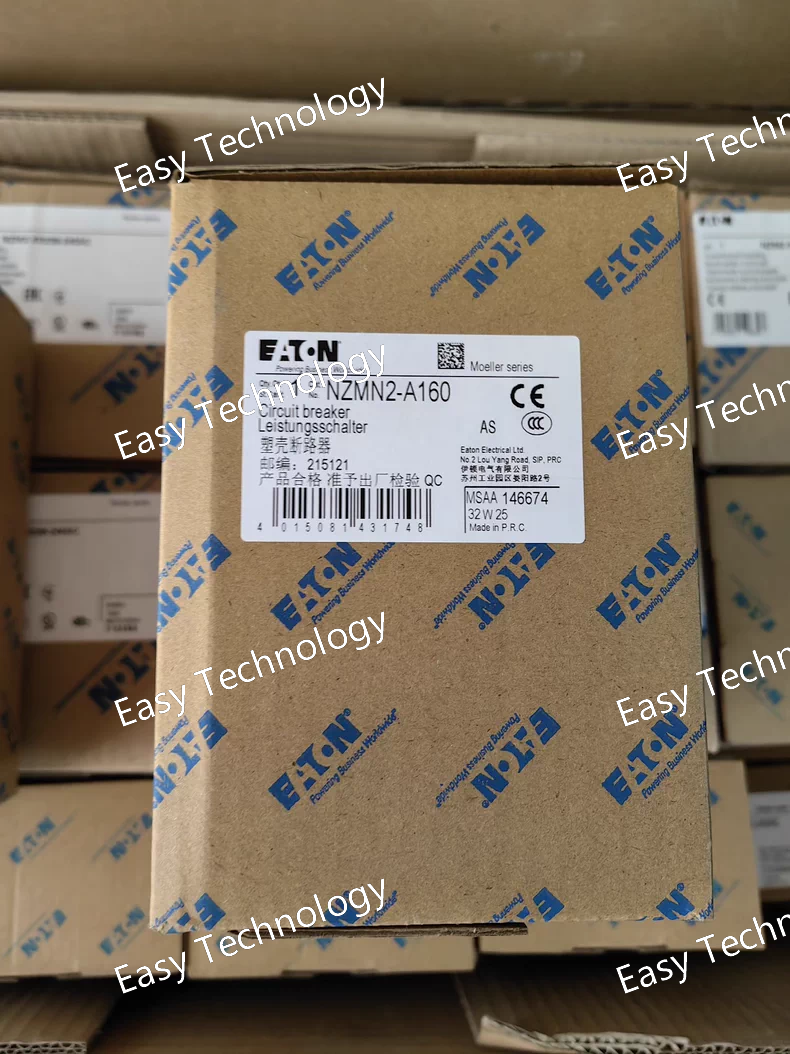

Parameter Description Specification Product Series NZM Series Molded Case Circuit Breaker Frame Size NZMN2 160A frame size Rated Current In 160A (adjustable)* Number of Poles 3 Poles Rated Voltage AC 690V AC Rated Frequency 50/60 Hz Breaking Capacity Icu 50kA at 415V AC Tripping Characteristic Electronic trip unit Mounting Fixed or plug-in version Connection Terminals Front connection Standards & Approvals IEC 60947-2, CE, UL Ambient Temperature Operation -25°C to +60°C
