Technical Parameters Parameter Specification Product type Molded case circuit breaker (MCCB) Product series ABB SACE ISOMAX S6 N Poles 3 poles Rated current (In) 800 A Rated operational voltage (Ue) 690 V AC Breaking capacity (Icu / Ics) Up to 100 kA (AC-1/AC-3, depending on variant) Tripping unit Thermal-magnetic, adjustable Short-circuit protection Yes Overload protection Yes Control type Manual / optional motorized operation Mechanical durability High (industrial grade) Electrical durability High (industrial grade) Mounting Panel or frame mounting Ambient operating temperature −25 °C to +60 °C Protection degree IP40–IP42 (depending on installation) Standards IEC 60947-2 compliant Typical applications Industrial power distribution, medium-voltage switchgear, commercial electrical installations

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB A series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 260 A Rated motor power (AC-3) Up to 160 kW at 400 V Coil voltage 220 V AC Control voltage frequency 50 / 60 Hz Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +60 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, automation systems

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB A series ABB Ordering Code 1SFL491001R8022 Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 2 NO + 2 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 185 A Rated motor power (AC-3) Up to 110 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +60 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, automation systems

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB A series ABB Ordering Code 1SFL531001R8011 Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 260 A Rated motor power (AC-3) Up to 160 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +60 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, automation systems

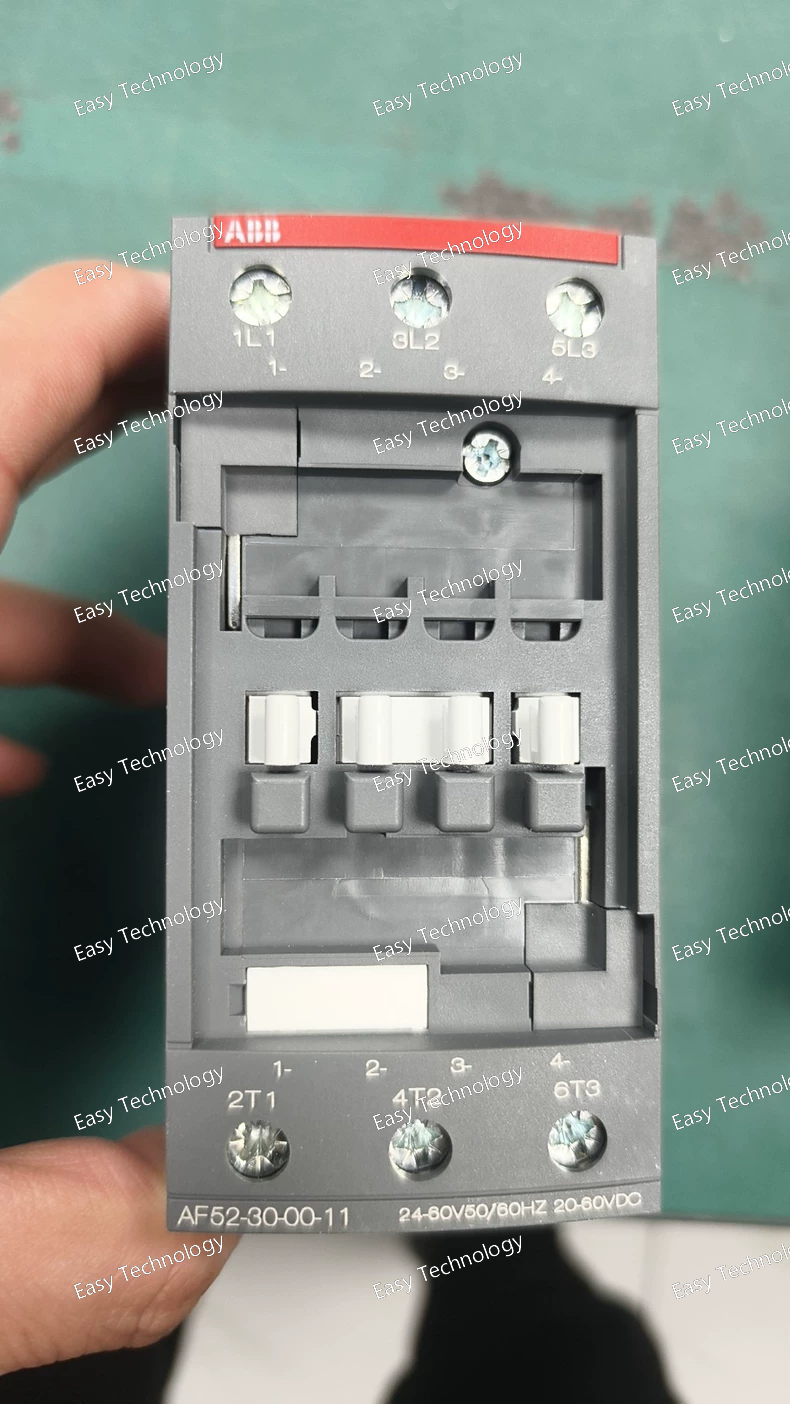

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB AF series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 52 A Rated motor power (AC-3) Up to 30 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, automation systems

Technical Parameters Parameter Specification Product type Electromechanical contactor Product series ABB AX series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 32 A Rated motor power (AC-3) Up to 15 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, automation systems

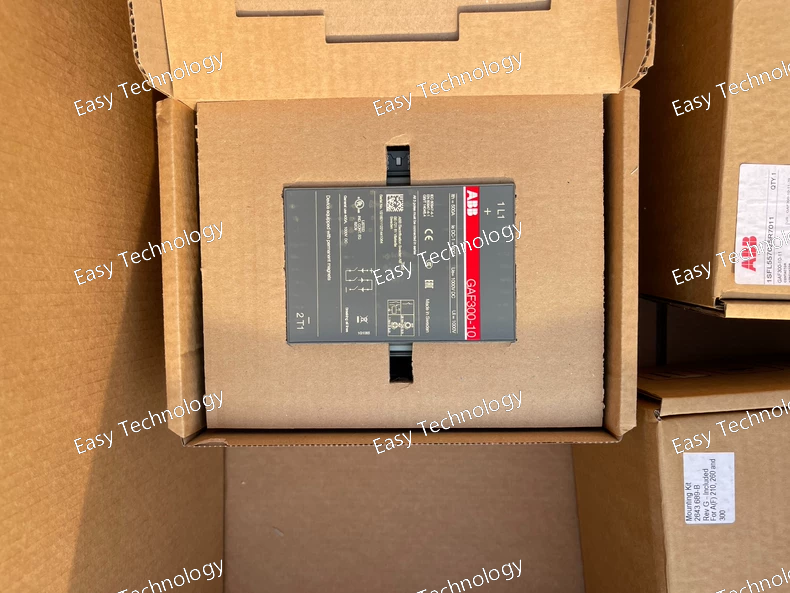

Technical Parameters Parameter Specification Product type Industrial contactor Product series ABB GAF series Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) 300 A Rated motor power (AC-3) Up to 160 kW at 400 V Coil voltage 110–240 V AC / DC (variant dependent) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +60 °C Mounting Panel or DIN rail mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC / EN compliant Typical applications Motor starters, industrial control panels, high-power motor switching

Technical Parameters Parameter Specification Product type Thermal overload relay Product series ABB TA series Compatible contactors ABB A / AF series contactors Current setting range 32 A Tripping class Class 10A Number of poles 3 Rated operational voltage (Ue) Up to 690 V AC Rated insulation voltage (Ui) 690 V AC Auxiliary contacts 1 NO + 1 NC (trip indication) Reset type Manual Phase failure sensitivity Yes Ambient temperature compensation Yes Mounting Direct mounting to contactor or panel mounting Protection degree IP20 Ambient operating temperature −25 °C to +55 °C Applicable standards IEC compliant Typical applications Motor starters, control panels, industrial motor protection

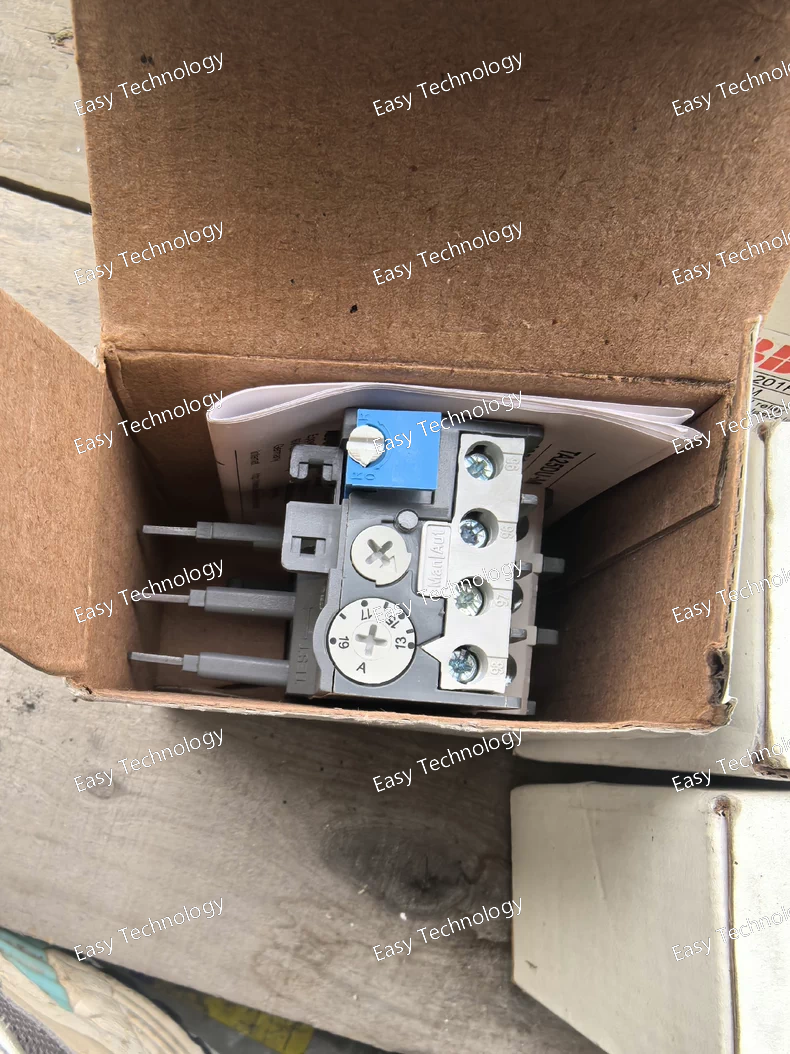

Technical Parameters Parameter Specification Product type Thermal overload relay Product series ABB TA series Compatible contactors ABB A / AF series contactors Current setting range 13–19 A Tripping class Class 10A Number of poles 3 Rated operational voltage (Ue) Up to 690 V AC Rated insulation voltage (Ui) 690 V AC Auxiliary contacts 1 NO + 1 NC (trip indication) Reset type Manual Phase failure sensitivity Yes Ambient temperature compensation Yes Mounting Direct mounting to contactor or panel mounting Protection degree IP20 Ambient operating temperature −25 °C to +55 °C Applicable standards IEC compliant Typical applications Motor starters, control panels, industrial motor protection

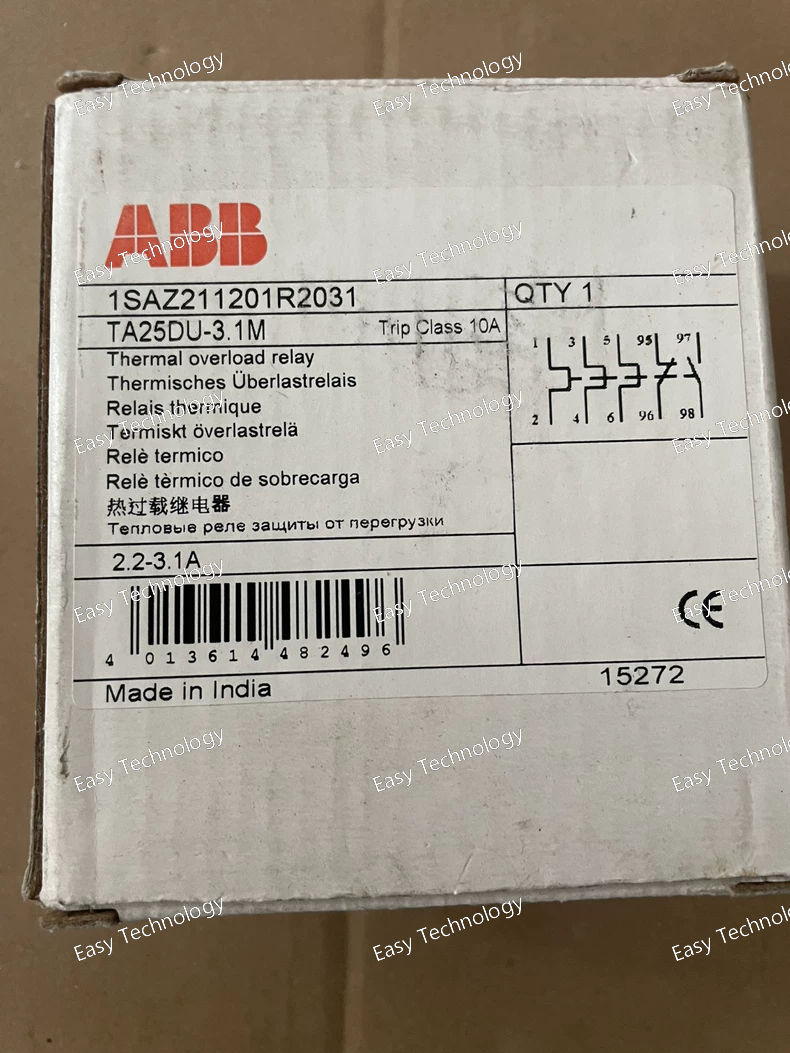

Technical Parameters Parameter Specification Product type Thermal overload relay Product series ABB TA series ABB Ordering Code 1SAZ211201R2031 Compatible contactors ABB A / AF series contactors Current setting range 3.1 A Tripping class Class 10A Number of poles 3 Rated operational voltage (Ue) Up to 690 V AC Rated insulation voltage (Ui) 690 V AC Auxiliary contacts 1 NO + 1 NC (trip indication) Reset type Manual Phase failure sensitivity Yes Ambient temperature compensation Yes Mounting Direct mounting to contactor or panel mounting Protection degree IP20 Ambient operating temperature −25 °C to +55 °C Applicable standards IEC compliant Typical applications Small motor starters, control panels, industrial motor protection

Technical Parameters Parameter Specification Product type Miniature circuit breaker (MCB) Product series ABB S2 series Poles 1 pole Rated current (In) 1 A Rated operational voltage (Ue) 230/400 V AC Breaking capacity (Icu) 6 kA at 230/400 V AC Tripping curve B (for general-purpose/residential protection) Control type Thermal-magnetic Mounting DIN rail (35 mm) Mechanical durability Up to 20,000 operations Electrical durability Up to 4,000 operations at rated load Ambient operating temperature −25 °C to +60 °C Protection degree IP20 Standards IEC/EN 60898-1 compliant Typical applications Residential, commercial, and light industrial circuits; lighting and small control circuits

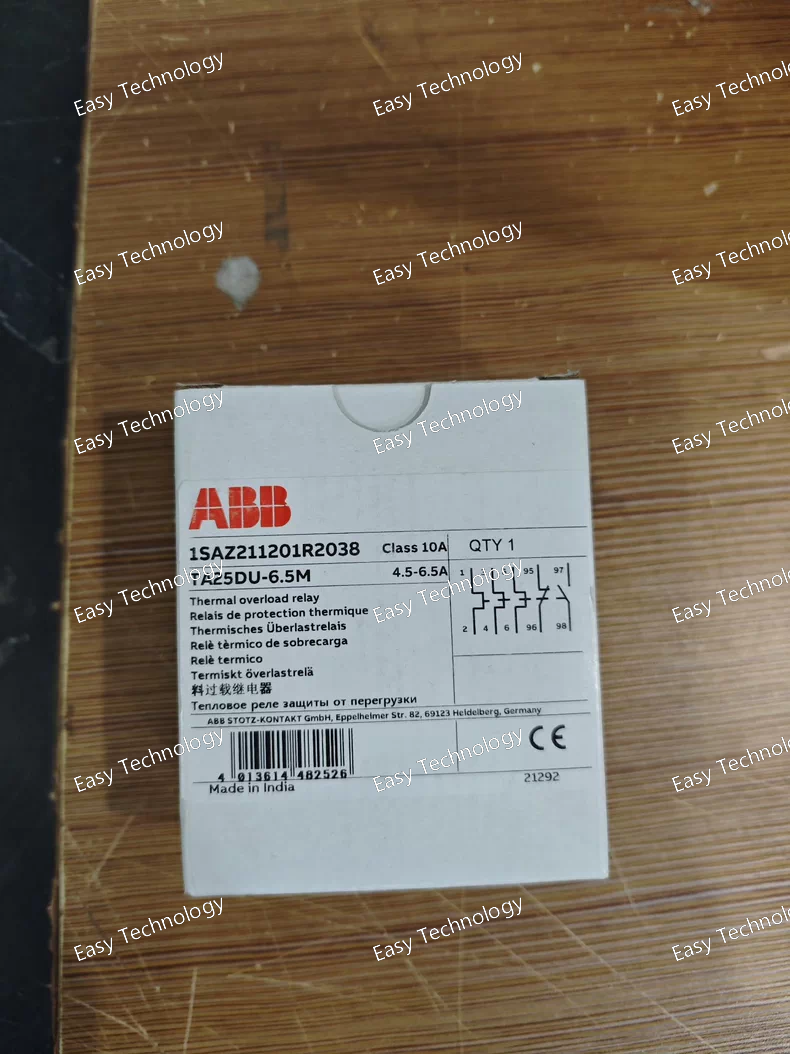

Technical Parameters Parameter Specification Product type Thermal overload relay Product series ABB TA series ABB Ordering Code 1SAZ211201R2038 Compatible contactors ABB A / AF series contactors Current setting range 6.5 A Tripping class Class 10A Number of poles 3 Rated operational voltage (Ue) Up to 690 V AC Rated insulation voltage (Ui) 690 V AC Auxiliary contacts 1 NO + 1 NC (trip indication) Reset type Manual Phase failure sensitivity Yes Ambient temperature compensation Yes Mounting Direct mounting to contactor or panel mounting Protection degree IP20 Ambient operating temperature −25 °C to +55 °C Applicable standards IEC compliant Typical applications Small motor starters, control panels, industrial motor protection
