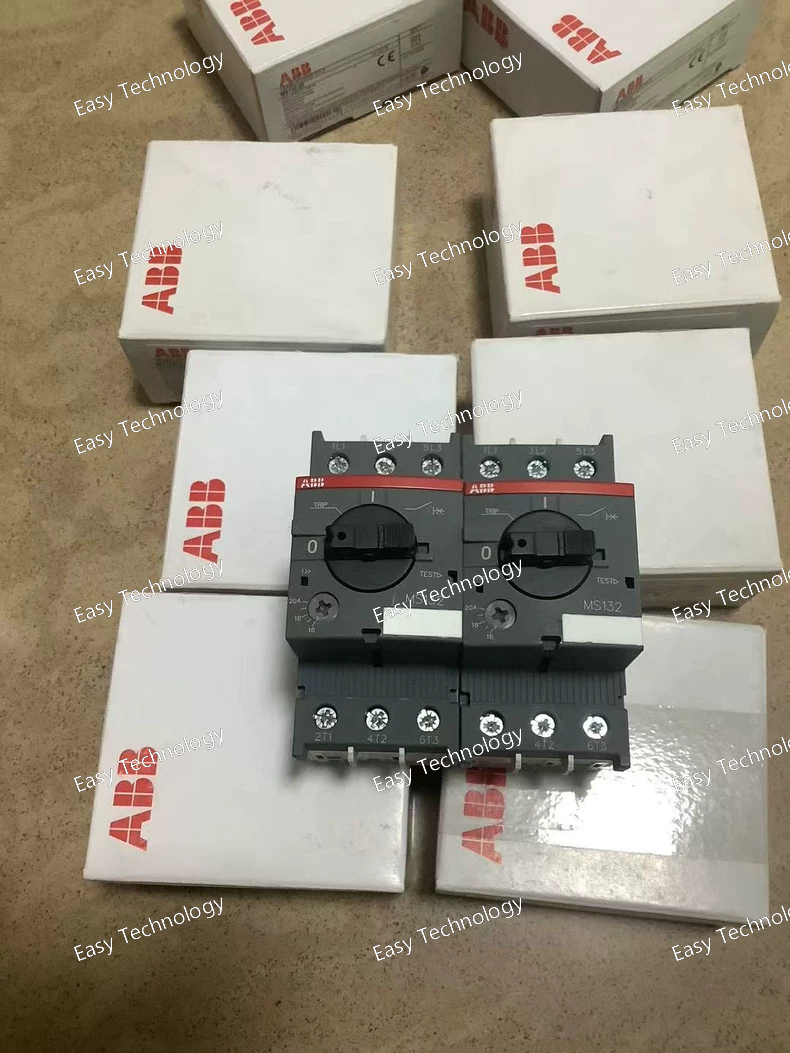

Technical Parameters Parameter Specification Product type Manual motor starter / Motor protection breaker ABB Ordering Code 1SAM350000R1013 Model / Series MS132‑20 Rated operational current (Ie) 20 A Setting range (overload) 16–20 A Number of poles 3 poles Rated operational voltage 250–690 V AC Rated service short‑circuit breaking capacity (Ics) 100 kA @ 400 V AC Mechanical operation Thermo‑magnetic trip Trip class Class 10 Short‑circuit release setting (instantaneous) 300 A Rated motor power AC‑3 7.5 kW at 230/400 V AC Mounting DIN rail / panel mount Connection type Screw terminals Phase failure sensitive Yes Handle Rotary ON/OFF/TRIP, lockable Protection degree IP20 Ambient operating temperature Approx. ‑25 °C to +60 °C Standards IEC/EN 60947‑1/-2/-4‑1 Typical applications Motor start/stop and protection in industrial machinery and control panels

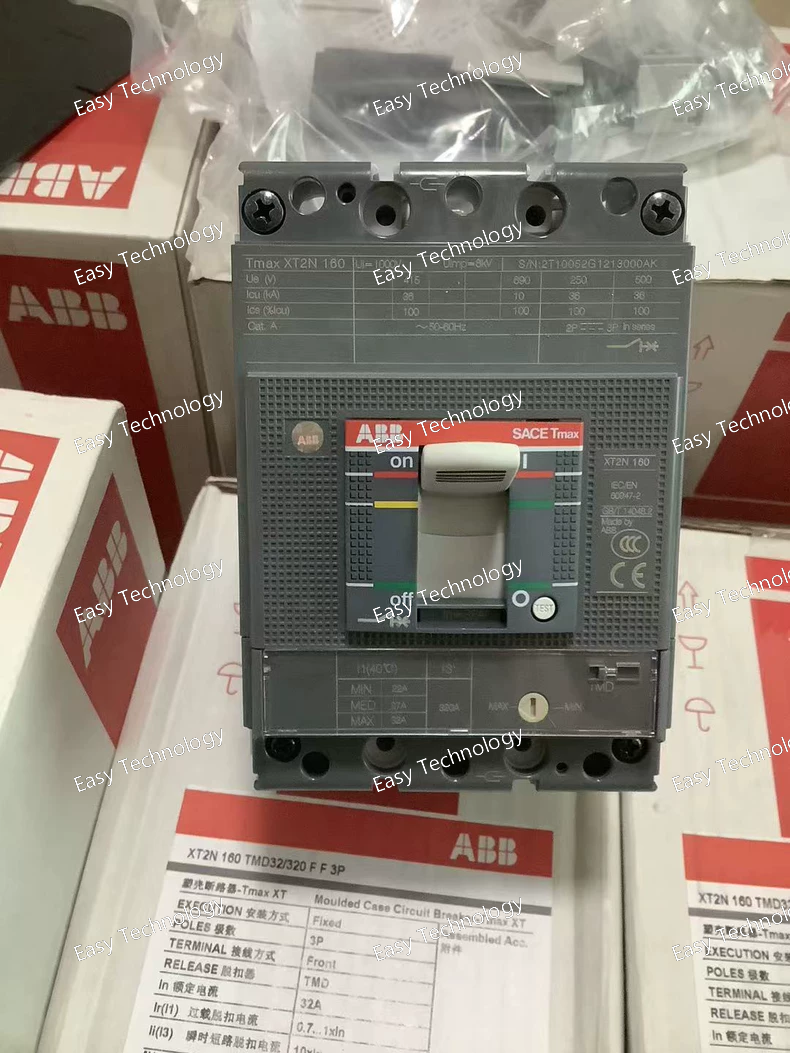

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax XT2N ABB Ordering Code 1SDA067013R1 Poles 3 poles Terminal type Front fixed terminals (FF) Trip unit type TMD (Thermal‑magnetic) Current setting range 32–320 A (overload and short‑circuit) Frame rating 160 A Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 1000 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short‑circuit breaking capacity (Ics) 65 kA @ 220–240 V AC, 36 kA @ 380–440 V AC, 30 kA @ 500 V AC, 10 kA @ 690 V AC (typical IEC values) Rated ultimate short‑circuit breaking capacity (Icu) Same categories as Ics depending on voltage Overload release setting 22.4–32 A Undelayed short‑circuit release setting 320 A fixed Connection type Bolt connections, front fixed Compliant standards IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations Typical applications Industrial and commercial power distribution, feeder protection

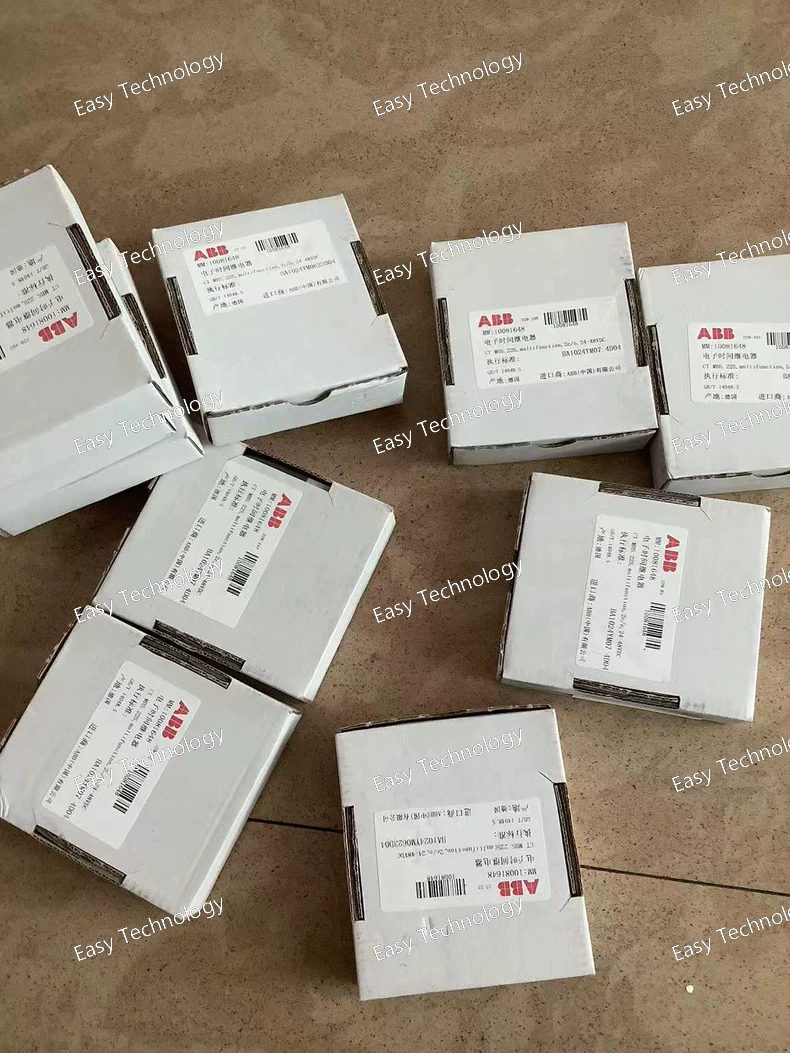

Technical Parameters Parameter Specification Product type Electronic multifunction time relay Model / Type CT‑MBS.22S ABB Ordering Code 1SVR730010R3200 Supply voltage (control voltage) 24–240 V AC / 24–48 V DC Timing range 0.05 s to 300 h (10 adjustable time ranges) Timing functions Multiple timing modes for on‑delay, off‑delay, star‑delta change‑over, flasher, pulse former, ON/OFF, etc. Output contacts 2 change‑over (SPDT) Contact rating 250 V AC, ~4 A (typical) Contact form 2 C/O (SPDT) relay outputs Trigger input Volt‑free (floating) trigger input Display / Indication LED status indication Remote adjustment Remote potentiometer connection supported Terminals Screw terminals with double‑chamber cage connection Mounting DIN rail (35 mm TH rail) Enclosure protection IP20 / IP50 variants available Housing width 22.5 mm Height ~85.6 mm Depth ~103.7 mm Operating temperature –25 °C to +60 °C Storage temperature –40 °C to +85 °C Standards / Compliance EN/IEC 61812‑1, CE, UL, RoHS compliant Typical applications Timing control in automation, machine control, motor sequencing, delay functions

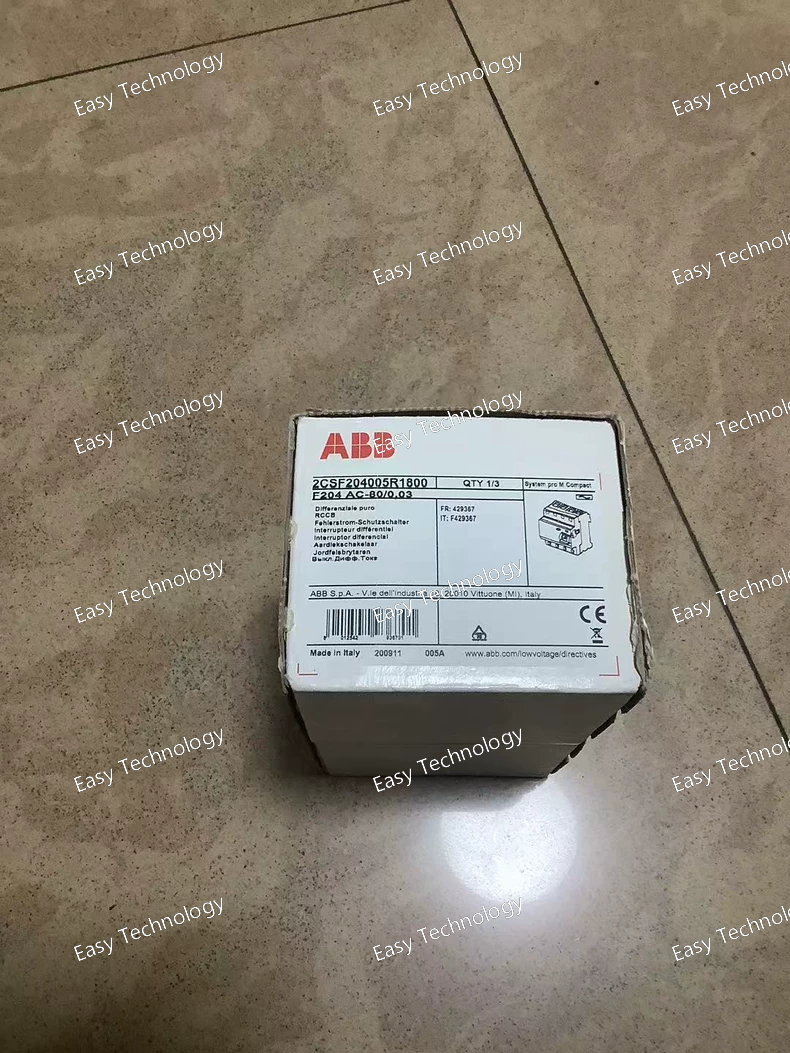

Technical Parameters Parameter Specification Product type Residual Current Circuit Breaker (RCCB) Product series ABB F200 / F204 AC ABB Ordering Code 2CSF204005R1800 Poles 4 poles (4P) Rated current (In) 80 A Rated operational voltage (Ue) 230 / 400 V AC Rated insulation voltage (Ui) 500 V Rated impulse withstand voltage (Uimp) 4 kV Rated residual current (IΔn) 30 mA Type of residual current Type AC (sensitive to AC sinusoidal leakage) Rated conditional short‑circuit current (Inc) 10 kA Rated service short‑circuit breaking capacity (Ics) 1 kA Standards compliance IEC 61008‑1 / IEC 61008‑2‑1 Leakage current sensing AC type leakage detection Mounting DIN rail Typical applications Earth leakage protection in distribution panels for residential, commercial, and light industrial installations

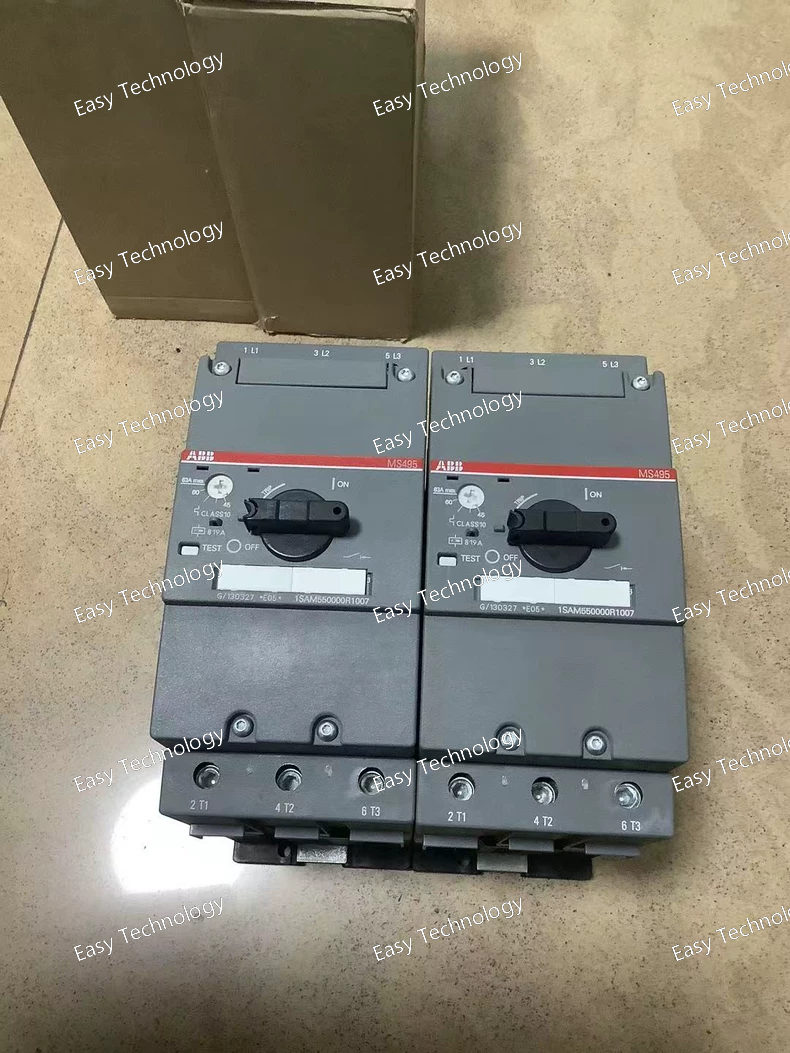

Technical Parameters Parameter Specification Product type Manual Motor Starter / Motor Protection Breaker Series / Model MS495‑63 ABB Ordering Code 1SAM550000R1007 Poles 3 Rated operational current (Ie) 63 A Overload release setting range 45–63 A Undelayed instantaneous short‑circuit release setting 819 A Rated operational voltage 230–690 V AC Rated service short‑circuit breaking capacity (Ics) 50 kA @ 400 V AC Thermal protection type Thermomagnetic Phase failure sensitive Yes Rated motor power (AC‑3, 400 V) 30 kW Connection type Screw terminals Control element Rotary handle (ON/OFF/TRIP) Handle features Lockable to prevent unauthorized changes Mounting Panel / DIN‑rail (TH35) Protection degree Housing IP20, Main terminals IP00 Insulation withstand / Impulse Typical 6 kV Ambient operating temperature ‑20 °C to +70 °C (compensated ‑20 °C to +60 °C) Ambient storage temperature ‑50 °C to +80 °C Mechanical durability ~50 000 cycles Electrical durability ~25 000 cycles Standards IEC/EN 60947‑1, 60947‑2, 60947‑4‑1, UL 508, CSA 22.2 No. 14 Typical applications Motor switching and protection, control panels, industrial installations

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax XT2N Poles 3 poles Terminal type Front fixed terminals (FF) Trip unit type TMG (thermal‑magnetic) Adjustable current range 16 A to 160 A Frame rating 160 A Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 1000 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short‑circuit breaking capacity (Ics) 65 kA @ 220–240 V AC; 36 kA @ 380–415 V AC; 30 kA @ 500 V AC; 10 kA @ 690 V AC (typical IEC values) Indctl Protection functions Overload and short‑circuit protection Standards compliance IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations at rated load Mounting Fixed panel installation Typical applications Industrial/commercial power distribution, feeder protection, control panels

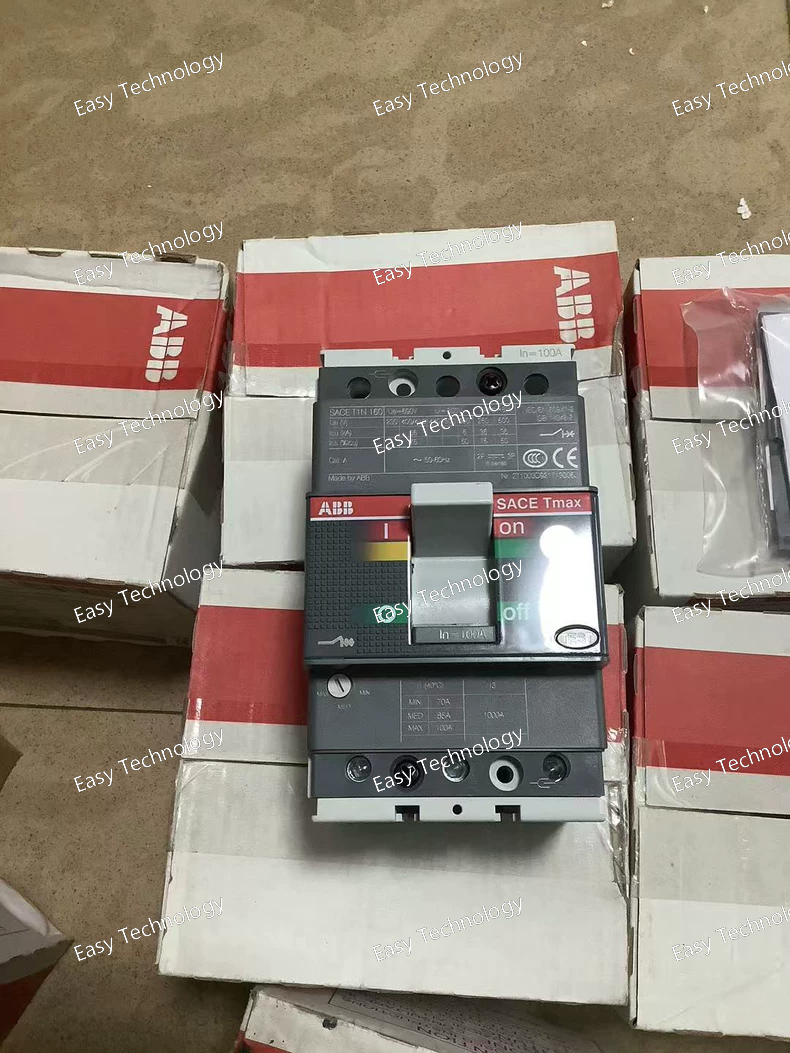

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax T1N ABB Ordering Code 1SDA050922R1 Poles 3 poles Terminal type Front fixed + Front cable terminals (FFC) for copper cables (up to ~70 mm²) Trip unit type TMD (Thermo‑magnetic) Current setting range 100–1000 A Rated current (frame rating) 160 A Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 800 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short‑circuit breaking capacity (Ics) 37.5 kA @ 220–230 V AC; 27 kA @ 380–415 V AC; 11 kA @ 440 V AC; 7.5 kA @ 500 V AC; 3 kA @ 690 V AC Rated ultimate short‑circuit breaking capacity (Icu) 36 kA @ 380–415 V AC; 22 kA @ 440 V AC; 15 kA @ 500 V AC; 6 kA @ 690 V AC; DC ratings also supported Protection functions Overload protection and short‑circuit protection Standards compliance IEC 60947‑2 Electrical durability ~8,000 operations Mechanical durability ~25,000 operations Power loss per pole ~7 W (at rated conditions) Operating frequency 50 / 60 Hz Mounting Fixed panel installation Typical applications Industrial and commercial power distribution, feeder protection, switchboards, control panels Replacement product (newer) 1SDA067416R1 (Upgraded Tmax XT1N variant)

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax T1N Poles 3 poles Terminal type Front fixed / front cable (FFC) Trip unit type TMD (Thermal-magnetic) Adjustable current range 32–500 A Rated uninterrupted current (Iu) 160 A frame rating Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 800 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short-circuit breaking capacity (Ics) 100 kA @ 220–230 V AC; 70 kA @ 380–415 V AC; 55 kA @ 440 V AC; 36 kA @ 500 V AC; 8 kA @ 690 V AC (typical IEC values) Rated ultimate breaking capacity (Icu) Same as Ics depending on voltage Protection functions Overload and short-circuit protection Standards compliance IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations at rated load Mounting Fixed panel installation Typical applications Industrial and commercial power distribution, feeder protection, motor control centers

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax XT1C Poles 4 poles Terminal type Front fixed terminals (FF) Trip unit type TMD (Thermal-magnetic) Adjustable instantaneous (short-circuit) setting 125–1250 A Rated uninterrupted current (Iu) 160 A frame rating Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 800 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short-circuit breaking capacity (Ics) 50 kA @ 220–230 V AC; 36 kA @ 380–415 V AC; 25 kA @ 500 V AC; 8 kA @ 690 V AC (typical IEC values) Rated ultimate breaking capacity (Icu) Same as Ics depending on voltage Protection functions Overload and short‑circuit protection Standards compliance IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations at rated load Mounting Fixed panel installation Typical applications Industrial and commercial power distribution, feeder protection, motor control centers

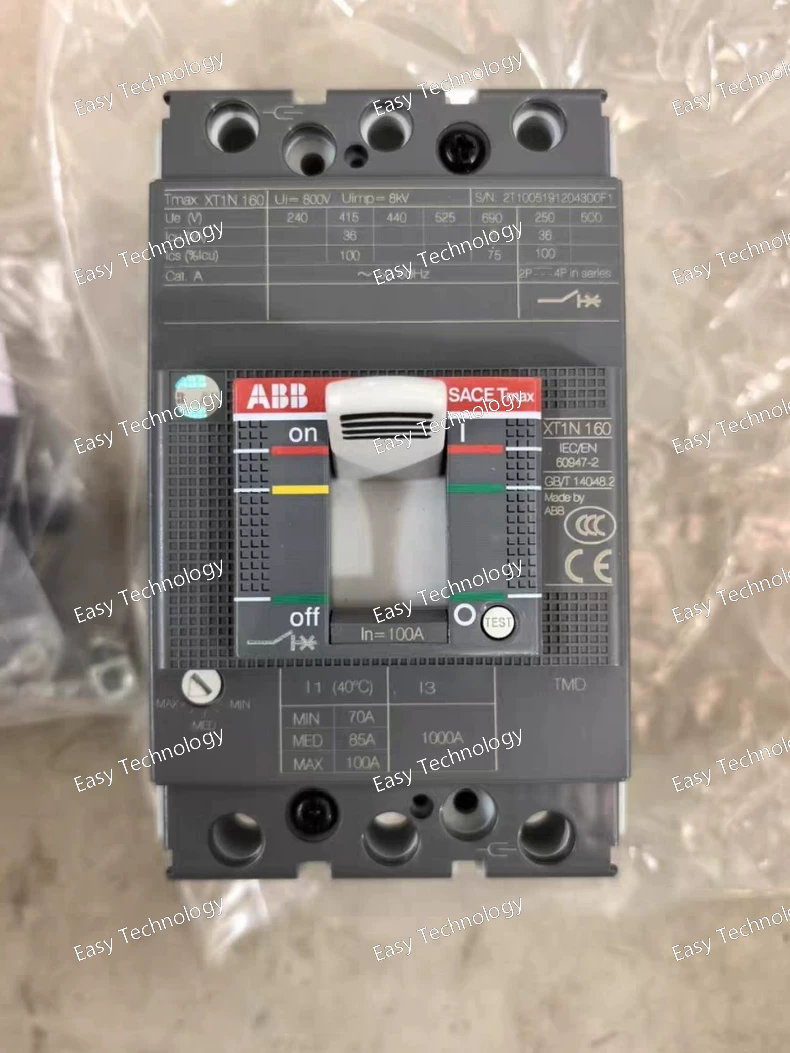

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax XT1N Poles 3 poles Terminal type Front fixed terminals (FF) Trip unit type Thermal‑magnetic Rated current (In) 100 A Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 800 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short-circuit breaking capacity (Ics) 50 kA @ 220–230 V AC; 36 kA @ 380–415 V AC; 25 kA @ 500 V AC; 8 kA @ 690 V AC (typical IEC values) Rated ultimate breaking capacity (Icu) Same as Ics depending on system voltage Protection functions Overload and short‑circuit protection Standards compliance IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations at rated load Mounting Fixed panel installation Typical applications Industrial and commercial power distribution, feeder protection, motor control centers

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax XT1N Poles 3 poles Terminal type Front fixed terminals (FF) Trip unit type TMD (Thermal-magnetic) Adjustable instantaneous (short-circuit) setting 100–1000 A Rated uninterrupted current (Iu) 160 A frame rating Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 800 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short-circuit breaking capacity (Ics) 50 kA @ 220–230 V AC; 36 kA @ 380–415 V AC; 25 kA @ 500 V AC; 8 kA @ 690 V AC (typical IEC values) Rated ultimate breaking capacity (Icu) Same as Ics depending on voltage Protection functions Overload and short‑circuit protection Standards compliance IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations at rated load Mounting Fixed panel installation Typical applications Industrial and commercial power distribution, feeder protection, motor control centers

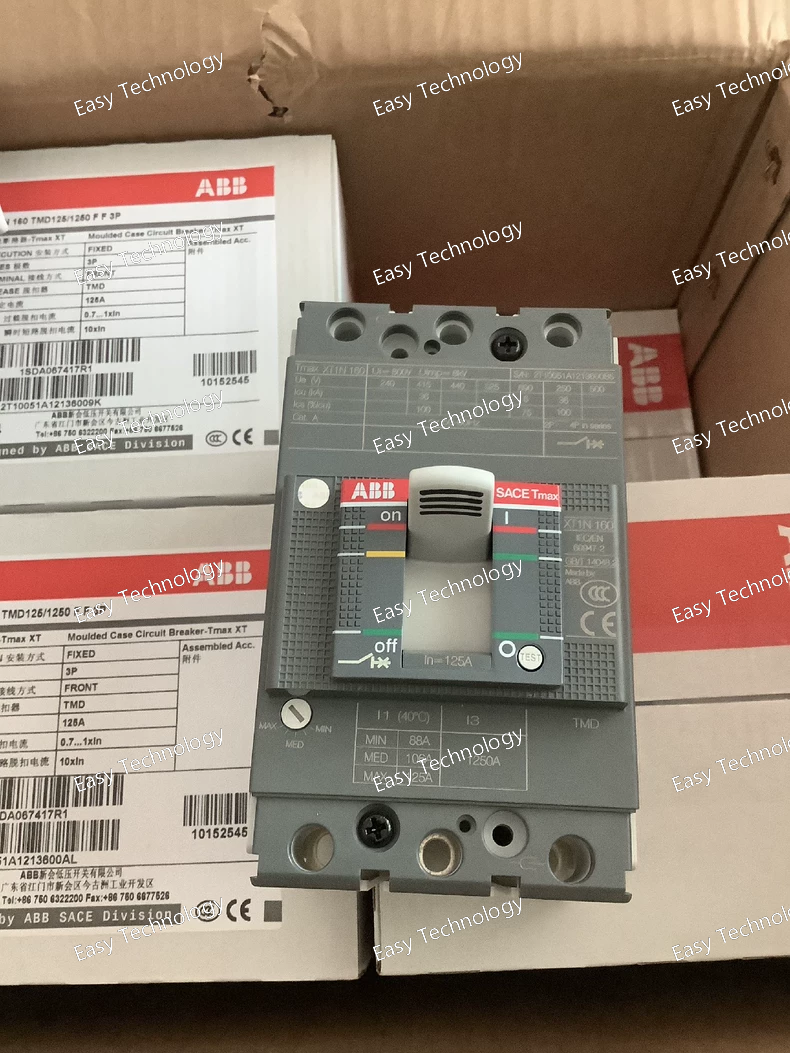

Technical Parameters Parameter Specification Product type Molded Case Circuit Breaker (MCCB) Product series ABB SACE Tmax XT1N Poles 3 poles Terminal type Front fixed terminals (FF) Trip unit type TMD (Thermal-magnetic) Adjustable instantaneous (short-circuit) setting 125–1250 A Rated uninterrupted current (Iu) 160 A frame rating Rated operational voltage (Ue) Up to 690 V AC / 500 V DC Rated insulation voltage (Ui) 800 V AC Rated impulse withstand voltage (Uimp) 8 kV Rated service short-circuit breaking capacity (Ics) 50 kA @ 220–230 V AC; 36 kA @ 380–415 V AC; 25 kA @ 500 V AC; 8 kA @ 690 V AC (typical IEC values) Rated ultimate breaking capacity (Icu) Same as Ics depending on voltage Protection functions Overload and short‑circuit protection Standards compliance IEC 60947‑2 Mechanical durability ~25,000 operations Electrical durability ~8,000 operations at rated load Mounting Fixed panel installation Typical applications Industrial and commercial power distribution, feeder protection, motor control centers
