Key Parameters Parameter Specification Model / Part Number CP1‑10R‑01 ABB Catalog / Order Code 1SFA619100R1041 Product Type Compact pushbutton (pilot device) Range / Series CP1 series (Compact range) Actuator Style Flush pushbutton (momentary) Button Color Red actuator, black bezel/housing Illumination Non‑illuminated Contact Configuration 1 × Normally Closed (1 NC) Function Momentary (spring‑return) Rated Insulation Voltage (Ui) 300 V Rated Impulse Withstand Voltage (Uimp) ~6 kV Rated Operational Voltage Up to 300 V AC/DC (typical) Mechanical Durability ~0.5 million operations Degree of Protection (Front) IP66 / IP67 / IP69K Degree of Protection (Terminals) IP20 Pollution Degree 3 Connection Type Screw clamp terminals Terminal Torque ~0.8–1 N·m Mounting Size Standard 22 mm panel cut‑out Operating Temperature –25 °C to +70 °C Storage Temperature –40 °C to +85 °C Approx. Dimensions ~30 × 30 × 55 mm (W × H × D) Approx. Weight ~0.018 kg Enclosure / NEMA Ratings Type 1, 3R, 4, 4X, 12, 13 (typical)

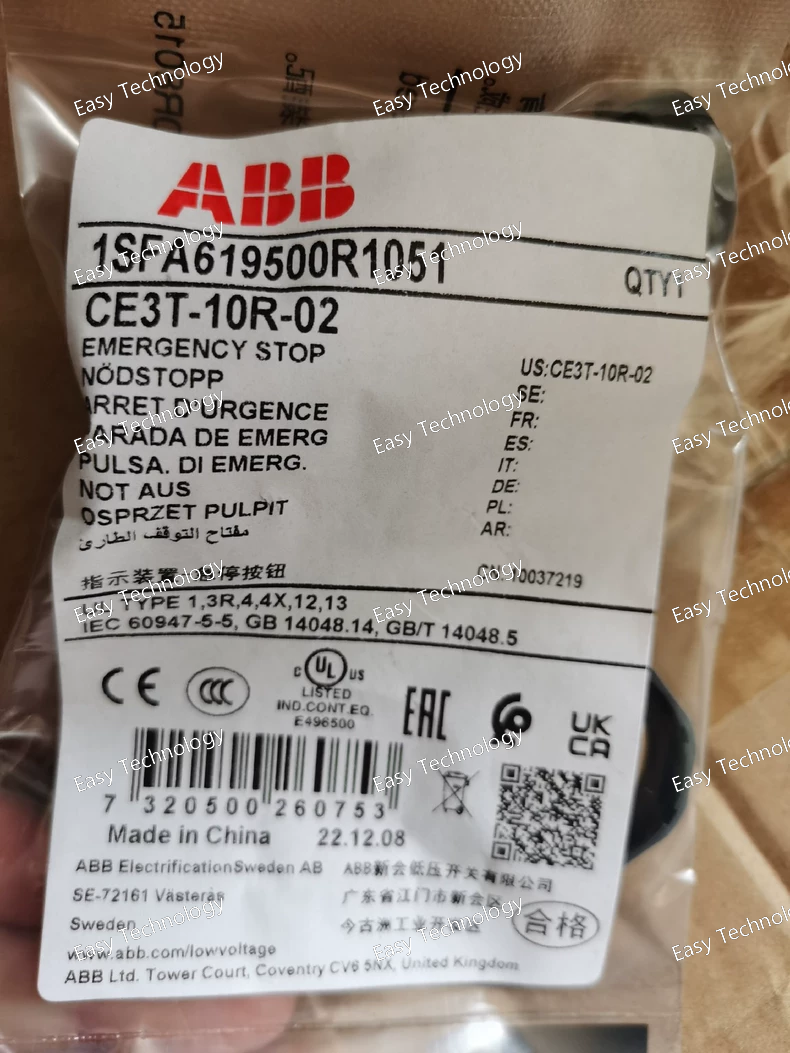

Key Parameters Parameter Specification Model / Part Number CE3T‑10R‑02 ABB Catalog / Ordering Code 1SFA619500R1051 Product Type Emergency Stop Pushbutton Range / Series ABB Compact Pilot Devices Actuator Style Red mushroom head (30 mm diameter) Release Type Twist‑to‑release Illumination Non‑illuminated Contact Configuration 2 × Normally Closed (2NC) Rated Operational Voltage ~24 – 300 V AC/DC (typical range) Rated Operational Current (AC‑15) ~1 A @ 240 V AC Rated Operational Current (DC‑13) ~0.3 A @ 24 V DC Mechanical Durability ~0.5 Million operations Degree of Protection (Front) IP66 / IP67 / IP69K Degree of Protection (Terminals) IP20 Pollution Degree 3 Terminal Type Screw terminals Tightening Torque (approx.) ~0.8 N·m Wire Stripping Length ~6 mm Operating Temperature –25 °C to +70 °C Storage Temperature –40 °C to +85 °C Panel Mounting Size Standard 22 mm cut‑out Housing Material Plastic

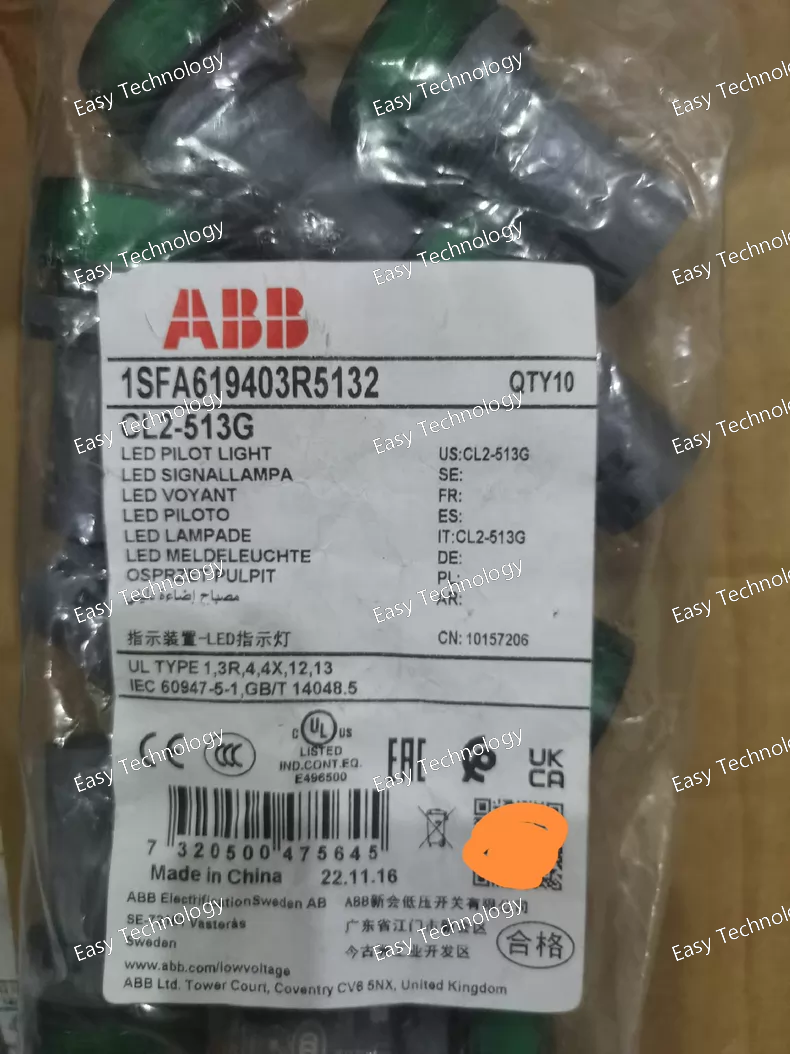

Key Parameters Parameter Specification Model / Part Number CL2‑513G ABB Catalog / Ordering Code 1SFA619403R5132 Product Type Compact Illuminated Pilot Light Indicator Color Green Lamp Type / Light Source Integrated LED Rated Operational Voltage 110–130 V AC Operating Current Approx. 15–17 mA Illumination Illuminated (LED) Mounting Size 22 mm panel cut‑out Protection Degree (Front) IP66, IP67, IP69K Protection Degree (Terminals) IP20 Rated Frequency 50/60 Hz Terminal Type Screw terminals (screw clamp) Wire Stripping Length ~8 mm Terminal Torque ~0.9 N·m Operating Temperature −25 °C to +70 °C Storage Temperature −40 °C to +85 °C Pollution Degree 3 Construction / Series Compact range, all‑in‑one indicator Approx. Dimensions (W×H×D) ~30×30×52 mm Approx. Weight ~0.018 kg Certifications CE, UL / cURus listings typical

Key Parameters Parameter Specification Model / Part Number CE4P‑10R‑01 Product Type Emergency Stop Pushbutton Series / Range ABB Compact Pilot Devices Actuator Type 40 mm Red Mushroom Head Operation / Release Pull‑release (manual reset) Illumination Non‑illuminated Contact Blocks Usually requires separate contact blocks (contacts not integrated) Mounting Cutout Size Standard 22 mm panel hole Protection Rating (Front) High dust/water resistance (IEC IP66/IP67/IP69K typical) Protection Rating (Terminals) IP20 typical Operating Temperature –25 °C to +70 °C Storage Temperature –30 °C to +85 °C Mechanical Durability High (industrial duty) Color Red actuator, black housing Application Emergency stop function in machinery and industrial control panels

Key Parameters Parameter Specification Model / Part Number CP2‑11R‑10, ABB ABB Catalog / Order Code 1SFA619101R1111 Product Type Compact Illuminated Pushbutton Actuator Style Flush pushbutton Function Maintained (latching) Illumination LED illuminated Button Color Red Bezel / Housing Material Black plastic Contact Configuration 1 × Normally Open (1NO), 0 × Normally Closed (0NC) Rated Voltage – Illumination 24 V AC/DC (LED) Rated Operational Voltage 24 … 300 V (AC/DC) typical range Rated Insulation Voltage (Ui) ~300 V Rated Impulse Withstand Voltage (Uimp) ~6 kV Rated Operational Current (AC‑15) ~1 A @ 240 V Rated Operational Current (DC‑13) ~0.3 A @ 24 V Front Protection IP66 / IP67 / IP69K Terminal Protection IP20 Pollution Degree 3 Degree of Protection (NEMA) Type 1, 12, 13, 3R, 4, 4X typical Connection Type Screw terminals Mechanical Durability ~0.5 million operations Mounting Size Standard 22 mm panel cut‑out Operating Temperature −25 °C to +70 °C Storage Temperature −40 °C to +85 °C Dimensions (approx.) ~30 × 30 × 55 mm (W × H × D) Net Weight ~0.025 kg

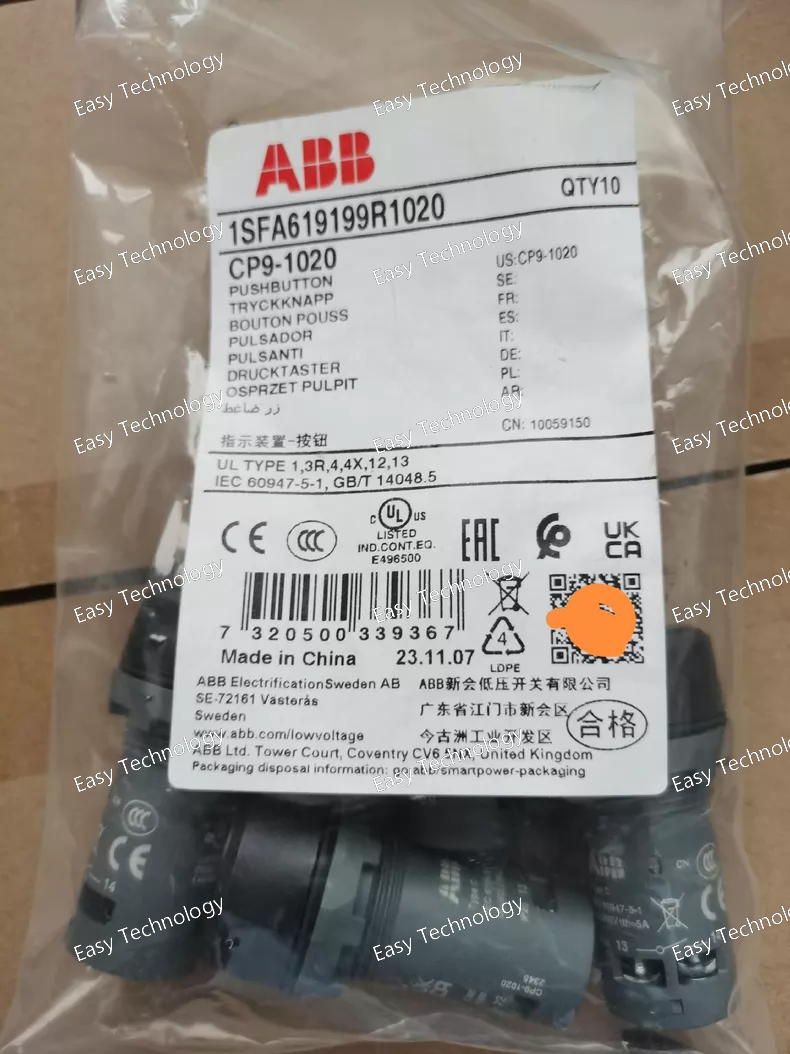

Key Parameters Parameter Specification Model / Part Number CP9‑1020 ABB Catalog No. / Ordering Code 1SFA619199R1020 Product Type Pilot Pushbutton Series / Range Compact range Actuator Style Flush pushbutton Function Momentary (spring return) Illumination Non‑illuminated Color Black actuator and bezel Contact Configuration 1 × Normally Open (1 NO) + 1 × Normally Closed (1 NC) Bezel Material Black plastic Rated Insulation Voltage (Ui) 300 V Rated Impulse Withstand Voltage (Uimp) 6 kV Degree of Protection (Front) IP66 / IP67 / IP69K Degree of Protection (Terminals) IP20 Pollution Degree 3 Rated Operational Voltage Up to 300 V (AC) Rated Current (AC‑15) ~1 A @ 240 V Rated Current (DC‑13) ~0.3 A @ 24 V / ~0.2 A @ 125 V Connection Type Screw clamp terminals Mechanical Durability ~0.5 million operations Mounting Size Standard 22 mm panel cut‑out Net Weight ~0.022 kg Ambient Operating Temperature –25 °C to +70 °C Storage Temperature –40 °C to +85 °C

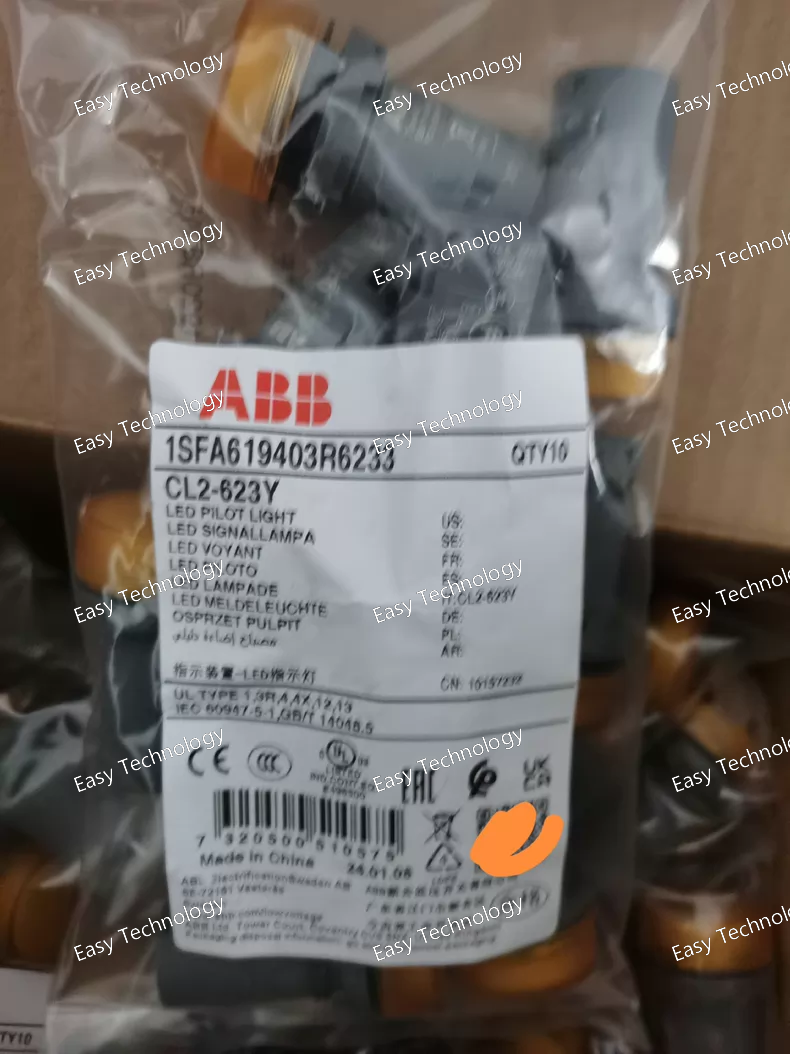

Key Parameters Parameter Specification Model / Part Number CL2‑623Y (ABB) ABB Catalog No. 1SFA619403R6233 Product Type Compact Pilot Light / Indicator Light Lamp Color Yellow Illumination Illuminated (LED) Rated Voltage 230 V AC Lamp Type Integrated LED Activation Type Pilot light head (indicator) Mounting Hole Diameter 22 mm standard panel cutout Degree of Protection (Front) IP66 / IP67 / IP69K Degree of Protection (Terminals) IP20 Pollution Degree 3 Ambient Operating Temperature –25 °C to +70 °C Storage Temperature –40 °C to +85 °C Connection Type Screw clamp terminals Wire Stripping Length ~8 mm Rated Frequency 50/60 Hz Terminal Screw Torque ~0.9 N·m Dimensions (Approx.) ~30 mm × 30 mm × 52 mm (W×H×D) Net Weight ~0.018 kg

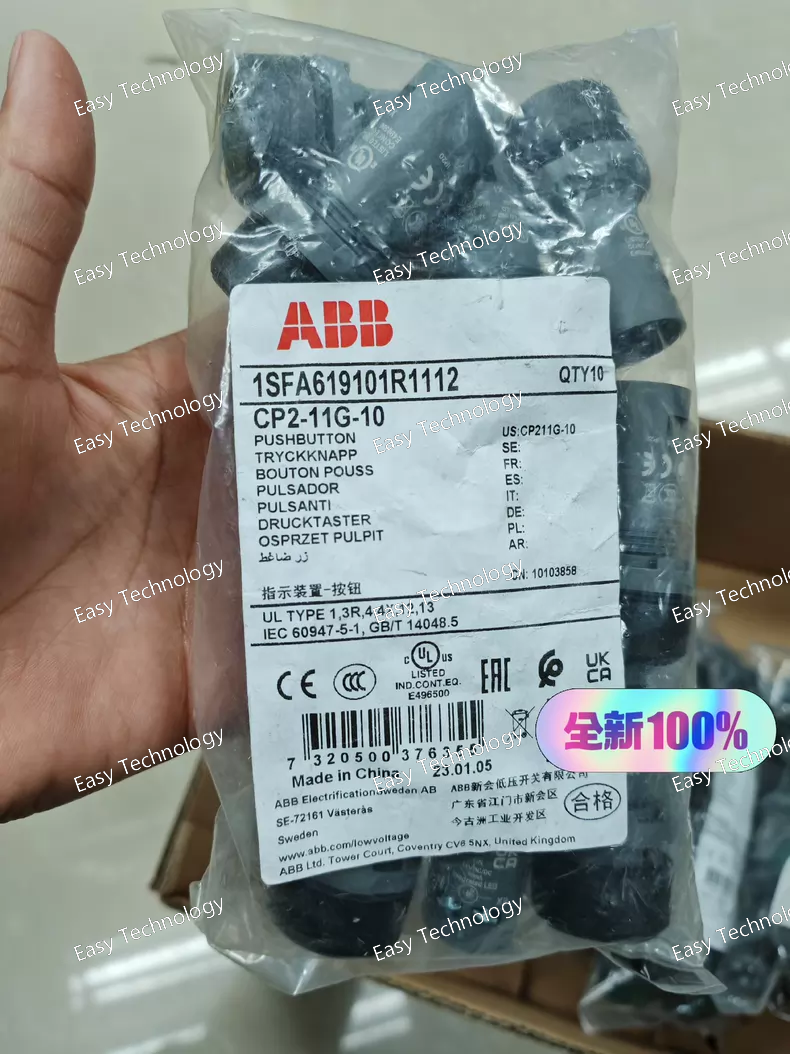

Key Parameters Parameter Specification Model / Part Number 1SFA619101R1112 ABB Catalog No. CP2‑11G‑10 Product Type Compact Pushbutton Actuator Style Flush pushbutton Function Maintained (push once to latch) Illumination Illuminated (with internal lamp) Actuator Color Green Contact Configuration 1 × Normally Open (1NO) Rated Voltage 24 V AC/DC Rated Frequency 50/60 Hz Rated Operational Current (AC‑15) ~1 A @ 240 V / 1.5 A @ 120 V Rated Operational Current (DC‑13) ~0.3 A @ 24 V / 0.2 A @ 125 V Mechanical Durability ~0.5 million operations Bezel / Housing Black plastic Mounting Size Standard 22 mm panel cutout Degree of Protection Terminals IP20 Operating Temperature –25 °C to +70 °C Dimensions (approx.) ~30 × 30 × 55 mm (W × H × D) Typical Applications Machine control panels, operator interfaces, status control

Key Parameters Parameter Specification Product Name ABB MPEP4‑10R Emergency Stop Pushbutton Catalog / Ordering Code 1SFA611524R1001 Product Type Modular emergency stop pushbutton Actuator Type 40 mm red mushroom head Function Emergency stop — pull release Illumination Non‑illuminated Contact Block Not included (no contact block) Mounting Size Standard 22 mm panel cutout Color Red (emergency standard) Degree of Protection Typically front IP66; terminals IP20 (industry typical) Dimensions (approx.) 40 mm × 40 mm × 68 mm (W × H × D) Net Weight ~0.036 kg Environmental Ratings Operating: −25 °C to +70 °C; Storage: −30 °C to +85 °C Standards/Certifications RoHS compliant Range ABB modular pilot devices

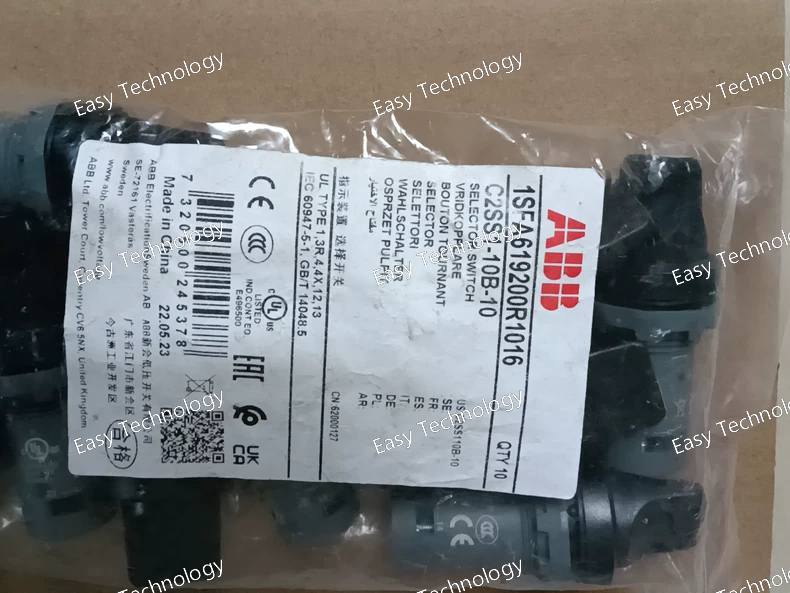

Key Parameters Parameter Specification Product Type Selector Switch (compact) Model / Part Number C2SS1‑10B‑10 Extended Type / Catalog ID 1SFA619200R1016 Function Maintained two‑position selector Positions 2 Actuator / Handle Short handle (manual rotary) Contact Configuration 1 × Normally Open (1NO) Illumination Non‑illuminated Bezel / Housing Black plastic Rated Operational Voltage 24 … 300 V AC/DC Rated Operational Current ~1 A at 240 V AC / 0.3 A at 24 V DC Rated Insulation Voltage (Ui) 300 V Rated Impulse Withstand 6 kV Mechanical Durability ~0.5 million operations Ambient Operating Temp. –25 °C to +70 °C Storage Temperature –40 °C to +85 °C Mounting Size ~22 mm compact range Dimensions ~30 × 30 × 72 mm (W × H × D) Terminal Type Screw terminals Degree of Protection Front: IP66 / IP67 / IP69K; Terminals: IP20

Technical Parameters Parameter Specification Product Series CL Series (Compact Line Relay) Model Decoding CL2-520R • CL2: Series and possibly frame size designation. • 5: Number of poles / contact configuration. "5" often indicates 2 Changeover Contacts (2 Form C) in some ABB coding systems. • 20: Nominal Coil Voltage = 110V AC (Common code: 20 often corresponds to 110V AC, 50/60Hz). • R: Contact Arrangement code, here likely confirming the 2 Form C configuration and/or a 10A rating. Contact Configuration 2 Changeover (2 Form C / 2 PDT) - 2 poles, each with Common (C), Normally Open (NO), and Normally Closed (NC) terminals. Contact Material Silver Cadmium Oxide (AgCdO) or Silver Tin Oxide (AgSnO₂) for high arc endurance. Rated Load (Resistive, per contact) 10A @ 250V AC 10A @ 30V DC Maximum Switching Voltage 250V AC, 30V DC Maximum Switching Power (per contact) 2,500 VA (AC), 300 W (DC) Coil Voltage 110V AC, 50/60 Hz. Operable range: typically 80% to 110% of nominal. Coil Power Consumption Approx. 3.5 VA (for AC coil). Nominal Coil Current Approx. 32 mA @ 110V AC. Operate / Release Time Typically ≤ 20 ms. Electrical Life ≥ 100,000 operations at rated resistive load. Mechanical Life ≥ 10,000,000 operations (no load). Insulation Resistance > 100 MΩ (at 500V DC). Dielectric Strength (Hi-Pot) Coil to Contacts: 4,000V AC, 50/60Hz for 1 min. Between Open Contacts: 1,500V AC, 50/60Hz for 1 min. Between Poles: 2,000V AC, 50/60Hz for 1 min. Ambient Temperature Range -40°C to +70°C (Operation). Mounting Pluggable onto a dedicated 8-pin or 11-pin CL series socket (e.g., ABB CL-Socket). The socket is DIN-rail mountable. Terminals (via Socket) Screw clamp terminals on the socket. Standards Compliance IEC/EN 61810-1, UL 508, CSA C22.2 No. 14, CE, RoHS. Safety Approvals UL Recognized, CSA Certified. Dimensions (Relay only) Approx. 35mm (W) x 25mm (H) x 40mm (D). Weight Approx. 70g.

Technical Parameters Parameter Specification Product Series MLBL Series (Modular Branch Wiring Duct) Model Decoding MLBL-07G • MLBL: Series name for branch/finger duct. • 07: Likely indicates the internal dimensions (Height x Width). "07" often corresponds to a common size, e.g., 45mm x 60mm (H x W, internal). This is a key identifier for size. • G: Configuration code. Often stands for "with 1 Partition" or "Gris" (French for Gray, indicating color/material type). Most commonly, "G" in this context denotes a partitioned version. Type Snap-on / Hinged Lid Finger Duct Material Polyamide 6.6 (PA66), Halogen-free, Flame Retardant (UL94 V-0). Standard Color Light Gray (similar to RAL 7035). Internal Dimensions (H x W) Approx. 45mm x 60mm (This is the most critical guess; "07" must be verified against catalog). This is the usable space inside the duct base. External Dimensions (H x W) Slightly larger than internal dimensions, depending on wall thickness. Internal Configuration Likely with 1 longitudinal vertical partition, dividing the internal space into 2 compartments of equal or specified unequal width. Partition Material Integral with the duct base (same material). Lid Type Flexible, snap-on "finger" lid. Temperature Range -40°C to +120°C (for continuous use). Flammability Rating UL 94 V-0 (Self-extinguishing). Standards Compliance IEC 61439-1/-2 (Low-voltage switchgear assemblies), RoHS, REACH. Mounting Via integral mounting feet for screwing to backplate, or adhesive backing. Typical Fill Capacity Should not exceed 50-60% of internal cross-sectional area for proper heat dissipation and wire access. Packaging Sold in standard lengths (e.g., 1-meter or 2-meter pieces).
