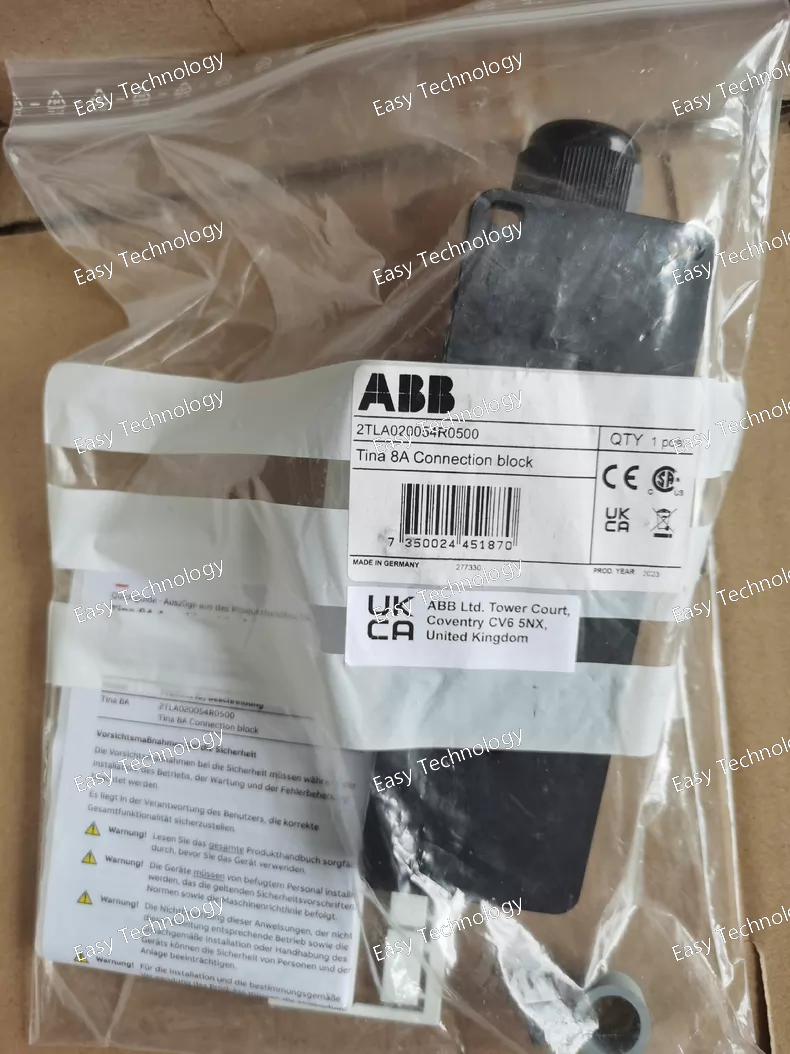

Technical Specifications Specification Value Manufacturer ABB Model / Part Number TINA 8A (2TLA020054R0500) Product Type Safety connection block / DYNlink interface Intended Use Connection block for multiple safety devices in a DYNlink safety loop Compatible Systems ABB Vital, Pluto, and related safety controller platforms Number of Connectors 8 × M12 5‑pole female connectors Signal Wiring Individual wiring for each connected sensor signal Supply Voltage 24 V DC (typical) Current Consumption Approx. 15 mA Information Output Current Up to 10 mA Protection Class IP67 (sealed housing) Operating Temperature Range –10 °C to +55 °C Storage Temperature Range –30 °C to +70 °C Housing Material Polyamide or industrial plastic (rugged) Dimensions Approx. 149 × 50 × 43 mm (L × W × H) Weight Approx. 140 g LED / Indicators Status information LEDs (power/signal status) Cable Entry Diameter 7 – 12 mm (recommended cable range) Standards Compliance Conforms to relevant machine safety standards (e.g., EN ISO 13849, EN 61508) Mounting Style Panel / machine frame mounting as part of safety system

Technical Specifications Specification Value Manufacturer ABB Model / Part Number MS2X‑2.5 Product Type Manual Motor Starter / Motor Protection Circuit Breaker Rated Current Setting Range 1.6 – 2.5 A Protection Functions Overload protection, short‑circuit protection, phase failure sensitivity Switching Function Manual ON / OFF Number of Poles 3‑pole (three phase) Rated Operational Voltage Up to ~690 V AC Rated Insulation Voltage ~690 V Rated Frequency 50 / 60 Hz Degree of Protection (Housing) IP20 (finger‑safe) Mounting Type DIN‑rail (standard 35 mm) Trip Mechanism Thermal‑magnetic Handle / Actuator Type Rotary handle or toggle switch Adjustable Overload Release Yes (set to motor current) Disconnect Function Yes (manual disconnect via handle) Short‑Circuit Breaking Capacity Up to high kA levels typical for manual starters Terminal Type Screw terminals Typical Applications Motor protection, manual motor ON/OFF control in industrial circuits

Technical Specifications Specification Value Manufacturer ABB Model / Part Number MJS5‑40B (1SFA611705R4006) Product Type Joystick Control Switch (pilot device) Joystick Type Maintained (4‑position) Number of Directions 4 positions (up, down, left, right) Actuator Style Plastic joystick without self‑return Housing Material Plastic Color Black Mounting Hole Size 22 mm panel cut‑out Contact Blocks Not included (sold separately) Protection Degree (Front) IP66 / IP67 / IP69K (depending on installation) Electrical Rating (with proper contacts) Typical AC‑15: up to 6 A @ 230 V (with appropriate contact blocks) Mechanical Durability High mechanical durability (e.g., >0.5 million operations) Operating Temperature Range Approx. ‑25 °C to +70 °C Weight Approx. 0.05 kg Application Manual directional control in industrial automation Standards Meets relevant IEC/EN pilot device and joystick standards

Technical Specifications Specification Value Product Name ABB CT‑MFC.12 Product Type Multifunction Time Relay Model / Part Number CT‑MFC.12 (1SVR508020R0000) Manufacturer ABB Supply Voltage 24–240 V AC / 24–48 V DC Timing Functions Multiple functions including ON‑delay, OFF‑delay, impulse ON, impulse OFF, flasher starting with ON/OFF, pulse former Time Range 0.05 s to 100 h Contact Configuration 1 changeover contact (SPDT / 1 C/O) Rated Current (Contact) Up to 4 A Rated Operational Voltage (Contact) Up to 250 V AC Rated Frequency 50/60 Hz Mounting Type DIN Rail (35 mm standard) Terminal Type Screw terminals Operating Temperature Range Approx. –20 °C to +60 °C Housing Width Approx. 17.5 mm Height Approx. 70 mm Depth Approx. 63 mm Protection Rating Terminals IP20 / Housing up to IP50 (varies by installation) Weight Approx. 0.05 kg Typical Use Control automation timing and sequence functions

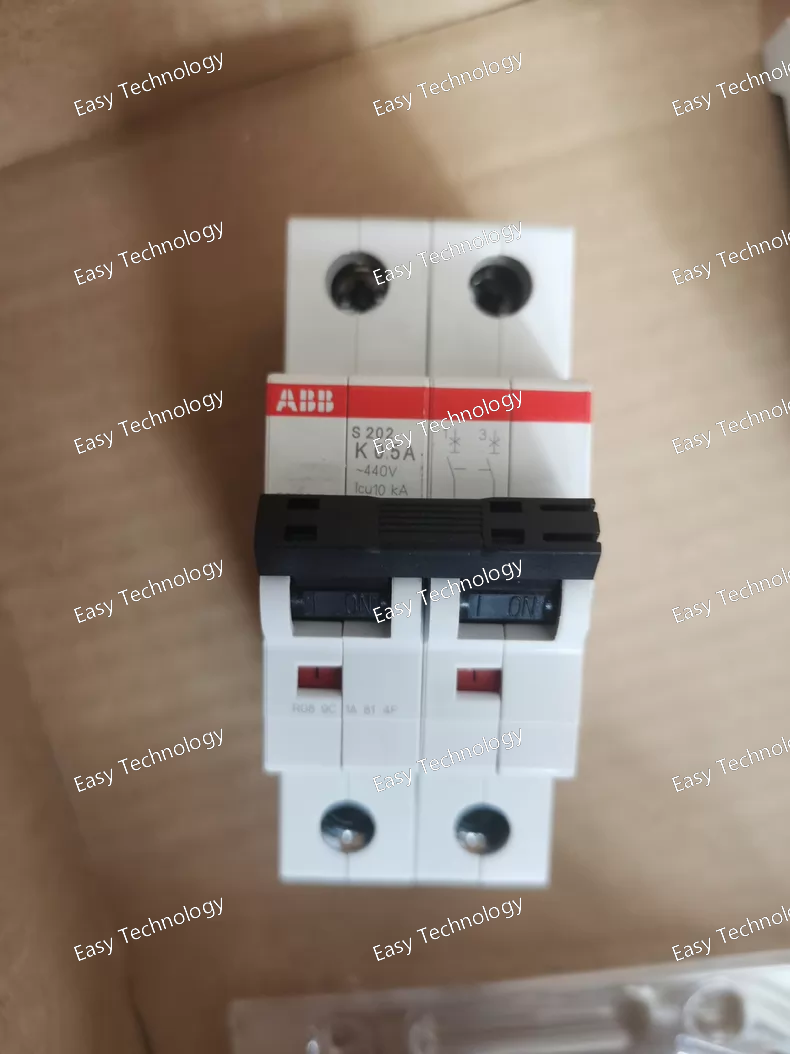

Technical Specifications Specification Value Manufacturer ABB Model / Part Number S202‑K0.5 Product Type Miniature Circuit Breaker (MCB) Series S200 / System pro M Number of Poles 2P (2‑pole) Rated Current (Iₙ) 0.5 A Trip Characteristic K (thermal‑magnetic) Thermal Protection Overload protection via bimetallic element Magnetic Protection Short‑circuit protection Rated Operational Voltage Up to ~400 V AC Frequency 50 / 60 Hz Rated Insulation Voltage (Uᵢ) ~440 V Rated Impulse Withstand Voltage (Uₚ) ~4 kV Breaking / Interrupting Capacity Up to 6 kA (AC) Mounting DIN‑rail (TH35) Connection Terminals Finger‑safe screw terminals Trip Indication ON/OFF indicator (often red/green) Operating Temperature Range ~‑25 °C to +55 °C Width (Modules) 2‑module width Protection Degree IP20 (installed in panel) Application Overload and short‑circuit protection in low‑voltage circuits

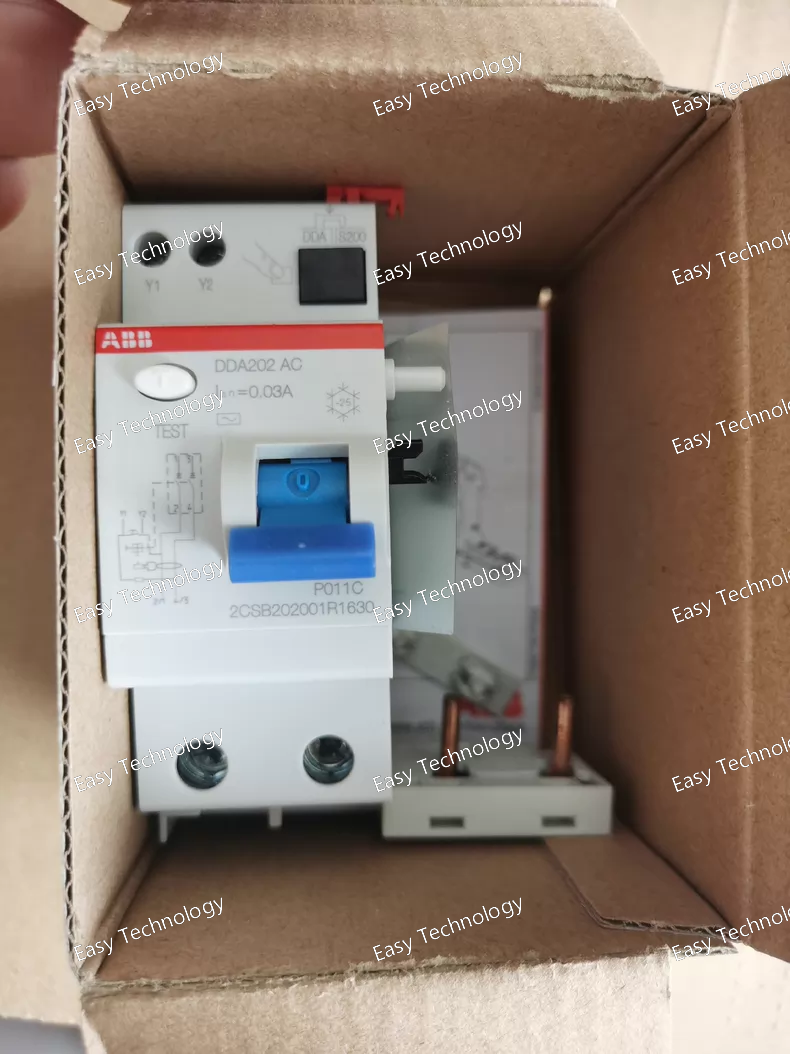

Technical Specifications Specification Value Manufacturer ABB Model / Part Number DDA202 AC‑63/0.03 Product Type Residual Current Device (RCD) Block Rated Current (Iₙ) 63 A Number of Poles 2 Residual Current Sensitivity (IΔₙ) 30 mA Type of Residual Current AC type Rated Voltage (Uᵣ) 230 / 400 V AC Rated Operational Voltage 230 V AC Rated Insulation Voltage (Uᵢ) 500 V Rated Impulse Withstand Voltage (Uᵢₘₚ) 4 kV Rated Frequency 50 / 60 Hz Operating Characteristic Instantaneous Electrical Endurance 10 000 cycles Power Loss Approx. 5 W Connecting Capacity (Solid / Flexible) 25 mm² Ambient Operating Temperature ‑25 °C to 55 °C Degree of Protection IP2X Mounting DIN Rail Standards Compliance IEC/EN 61009 standard

Technical Specifications Specification Value Manufacturer ABB Model / Part Number MEP6‑0 Product Type Empty Pushbutton Enclosure Housing Material Plastic (Polycarbonate) Color Dark Gray / Light Gray Number of Holes / Seats 6 positions Operator Mounting Size 22 mm Compatibility Modular & compact range pilot devices Protection Rating IP66 (dust tight & strong water protection) NEMA Rating 1, 3R, 4, 4X, 12, 13 Standards CE Certified, RoHS Compliant Operating Temperature Up to approx. 70 °C Mounting Style Base or panel mounting Included Hardware Stainless steel screws Typical Use Industrial control panels, pendant stations

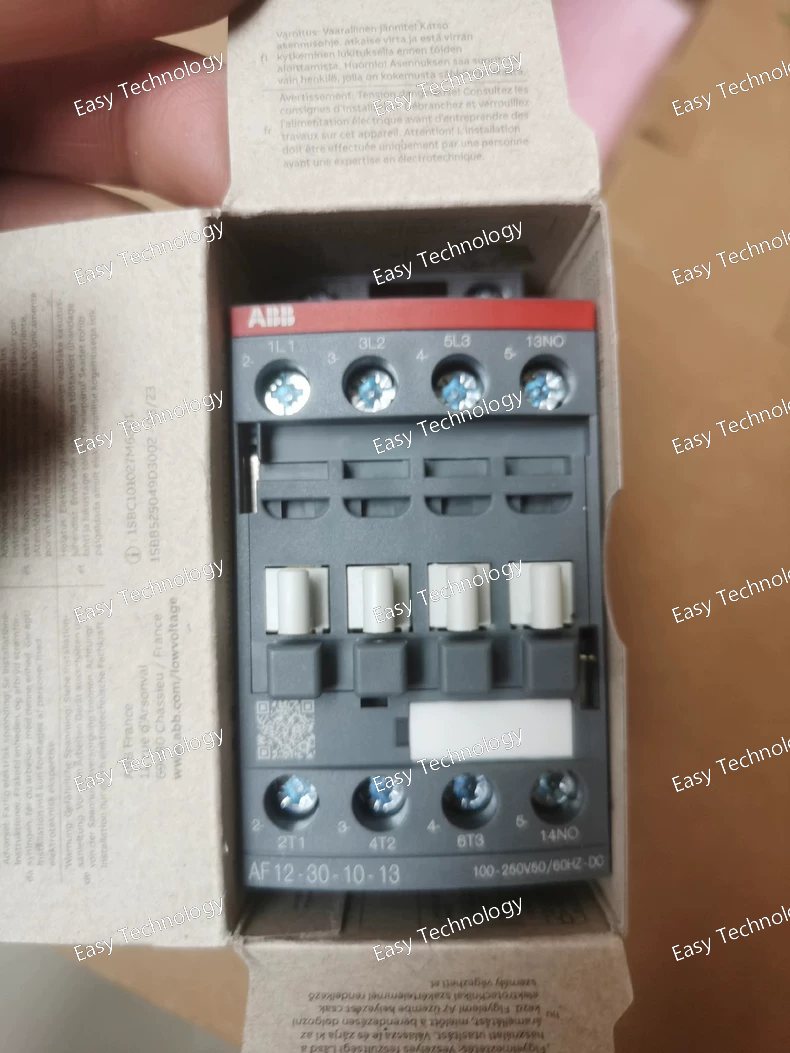

Parameter Specification Product Series AF Series (Axial Flow) Enclosures Device Type Plastic Enclosure Kit with DIN Rail and Cover Article Number AF12-30-10-13 Internal DIN Rail Specification 35mm symmetrical DIN rail, compatible with components up to 12mm deep. Included DIN Rail Length Typically 200 mm (This is the common length associated with suffix "13". Must be verified with official datasheet). Enclosure External Width 30 mm (Nominal) Enclosure External Height Standard height for AF12 series (e.g., ~100-110mm). Enclosure External Depth Approximately 30-40mm (to accommodate the 12mm component depth plus rail and wall clearance). Cover Type Opaque grey, snap-on cover (based on suffix "10"). Transparent covers have different codes. Material High-quality plastic (Polycarbonate (PC)), Grey, UL 94 V-0 rated. Protection Degree (IP Rating) IP40 (with cover closed, protected against access with a wire >1mm). Can achieve IP55/IP65 with appropriate sealed covers and gaskets (which may be different models). Mounting Wall or panel mounting via integrated keyhole slots on the back. Operating Temperature Typically -25°C to +70°C

Technical Data Parameter Specification / Typical Value Product Family Accessory for ABB Emax 2 (E2) Air Circuit Breakers Device Type Electronic Under-Voltage Release with Timer Article Number 1SDA063552R3 Rated Supply Voltage (Us) 220 / 240 V AC (50/60 Hz), 3-phase monitoring. Operating Voltage Range Typically 0.85 to 1.1 x Us (e.g., ~187V to 264V). The breaker can be closed within this range. Trip Threshold (U<) Adjustable, typically within a range like 70% to 95% of Us (e.g., ~154V to 228V for 220V). Trip Delay Time (t<) Adjustable, typically within a range like 0.1s to 10s (or similar). This is the key feature to ride through short dips. Reset Voltage Requires voltage to return above the threshold (plus a hysteresis) and often a manual reset of the breaker. Mounting / Compatibility Direct internal mounting onto the designated slot of an Emax 2 breaker specified by the T7/T7M interface code. Connection Wired to the three-phase supply (L1, L2, L3, N) for monitoring. Typically connects internally to the breaker's control circuit. Standards Compliance IEC/EN 60947-2 Ambient Temperature Operation: -25°C to +70°C

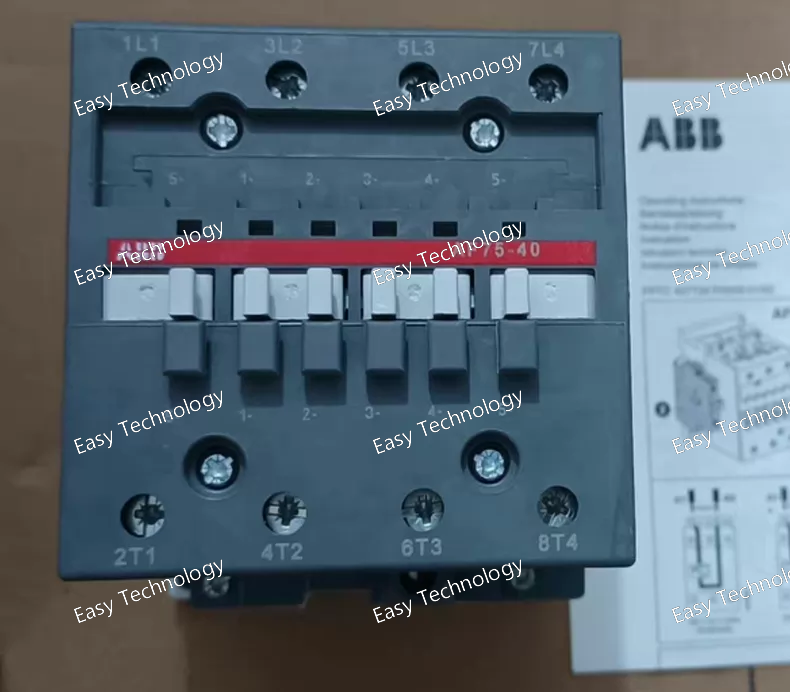

Technical Data Parameter Specification / Typical Value Product Series AF Series (Axial Flow) Enclosures Device Type Plastic Enclosure / Wireway (Empty Body) Article Number AF75-40-00 Internal DIN Rail Compatibility 75mm deep, 35mm symmetrical DIN rail (Rail not included with "00" suffix). External Dimensions (Approx., H x W x D) Height: ~110-120mm (Standard height for this series) Width: 40 mm (Nominal) Depth: ~75-80mm (External, depends on design) Note: Exact dimensions must be verified from the datasheet. Material High-quality plastic (e.g., Polycarbonate (PC) or Polyamide (PA)), Grey, UL 94 V-0 rated. Protection Degree (IP Rating) Typically IP40 (Protected against tools and wires >1mm, not against water). With appropriate gasketed cover, can achieve IP55 or higher. Mounting Wall or panel mounting via integrated keyhole slots or screw holes. Transparency The body is opaque. Transparent covers (e.g., AF...-T...) are available as separate accessories. Operating Temperature Typically -25°C to +70°C (Material dependent) Standards Compliance IEC 60529 (IP Rating), UL 508A (for enclosures)

Technical Data Parameter Specification / Typical Value Product Series TINA (Terra Indicating and Auxiliary) Relay Series Device Type Electromechanical Monostable Latching Relay Contact Configuration 2 Normally Open (NO) Contacts (2 Form A) Contact Rating (Main Contacts, Resistive Load) Typically: 10 A @ 250 V AC Switching Capacity: AC-1: Up to 2500 VA per contact Rated Thermal Current (Ith): 16 A Coil Data Multiple voltages available. This is a key variable. The specific coil voltage (e.g., 24 V DC, 110 V AC, 230 V AC) is defined by the full article number, not just "TINA 2A". Coil Power Consumption DC coil: ~0.9 W AC coil: ~1.3 VA Mechanical Life ≥ 10 x 10⁶ operations Electrical Life (at rated load) ≥ 0.2 x 10⁶ operations Operate/Release Time Typically ~10 ms Mounting Plug-in module onto a compatible TINA series DIN-rail mounting base (sold separately). Terminal Type (on base) Screw clamp terminals. Connection Capacity Up to 2.5 mm² Status Indication Mechanical flag (red). Ambient Temperature (Operation) -40°C to +70°C Protection Degree IP40 (with base), IP20 (terminals) Standards Compliance IEC/EN 61810-1, IEC/EN 60947-5-1

Technical Data Parameter Specification / Typical Value Product Family Robot Peripherals / Operator Interface for ABB XRC & XR Robot Controllers Device Type Panel Mount Operator Interface Box (with Integrated Safety Functions) Compatible Controllers ABB XRC Series Controllers (e.g., for IRB 1400, 2400, 4400, 6400 robots) ABB XR Series Controllers (later models) Core Safety Components • 3-Position Enabling Device (Cat. 3 / PLd safety rated) • Emergency Stop Button (Dual-channel, with latching mechanism) • Mode Selector Key Switch (At least 2 positions) Operational Buttons • Start (Green) • Stop/Halt (Yellow) • Motor On (May be integrated) • Other function keys (Model dependent) Status Indicators • Power On (Green) • Program Running (Green) • Fault/Error (Red/Amber) • Safety Circuit Status (Specific color) Protection Degree Typically IP65 (Front panel, dust-tight and protected against water jets) Supply Voltage Typically provided by the connected robot controller via the interface cable as 24 V DC. Communication Interface Connects to the controller's rear panel via a dedicated multi-pin circular connector (e.g., to the X8 port). Internal wiring is predefined and standardized. Mounting Panel cut-out mounting, secured by a front bezel nut. Standard cut-out dimensions apply (e.g., 96mm x 96mm or similar). Ambient Temperature Operation: 0°C to +50°C Safety Standards Complies with ISO 10218-1, ANSI/RIA R15.06 for robot control devices. Internal safety circuits comply with IEC 60204-1, IEC 61800-5-2, etc.
