Technical Parameters Parameter Specification Model / Part Number 1SFA892014R1002 (PSS300/515‑500L) Product Type Soft Starter (motor starting controller) Rated Operational Voltage (Main Circuit) 208 – 500 V AC Rated Control Supply Voltage 220 – 240 V AC Rated Control Circuit Voltage 24 V DC (for control signals) Rated Frequency 50/60 Hz Rated Operational Current (Ie) 300 A (in‑line) Rated Operational Current (Delta) 515 A (inside delta connection) Rated Operational Power (Motor) ~90 kW at 230 V AC, ~160 kW at 400 V AC, ~200 kW at 500 V AC Ramp Times Adjustable: Start 1 – 30 s, Stop 0 – 30 s Initial Start Voltage ~30 % – 70 % of line voltage Current Limiting Function 1.5 – 4 × Ie when CT connected Number of Starts per Hour ~30 (at 3.5×Ie, 7 s on, 50 % duty) Bypass Signal Relay Yes Fault Signal Relay (NO contact) Yes Ambient Operating Temperature –25 °C to +60 °C Ambient Storage Temperature –40 °C to +70 °C Protection Rating (Main Terminals) IP00 (internal), requires appropriate enclosure for IP protection Terminal Type Main circuit bars (bus bar style) Duty Cycle Up to ~30 starts/hour under specified conditions Product Weight ~23.9 kg Dimensions (Approx.) Height ~340 mm, Width ~356 mm, Depth ~265 mm Standards Compliance IEC 60529, IEC 60947 series

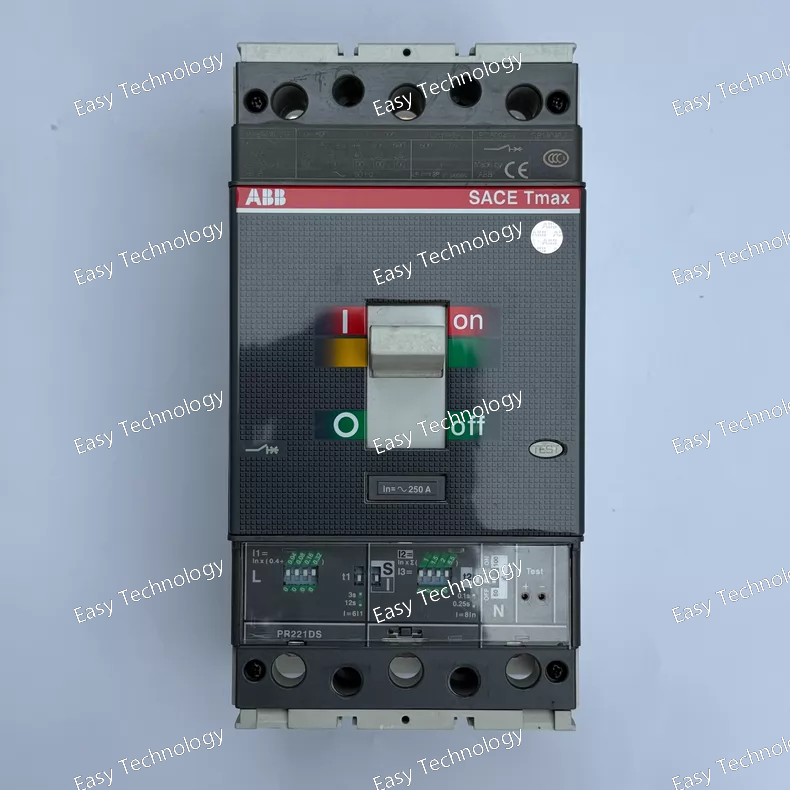

Technical Parameters Parameter Typical Specification Type Molded Case Circuit Breaker (MCCB) Series/Family ABB Tmax T with PR221DS electronic trip Poles 3P (three phases) Rated Current (In) e.g., 630 A (varies by specific model) Trip Unit Type PR221DS electronic solid‑state release Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 8 kV Short‑Circuit Breaking Capacity (Icu) Up to 50 kA (varies with frame/size) Service Short‑Circuit Breaking Capacity (Ics) Defined per voltage; depends on model Terminal Connection Front terminals (fixed) Mounting Configuration Fixed frame Trip Functions Electronic overload and short‑circuit protection Standards Compliance IEC 60947‑2 (Low‑Voltage Circuit Breakers) Typical Use Electrical distribution panels, motor feeders, industrial systems

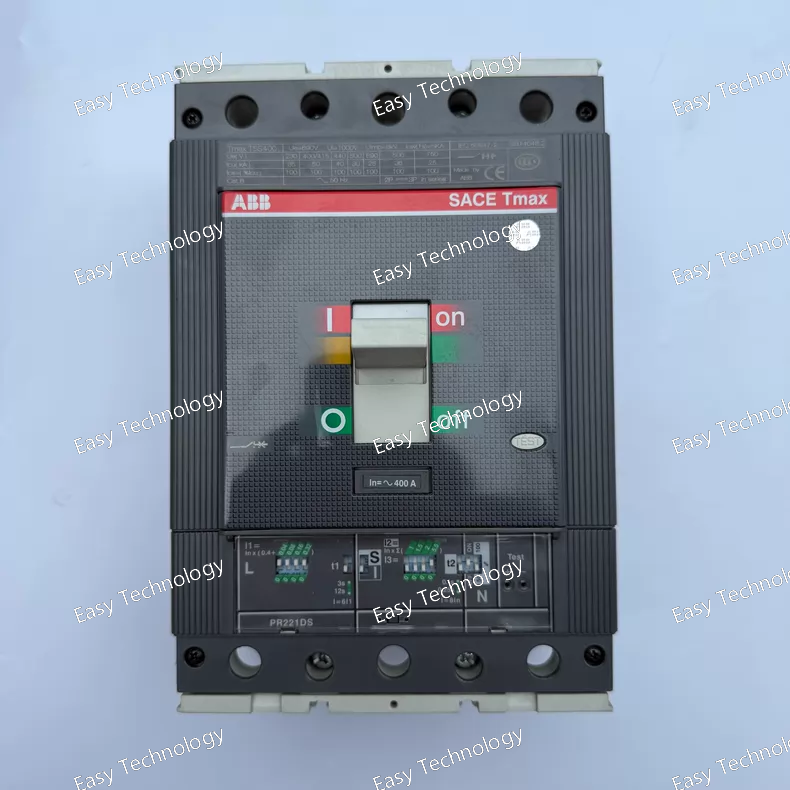

Technical Parameters Parameter Typical Specification Rated Current (In) 400 A Number of Poles 3 P Rated Operational Voltage (Ue) Up to 600–690 V AC (50/60 Hz) Rated Insulation Voltage (Ui) ~1000 V AC Rated Impulse Withstand Voltage (Uimp) ~8 kV Short‑Circuit Breaking Capacity (Icu) 35 kA to 100 kA @ 480 V AC (depends on trip unit and design class) Electrical +1 Service Short‑Circuit Breaking Capacity (Ics) Typically equal or close to Icu depending on frame/trip unit Trip Unit Types Thermal‑magnetic (TMA/TMD) or Electronic (PR221DS, Ekip series) Frequency 50/60 Hz Terminal Connection Fixed front terminals Mechanical Durability ~20,000 operations (typical) Standards Compliance IEC 60947‑2 / UL 489 (depending on region)

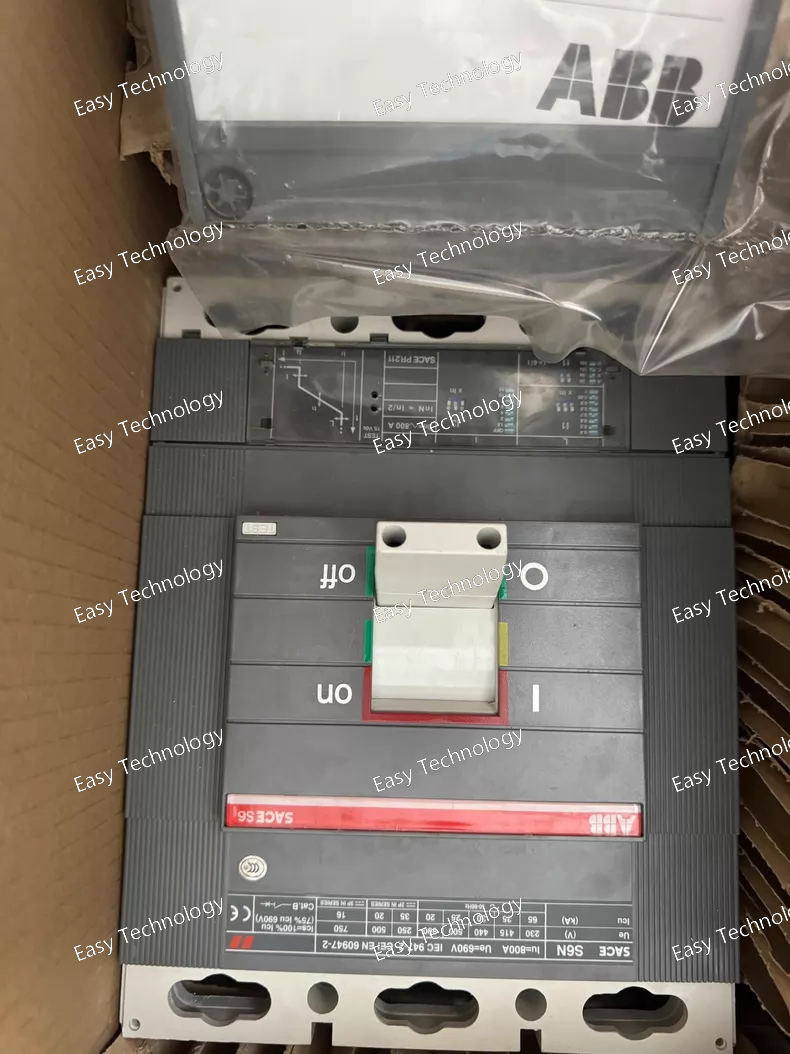

Technical Parameters Parameter Specification Model / Part Number 1SDA010623R1 Product Type Molded Case Circuit Breaker (MCCB) Series / Family ABB S6 / S6H Rated Current (In) 800 A Number of Poles 3 (3‑pole) Rated Operational Voltage (Ue) Typically up to 400–690 V AC (three‑phase systems) Rated Insulation Voltage (Ui) ~800–1000 V AC Interruption Capacity Designed for high fault interrupting capability — varies by standard/region Trip Unit Options Thermal‑magnetic or solid‑state (depending on exact variant) Mounting Type Fixed frame MCCB Terminal Type Front or rear load/line terminals depending on configuration Standards Compliance IEC 60947‑2 or equivalent (international MCCB standard)

1. General Data Model: DT 30806-9 16/26 Type: Universal, Loop-Powered, 2-Wire Series: TTH/TTL 300 Mounting: 35 mm DIN Rail (EN 60715) Display: Integrated LCD with backlight (Model "16" indicates display version) Communication: HART Protocol (FOUNDATION Fieldbus compatible), versions 5/6/7 2. Input Specifications Sensor Types: RTD: Pt100, Pt500, Pt1000 (to IEC 60751), Ni100, LG-Ni, Cu10, etc. Thermocouple: Types J, K, T, N, E, R, S, B, L, U, C (to IEC 60584). Ohms/mV: Linear resistance or millivolt input. Sensor Connection: RTD: 2-, 3-, or 4-wire connection (automatic lead resistance compensation for 3/4 wire). Thermocouple: 2-wire connection (internal or external cold junction compensation). 3. Output & Power Analog Output: 4-20 mA DC, two-wire. Load Limit: Maximum loop resistance: Typically 750 Ω at 24 V DC (consult datasheet for full load curve). Power Supply: 12 to 35 V DC (standard loop supply). Operation is dependent on total loop resistance. 4. Performance Reference Accuracy (at 23°C ±5°C): RTD (Pt100): Typically ±0.05% of span or ±0.03°C (whichever is greater). Thermocouple: Typically ±0.1% of span or ±0.5°C (whichever is greater). Note: Accuracy varies by sensor type and range. Refer to official data for exact values. Temperature Coefficient: Typically < ±0.015% of span per 10°C. Update Time: Configurable, typically < 500 ms. Long-Term Stability: Typically < ±0.1% of span per year. 5. Ambient Conditions Ambient Operating Temperature: -40°C to +85°C (-40°F to +185°F). Storage Temperature: -50°C to +100°C. Relative Humidity: 5% to 95%, non-condensing. Electromagnetic Compatibility (EMC): Compliant with IEC/EN 61326. Ingress Protection (IP): IP20 (terminal area - requires installation in an enclosure for protection). Vibration / Shock: Compliant with IEC/EN 60068-2-6 / 60068-2-27. 6. Electrical & Mechanical Terminals: Spring-clamp terminals. Wiring: 0.2 - 2.5 mm² (AWG 24-12). Electrical Isolation: Input to output to ground: Typically 500 V AC. 7. Certifications & Approvals (Typical) The suffix "-9" often indicates a specific set of international approvals. This model is commonly certified for: ATEX / IECEx: For use in Hazardous Areas (e.g., Ex ia IIC T4 Ga / Ex ia IIC T4 Gb). cULus: Listed for Class I, Division 1, Groups A, B, C, D T4; or Class I, Zone 0, AEx/Ex ia IIC T4. FM: Similar approvals for North America. CE Marking: Compliant with EU directives. SIL: Capable of supporting Safety Integrity Level (SIL 2) applications in accordance with IEC 61508.

Specifications 1. General Data Manufacturer Part Number: 84200940 Order Code / Article Number: 3HNE04393-6 (Verify for your specific batch) Product Type: PM 5xx-Bus Interface Module for CANopen Compatible System: ABB AC 500 V3 PLC Series (e.g., CPUs PM5xx-...) 2. Communication Specifications Fieldbus Protocol: CANopen (compliant with CiA standards) Supported Profiles: CiA DS-301 (CANopen application layer & communication profile) CiA DSP-402 (Drive profile) Operating Modes: Configurable as Master or Slave. Baud Rate: Configurable, standard range from 10 kbit/s up to 1 Mbit/s. 3. Physical Interface Connector: 1 x 9-pin D-Sub male (plug) connector. Pinout (CiA 303-1 compliant): Pin 2: CAN_L Pin 7: CAN_H Pin 3: CAN_GND (for shield) Pin 9: CAN_V+ (optional external power, typically not used) Termination: Integrated 120 Ω terminating resistor, activatable/deactivatable via DIP switch or software. 4. Electrical Characteristics Power Supply: Powered via the PLC backplane (PM 5xx bus). Isolation: Galvanic isolation between the bus side and the PLC backplane for noise immunity and protection. Bus Standard: Compliant with ISO 11898. 5. Ambient Conditions Operating Temperature: 0°C to +60°C. Storage Temperature: -25°C to +85°C. Relative Humidity: 5% to 95%, non-condensing. Degree of Protection: IP20 (for installation inside a control cabinet). 6. Mechanical Specifications Module Width: Typically 25 mm (standard for AC 500 V3 I/O modules). Mounting: Snaps onto a top-hat DIN rail (35 mm x 7.5 mm or 15 mm) and connects via the PM 5xx system bus. 7. Configuration & Software Engineering Tool: Configured and parameterized using the ABB Automation Builder suite. Data Exchange: CANopen Process Data Objects (PDOs) and Service Data Objects (SDOs) are mapped directly to the PLC's I/O image and memory areas within the software. 8. Approvals & Certifications (Typical) CE: Compliant with EU directives. cULus: Listed for North America (Industrial Control Equipment). RCM: For the Australian market. Maritime: May hold specific shipboard approvals (e.g., DNV GL) for relevant variants.

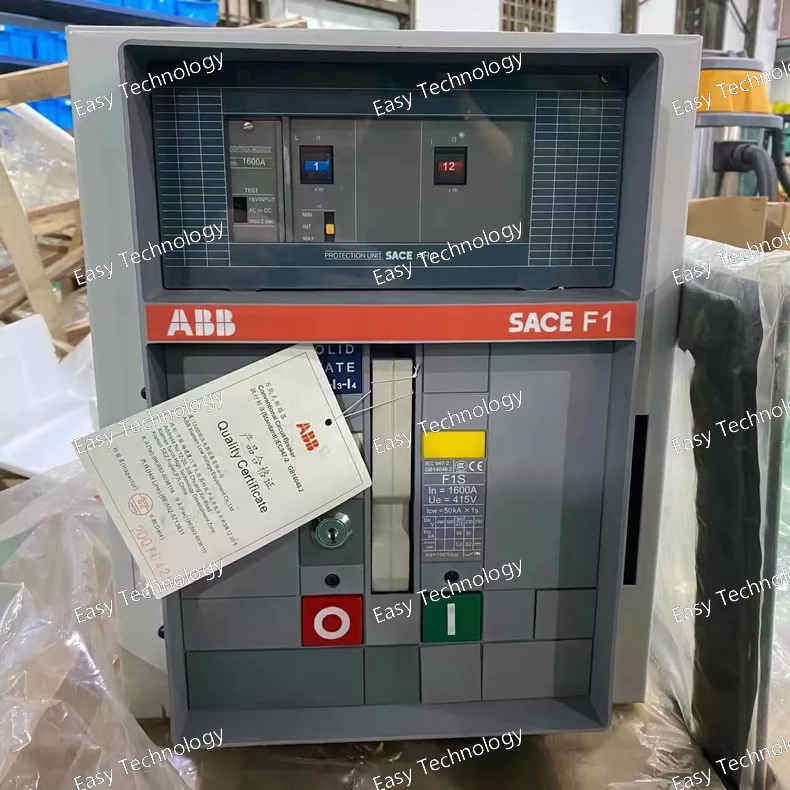

General Data Product Series: Emax 2 Frame Size: E1.2 (designed for currents up to 1600A) Rated Current (Iu): 1600 A Number of Poles: 3-Pole (3P) Mounting Type: Fixed (F1 = Fixed version 1) Type of Release: Electronic Trip Unit (Standard) 2. Electrical Characteristics Rated Operational Voltage (Ue): AC 50/60 Hz: Up to 690 V AC Rated Insulation Voltage (Ui): 1000 V Rated Impulse Withstand Voltage (Uimp): 12 kV Rated Ultimate Short-Circuit Breaking Capacity (Icu): At 415V AC: 50 kA (typical) At 690V AC: 25 kA (typical) （具体值取决于具体型号后缀和配置，请以实际铭牌和目录为准） Rated Service Short-Circuit Breaking Capacity (Ics): Usually a high percentage of Icu (e.g., 100% at certain voltages). Electrical Durability: Up to 10,000 mechanical operations. 3. Trip Unit & Protection Functions Standard Trip Unit: PR122/P or PR123/P Protection Functions (Adjustable via dials or software): L - Long-Time Overload Protection: Adjustable current (Ir) and time delay (tr). S - Short-Time Short-Circuit Protection: Adjustable threshold (Isd) and time delay (tsd) for selectivity. I - Instantaneous Short-Circuit Protection: Fixed or adjustable threshold (Ii). G - Ground Fault Protection: Adjustable threshold (Ig) and time delay (tg) (requires external CT for PR122). Measurement: Continuous monitoring of currents (I), voltages (V), power (kW, kvar, kVA), energy (kWh), frequency (Hz), power factor (cos φ), etc. 4. Communication & Accessories Communication Ready: The trip unit has a built-in communication port. Protocols: Supports major fieldbus systems via plug-in communication modules (e.g., Modbus RTU, Profibus DP, DeviceNet, Ethernet/IP). Standard Accessories: Shutter: For terminal protection. Auxiliary Contacts (OF/SD): Signaling contacts (e.g., 2 NO + 2 NC). Undervoltage Release (UVR): Optional. Shunt Trip (ST): Optional for remote opening. Spring Charging Motor: For remote or automatic spring charging. Mechanical Padlocking: For safety lockout (LOCK-OFF-LOCK). 5. Mechanical & Environmental Mounting: Fixed installation on a panel or enclosure backplate. Terminals: Front or rear horizontal/vertical cable connections, suitable for busbars or large cables. Degree of Protection: IP20 for the breaker itself (requires enclosure for full protection). Ambient Temperature: -25°C to +70°C for operation (derating may apply above 40°C). Standards Compliance: IEC/EN 60947-2, CE Marked.

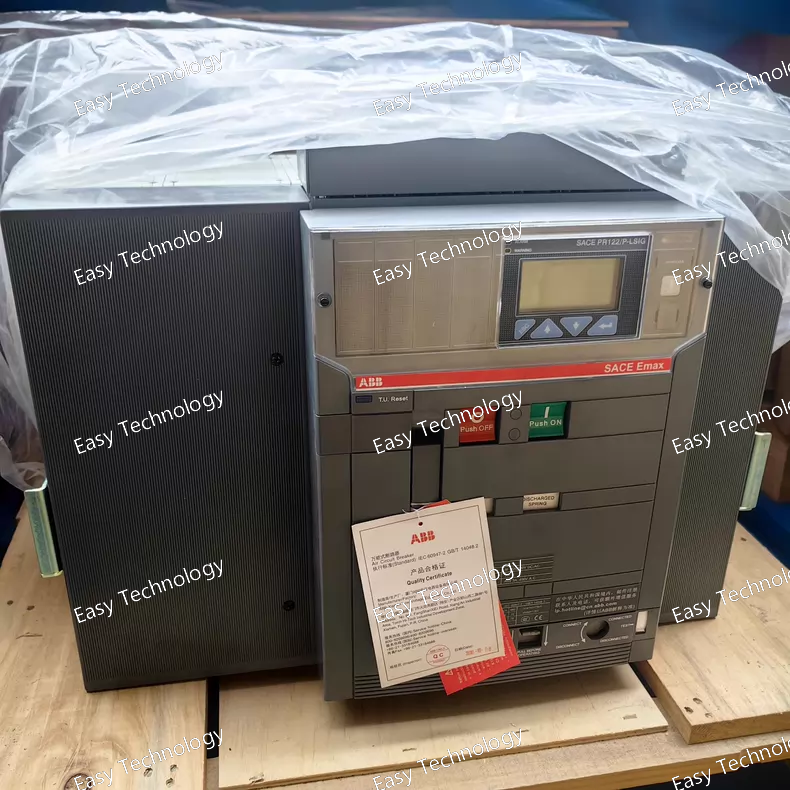

Technical Parameters Parameter Specification Rated Uninterrupted Current (Iu) 3200 A Number of Poles 4 (Three phases + Neutral) Rated Operational Current (Ie) 3200 A Rated Operational Voltage (Ue) Up to 690 V AC (three‑phase) Rated Insulation Voltage (Ui) 1000 V AC (typical for Emax series) Rated Impulse Withstand Voltage (Uimp) 12 kV (typical) Rated Ultimate Short‑Circuit Breaking Capacity (Icu) 75 kA across common voltages up to 690 V AC Rated Service Short‑Circuit Breaking Capacity (Ics) 75 kA (100 % of Icu) Short‑time Withstand Current (Icw) 75 kA for 1 s / ~65 kA for 3 s Trip Unit Type PR122/P‑LSIG (electronic, adjustable) Protection Functions Overload, Short‑circuit, Ground Fault (LSIG) Frame Design Fixed MCCB with rear horizontal terminals Trip Settings Range – Overload (L): 0.4–1×In – Short‑time (S): ~0.6–10×In – Instantaneous (I): ~1.5–15×In – Ground fault (G): ~0.2–1×In Standards Compliance IEC series (e.g., IEC 60947‑2) Typical Duty Power distribution, feeder protection

Technical Parameters Parameter Specification Rated Operational Current (Iu / Ie) 4000 A (continuous) Number of Poles 3‑Pole or 4‑Pole (depending on model) Rated Operational Voltage (Ue) Up to 690 V AC (three‑phase) Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Rated Ultimate Short‑Circuit Breaking Capacity (Icu) 75 kA at 400‑690 V AC Service Short‑Circuit Breaking Capacity (Ics) 75 kA (100 % of Icu) Trip Unit Options Electronic trip units (e.g., PR121/P‑LSIG, PR122/P‑LSIG) or without trip unit Terminal Types Rear horizontal or front terminals (configurable) Standards Compliance IEC 60947‑2 (Low Voltage Circuit Breakers) Typical Frequency 50/60 Hz Weight (approx.) ~85–95 kg (varies by configuration)

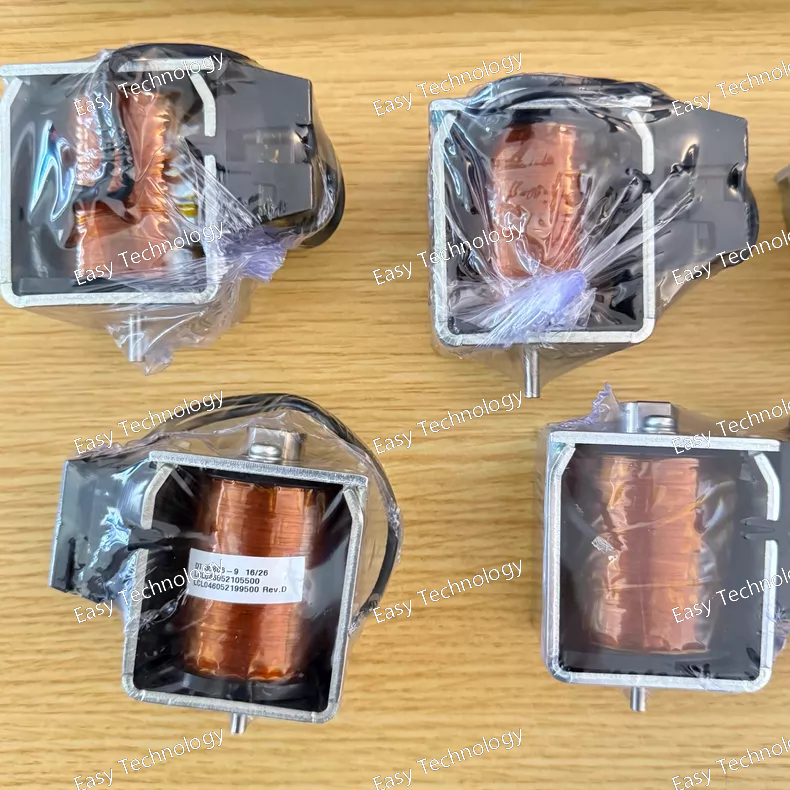

Technical Parameters Parameter Specification Part / Model ABB 1SDA038301R1 Function Shunt Closing Release (YC coil) – electrically closes the circuit breaker Compatible Product Family ABB SACE ACB/MCCB (e.g., Emax / Tmax depending on version) Supply Voltage (Rated) 120/127 V AC/DC (IEC) Supply Voltage (UL) 125/127 V AC/DC Type of Current AC or DC operation possible Mounting / Use Mounted on compatible ABB breakers as remote close actuator Operating Frequency 50/60 Hz Coil Designation “YC” indicates closing coil function for remote closing Standards Compliance IEC / UL compatible ratings for auxiliary devices Weight ~1.66 lb (≈0.75 kg) typical

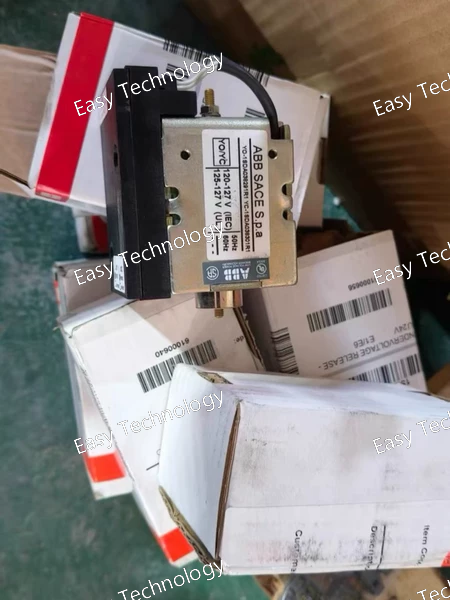

Technical Parameters Product Type: Shunt Opening Release / Shunt Trip Function: Remote electrical opening (tripping) of the circuit breaker Rated Control Voltage: 120–127 V AC/DC Operating Principle: Electromagnetic coil-operated trip mechanism Mounting: Internal accessory for ABB air circuit breakers Compatibility: ABB Emax series circuit breakers (e.g. E1/E6/T8 frames, depending on configuration) Operation Mode: Instantaneous trip when control voltage is applied Application: Emergency stop systems, fire alarm interfaces, automation and control systems Standards Compliance: IEC standards for low-voltage switchgear accessories Order Code: 1SDA038291R1

Technical Parameters Parameter Specification Product Name External Neutral Current Sensor Manufacturer ABB Part Number / Order Code 1SDA058191R1 Accessory Type Neutral Current Sensor (for external neutral conductor) Applicable Series ABB SACE Emax Air Circuit Breaker Accessories Neutral Conductor Range N50–100% (typical percentage range of neutral conductor dimension) Supported Breaker Frames E1, E2, E4 (and similar modular frames) Neutral Current Rating Up to 2000 A Application Neutral current measurement accessory for protection/trip/monitoring Mounting / Usage Installed with Emax breaker and protection unit to sense neutral current Compliance / Standards Meets ABB accessory integration specifications for SACE Emax series Country of Origin Typically manufactured in Italy Weight (approx.) ~5 kg (varies by packaging)
