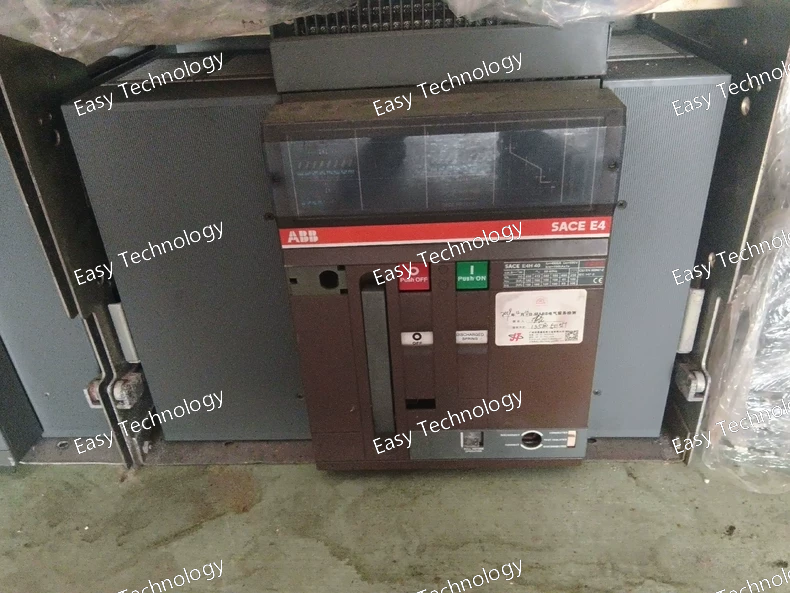

Technical Parameters Parameter Specification Manufacturer ABB Series / Family Emax E4S Product Type Low-voltage Air Circuit Breaker (ACB) Model E4S3200 Number of Poles 3‑pole (three-phase) Rated Continuous Current (In) 3200 A Trip Unit Compatibility PR121/P‑LI, PR121/P‑LSIG, or equivalent electronic overcurrent units Protection Functions (with trip unit) L – Long-time overload S – Short-time delay overcurrent I – Instantaneous short-circuit G – Ground fault (optional, depending on trip unit) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Short-Circuit Breaking Capacity (Icu) High interrupting capacity suitable for industrial low-voltage networks Service Short-Circuit Breaking Capacity (Ics) Rated service capacity matching Icu Short-Time Withstand Current (Icw) High withstand for 1 s / 3 s durations Rated Frequency 50 / 60 Hz Mounting / Connection Fixed Horizontal Rear (FHR), Withdrawable Horizontal Rear (WHR), depending on frame Standards Compliance IEC low-voltage circuit breaker standards Typical Applications Main distribution breaker, feeder protection in industrial or commercial switchgear

Technical Parameters Parameter Specification Manufacturer ABB Series / Family SACE Emax – E4H series Product Type Low‑voltage Air Circuit Breaker (ACB) Model Code E4H 40 (frame size designation) Rated Uninterrupted Current (Iu) 4000 A Number of Poles 3P (three‑phase) and variants with 4P (incl. neutral) Rated Operational Voltage (Ue) Up to ~690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) ~12 kV Short‑Circuit Breaking Capacity (Icu) High interrupting rating (e.g., ~100 kA at 400–415 V typical) Short‑Time Withstand Current (Icw) High withstand rating (e.g., ~100 kA for 1 s) Trip Unit Compatibility Electronic trip units (e.g., LI, LSI, LSIG/PR121/P‑LSIG, PR122 etc.) Mounting Options Fixed (horizontal rear, vertical rear, front) or withdrawable Rated Frequency 50 / 60 Hz Protection Functions Adjustable overcurrent, short‑time, instantaneous and earth‑fault (depending on trip unit installed) Typical Applications Main distribution protection, feeder breaker protection in industrial/commercial power systems

Technical Parameters Parameter Specification Manufacturer ABB Series / Family Emax E4S Product Type Low‑voltage Air Circuit Breaker (ACB) Model E4S4000 PR121/P‑LSIG Number of Poles 3‑pole (three‑phase) Rated Continuous Current (In) 4000 A Trip Unit Type PR121/P‑LSIG electronic overcurrent protection Protection Functions Long‑time (L) – overload protection Short‑time (S) – delayed fault protection Instantaneous (I) – high fault trip Ground fault (G) – earth fault protection Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Short‑Circuit Breaking Capacity (Icu) High interrupting capacity suitable for industrial low‑voltage networks Service Short‑Circuit Breaking Capacity (Ics) Matching the rated breaking capacity in service conditions Short‑Time Withstand Current (Icw) High withstand level for 1 s / 3 s durations Rated Frequency 50 / 60 Hz Mounting / Connection Fixed or withdrawable (depending on frame and switchgear configuration) Standards Compliance IEC low‑voltage circuit breaker standards Typical Applications Main distribution breaker, feeder protection in industrial/commercial switchgear

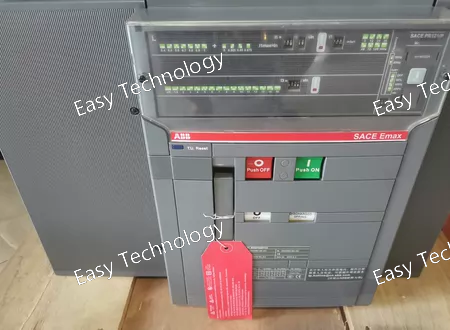

Technical Parameters Parameter Specification Manufacturer ABB Series / Family SACE Emax E1 Product Type Air Circuit Breaker (ACB) Model / Code E1 800 A PR122/P‑LSI Rated Continuous Current (In / Iu) 800 A Trip Unit Type PR122/P‑LSI electronic overcurrent protection Protection Functions • L – Long‑time overload protection • S – Short‑time overcurrent protection • I – Instantaneous short‑circuit protection • G – Ground fault (residual) protection Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Short‑Circuit Breaking Capacity (Icu) High interrupting capability suitable for industrial low‑voltage networks Service Short‑Circuit Breaking Capacity (Ics) Rated service breaking capacity matching Icu Short‑Time Withstand Current (Icw) High withstand level for short‑time fault durations Number of Poles 3‑pole (three‑phase) Rated Frequency 50 / 60 Hz Mounting Options Fixed (e.g., horizontal rear) or withdrawable versions depending on switchgear Standards Compliance Complies with IEC low‑voltage circuit breaker performance and safety standards Typical Applications Main distribution protection, feeder protection in industrial/commercial switchgear

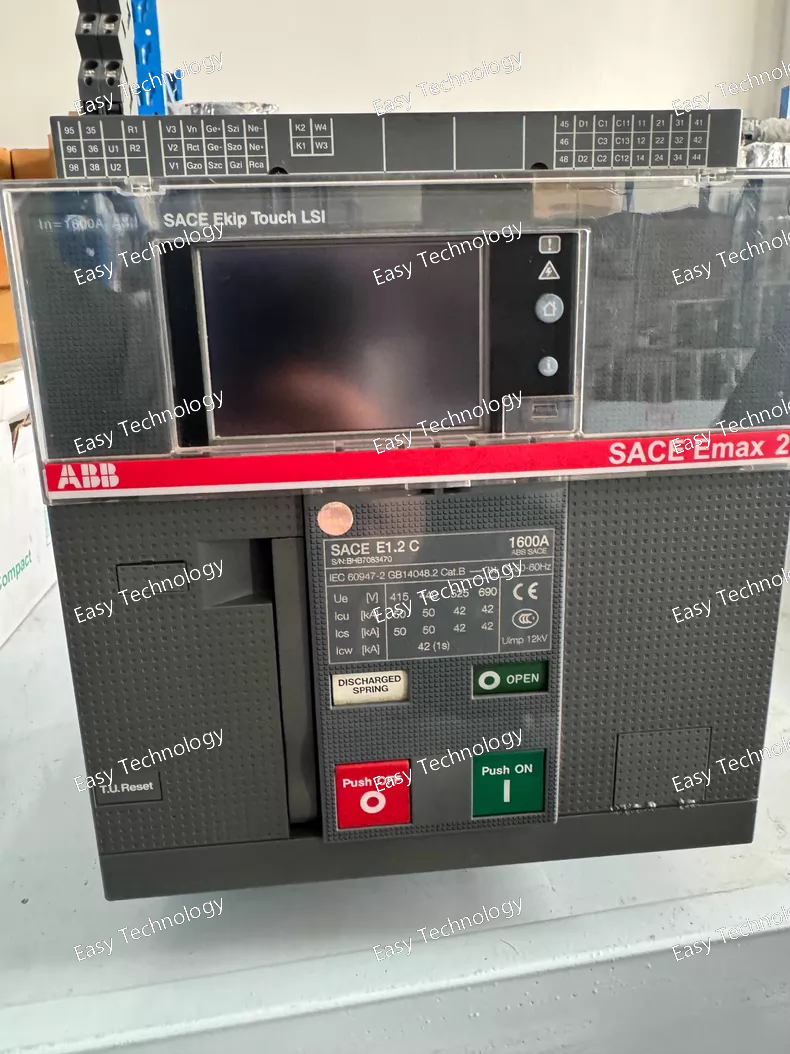

Technical Parameters Parameter Specification Manufacturer ABB Series / Family SACE Emax 2 – E1.2C Product Type Low-voltage Air Circuit Breaker (ACB) Rated Continuous Current (In / Iu) 1600 A Number of Poles 3‑pole (three-phase) Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Trip Unit Compatibility Ekip Touch LI / LSIG, Ekip Dip LI / LSIG Protection Functions (with trip unit) Long-time overload (L), Short-time (S), Instantaneous (I), Ground fault (G) (depending on trip unit) Rated Short-Circuit Breaking Capacity (Icu) ~50 kA at 400 V AC, ~42 kA at 690 V AC Service Short-Circuit Breaking Capacity (Ics) Equal to Icu ratings Short-Time Withstand Current (Icw) ~42 kA (1 s), ~24 kA (3 s) Auxiliary Contacts 4 change-over contacts typical Terminal Connection Front terminals (fixed mounting) Rated Frequency 50 / 60 Hz Mechanical Durability Tens of thousands of operations Standards Compliance IEC 60947-2 low-voltage circuit breaker standards Typical Applications Main power distribution protection, feeder protection in switchgear and panels

Technical Data: Series: CP-S (Comprehensive Power Supply) Input Voltage (AC): Nominal Range: 230 - 480V AC (Wide-range input for global use). Range: 85 - 528V AC (Can handle significant line fluctuations and brownouts). Frequency: 47 - 63 Hz Output: Voltage: 24V DC (regulated, adjustable if needed). Current: 10 A continuous at 45°C. Power: 240 W (24V * 10A). Efficiency: Typically >90%, reducing heat generation and energy costs. Protection Features: Input: Internal fuse, surge protection. Output: Short-circuit protection, overload protection, overvoltage protection. Cooling: Convection cooling (fanless design), ensuring silent operation and high reliability by eliminating moving parts. Operating Temperature: -25°C to +70°C (with derating above 45°C). Excellent for unheated cabinets or hot industrial environments. Mounting: Standard 35mm DIN-rail (EN 60715). Terminals: Removable screw-clamp terminals for secure wiring. Status Indicators: LED indicators for "Power On" (input) and "Output OK". Safety & EMC Standards: Complies with UL 508, IEC/EN/UL 62368-1, CE marked, and meets industrial EMC standards (IEC/EN 61000-6-2, -6-4).

Technical Data: Series: Magnecraft / ABB 10 Series Contact Configuration: The standard MM10UR module itself is a single-pole, double-throw (SPDT) relay, also known as 1 Form C. Contacts: 1 Normally Open (NO) and 1 Normally Closed (NC). Coil Voltage: Universal (AC/DC). Rated Voltage Range: 200 - 250V AC, 50/60 Hz AND 200 - 250V DC. Contact Rating (Switching Capacity): Resistive Loads (AC-1): Typically 10 A @ 250V AC / 10 A @ 30V DC. Inductive Loads (AC-15, DC-13): Lower ratings apply (e.g., ~2-3A for motor starters). Always consult the data sheet for specific load category ratings. Electrical Life: Mechanical Life: Typically 10 million operations minimum. Electrical Life: Depends on load; e.g., 100,000+ operations at rated resistive load. Mounting: Designed for use with a standard 8-pin or 11-pin plug-in socket (e.g., ABB PK10 series sockets), which is then mounted on a 35mm DIN-rail. Terminals: Plug-in design for easy replacement. Status Indicator: Red flag/mechanism provides clear, visual indication of the relay's energized/de-energized state. Transient Protection: Not internally fitted as standard. A built-in metal-oxide varistor (MOV) surge suppressor is available as an option (typically denoted by an additional suffix like /M or /V). Standards Compliance: UL 508, CSA, CE, IEC/EN 61810-1.

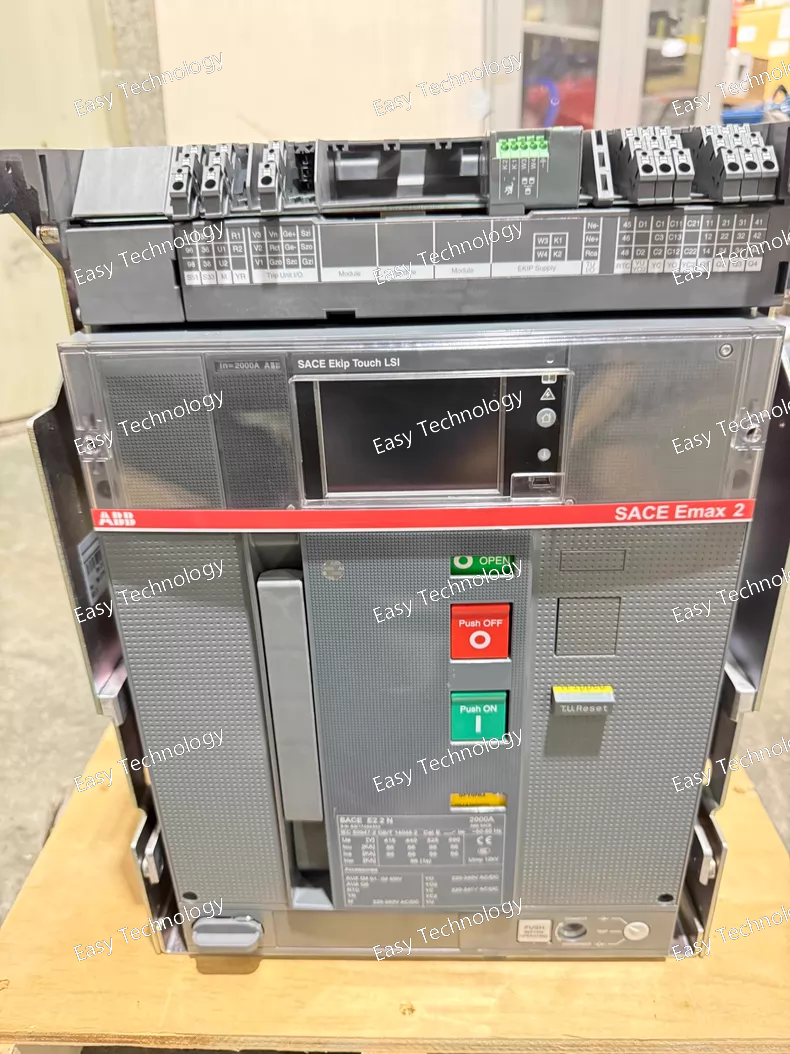

Technical Parameters Parameter Specification Rated Current (In) 2000 A Number of Poles 3P Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Short-Circuit Breaking Capacity (Icu) 66 kA (400–690 V AC) Rated Service Short-Circuit Breaking Capacity (Ics) 66 kA Short-Time Withstand Current (Icw) 66 kA for 1 s / 50 kA for 3 s Rated Uninterrupted Current (Iu) 2000 A Trip Unit Type Electronic trip unit (Ekip Dip) Terminal Connection Rear flat horizontal terminals Mechanical Durability ~25,000 operations Electrical Durability 8,000–10,000 operations Standards Compliance IEC 60947‑2

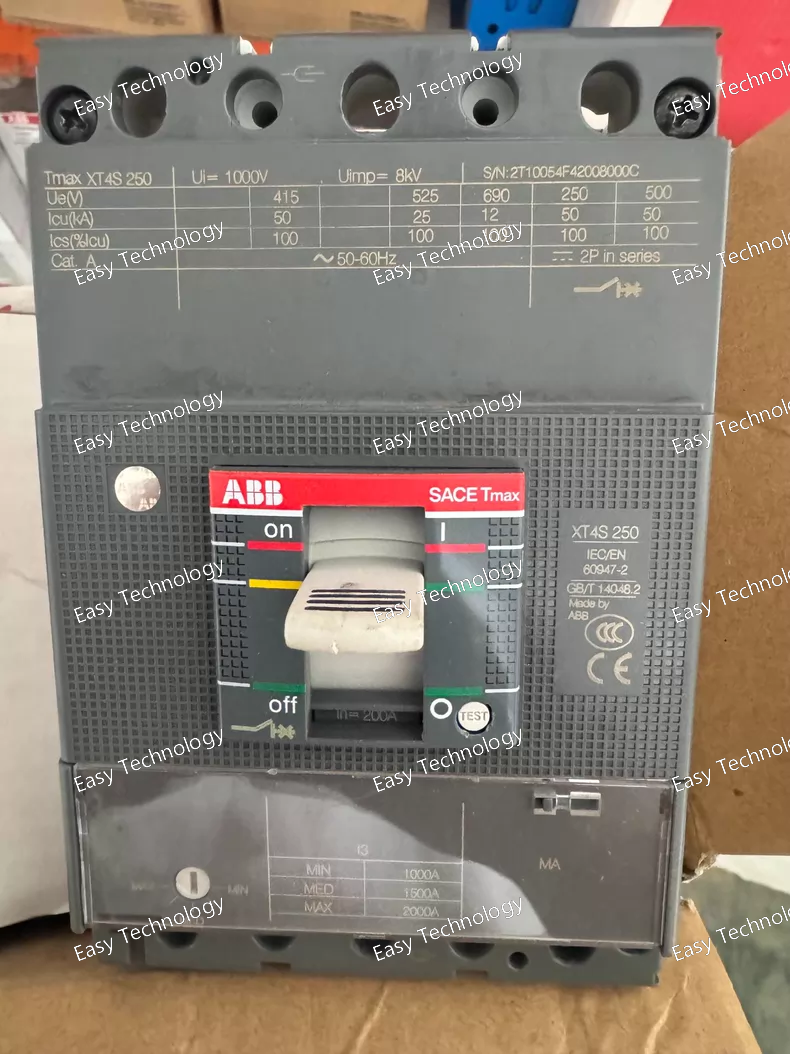

Technical Parameters Parameter Specification Rated Current (In) 200 A (trip unit setting max) Frame Size 250 A Number of Poles 3P Trip Unit Type Thermomagnetic Adjustable (TMA) Current Setting Range ~140 – 200 A (adjustable) Rated Operational Voltage 690 V AC / 500 V DC Rated Insulation Voltage (Ui) 1000 V Rated Impulse Withstand Voltage (Uimp) 8 kV Rated Uninterrupted Current (Iu) 250 A Rated Ultimate Short‑Circuit Breaking Capacity (Icu) ~50 kA at 380–400 V AC Rated Service Short‑Circuit Breaking Capacity (Ics) ~50 kA at 380–400 V AC Electrical Durability ~8,000 operations Mechanical Durability ~25,000 operations Terminal Connection Front terminals (bolted) Standards Compliance IEC 60947‑2

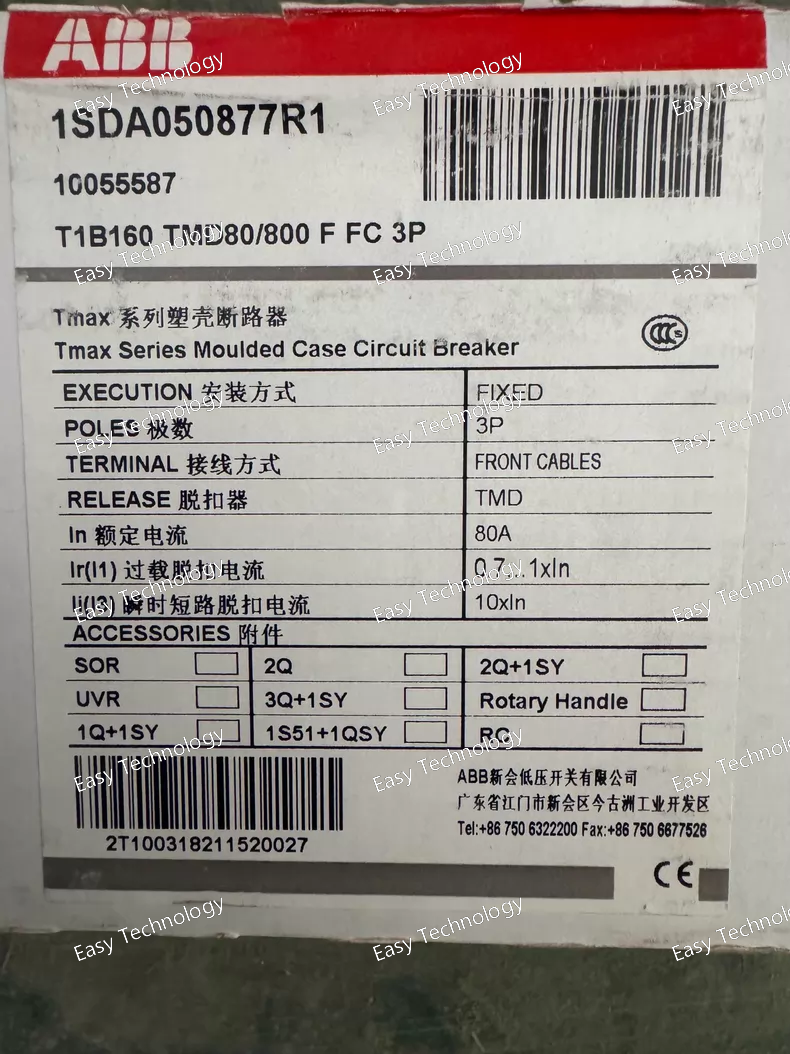

Technical Parameters Parameter Specification Rated Uninterrupted Current (Iu) 80 A Rated Current Setting Range (Thermal) 56 A – 80 A Number of Poles 3 Rated Operational Voltage Up to 690 V AC Rated Insulation Voltage (Ui) 800 V Rated Impulse Withstand Voltage (Uimp) 8 kV Rated Ultimate Short‑Circuit Breaking Capacity (Icu) 16 kA at 380–415 V AC Rated Service Short‑Circuit Breaking Capacity (Ics) 16 kA at 380–415 V AC Connection Type Front terminals (for copper cables up to ~70 mm²) Mechanical Durability ~25,000 operations Electrical Durability ~8,000 operations Trip Unit Type Thermomagnetic (overload + instantaneous magnetic) Terminal Cable Size Up to ~70 mm² Cu Standards Compliance IEC 60947‑2

Technical Parameters Parameter Specification Rated Operational Current (Ie) 40 A in various AC utilization categories (AC‑21A/AC‑22A/AC‑23A) at 380–415 V, 500 V, and 690 V AC Number of Poles 4 (three phases + neutral) Rated Operational Voltage Up to 800 V AC (main circuit) Rated Insulation Voltage (Ui) 800 V Rated Impulse Withstand Voltage (Uimp) 8 kV Rated Short‑time Withstand Current (Icw) 2.5 kA for 1 s Rated Operational Power (AC‑23A) ~18.5 kW at 400–415 V, 22 kW at 500 V, 37 kW at 690 V AC Thermal Current (Ith) 40 A Control Voltage (Motor) 230 V AC (motor drive to operate switch) Manual Operation Direct mounted handle included Cable Cross‑Section Range ~2.5–25 mm² or 2×2.5–16 mm² (typical) Degree of Protection (Front) IP20 Pollution Degree 3 (industrial environment) Mounting Type Base/front mounting Switch Transition Type Open transition Standards Compliance IEC/EN 60947 series typical for switch disconnectors

Technical Parameters Parameter Specification Rated Uninterrupted Current (Iu) 800 A Number of Poles 4 P Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V AC Rated Impulse Withstand Voltage (Uimp) 12 kV Rated Ultimate Short‑Circuit Breaking Capacity (Icu) 66 kA (400–690 V AC) Rated Service Short‑Circuit Breaking Capacity (Ics) 66 kA Short‑time Withstand Current (Icw) 66 kA for 1 s / 50 kA for 3 s Rated Operational Frequency 50 / 60 Hz Trip Unit Type Electronic (Ekip series) Terminal Connection Rear flat horizontal terminals Mechanical Durability ~25,000 operations Electrical Durability ~15,000 operations Standards Compliance IEC 60947‑2
