Technical Parameters Parameter / Feature Specification / Detail Part Number / Series 2TLA010029R0000 — RT9 24 VDC Safety Relay Control Supply Voltage (Us) 24 V DC Accepted Input Types Single‑channel or dual‑channel inputs (supports e.g. OSSD, safety mats, emergency stop, safety switches, interlocks, light curtains, enabling devices, foot controls, contact strips, etc.) Reset Modes Manual supervised reset or automatic reset selectable Supervision / Reset Input Test/reset input to verify external contactor/valve drop before reset Output Contacts (Safety Outputs) 2 × NO (two “safety” outputs) Contact Rating / Switching Capacity 6 A @ 250 V AC (resistive), or 6 A @ 24 V DC (resistive); total switching capacity distributed across contacts; minimum load ~ 10 mA @ 10 V Contact Material Silver + Au‑flash (Ag + Au flash) Information Output One information (auxiliary) output (for system status signalling) Mounting / Connection 35 mm DIN‑rail mounting; screw‑clamp terminals / terminal‑block connection Enclosure / Terminal Protection / IP Rating Enclosure IP40; terminals IP20 Dimensions (W × H × D) 22.5 mm × 84 mm × 120 mm Mechanical / Electrical Life Mechanical life > 10⁷ operations; dielectric / impulse withstand (for safe isolation) Safety Category / Performance Level Up to Category 4 / Performance Level e (per safety standards) — suitable for safety‑relevant applications Typical Applications Emergency‑stop circuits, safety‑interlocks (guards/doors), safety mats/edges, light curtains/beams, enabling devices, safety‑switches, gate/hatch interlocking, safety output expansion, general machine safety circuits

Technical Parameters Parameter / Feature Specification / Detail Supply Voltage (coil / control) 24 V DC Relay Type / Series BT51 24 VDC Safety / Expansion Relay Output Contacts 4 × Normally‑Open (4 NO) safety contacts Contact Rating / Switching Capacity (Resistive Load) 6 A @ 250 V AC (max 1500 VA), or 6 A @ 24 V DC (max 150 W) Inductive Load Capacity 2 A @ 240 V AC (AC‑15), 1 A @ 24 V DC (DC‑13) Maximum Total Switching Capacity (all contacts) 12 A (distributed among contacts) Minimum Load Capacity 10 mA @ 10 V (when contact load ≤ 100 mA) Reset / Supervision Features Internal supervision; test/reset input to ensure contactors/valves have dropped before restart Input‑Output Isolation / Safety Category Safety Category: Cat. 4 / Performance Level (PL): e (per ISO 13849‑1) / SIL 3 (per IEC 61508) Terminals / Connection Screw‑type terminals, DIN‑rail mounting (35 mm rail) Enclosure / Protection Rating IP40 (housing); terminals rated IP20 Operating Temperature –10 °C … +55 °C Dimensions (W × D × H) 22.5 mm × 120 mm × 84 mm Power Consumption Approx. 1.4 … 1.8 W Contact Material Silver with gold flash (Ag + Au flash)

Technical Parameters Parameter / Feature Specification / Detail Part Number 2TLA020051R5100 Series / Type Eden — Adam DYN‑Info M12‑5 Function Non‑contact safety sensor (interlock / position monitoring) Supply Voltage 24 V DC Output Type DYNlink signal + information output (non-failsafe “info” output) Number of Outputs 1 information output (semiconductor) — no safety‑rated contacts in this variant Sensing / Switching Principle Magnetic / reed (non‑contact detection) Maximum Sensing / Operating Distance 15 mm Connection Type M12‑5 male connector (fixed 5‑pole) Enclosure / Protection IP67, IP69K (suitable for dust, water, wash‑down conditions) Material Plastic housing (often PBT) Dimensions Width ~ 30 mm, Depth ~ 12 mm, Height ~ 75.2 mm Weight (net) ~ 0.026 kg Operating Temperature Range –40 °C … +70 °C Certifications / Safety Level Can be used in safety‑relevant applications (Eden safety sensor series) — often used to reach high safety performance levels when combined with appropriate safety controller; UL/CSA/CE compliance typical Mounting / Installation 360° mounting allowed, actuator (Eva) must be ordered separately

Technical Parameters Parameter / Feature Specification / Detail Product Non‑contact safety sensor — Adam OSSD‑Info M12‑8 (Eden series) Part Number 2TLA020051R5700 Interface / Connector M12‑8 male connector Supply Voltage 24 V DC Output Type OSSD output + information output (non‑failsafe semiconductor output) Sensing Principle Magnetic / reed non‑contact detection (requires matching actuator “Eva”) Sensing / Switching Distance Up to 15 mm Supply Current ~ 30 mA Protection / Enclosure Rating IP67 and IP69K (suitable for wet/harsh conditions) Operating Temperature Range –40 °C to +70 °C Housing Material Plastic (polybutylene terephthalate, PBT) Dimensions (approx.) Height 75.2 mm × Width 30 mm × Depth 12 mm Mounting / Mounting Flexibility 360° mounting possibility (versatile installation orientation) Application / Use Case Safety interlocking, guard/door monitoring, safe‑position detection, OSSD‑based safety circuits

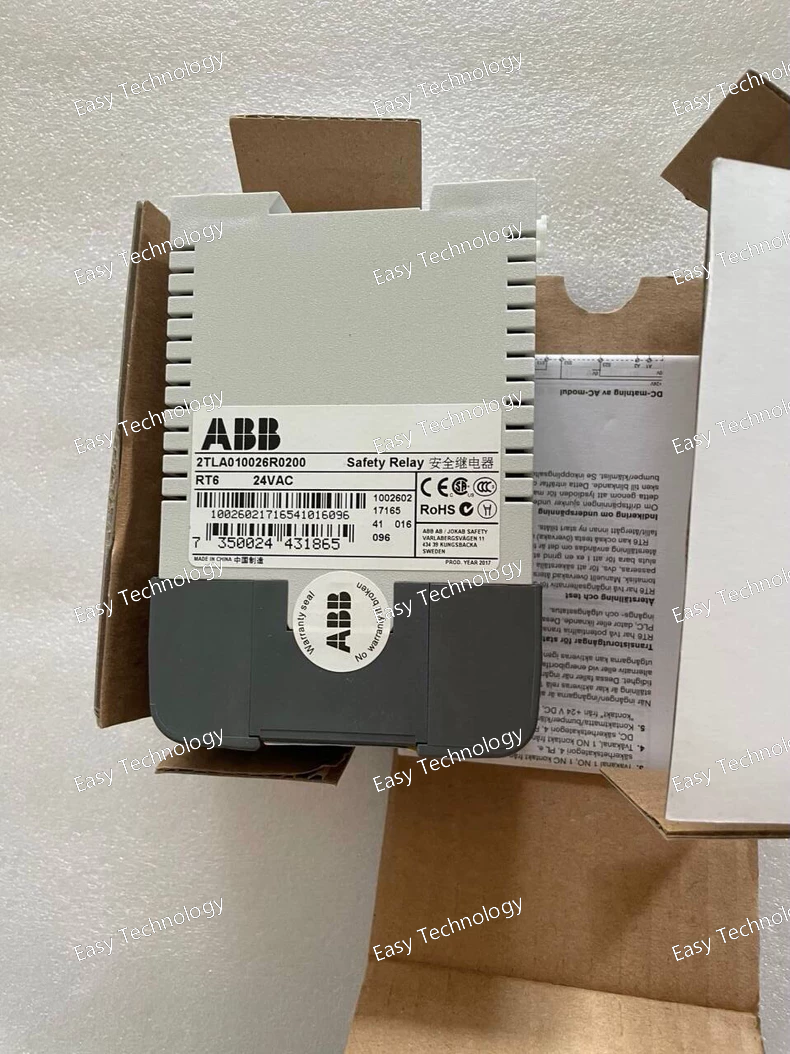

Technical Parameters Parameter / Feature Specification Control (Coil) Supply Voltage (A1–A2) 24 VAC Product Type / Series RT6 safety relay Safety Contact Outputs 3 × NO + 1 × NC safety‑rated contacts (safety outputs) Contact Current Rating 6 A @ 250 VAC (resistive) Max Switching Capacity (Resistive) 1500 VA (AC) Inductive Load Capacity AC‑15: 2 A @ 240 VAC DC Load Capacity 6 A @ 24 VDC (resistive) / 1 A @ 24 VDC (inductive) Minimum Load 10 mA @ 10 V (when load on contact ≤ 100 mA) Total Max Switching Capacity 12 A (distributed across all contacts) Mechanical Lifespan > 10^7 operations (high durability) Mounting 35 mm DIN‑rail Housing / Protection Enclosure: IP40; Connection terminals: IP20 Reset Modes Manual or Automatic reset supported Information / Transistor Outputs Two short‑circuit‑protected auxiliary outputs (for status signals), external supply +5 to +30 VDC — typical load 15 mA / output Indicators LED status indication (supply OK, input and output status) Safety Standards / Category Safety category 4 (according to EN/ISO safety standards) — suitable for safety‑relevant applications (e.g. mats, interlocks, safety light curtains) Application Examples Safety mats/edges, safety light curtains/beams, emergency stop circuits, safety interlocks, access gates/guards/doors monitoring

Technical Parameters Parameter / Feature Specification Supply (Control) Voltage 220–240 V AC Measured Current Ranges (RMS) 3–30 mA, 10–100 mA, 0.1–1 A Functionality Over‑current monitoring and under‑current monitoring (configurable) Output Contacts 2 × changeover contacts (SPDT / 2 c/o) Contact Rating 250 V AC / 4 A (resistive load) Tripping Delay / Time Setting Instantaneous (0 s) or adjustable delay 0.1–30 s (ON) Hysteresis (Threshold Dead‑band) Adjustable: 3%–30% of threshold level Connection / Terminals Screw‑type terminals (double‑chamber/cage connection) Mounting DIN‑rail (TH35 per IEC 60715) Dimensions (W × H × D) 22.5 mm × 85.6 mm × 103.7 mm Operating Ambient Temperature –20 °C … +60 °C Storage Temperature –40 °C … +85 °C Insulation / Overvoltage / Protection Rated insulation voltage between measuring and output circuits; output circuit max 300 V; housing IP50 / terminals IP20; pollution degree 3, overvoltage category III Application Single‑phase current monitoring (AC or DC), over‑/under‑current protection in control panels, machinery or industrial installations

Technical Parameters Parameter Value / Detail Model / Part Number SDCS‑IOB‑23 Function External isolated digital I/O interface board for ABB drives / control units Supply / Signal Voltage 230 VAC I/O Channels Digital inputs and outputs; number of points depends on configuration Isolation / Insulation Galvanically isolated inputs/outputs to improve noise immunity and safety Compatibility Add-on I/O board for ABB drive systems to replace internal I/O and provide isolated external I/O Environmental / Protection Options Coated version available for enhanced robustness against dust, moisture, and electrical noise Typical Applications Industrial automation: connecting sensors and actuators, external I/O expansion for drives, process control, system integration in harsh environments

Technical Parameters Parameter Value / Range Rated Supply Voltage 180–280 V AC (line-to-neutral) Frequency 50 / 60 Hz Monitored Conditions Phase failure, Phase sequence, Over-voltage, Under-voltage, Phase unbalance (optional: neutral interruption) Adjustable Thresholds Over-/under-voltage and asymmetry (unbalance) thresholds adjustable Tripping Delay Start-up delay 200 ms; tripping delay adjustable 0.1–30 s Output Contacts 2 changeover contacts (SPDT) Contact Rating AC‑12 (230 V): 4 A; AC‑15 (230 V): 3 A; DC‑12 (24 V): 4 A; DC‑13 (24 V): 2 A; Minimum 24 V / 10 mA Insulation / Surge Withstand Input → output: 600 V; output circuits: 300 V; Impulse withstand: input 6 kV, output 4 kV Protection Housing: IP50; Terminals: IP20; Pollution degree 3; Overvoltage category III Wiring / Terminals Screw-type, double-chamber cage connection; accepts rigid or flexible wire up to 4 mm² Mounting / Dimensions / Weight DIN-rail (TH35‑7.5 or TH35‑15); 22.5 mm × 85.6 mm × 103.7 mm; ~0.146 kg Operating / Storage Temperature Operating: −25 °C … +60 °C; Storage: −40 °C … +85 °C Indicators 3 LEDs for supply and fault status Standards / Approvals Conforms to IEC/EN/UL/CSA standards for measuring and monitoring relays

Technical Parameters Parameter Value / Range Control Supply Voltage (Us) 24–48 V DC or 24–240 V AC Time Range (adjustable) 0.05 s – 300 h (via 2 × 10 time ranges) Timing Functions Asymmetrical ON-/OFF‑delay, Impulse ON/OFF, Pulse generator (ON or OFF start), Single pulse generator, ON/OFF function Output Contacts 2 c/o (SPDT) contacts Contact Rating 250 V / 4 A (AC), 24 V / 4 A (DC) for resistive loads Minimum Switching Capacity 12 V / 10 mA Insulation / Surge Withstand Rated insulation voltage: input vs output = 500 V; output circuits = 300 V. Rated impulse withstand voltage: input circuit 4 kV; outputs 4 kV Connection Terminals Screw terminals, double-chamber cage type; accepts rigid or flexible wire (0.5–4 mm²) Dimensions (W × H × D) 22.5 mm × 85.6 mm × 103.7 mm Weight ~0.142 kg Mounting DIN‑rail (TH35‑15 or TH35‑7.5 per IEC 60715) Operating Temperature –25 °C … +60 °C Degree of Protection Housing: IP50, Terminals: IP20 Standards / Approvals IEC/EN 61812‑1, UL 508, CAN/CSA C22.2 No.14, CE (RoHS compliant) Other Features Two status-indication LEDs (control supply/timing & output relay), possibility to seal timer settings with a transparent cover

Technical Specifications Parameter Value / Description Product / Model CT‑MVS.23S multifunction electronic time relay Part Number 1SVR730021R2300 Control / Supply Voltage (Us) 380–440 V AC Time Range 0.05 seconds … 300 hours (selectable among 10 ranges) Timing Functions Supported ON‑delay (delay‑on‑make), OFF‑delay (delay‑on‑break), symmetrical ON/OFF delay, Impulse‑ON, Impulse‑OFF, Pulse generator, Star‑Delta change‑over (star‑triangle), Pulse former, Basic ON/OFF (instant) Output Contacts 2 × change‑over contacts (2 C/O, SPDT) Contact Ratings 250 V AC / 4 A (general/AC‑12); 230 V AC / 3 A (inductive / motor‑control AC‑15); 24 V DC / 4 A (DC‑12); 24 V DC / 2 A (DC‑13) Minimum Switching Capacity 12 V, 10 mA (i.e. supports small‑signal loads) Insulation & Withstand Ratings Input/Output rated for 500 V insulation voltage; output circuits rated up to 300 V. Impulse withstand / surge withstand per standard. Wiring / Terminals Screw‑terminal (double‑chamber cage type); wire capacity: flexible up to 2.5 mm² (with ferrule), rigid up to 4.0 mm²; tightening torque 0.6–0.8 N·m. Mounting / Dimensions DIN‑rail (TH35) mountable. Module width: 22.5 mm; Overall dimensions: ~22.5 mm (W) × 85.6 mm (H) × 103.7 mm (D). Operating / Environmental Conditions Ambient temperature: –25 °C … +60 °C; Storage: –40 °C … +85 °C. Pollution degree 3, Overvoltage category III. Housing protection: IP50; Terminals: IP20. Durability Electrical durability (AC‑12): ~100,000 cycles; Mechanical life up to ~30,000,000 operations. Other Features Double change‑over contacts for flexible wiring logic; ten selectable time‑ranges; front‑face selector and fine‑adjust potentiometer for time setting; optional sealable transparent cover to protect settings; control input is voltage‑related (non-floating trigger).

Technical Specifications Parameter / Item Value / Description Product / Model CT‑ERS.22 ON‑delay Timer Relay Part Number 1SVR630100R3300 Supply / Control Voltage (Us) 24–48 V DC or 24–240 V AC (50/60 Hz) Function (Timer Type) Single‑function ON‑delay (delay‑on‑make) Time Range (adjustable) Ten selectable ranges: 0.05 s … 300 h (e.g. 0.05–1 s, 0.15–3 s, 0.5–10 s, 1.5–30 s, 5–100 s, 15–300 s, 1.5–30 min, 15–300 min, 1.5–30 h, 15–300 h) Reset / Recovery Time (after supply removal) < 80 ms Output Contacts 2 × change‑over contacts (SPDT / 2 c/o) Contact Ratings 250 V AC / 4 A (for general AC‑12 loads) 230 V AC / 3 A (inductive / motor‑control AC‑15 loads) 24 V DC / 4 A (DC‑12) 24 V DC / 2 A (DC‑13) Minimum Switching Capacity 12 V / 10 mA (suitable for low‑power / signal loads) Connection / Terminal Type Double‑chamber cage screw‑terminals (wired conductors: flexible 0.5–2.5 mm² or rigid up to 4 mm²) Module / Mounting Dimensions Width: 22.5 mm; nominal module; DIN‑rail mount (standard TH35); easy snap‑on / removal Overall Dimensions (W × H × D) 22.5 mm × 85.6 mm × 103.7 mm Net Weight ~ 0.121 kg Ambient Operating Temperature –25 °C … +60 °C Storage Temperature Range –40 °C … +85 °C Insulation & Withstand Ratings Rated insulation up to 500 V (input‑output); output circuit rating up to 300 V; impulse withstand voltage specified for output circuits; pollution degree 3; overvoltage category III Certifications / Approvals Compliant with IEC/EN 61812‑1; UL 508 / CAN/CSA C22.2 No.14; CE, CB, CCC etc.; housing material UL 94 V‑0 rated Indicators / Controls Front‑face rotary selector for time-range, internal fine‑adjust potentiometer for delay time; 2 LEDs for status indication (power / timing and output relay status) Other Features Wide supply‑voltage flexibility (AC or DC), selectable time-range, compact DIN‑rail mounting, screw‑terminal connections, dual SPDT outputs — suitable for broad range of timing and control applications

Technical Specifications Parameter / Item Value / Description Function / Timer Type ON‑delay (delay‑on‑make) single‑function electronic timer relay Part Number 1SVR730100R3300 Supply / Control Voltage (Us) 24 … 48 V DC or 24 … 240 V AC (50/60 Hz) Time Range (adjustable) 0.05 s … 300 h (ten selectable ranges) Recovery / Reset Time < 80 ms after supply removal Output Contacts 2 × change‑over contacts (SPDT / 2 c/o) Contact Ratings 250 V AC / 4 A (general load, AC‑12) 230 V AC / 3 A (inductive / motor‑control, AC‑15) 24 V DC / 4 A (DC‑12) 24 V DC / 2 A (DC‑13) Minimum Switching Capacity 12 V, 10 mA (i.e. small‑signal loads supported) Connection / Terminals Screw‑terminal type (double‑chamber cage connection); wiring capacity: flexible 0.5–2.5 mm², rigid up to 4 mm²; tightening torque 0.6–0.8 N·m Mounting DIN‑rail (e.g. TH35) snap‑on mounting — tool‑free installation / removal Module Width 22.5 mm Dimensions (W × H × D) 22.5 mm × 85.6 mm × 103.7 mm Net Weight ~ 0.121 kg Ambient Operating Temperature –25 °C … +60 °C Storage Temperature Range –40 °C … +85 °C Insulation / Impulse Withstand / Protection Rated insulation up to 500 V (input‑output); output circuits rated 300 V; impulse withstand on circuits; Housing rating IP50, terminals IP20; Pollution degree 3; Overvoltage category III Approvals / Compliance Meets standards: IEC/EN 61812‑1; UL 508, CAN/CSA C22.2 No.14; CE, CB, CCC, RoHS, etc. Adjustment / User Controls Front‑face time‑range selector + fine‑adjust potentiometer for time; optional sealable transparent cover to prevent unauthorized changes; status indication via LED(s)
