Technical Parameters Parameter Specification Product type Thermal overload relay Product series ABB TA series Compatible contactors ABB A / AF series contactors Current setting range 52–75 A Tripping class Class 10A Number of poles 3 Rated operational voltage (Ue) Up to 690 V AC Rated insulation voltage (Ui) 690 V AC Auxiliary contacts 1 NO + 1 NC (trip indication) Reset type Manual Phase failure sensitivity Yes Ambient temperature compensation Yes Mounting Direct mounting to contactor or panel mounting Protection degree IP20 Ambient operating temperature −25 °C to +55 °C Applicable standards IEC compliant Typical applications Motor starters, MCC panels, industrial motor protection

Technical Parameters Parameter Specification Product type Softstarter Product series ABB DSM series Rated motor power 0.8 kW Rated operational voltage 200–480 V AC Supply frequency 50 / 60 Hz Rated operational current Approx. 2.5 A Motor type Three-phase asynchronous motor Starting method Voltage ramp Starting current limitation Yes Built-in bypass Yes Control voltage Control via supply voltage Control method Internal potentiometer / fixed setting Start/stop function Soft start / soft stop Ambient operating temperature −25 °C to +60 °C Mounting DIN rail or panel mounting Protection degree IP20 Typical applications Pumps, fans, conveyors, compressors

Technical Parameters Parameter Specification Product type Softstarter Product series ABB DSM series Rated motor power 0.8 kW Rated operational voltage 200–480 V AC Supply frequency 50 / 60 Hz Rated operational current Approx. 2.5 A Motor type Three-phase asynchronous motor Starting method Voltage ramp Starting current limitation Yes Built-in bypass Yes Control voltage Control via supply voltage Control method Internal potentiometer / fixed setting Start/stop function Soft start / soft stop Ambient operating temperature −25 °C to +60 °C Mounting DIN rail or panel mounting Protection degree IP20 Typical applications Pumps, fans, conveyors, compressors

Technical Parameters Parameter Specification Product series ABB A series contactor Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) Approx. 100–125 A Rated motor power (AC-3) Up to 55 kW at 400 V Utilization category AC-1, AC-3 Control circuit voltage (coil) 110 V AC (50 Hz) / 120 V AC (60 Hz) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting Panel mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC compliant Typical applications Motor starters, industrial control panels, power switching

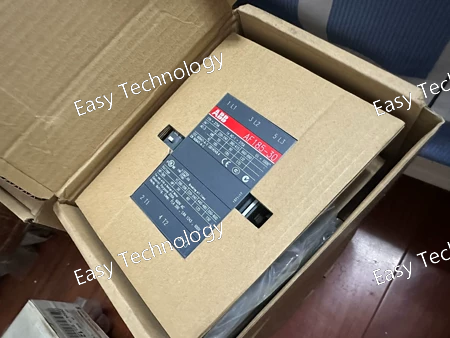

Technical Parameters Parameter Specification Product series ABB AF series contactor Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) Approx. 125 A Rated motor power (AC-3) Up to 37 kW at 400 V Rated motor power (UL) Approx. 60 hp at 480 V Utilization category AC-1, AC-3 Control circuit voltage (coil) 100–250 V AC / DC Control voltage frequency 50 / 60 Hz (AC) Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −40 °C to +70 °C Mounting Panel mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC, UL, CSA Typical applications Motor starters, MCC panels, industrial power switching

Technical Parameters Parameter Specification Product series ABB AF series contactor Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) Approx. 250 A Rated motor power (AC-3) Up to 110 kW at 400 V Rated motor power (UL) Approx. 150 hp at 480 V Utilization category AC-1, AC-3 Control circuit voltage (coil) 100–250 V AC / DC Control voltage frequency 50 / 60 Hz (AC) Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −40 °C to +70 °C Mounting Panel mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC, UL, CSA Typical applications Motor starters, MCC panels, industrial power switching

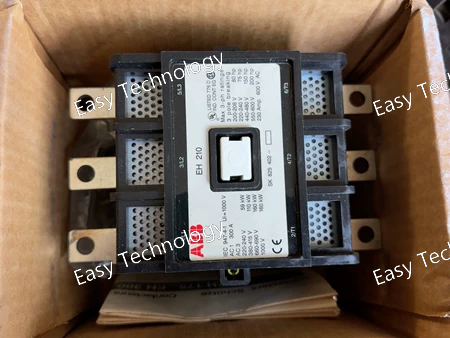

Technical Parameters Parameter Specification Product series ABB EH series contactor Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) Approx. 275 A Rated motor power (AC-3) Up to 75 kW at 400 V Utilization category AC-1, AC-3 Control circuit voltage (coil) Typically 110–120 V AC (check coil code for exact voltage) Control voltage frequency 50 / 60 Hz Mechanical durability Up to 10 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −25 °C to +55 °C Mounting Panel mounting Protection degree IP00 (IP20 with accessories) Applicable standards IEC compliant Typical applications Motor starters, MCC panels, industrial power switching

Technical Parameters Parameter Specification Product series ABB AF series contactor Poles 3 poles Main contact configuration 3 NO (Normally Open) Built-in auxiliary contacts 1 NO + 1 NC Rated operational voltage (Ue) Up to 690 V AC Rated operational current (Ie, AC-1) Approx. 250 A Rated motor power (AC-3) Up to 90 kW at 400 V Rated motor power (UL) Approx. 125 hp at 480 V Utilization category AC-1, AC-3 Control circuit voltage (coil) 100–250 V AC / DC Control voltage frequency 50 / 60 Hz (AC) Mechanical durability Up to 5 million operations Electrical durability Depends on load and utilization category Ambient operating temperature −40 °C to +70 °C Mounting Panel mounting Protection degree IP00 (IP20 with accessories) Standards IEC, UL, CSA compliant Typical applications Motor control, power switching, industrial automation

Technical Data Based on ABB's terminal block catalog, the standardized parameters for this model are as follows: Parameter Value / Description Manufacturer Part Number EK175-40-11 Series / Type EK 175 Main Earthing Terminal Block Connection Technology Spring-clamp (CAGE CLAMP® S) Rated Voltage (Ui) 1000 V AC/DC Rated Current (Ith) 175 A (This is the thermal current rating for the entire terminal block with connected conductors.) Number of Connection Points 40 (20 connection positions on each side, internally bridged to form a common busbar). Conductor Cross-Section (Solid/Flexible) 16 mm² - 50 mm² (For flexible wires, always use ferrules). Conductor Cross-Section (Fine-stranded with Ferrule) 16 mm² - 35 mm² Connection Capacity (per side) Accepts up to 2 x 35 mm² or 1 x 50 mm² conductors per connection point. Test Point Yes, integrated. Material (Housing) Transparent Polyamide (PA), Halogen-free, Flame-retardant (UL 94 V0). Material (Current Bar) Copper, Tin-plated. Clamp Material Stainless Steel. Mounting DIN-rail mounted (NS 35/7.5, NS 35/15, or G32 according to EN 60715). Width Approximately 264 mm (covers 15 modules on a DIN rail). Protection Rating (Housing) IP20 Operating Temperature Range -60 °C to +100 °C Approvals / Standards UL 1059, CSA C22.2, EN/IEC 60947-7-1, GL, CCC, etc. Recommended Torque (if applicable) Not required for spring clamps. The opening lever/actuator is designed for a standard screwdriver.

Technical Data Parameter Value / Description Manufacturer Part Number SK827040 Product Type Keypad / Operator Interface Panel for OmniCore Controller Compatible Controller Series ABB OmniCore (e.g., C30, C50, C90 models) Primary Interface Robot programming, jogging, monitoring, and system configuration. Display High-brightness color TFT touchscreen (Size typically 7" to 10" diagonal, exact size to be verified). Input Devices • Physical Joystick: For multi-axis manual robot guidance. • Dedicated Keys: For common functions like start, stop, speed override, coordinate system selection. • Alphanumeric Keypad: For data entry. • Function Softkeys: Associated with on-screen prompts. Safety Devices • Large Emergency Stop button (Dual-channel, meets safety standards). • 3-Position Enabling Device (Deadman switch) integrated into the side grip. • Mode Selector Switch (Typically for Auto, Manual, and Manual Reduced Speed modes). Connection High-speed, shielded cable with a ruggedized connector that plugs directly into the OmniCore controller's CPU unit. The cable is often several meters long and may be permanently attached or detachable. Protection Rating Typically IP54 or similar, providing protection against dust and water splashes for use in industrial environments. Mounting Mounts on a flexible, counter-balanced arm (usually ordered separately, e.g., SK830099) attached to the controller cabinet or robot cell frame. Software Runs the ABB RobotWare operating system and user interface. Weight Approximately 2-4 kg (depending on the specific model and cable).

Technical Data Parameter Value / Description Manufacturer Part Number 1SFL637025R7011 Product Line ABB OVR Quick Safe Type / Class Type 2 + 3 Combined Surge Arrester (Tested according to IEC/EN 61643-11) Application Plug-in SPD for point-of-use equipment protection. Rated Voltage (Un) 230V AC (Single-phase) Maximum Continuous Operating Voltage (Uc) 250 V AC Protection Level (Up) < 900 V (Very low clamping voltage for sensitive electronics). Nominal Discharge Current (In) 8/20 µs 5 kA (Type 2 component characteristic). Combination Wave (Uoc) 1.2/50 µs & 8/20 µs 2 kV (Open circuit voltage) / 1 kA (Short circuit current) – representing Type 3 test parameters. Maximum Discharge Current (Imax) 8/20 µs 10 kA Status Indicator LED (Green = Functional, Red = End-of-Life/Fault). Socket Outlet Standard Schuko socket (CEE 7/4), 2P+E, with child safety shutters. Plug Standard Schuko plug (CEE 7/4), 2P+E. Cable Length Integrated power cord, typically 1.5 meters (confirm with specific datasheet). Maximum Load Current 16 A (The maximum continuous current for the connected equipment). Standards & Certifications IEC/EN 61643-11, CE marked. Complies with socket safety standards.

Technical Data Parameter Value / Description Manufacturer Part Number 1SFL647001R7011 Product Line ABB OVR Surge Protective Device Type / Class Type 2 Surge Arrester (Tested according to IEC/EN 61643-11) Rated Voltage (Un) 230/400V (for 50/60Hz AC systems) Maximum Continuous Operating Voltage (Uc) 320 V AC (between Line and Neutral). This is the voltage it can withstand continuously. Protection Level (Up) @ In ≤ 1.5 kV (measured at the rated discharge current In). This is the key parameter defining its clamping performance. Nominal Discharge Current (In) 8/20 µs 20 kA (per pole). Standard test current representing its duty cycle. Maximum Discharge Current (Imax) 8/20 µs 40 kA (per pole). The maximum single surge current it can handle once. Response Time < 25 ns Backup Fuse Recommendation Typically 63A gL/gG or as per local regulations. Must be verified in the installation manual. Number of Poles / Connection 1P (Single Pole, for protection of one phase line to neutral/earth). Multiple units are used for multi-phase systems. Technology Varistor-based (Metal Oxide Varistor - MOV). Status Indicator Visual window (Green = OK, Red = Fault/End-of-Life). Thermal Protection Integrated thermal disconnector. Mounting DIN-rail mounted (35 mm standard rail). Width 1 module (18 mm on a standard DIN rail). Standards & Certifications IEC/EN 61643-11, CE marked.
