The GE 531X305NTBANG1 Terminal Board is a critical component in advanced drive and exciter systems. Designed for high performance, it offers versatile interfaces including digital control, relay outputs, low-level analog signals, and serial communication.

400-887-3214

DESCRIBE

Model Number:531X305NTBANG1

OEM:GE Motors and Industrial Systems

Product Type:Terminal Board

Series:531X

Weight:0.44 kg

Power Consumption:100mA @ 5VDC / 120mA @ 24VDC

No. of Channels:4

Regulated Supplies:5 VDC and 15 VDC

Unregulated Supplies:24 VDC or 125 VAC

Encoder Ratings:5 V and 15 V

Relay Outputs:7, Form A or C

Contact Rating:120 VAC

Low Level Analog I/O:Scaled using 4 potentiometers

The GE 531X305NTBANG1 Terminal Board is engineered for seamless integration into complex drive and exciter systems, enhancing operational efficiency and reliability.

It supports both regulated and unregulated power supplies, ensuring compatibility with a wide range of applications.

With seven relay outputs, this board offers flexible control options, supporting various operational requirements.

Equipped with digital control inputs and serial interfaces, it facilitates seamless communication with other system components, streamlining data exchange and control.

The modular design allows for easy customization and upgrade, ensuring the board remains a valuable asset throughout the system’s lifecycle.

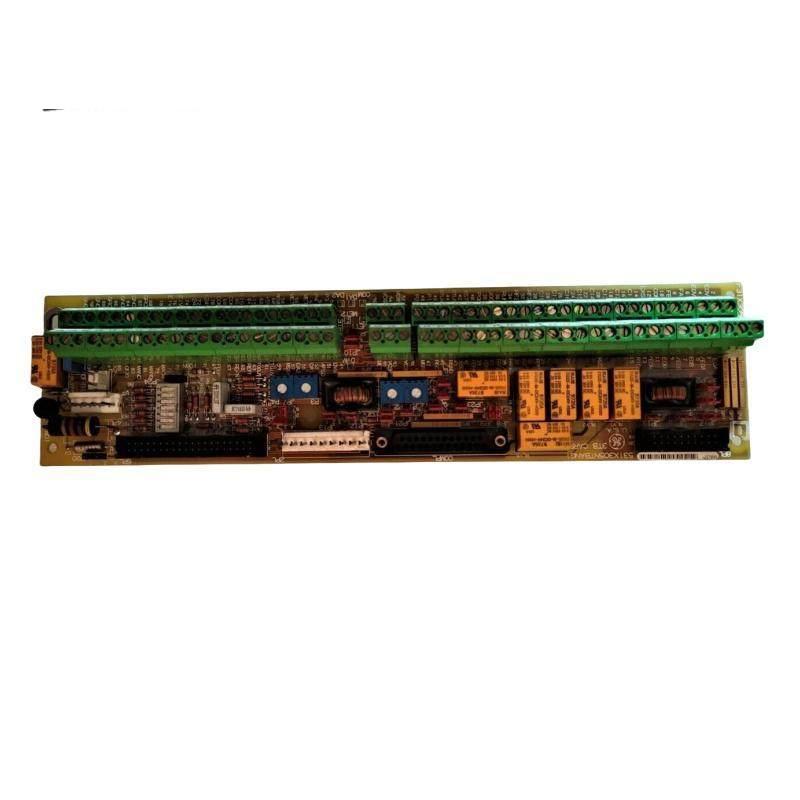

GE 531X305NTBANG1 NTB/3TB Terminal Board
