Operating Voltage:DC 24 V

Input Range:-40°C to +85°C

Accuracy:±0.25% of full scale

Response Time:≤2 seconds

Operating Temperature:-20°C to +70°C

Operating Humidity:0% to 95% non-condensing

Dimensions:170mm x 130mm x 30mm

Weight:0.5 kg

Connector Type:2x 4-pin terminals

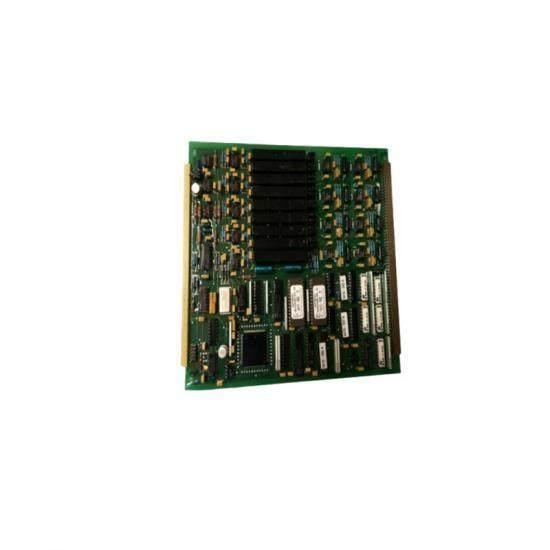

    The Woodward 5461-650 Input Board is engineered to provide accurate and reliable temperature and current measurements, making it a critical component in various industrial applications. Its wide operating range (-40°C to +85°C) ensures robust performance under diverse environmental conditions.

    Featuring a high-resolution input capability of 0.01°C or 0.1mA, this board offers precise readings that are essential for critical control systems. The ability to handle up to 20 mA current input makes it suitable for a broad spectrum of industrial instruments.

    With a stable power supply of 12 VDC, the 5461-650 ensures consistent operation without the need for frequent maintenance. The RS-485 communication interface facilitates seamless data transfer, enhancing integration with other system components.

    Compact and lightweight, this input board is designed for easy installation and minimal space requirements, making it ideal for retrofitting in existing systems. Its compact size (105mm x 45mm x 17mm) and low weight (0.2 kg) contribute to efficient use of space and reduced handling efforts.

    Engineered with quality materials, the Woodward 5461-650 is built to withstand harsh industrial environments, ensuring long-lasting performance and reliability. It’s a testament to Woodward’s commitment to providing high-quality, durable solutions for industrial automation.
