Operating Voltage:24VDC

Input Current:1mA

Isolation Rating:1500VAC

Operating Temperature Range:-20°C to +70°C

Board Size:3U (7.5 x 12.5 inches)

Number of Inputs:8

Mounting Style:Panel Mount

Communication Interface:RS-485

Certifications:CE, UL, FCC

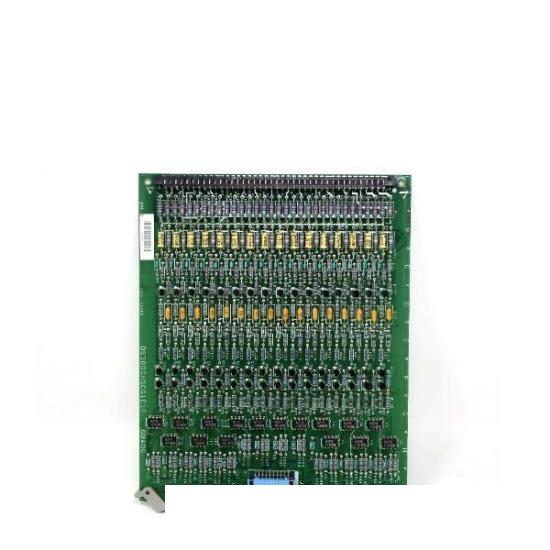

    Introducing the GE DS3800HSCG Circuit Board, designed for critical industrial control applications where precision and reliability are paramount. This non-isolated input board is meticulously engineered to withstand extreme environmental conditions, ensuring continuous operation in even the harshest industrial settings.

    Featuring a compact and robust design, the DS3800HSCG integrates seamlessly with existing control systems, enhancing efficiency and performance. Its compatibility with DC 12V power supply ensures flexibility across a wide range of industrial environments.

    With an input voltage range from 0V to 10V, this board offers precise control over system inputs, enabling accurate data acquisition and processing. The maximum current draw of 20mA ensures efficient power usage without compromising on functionality.

    Equipped with both RS-232 and RS-485 connectors, the DS3800HSCG supports versatile communication protocols, facilitating easy integration with diverse control systems and devices. This feature-rich board is a testament to GE‘s commitment to innovation and customer satisfaction in the industrial sector.

    Manufactured by General Electric, known for its excellence in industrial automation, the DS3800HSCG is backed by industry-leading technical support. GE‘s end-user publications, including detailed data sheets and manuals, provide comprehensive guidance for installation, maintenance, and troubleshooting.
