Temperature Input Range:-20 to +120 °C

Input Voltage:+5VDC

Digital Resolution:16-bit

Max. Input Current:20mA

Output Status:ON/OFF

Operating Temperature:-20 to +85 °C

Humidity Range:0% to 95% non-condensing

Connection Type:Standard terminal block

Power Consumption:Typically < 1W

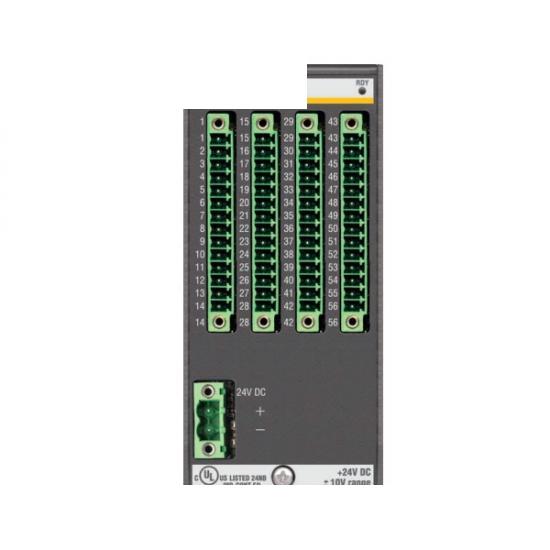

    Bachmann’s PTA1216 is a state-of-the-art temperature input module, specifically engineered for the most demanding industrial environments. Its robust design ensures accurate temperature readings under extreme conditions, making it ideal for a wide range of applications from manufacturing floors to research facilities.

    With a maximum capacity of 4 inputs, the PTA1216 supports both ±1 V and ±10 V input voltages, providing flexibility and compatibility with various measurement requirements. Its ability to handle currents up to 20 mA ensures precise data acquisition without signal distortion.

    Featuring a 14-bit digital resolution, the module offers unparalleled accuracy and reliability, essential for critical control systems where even minute temperature variations can impact operational efficiency. The high input current limit prevents overloading and ensures continuous, stable operation.

    Designed for versatility, the PTA1216 operates within a temperature range of -30 to +60 °C, making it suitable for a broad spectrum of environmental conditions. Its internal current consumption at 24 VDC is typically around 70 mA, ensuring efficient power usage without compromising performance.

    Manufactured using high-quality materials, the PTA1216 is built to withstand harsh conditions and maintain its performance over time. It is an excellent choice for integrating into existing industrial automation systems, enhancing monitoring capabilities and contributing to improved process control.
