Operating Temperature:-40°C to +70°C

Power Supply Voltage:DC 24V

Signal Handling Capacity:Up to 16 channels

Connection Type:RS-485, RS-232

Material:Ruggedized metal enclosure with ESD protection

Dimensions:1U Rack Mountable

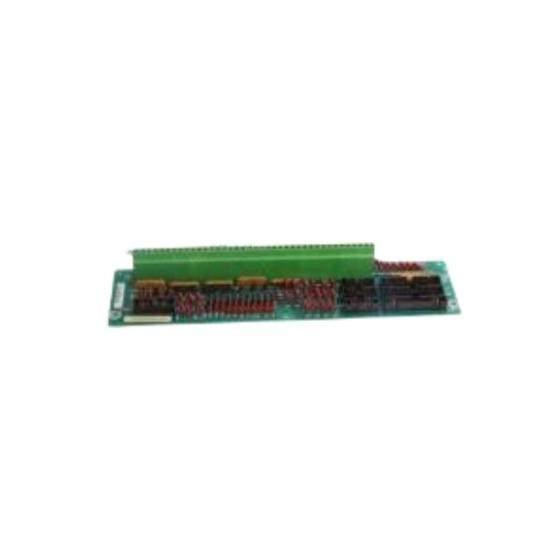

    The GE Fanuc DS200PTBAG1BBA Termination Board is a cornerstone component in modern industrial control systems, designed with a focus on robustness and compatibility. This board seamlessly integrates into existing systems to optimize signal transmission and processing capabilities.

    Featuring two terminal blocks equipped to handle up to 72 signal wires each, the DS200PTBAG1BBA ensures efficient signal distribution, critical for maintaining system stability and responsiveness.

    The inclusion of three 10-pin connectors, identified by JJR, JJT, and JJS, allows for versatile connection options, facilitating seamless integration with a wide array of peripherals and devices commonly found in industrial automation setups.

    This termination board is meticulously crafted with high-quality materials to withstand harsh industrial environments, ensuring longevity and reliability under continuous operation.

    For detailed instructions on installation and maintenance, please refer to the comprehensive user manual available on our website. Our dedicated support team is also at your service for any technical inquiries or assistance needed.
