Model Type:3500/25

Product Code:149369-01

Manufacturer:Bently Nevada

Input Signal Range:Proximity probes or magnetic pickups

Conversion Output:Digital Keyphasor signals

Detection Accuracy:Indicates when Keyphasor mark on the shaft coincides with the transducer

Dimensions (WxHxD):2.5 x 25.7 x 12 cm

Weight:0.34 kg

Operating Temperature:-40°C to +85°C

Voltage Input:12 to 24 VDC

Output Frequency:Up to 30 kHz

Connection:Terminal block connector

Certification:ISO 9001:2015

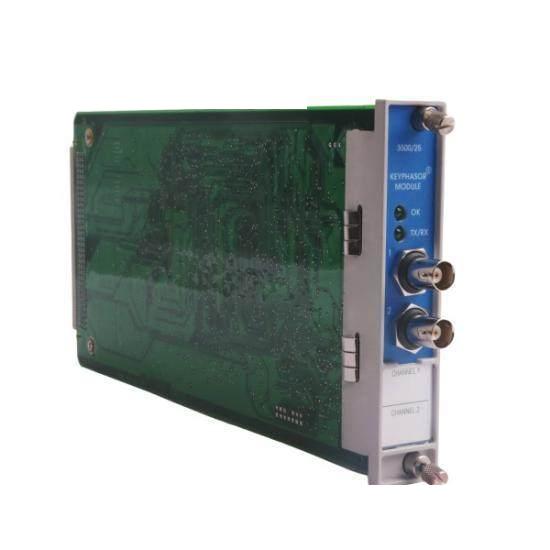

    The Bently Nevada 3500/25 Keyphasor Module 149369-01 is a sophisticated solution designed for critical machinery monitoring, ensuring continuous operation and minimal downtime. Its robust design allows for seamless integration into complex industrial environments, enhancing safety and efficiency.

    With its advanced signal conversion capabilities, this module accurately identifies the precise moments when the shaft keyphasor mark aligns with the transducer, providing real-time feedback essential for predictive maintenance and operational optimization.

    Featuring compact dimensions and lightweight construction, the module is easy to install and maintain, minimizing disruption to ongoing operations. The high-quality materials used in its construction guarantee durability and longevity, even under harsh industrial conditions.

    The module supports a wide range of input signals from proximity probes and magnetic pickups, ensuring compatibility with various equipment setups. This flexibility enables a broad spectrum of applications across multiple industries, from power generation to manufacturing.

    Engineered with precision, this keyphasor module is backed by industry-standard certification, assuring users of its reliability and performance. It’s an indispensable tool for engineers and maintenance teams looking to maximize the uptime and productivity of their critical assets.
