Manufacturer:General Electric (GE)

Model Number:IS200EGPAG1BCA

Series:EX2100

Product Type:Gate Pulse Amplifier Module

Function:Controls the power bridge and manages the SCR conduction feedback

On-board Components:On-board green and red LED indicators

Weight:1lbs 9oz

Dimensions:Not specified in the document, please refer to the original manual for detailed dimensions

Functionality:Interface for conduction feedback along with airflow and temperature monitoring

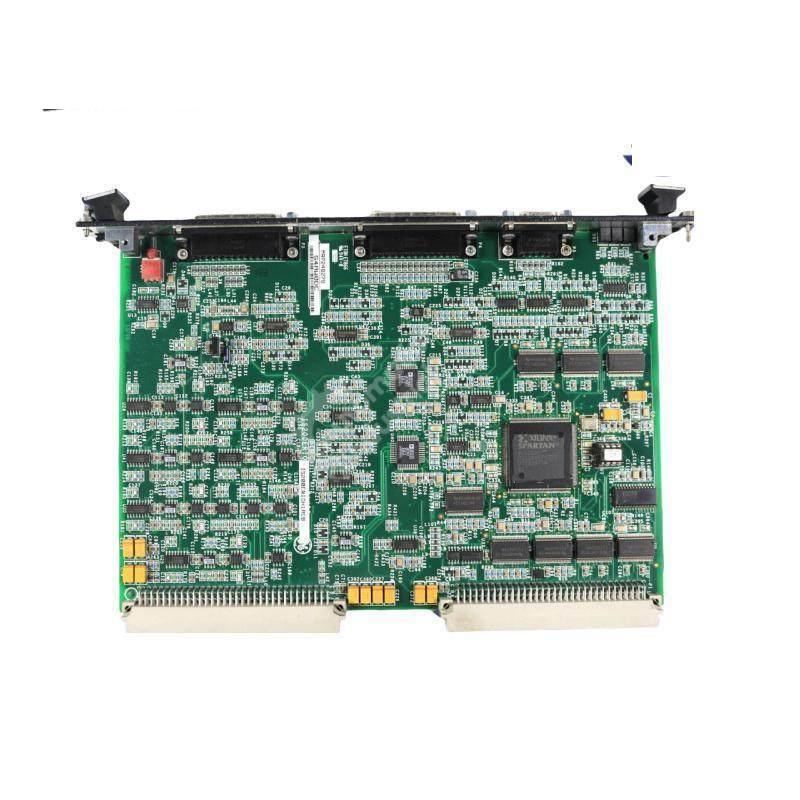

    The GE IS200EGPAG1BCA is a high-performance gate pulse amplifier board designed by General Electric specifically for excitation control systems.

     This board plays a crucial role in controlling the power bridge within these systems, amplifying gate pulse signals to drive SCRs (Silicon Controlled Rectifiers).

     Its design incorporates five on-board jumpers for configurable hardware settings, enhancing its adaptability to various applications.

     The board also features on-board green and red LED indicators, providing clear visual feedback on system status.

     With precise control over SCRs and the ability to monitor conduction feedback, airflow, and temperature, this amplifier ensures reliable and efficient operation in demanding industrial environments.

     Whether used in power generation or other high-stakes industries, the GE IS200EGPAG1BCA is a robust and dependable solution for excitation control systems.
