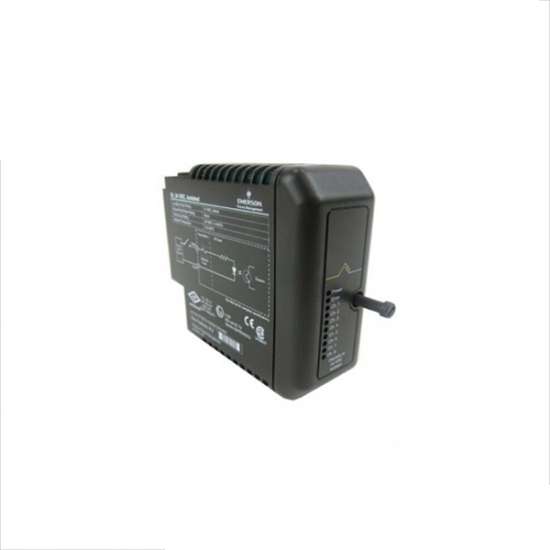

Model Number:KJ3224X1-BA1

Series:Thermocouple mV Series 2

Thermocouple Type:Type K

Measuring Range:-50°C to 600°C

Accuracy:+/- 0.2% + 2°C

Power Consumption:Max 10mA at 10VDC

Operating Voltage:10VDC

Current Consumption:Max 10mA

Input Impedance:100 Ohms

Output Signal:mV

Response Time:≤ 1 second

Operating Temperature:-20°C to 85°C

Storage Temperature:-40°C to 85°C

Humidity Range:5% to 95% non-condensing

    This module is meticulously engineered for seamless integration into Emerson’s DeltaV system, ensuring reliability and efficiency in real-time data acquisition and process control.

    Crafted with precision, it supports a wide range of thermocouples, providing accurate temperature readings across various industrial environments.

    With its compact yet robust design, the KJ3224X1-BA1 is built to withstand harsh conditions, making it suitable for applications in chemical plants, oil refineries, and manufacturing facilities.

    Equipped with advanced signal processing algorithms, it minimizes noise and interference, delivering unparalleled measurement accuracy.

    Designed with ease-of-use in mind, this module comes with intuitive configuration options and diagnostics, facilitating quick installation and maintenance without compromising on performance.
