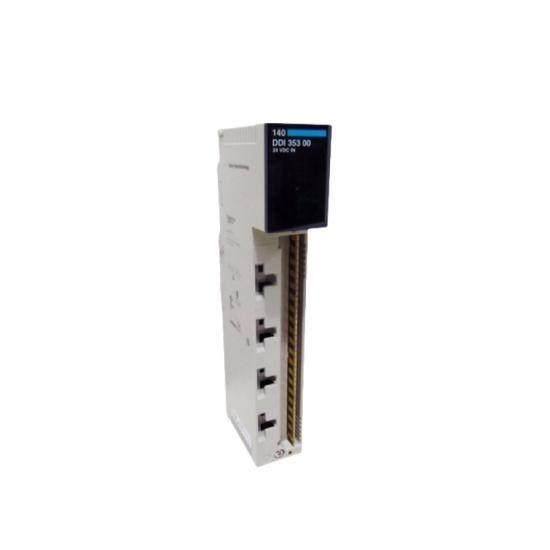

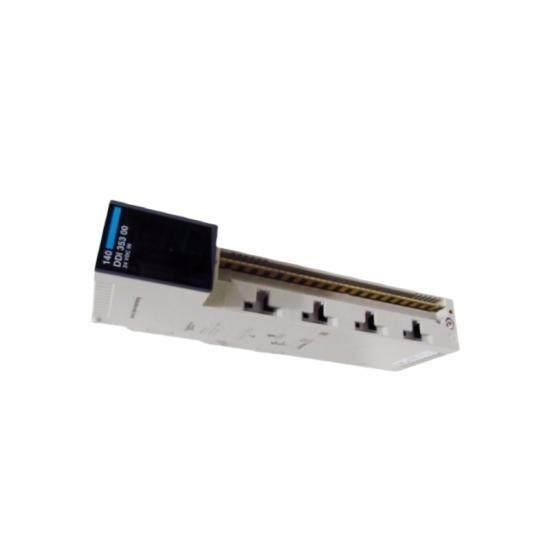

Product Type:Discrete Input Module

Model Number:140DDI35300

Module Manufacturer:Schneider Electric

Automation Platform:Modicon Quantum

Discrete Input Channels:32

Group of Channels:4

Input Voltage:24 V DC

Input Voltage Limits:19.2…30 V

Input Impedance:2500 Ohm

Maximum Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V

Absolute Maximum Input:30 V continuous, 56 V during 1.3 ms decaying pulse

Power Dissipation:1.7 W + (0.36 x number of points on)

Bus Current Requirement:330 mA

Product Weight:0.66 lb (US) (0.3 kg)

    Engineered for seamless integration with Schneider’s Modicon Quantum automation platform, the 140DDI35300 discrete input module ensures precise control and monitoring of industrial processes.

    With 32 discrete input channels, this module is ideal for applications requiring high channel density, providing robust and accurate data acquisition.

    The module supports a wide range of input voltages from 19.2V to 30V, making it suitable for various industrial environments, ensuring compatibility across diverse systems.

    Featuring a 2500 Ohm input impedance, the 140DDI35300 minimizes signal loss, ensuring reliable data transmission even under varying conditions.

    The maximum leakage current of 200 mA at specified voltages ensures safety and prevents false signals, enhancing system reliability.

    This Schneider module comes with an impressive power dissipation capacity, enabling it to handle heavy loads efficiently without overheating.
