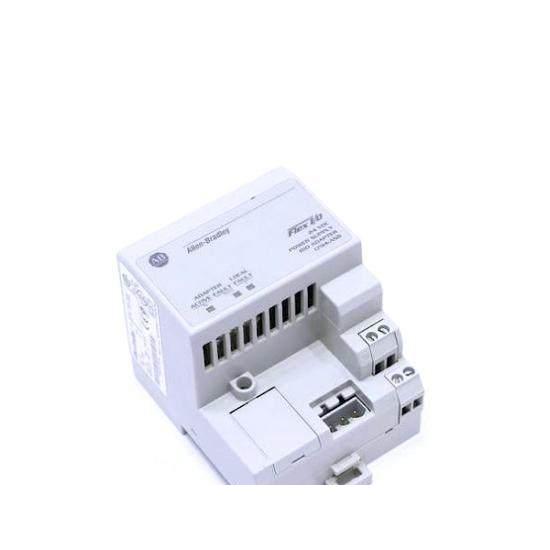

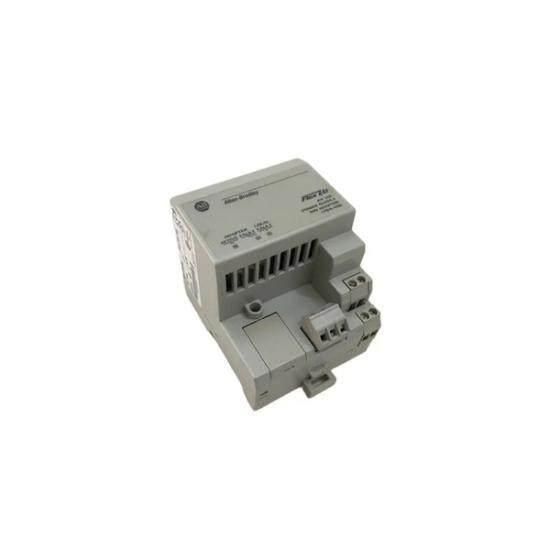

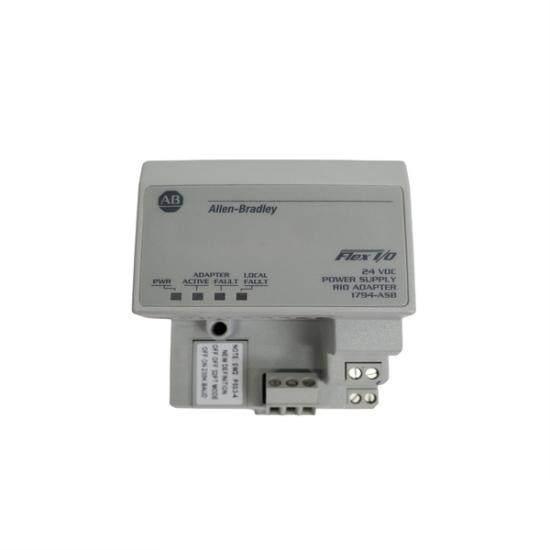

Product Type:Flex I/O Analog Input Module

Model Number:1794-ASB

Manufacturer:Allen Bradley

Number of Channels:8 channels

Input Type:Voltage or Current Input

Input Range:±10V, 4-20mA

Resolution:12-bit

Input Impedance:1MΩ (for voltage), 250Ω (for current)

Power Supply:24V DC

Current Consumption:Typical 40mA

Mounting:DIN Rail

    The Allen Bradley 1794-ASB is a robust and versatile analog input module designed to integrate seamlessly into the Flex I/O system. This module provides precise data acquisition capabilities, ensuring consistent and reliable performance across a wide range of industrial environments.

    With eight input channels capable of handling both voltage and current signals, the 1794-ASB can be configured to meet specific application requirements. Its high-resolution design ensures accurate readings, reducing errors and improving overall system efficiency.

    Designed with ease of installation in mind, the 1794-ASB can be easily mounted on a DIN rail, allowing for quick and efficient setup in industrial settings. Its compact form factor makes it ideal for space-constrained environments without compromising on functionality.

    The module supports both ±10V voltage and 4-20mA current inputs, offering flexibility in signal handling. This makes it suitable for a variety of applications including process control, data logging, and monitoring systems.

    Built with durability and reliability in mind, the 1794-ASB is engineered to withstand harsh industrial conditions. Its robust construction ensures long-term operation and minimal maintenance, providing peace of mind for operators and engineers.
