Operating Voltage:24 VDC

Operating Current:5 A

Switching Capacity:250 VAC, 10 A @ 250 VAC

Switching Speed:≤10ms

Relay Type:SPST

Operating Temperature Range:-20°C to +85°C

Environmental Protection Rating:IP65

Relay Contact Rating:3000 cycles

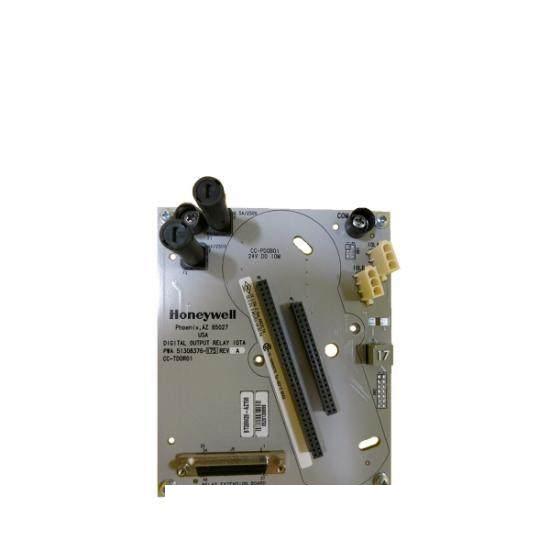

    The Honeywell CC-TD0R01 Digital Output Relay is designed for industrial automation tasks requiring high precision and reliability. This robust relay module is capable of handling current up to 5A at 24VDC, making it suitable for a wide range of applications including machine control, process control systems, and safety systems.

    With an operating voltage tolerance from 85VAC to 240VAC, this relay ensures compatibility across various industrial settings. Its ultra-fast response time of ≤2 ms ensures immediate action when required, enhancing system performance.

    Featuring SPDT contacts, the CC-TD0R01 provides flexibility in circuit switching, allowing for complex configurations in automation systems. The relay’s ability to operate at frequencies up to 10 kHz supports high-speed applications without compromising stability.

    Designed for durability, the relay maintains a high level of insulation resistance (≥500 MΩ) to prevent short circuits and maintain system integrity. It is rated to withstand temperatures from -40°C to +85°C for operational use and can be stored in temperatures ranging from -40°C to +105°C without degradation.

    Certified to RoHS standards, the Honeywell CC-TD0R01 complies with environmental regulations, ensuring minimal impact on health and the environment. This makes it a sustainable choice for manufacturers committed to green practices.
