Manufacturer:General Electric

Model:DS200PCCAG5ACB

Series:Mark V

Voltage Rating:1500 V RMS

Frame Compatibility:J, K, M

Hardware Components:Resistors, Capacitors, Diodes, Integrated Circuits

Wire Connections:4 Wire Jumpers (WP4, WP3, JP2, JP1)

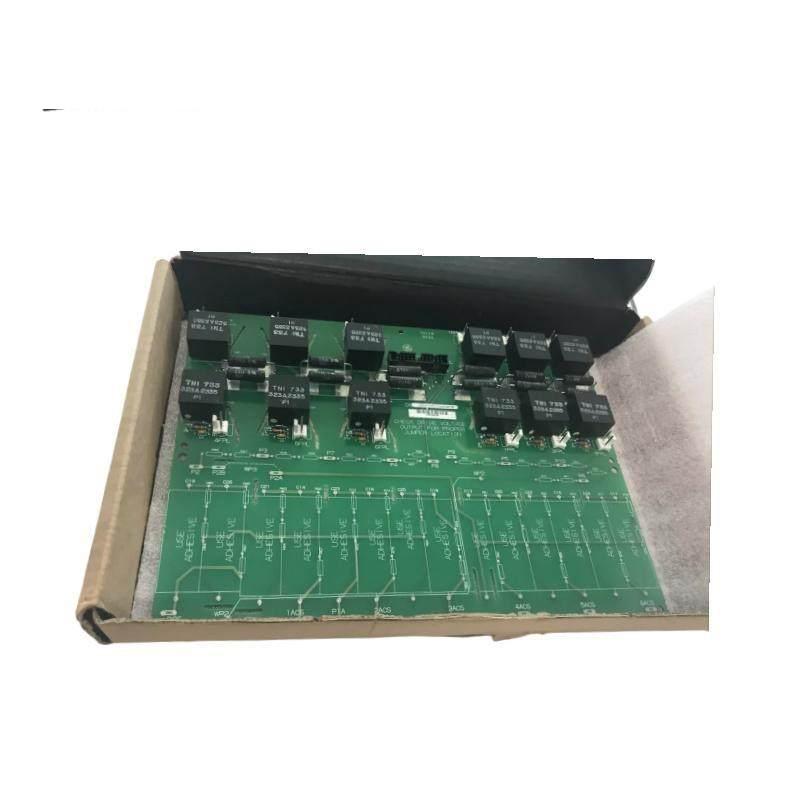

    The DS200PCCAG5ACB Power Connect Card from General Electric is a cornerstone in the Mark V Series of industrial control systems, renowned for its robust performance and compatibility with essential frame components. This product is meticulously designed to optimize the operation of turbine control systems, ensuring seamless integration and enhanced efficiency.

    Featuring a maximum AX Voltage of 1500 V rms, this card is engineered to withstand the rigorous demands of industrial applications, providing unparalleled reliability under varying operational conditions. Its compatibility with J, K, and M-style frame components ensures flexibility and ease of integration into existing systems.

    Equipped with 4 wire jumpers—labeled WP4, WP3, JP2, and JP1—the DS200PCCAG5ACB facilitates precise signal routing and management, enhancing system responsiveness and control. Its innovative design includes a series of hardware components that adhere to the standardized requirements of the Mark V Series, comprising resistors, capacitors, diodes, and integrated circuits.

    The card’s base circuit board has been meticulously factory-drilled, with each drill hole ringed with an insulated material to prevent short circuits and ensure optimal electrical insulation. This attention to detail contributes to the card’s overall reliability and longevity in demanding industrial settings.

    Secured to the backside of a board carrier with two boards and six plastic holders, the DS200PCCAG5ACB is not only durable but also easy to install, streamlining maintenance and upgrade processes. It is an indispensable component for enhancing the efficiency and reliability of turbine control systems, backed by the trusted reputation of General Electric.
