Model Type:Digital IO Relay Module

Manufacturer:SIEMENS

Model Number:6ES7 223-1PL22-0XA0

Quantity per Package:1

Input Capacity:16 DI

Output Capacity:16 DO

Relay Type:Relay

Operating Voltage:24V DC

Operating Current:0.5A

Switching Frequency:0.1~600Hz

Connection Type:Source Output

Switching Configuration:PNP

Color Code:CC02

Diagnostic Features:Short-circuit to L+, Ground, Wire Break, Supply Voltage

Net Weight:0.077 lb

Product Class:-

Group Code:R111

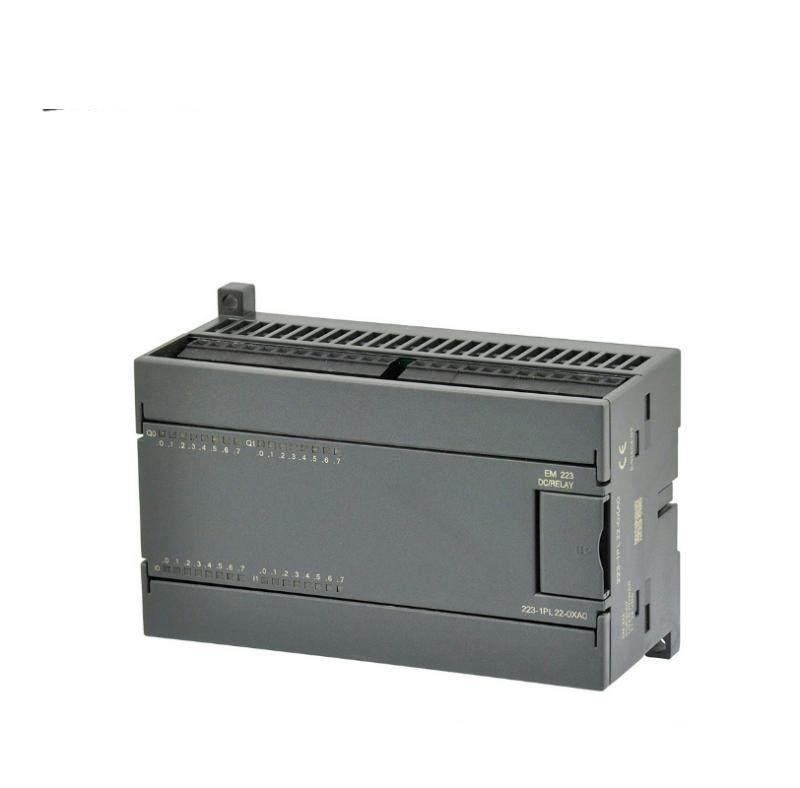

    Engineered for durability and reliability, the SIEMENS 6ES7 223-1PL22-0XA0 Digital Relay Module is an indispensable component for any industrial automation setup. This compact module provides 16 Digital Input (DI) channels and 16 Digital Output (DO) channels, ensuring versatile and precise control.

    Each DI channel supports 24V DC operation, while the DO channels offer 24V DC power at a maximum of 0.5 A per channel, allowing for efficient handling of diverse electrical loads. The relay-based design ensures stable and reliable switching under all conditions.

    Integrated with Profinet communication, this module seamlessly connects with other Siemens and third-party automation devices, enhancing system interoperability. Its compatibility with DC power sources ensures flexibility in installation scenarios.

    Measuring only 100mm x 100mm x 32mm and weighing just 0.18 kg, this module is easy to integrate into space-constrained environments without compromising performance. The lightweight and compact design make it ideal for mobile or on-the-go applications.

    Designed with safety in mind, the SIEMENS 6ES7 223-1PL22-0XA0 includes comprehensive protection measures to safeguard against common failures. These features, combined with its high-speed processing capabilities, make it a preferred choice for applications requiring high-speed data transfer and precise control.
