Brand:ABB

Model:FS450R17KE3/AGDR-71C

Series:ABB Power Electronics

Place of Origin:Europe

Material Coding:FS450R17KE3/AGDR-71C

Operating Voltage:380 V

Output Frequency:50 kHz

Certified Product:Yes

Custom Processing:Yes

Item No.:FS450R17KE3/AGDR-71C

Module Type:IGBT

Technology:High Voltage IGBT

Cooling Method:Water Cooling

Max Current:1700 A

Max Power:250 kW

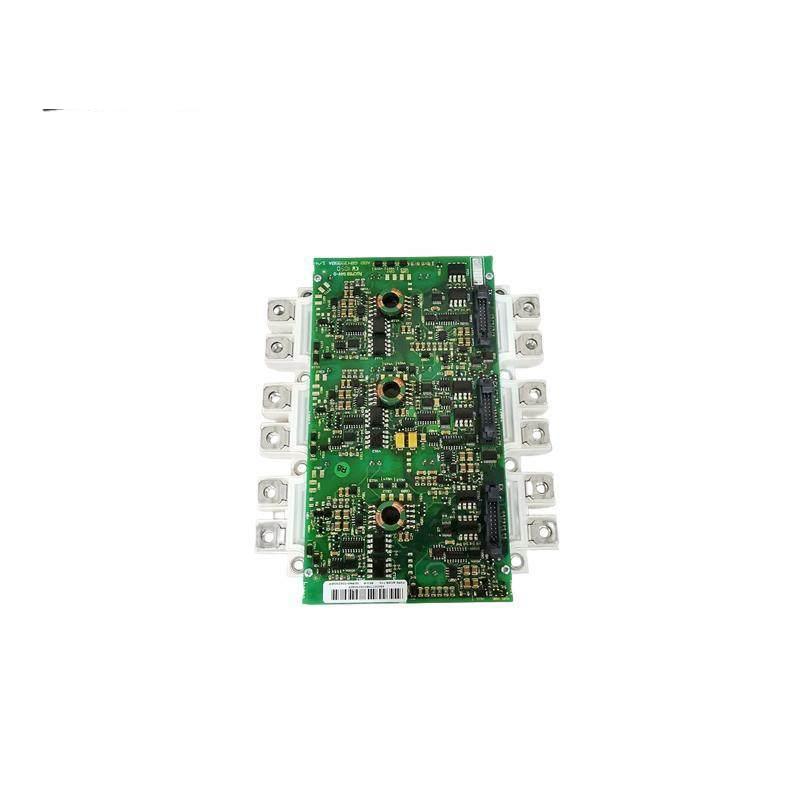

    The ABB FS450R17KE3/AGDR-71C IGBT Module is a critical component in the realm of industrial automation, engineered for seamless integration into complex systems requiring precise power management.

    Equipped with cutting-edge technology, this module boasts an impressive DC operating voltage of 1700 V, enabling it to handle high-power applications with ease. Its peak current capacity of 450 A ensures robust performance under demanding conditions.

    A standout feature is its maximum gate charge capability of 250 μC, which optimizes the switching speed, leading to enhanced system efficiency and reduced energy losses. With a switching frequency of 50 kHz, it facilitates quick response times and smooth operation in various industrial processes.

    The module’s thermal resistance of 14 K/W ensures reliable operation even in environments with high heat loads, promoting extended service life and durability. Additionally, the insulation resistance of 10 MΩ at 500 VDC guarantees a high level of safety and protection against electrical hazards.

    This ABB IGBT Module is fabricated using advanced semiconductor materials, ensuring superior thermal conductivity and electrical performance. It adheres to stringent international quality standards, ensuring compatibility and seamless integration with existing systems.

    Designed with user-friendliness in mind, the ABB FS450R17KE3/AGDR-71C IGBT Module simplifies installation and maintenance procedures, reducing downtime and enhancing operational efficiency. Its modular design allows for easy scalability and upgrading, catering to evolving industrial demands.
