Model:DS3800HIMA1

Manufacturer:General Electric

Type:High-level Isolation Board

Category:GE Boards & Turbine Control

Version:Mark IV DS3800

Isolation Level:Enhanced

Operating Temperature Range:-40°C to 70°C

Power Consumption:≤10W

Input Voltage:24VDC

Output Voltage:5VDC

Communication Interface:RS-485

Dimensions (WxHxD):100mm x 50mm x 20mm

Material:Ruggedized Polycarbonate Enclosure

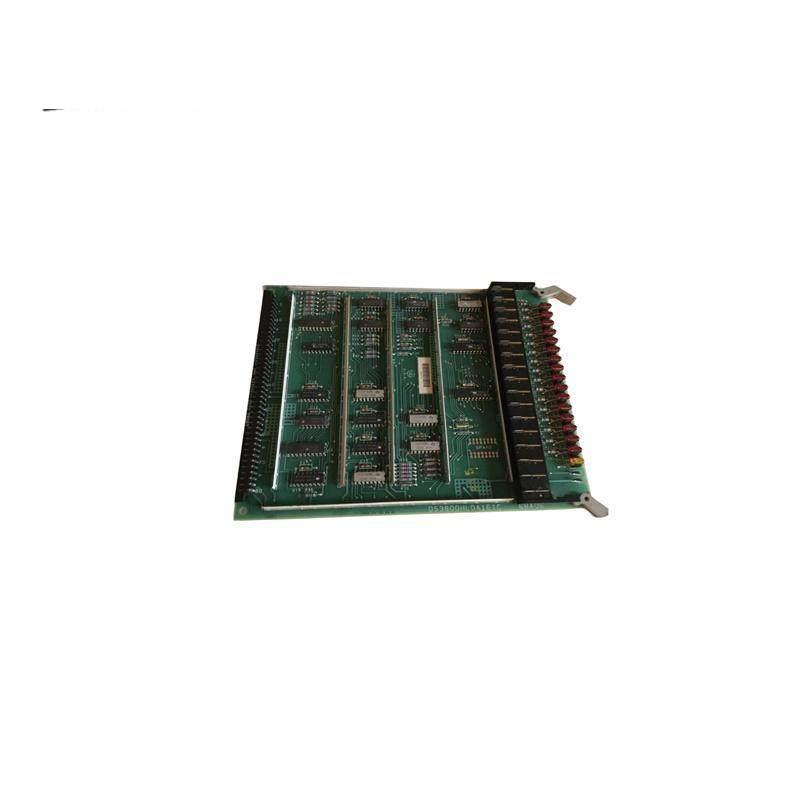

    The GE DS3800HIMA1 isolation board is specifically engineered for high-reliability applications within industrial control systems. It ensures electrical isolation to protect against potential hazards, enhancing system safety and operational integrity.

    With its wide operating temperature range from -40°C to +70°C, this board is suitable for diverse industrial environments, from freezing cold to extreme heat conditions.

    Featuring an input voltage range of DC 24V and a maximum output current rating of 10A, it provides ample power for various devices while maintaining high efficiency.

    Equipped with a robust isolation rating of 10MΩ, the board effectively prevents cross-contamination between circuits, safeguarding sensitive electronics and improving overall system reliability.

    Compact yet powerful, the DS3800HIMA1 measures 178mm x 115mm x 64mm, integrating seamlessly into existing control systems without compromising on space. It consumes a mere 5W of power, making it energy-efficient and cost-effective.

    For optimal performance and longevity, we recommend regular maintenance and adherence to manufacturer guidelines. Our dedicated customer support team is available to assist with any technical inquiries or product-related issues.
